Model Electrolux WAK103F1V1 ROOM AIR CONDITIONER – Common Parts & Diagrams

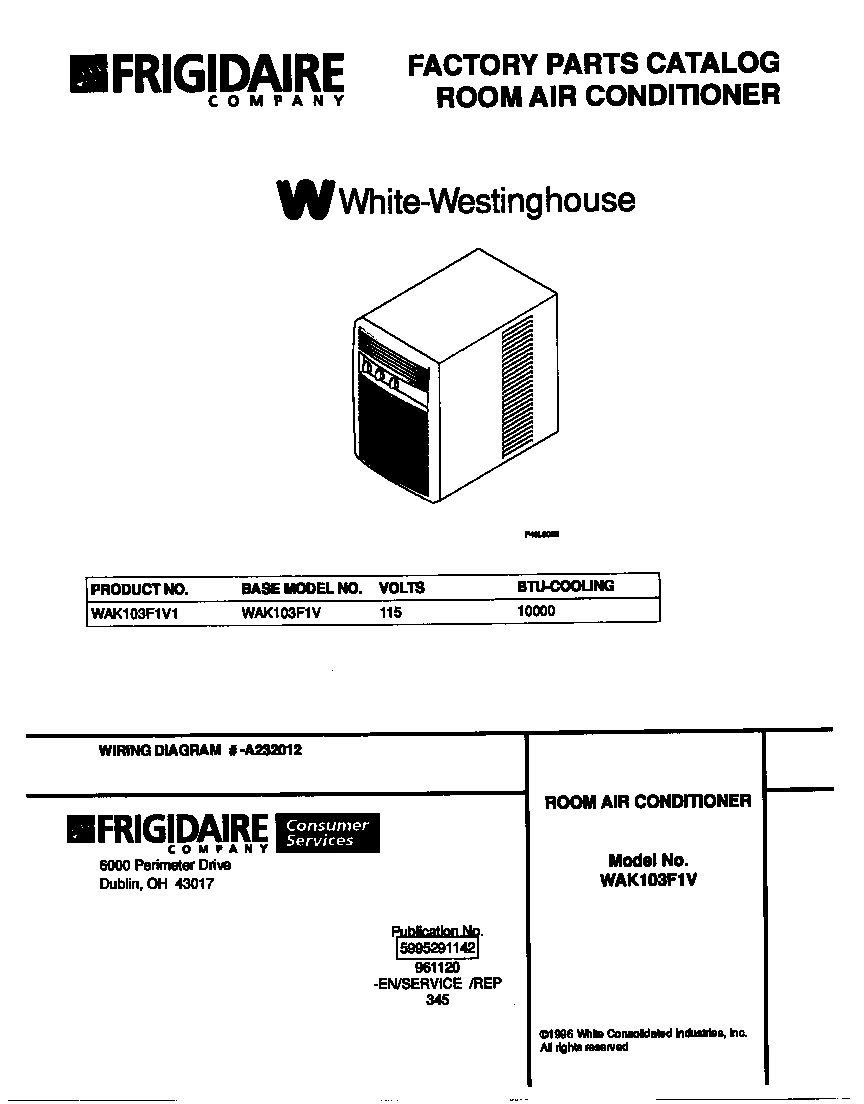

01 - COVER

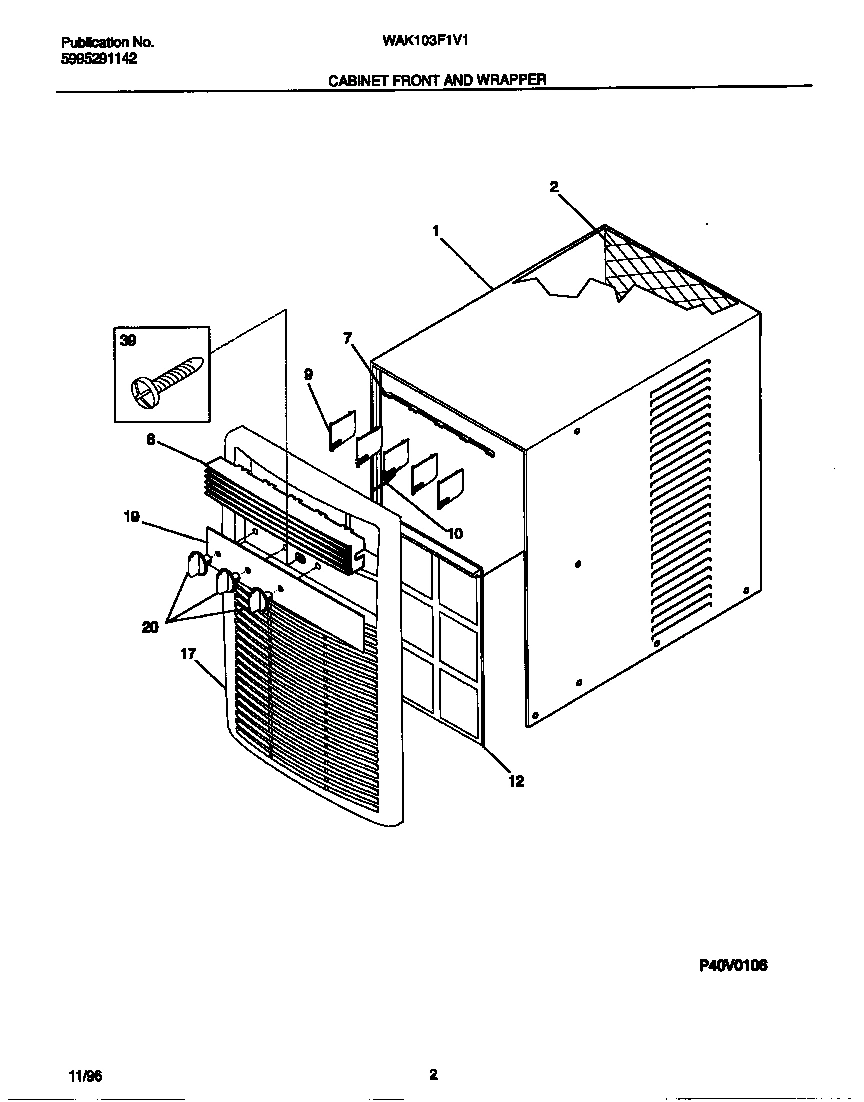

02 - CABINET FRONT AND WRAPPER

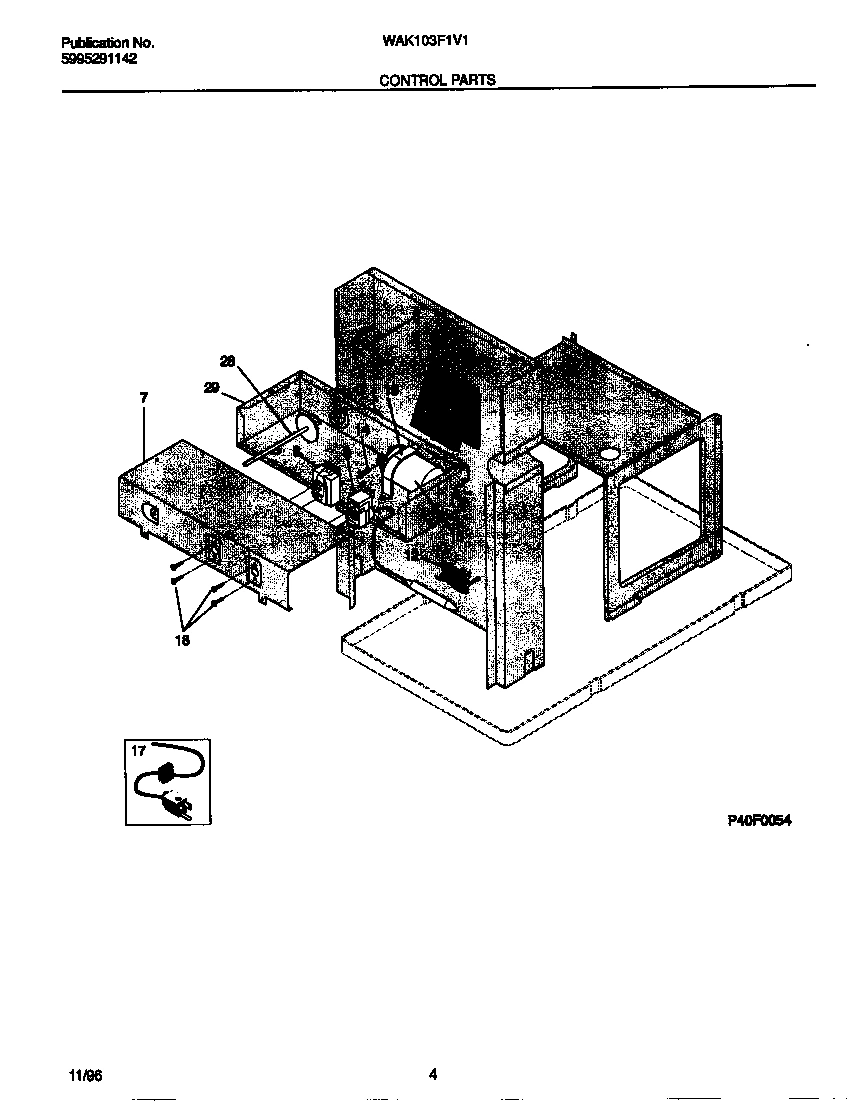

03 - CONTROL PARTS

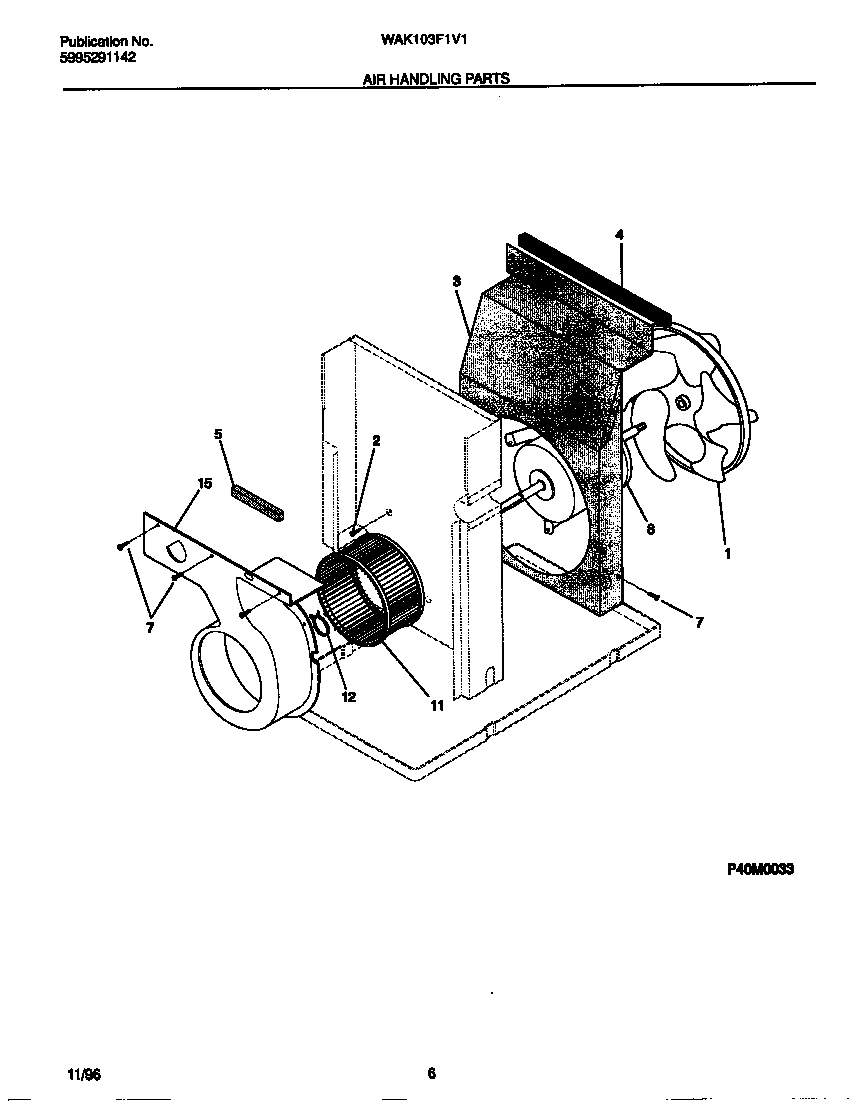

04 - AIR HANDLING PARTS

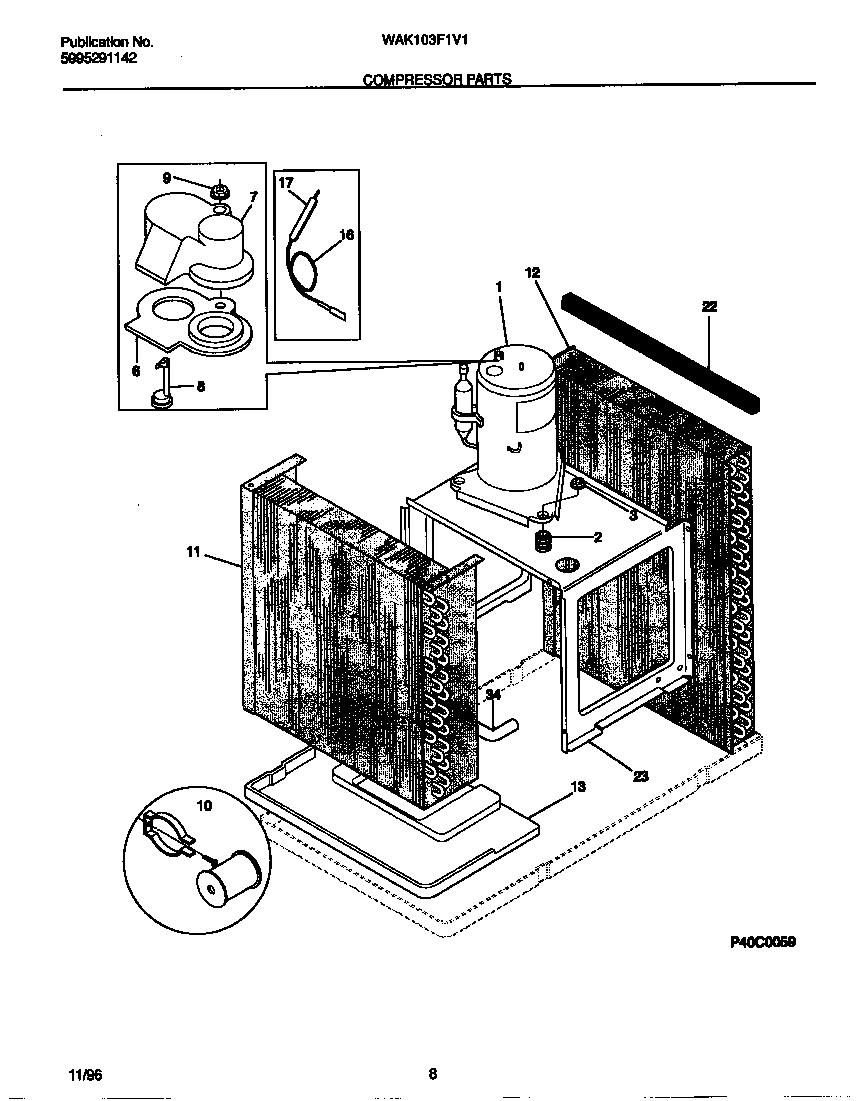

05 - COMPRESSOR PARTS

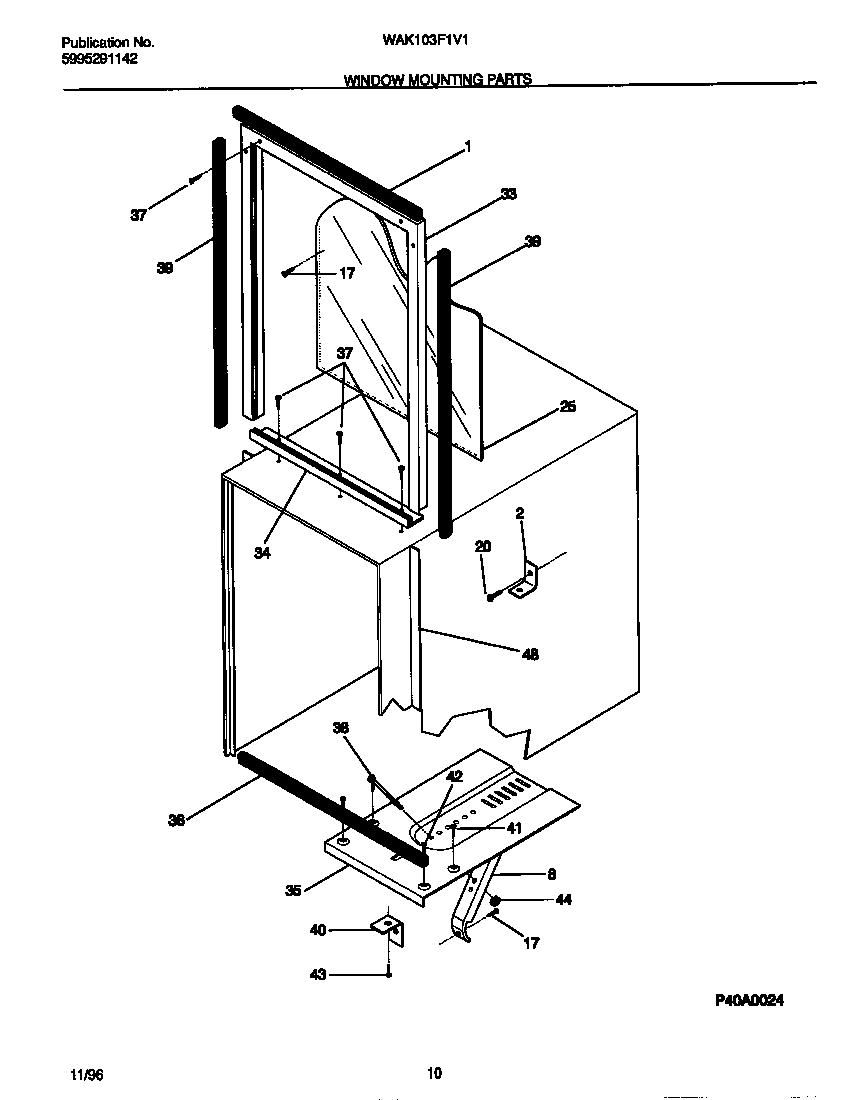

06 - WINDOW MOUNTING PARTS

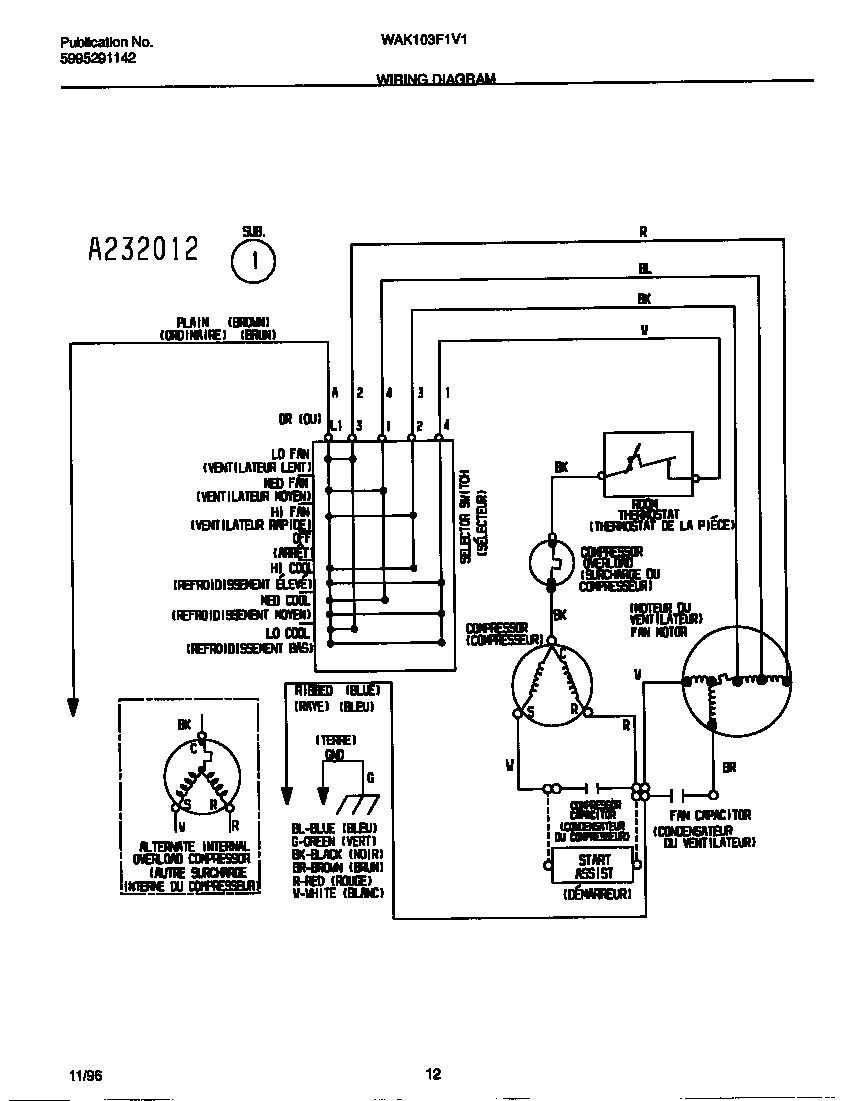

07 - WIRING DIAGRAM
Common parts from model Electrolux WAK103F1V1 ROOM AIR CONDITIONER
*06440
WCI 309000903 WCI 309000903 Contact Us For Availability
1
WCI 309612401 WCI 309612401 Contact Us For Availability
1
WCI 5303307797 WCI 5303307797 Contact Us For Availability
1
WCI 5303313968 WCI 5303313968 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 5303317604 WCI 5303317604 Contact Us For Availability
2
DOOR VENT WCI 08047482 Contact Us For Availability
2
GROMMET COMPRESSOR (3) WCI 5303015945 Contact Us For Availability
3
CABLE-VENT DOOR WCI 5308047557 Contact Us For Availability
3
WCI 309620501 WCI 309620501 Contact Us For Availability
3
Nut,plastic ,compressor ,(3) WCI 5303015946 Contact Us For Availability
5
WCI 5303316711 WCI 5303316711 Contact Us For Availability
6
WCI 3201668 WCI 3201668 Contact Us For Availability
7
WCI 5303303089 WCI 5303303089 Contact Us For Availability
7
WCI 309606501 WCI 309606501 Contact Us For Availability
7
WCI 3201669 WCI 3201669 Contact Us For Availability
8
WCI 309622202 WCI 309622202 Contact Us For Availability
8
WCI 5303313962 WCI 5303313962 Contact Us For Availability
8
WCI 309617701 WCI 309617701 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303307795 Contact Us For Availability
8
WCI 5303319114 WCI 5303319114 Contact Us For Availability
9
WCI 309622101 WCI 309622101 Contact Us For Availability
9
WCI 5303321674 WCI 5303321674 Contact Us For Availability
9
WCI 3201670 WCI 3201670 Contact Us For Availability
10
WCI 309622102 WCI 309622102 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309616801 WCI 309616801 Contact Us For Availability
11
WCI 309617001 WCI 309617001 Contact Us For Availability
12
WCI 309622302 WCI 309622302 Contact Us For Availability
12
WCI 309321201 WCI 309321201 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 309617201 WCI 309617201 Contact Us For Availability
13
WCI 5303313963 WCI 5303313963 Contact Us For Availability
13
WCI 309612501 WCI 309612501 Contact Us For Availability
14
SCREW WCI 08016221 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309606802 WCI 309606802 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
17
WCI 309622402 WCI 309622402 Contact Us For Availability
17
WCI 5303313974 WCI 5303313974 Contact Us For Availability
17
SCREW-WOOD,ROUND HEAD ,8-15 X 0.750 WCI 5308013771 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
19
WCI 309622601 WCI 309622601 Contact Us For Availability
20
KNOB-CONTROL WCI 309307002 Contact Us For Availability
20
WCI 5303295750 WCI 5303295750 Contact Us For Availability
22
WCI 5303313964 WCI 5303313964 Contact Us For Availability
23
WCI 309614101 WCI 309614101 Contact Us For Availability
25
PANEL-WINDOW,PLASTIC WCI 5308047516 Contact Us For Availability
28
WCI 309308902 WCI 309308902 Contact Us For Availability
29
WCI 309606401 WCI 309606401 Contact Us For Availability
33
WCI 5303313971 WCI 5303313971 Contact Us For Availability
34
WCI 309105501 WCI 309105501 Contact Us For Availability
34
WCI 5303313965 WCI 5303313965 Contact Us For Availability
35
WCI 5303302872 WCI 5303302872 Contact Us For Availability
36
SEAL,MOUNTING PLATE WCI 5308047524 Contact Us For Availability
37
Screw,pan head `8-32D x 0.75 ,slotted WCI 5308047558 Contact Us For Availability
38
Screw-adjusting,mounting plate WCI 5308047562 Contact Us For Availability
39
WCI 5303313967 WCI 5303313967 Contact Us For Availability
40
WCI 5303302870 WCI 5303302870 Contact Us For Availability
41
Screw,pan head `10-12A x 1.00 `slotted WCI 5300125233 Contact Us For Availability
42
Screw,pan head `10-12A x 1.75 ,slotted WCI 5300507212 Contact Us For Availability
43
Screw,flat head `10-12A x 2.50 `slotted WCI 5300507693 Contact Us For Availability
44
NUT,HEX FLANGE ,1/4-20 WCI 5300516543 Contact Us For Availability
48
WCI 309305301 WCI 309305301 Contact Us For Availability
× ![]()
