Model Electrolux WAH12EH2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams

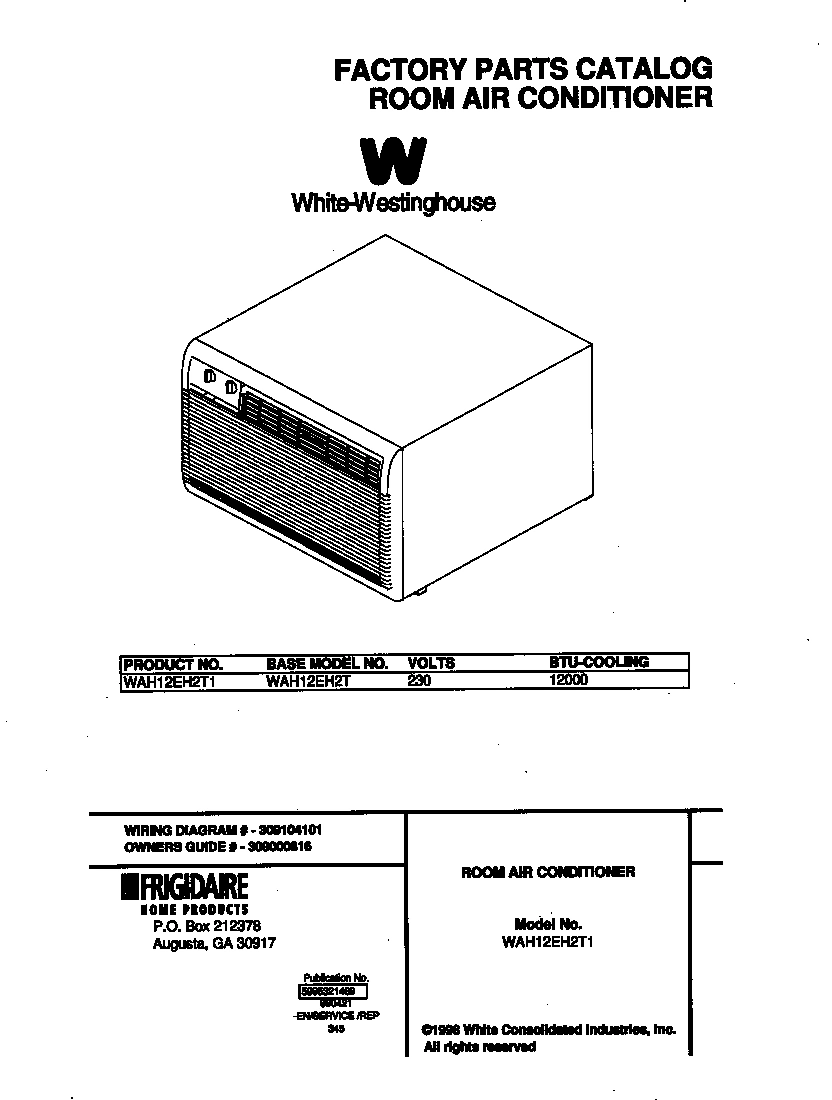

01 - COVER

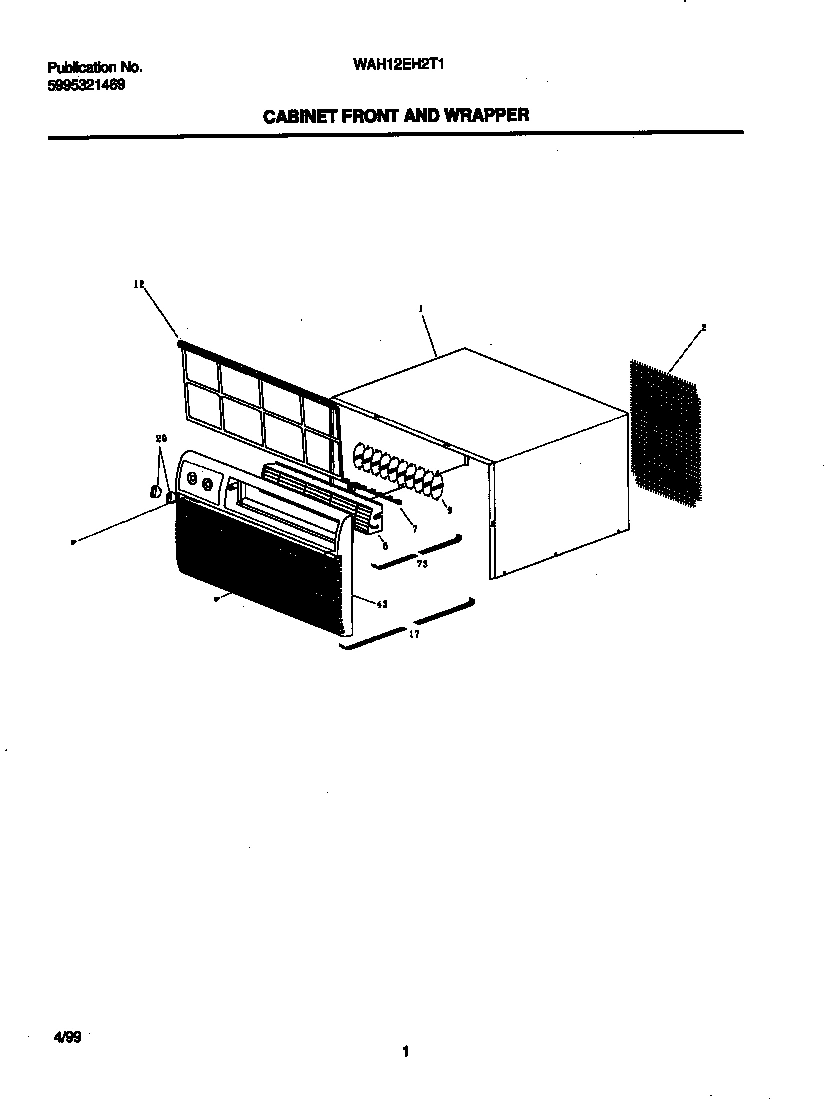

02 - CABINET FRONT/WRAPPER

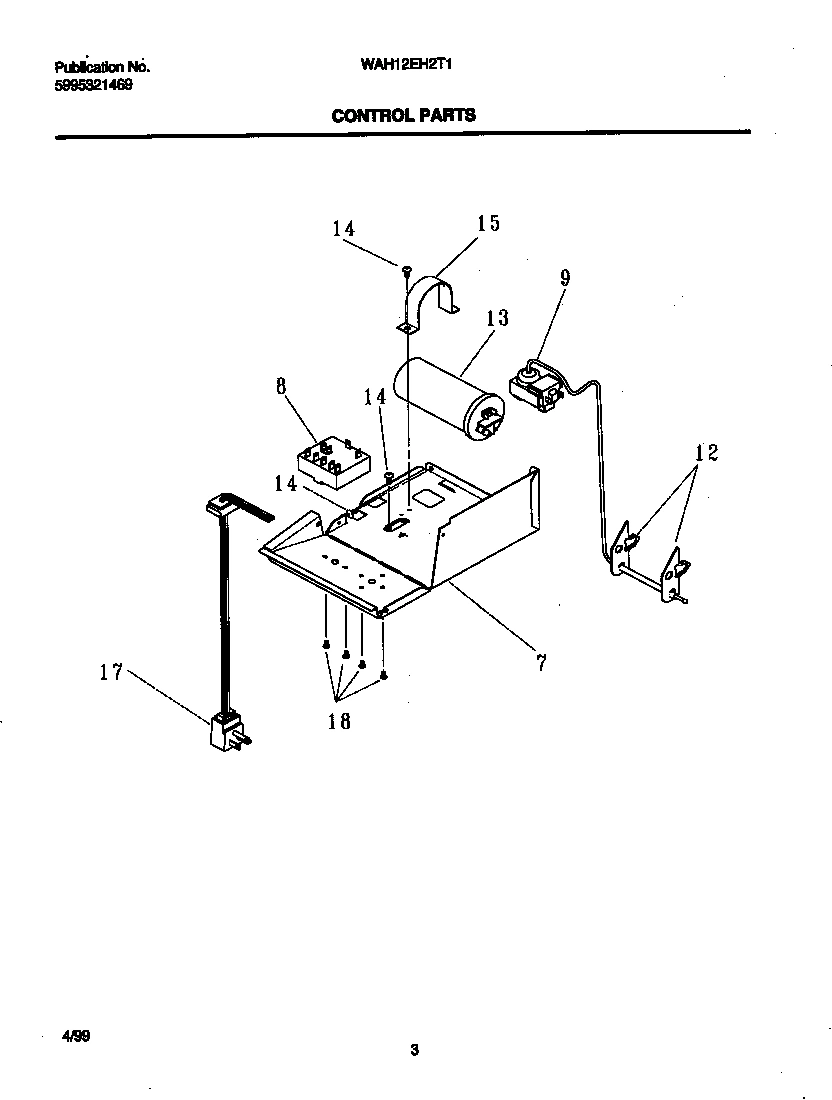

03 - CONTROL PARTS

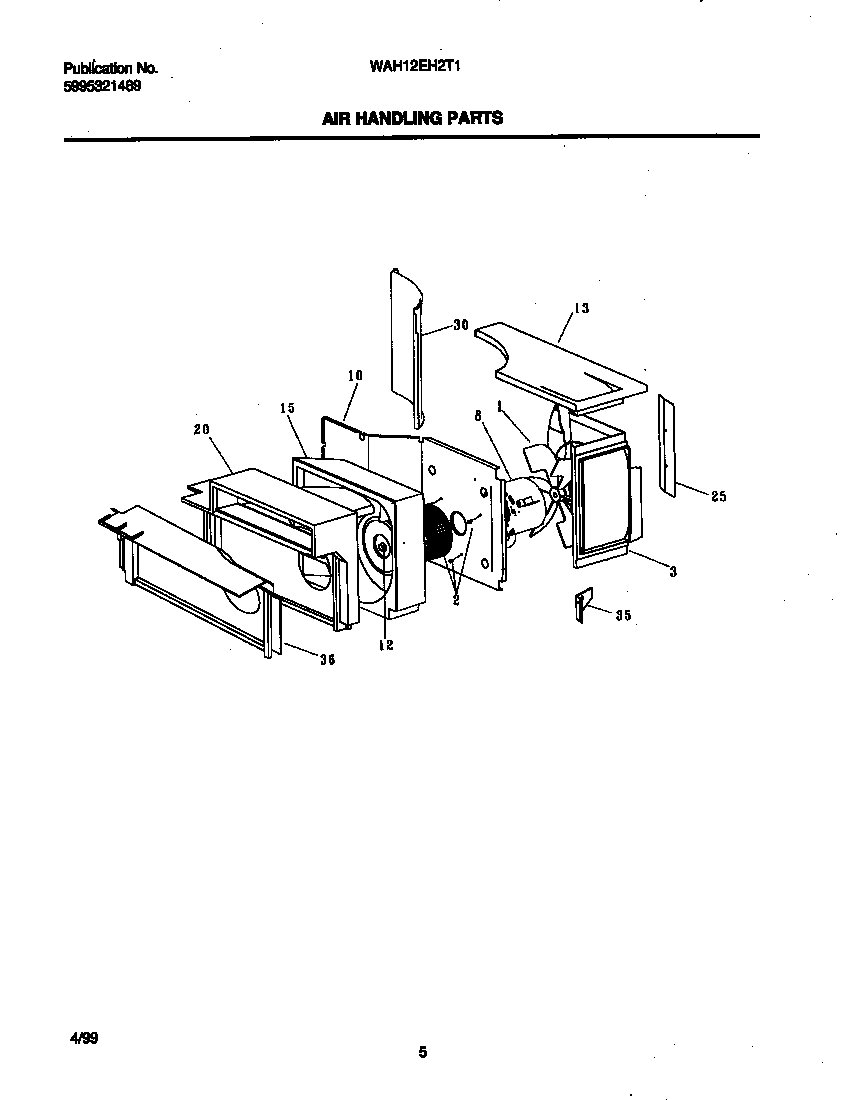

04 - AIR HANDLING PARTS

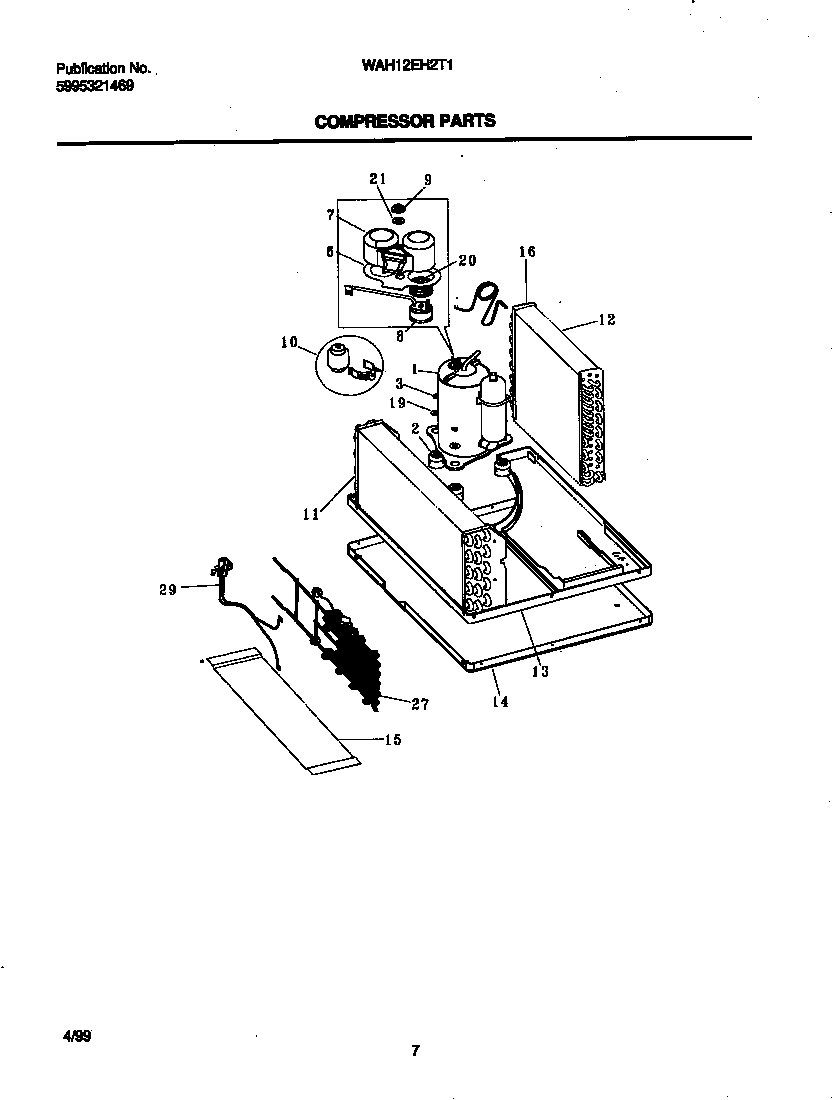

05 - COMPRESSOR

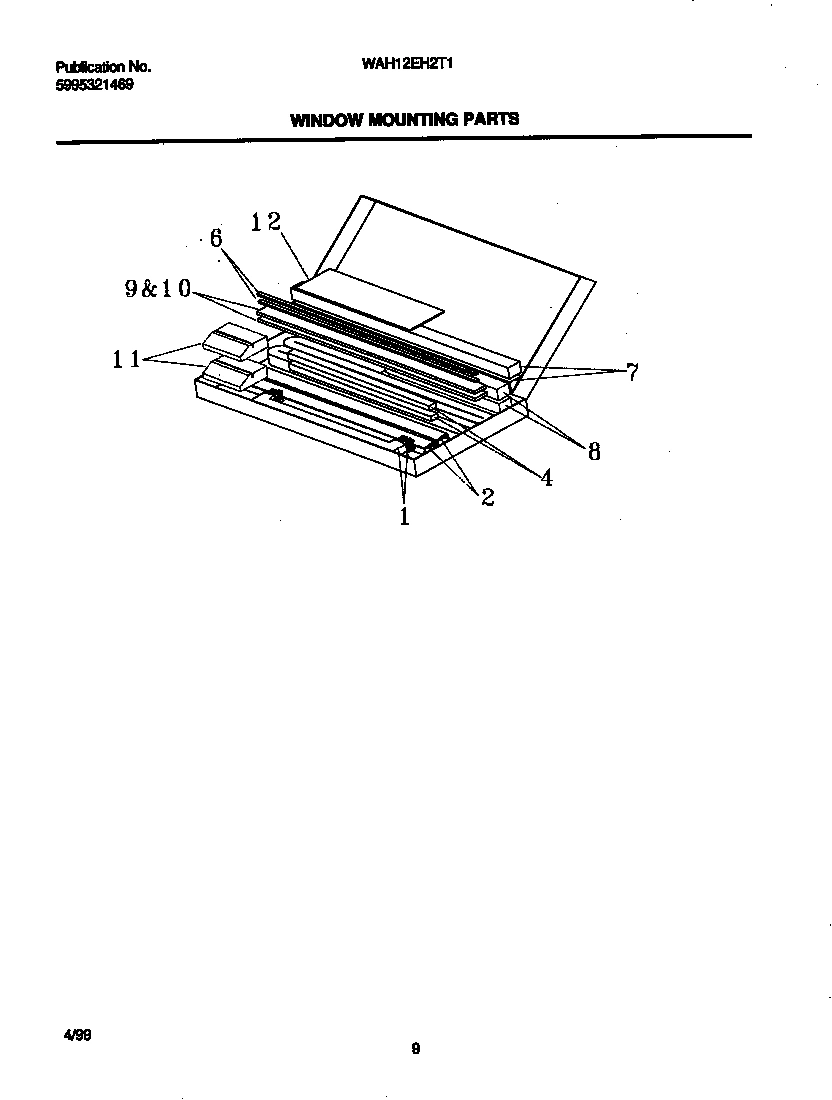

06 - MOUNTING PARTS
Common parts from model Electrolux WAH12EH2T1 ROOM AIR CONDITIONER
*57201
GROMMET-WIRES WCI 309111201 Contact Us For Availability
1
WCI 309627502 WCI 309627502 Contact Us For Availability
1
WCI 5304408198 WCI 5304408198 Contact Us For Availability
1
WCI 309628601 WCI 309628601 Contact Us For Availability
2
SCREEN-SAFETY 18.5BLD WCI 309636101 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
2
WCI 309628602 WCI 309628602 Contact Us For Availability
3
SHROUD-CONDENSER 18.5 BLD WCI 309628901 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
3
WCI 5304409303 WCI 5304409303 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
SEAL,HOUSING-FAN ,BOTTOM WCI 3202951 Contact Us For Availability
5
SEAL-WRAPPER TO WRAPPER S/O WCI 5303301038 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
WCI 5304409305 WCI 5304409305 Contact Us For Availability
7
WCI 309324001 WCI 309324001 Contact Us For Availability
7
WCI 309628502 WCI 309628502 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5304409306 WCI 5304409306 Contact Us For Availability
8
WCI 309329301 No Longer Available
8
WCI 309628001 WCI 309628001 Contact Us For Availability
8
WCI 5304409514 WCI 5304409514 Contact Us For Availability
8
WCI 5304408199 WCI 5304408199 Contact Us For Availability
8
WCI 5304409307 WCI 5304409307 Contact Us For Availability
9
WCI 309628102 WCI 309628102 Contact Us For Availability
9
WCI 5304409496 WCI 5304409496 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
WCI 5304409308 WCI 5304409308 Contact Us For Availability
10
BULKHEAD-18.5CHASSIS (FLEX) WCI 309627401 Contact Us For Availability
10
WCI 5304409309 WCI 5304409309 Contact Us For Availability
11
BLOWER WHEEL-18.5 BLD WCI 309631701 Contact Us For Availability
11
WCI 309632401 WCI 309632401 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
WCI 309628201 WCI 309628201 Contact Us For Availability
12
RETAINING CLIP-SENS BULB WCI 309329801 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 309632505 WCI 309632505 Contact Us For Availability
13
WCI 5303319112 WCI 5303319112 Contact Us For Availability
13
WCI 309628801 WCI 309628801 Contact Us For Availability
13
WCI 309628702 WCI 309628702 Contact Us For Availability
13
WCI 5304409311 WCI 5304409311 Contact Us For Availability
14
WCI 309632001 WCI 309632001 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309622802 WCI 309622802 Contact Us For Availability
15
WCI 309629501 WCI 309629501 Contact Us For Availability
15
WCI 309636001 WCI 309636001 Contact Us For Availability
16
CAPILLARY TUBE WCI 3203179 Contact Us For Availability
17
WCI 309629402 WCI 309629402 Contact Us For Availability
17
WCI 5304409515 WCI 5304409515 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309307008 WCI 309307008 Contact Us For Availability
20
WCI 309625501 WCI 309625501 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
25
BAFFLE-AIR 18.5`` WCI 309335201 Contact Us For Availability
27
+HEATER ASSY-18.5 230V/3450W WCI 309627002 Contact Us For Availability
30
PARTITION-SHROUD WCI 309629001 Contact Us For Availability
30
WCI 3017804 WCI 3017804 Contact Us For Availability
32
NUT-HEATER WCI 3018695 Contact Us For Availability
35
WCI 3200761 WCI 3200761 Contact Us For Availability
35
BAFFLE-CONDENSATE FOR MOTOR WCI 309335001 Contact Us For Availability
36
WCI 309633401 WCI 309633401 Contact Us For Availability
36
+HARNESS-WIR HTR 18.5 12AWG WCI 5304409501 Contact Us For Availability
37
+HARNESS ASM-SW/CNTL BOX 12AWG WCI 5304409509 Contact Us For Availability
43
WCI 309631802 WCI 309631802 Contact Us For Availability
73
WCI 309629301 WCI 309629301 Contact Us For Availability
× ![]()
