Model Electrolux WAH11EP2T4 ROOM AIR CONDITIONER – Common Parts & Diagrams

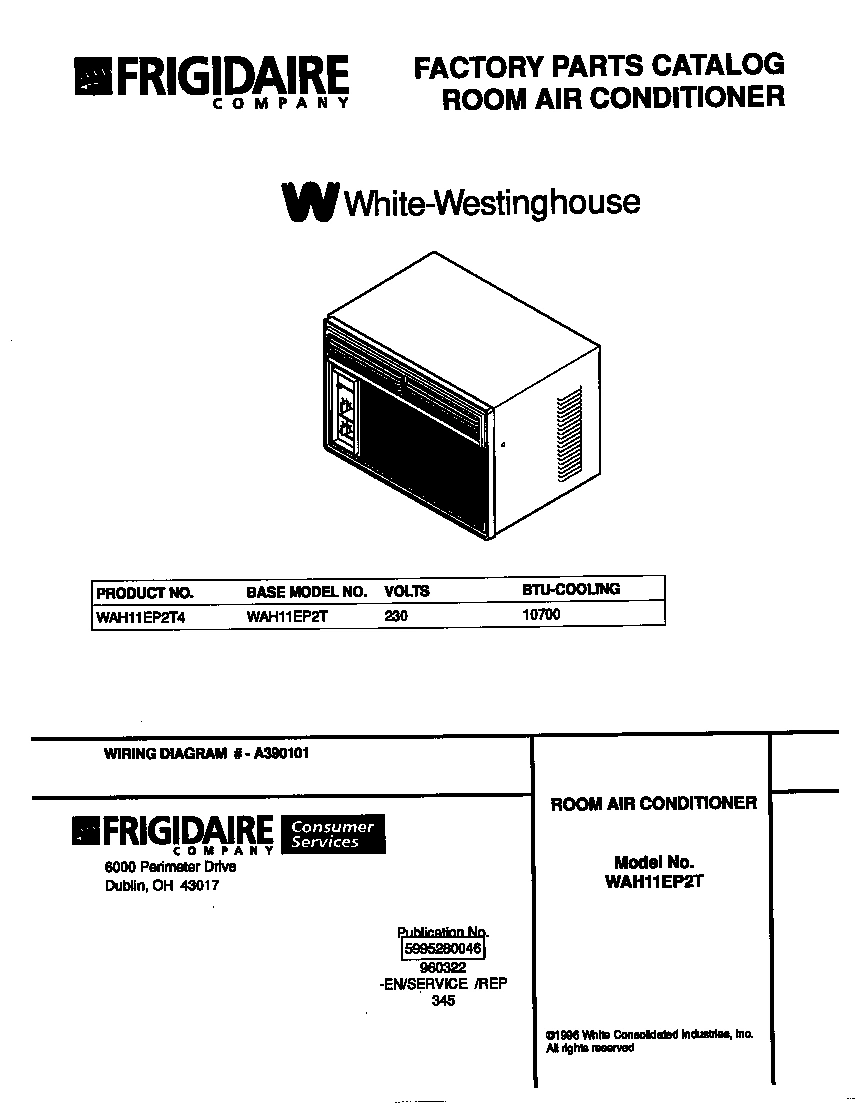

01 - COVER

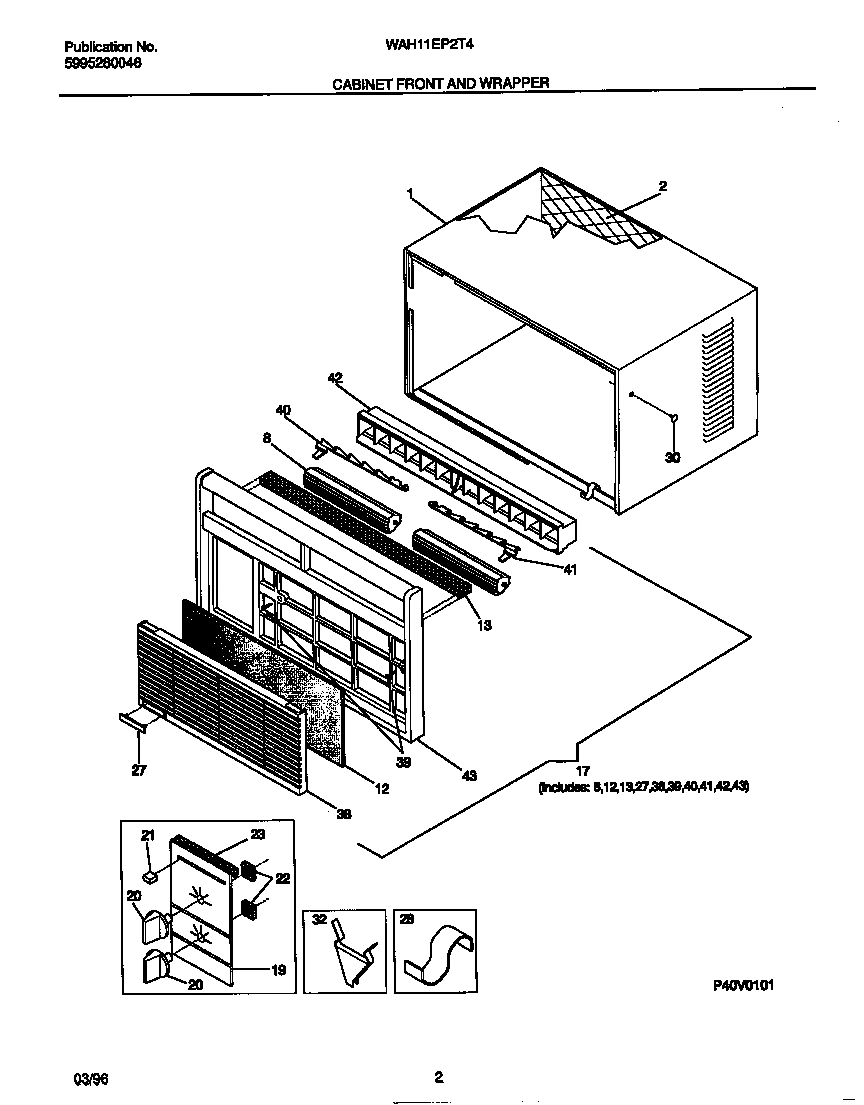

02 - CABINET FRONT AND WRAPPER

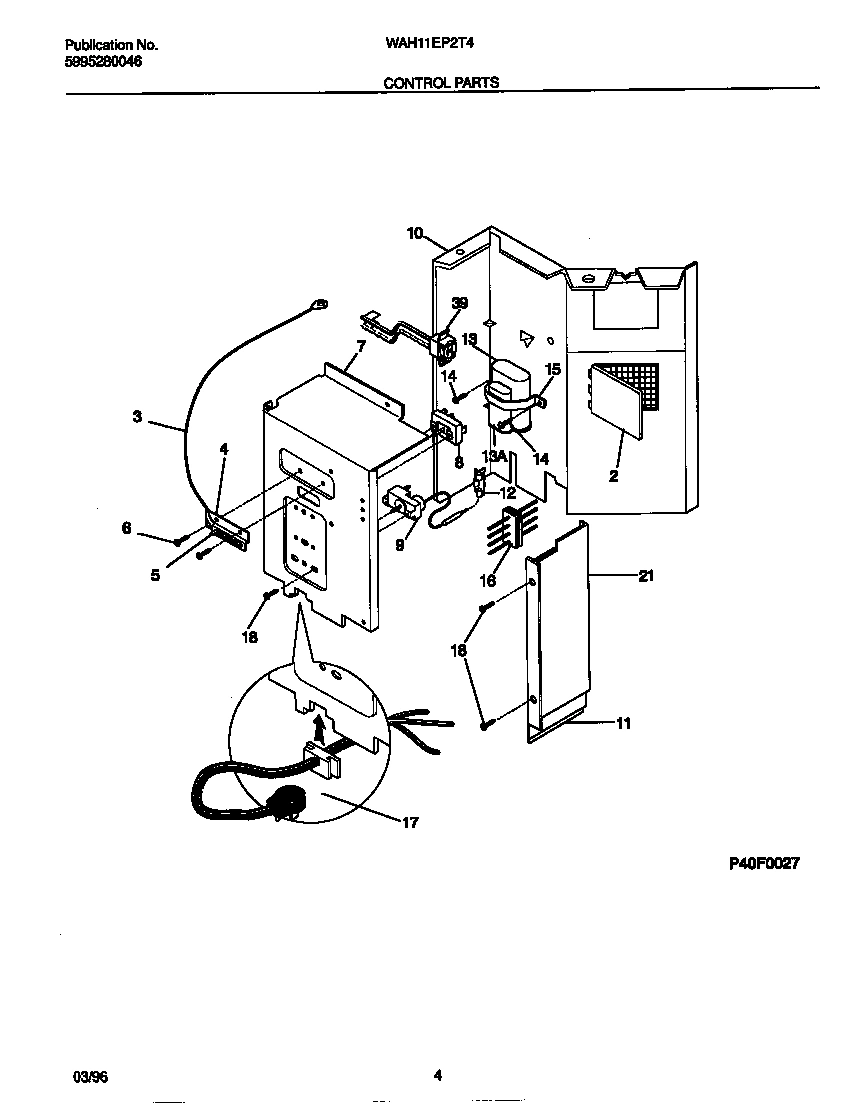

03 - CONTROL PARTS

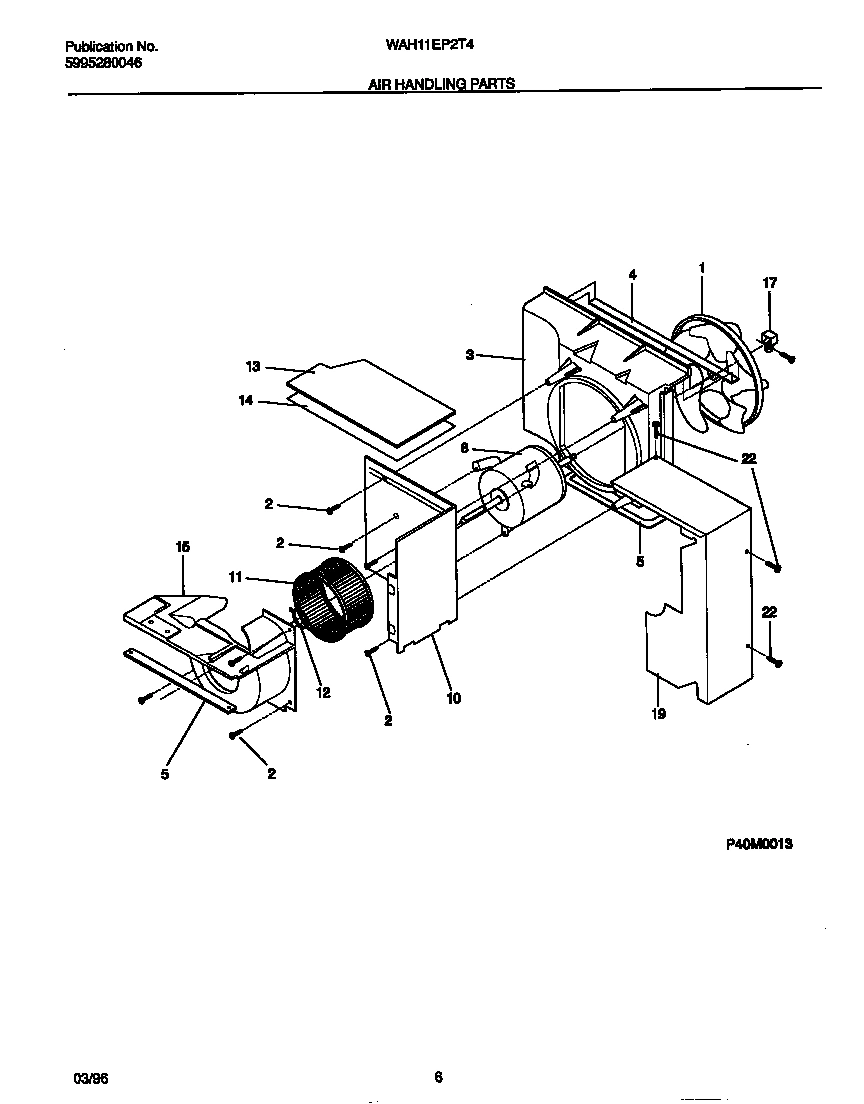

04 - AIR HANDLING PARTS

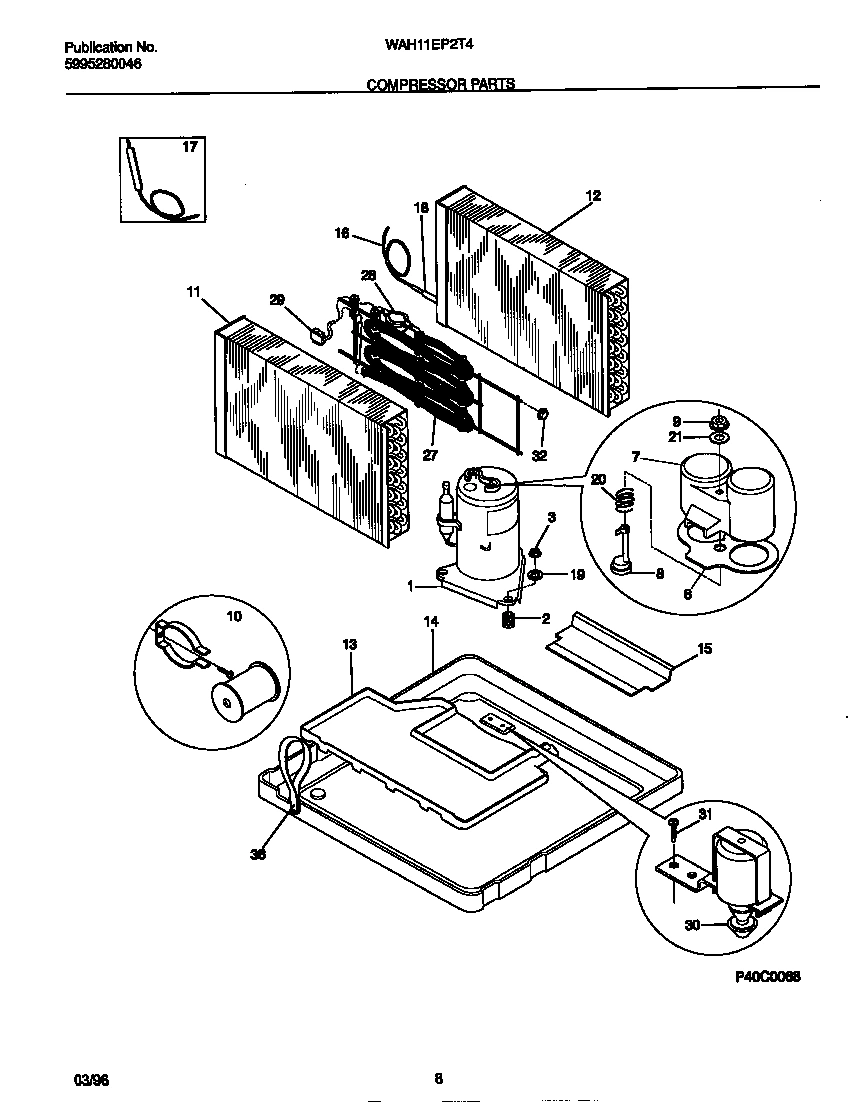

05 - COMPRESSOR PARTS

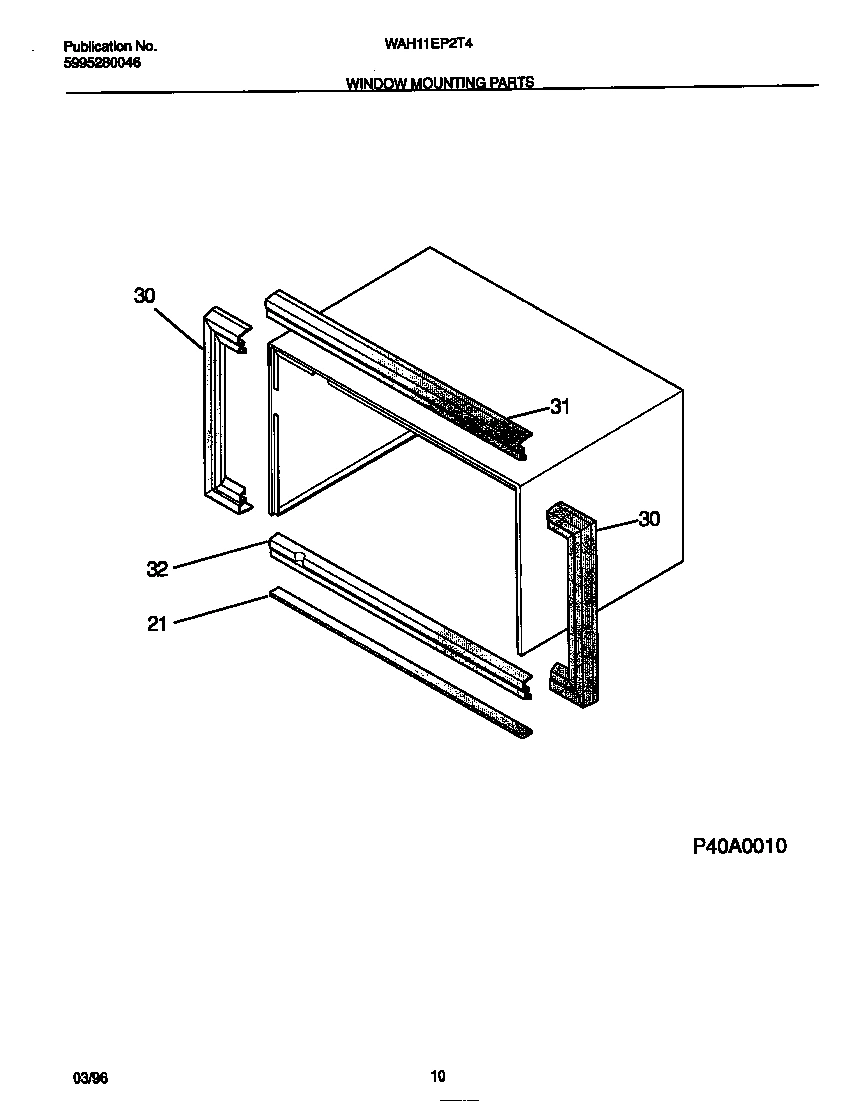

06 - WINDOW MOUNTING PARTS

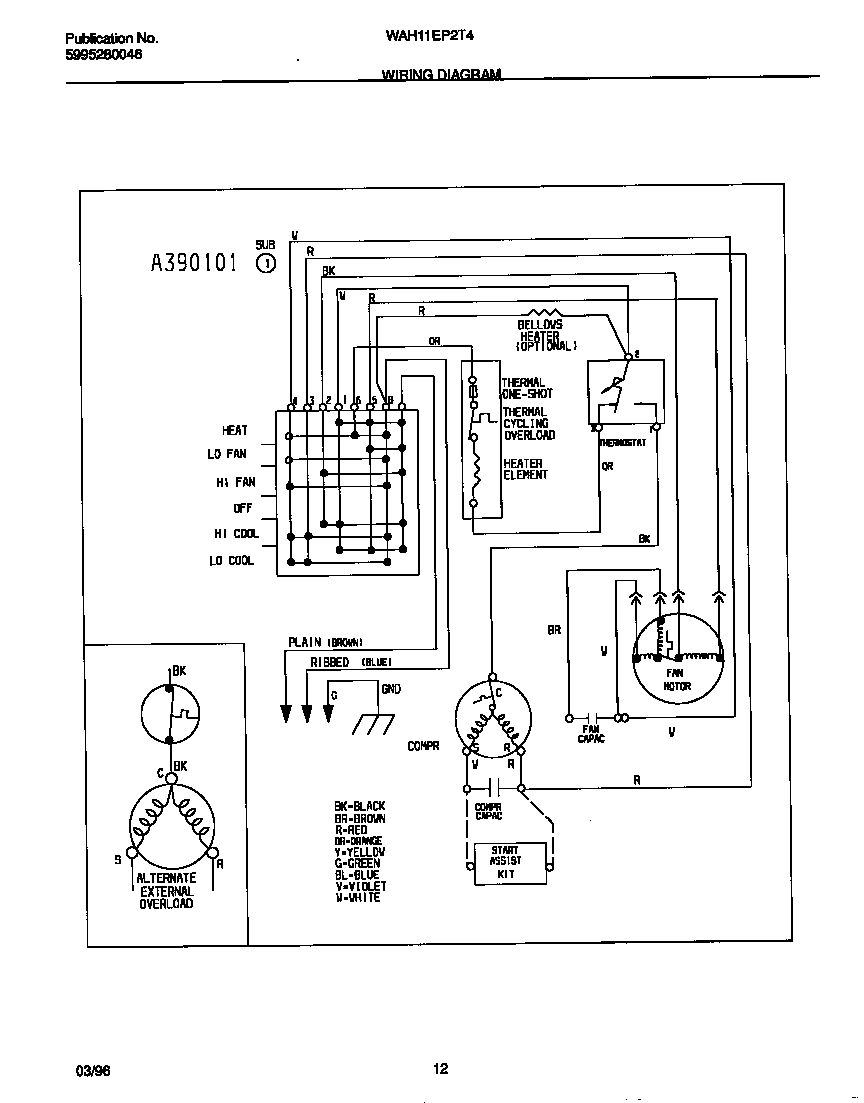

07 - WIRING DIAGRAM
Common parts from model Electrolux WAH11EP2T4 ROOM AIR CONDITIONER
1
FAN BLADE, WITH CLAMP WCI 5303207279 Contact Us For Availability
1
WCI 5303925297 WCI 5303925297 Contact Us For Availability
2
GRILLE, REAR WCI 5303303597 Contact Us For Availability
2
DOOR-VENTILATOR WCI 5303295752 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
CABLE-VENT CONTROL WCI 5303015298 Contact Us For Availability
3
HOUSING-FAN WCI 5303207278 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
RETAINER WCI 5303202999 Contact Us For Availability
4
SEAL-HOUSING, TOP WCI 5303207364 Contact Us For Availability
5
ACTUATOR ARM-VENT CONTROL WCI 3202941 Contact Us For Availability
5
SEAL WCI 3202951 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
7
PANEL-MOUNTING, CONTROLS WCI 5303293521 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
8
LOUVER WCI 5308017244 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5308017262 Contact Us For Availability
8
WCI 5303302660 WCI 5303302660 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303207275 Contact Us For Availability
9
CONTROL-TEMPERATURE WCI 5303002176 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
10
BULKHEAD WCI 5303295238 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 5303210243 WCI 5303210243 Contact Us For Availability
11
BLOWER WHEEL WCI 5303210236 Contact Us For Availability
11
WCI 5303207276 WCI 5303207276 Contact Us For Availability
12
WCI 5303001809 WCI 5303001809 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303211009 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303207277 WCI 5303207277 Contact Us For Availability
13
WCI 5300301157 WCI 5300301157 Contact Us For Availability
13
WCI 5303316906 WCI 5303316906 Contact Us For Availability
13
CAPACITOR, 370 V, 5 MFD WCI 5308009152 Contact Us For Availability
13
WCI 3202957 WCI 3202957 Contact Us For Availability
13
WCI 5303210203 WCI 5303210203 Contact Us For Availability
14
WCI 3202958 WCI 3202958 Contact Us For Availability
14
WCI 5303305136 WCI 5303305136 Contact Us For Availability
15
WCI 5303306600 WCI 5303306600 Contact Us For Availability
15
HOUSING-BLOWER WCI 5303300760 Contact Us For Availability
15
SHIELD-HEATER WCI 5303210249 Contact Us For Availability
16
WIRING HARNESS WCI 5303203112 Contact Us For Availability
16
CAPILLARY TUBE, CUT-TO-SIZE WCI 5308017253 Contact Us For Availability
17
FRONT-COMPLETE WCI 5303211041 Contact Us For Availability
17
CORD - ELECTRIC POWER WCI 5303301041 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
19
WCI 309617902 WCI 309617902 Contact Us For Availability
19
BAFFLE WCI 5303270122 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5300331902 WCI 5300331902 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303002189 WCI 5303002189 Contact Us For Availability
21
WCI 5303302651 WCI 5303302651 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
21
SEAL, BOTTOM WCI 5314949603 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
23
SEAL, PLATE WCI 5303001984 Contact Us For Availability
27
WCI 309100803 WCI 309100803 Contact Us For Availability
27
WCI 5303210241 WCI 5303210241 Contact Us For Availability
28
THERMOSTAT-HEATER WCI 5303016865 Contact Us For Availability
28
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
29
HARNESS-HEATER, UNIT WCI 3203548 Contact Us For Availability
30
WCI 08016091 WCI 08016091 Contact Us For Availability
30
WCI 3017804 WCI 3017804 Contact Us For Availability
30
TRIM-FRAME SIDE WCI 5303301035 Contact Us For Availability
31
WCI 5303209503 WCI 5303209503 Contact Us For Availability
31
TRIM-FRAME TOP WCI 5303301036 Contact Us For Availability
32
CLIP-LINK, (2) WCI 5303001844 Contact Us For Availability
32
NUT-HEATER WCI 3018695 Contact Us For Availability
32
TRIM-FRAME, BOTTOM WCI 5303301037 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
WCI 5303210352 WCI 5303210352 Contact Us For Availability
39
WCI 3017076 WCI 3017076 Contact Us For Availability
40
LINK, LOUVER, LEFT SIDE WCI 5303293787 Contact Us For Availability
41
LINK, LOUVER, RIGHT SIDE WCI 5303293786 Contact Us For Availability
42
LOUVER WITH LINK WCI 5303002458 Contact Us For Availability
43
WCI 5303305817 WCI 5303305817 Contact Us For Availability
× ![]()
