Model Electrolux WAH094Y2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams

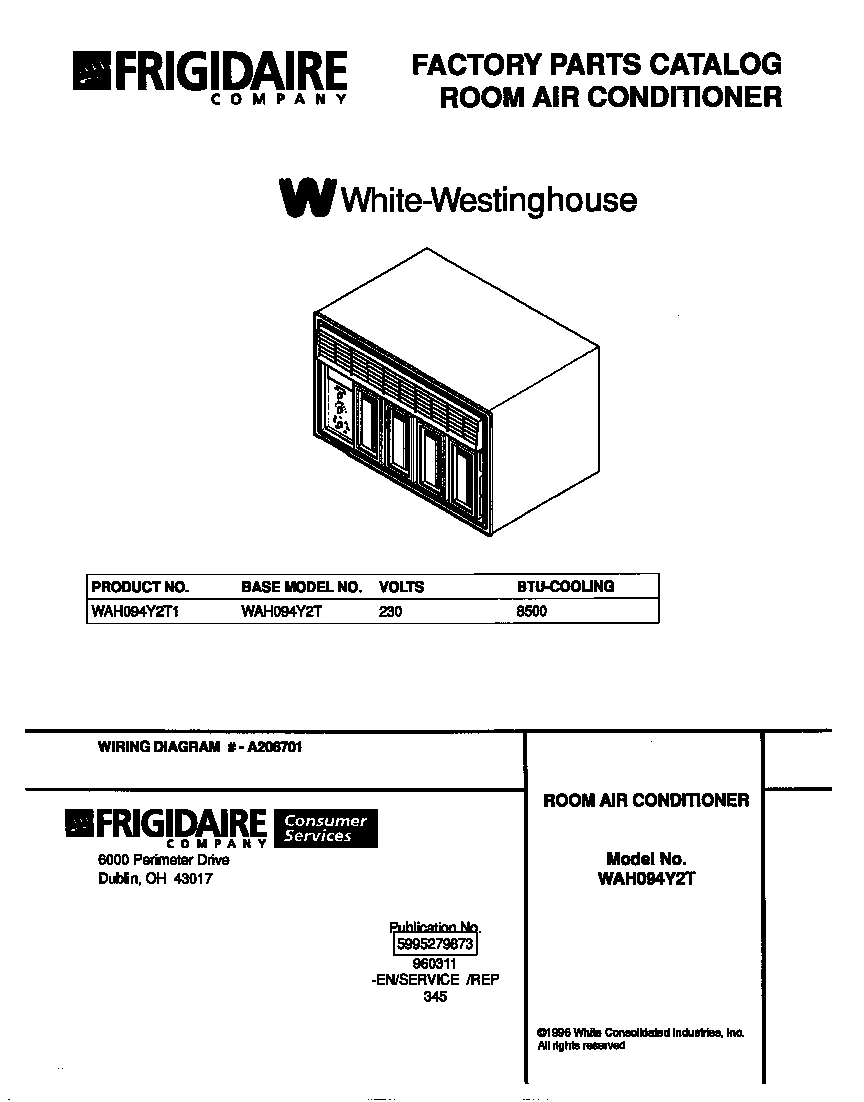

01 - COVER

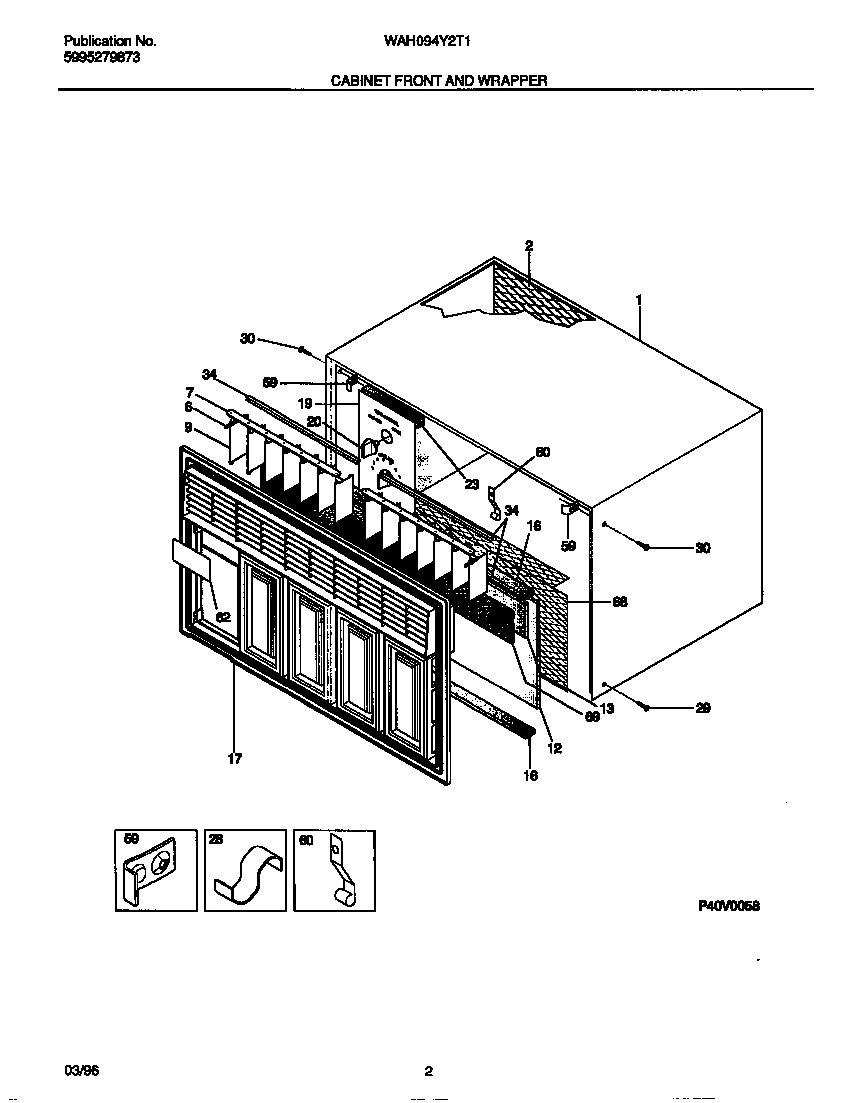

02 - CABINET FRONT AND WRAPPER
03 - CONTROL PARTS

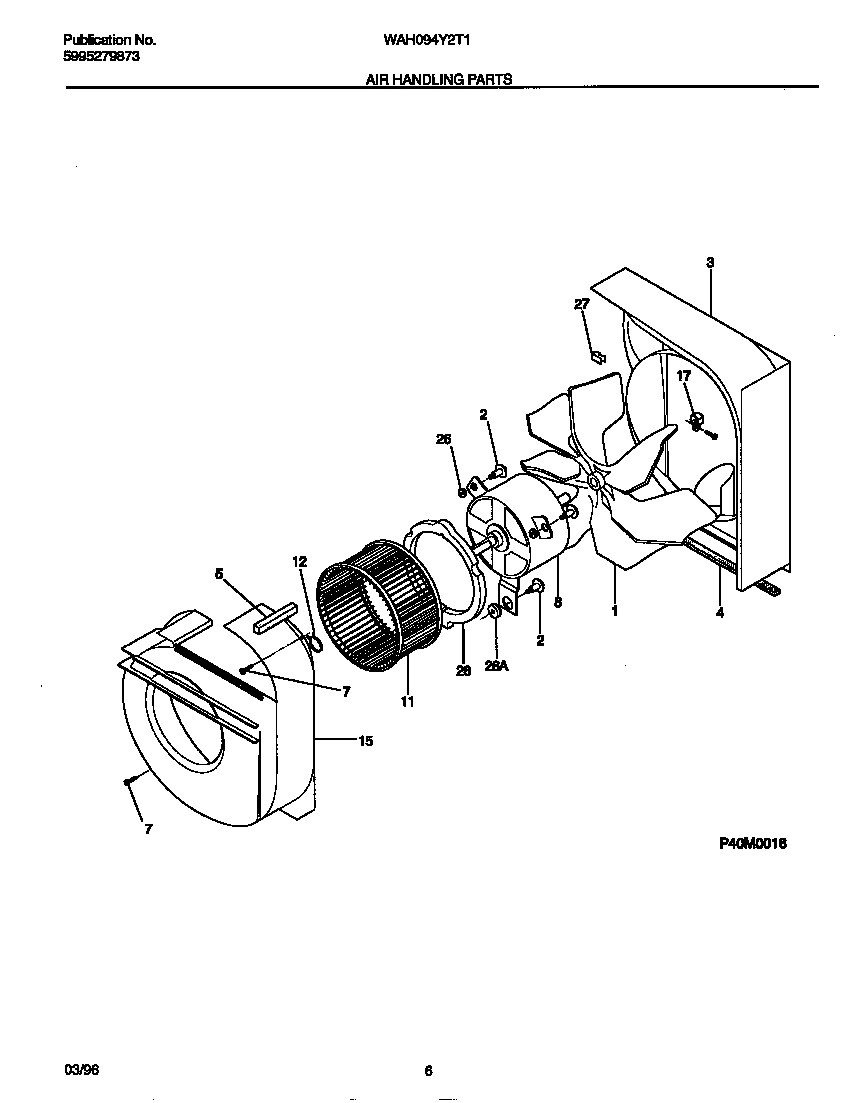

04 - AIR HANDLING PARTS

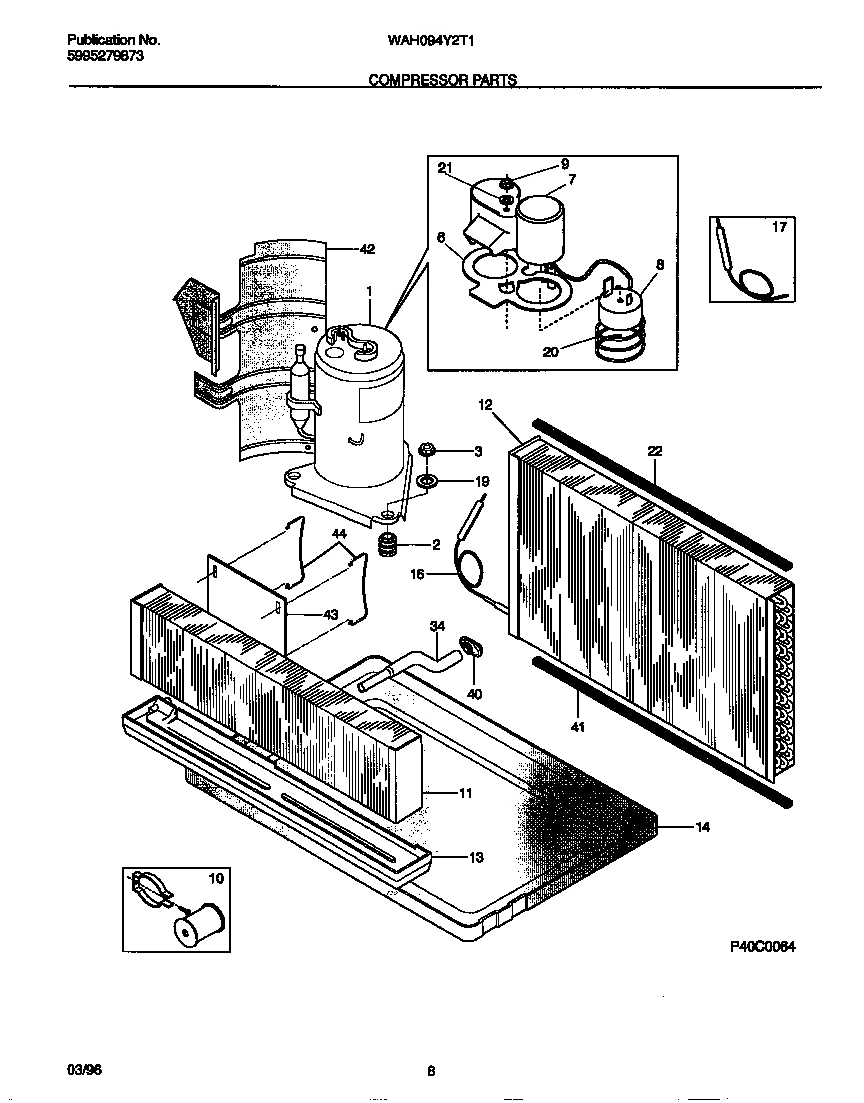

05 - COMPRESSOR PARTS

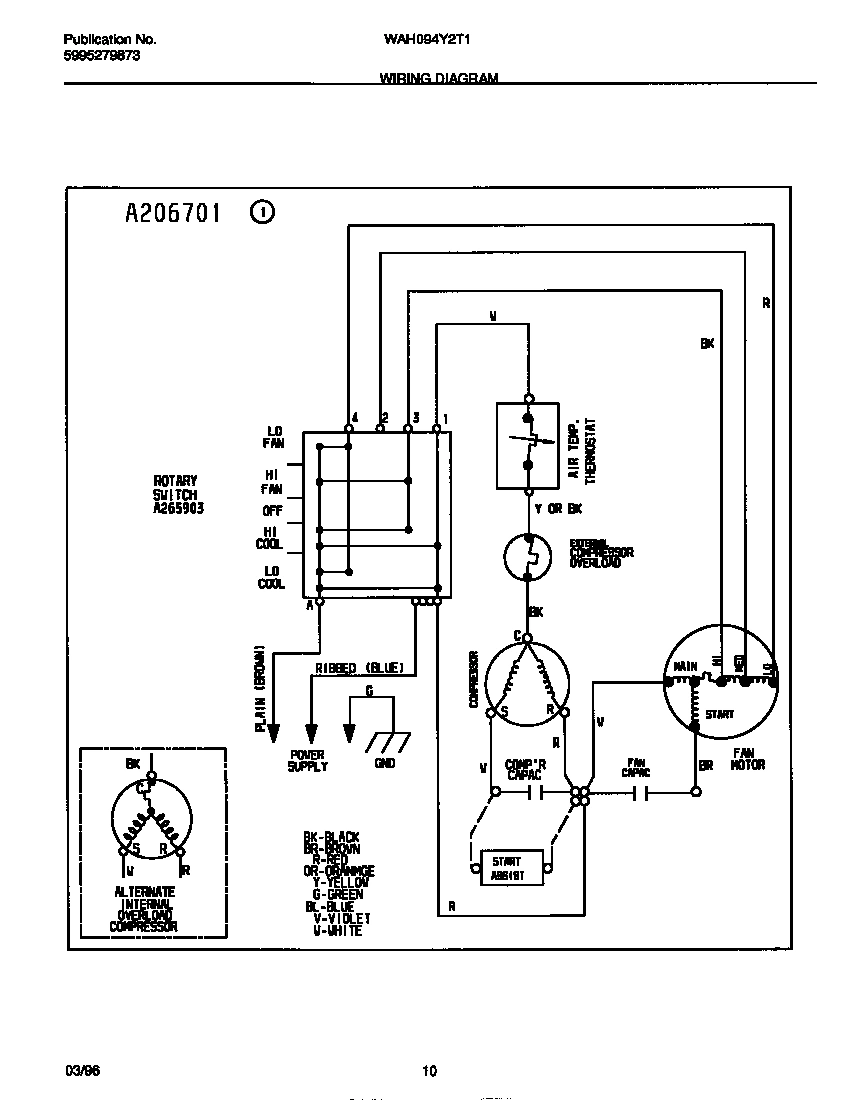

06 - WIRING DIAGRAM
Common parts from model Electrolux WAH094Y2T1 ROOM AIR CONDITIONER
1
WCI 5308006458 WCI 5308006458 Contact Us For Availability
1
WCI 5303317552 WCI 5303317552 Contact Us For Availability
2
WCI 5308006428 WCI 5308006428 Contact Us For Availability
2
WCI 5303012455 WCI 5303012455 Contact Us For Availability
2
SCREW-MOTOR WCI 5308009142 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
WCI 5303301584 WCI 5303301584 Contact Us For Availability
3
SHROUD WCI 5308006455 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
SEAL-SHROUD WCI 5308006456 Contact Us For Availability
5
WCI 08013055 WCI 08013055 Contact Us For Availability
6
WCI 5303302226 WCI 5303302226 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
7
WCI 5303302228 WCI 5303302228 Contact Us For Availability
7
WCI 3017506 WCI 3017506 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
8
WCI 3204196 WCI 3204196 Contact Us For Availability
8
WCI 5303301791 WCI 5303301791 Contact Us For Availability
8
WCI 5303317554 WCI 5303317554 Contact Us For Availability
9
WCI 5303302225 WCI 5303302225 Contact Us For Availability
9
CONTROL -TEMPERATURE WCI 5303285388 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 5308006464 WCI 5308006464 Contact Us For Availability
11
WCI 5303285953 WCI 5303285953 Contact Us For Availability
12
WCI 3016117 WCI 3016117 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303317804 WCI 5303317804 Contact Us For Availability
13
WCI 5300521760 WCI 5300521760 Contact Us For Availability
13
CAPACITOR, 370 V, 7.5-30 WCI 3201140 Contact Us For Availability
13
TRAY-EVAPORATOR WCI 5308006452 Contact Us For Availability
14
WCI 5303317819 WCI 5303317819 Contact Us For Availability
15
STRAP-CAPACITOR WCI 08006443 Contact Us For Availability
15
WCI 08006465 WCI 08006465 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209547 Contact Us For Availability
16
WCI 5303302229 WCI 5303302229 Contact Us For Availability
17
WCI 5303306664 WCI 5303306664 Contact Us For Availability
17
WCI 5303301030 WCI 5303301030 Contact Us For Availability
17
CLAMP-FAN BLADE WCI 5303014132 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
19
WCI 5303318554 WCI 5303318554 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5300331902 WCI 5300331902 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
22
SEAL-CONDENSER TOP, TOP WCI 5308007697 Contact Us For Availability
23
SEAL-DIAL PLATE WCI 5303012017 Contact Us For Availability
26
GROMMET-MOTOR, (2), TOP WCI 08013770 Contact Us For Availability
26
GROMMET-MOTOR, (1), BOTTOM WCI 5303001825 Contact Us For Availability
27
CLIP-SHROUD, CONDENSER WCI 5303002607 Contact Us For Availability
28
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
28
SEAL-MOTOR WCI 5308006462 Contact Us For Availability
30
SCREW, TRUSS HEAD, 8-18AB X 0.75 WCI 5303271346 Contact Us For Availability
34
WCI 5303302227 WCI 5303302227 Contact Us For Availability
34
HOSE-DRAIN WCI 3017505 Contact Us For Availability
40
GROMMET-DRAIN (SOME MODELS) WCI 3205437 Contact Us For Availability
41
SEAL-CONDENSER BASE, 41 WCI 08007704 Contact Us For Availability
42
WCI 5303285201 WCI 5303285201 Contact Us For Availability
43
WCI 5308006449 WCI 5308006449 Contact Us For Availability
44
RETAINER, BAFFLE EVAP WCI 08006448 Contact Us For Availability
52
SPRING-DETENT WCI 08002946 Contact Us For Availability
54
SPRING-VENT DOOR WCI 08003049 Contact Us For Availability
55
WCI 5303285199 WCI 5303285199 Contact Us For Availability
56
SCREW-DETENT WCI 08011095 Contact Us For Availability
57
WCI 5303002096 WCI 5303002096 Contact Us For Availability
59
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
60
CLIP-FILTER (2) WCI 5308013095 Contact Us For Availability
62
WCI 5303318618 WCI 5303318618 Contact Us For Availability
68
SCREEN -FILTER WCI 5303285402 Contact Us For Availability
69
WCI 5303302230 WCI 5303302230 Contact Us For Availability
× ![]()
