Model Electrolux WAH086H1T1 ROOM AIR CONDITIONER – Common Parts & Diagrams

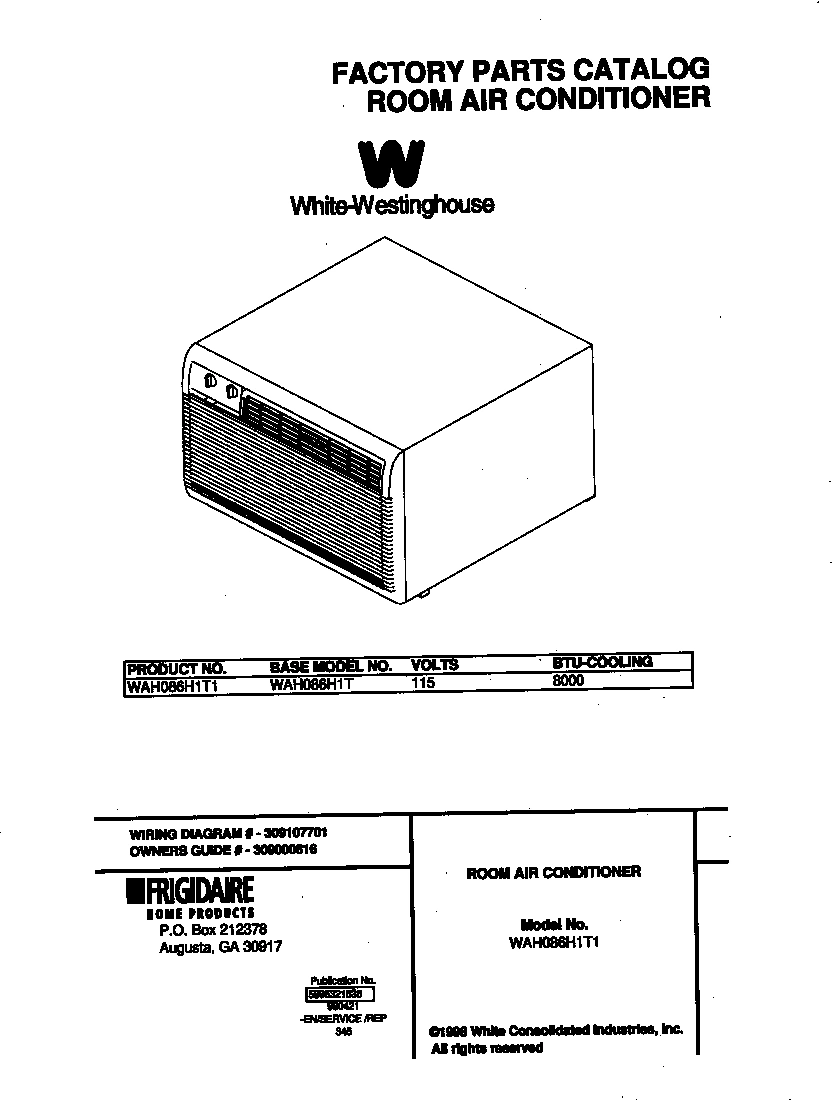

01 - COVER

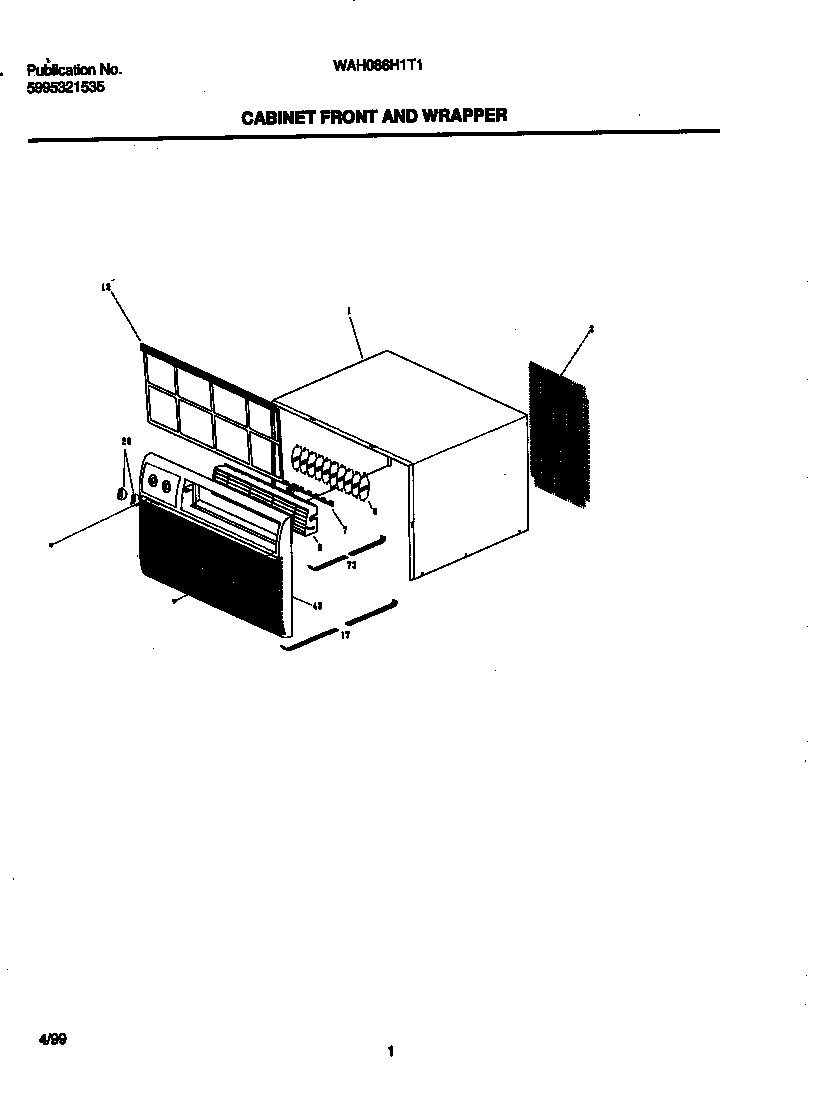

02 - CABINET FRONT/WRAPPER
03 - CONTROL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR
06 - MOUNTING PARTS
Common parts from model Electrolux WAH086H1T1 ROOM AIR CONDITIONER
*32001
GROMMET-WIRES WCI 309111201 Contact Us For Availability
1
WCI 3200761 WCI 3200761 Contact Us For Availability
1
WCI 5303300200 WCI 5303300200 Contact Us For Availability
1
WCI 309628601 WCI 309628601 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
2
WCI 309628602 WCI 309628602 Contact Us For Availability
3
SHROUD-CONDENSER 18.5 BLD WCI 309628901 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
3
WCI 5304409303 WCI 5304409303 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
SEAL,HOUSING-FAN ,BOTTOM WCI 3202951 Contact Us For Availability
5
SEAL-WRAPPER TO WRAPPER S/O WCI 5303301038 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
WCI 5304409305 WCI 5304409305 Contact Us For Availability
7
BOX-CONTROL 18.5TC ROT WCI 309628501 Contact Us For Availability
7
COVER-TERMINAL WCI 3002034 Contact Us For Availability
7
WCI 5304409306 WCI 5304409306 Contact Us For Availability
8
WCI 309628001 WCI 309628001 Contact Us For Availability
8
SWITCH-7POS GE 3SP L WCI 5304408739 Contact Us For Availability
8
MOTOR-FAN GE 3SP W/LDS 48FR ,115v/60 WCI 5304408764 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303211026 Contact Us For Availability
8
WCI 5304409307 WCI 5304409307 Contact Us For Availability
9
CONTROL-AIR TEMP BLD 12AMP WCI 5304408746 Contact Us For Availability
9
WCI 309628102 WCI 309628102 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
WCI 5304409308 WCI 5304409308 Contact Us For Availability
10
BULKHEAD-18.5CHASSIS (FLEX) WCI 309627401 Contact Us For Availability
10
WCI 5304409309 WCI 5304409309 Contact Us For Availability
11
BLOWER WHEEL-18.5 BLD WCI 309631701 Contact Us For Availability
11
+EVAP ASSY-18.5 2RW/17FPI WCI 309632303 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
WCI 309628201 WCI 309628201 Contact Us For Availability
12
RETAINING CLIP-SENS BULB WCI 309329801 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
+COND ASSY-18.5NSL 3R/15FPI WCI 309632503 Contact Us For Availability
13
CAPACITOR, 370 V, 10+35 MFD WCI 5303303576 Contact Us For Availability
13
WCI 309628801 WCI 309628801 Contact Us For Availability
13
WCI 5304409311 WCI 5304409311 Contact Us For Availability
14
WCI 5303285199 WCI 5303285199 Contact Us For Availability
14
WCI 309628701 WCI 309628701 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
SCROLL-18.5 TC BLD COOL WCI 309622801 Contact Us For Availability
15
WCI 309636001 WCI 309636001 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209547 Contact Us For Availability
17
WCI 309629401 WCI 309629401 Contact Us For Availability
17
WCI 5304408777 WCI 5304408777 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309307008 WCI 309307008 Contact Us For Availability
20
SCROLL PLATE-18.5 T/C BLD WCI 309622901 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
25
BAFFLE-AIR 18.5`` WCI 309335201 Contact Us For Availability
30
PARTITION-SHROUD WCI 309629001 Contact Us For Availability
35
BAFFLE-CONDENSATE FOR MOTOR WCI 309335001 Contact Us For Availability
43
WCI 309631801 WCI 309631801 Contact Us For Availability
73
WCI 309629301 WCI 309629301 Contact Us For Availability
× ![]()
