Model Electrolux WAC083W7A3 ROOM AIR CONDITIONER – Common Parts & Diagrams

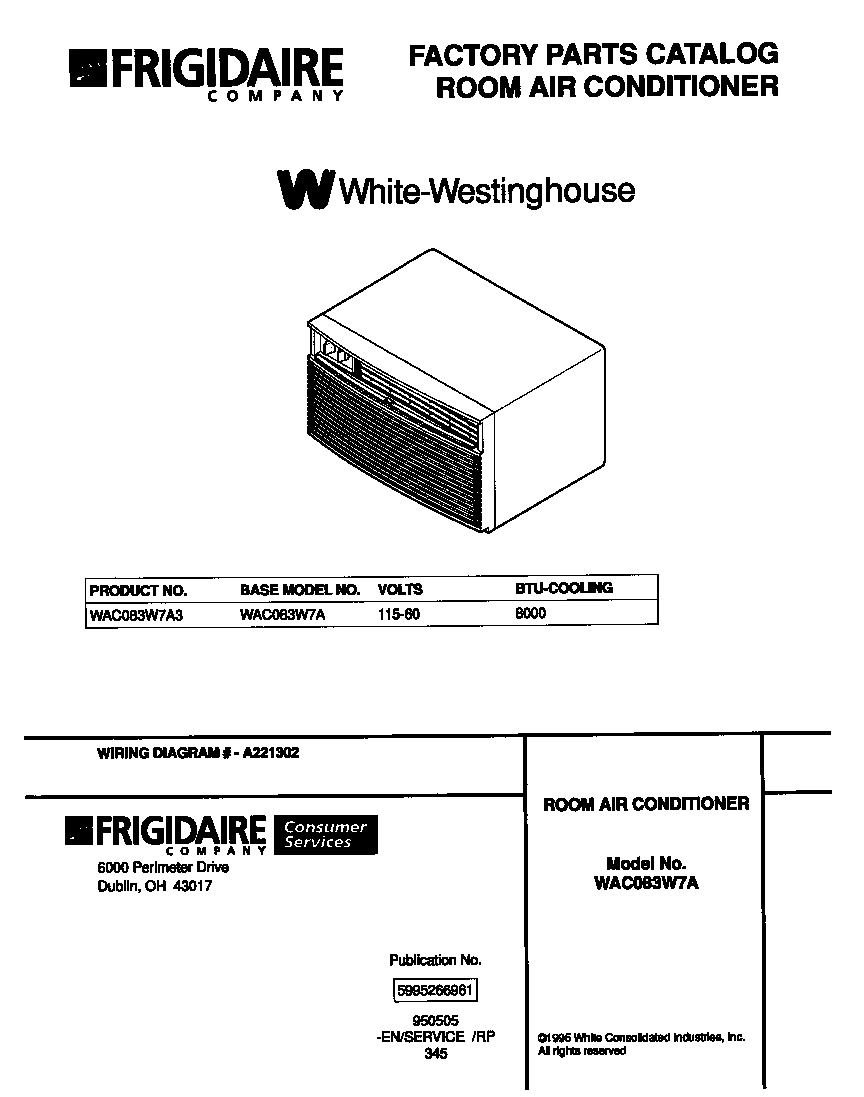

01 - COVER

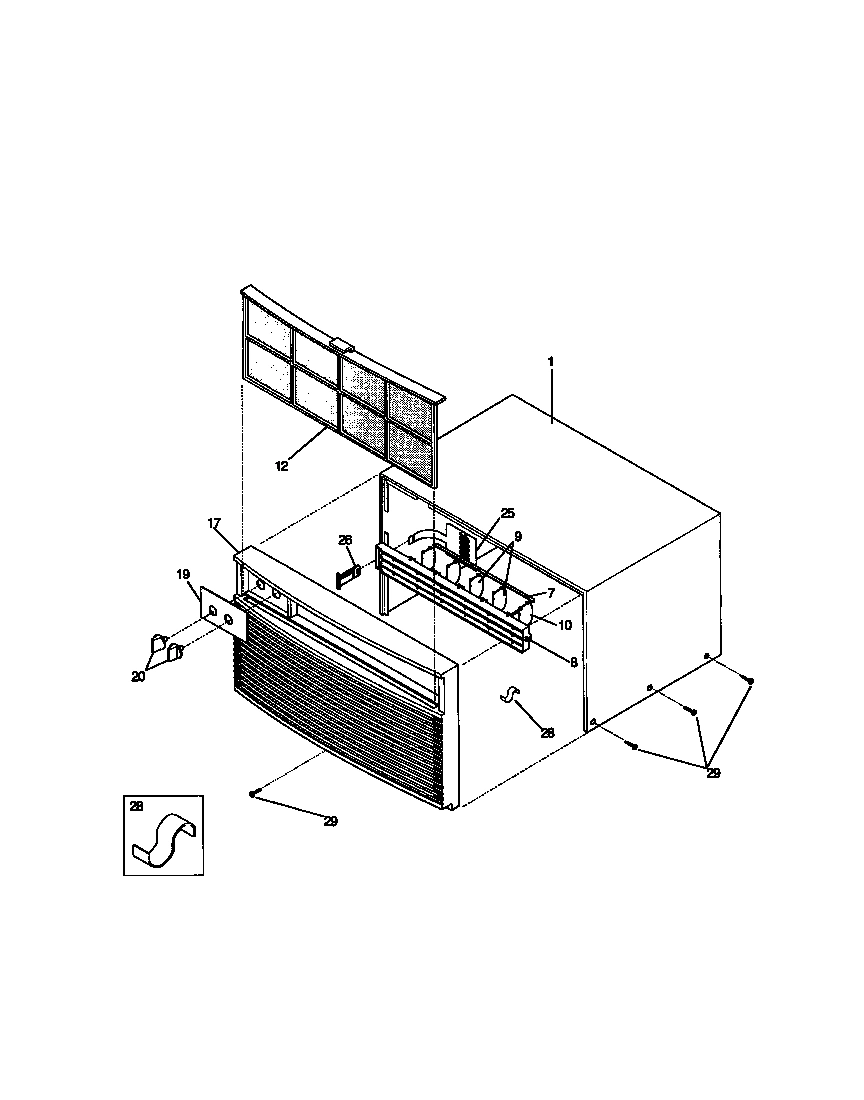

02 - CABINET FRONT, WRAPPER

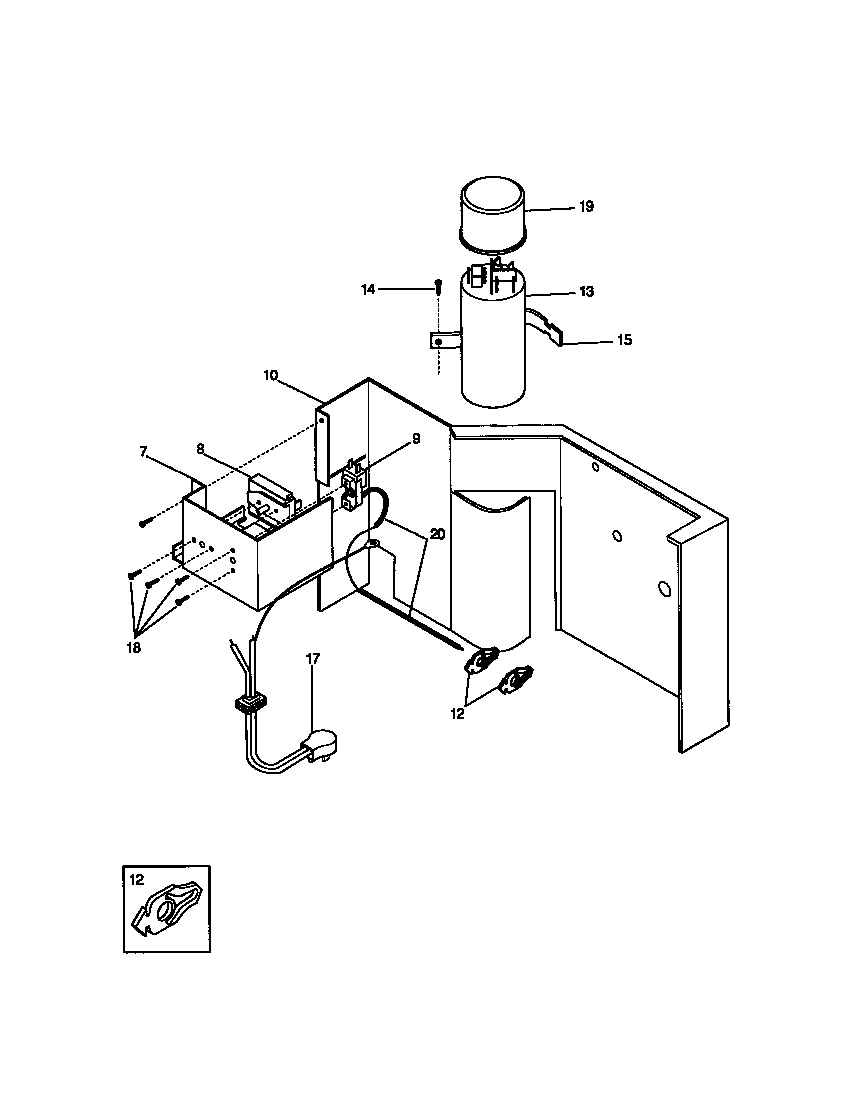

03 - CONTROLS

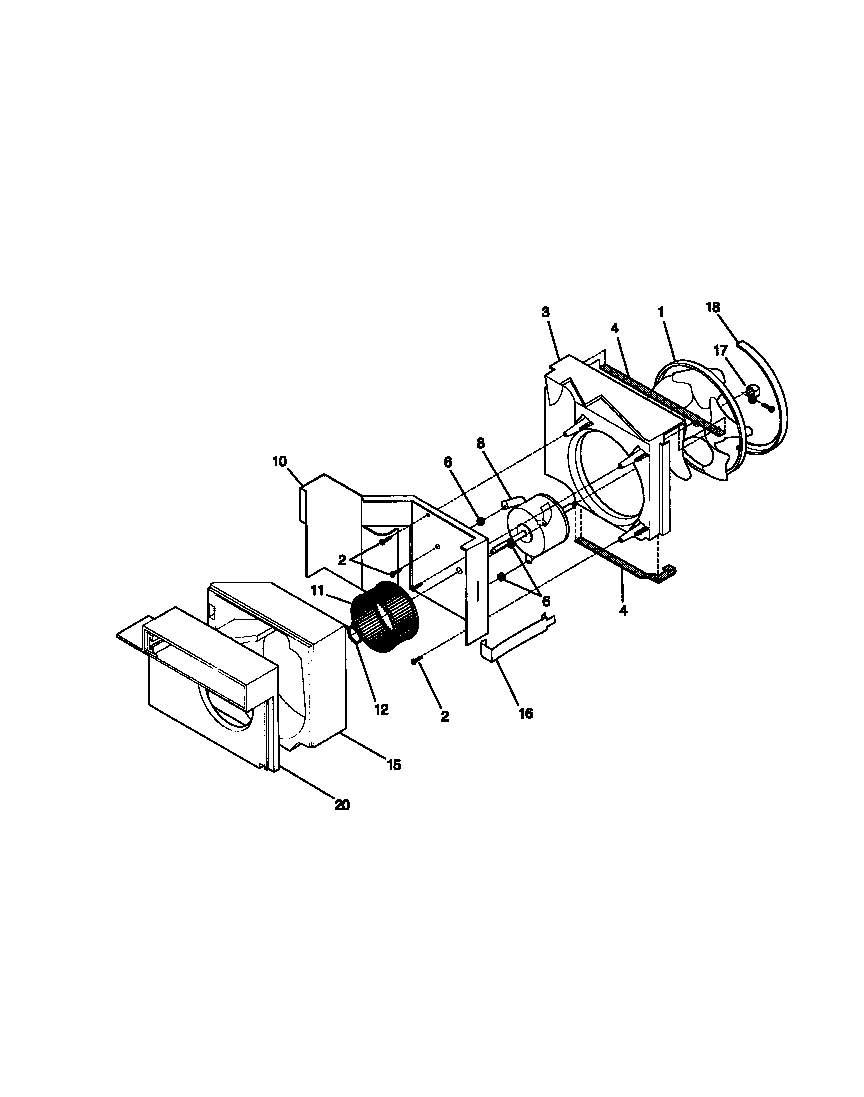

04 - AIR HANDLING

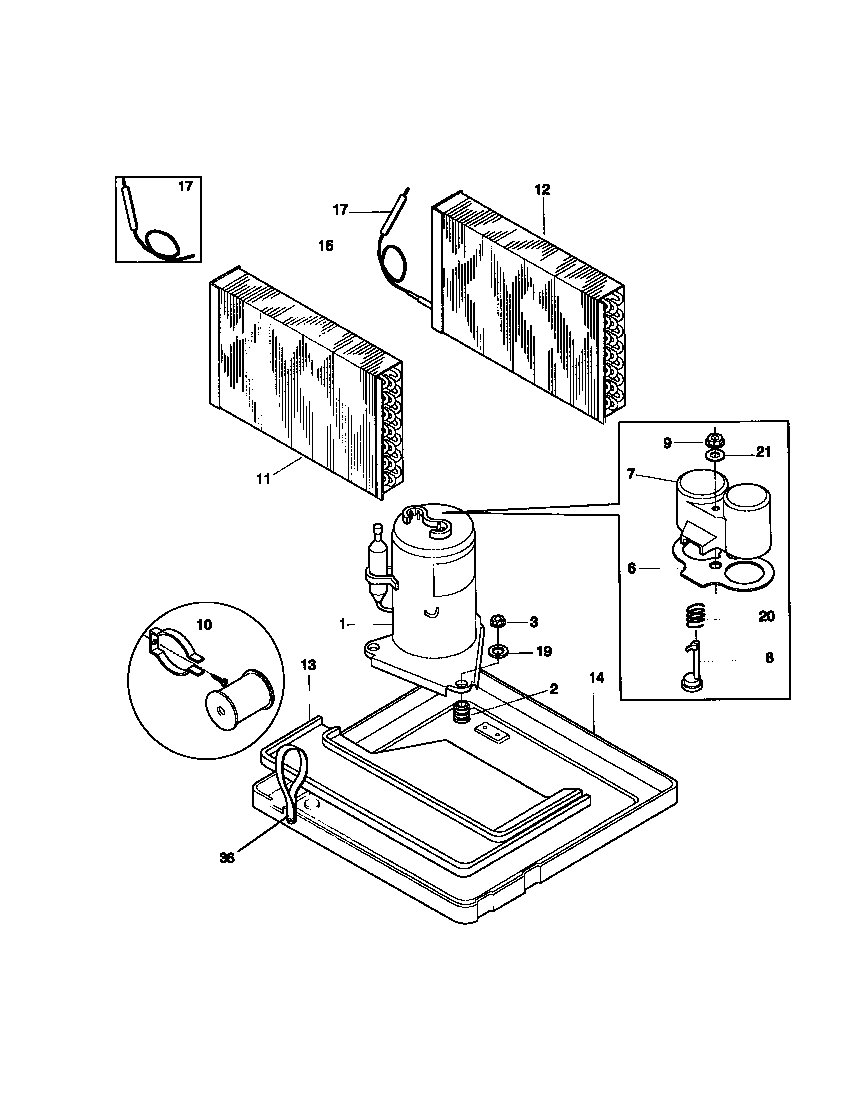

05 - SYSTEM

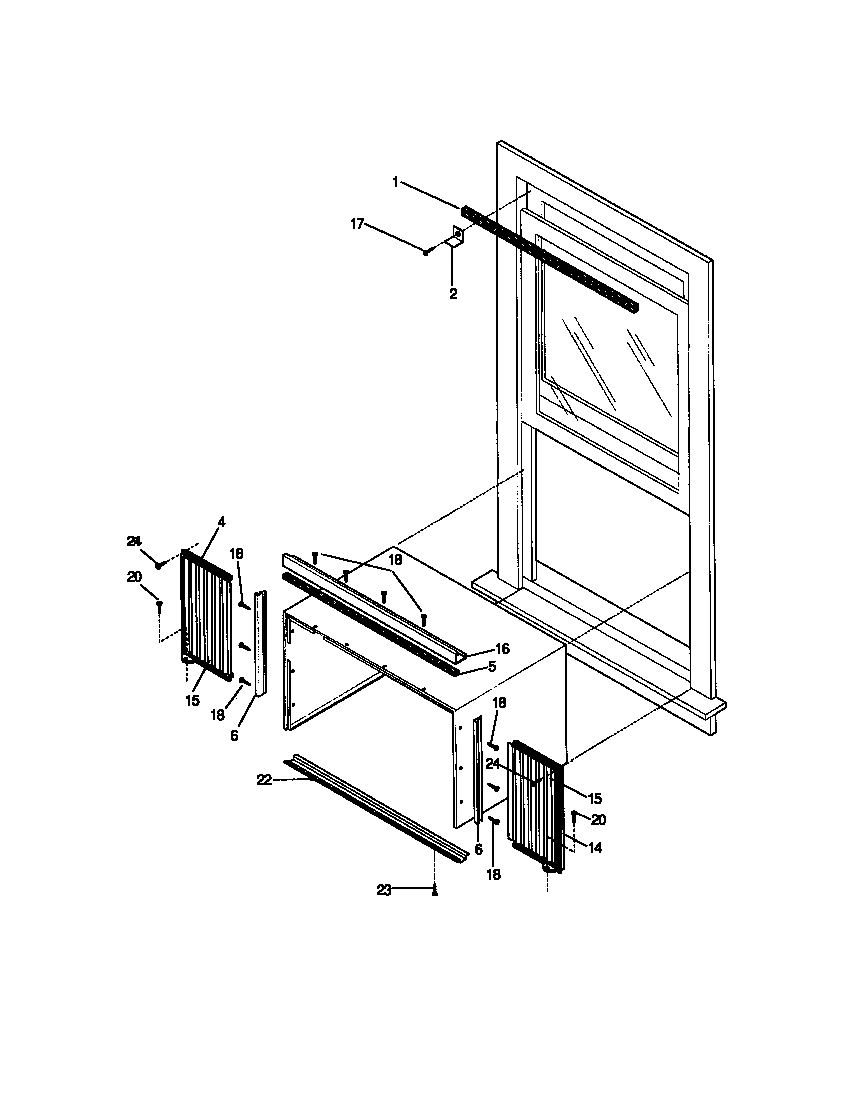

06 - WINDOW MOUNTING

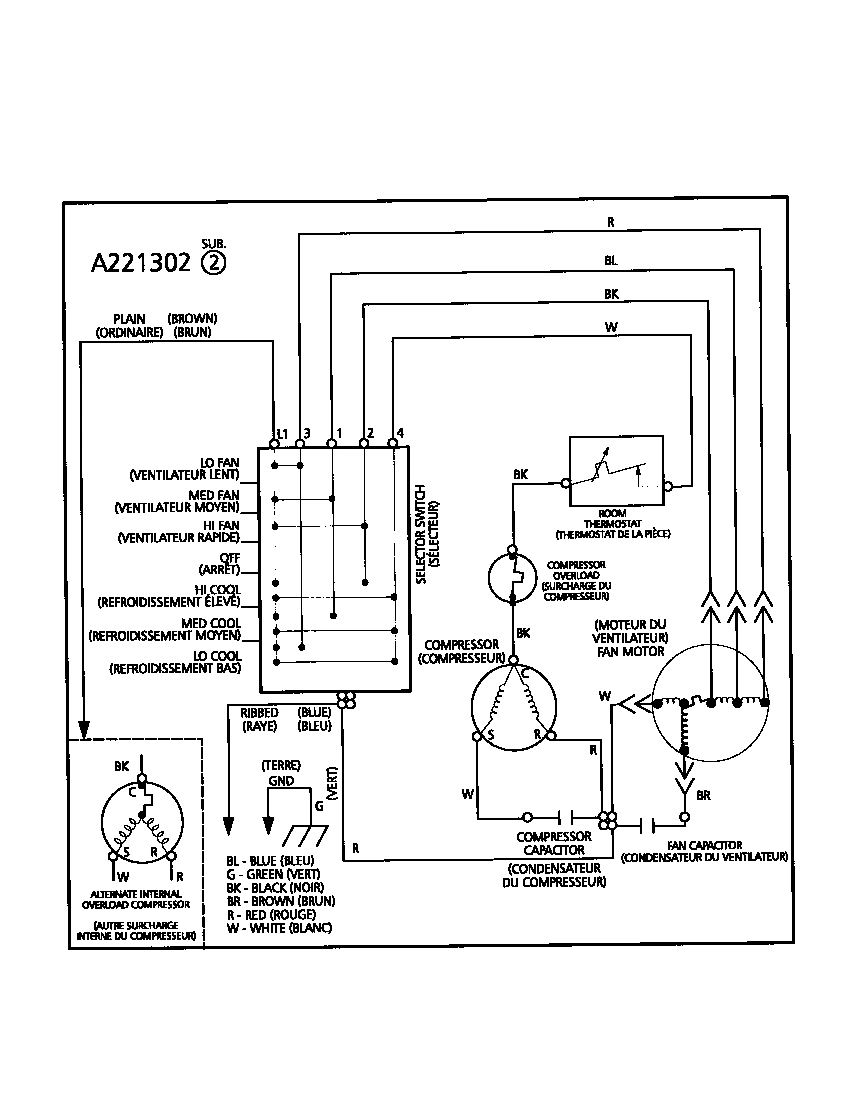

07 - WIRING DIAGRAM
Common parts from model Electrolux WAC083W7A3 ROOM AIR CONDITIONER
*87360
WCI 5303304090 WCI 5303304090 Contact Us For Availability
*87361
SEAL-FRONT WCI 5303303798 Contact Us For Availability
*87362
WCI 5303303809 WCI 5303303809 Contact Us For Availability
1
FAN BLADE & CLAMP WCI 5303270893 Contact Us For Availability
1
WCI 5303300200 WCI 5303300200 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
3
SHROUD WCI 5303270041 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
SEAL-SHROUD TOP & BOTTOM WCI 5303270043 Contact Us For Availability
4
WCI 5303302860 WCI 5303302860 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
WCI 5303303795 WCI 5303303795 Contact Us For Availability
7
BOX-CONTROL WCI 309602502 Contact Us For Availability
7
COVER-TERMINAL WCI 3002034 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5308013150 Contact Us For Availability
8
WCI 309615602 WCI 309615602 Contact Us For Availability
8
WCI 5303211026 WCI 5303211026 Contact Us For Availability
9
WCI 5303302852 WCI 5303302852 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
10
WCI 5303303088 WCI 5303303088 Contact Us For Availability
10
WCI 309602401 WCI 309602401 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 309604203 WCI 309604203 Contact Us For Availability
12
WCI 5303302866 WCI 5303302866 Contact Us For Availability
12
WCI 309101201 WCI 309101201 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303303195 WCI 5303303195 Contact Us For Availability
13
WCI 309312105 WCI 309312105 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE WCI 5303302847 Contact Us For Availability
14
WCI 5303302861 WCI 5303302861 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
SCROLL WCI 5303302851 Contact Us For Availability
15
WCI 5303302862 WCI 5303302862 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 40`` WCI 5303209547 Contact Us For Availability
16
CLIP-SCROLL WCI 309100201 Contact Us For Availability
16
RAIL-TOP WCI 5303302859 Contact Us For Availability
17
WCI 309603502 WCI 309603502 Contact Us For Availability
17
WCI 5303302853 WCI 5303302853 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
DEFLECTOR-SHROUD WCI 5303270042 Contact Us For Availability
19
WCI 5303302863 WCI 5303302863 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
KNOB-CONTROL, (2) WCI 5303302864 Contact Us For Availability
20
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
20
SCROLL PLATE WCI 5303303573 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
20
SCREW WCI 5303295750 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
22
WCI 5303302857 WCI 5303302857 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
SCREW WCI 5308002974 Contact Us For Availability
25
WCI 5303302867 WCI 5303302867 Contact Us For Availability
26
WCI 309100502 WCI 309100502 Contact Us For Availability
28
CLIP-FRONT WCI 309100401 Contact Us For Availability
× ![]()
