Model Electrolux WAC061L7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

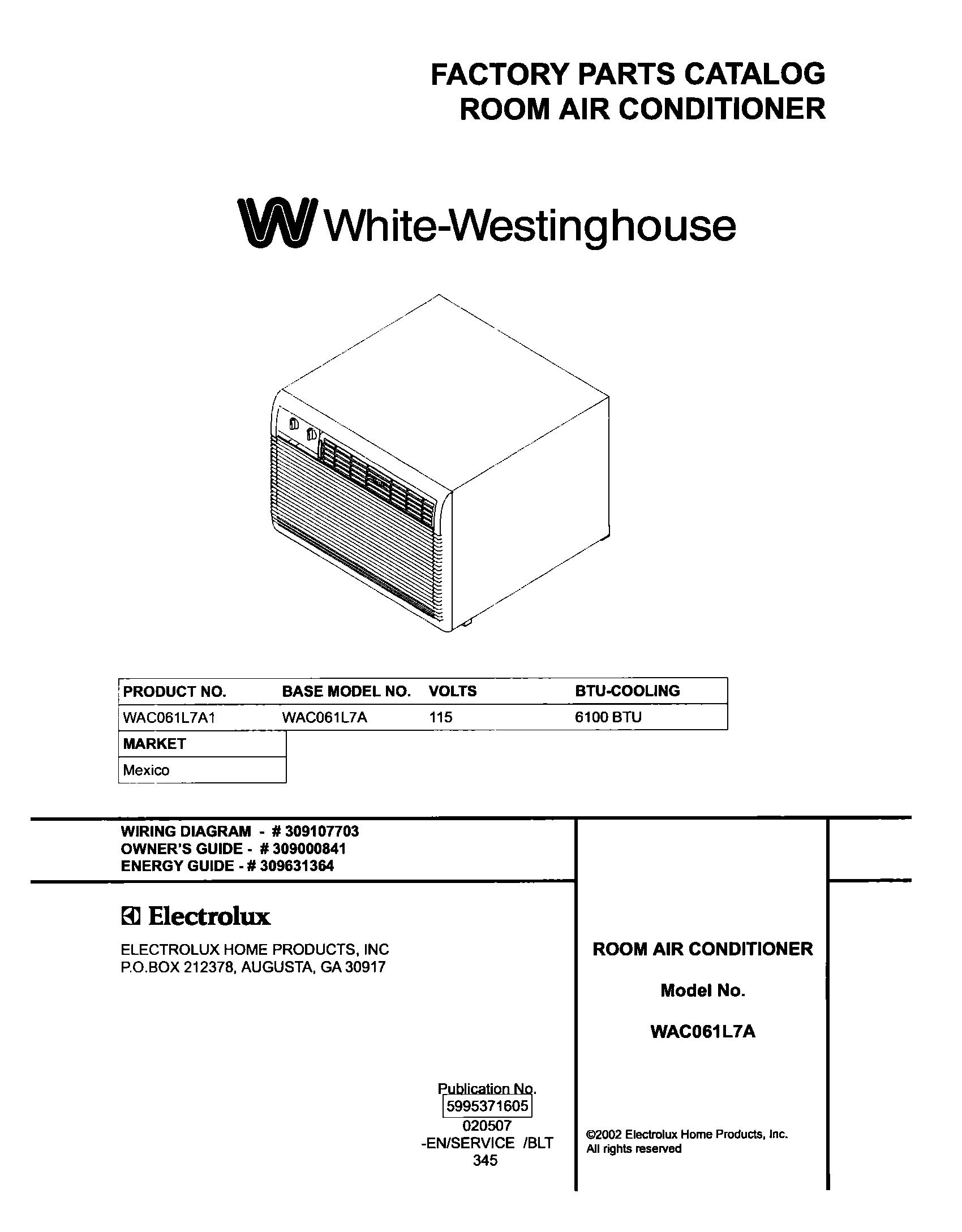

01 - COVER

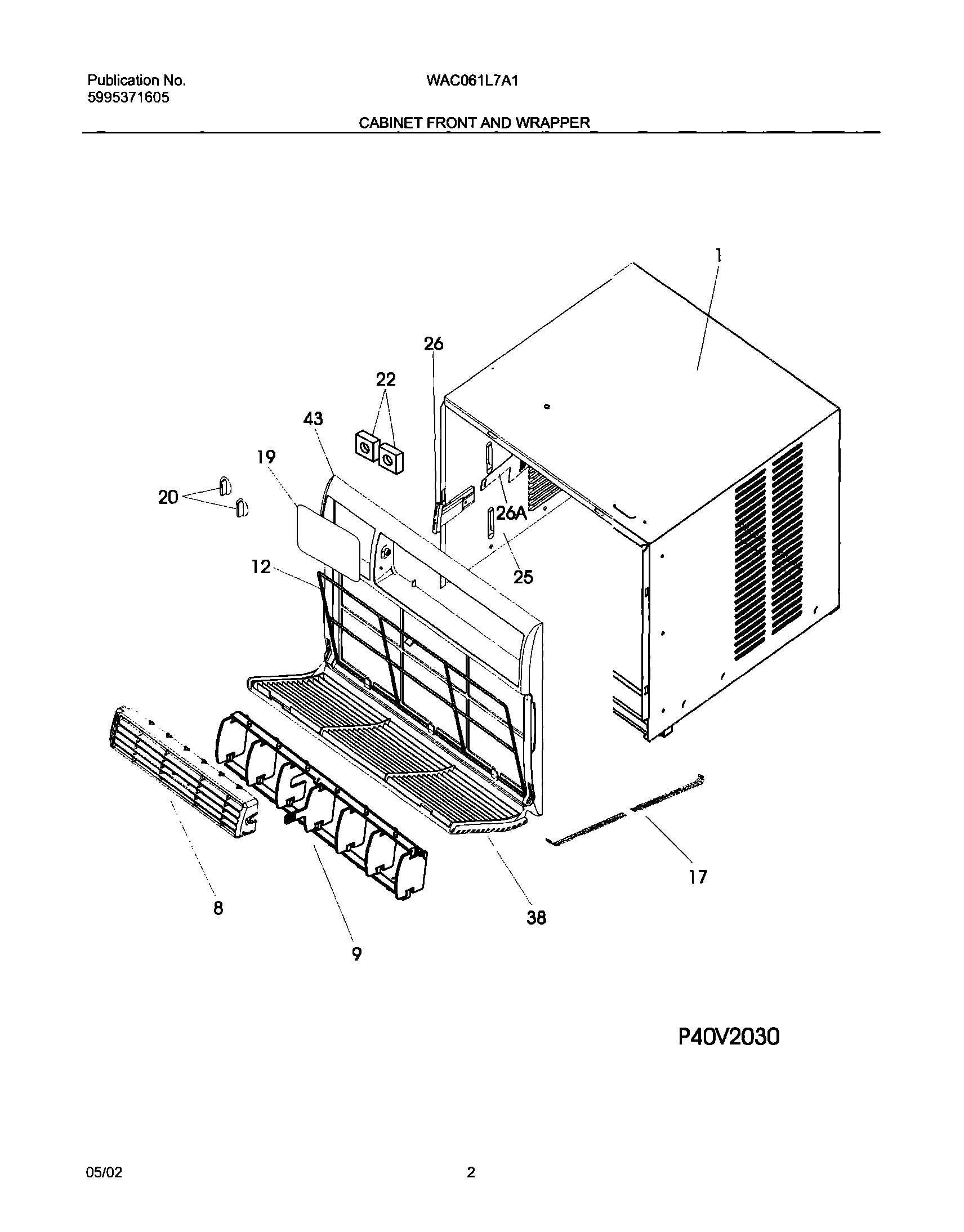

03 - CABINET FRONT AND WRAPPER

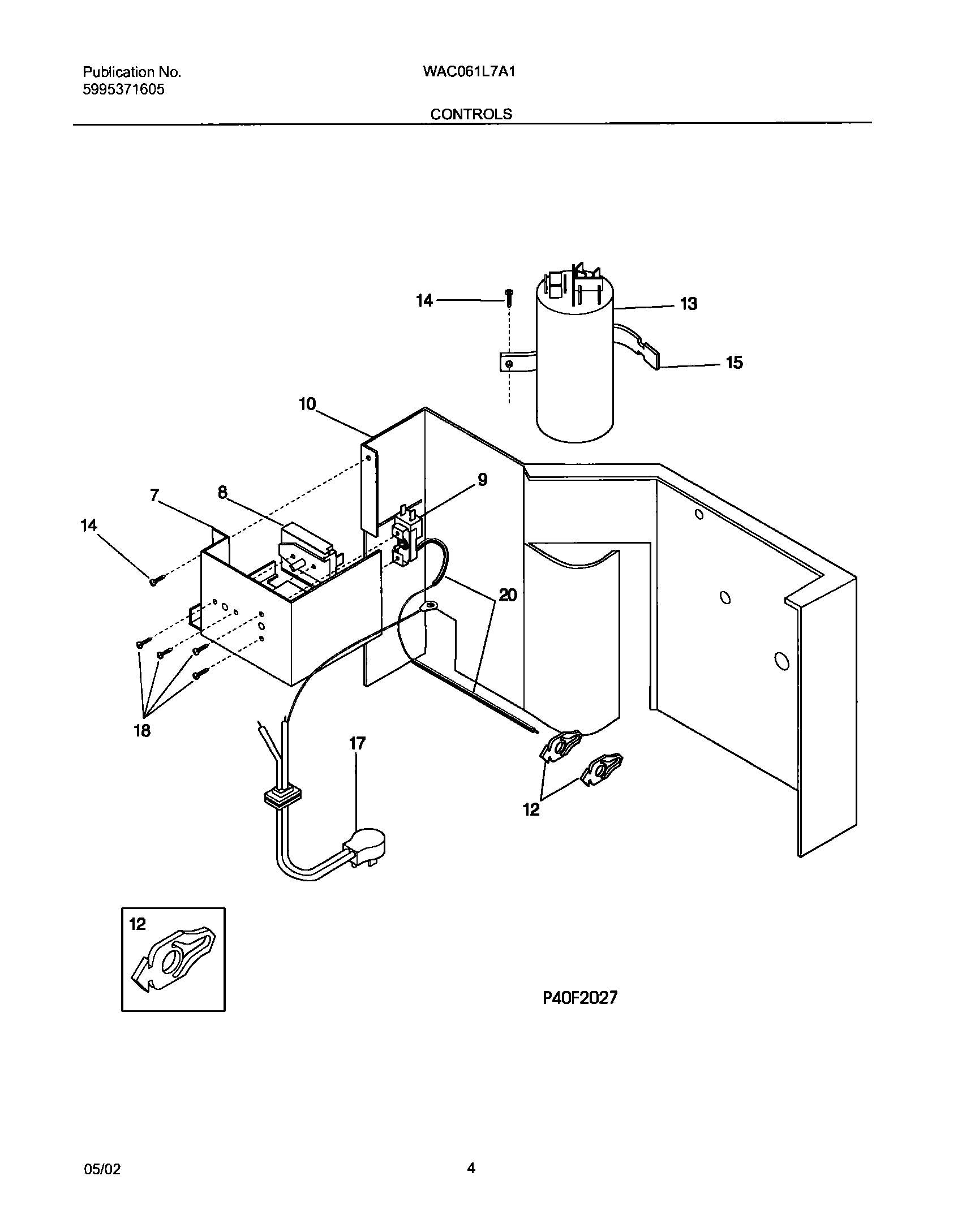

05 - CONTROLS

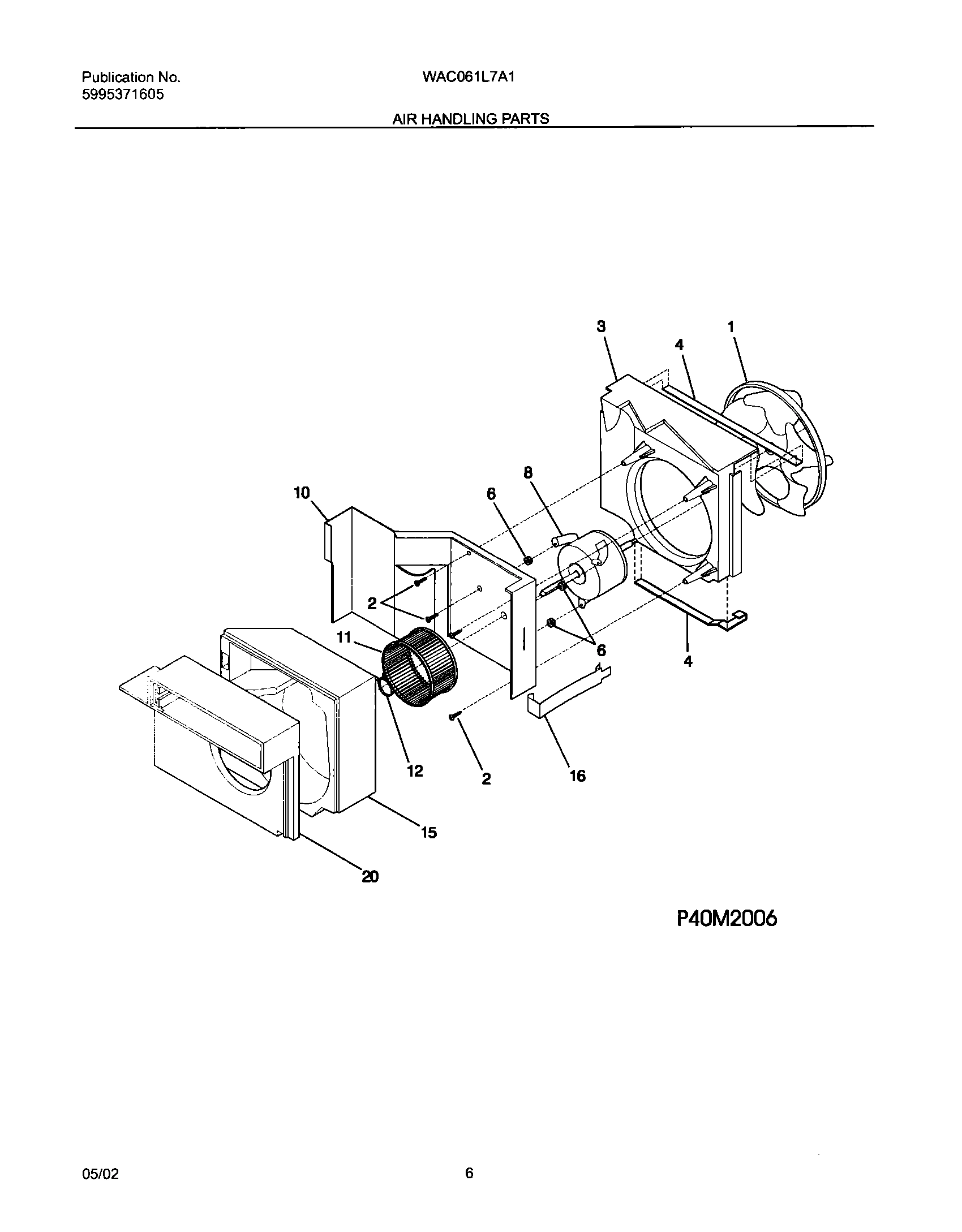

07 - AIR HANDLING PARTS

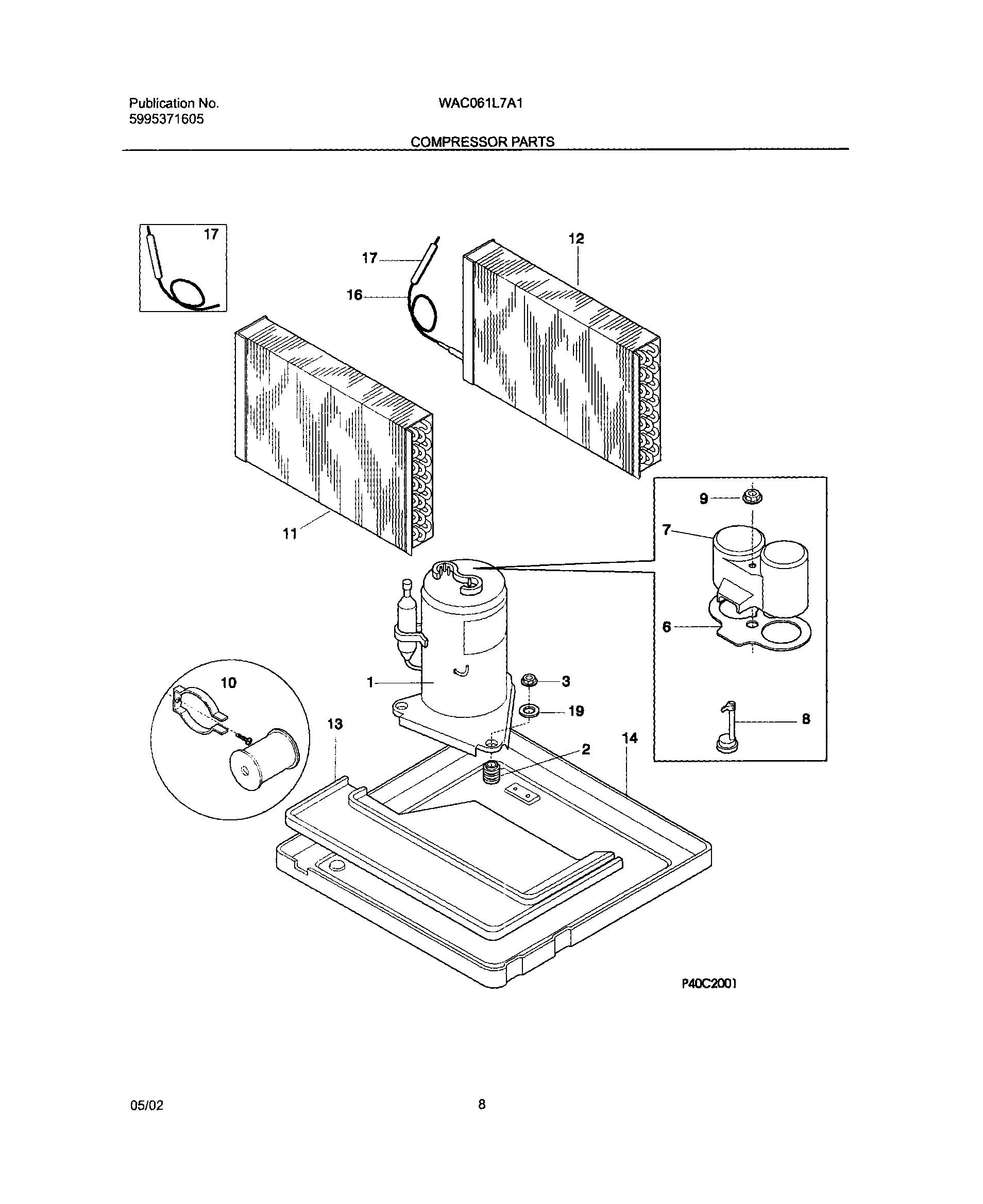

09 - COMPRESSOR PARTS

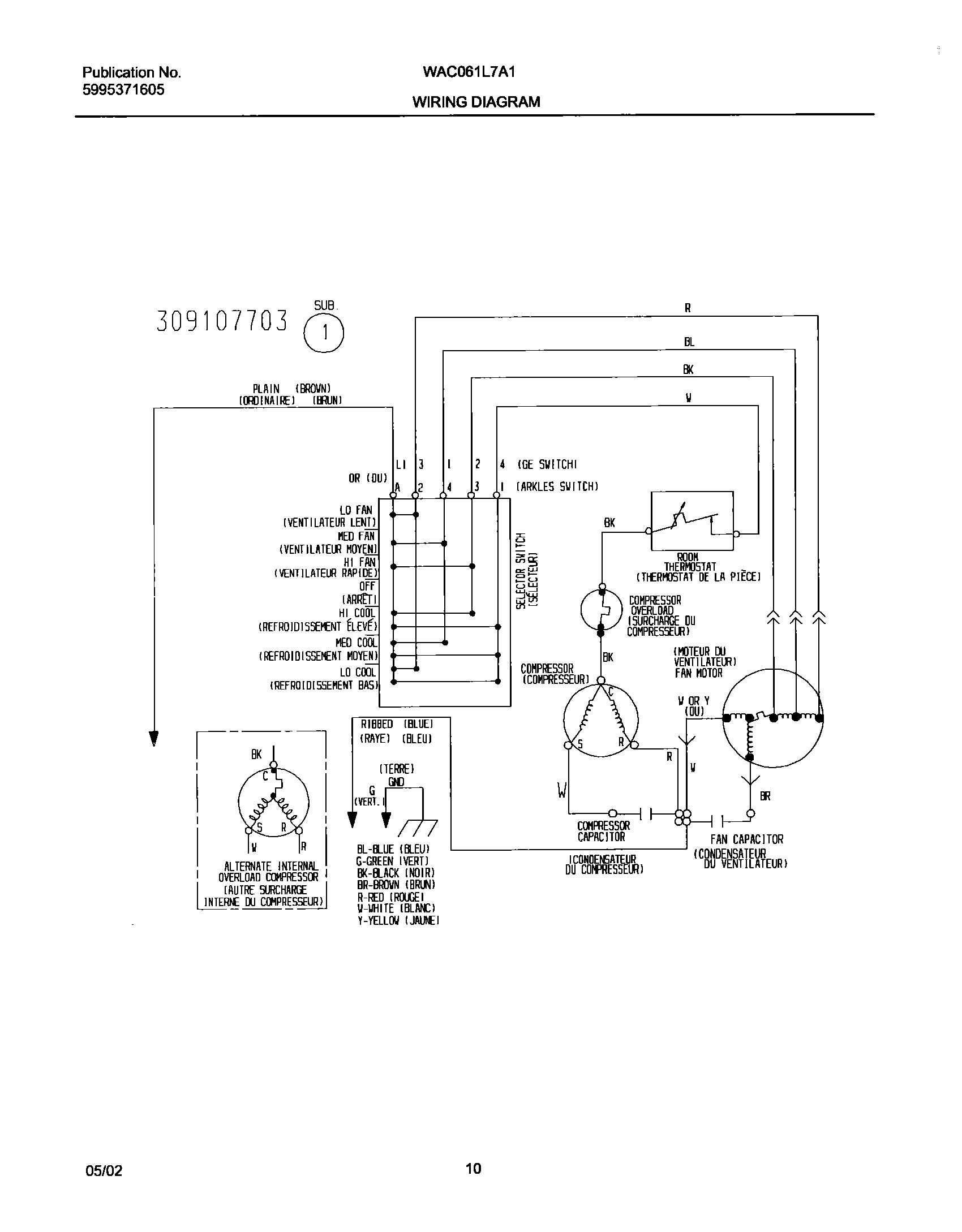

10 - WIRING DIAGRAM
Common parts from model Electrolux WAC061L7A1 ROOM AIR CONDITIONER
1
WCI 309643602 WCI 309643602 Contact Us For Availability
1
WCI 309646202 WCI 309646202 Contact Us For Availability
1
WCI 309616921 WCI 309616921 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing-fan,shroud WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5303303759 WCI 5303303759 Contact Us For Availability
4
WCI 5304421913 WCI 5304421913 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
GASKET - TERMINAL COVER WCI 3201668 Contact Us For Availability
7
Control Box WCI 309643802 Contact Us For Availability
7
WCI 5304405245 WCI 5304405245 Contact Us For Availability
8
WCI 309640204 WCI 309640204 Contact Us For Availability
8
WCI 5303323284 WCI 5303323284 Contact Us For Availability
8
WCI 309645002 WCI 309645002 Contact Us For Availability
8
WCI 5303317553 WCI 5303317553 Contact Us For Availability
9
WCI 309647201 WCI 309647201 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 3201670 Contact Us For Availability
10
WCI 309643702 WCI 309643702 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309643302 WCI 309643302 Contact Us For Availability
11
WCI 309637507 WCI 309637507 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
Clip,retainer ,temp sensor ,(2) WCI 309101202 Contact Us For Availability
12
WCI 327161302 WCI 327161302 Contact Us For Availability
12
WCI 309645303 WCI 309645303 Contact Us For Availability
13
WCI 5304426449 WCI 5304426449 Contact Us For Availability
13
Tray,evap drip WCI 309642801 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644003 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640104 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309342906 WCI 309342906 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
Knob-control WCI 309364102 Contact Us For Availability
20
WCI 5304417582 WCI 5304417582 Contact Us For Availability
20
WCI 309643004 WCI 309643004 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
25
WCI 309328603 WCI 309328603 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
NI
WCI 309639302 WCI 309639302 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
WCI 5303290357 WCI 5303290357 Contact Us For Availability
× ![]()
