Model Electrolux WAC053S7A4 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET FRONT AND WRAPPER
03 - CONTROL PARTS

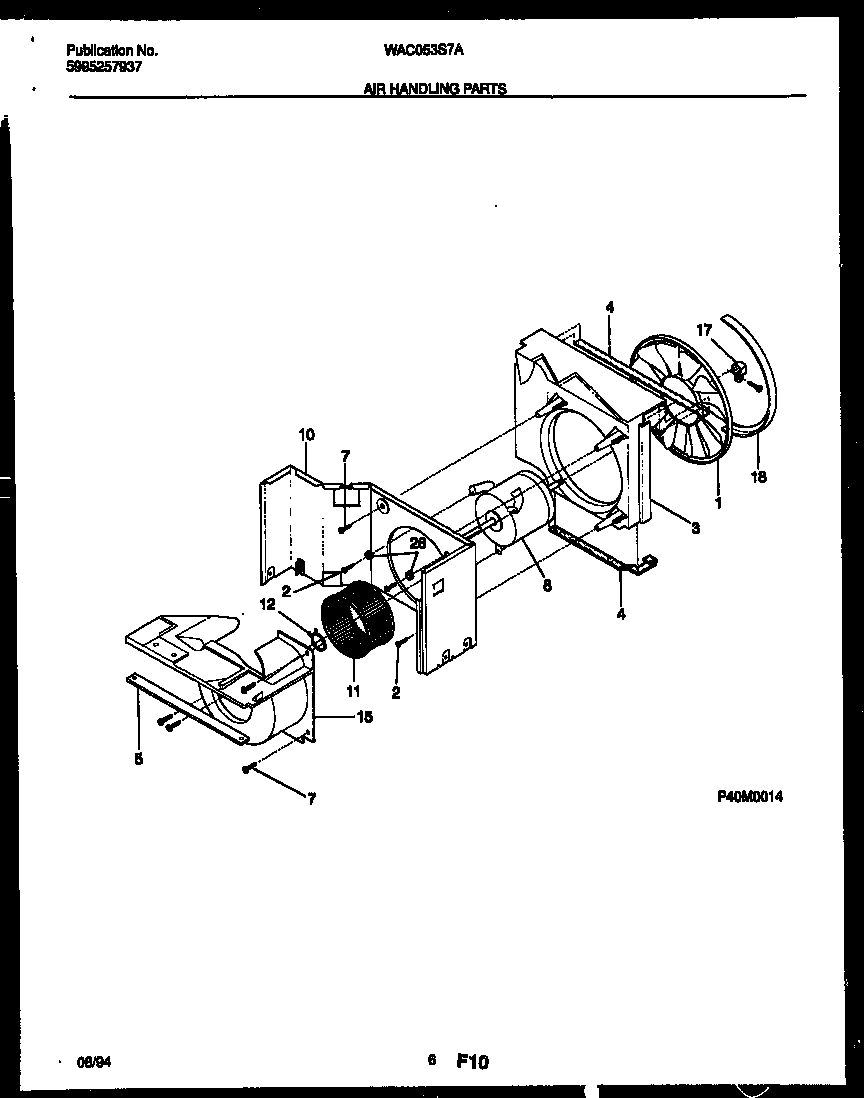

04 - AIR HANDLING PARTS

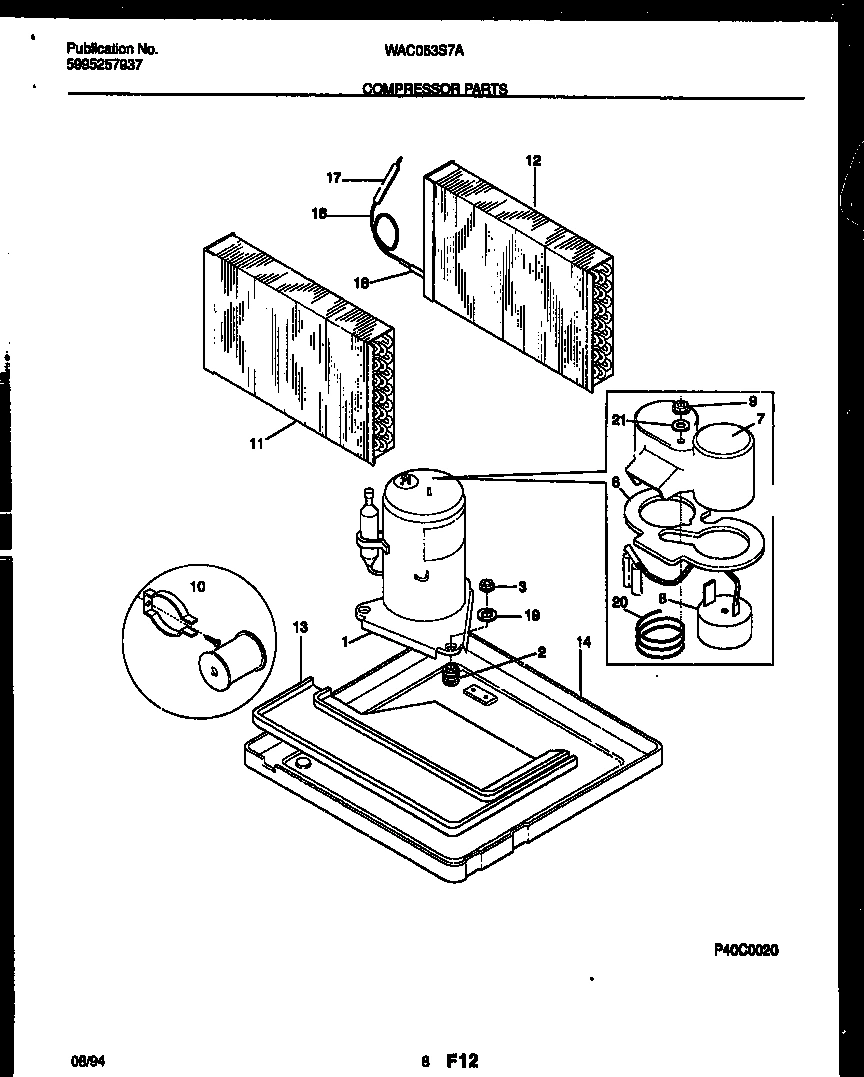

05 - COMPRESSOR PARTS

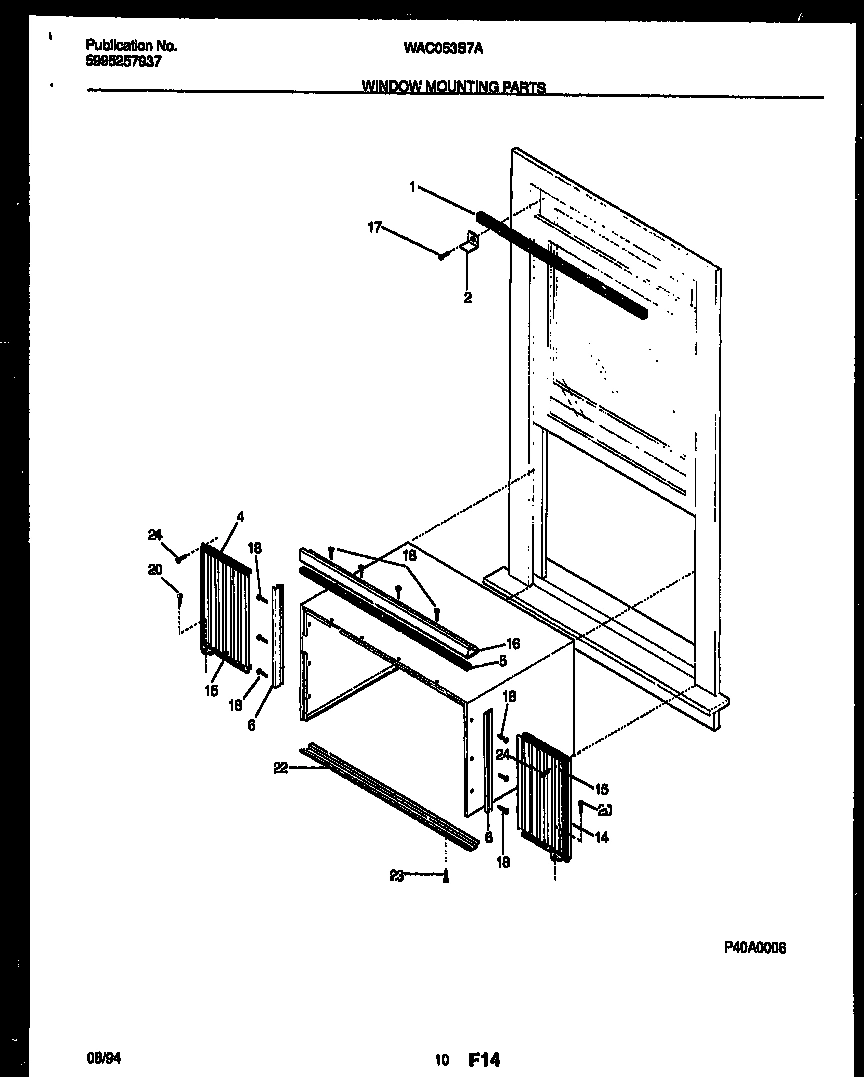

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux WAC053S7A4 ROOM AIR CONDITIONER
*10155
WCI 5303209136 WCI 5303209136 Contact Us For Availability
1
FAN BLADE & CLAMP WCI 5303270893 Contact Us For Availability
1
WCI 5303291331 WCI 5303291331 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
SCREW-MOTOR WCI 5303270036 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
3
SHROUD WCI 5303270041 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
SEAL-SHROUD TOP & BOTTOM WCI 5303270043 Contact Us For Availability
4
WCI 5303282370 WCI 5303282370 Contact Us For Availability
5
SEAL-SCROLL WCI 5303207363 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
6
RETAINER-ACCORDIAN WCI 5303298326 Contact Us For Availability
7
WCI 5303270052 WCI 5303270052 Contact Us For Availability
7
COVER-TERMINAL WCI 5303291329 Contact Us For Availability
8
WCI 5308013150 WCI 5308013150 Contact Us For Availability
8
WCI 309603001 WCI 309603001 Contact Us For Availability
8
WCI 5303209085 WCI 5303209085 Contact Us For Availability
9
CONTROL-TEMPERATURE WCI 5303282369 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
10
PARTITION-CONTROL AREA WCI 5303295301 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
11
DIVIDER-VERTICAL WCI 5303270159 Contact Us For Availability
11
WCI 5303211025 WCI 5303211025 Contact Us For Availability
11
WCI 5303271339 WCI 5303271339 Contact Us For Availability
12
WCI 3016117 WCI 3016117 Contact Us For Availability
12
WCI 3203075 WCI 3203075 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303271340 WCI 5303271340 Contact Us For Availability
13
WCI 08007482 WCI 08007482 Contact Us For Availability
13
CAPACITOR, 370 V, 20 MFD WCI 5303001902 Contact Us For Availability
13
TRAY-EVAPORATOR WCI 5303270039 Contact Us For Availability
14
SCREW-STRAP WCI 3201974 Contact Us For Availability
14
WCI 5303284434 WCI 5303284434 Contact Us For Availability
14
WCI 5303282371 WCI 5303282371 Contact Us For Availability
15
STRAP-CAPACITOR WCI 08006788 Contact Us For Availability
15
SCROLL WCI 5303270044 Contact Us For Availability
15
ACCORDIAN WCI 5303270075 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 35`` WCI 5303289577 Contact Us For Availability
16
WCI 5303301700 WCI 5303301700 Contact Us For Availability
17
FRONT COMPLETE WCI 5303300120 Contact Us For Availability
17
CORD-ELECTRIC POWER WCI 5303206830 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
DEFLECTOR-SHROUD WCI 5303270042 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
19
WCI 5303289325 WCI 5303289325 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5300331902 WCI 5300331902 Contact Us For Availability
20
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303291328 Contact Us For Availability
20
SCREW WCI 5303295750 Contact Us For Availability
21
WCI 5303293809 WCI 5303293809 Contact Us For Availability
22
WCI 5303270072 WCI 5303270072 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
SCREW WCI 5308002974 Contact Us For Availability
26
WCI 5303293807 WCI 5303293807 Contact Us For Availability
26
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
28
CLIP-FRONT BASE WCI 5303001784 Contact Us For Availability
30
WCI 5303271346 WCI 5303271346 Contact Us For Availability
42
LOUVERS W/ LINK WCI 5303293806 Contact Us For Availability
59
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
60
CLIP-FILTER, (2) WCI 3203495 Contact Us For Availability
62
WCI 5303300121 WCI 5303300121 Contact Us For Availability
× ![]()
