Model Electrolux WA24P2DVFA WASHER – Common Parts & Diagrams

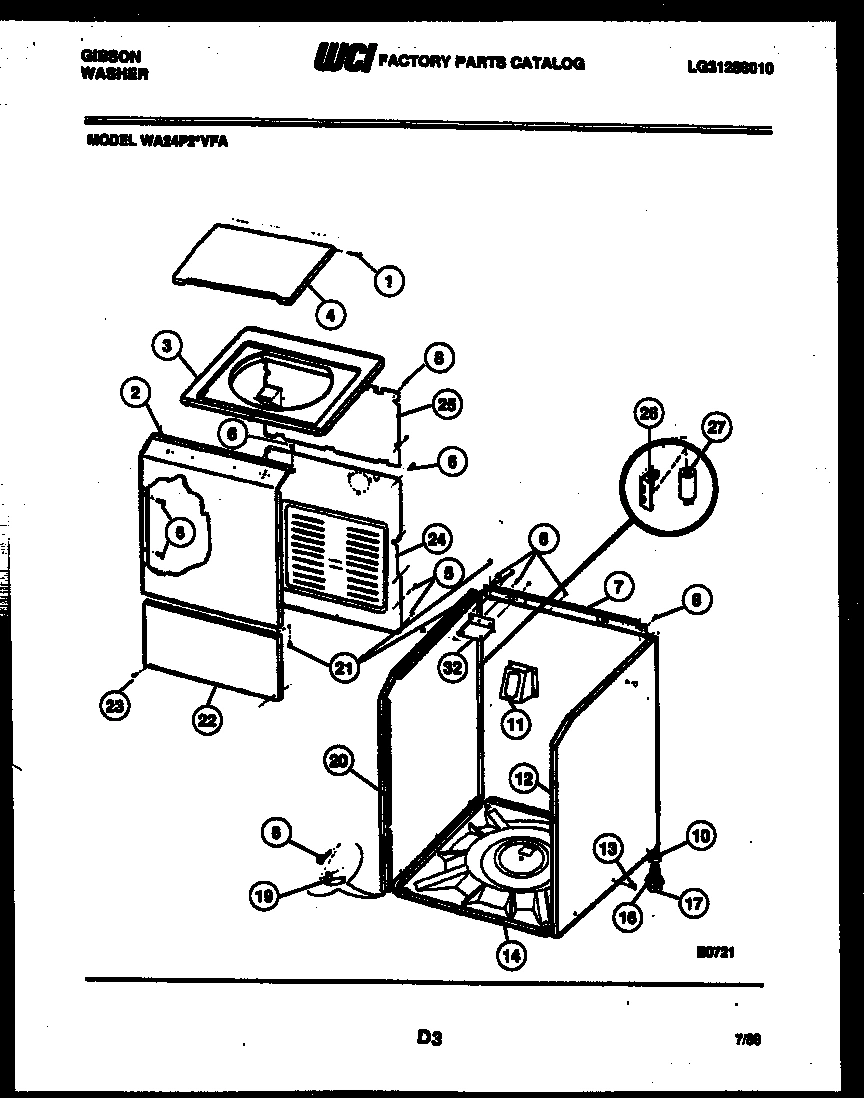

02 - CABINET PARTS

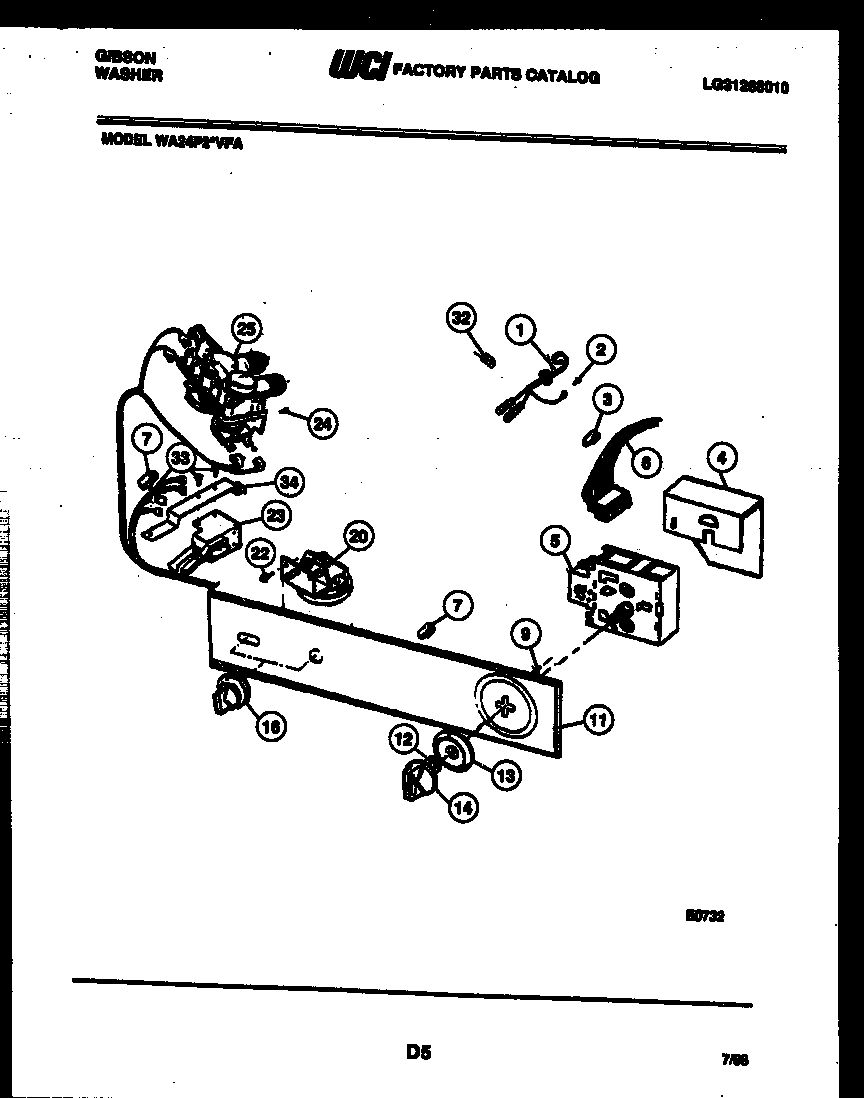

03 - CONSOLE AND CONTROL PARTS

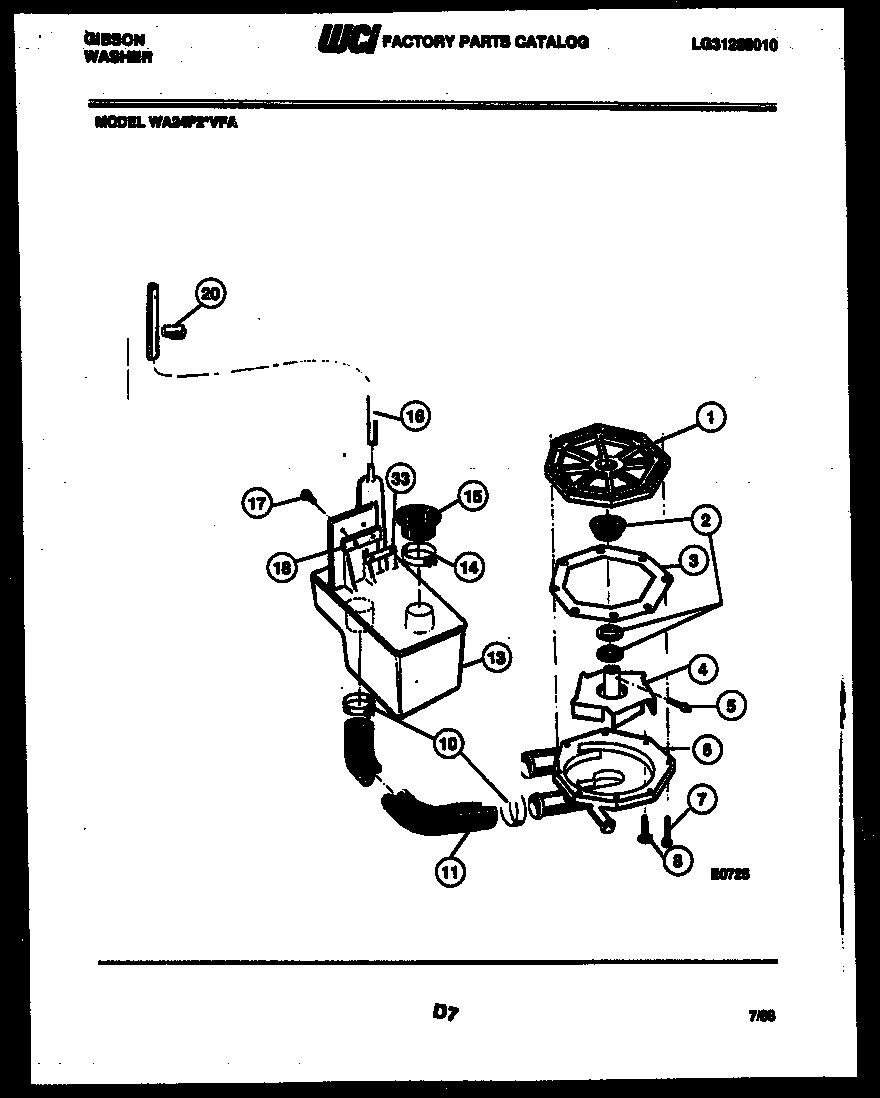

04 - DRAIN, RECIRCULATE PARTS

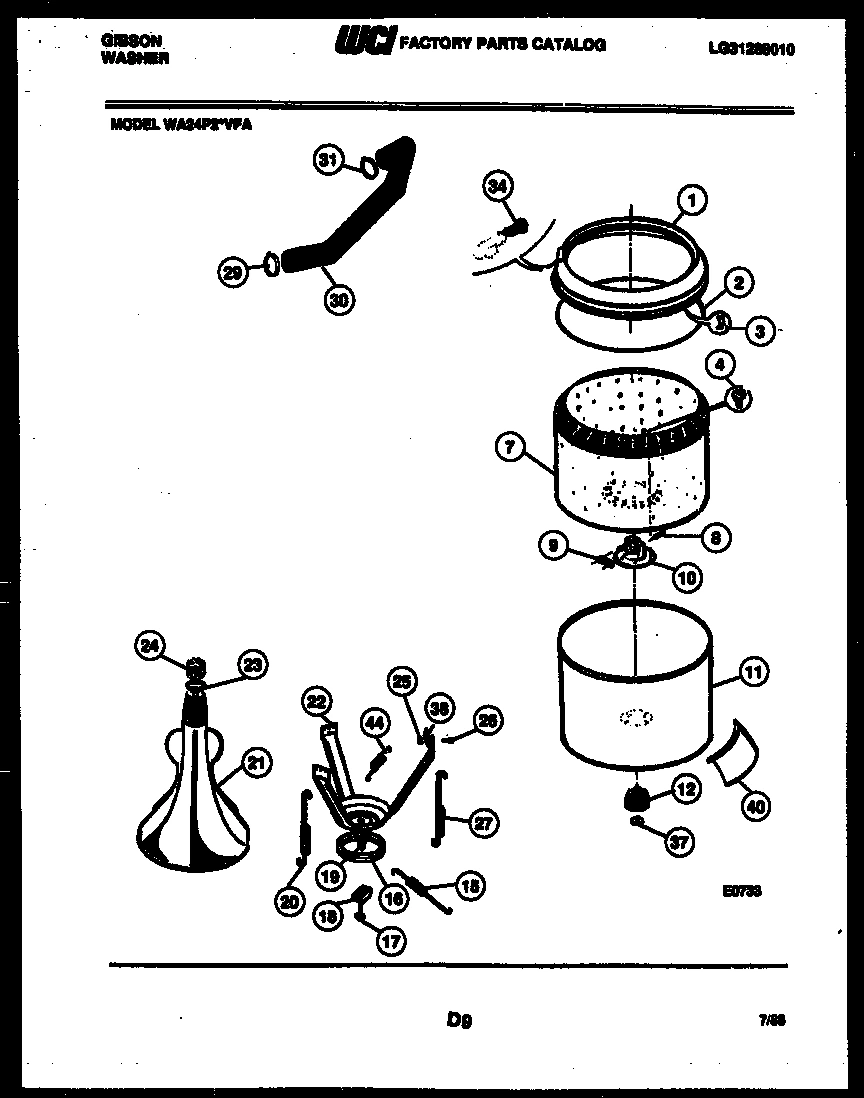

05 - TUB AND WATER INLET

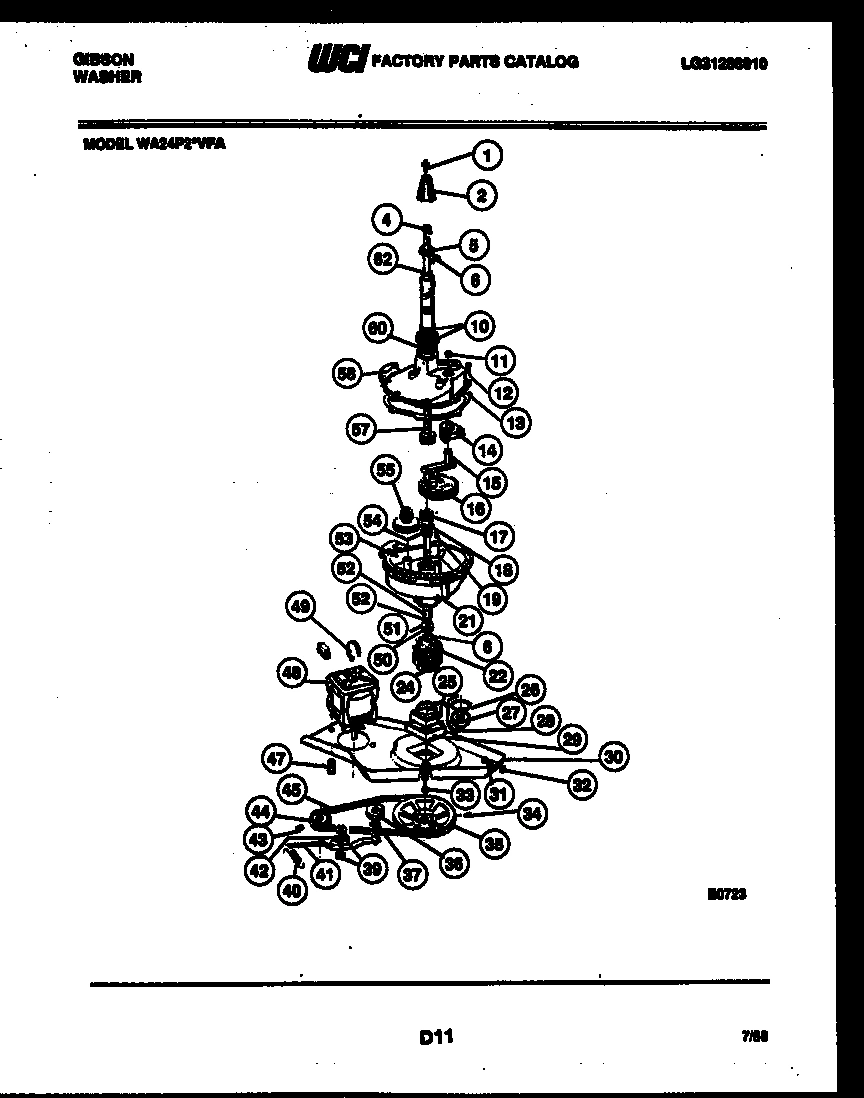

06 - TRANSMISSION PARTS

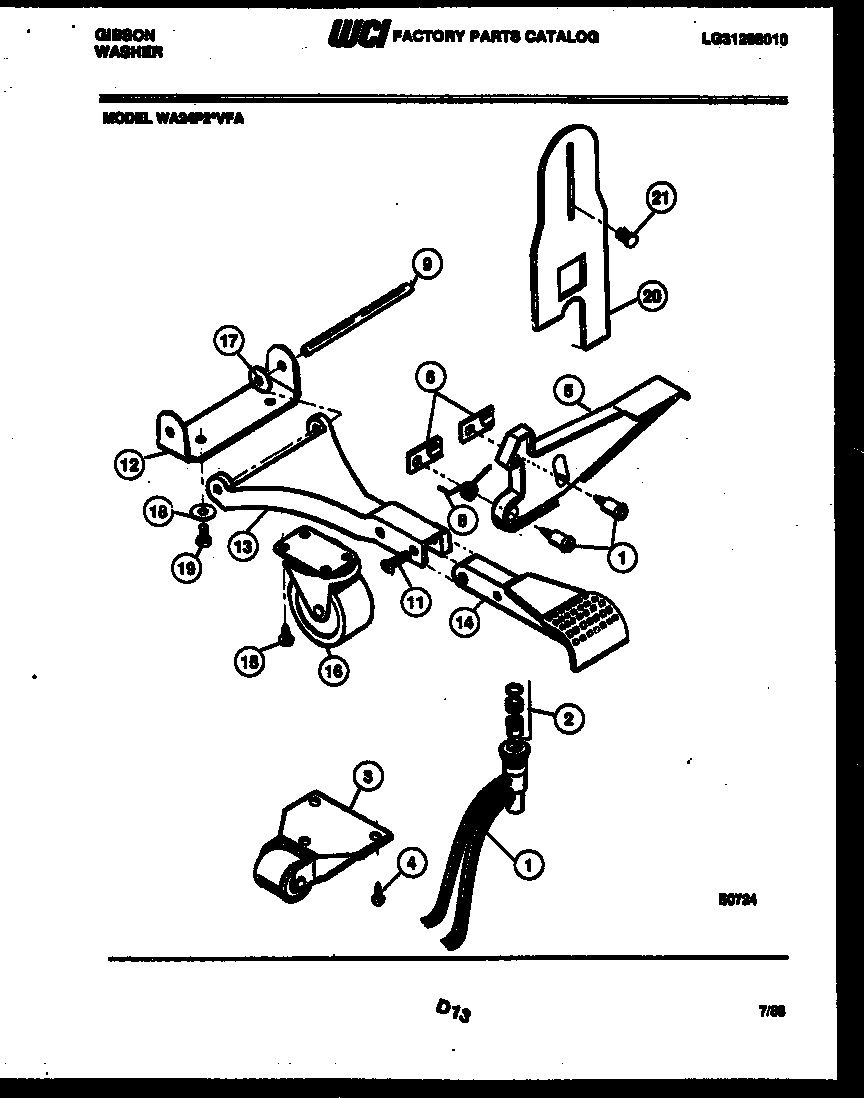

07 - PORTABLE WASHER COMPONENTS
Common parts from model Electrolux WA24P2DVFA WASHER
*11480
WCI F079865-000 WCI F079865-000 Contact Us For Availability
*11484
WCI F133058-100 WCI F133058-100 Contact Us For Availability
*11494
WCI F141800-000 WCI F141800-000 Contact Us For Availability
1
SCREW (2) WCI F139410-000 Contact Us For Availability
1
WCI F132470-000 WCI F132470-000 Contact Us For Availability
1
WCI F077352-000 WCI F077352-000 Contact Us For Availability
1
WCI F142025-000 WCI F142025-000 Contact Us For Availability
1
WCI F063882-000 WCI F063882-000 Contact Us For Availability
1
WCI 3018541 WCI 3018541 Contact Us For Availability
1A
WCI 3018542 WCI 3018542 Contact Us For Availability
1A
WCI F136152-000 WCI F136152-000 Contact Us For Availability
1B
SCREW - CLAMPS/TUB (2) (NON-ILLUSTRATED) WCI F140073-000 Contact Us For Availability
1C
SPEED NUT (2) (NON-ILLUSTRATED) WCI F078029-000 Contact Us For Availability
2
PNL-CONTROL (WHITE) WCI F140428-432 Contact Us For Availability
2
PNL-CONTROL (ALMOND) WCI F140428-439 Contact Us For Availability
2
SEAL KIT (CONSISTS OF SEAL ASSEMBLY & GASKET) WCI F076143-000 Contact Us For Availability
2
WCI F078611-100 WCI F078611-100 Contact Us For Availability
2
WCI F132503-200 WCI F132503-200 Contact Us For Availability
3
WCI 3018540 WCI 3018540 Contact Us For Availability
3
WCI 3018687 WCI 3018687 Contact Us For Availability
3
WCI F077354-000 WCI F077354-000 Contact Us For Availability
3
SPEED CLIP (8) WCI F079975-000 Contact Us For Availability
3
FRONT CASTERS ASSY. (2) WCI F131445-100 Contact Us For Availability
4
WCI F138749-032 WCI F138749-032 Contact Us For Availability
4
WCI F138749-039 WCI F138749-039 Contact Us For Availability
4
SHIELD-TIMER WCI F140881-000 Contact Us For Availability
4
WCI F079428-000 WCI F079428-000 Contact Us For Availability
4
WCI F142055-000 WCI F142055-000 Contact Us For Availability
4
DRIVE LUG WCI F140465-000 Contact Us For Availability
4
WCI F064337-000 WCI F064337-000 Contact Us For Availability
5
WCI 3015652 WCI 3015652 Contact Us For Availability
5
SCREW-IMPELLER WCI F077203-000 Contact Us For Availability
5
WCI F141071-000 WCI F141071-000 Contact Us For Availability
6
WCI 3018759 WCI 3018759 Contact Us For Availability
6
WCI F141874-100 WCI F141874-100 Contact Us For Availability
6
WCI F068158-000 WCI F068158-000 Contact Us For Availability
6
WCI F141076-000 WCI F141076-000 Contact Us For Availability
7
SUPPORT-REAR CAB. WCI F138840-226 Contact Us For Availability
7
CLIP-HARNESS (9) WCI F131347-000 Contact Us For Availability
7
WCI F142026-000 WCI F142026-000 Contact Us For Availability
7
WCI F141065-000 WCI F141065-000 Contact Us For Availability
8
SCREW (4) WCI F077669-000 Contact Us For Availability
8
SPRING-RETRACTABLE WCI F141066-000 Contact Us For Availability
8B
SCREW-BACK PANEL/SUPPORT (2) WCI F132144-000 Contact Us For Availability
9
WCI F060796-000 WCI F060796-000 Contact Us For Availability
9
WCI F141060-000 WCI F141060-000 Contact Us For Availability
10
WCI F138978-000 WCI F138978-000 Contact Us For Availability
10
CLAMP-HOSE (4) WCI F140887-027 Contact Us For Availability
10
WCI F140604-100 WCI F140604-100 Contact Us For Availability
10
WCI F079420-000 WCI F079420-000 Contact Us For Availability
11
BRACKET-HOSE STORAGE WCI F133654-026 Contact Us For Availability
11
WCI F140599-000 WCI F140599-000 Contact Us For Availability
11
WCI F139191-000 WCI F139191-000 Contact Us For Availability
11
WCI F141744-000 WCI F141744-000 Contact Us For Availability
11
WCI F077061-000 WCI F077061-000 Contact Us For Availability
11
WCI F141062-000 WCI F141062-000 Contact Us For Availability
12
PNL-R.H. SIDE (WHITE) WCI F140418-032 Contact Us For Availability
12
PNL-R.H. SIDE (ALMOND) WCI F140418-039 Contact Us For Availability
12
WCI F078212-200 WCI F078212-200 Contact Us For Availability
12
WCI F140581-000 WCI F140581-000 Contact Us For Availability
12
WCI F079688-000 WCI F079688-000 Contact Us For Availability
12
WCI F141064-000 WCI F141064-000 Contact Us For Availability
13
POINTER-TIMER WCI F141024-000 Contact Us For Availability
13
WCI F077276-000 WCI F077276-000 Contact Us For Availability
13
WCI F130895-000 WCI F130895-000 Contact Us For Availability
13
WCI F141067-100 WCI F141067-100 Contact Us For Availability
14
BASE-CABINET WCI F141072-126 Contact Us For Availability
14
KNOB, TIMER WCI F141025-000 Contact Us For Availability
14
CLAMP-HOSE WCI F064154-020 Contact Us For Availability
14
GEAR-SECTOR WCI F130405-100 Contact Us For Availability
14
WCI F141068-100 WCI F141068-100 Contact Us For Availability
15
WCI F137466-000 WCI F137466-000 Contact Us For Availability
15
WCI F078135-000 WCI F078135-000 Contact Us For Availability
15
ROD-CONNECTING WCI F066078-100 Contact Us For Availability
15
WCI F141063-000 WCI F141063-000 Contact Us For Availability
15A
ADHESIVE (1 OZ.) (NON-ILLUSTRATED) WCI F062805-100 Contact Us For Availability
16
LEVELING LEG PACKAGE (CONSISTS OF LEVELING LE WCI F137027-000 Contact Us For Availability
16
WCI F078949-000 WCI F078949-000 Contact Us For Availability
16
WCI F130789-000 WCI F130789-000 Contact Us For Availability
16
GEAR-CRANK WCI F130404-100 Contact Us For Availability
16
WCI F141069-000 WCI F141069-000 Contact Us For Availability
17
LEG CUSHION (CONSISTS OF LEVELING LEG, CUSHIO WCI F134166-000 Contact Us For Availability
17
WCI F136471-000 WCI F136471-000 Contact Us For Availability
17
SCREW-SHIPPING WCI F137203-000 Contact Us For Availability
17
WCI F141770-000 WCI F141770-000 Contact Us For Availability
18
WCI F140324-000 WCI F140324-000 Contact Us For Availability
18
BLOCK-SHIPPING WCI F077075-000 Contact Us For Availability
18
WASHER (2) WCI F079874-000 Contact Us For Availability
19
WCI F140729-026 WCI F140729-026 Contact Us For Availability
19
SCREW (2) WCI F132459-000 Contact Us For Availability
19
NUT-EXPANSION WCI F077074-000 Contact Us For Availability
19
WCI F077058-000 WCI F077058-000 Contact Us For Availability
20
WCI 3018688 WCI 3018688 Contact Us For Availability
20
WCI 3018689 WCI 3018689 Contact Us For Availability
20
SPEED-CLIP (2) WCI F002751-000 Contact Us For Availability
20
WCI F144090-000 WCI F144090-000 Contact Us For Availability
20
SPRING - VERTICAL - SHORT WCI F137997-100 Contact Us For Availability
20
WCI F141233-000 WCI F141233-000 Contact Us For Availability
21
WCI F141970-000 WCI F141970-000 Contact Us For Availability
21
WCI F141234-000 WCI F141234-000 Contact Us For Availability
22
PNL-ACCESS (WHITE) WCI F078173-032 Contact Us For Availability
22
PNL-ACCESS (ALMOND) WCI F078173-039 Contact Us For Availability
22
LEG & DOME ASSEMBLY WCI F079630-000 Contact Us For Availability
22
HOUSING ASSY.-LOWER WCI F140586-000 Contact Us For Availability
23
WCI F130139-000 WCI F130139-000 Contact Us For Availability
23
LID LOCK & SWITCH ASSY. WCI 3017110 Contact Us For Availability
23
GASKET WCI F073565-000 Contact Us For Availability
24
PNL-LOWER REAR WCI F141073-328 Contact Us For Availability
24
AGITATOR CAP WCI F131203-100 Contact Us For Availability
25
PNL-UPPER REAR WCI F133655-028 Contact Us For Availability
25
WCI F133048-000 WCI F133048-000 Contact Us For Availability
25
WCI F054287-000 WCI F054287-000 Contact Us For Availability
25A
COIL & BRACKET ASSY. (2) (PART OF REF. 25, BU WCI F076138-015 Contact Us For Availability
25B
SCREEN (2) (PART OF REF. 25, BUT MAY BE ORDER WCI F076138-011 Contact Us For Availability
26
BRACKET, CAPACITOR WCI F140401-000 Contact Us For Availability
26
SCREW (6) WCI F063532-000 Contact Us For Availability
27
WCI F140443-000 WCI F140443-000 Contact Us For Availability
27
SPRING - VERTICAL LONG (2) WCI F137997-000 Contact Us For Availability
27
WCI F130417-000 WCI F130417-000 Contact Us For Availability
28
WCI F141261-000 WCI F141261-000 Contact Us For Availability
29
CLAMP-HOSE WCI F064154-003 Contact Us For Availability
29
WCI F077009-100 WCI F077009-100 Contact Us For Availability
30
HOSE-WATER VALVE/INLET WCI F137507-100 Contact Us For Availability
30
PLATE-SUPPORT WCI F132770-028 Contact Us For Availability
31
CLAMP-HOSE WCI F064154-010 Contact Us For Availability
31
WCI F077090-000 WCI F077090-000 Contact Us For Availability
32
BRACKET-WATER VALVE WCI F133543-000 Contact Us For Availability
32
CLIP - SERVICE CORD/SUPPORT WCI F077094-000 Contact Us For Availability
32
WCI F073804-000 WCI F073804-000 Contact Us For Availability
33
WCI F139592-000 WCI F139592-000 Contact Us For Availability
33
WCI F142220-000 WCI F142220-000 Contact Us For Availability
33A
SCREW-BRKT/SIDE PANEL (2) WCI F130439-000 Contact Us For Availability
33A
SPACER-RUBBER (2) WCI F078749-000 Contact Us For Availability
34
WCI 3018393 WCI 3018393 Contact Us For Availability
34
WCI F142046-000 WCI F142046-000 Contact Us For Availability
35
PULLEY-TRANSMISSION WCI F140999-100 Contact Us For Availability
38
PLATE-LEG BOLTS (3) WCI F132729-000 Contact Us For Availability
39
WCI F142027-000 WCI F142027-000 Contact Us For Availability
40
WCI F139128-000 WCI F139128-000 Contact Us For Availability
40
WCI F078914-000 WCI F078914-000 Contact Us For Availability
41
WCI F141786-000 WCI F141786-000 Contact Us For Availability
43
WCI F132861-000 WCI F132861-000 Contact Us For Availability
44
SPRING-HRIZONTAL-REAR WCI F079837-000 Contact Us For Availability
44
PULLEY-MOTOR WCI F134881-000 Contact Us For Availability
47
WCI F141131-000 WCI F141131-000 Contact Us For Availability
48
MOTOR WCI F140322-000 Contact Us For Availability
48A
SWITCH-MOTOR WCI F067630-015 Contact Us For Availability
50
WCI F077098-000 WCI F077098-000 Contact Us For Availability
51
WCI F077051-000 WCI F077051-000 Contact Us For Availability
53
OIL-TRANSMISSION (1 QT.) WCI F060821-100 Contact Us For Availability
54
LGS SPRING-SMALL WCI F077052-000 Contact Us For Availability
55
GEAR-IDLER WCI F130403-100 Contact Us For Availability
58
HOUSING ASSY-UPPER WCI F140588-000 Contact Us For Availability
60
WCI F077156-000 WCI F077156-000 Contact Us For Availability
62
WCI F062568-000 WCI F062568-000 Contact Us For Availability
× ![]()
