Model Whirlpool W7WCC085XB0 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL PARTS
01 - UNIT PARTS

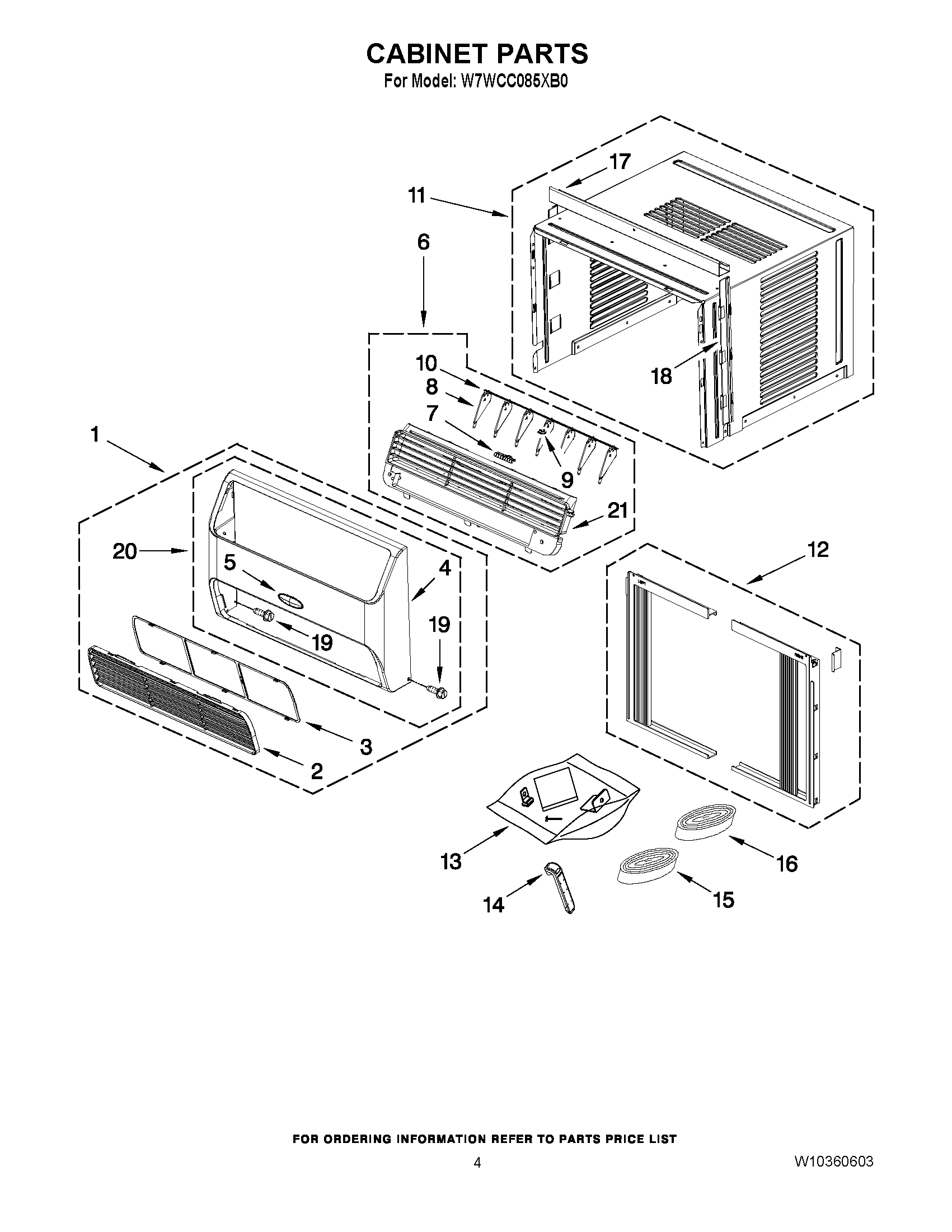

03 - CABINET PARTS
Common parts from model Whirlpool W7WCC085XB0 AIR CONDITIONER
1
SCROLL WPL W10388539 Contact Us For Availability
1
WIRING DIAGRAM WPL W10369332 Contact Us For Availability
1
USE & CARE GUIDE WPL W10369625 Contact Us For Availability
1
ENERGY GUIDE WPL W10369630 Contact Us For Availability
1
FRONT PNL ASSY WPL W10362673 Contact Us For Availability
2
HOUSING WPL W10388540 Contact Us For Availability
2
EVAPORATOR WPL W10388577 Contact Us For Availability
2
AIR INLET FRAME WPL W10388573 Contact Us For Availability
3
REAR CLAPBOARD WPL W10361768 Contact Us For Availability
3
PAN DRIP WPL W10361763 Contact Us For Availability
3
FILTER ASSY WPL W10369745 Contact Us For Availability
4
BASE WPL W10388570 Contact Us For Availability
4
TUBE-RESTR WPL W10362229 Contact Us For Availability
4
FRONT CASE WPL W10362675 Contact Us For Availability
5
AMB TEMP SENSOR WPL 8209739 Contact Us For Availability
5
NAMEPLATE WPL W10369615 Contact Us For Availability
6
POWER CORD WPL W10369614 Contact Us For Availability
6
TUBE-INLET WPL W10369617 Contact Us For Availability
6
AIR OUTLET FR ASSY WPL W10368341 Contact Us For Availability
7
CONTROL BOX WPL W10362697 Contact Us For Availability
7
TUBE-DSCHG WPL W10362232 Contact Us For Availability
7
MANUAL LEVER WPL W10369328 Contact Us For Availability
8
CAPACITOR WPL W10362236 Contact Us For Availability
8
WHEEL BLOWER WPL W10361426 Contact Us For Availability
8
AIR LOUVER 2 WPL W10362680 Contact Us For Availability
9
MOTOR-FAN WPL W10362233 Contact Us For Availability
9
AIR LOUVER 1 WPL W10362681 Contact Us For Availability
10
MAIN BOARD WPL W10362822 Contact Us For Availability
10
SWING LEVER WPL W10362682 Contact Us For Availability
11
CABINET ASSY WPL W10362670 Contact Us For Availability
12
MEMBRANE WPL W10388572 Contact Us For Availability
12
GASKET WPL W10361406 Contact Us For Availability
12
FIXING FRAME WPL W10362687 Contact Us For Availability
13
ELECT BOX SIDE WPL W10388543 Contact Us For Availability
13
OVERLOAD WPL W10362227 Contact Us For Availability
13
MTG ACCESSORIES WPL W10369616 Contact Us For Availability
14
ELECT BOX SIDE WPL W10388546 Contact Us For Availability
14
NUT WPL W10388536 Contact Us For Availability
14
CONTROL REMOTE WPL W10362686 Contact Us For Availability
15
SPACER WPL W10388547 Contact Us For Availability
15
NUT WPL W10388589 Contact Us For Availability
15
SEAL WPL W10388557 Contact Us For Availability
16
Clamp WPL 8215050 Contact Us For Availability
16
WASHER WPL W10388590 Contact Us For Availability
16
SEAL WPL W10388558 Contact Us For Availability
17
TUBE SENSOR WPL W10362770 Contact Us For Availability
17
WASHER WPL W10388591 Contact Us For Availability
17
TOP GUIDE WPL W10388574 Contact Us For Availability
18
ELECT BOX COVER WPL W10388549 Contact Us For Availability
18
WASHER WPL W10388527 Contact Us For Availability
18
CURTAIN WPL W10362672 Contact Us For Availability
19
WASHER WPL W10388530 Contact Us For Availability
19
SCREW WPL W10388575 Contact Us For Availability
20
WASHER WPL W10388534 Contact Us For Availability
20
PANEL ASSY WPL W10388576 Contact Us For Availability
21
NUT WPL 8215252 Contact Us For Availability
21
AIR OUTLET FR WPL W10368342 Contact Us For Availability
22
SENSOR SUPPORT WPL 8209771 Contact Us For Availability
NI
REFRIGERANT CHARGE (14.00 OZ.) WPL NP Contact Us For Availability
× ![]()
