Model Whirlpool W5WCE105YW1 AIR CONDITIONER – Common Parts & Diagrams

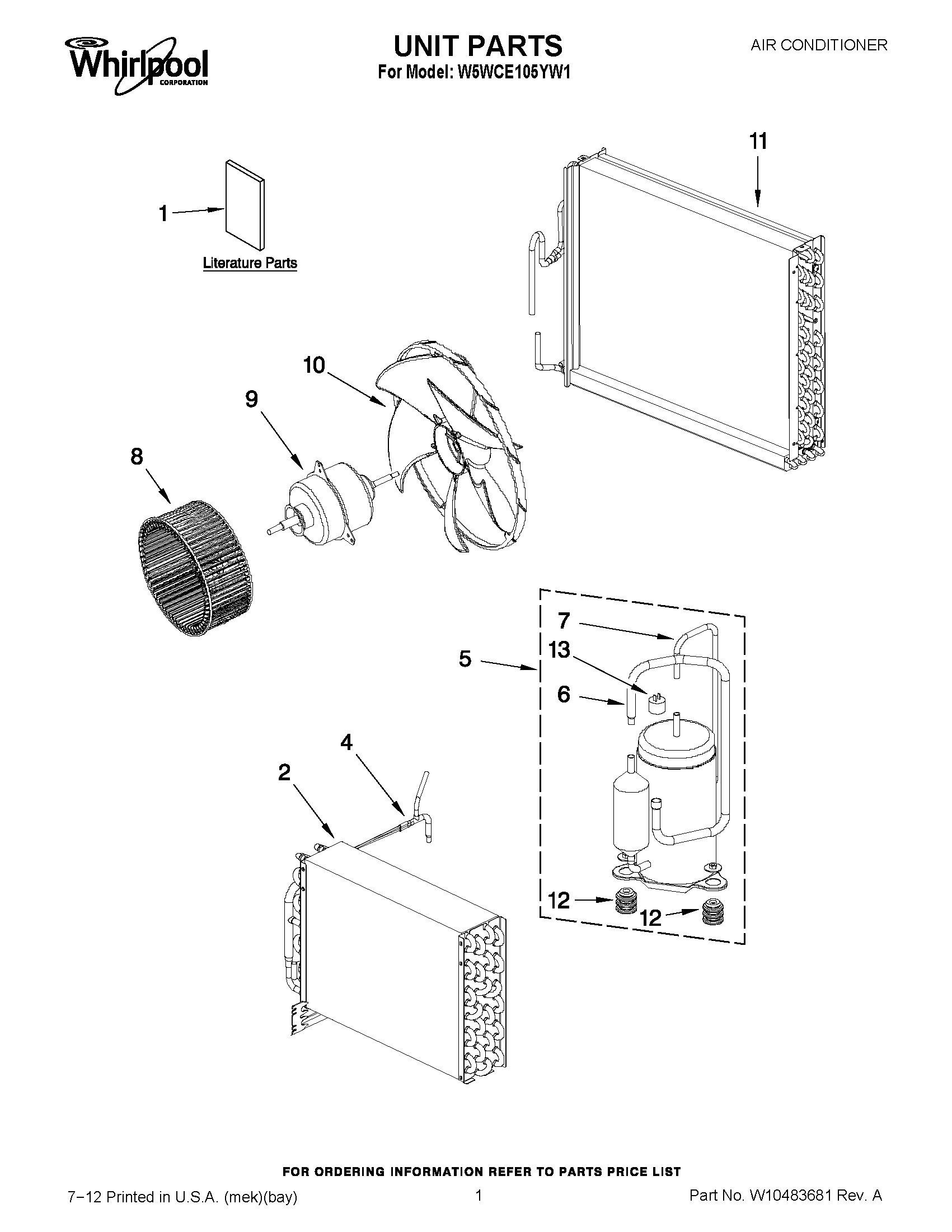

01 - UNIT PARTS

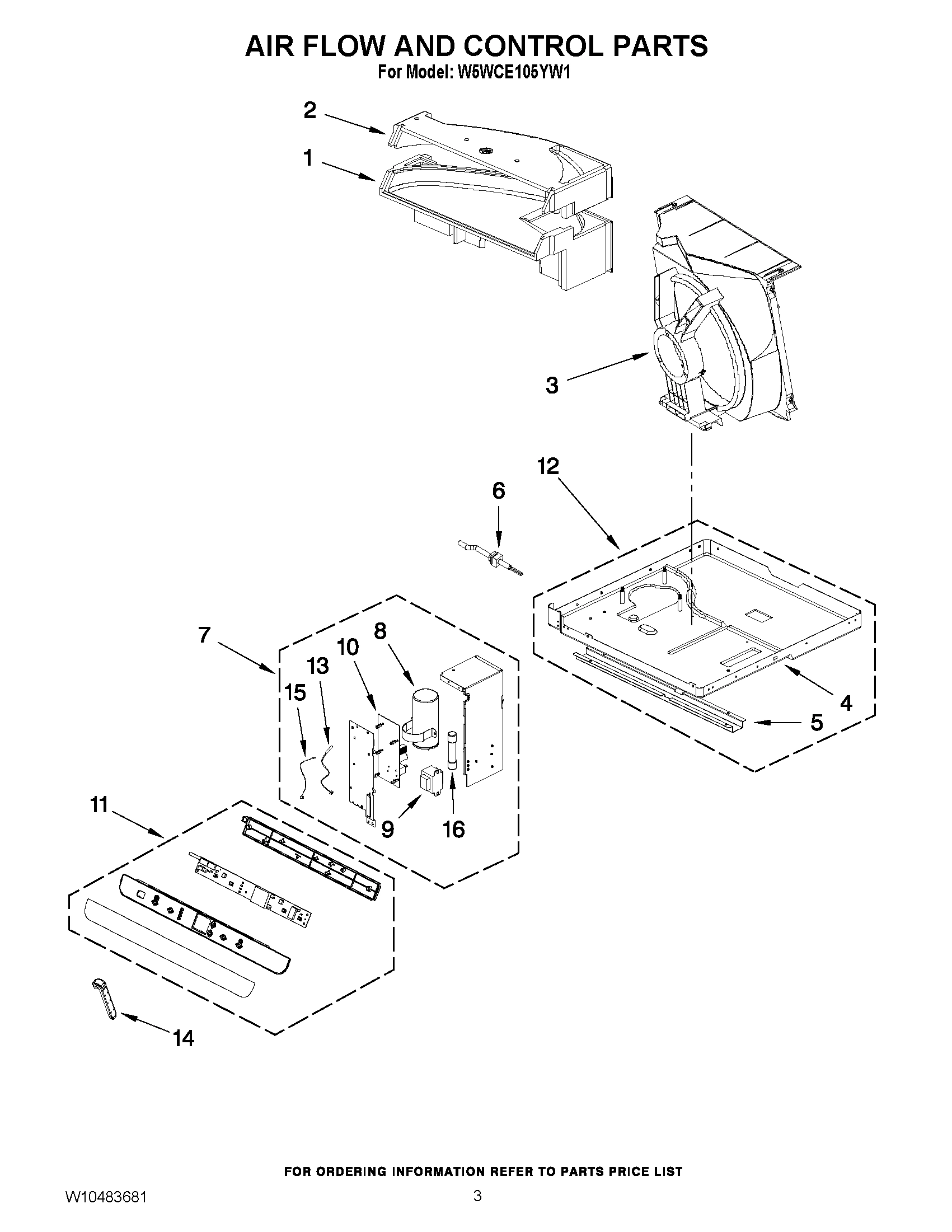

02 - AIR FLOW AND CONTROL PARTS

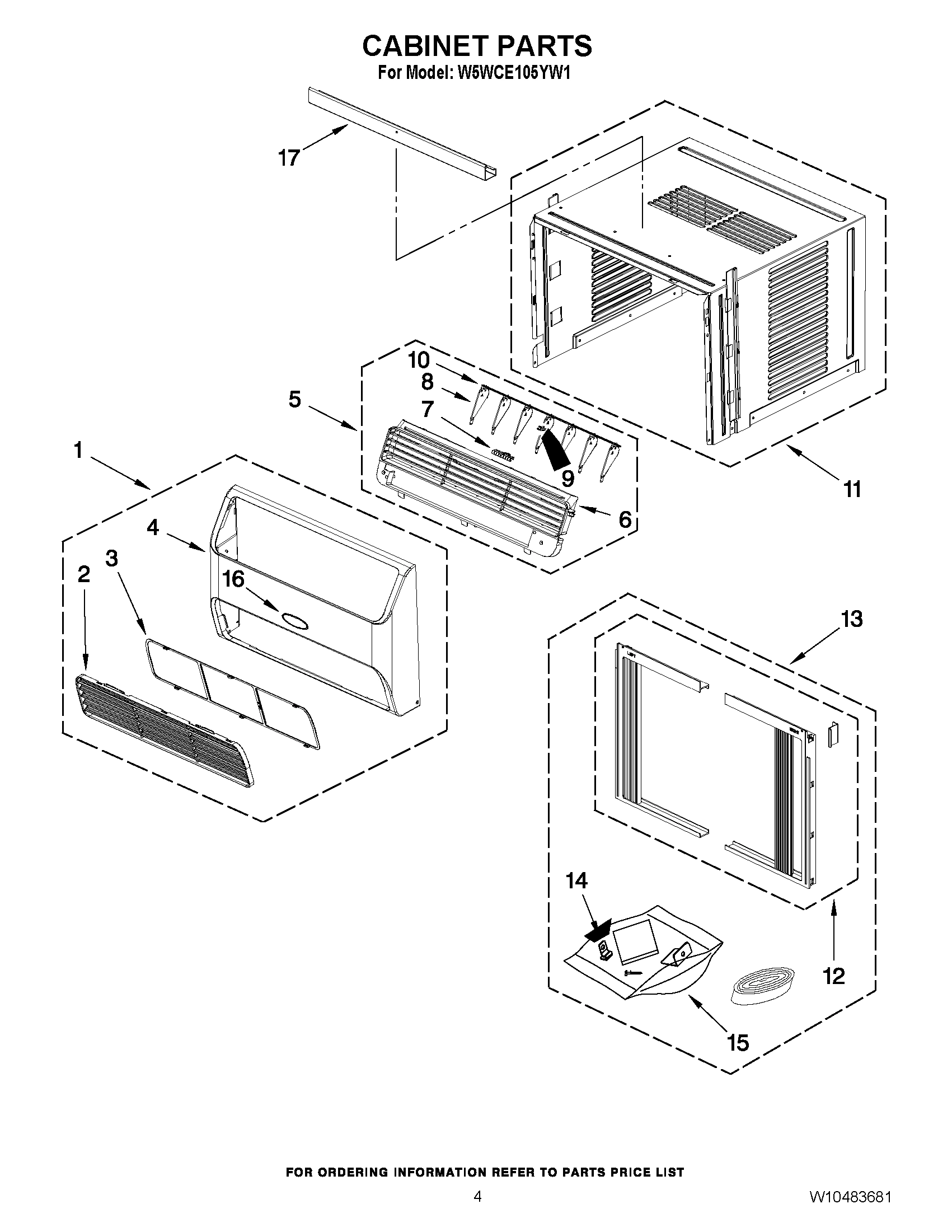

03 - CABINET PARTS
Common parts from model Whirlpool W5WCE105YW1 AIR CONDITIONER
1
ENERGY GUIDE WPL W10369631 Contact Us For Availability
1
SCROLL WPL W10484827 Contact Us For Availability
2
HOUSING WPL W10484828 Contact Us For Availability
2
AIR INLET FRAME WPL W10484822 Contact Us For Availability
3
REAR CLAPBOARD WPL W10362781 Contact Us For Availability
4
BASE WPL W10484830 Contact Us For Availability
4
FRONT PANEL WPL W10484821 Contact Us For Availability
5
COMPRESSOR WPL W10484824 Contact Us For Availability
5
GUIDE,LOWER WPL W10368216 Contact Us For Availability
5
AIR OUTLET FR ASSY WPL W10361852 Contact Us For Availability
6
TUBE-INLET WPL W10362776 Contact Us For Availability
6
AIR OUTLET FRAME WPL W10476318 Contact Us For Availability
7
TUBE-DSCHG WPL W10484826 Contact Us For Availability
7
MANUAL LEVER WPL W10476326 Contact Us For Availability
8
WHEEL, BLOWER WPL W10362785 Contact Us For Availability
8
CAPACITOR WPL W10484832 Contact Us For Availability
8
AIR LOUVER 2 WPL W10476323 Contact Us For Availability
9
AIR LOUVER 1 WPL W10476324 Contact Us For Availability
10
SWING LEVER WPL W10361856 Contact Us For Availability
11
CABINET ASSY WPL W10484829 Contact Us For Availability
12
GROMMET WPL W10288563 Contact Us For Availability
12
CHASSIS ASSY WPL W10529675 Contact Us For Availability
13
OVERLOAD WPL W10484825 Contact Us For Availability
13
TUBE SENSOR WPL 8209739 Contact Us For Availability
13
MTG ACCESSORIES WPL W10368211 Contact Us For Availability
14
REMOTE CONTROLLER WPL W10361862 Contact Us For Availability
14
CLAMP WPL W10368212 Contact Us For Availability
15
AMB TEMP SENSOR WPL W10362770 Contact Us For Availability
15
SCR ACCESSORIES WPL W10368214 Contact Us For Availability
16
Nameplate WPL 8209737 Contact Us For Availability
17
TOP GUIDE WPL W10388580 Contact Us For Availability
NI
REFRIGERANT CHARGE (14.00 OZ.) WPL NP Contact Us For Availability
× ![]()
