Model Whirlpool W5WCE055XW0 AIR CONDITIONER – Common Parts & Diagrams

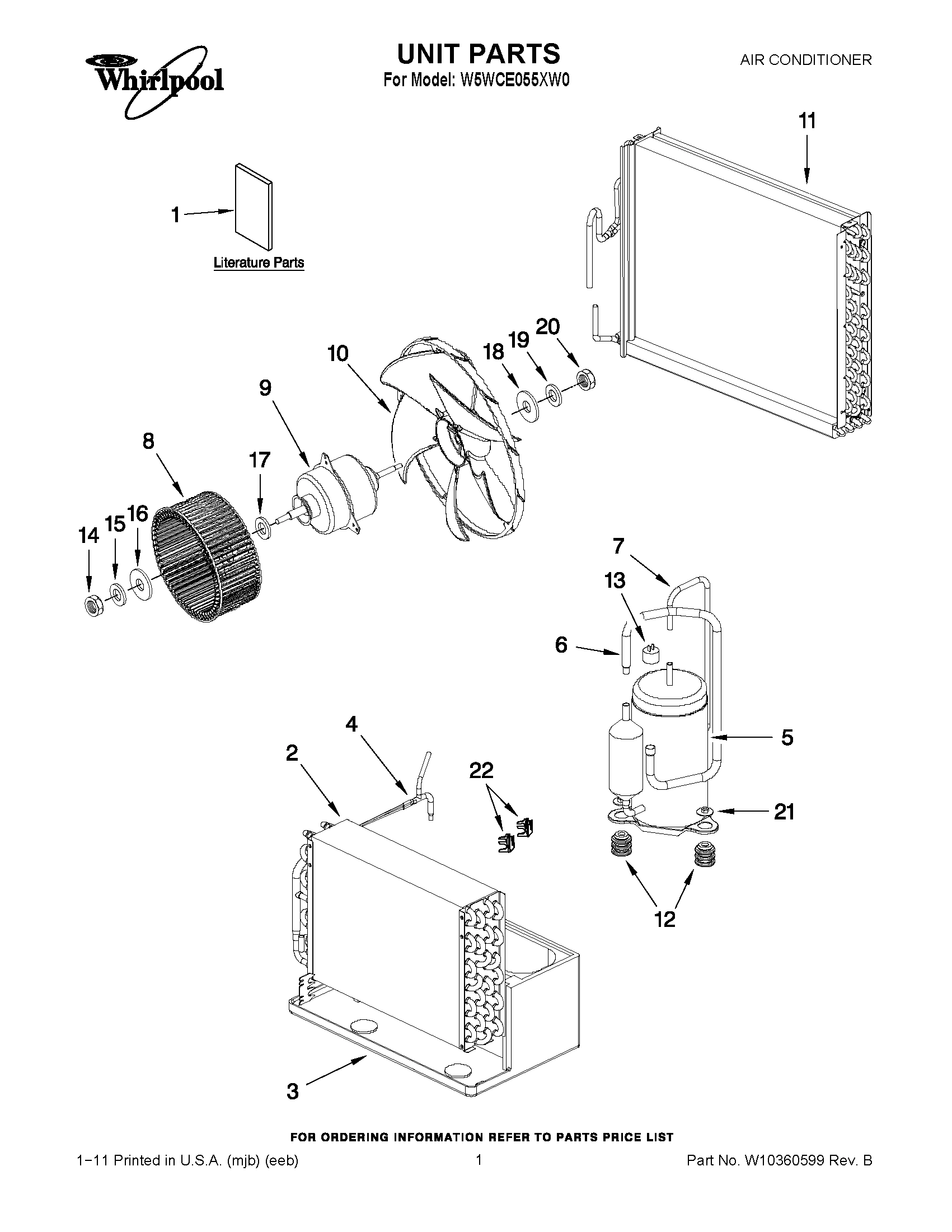

01 - UNIT PARTS

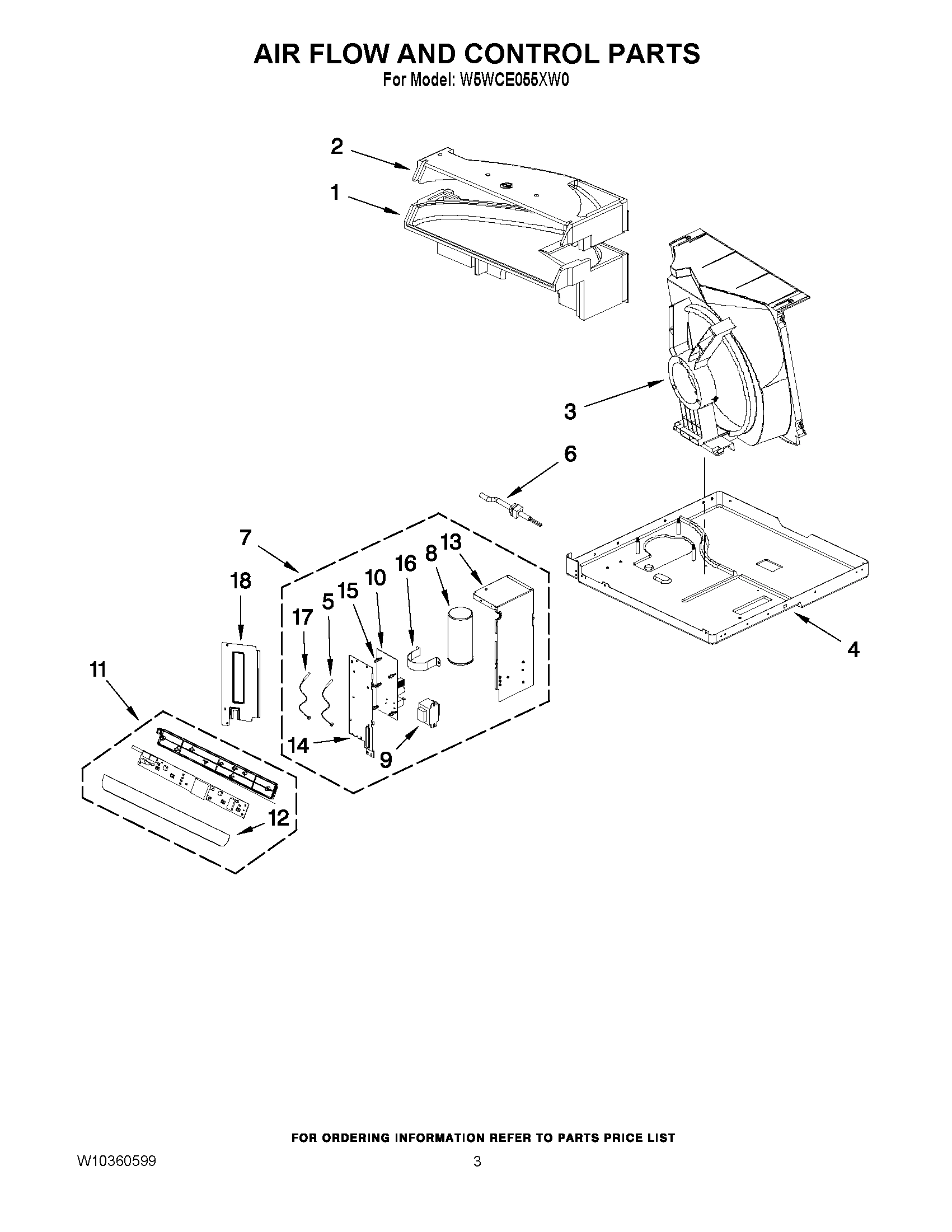

02 - AIR FLOW AND CONTROL PARTS

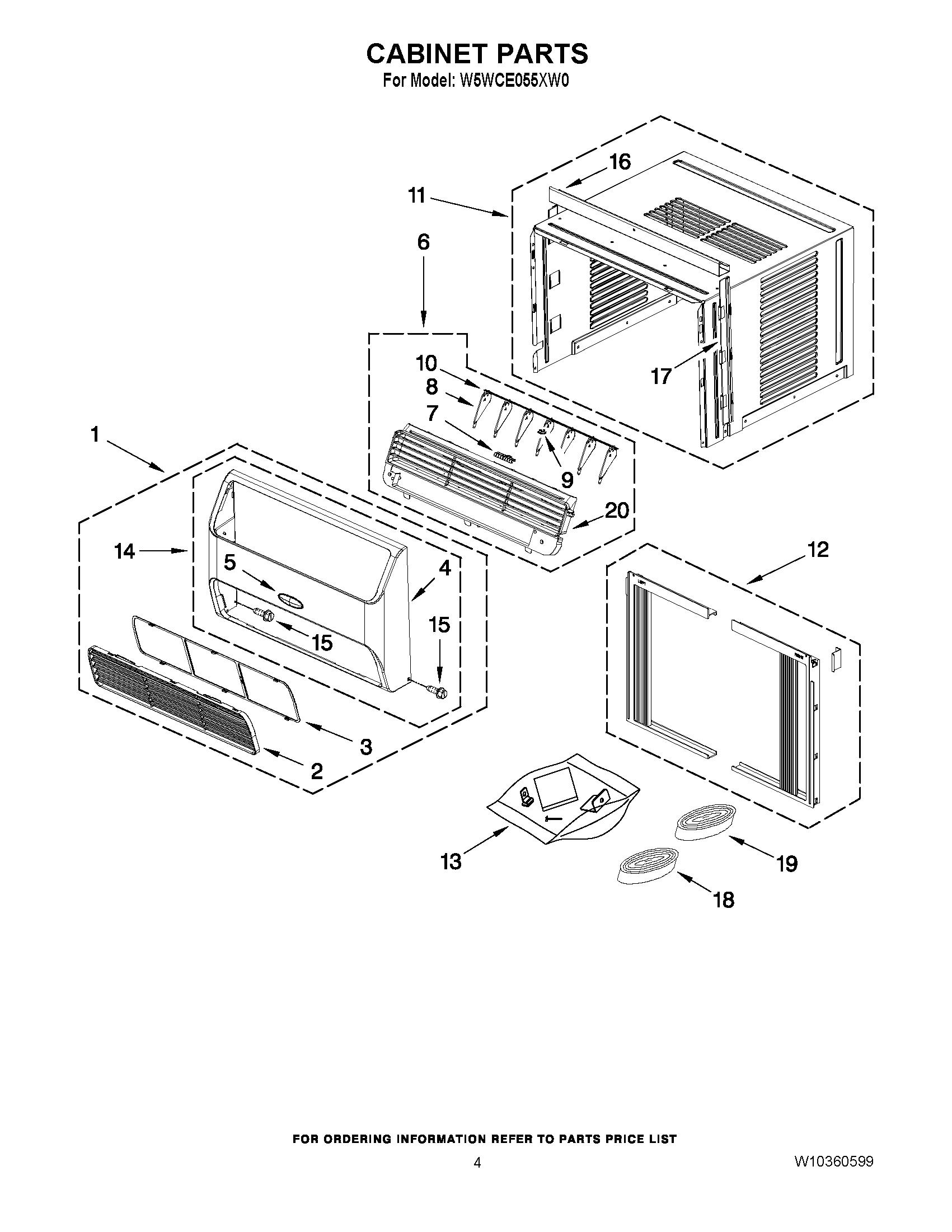

03 - CABINET PARTS
Common parts from model Whirlpool W5WCE055XW0 AIR CONDITIONER
1
USE & CARE GUIDE WPL W10369331 Contact Us For Availability
1
WIRING DIAGRAM WPL W10369332 Contact Us For Availability
1
ENERGY GUIDE WPL W10369334 Contact Us For Availability
1
SCROLL WPL W10388539 Contact Us For Availability
1
FRONT PNL ASSY WPL W10361849 Contact Us For Availability
2
EVAPORATOR WPL W10388588 Contact Us For Availability
2
HOUSING WPL W10388540 Contact Us For Availability
2
AIR INLET FRAME WPL W10369618 Contact Us For Availability
3
PAN DRIP WPL W10361763 Contact Us For Availability
3
REAR CLAPBOARD WPL W10361768 Contact Us For Availability
3
FILTER ASSY WPL W10369745 Contact Us For Availability
4
TUBE-RESTR WPL W10361766 Contact Us For Availability
4
BASE WPL W10388542 Contact Us For Availability
4
FRONT CASE WPL W10361851 Contact Us For Availability
5
COMPRESSOR WPL W10360616 Contact Us For Availability
5
SENSOR TEMP WPL 8209739 Contact Us For Availability
5
NAMEPLATE WPL W10369611 Contact Us For Availability
6
TUBE-INLET WPL W10361765 Contact Us For Availability
6
POWER CORD WPL W10360612 Contact Us For Availability
6
AIR OUTLET FR ASSY WPL W10368207 Contact Us For Availability
7
TUBE-DSCHG WPL W10361767 Contact Us For Availability
7
CONTROL BOX WPL W10361469 Contact Us For Availability
7
MANUAL LEVER WPL W10369369 Contact Us For Availability
8
WHEEL BLOWER WPL W10361426 Contact Us For Availability
8
CAPACITOR WPL W10360615 Contact Us For Availability
8
AIR LOUVER 2 WPL W10361853 Contact Us For Availability
9
AIR LOUVER 1 WPL W10361855 Contact Us For Availability
10
MAIN BOARD WPL W10360619 Contact Us For Availability
10
SWING LEVER WPL W10361856 Contact Us For Availability
11
CONDENSER WPL W10361413 Contact Us For Availability
11
DISPLAY BOARD WPL W10361859 Contact Us For Availability
11
CABINET ASSY WPL W10361842 Contact Us For Availability
12
GASKET WPL W10361406 Contact Us For Availability
12
MEMBRANE WPL W10369336 Contact Us For Availability
12
FIXING FRAME WPL W10361864 Contact Us For Availability
13
OVERLOAD WPL W10360613 Contact Us For Availability
13
ELECT BOX SIDE WPL W10388543 Contact Us For Availability
13
MTG ACCESSORIES WPL W10361863 Contact Us For Availability
14
NUT WPL W10388589 Contact Us For Availability
14
ELECT BOX SIDE WPL W10388546 Contact Us For Availability
14
PANEL ASSY WPL W10388550 Contact Us For Availability
15
WASHER WPL W10388590 Contact Us For Availability
15
SPACER WPL W10388547 Contact Us For Availability
15
SCREW WPL W10388551 Contact Us For Availability
16
WASHER WPL W10388591 Contact Us For Availability
16
Clamp WPL 8215050 Contact Us For Availability
16
TOP GUIDE WPL W10388553 Contact Us For Availability
17
WASHER WPL W10388527 Contact Us For Availability
17
TUBE SENSOR WPL W10362770 Contact Us For Availability
18
WASHER WPL W10388530 Contact Us For Availability
18
ELECT BOX COVER WPL W10388549 Contact Us For Availability
18
SEAL WPL W10388557 Contact Us For Availability
19
WASHER WPL W10388534 Contact Us For Availability
19
SEAL WPL W10388558 Contact Us For Availability
20
NUT WPL 8215252 Contact Us For Availability
20
AIR OUTLET FRAME WPL W10368208 Contact Us For Availability
21
NUT WPL W10388536 Contact Us For Availability
22
CLIP WPL W10388537 Contact Us For Availability
NI
REFRIGERANT CHARGE (14.00 OZ.) WPL NP Contact Us For Availability
× ![]()
