Model LG W4NX12CNGMD.AT3AYOW – Common Parts & Diagrams
LW12ZIHRSM

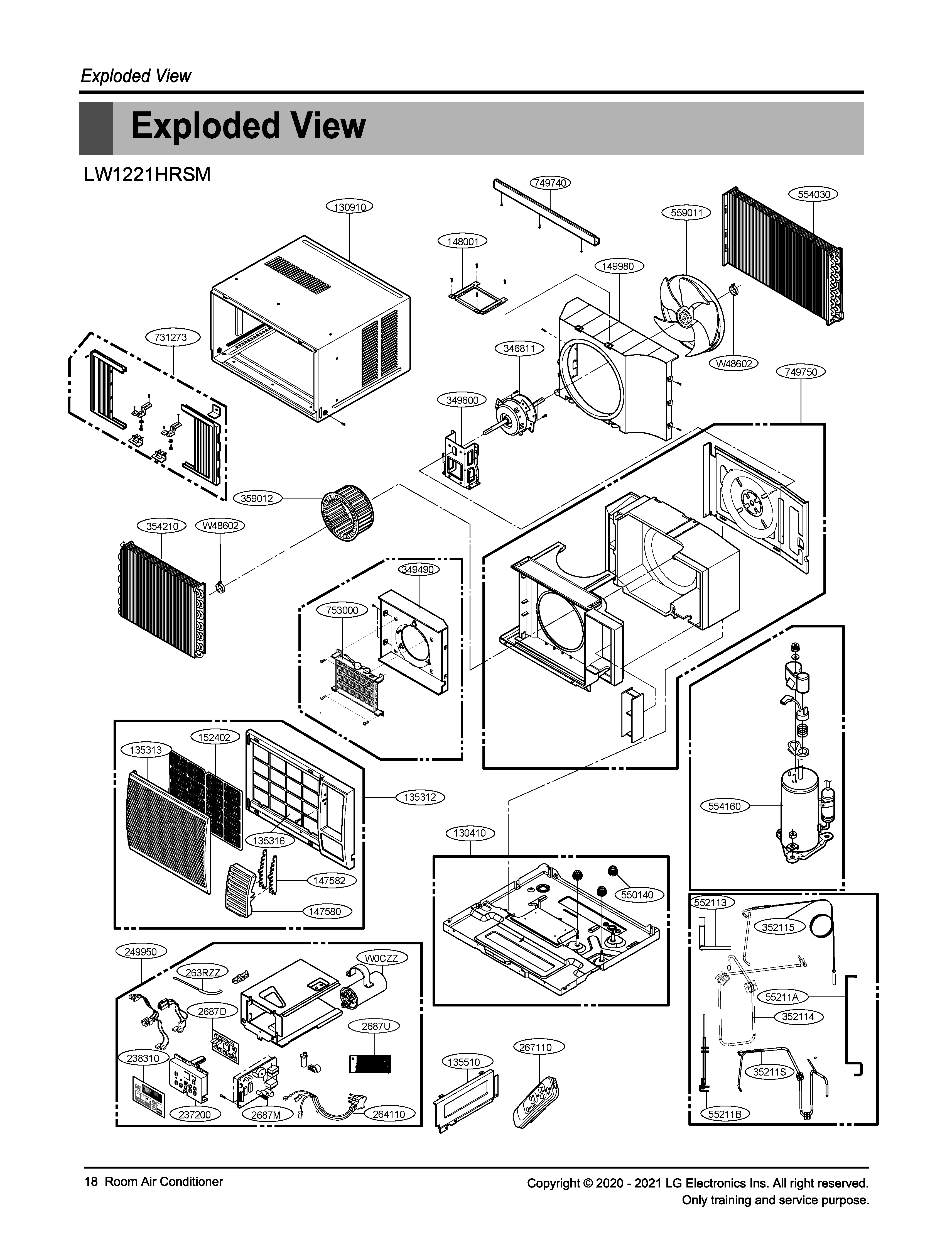

Common parts from model LG W4NX12CNGMD.AT3AYOW
263RZZ
Thermistor,NTC LGE 6323A20003F Contact Us For Availability
2687U
PCB Assembly,WiFi LGE EBR85871801 Contact Us For Availability
130410
Base Assembly,Single LGE AAN76068606 Contact Us For Availability
130910
Cabinet Assembly,Single LGE ABJ73769415 Contact Us For Availability
135312
Grille Assembly,Front LGE 3531A20136Q Contact Us For Availability
135313
Grille Assembly,Inlet LGE 3530AR1634W Contact Us For Availability
135316
Grille Assembly,Front(Indoor) LGE 3530AR1633W Contact Us For Availability
135510
Cover LGE 3550AR7032G Contact Us For Availability
135510
Cover LGE 3550AR7032K Contact Us For Availability
147580
Louver,Horizontal LGE 5990AR6191N Contact Us For Availability
147582
Louver,Vertical LGE 4758AR7308E Contact Us For Availability
148001
Supporter LGE 4800A10001B Contact Us For Availability
149980
Shroud LGE 4998A10020E Contact Us For Availability
152402
Filter,Air LGE 5231AR1152Z Contact Us For Availability
237200
Panel,Control LGE MGC66370801 Contact Us For Availability
238310
Escutcheon LGE MDD63322902 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ74425014 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73016019 Contact Us For Availability
346811
Motor Assembly,AC LGE EAU62962902 Contact Us For Availability
349490
Orifice LGE MFX63021903 Contact Us For Availability
349490
Orifice LGE MFX63021904 Contact Us For Availability
349600
Bracket,Motor LGE 4960AR6165D Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR75922501 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR75922503 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR75922801 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR75922803 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL75320903 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL75320904 Contact Us For Availability
359012
Fan Assembly,Blower LGE 5834AR1495E Contact Us For Availability
550140
Damper,Compressor LGE 4984AR4390B Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR75804204 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR75804206 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG72924212 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG72924217 Contact Us For Availability
554160
Compressor Set,China LGE TBZ37574401 Contact Us For Availability
559011
Fan,Axial LGE 5900A10009E Contact Us For Availability
559011
Fan,Axial LGE 5900A10009G Contact Us For Availability
731273
Install Part Assembly,Single LGE 3127A20074Y Contact Us For Availability
731273
Install Part Assembly,Set LGE AET74151705 Contact Us For Availability
749740
Guide LGE 4974AR3262S Contact Us For Availability
749750
Guide Assembly,Air LGE AEC73578111 Contact Us For Availability
753000
Heater,Electric LGE 5300A20003A Contact Us For Availability
753000
Heater,Electric LGE 5300A20003V Contact Us For Availability
753000
Heater,Electric LGE 5300A20003X Contact Us For Availability
W0CZZ
Capacitor,Film,Box LGE 6120AR2194F Contact Us For Availability
W48602
Clamp,Spring LGE 3H02932B Contact Us For Availability
W48602
Clamp,Spring LGE MBU64446301 Contact Us For Availability
× ![]()
