Model LG W3NQ18TNNP2.AT3AYOW – Common Parts & Diagrams

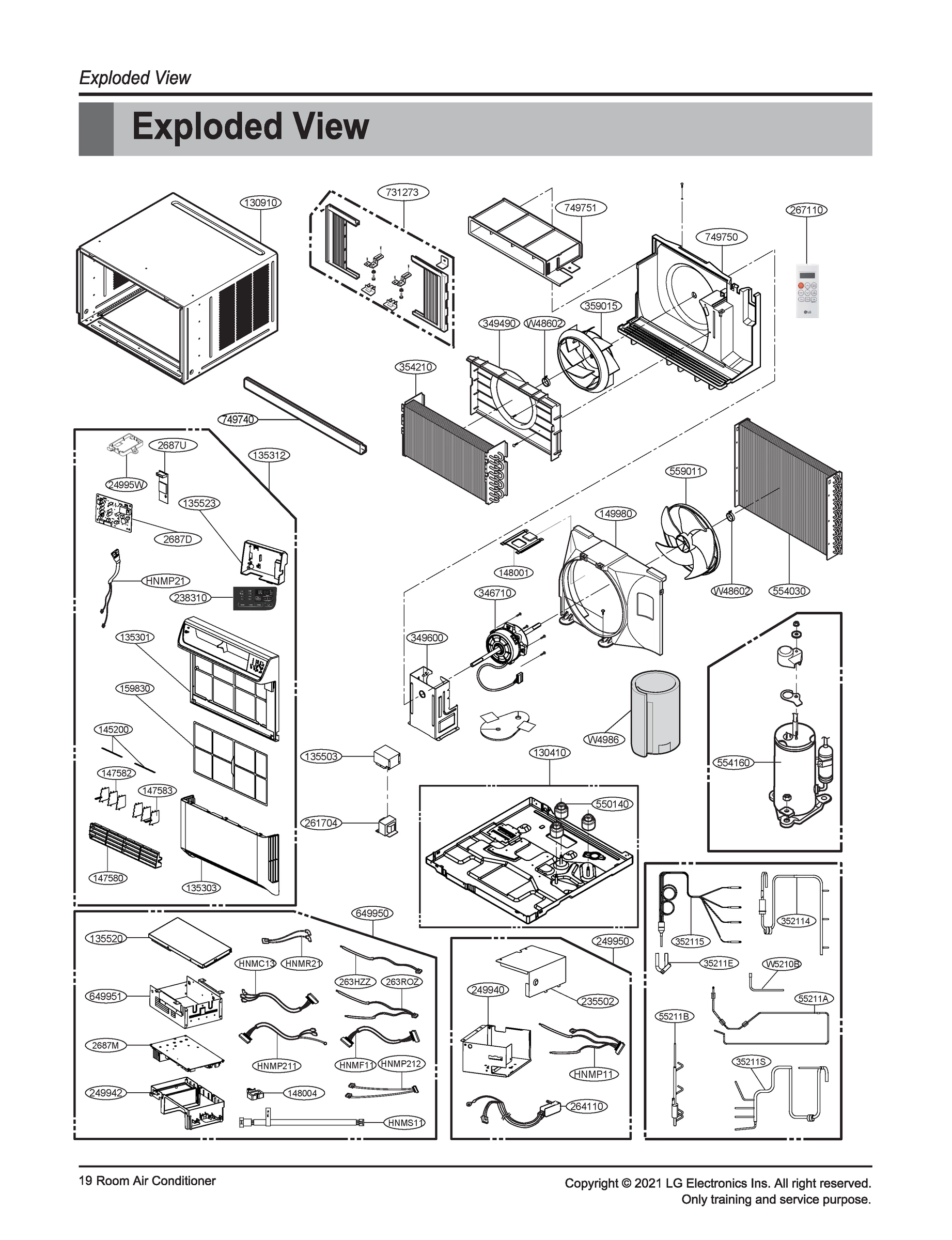

DIAGRAM 1
Common parts from model LG W3NQ18TNNP2.AT3AYOW
263HZZ
Thermistor Assembly,NTC LGE EBG61406003 Contact Us For Availability
263ROZ
Thermistor Assembly,NTC LGE EBG61107024 Contact Us For Availability
2687U
PCB Assembly,WiFi LGE EBR85871801 Contact Us For Availability
35211E
Tube Assembly,Connector LGE AJR76263601 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR76482505 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR76482511 Contact Us For Availability
55211A
Tube Assembly,Condenser(Out) LGE AJR73067830 Contact Us For Availability
55211A
Tube Assembly,Condenser(Out) LGE AJR73067843 Contact Us For Availability
55211B
Tube Assembly,Condenser(Out) LGE AJR73067832 Contact Us For Availability
55211B
Tube Assembly,Condenser(Out) LGE AJR73067841 Contact Us For Availability
130410
Base Assembly,Single LGE AAN76849306 Contact Us For Availability
130910
Cabinet Assembly,Single LGE 3091A10063W Contact Us For Availability
135301
Grille,Front LGE MDX64351907 Contact Us For Availability
135303
Grille,Inlet LGE MDX64352007 Contact Us For Availability
135312
Grille Assembly,Front LGE AEB76289953 Contact Us For Availability
135503
Cover LGE MCK69611507 Contact Us For Availability
135503
Cover LGE MCK71554201 Contact Us For Availability
135520
Cover LGE MCK69611402 Contact Us For Availability
135523
Cover LGE MCK69433201 Contact Us For Availability
135523
Cover LGE MCK69433203 Contact Us For Availability
145200
Link LGE 4520A30026C Contact Us For Availability
145200
Link LGE 4520A30026G Contact Us For Availability
147580
Louver,Horizontal LGE MFH63483604 Contact Us For Availability
147582
Louver,Vertical LGE MFH63483710 Contact Us For Availability
147583
Louver,Vertical LGE MFH63483709 Contact Us For Availability
148001
Supporter LGE 4800A20001C Contact Us For Availability
148004
Supporter LGE 4980AR4395A Contact Us For Availability
149980
Shroud LGE 4998A10035L Contact Us For Availability
149980
Shroud LGE 4998A10035M Contact Us For Availability
159830
Filter Assembly,Air Cleaner LGE ADQ74993202 Contact Us For Availability
159830
Filter Assembly,Air Cleaner LGE ADQ74993206 Contact Us For Availability
235502
Cover LGE MCK69413201 Contact Us For Availability
235502
Cover LGE MCK69413206 Contact Us For Availability
238310
Escutcheon LGE MDD63324801 Contact Us For Availability
249940
Case,Control LGE MBN64644302 Contact Us For Availability
249940
Case,Control LGE MBN64644306 Contact Us For Availability
249940
Case,Control LGE MBN64644314 Contact Us For Availability
249942
Case,Control(Outdoor) LGE MBN64866101 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ75823210 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ77202325 Contact Us For Availability
261704
Transformer,Reactor LGE EBJ63570002 Contact Us For Availability
261704
Transformer,Reactor LGE EBJ63570006 Contact Us For Availability
264110
Power Cord Assembly LGE EAD63469532 Contact Us For Availability
264110
Power Cord Assembly LGE EAD66043110 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73598016 Contact Us For Availability
346710
Motor Assembly,DC,Indoor LGE EAU63742904 Contact Us For Availability
346710
Motor Assembly,DC,Indoor LGE EAU63742905 Contact Us For Availability
349490
Orifice LGE MFX62901902 Contact Us For Availability
349600
Bracket,Motor LGE MAZ65687303 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR73083825 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR73083828 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR76263701 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR76263704 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL75221407 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL75221422 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL75221423 Contact Us For Availability
359015
Fan Assembly,Turbo LGE 5901A20009E Contact Us For Availability
359015
Fan Assembly,Turbo LGE 5901A20009G Contact Us For Availability
550140
Damper,Compressor LGE 5014A20003A Contact Us For Availability
554030
Condenser Assembly,First LGE ACG75264903 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG75264904 Contact Us For Availability
554160
Compressor Set,China LGE TBZ38874601 Contact Us For Availability
559011
Fan,Axial LGE 5900A10011D Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ30243611 Contact Us For Availability
649951
Case Assembly,Control(Outdoor) LGE ABQ75984046 Contact Us For Availability
731273
Install Part Assembly,Single LGE AET73691406 Contact Us For Availability
731273
Install Part Assembly,Set LGE AET74151703 Contact Us For Availability
731273
Install Part Assembly,Set LGE AET74151719 Contact Us For Availability
749740
Guide LGE MEA61972806 Contact Us For Availability
749750
Guide Assembly,Air LGE 5239A20020H Contact Us For Availability
749751
Guide Assembly,Air LGE 5239A20017J Contact Us For Availability
HNMC13
Harness,Multi LGE EAD62333825 Contact Us For Availability
HNMF11
Harness,Single LGE EAD62745805 Contact Us For Availability
HNMP11
Harness,Multi LGE EAD63989019 Contact Us For Availability
HNMP21
Harness,Multi LGE EAD63989009 Contact Us For Availability
HNMP211
Harness,Multi LGE EAD62333826 Contact Us For Availability
HNMP212
Harness,Multi LGE EAD63989018 Contact Us For Availability
HNMR21
Harness,Multi LGE EAD57999889 Contact Us For Availability
HNMS11
Harness,Single LGE EAD64148701 Contact Us For Availability
W4986
Gasket LGE MDS65650605 Contact Us For Availability
W4986
Gasket LGE MDS65650607 Contact Us For Availability
W5210B
Tube,Connector LGE MJU64872303 Contact Us For Availability
W5210B
Tube,Connector LGE MJU64872318 Contact Us For Availability
W48602
Clamp,Spring LGE MBU64446302 Contact Us For Availability
× ![]()
