Model LG W3NC082NGM0.AT1AUSH – Common Parts & Diagrams

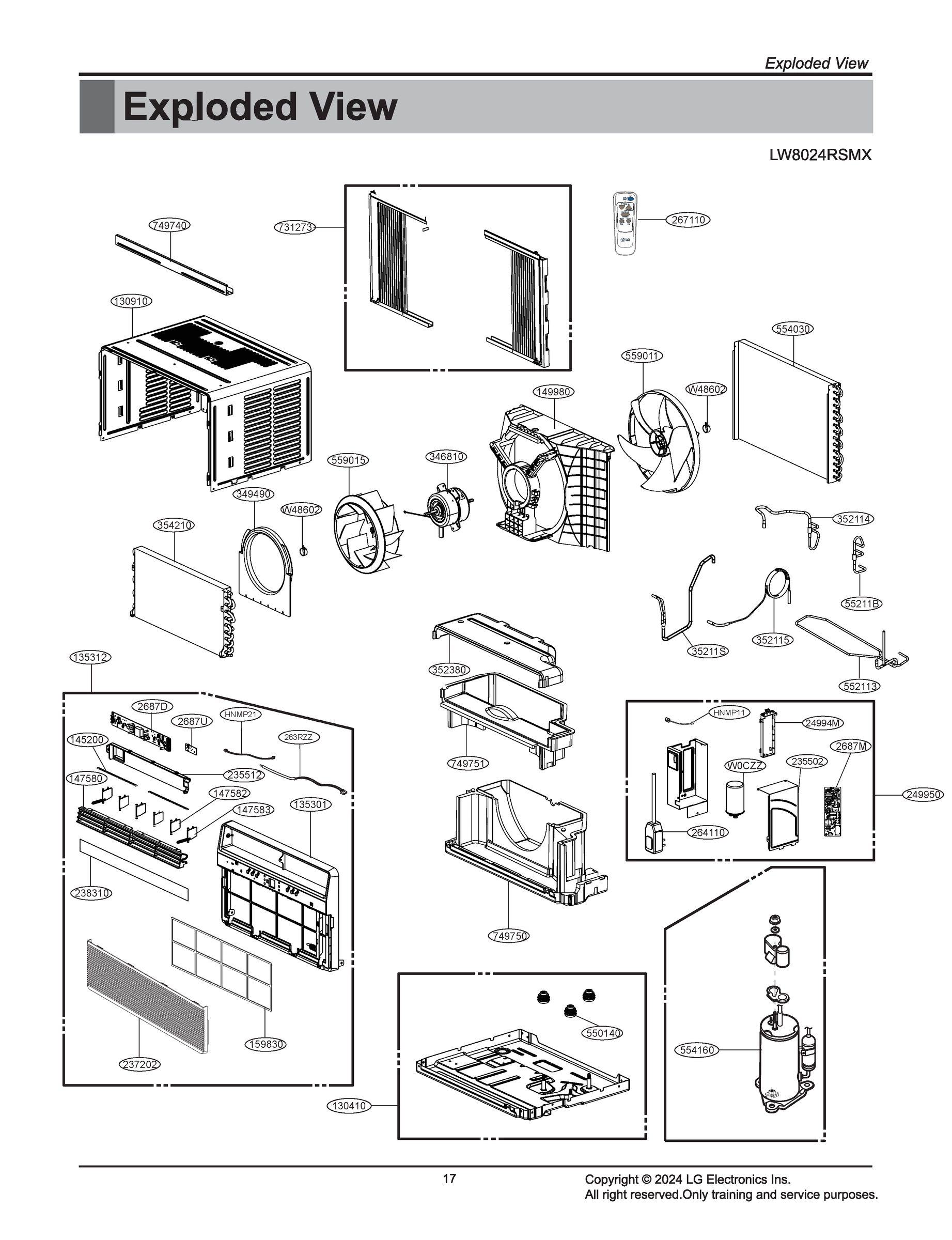

DIAGRAM 1
Common parts from model LG W3NC082NGM0.AT1AUSH
2687D
PCB Assembly,Display LGE EBR42275101 Contact Us For Availability
2687M
PCB Assembly,Main LGE EBR42274901 Contact Us For Availability
24994M
Case,Control LGE MBN66584501 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR30091803 Contact Us For Availability
55211B
Tube Assembly,Condenser(Out) LGE AJR30092502 Contact Us For Availability
130410
Base Assembly,Single LGE AAN30130701 Contact Us For Availability
130910
Cabinet Assembly,Single LGE ABJ76766001 Contact Us For Availability
135301
Grille,Front LGE MDX65471101 Contact Us For Availability
135312
Grille Assembly,Front LGE AEB76301504 Contact Us For Availability
145200
Link LGE MFF64127601 Contact Us For Availability
147580
Louver,Horizontal LGE MFH63887701 Contact Us For Availability
147582
Louver,Vertical LGE MFH63887801 Contact Us For Availability
147583
Louver,Vertical LGE MFH63887802 Contact Us For Availability
149980
Shroud LGE MHN63785801 Contact Us For Availability
159830
Filter Assembly,Air Cleaner LGE ADQ75811702 Contact Us For Availability
235502
Cover LGE MCK71845801 Contact Us For Availability
235512
Cover Assembly,Display LGE ACQ30665301 Contact Us For Availability
237202
Panel,Front LGE MGC66449301 Contact Us For Availability
238310
Escutcheon LGE MDD63324403 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ30254702 Contact Us For Availability
264110
Power Cord Assembly LGE EAD63469527 Contact Us For Availability
264110
Power Cord Assembly LGE EAD66043105 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73016022 Contact Us For Availability
346810
Motor Assembly,AC,Single LGE EAU65094501 Contact Us For Availability
349490
Orifice LGE MFX63427201 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR30091903 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR30091602 Contact Us For Availability
352380
Guide,Air LGE MEA66395002 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745201 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745202 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR30099101 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586801 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586802 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39236301 Contact Us For Availability
559011
Fan,Axial LGE MDG63966701 Contact Us For Availability
559015
Fan,Turbo LGE MDG63966402 Contact Us For Availability
731273
Install Part Assembly,Set LGE AET74151723 Contact Us For Availability
749740
Guide LGE MEA66398004 Contact Us For Availability
749750
Guide Assembly,Air LGE AEC75968901 Contact Us For Availability
749751
Guide Assembly,Air LGE AEC75968801 Contact Us For Availability
HNMP11
Harness,Single LGE 6631A20104N Contact Us For Availability
HNMP21
Harness,Multi LGE EAD63989024 Contact Us For Availability
× ![]()
