Model LG W3NC061NSE0.AT1AHDP – Common Parts & Diagrams

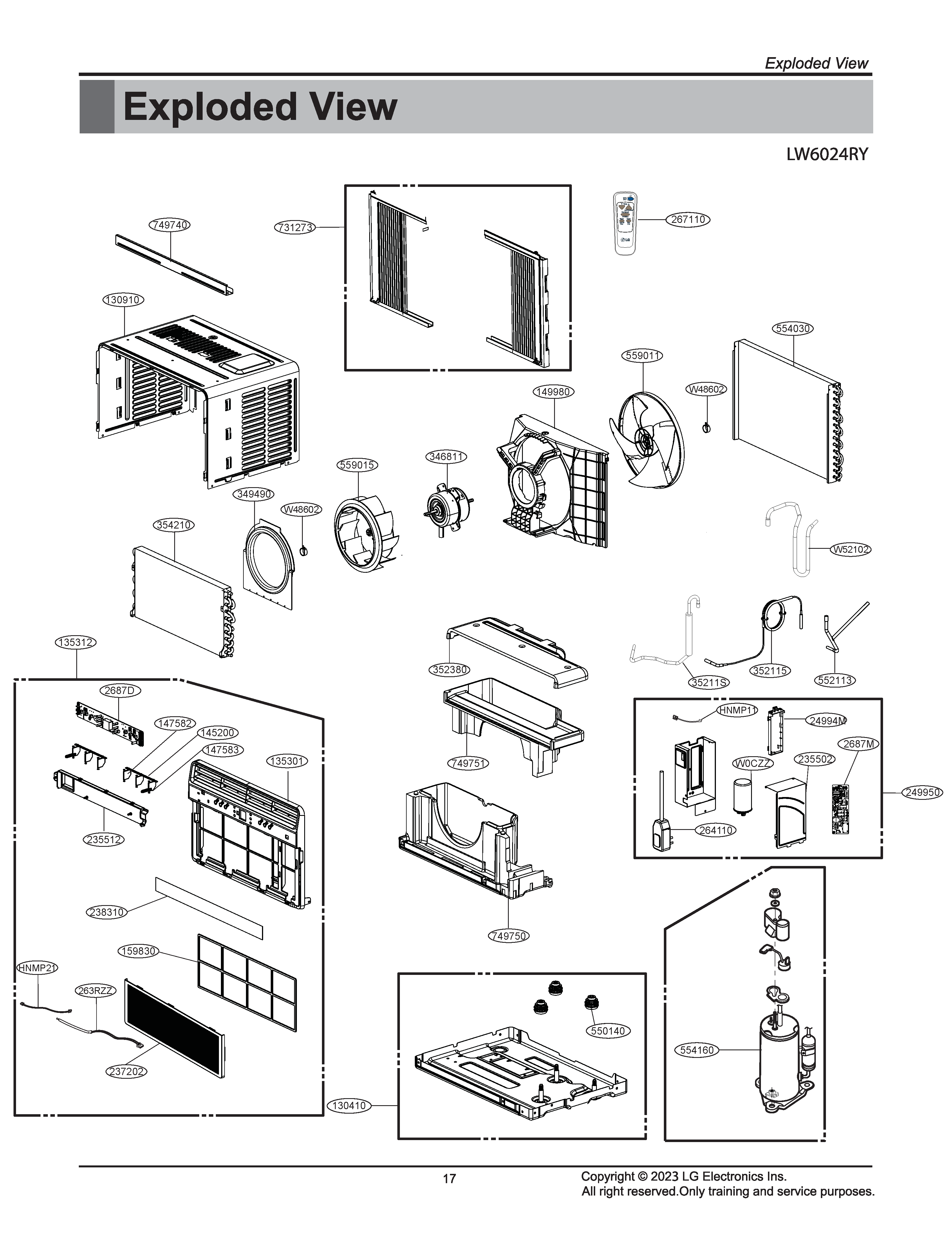

DIAGRAM 1
Common parts from model LG W3NC061NSE0.AT1AHDP
263RZZ
Thermistor,NTC LGE EBG62926004 Contact Us For Availability
2687D
PCB Assembly,Display LGE EBR42275102 Contact Us For Availability
2687M
PCB Assembly,Main LGE EBR42274901 Contact Us For Availability
24994M
Case,Control LGE MBN66584501 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR30092302 Contact Us For Availability
130410
Base Assembly,Single LGE AAN30130901 Contact Us For Availability
130910
Cabinet Assembly,Single LGE ABJ76765801 Contact Us For Availability
135301
Grille,Front LGE MDX65471201 Contact Us For Availability
135312
Grille Assembly,Front LGE AEB76301901 Contact Us For Availability
145200
Link LGE MFF64127701 Contact Us For Availability
147582
Louver,Vertical LGE MFH63887901 Contact Us For Availability
147583
Louver,Vertical LGE MFH63887902 Contact Us For Availability
149980
Shroud LGE MHN63785901 Contact Us For Availability
159830
Filter Assembly,Air Cleaner LGE ADQ75811802 Contact Us For Availability
235502
Cover LGE MCK71845801 Contact Us For Availability
235512
Cover Assembly,Display LGE ACQ30665301 Contact Us For Availability
237202
Panel,Front LGE MGC66448501 Contact Us For Availability
238310
Escutcheon LGE MDD63324302 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ30254902 Contact Us For Availability
264110
Power Cord Assembly LGE EAD63469527 Contact Us For Availability
264110
Power Cord Assembly LGE EAD66043105 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73016022 Contact Us For Availability
346811
Motor Assembly,AC LGE 4681A20116Z Contact Us For Availability
349490
Orifice LGE MFX63427301 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR30092402 Contact Us For Availability
352380
Guide,Air LGE MEA66395401 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745301 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745302 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR30092201 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586901 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586902 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39275601 Contact Us For Availability
559011
Fan,Axial LGE MDG63966601 Contact Us For Availability
559015
Fan,Turbo LGE MDG63966302 Contact Us For Availability
731273
Install Part Assembly,Set LGE AET74151724 Contact Us For Availability
749740
Guide LGE MEA66398002 Contact Us For Availability
749750
Guide Assembly,Air LGE AEC75969001 Contact Us For Availability
749751
Guide Assembly,Air LGE AEC75968202 Contact Us For Availability
HNMP11
Harness,Single LGE 6631A20104N Contact Us For Availability
HNMP21
Harness,Multi LGE EAD63989024 Contact Us For Availability
W52102
Tube,Discharge LGE MJU66973401 Contact Us For Availability
× ![]()
