Model LG W3NC051NRB1.AT1AUSH – Common Parts & Diagrams

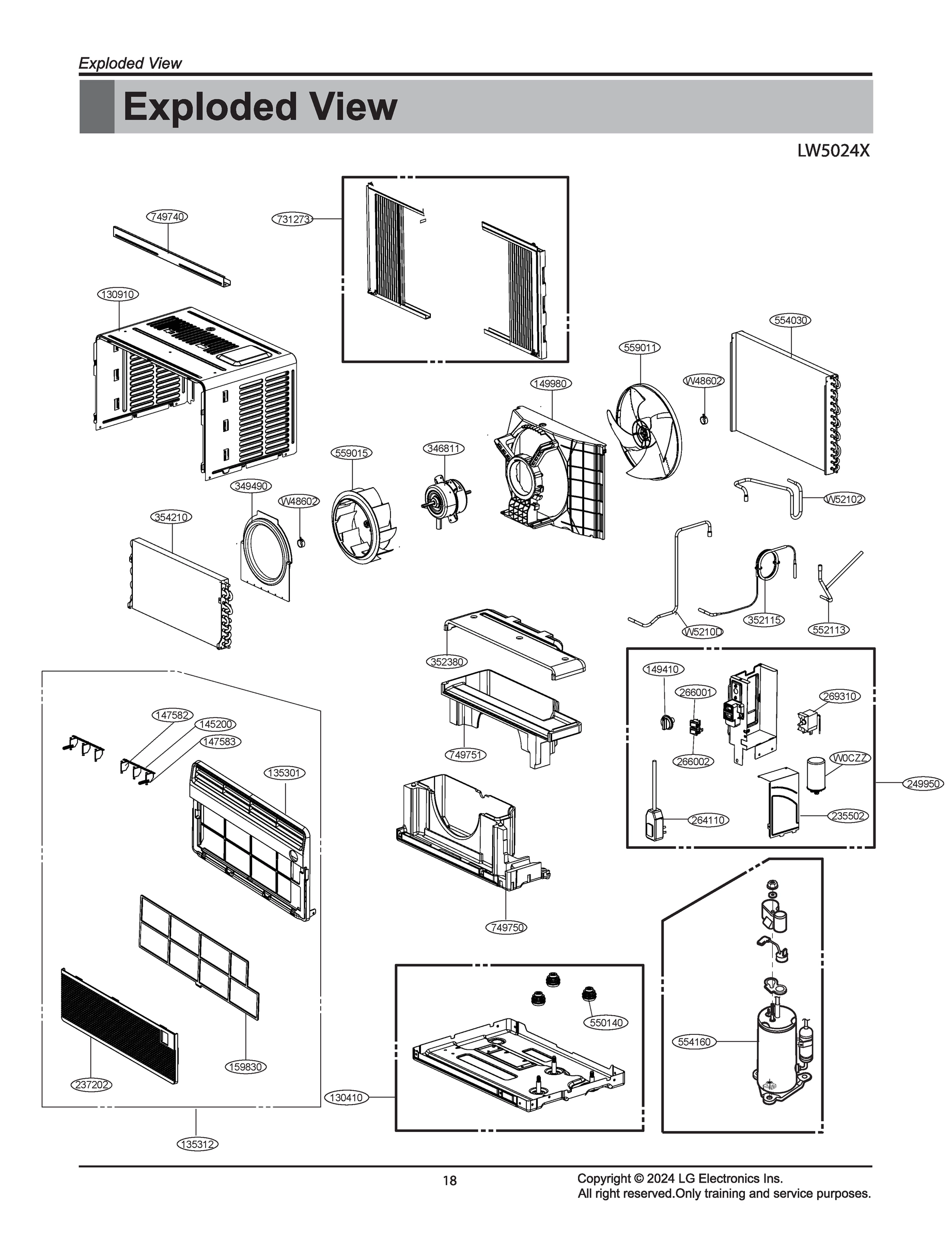

DIAGRAM 1
Common parts from model LG W3NC051NRB1.AT1AUSH
130910
Cabinet Assembly,Single LGE ABJ76765801 Contact Us For Availability
135301
Grille,Front LGE MDX65471701 Contact Us For Availability
135312
Grille Assembly,Front LGE AEB76302902 Contact Us For Availability
145200
Link LGE MFF64127701 Contact Us For Availability
149410
Knob Assembly LGE AEZ75997001 Contact Us For Availability
159830
Filter Assembly,Air Cleaner LGE ADQ75812401 Contact Us For Availability
237202
Panel,Front LGE MGC66449402 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ30255003 Contact Us For Availability
266001
Switch,Rocker LGE EBF64572302 Contact Us For Availability
269310
Thermostat Assembly LGE 2H01109X Contact Us For Availability
346811
Motor Assembly,AC LGE 4681A20116Z Contact Us For Availability
349490
Orifice LGE MFX63427301 Contact Us For Availability
352380
Guide,Air LGE MEA66395401 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745301 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745302 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR30092201 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586901 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586902 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39289301 Contact Us For Availability
559015
Fan,Turbo LGE MDG63966302 Contact Us For Availability
749750
Guide Assembly,Air LGE AEC75969001 Contact Us For Availability
W52102
Tube,Discharge LGE MJU66987301 Contact Us For Availability
× ![]()
