Model Whirlpool W30100B ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

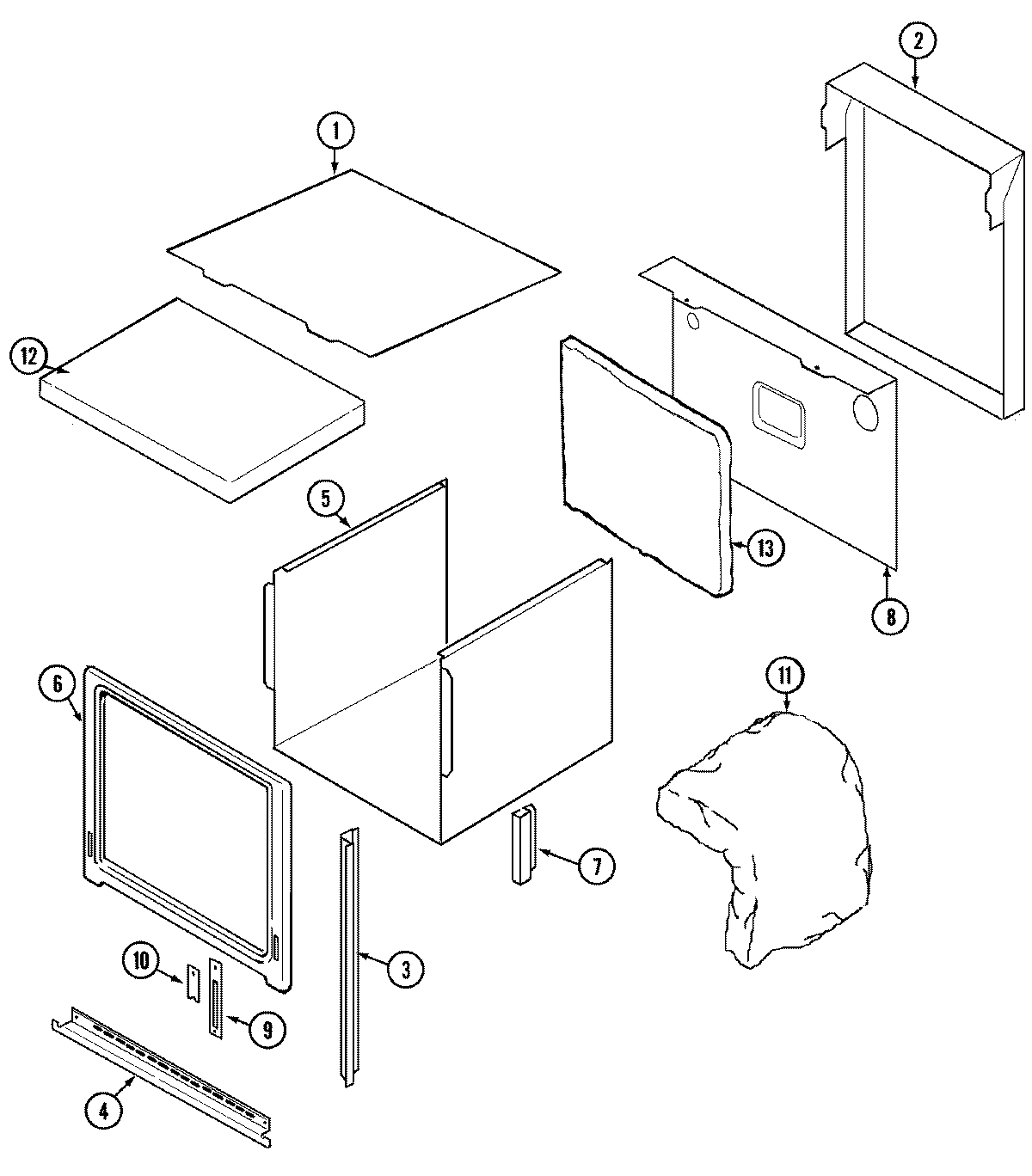

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

1

END CAP, PANEL (BLK) WPL 71001794 Contact Us For Availability

1

FRAME, DOOR (BLK) WPL 71001829 Contact Us For Availability

1

TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability

1

PANEL, INNER TOP WPL 71001842 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $78.34

2

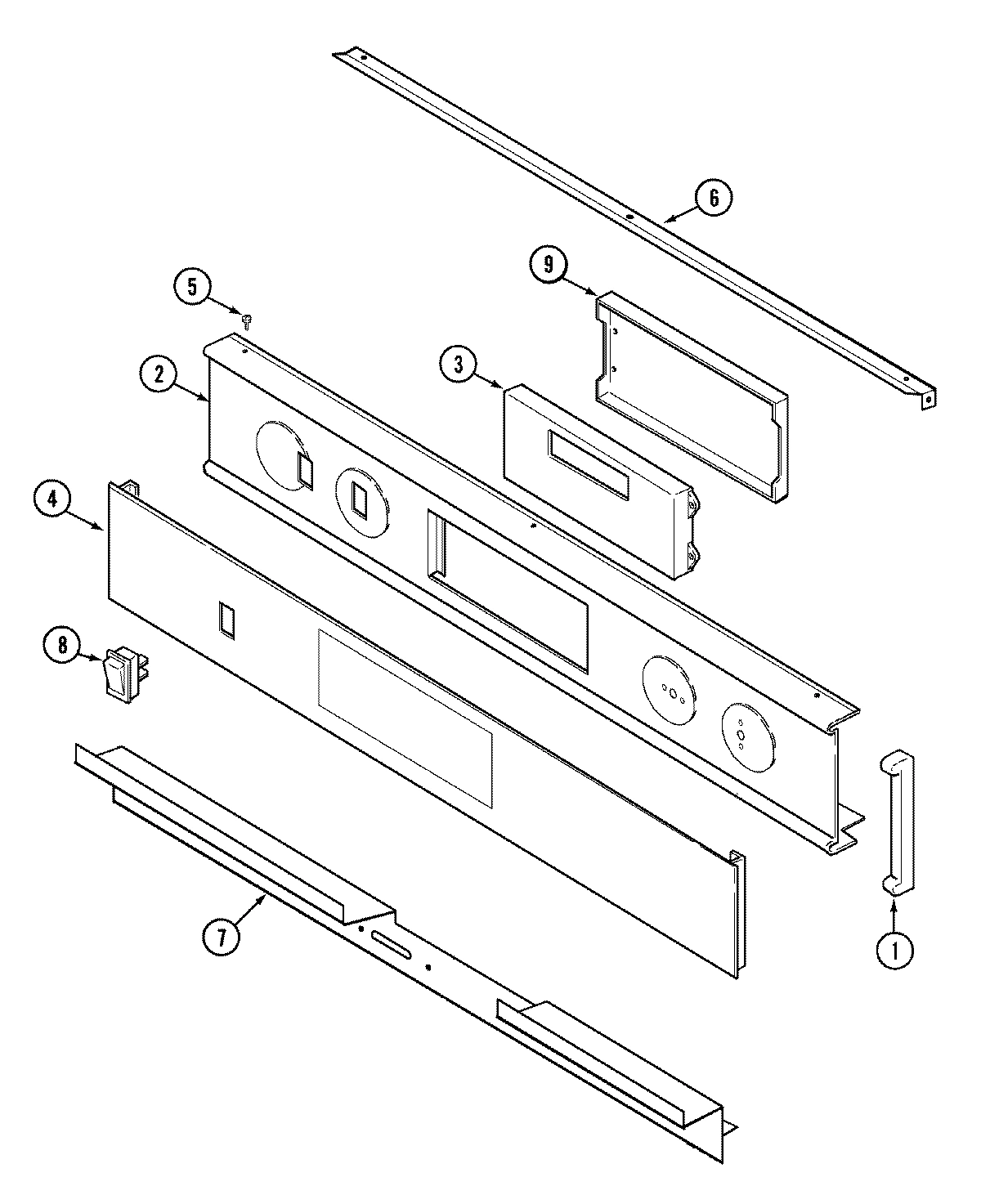

PANEL, CONTROL (BLK) WPL 71002161 Contact Us For Availability

2

LINER, OVEN DOOR (30`` W.O.) WPL 71001190 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71002967 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

3

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.60

3

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

3

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

3

CLOCK WPL 71002163 Contact Us For Availability

3

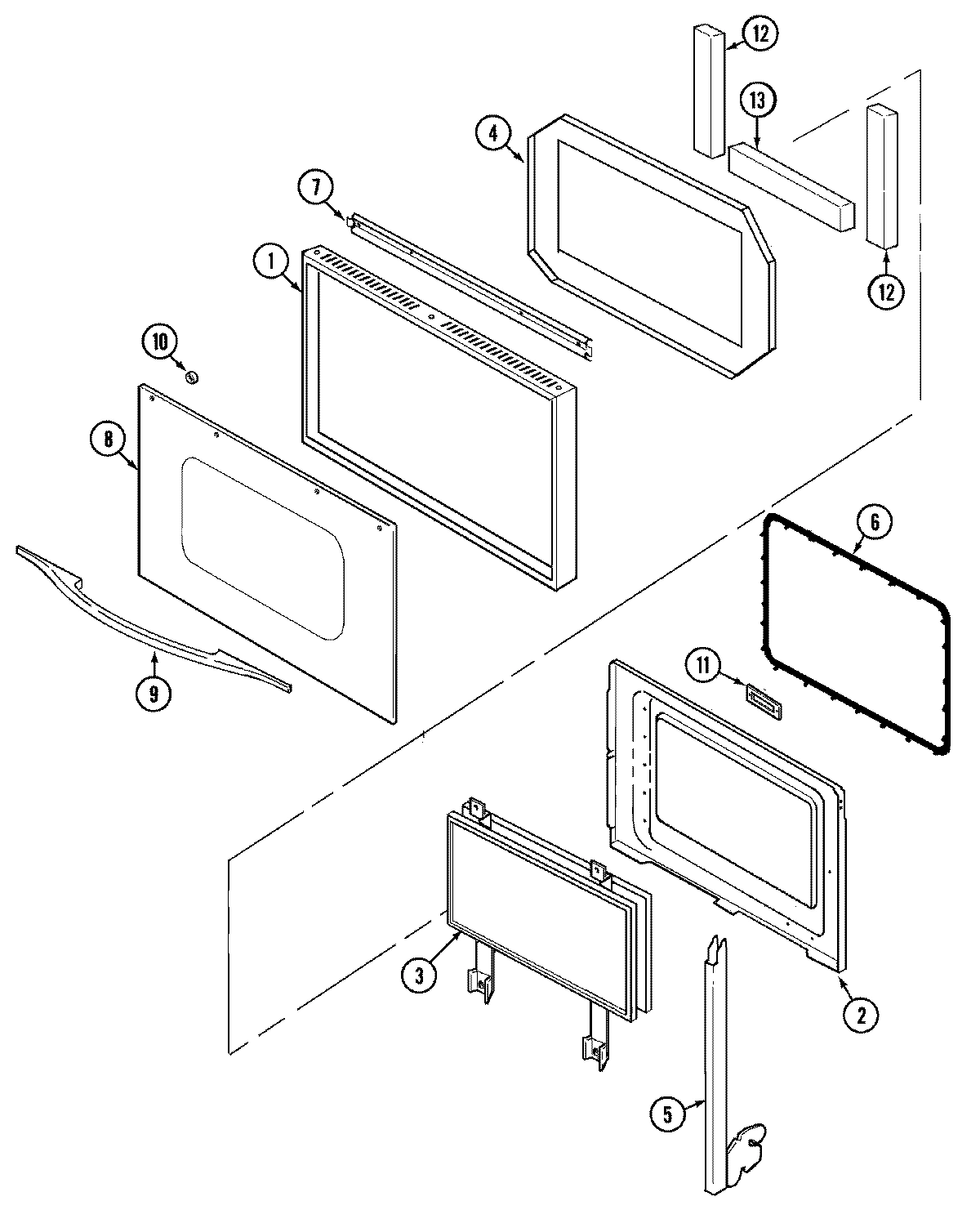

WINDOW ASSY. WPL 71002928 Contact Us For Availability

3

TRIM, SIDE (LT-BLK) WPL 71001823 Contact Us For Availability

3

TRIM, SIDE (RT-BLK) WPL 71001824 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

4

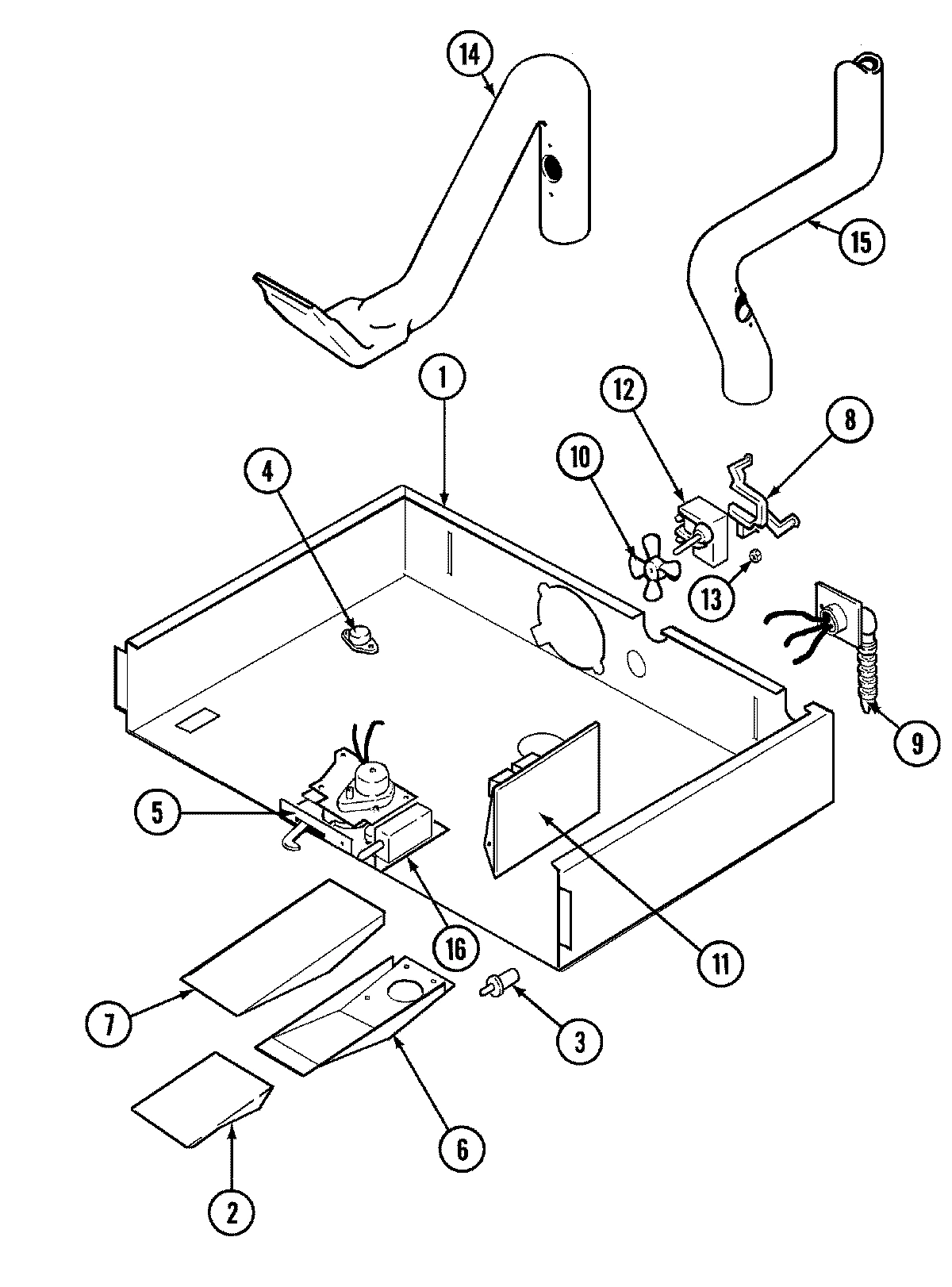

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $89.06

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

4

SWITCH, MEMBRANE (BLK) WPL 71002175 Contact Us For Availability

4

RETAINER, INSULATION WPL 71001840 Contact Us For Availability

4

TRIM, OVEN (LWR-BLK) WPL 71001822 Contact Us For Availability

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.60

5

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $88.94

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $45.28

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

6

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $76.27

6

SUPPORT, CONTROL PANEL WPL 71001803 Contact Us For Availability

6

FRAME, OVEN WPL 71001189 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $154.88

7

OVEN WELD ASSY. WPL 71001165 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

7

TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability

7

GUSSET WPL 71001837 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

HOOD, VENT WPL 71001891 Contact Us For Availability

8

7403P067-60 Whirlpool Light Switch Backorder WPL 7403P067-60 $41.02

8

GLASS, DOOR (BLK) WPL 71001833 Contact Us For Availability

8

BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

BRACKET, CLOCK WPL 71002139 Contact Us For Availability

9

INSULATOR WPL 71002140 Contact Us For Availability

9

INSULATOR WPL Y705143 Contact Us For Availability

9

HANDLE, DOOR (BLK) WPL 71001835 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

WIRE CABLE ASSY. (CONDUIT) WPL 71002177 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.84

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.60

TUBE, VENT WPL 71001864 Contact Us For Availability

HARNESS, MAIN CONTROL WPL 71002126 Contact Us For Availability

HARNESS, DOOR SWITCH (DBL) WPL 71002128 Contact Us For Availability

HARNESS, DOOR LOCK (DBL) WPL 71002129 Contact Us For Availability

HARNESS, RELAY BOARD WPL 71002130 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

BLADE, FAN WPL 71001852 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

CLIP, OVEN WPL 71001170 Contact Us For Availability

MANUAL, USE & CARE WPL 71002166 Contact Us For Availability

PLATE, LATCH WPL 71001831 Contact Us For Availability

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

BOARD, RELAY (LWR) WPL 71002144 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.60

BUTTON, PLUG WPL 702929 Contact Us For Availability

INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability

INSULATION (BCK) WPL 71001819 Contact Us For Availability

14

TUBE, VENT (UPR) WPL 71001889 Contact Us For Availability

15

TUBE, VENT (LWR) WPL 71001890 Contact Us For Availability

16

WIRE, GROUND WPL 71001869 Contact Us For Availability

16

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

NI

WIRING INFORMATION WPL 15001755 Contact Us For Availability
