Model Maytag W276 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
01 - BLOWER MOTOR (CONVECTION FAN LOWER)
02 - BLOWER MOTOR (COOLING FAN LOWER)

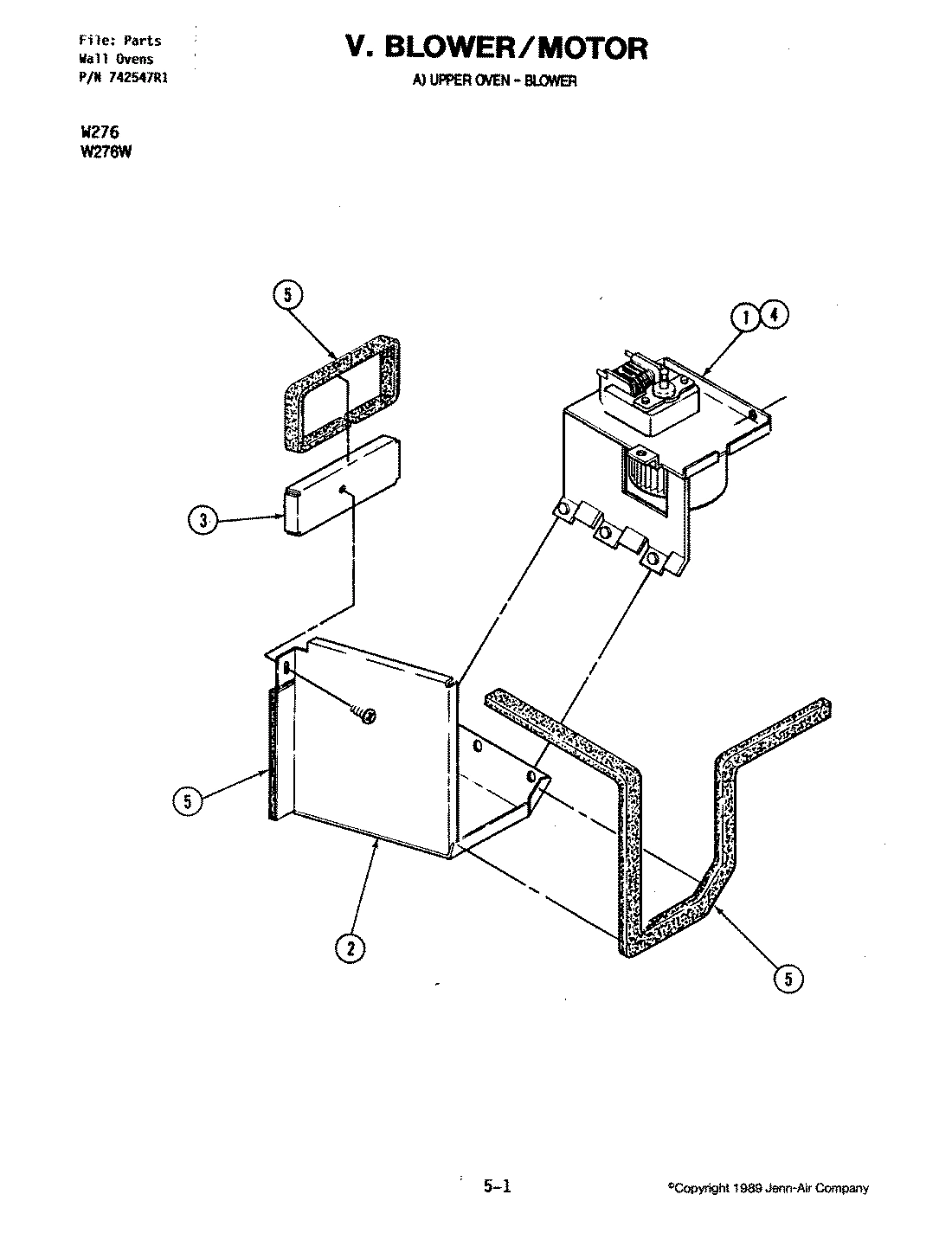

03 - BLOWER MOTOR (COOLING FAN UPPER)

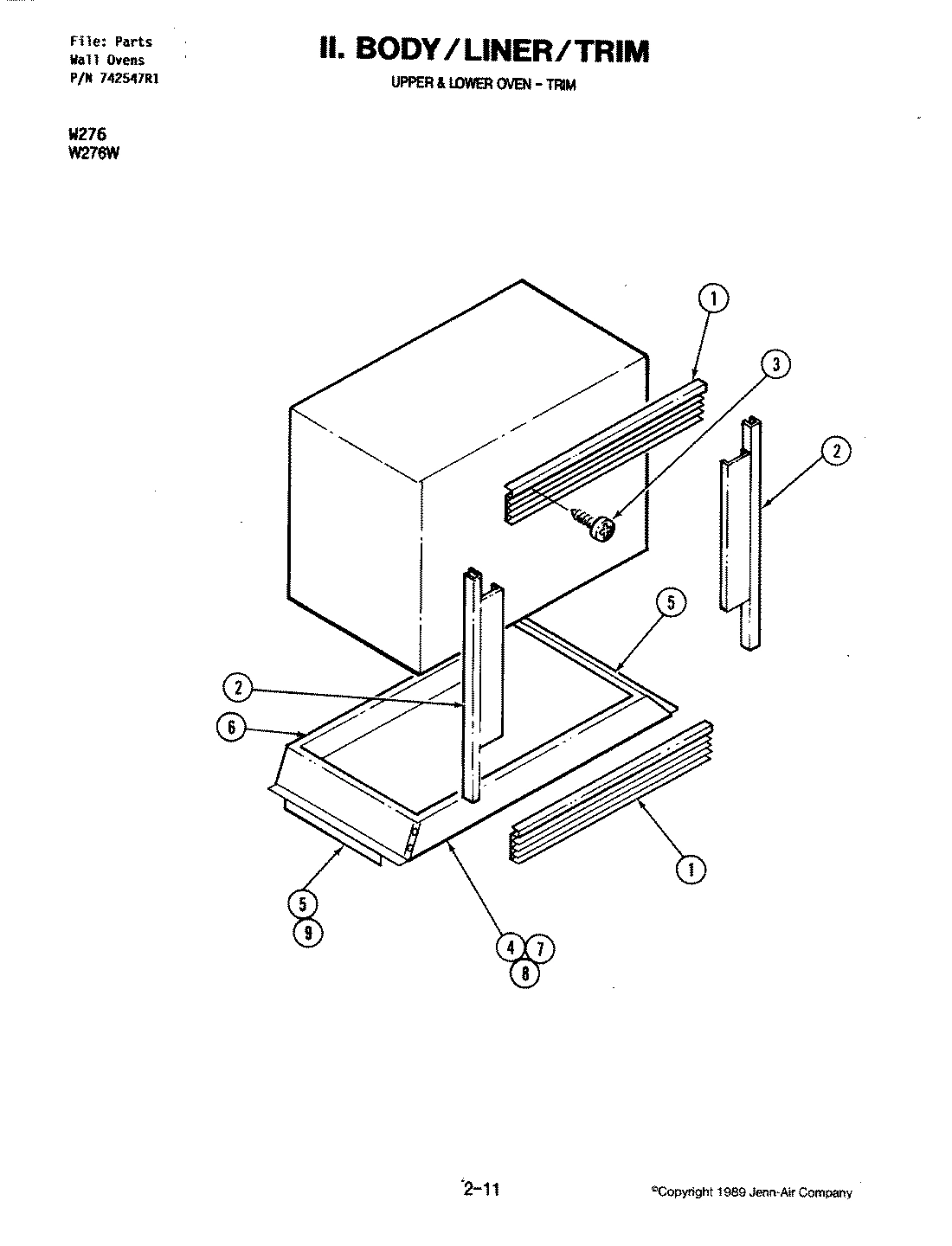

04 - BODY

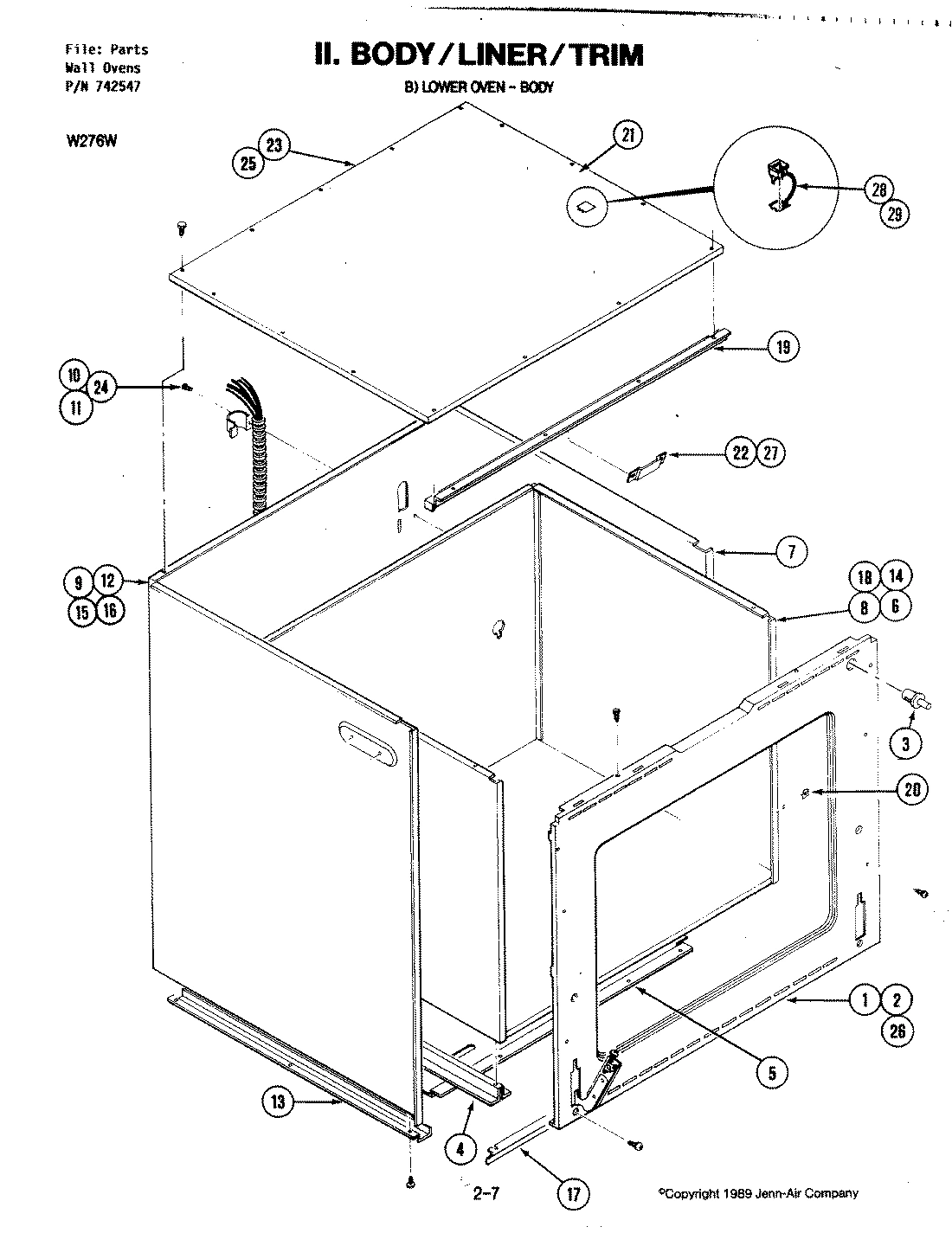

05 - BODY (LOWER W276W)

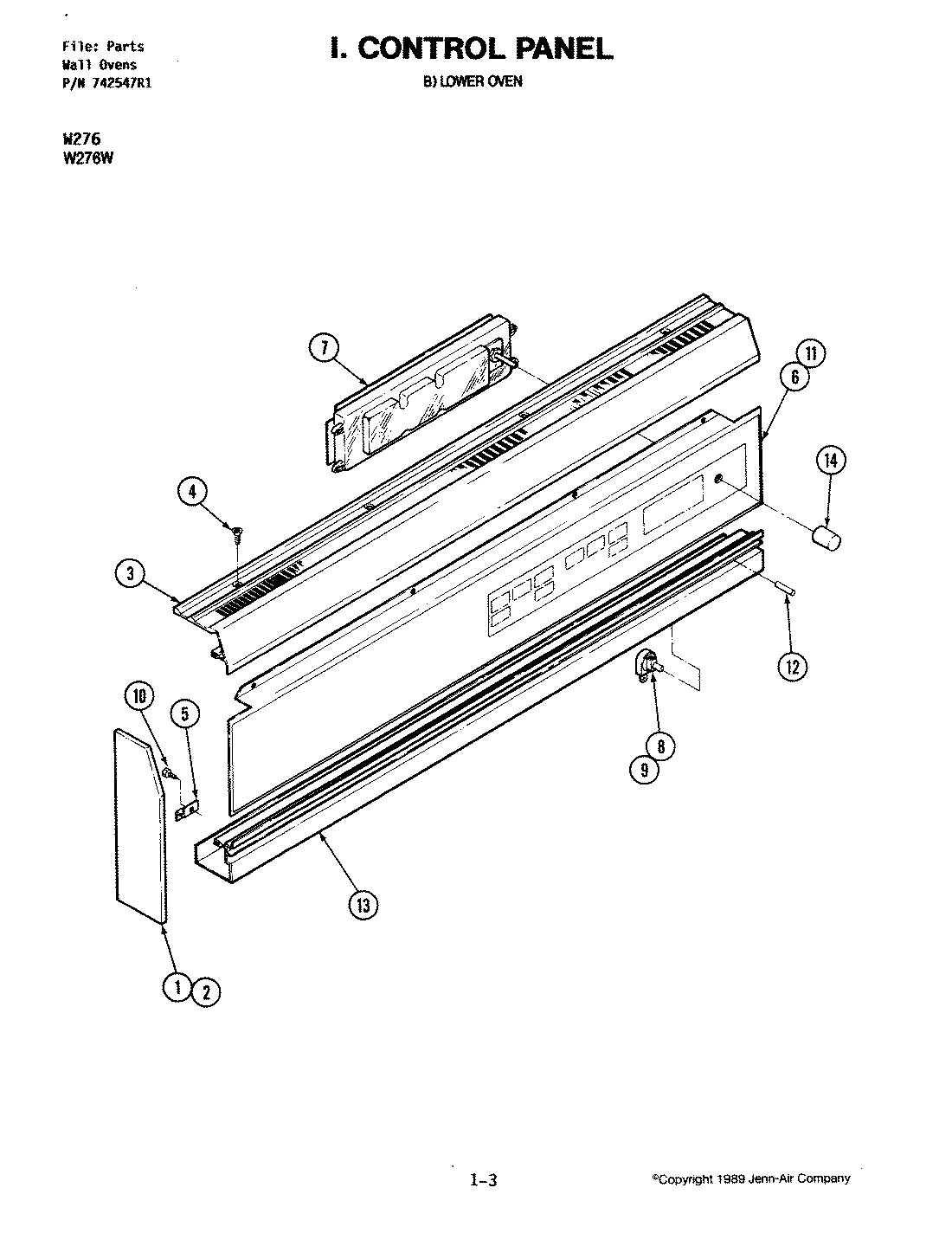

06 - CONTROL PANEL (LOWER)

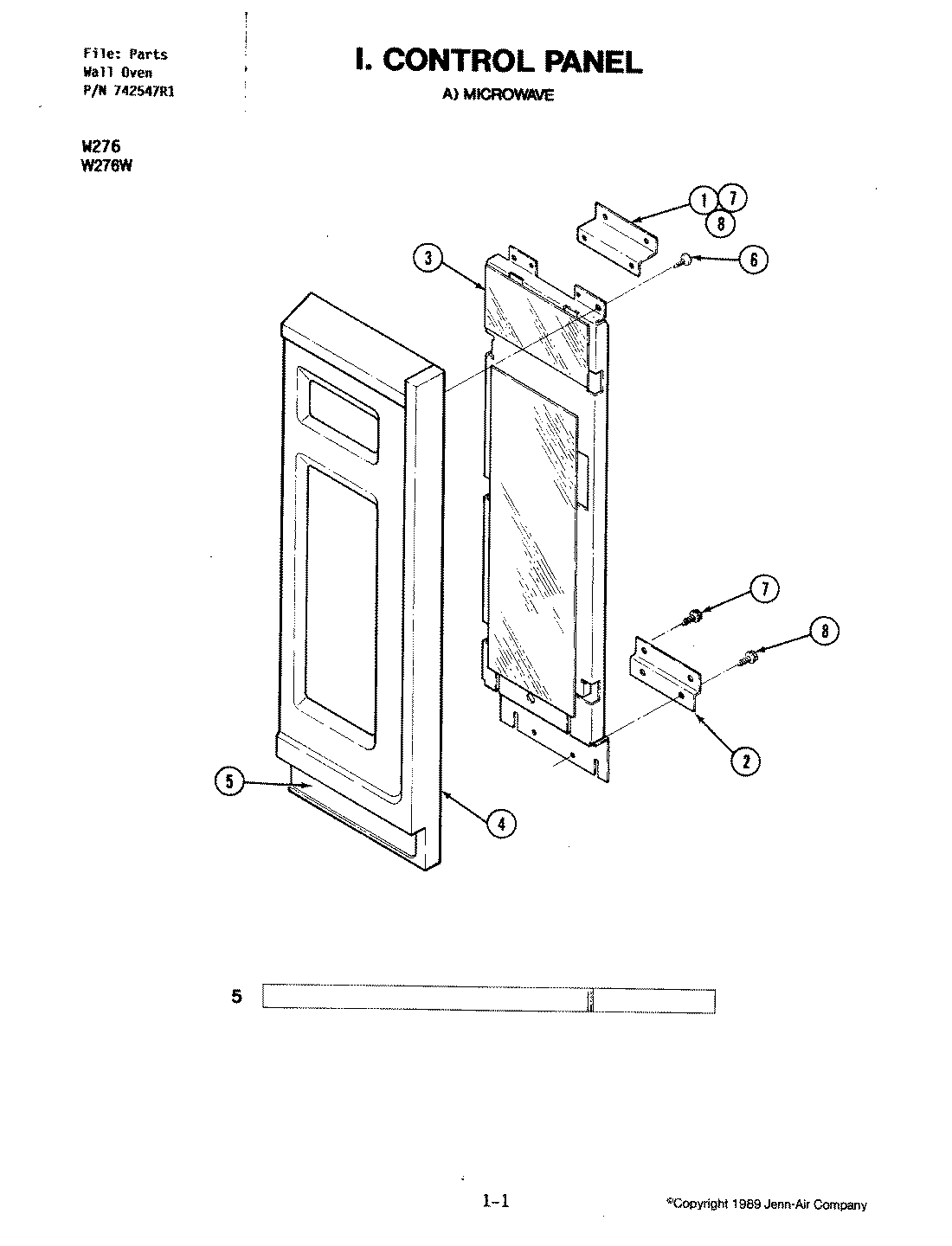

07 - CONTROL PANEL (UPPER)

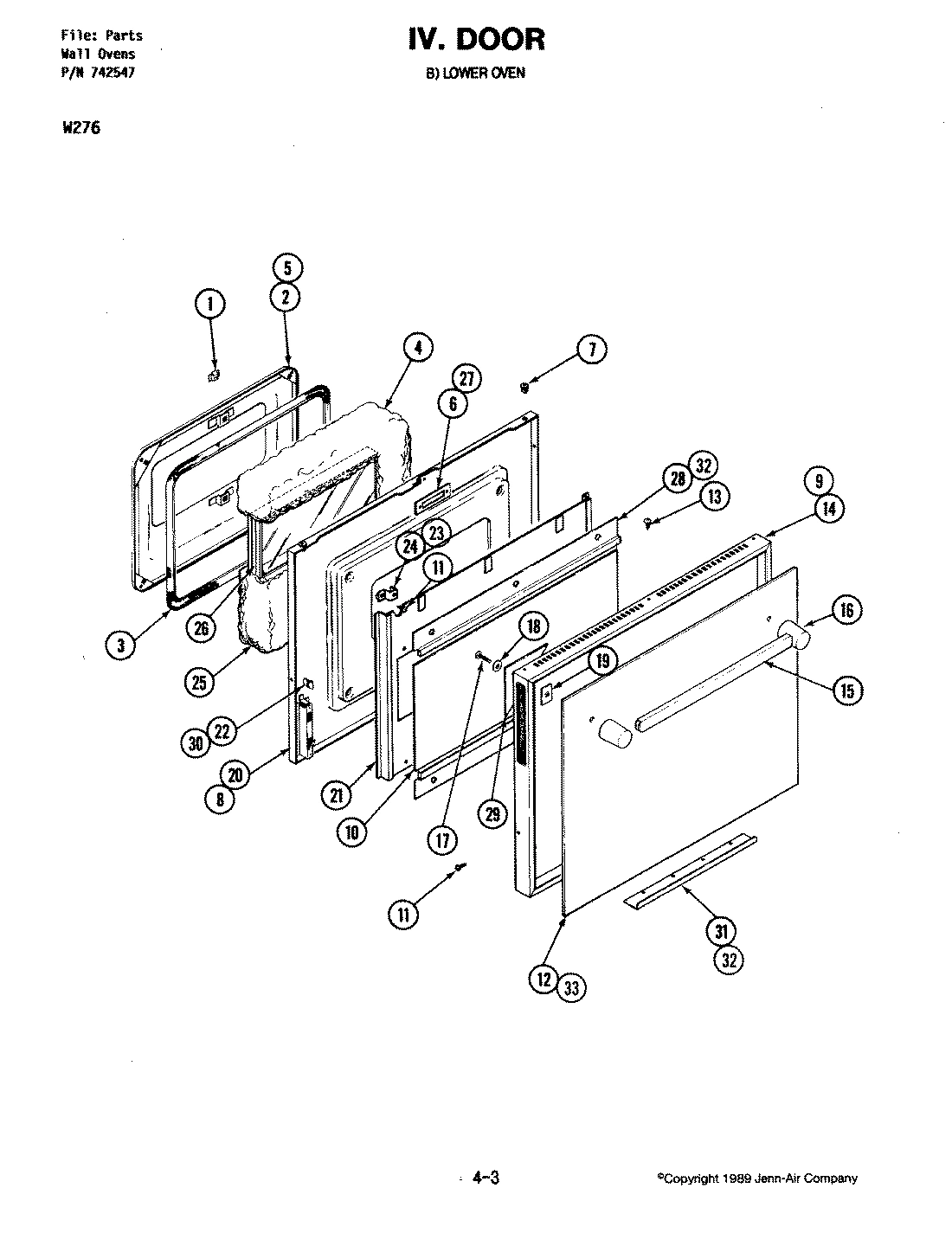

08 - DOOR (LOWER)

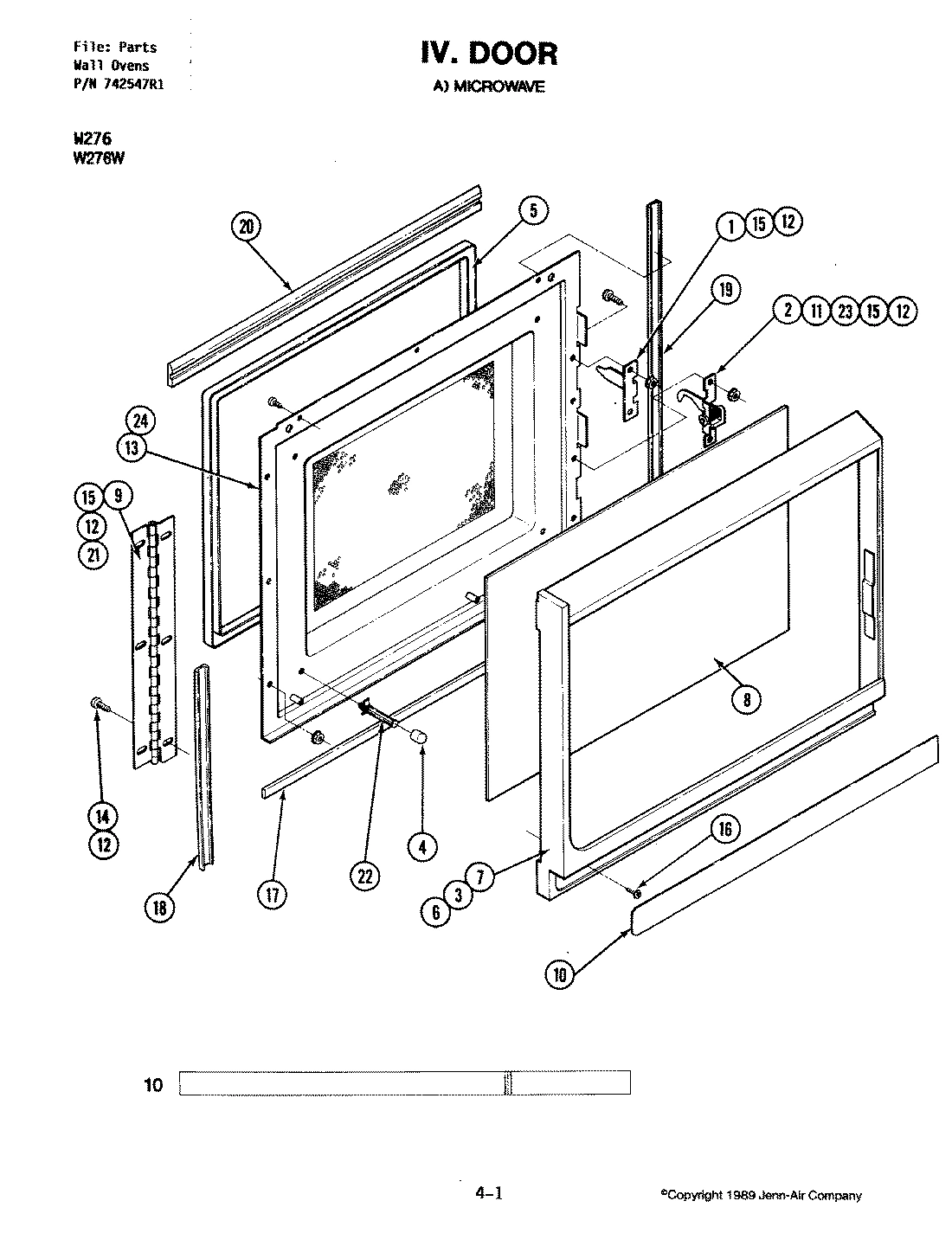

09 - DOOR (UPPER)
10 - INTERNAL CONTROLS (LOWER)

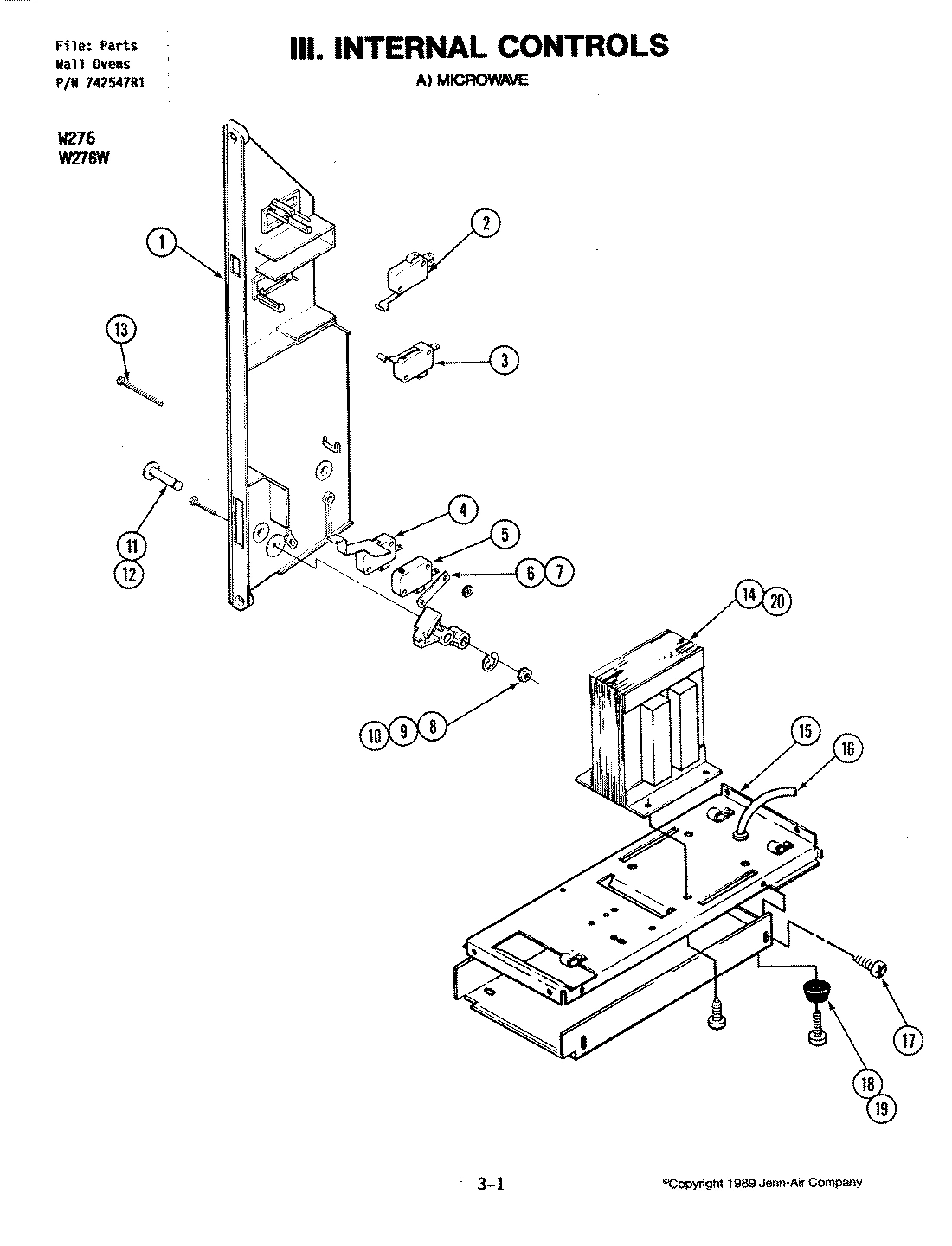

11 - INTERNAL CONTROLS (UPPER)

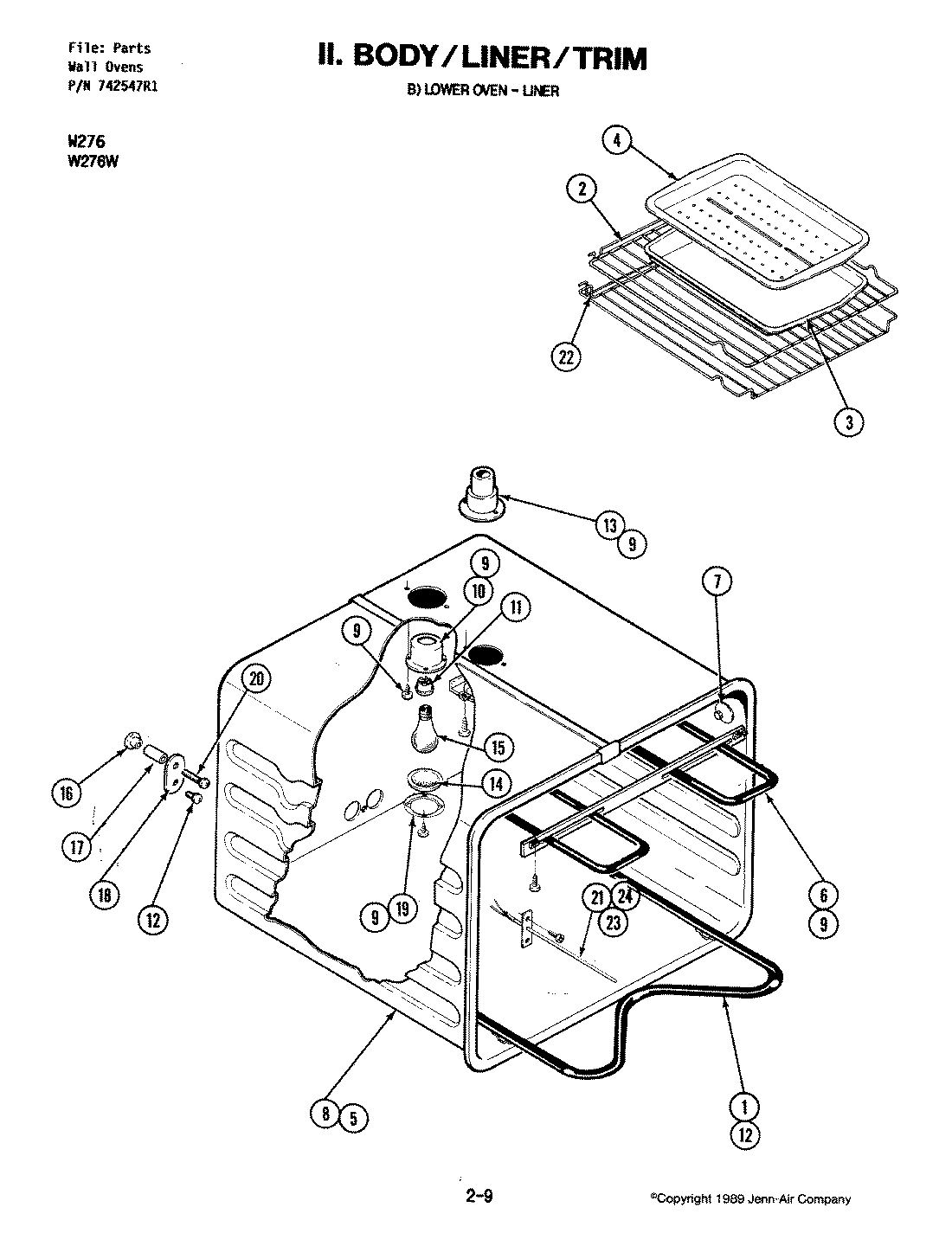

12 - OVEN (LOWER)

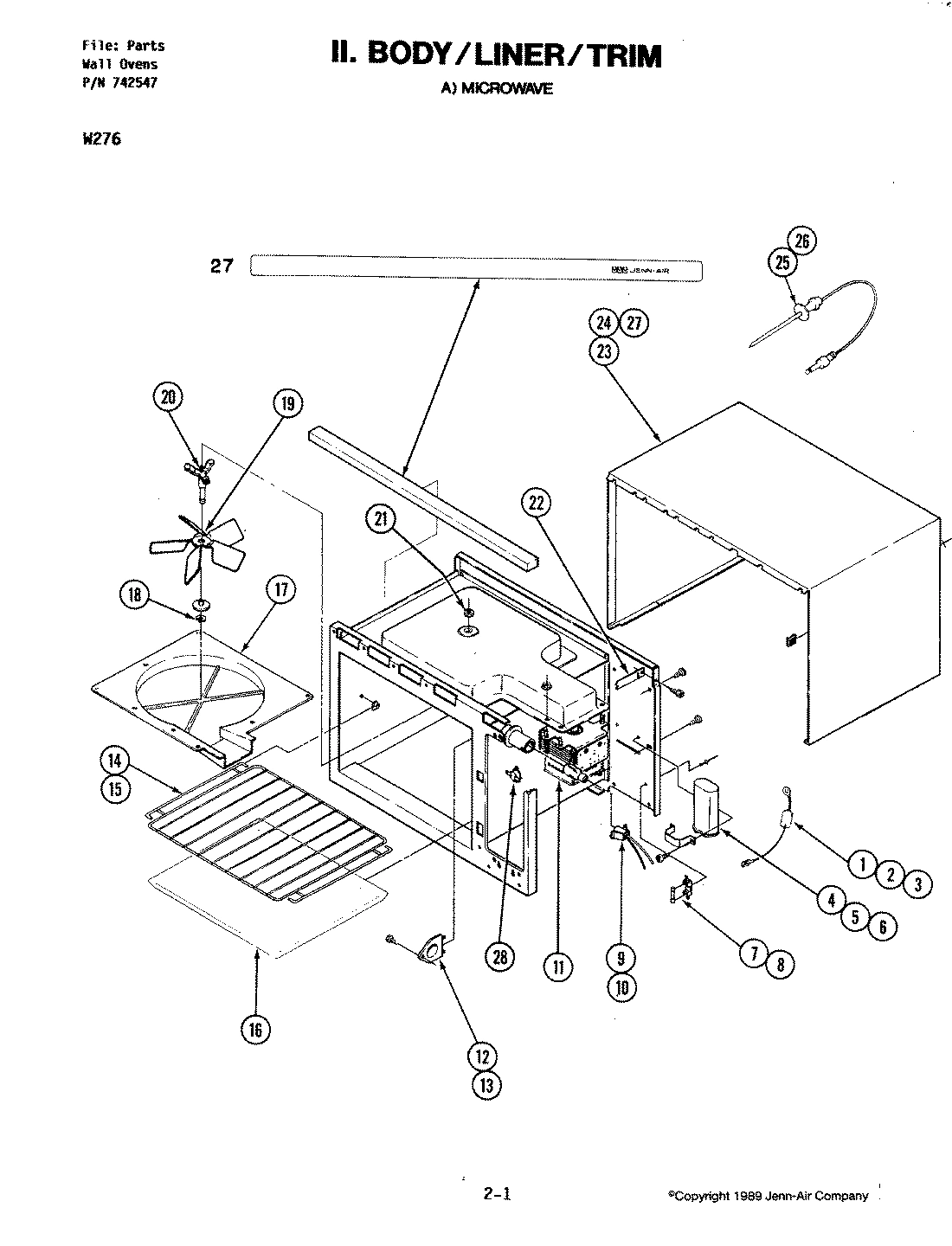

13 - OVEN (UPPER)
Common parts from model Maytag W276 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
MAY 704725 MAY 704725 Contact Us For Availability
1
MAY 04021191 MAY 04021191 Contact Us For Availability
1
MAY 704676 MAY 704676 Contact Us For Availability
1
MAY 703609 MAY 703609 Contact Us For Availability
1
MAY Y704692 MAY Y704692 Contact Us For Availability
1
BRACKET, CONTROL PANEL-UPPER MAY 790100 Contact Us For Availability
1
MAY Y700503 MAY Y700503 Contact Us For Availability
1
MAY Y02030117 MAY Y02030117 Contact Us For Availability
1
MAY 704684 MAY 704684 Contact Us For Availability
1
BRACKET, INTERLOCK MAY 790135 Contact Us For Availability
1
MAY Y701724 MAY Y701724 Contact Us For Availability
1
DIODE MAY 790162 Contact Us For Availability
2
MAY 701707 MAY 701707 Contact Us For Availability
2
MAY Y04020842 MAY Y04020842 Contact Us For Availability
2
MAY 704395 MAY 704395 Contact Us For Availability
2
MAY Y703419 MAY Y703419 Contact Us For Availability
2
MAY Y703449 MAY Y703449 Contact Us For Availability
2
MAY Y704691 MAY Y704691 Contact Us For Availability
2
BRACKET, CONTROL PANEL-LOWER MAY 790101 Contact Us For Availability
2
MAY Y712493 MAY Y712493 Contact Us For Availability
2
MAY Y02030116 MAY Y02030116 Contact Us For Availability
2
MAY 704679 MAY 704679 Contact Us For Availability
2
SWITCH, SECONDARY INTERLOCK MAY 790136 Contact Us For Availability
2
MAY Y704661 MAY Y704661 Contact Us For Availability
2
SCREW MAY 790163 Contact Us For Availability
3
MAY Y704732 MAY Y704732 Contact Us For Availability
3
MAY Y02170111 MAY Y02170111 Contact Us For Availability
3
MAY 705204 MAY 705204 Contact Us For Availability
3
MAY 701666 MAY 701666 Contact Us For Availability
3
MAY 704690 MAY 704690 Contact Us For Availability
3
CONTROL MAY 790108 Contact Us For Availability
3
MAY 02010047 MAY 02010047 Contact Us For Availability
3
SWITCH, MONITOR INTERLOCK MAY 790137 Contact Us For Availability
3
NUT MAY 790142 Contact Us For Availability
3
MAY 703164 MAY 703164 Contact Us For Availability
4
MAY 701709 MAY 701709 Contact Us For Availability
4
MAY 03010138 MAY 03010138 Contact Us For Availability
4
MAY 704343 MAY 704343 Contact Us For Availability
4
MAY 701667 MAY 701667 Contact Us For Availability
4
MAY 704714 MAY 704714 Contact Us For Availability
4
FRAME, CONTROL PANEL MAY 790103 Contact Us For Availability
4
MAY 701659 MAY 701659 Contact Us For Availability
4
MAY Y02100135 MAY Y02100135 Contact Us For Availability
4
MAY 701687 MAY 701687 Contact Us For Availability
4
SWITCH, PRIMARY INTERLOCK MAY 790138 Contact Us For Availability
4
MAY 703165 MAY 703165 Contact Us For Availability
4
CAPACITOR MAY 790164 Contact Us For Availability
5
MAY 05140008 MAY 05140008 Contact Us For Availability
5
MAY 704339 MAY 704339 Contact Us For Availability
5
MAY 701668 MAY 701668 Contact Us For Availability
5
MAY 701609 MAY 701609 Contact Us For Availability
5
INSERT MAY 790109 Contact Us For Availability
5
MAY 701660 MAY 701660 Contact Us For Availability
5
MAY Y02100166 MAY Y02100166 Contact Us For Availability
5
SWITCH, LOGIC INTERLOCK MAY 790139 Contact Us For Availability
5
MAY Y702618 MAY Y702618 Contact Us For Availability
5
BRACKET MAY 790165 Contact Us For Availability
6
MAY 701711 MAY 701711 Contact Us For Availability
6
MAY Y701721 MAY Y701721 Contact Us For Availability
6
MAY 704344 MAY 704344 Contact Us For Availability
6
MAY 701669 MAY 701669 Contact Us For Availability
6
MAY Y712603 MAY Y712603 Contact Us For Availability
6
SCREW MAY 790106 Contact Us For Availability
6
MAY Y712010 MAY Y712010 Contact Us For Availability
6
MAY 02120151 MAY 02120151 Contact Us For Availability
6
MAY 01140019 MAY 01140019 Contact Us For Availability
6
MAY Y704689 MAY Y704689 Contact Us For Availability
6
INSULATOR, SWITCH MAY 790140 Contact Us For Availability
6
MAY Y01100043 MAY Y01100043 Contact Us For Availability
6
MAY Y704667 MAY Y704667 Contact Us For Availability
6
SCREW MAY 790166 Contact Us For Availability
7
MAY 701712 MAY 701712 Contact Us For Availability
7
MAY 701672 MAY 701672 Contact Us For Availability
7
MAY Y704728 MAY Y704728 Contact Us For Availability
7
SCREW MAY 790107 Contact Us For Availability
7
MAY 701643 MAY 701643 Contact Us For Availability
7
MAY 04021262 MAY 04021262 Contact Us For Availability
7
MAY Y707172 MAY Y707172 Contact Us For Availability
7
NUT MAY 790141 Contact Us For Availability
7
MAY 712088 MAY 712088 Contact Us For Availability
7
CLIP, FUSE MAY 790167 Contact Us For Availability
8
MAY 701713 MAY 701713 Contact Us For Availability
8
MAY 701718 MAY 701718 Contact Us For Availability
8
MAY 705199 MAY 705199 Contact Us For Availability
8
MAY 701676 MAY 701676 Contact Us For Availability
8
MAY 704797 MAY 704797 Contact Us For Availability
8
MAY 704974 MAY 704974 Contact Us For Availability
8
MAY 701641 MAY 701641 Contact Us For Availability
8
MAY Y02220096 MAY Y02220096 Contact Us For Availability
8
MAY 705027 MAY 705027 Contact Us For Availability
8
MAY Y702750 MAY Y702750 Contact Us For Availability
8
MAY Y712594 MAY Y712594 Contact Us For Availability
8
FUSE MAY 790168 Contact Us For Availability
8
MAY Y01050005 MAY Y01050005 Contact Us For Availability
9
MAY Y700601 MAY Y700601 Contact Us For Availability
9
MAY 702592 MAY 702592 Contact Us For Availability
9
MAY Y704706 MAY Y704706 Contact Us For Availability
9
MAY 704643 MAY 704643 Contact Us For Availability
9
MAY 715485 MAY 715485 Contact Us For Availability
9
MAY 701691 MAY 701691 Contact Us For Availability
9
MAY 704730 MAY 704730 Contact Us For Availability
9
MAY Y02200017 MAY Y02200017 Contact Us For Availability
9
CLIP-RETAINER MAY 790143 Contact Us For Availability
9
MAY Y703741 MAY Y703741 Contact Us For Availability
9
MAY 01100045 MAY 01100045 Contact Us For Availability
9
SOCKET, LAMP MAY 790169 Contact Us For Availability
10
MAY Y704972 MAY Y704972 Contact Us For Availability
10
MAY Y704710 MAY Y704710 Contact Us For Availability
10
MAY 701692 MAY 701692 Contact Us For Availability
10
MAY 02100105 MAY 02100105 Contact Us For Availability
10
MAY Y704820 MAY Y704820 Contact Us For Availability
10
MAY Y02100196 MAY Y02100196 Contact Us For Availability
10
LATCH, DOOR INTERLOCK MAY 790144 Contact Us For Availability
10
MAY 704142 MAY 704142 Contact Us For Availability
10
LAMP MAY 790170 Contact Us For Availability
11
MAY 705060 MAY 705060 Contact Us For Availability
11
MAY Y715957 MAY Y715957 Contact Us For Availability
11
MAY 704842 MAY 704842 Contact Us For Availability
11
MAY 704704 MAY 704704 Contact Us For Availability
11
MAY Y707347 MAY Y707347 Contact Us For Availability
11
MAY 02190056 MAY 02190056 Contact Us For Availability
11
PIN, LEVER & PIVOT LATCH MAY 790145 Contact Us For Availability
11
MAY Y704145 MAY Y704145 Contact Us For Availability
11
MAY 01040004 MAY 01040004 Contact Us For Availability
11
MAGNETRON MAY 790171 Contact Us For Availability
12
PANEL, OUTER (LT) MAY 701695 Contact Us For Availability
12
MAY 704798 MAY 704798 Contact Us For Availability
12
MAY 704495 MAY 704495 Contact Us For Availability
12
MAY Y03050041 MAY Y03050041 Contact Us For Availability
12
SCREW MAY 790146 Contact Us For Availability
12
MAY 708764 MAY 708764 Contact Us For Availability
12
LENS, LAMP MAY 790172 Contact Us For Availability
13
MAY 700596 MAY 700596 Contact Us For Availability
13
MAY 704688 MAY 704688 Contact Us For Availability
13
MAY Y704238 MAY Y704238 Contact Us For Availability
13
MAY 04021377 MAY 04021377 Contact Us For Availability
13
SCREW MAY 790147 Contact Us For Availability
13
MAY 701738 MAY 701738 Contact Us For Availability
13
SCREW MAY 790173 Contact Us For Availability
14
MAY 701697 MAY 701697 Contact Us For Availability
14
MAY 705031 MAY 705031 Contact Us For Availability
14
MAY Y703910 MAY Y703910 Contact Us For Availability
14
MAY 704492 MAY 704492 Contact Us For Availability
14
MAY Y03010121 MAY Y03010121 Contact Us For Availability
14
TRANSFORMER MAY 790148 Contact Us For Availability
14
MAY Y704143 MAY Y704143 Contact Us For Availability
14
RACK, OVEN MAY 790174 Contact Us For Availability
15
MAY 701716 MAY 701716 Contact Us For Availability
15
MAY Y704225 MAY Y704225 Contact Us For Availability
15
MAY Y03020071 MAY Y03020071 Contact Us For Availability
15
PLATE, COMPONENT MOUNTING MAY 790149 Contact Us For Availability
15
MAY Y707319 MAY Y707319 Contact Us For Availability
15
MAY 02010031 MAY 02010031 Contact Us For Availability
15
SUPPORT, RACK MAY 790175 Contact Us For Availability
16
MAY 715910 MAY 715910 Contact Us For Availability
16
MAY Y704224 MAY Y704224 Contact Us For Availability
16
MAY Y03010118 MAY Y03010118 Contact Us For Availability
16
CORD-POWER MAY 790150 Contact Us For Availability
16
MAY 715294 MAY 715294 Contact Us For Availability
16
SHELF, GLASS MAY 790176 Contact Us For Availability
17
MAY 701848 MAY 701848 Contact Us For Availability
17
MAY 704963 MAY 704963 Contact Us For Availability
17
MAY 02120114 MAY 02120114 Contact Us For Availability
17
MAY 701741 MAY 701741 Contact Us For Availability
17
COVER, STIRRER MAY 790092 Contact Us For Availability
17
MAY Y03110050 MAY Y03110050 Contact Us For Availability
18
MAY 701701 MAY 701701 Contact Us For Availability
18
MAY 701702 MAY 701702 Contact Us For Availability
18
MAY 701703 MAY 701703 Contact Us For Availability
18
MAY 704808 MAY 704808 Contact Us For Availability
18
MAY 701736 MAY 701736 Contact Us For Availability
18
MAY Y02120121 MAY Y02120121 Contact Us For Availability
18
FOOT-BASE MAY 790152 Contact Us For Availability
18
MAY 701742 MAY 701742 Contact Us For Availability
18
CLIP, STIRRER MAY 790093 Contact Us For Availability
19
MAY 703095 MAY 703095 Contact Us For Availability
19
MAY Y704489 MAY Y704489 Contact Us For Availability
19
MAY Y02120122 MAY Y02120122 Contact Us For Availability
19
SCREW MAY 790153 Contact Us For Availability
19
MAY Y704144 MAY Y704144 Contact Us For Availability
19
BLADE, BUSHING ASSEMBLY MAY 790094 Contact Us For Availability
20
MAY Y700556 MAY Y700556 Contact Us For Availability
20
MAY 712188 MAY 712188 Contact Us For Availability
20
MAY 02120153 MAY 02120153 Contact Us For Availability
20
SCREW MAY 790154 Contact Us For Availability
20
MAY 705170 MAY 705170 Contact Us For Availability
20
SHAFT, STIRRER MAY 790095 Contact Us For Availability
21
MAY 712250 MAY 712250 Contact Us For Availability
21
MAY Y03120064 MAY Y03120064 Contact Us For Availability
21
MAY 704802 MAY 704802 Contact Us For Availability
21
MAY Y04100258 MAY Y04100258 Contact Us For Availability
21
MAY Y04100259 MAY Y04100259 Contact Us For Availability
21
MAY Y704657 MAY Y704657 Contact Us For Availability
21
MAY Y704801 MAY Y704801 Contact Us For Availability
21
NUT, SHAFT STIRRER MAY 790096 Contact Us For Availability
22
MAY 701680 MAY 701680 Contact Us For Availability
22
MAY 704487 MAY 704487 Contact Us For Availability
22
MAY Y03120069 MAY Y03120069 Contact Us For Availability
22
MAY Y704663 MAY Y704663 Contact Us For Availability
22
BRACE, SUPPORT (UPPER) MAY 790097 Contact Us For Availability
23
MAY 701681 MAY 701681 Contact Us For Availability
23
MAY Y704237 MAY Y704237 Contact Us For Availability
23
MAY Y03180023 MAY Y03180023 Contact Us For Availability
23
MAY Y707113 MAY Y707113 Contact Us For Availability
23
CABINET MAY 790098 Contact Us For Availability
24
MAY Y708310 MAY Y708310 Contact Us For Availability
24
MAY 701652 MAY 701652 Contact Us For Availability
24
MAY Y02220073 MAY Y02220073 Contact Us For Availability
24
MAY Y05080027 MAY Y05080027 Contact Us For Availability
24
MAY 704823 MAY 704823 Contact Us For Availability
24
CLIP, CABINET MAY 790099 Contact Us For Availability
25
MAY 701658 MAY 701658 Contact Us For Availability
25
MAY 01220002 MAY 01220002 Contact Us For Availability
25
PROBE, TEMP MAY 790177 Contact Us For Availability
26
MAY Y708733 MAY Y708733 Contact Us For Availability
26
MAY 701648 MAY 701648 Contact Us For Availability
26
JACK, PROBE MAY 790178 Contact Us For Availability
27
NOT REQUIRED PART OR SEE NOTE TRIM, TOP MAY W10124350 Contact Us For Availability
27
MAY 701662 MAY 701662 Contact Us For Availability
27
MAY 02100177 MAY 02100177 Contact Us For Availability
27
TRIM, TOP (NO LOGO) MAY 790180 Contact Us For Availability
28
MAY 701704 MAY 701704 Contact Us For Availability
28
MAY Y704819 MAY Y704819 Contact Us For Availability
28
MAY Y01180008 MAY Y01180008 Contact Us For Availability
29
MAY 712089 MAY 712089 Contact Us For Availability
29
MAY 704805 MAY 704805 Contact Us For Availability
30
MAY Y704488 MAY Y704488 Contact Us For Availability
31
MAY Y704498 MAY Y704498 Contact Us For Availability
32
MAY Y700584 MAY Y700584 Contact Us For Availability
33
MAY 704491 MAY 704491 Contact Us For Availability
× ![]()
