Model Whirlpool W27100W ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

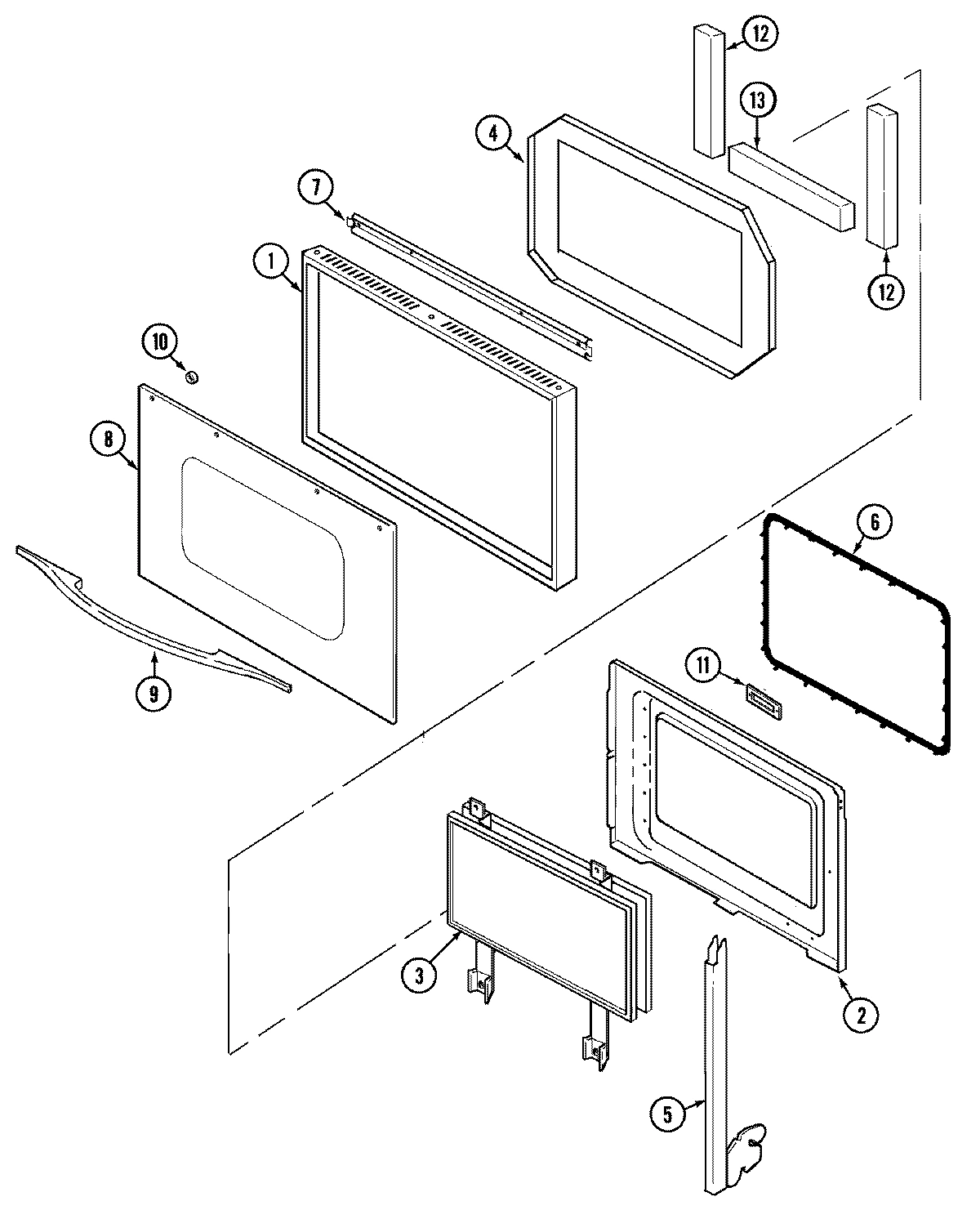

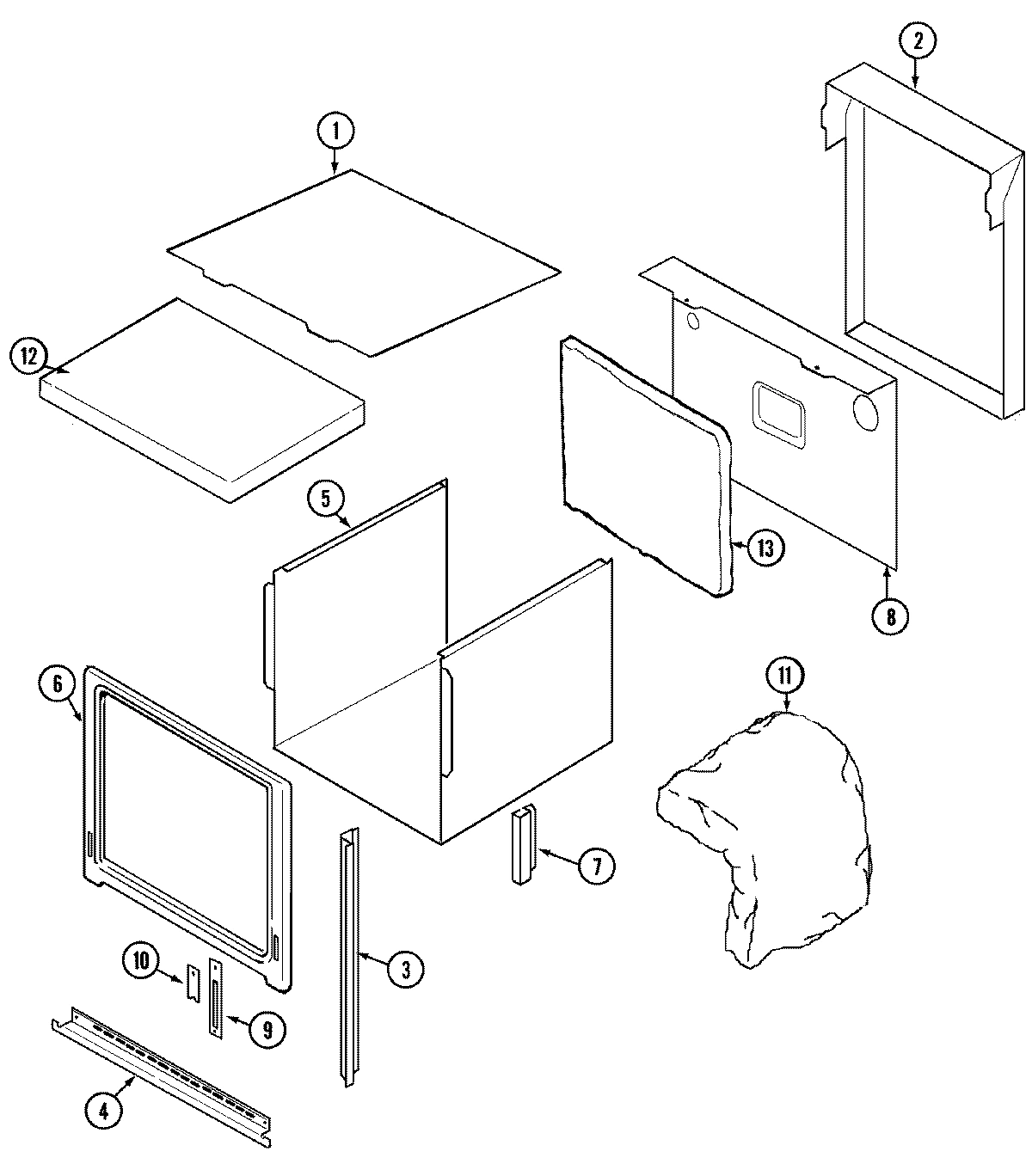

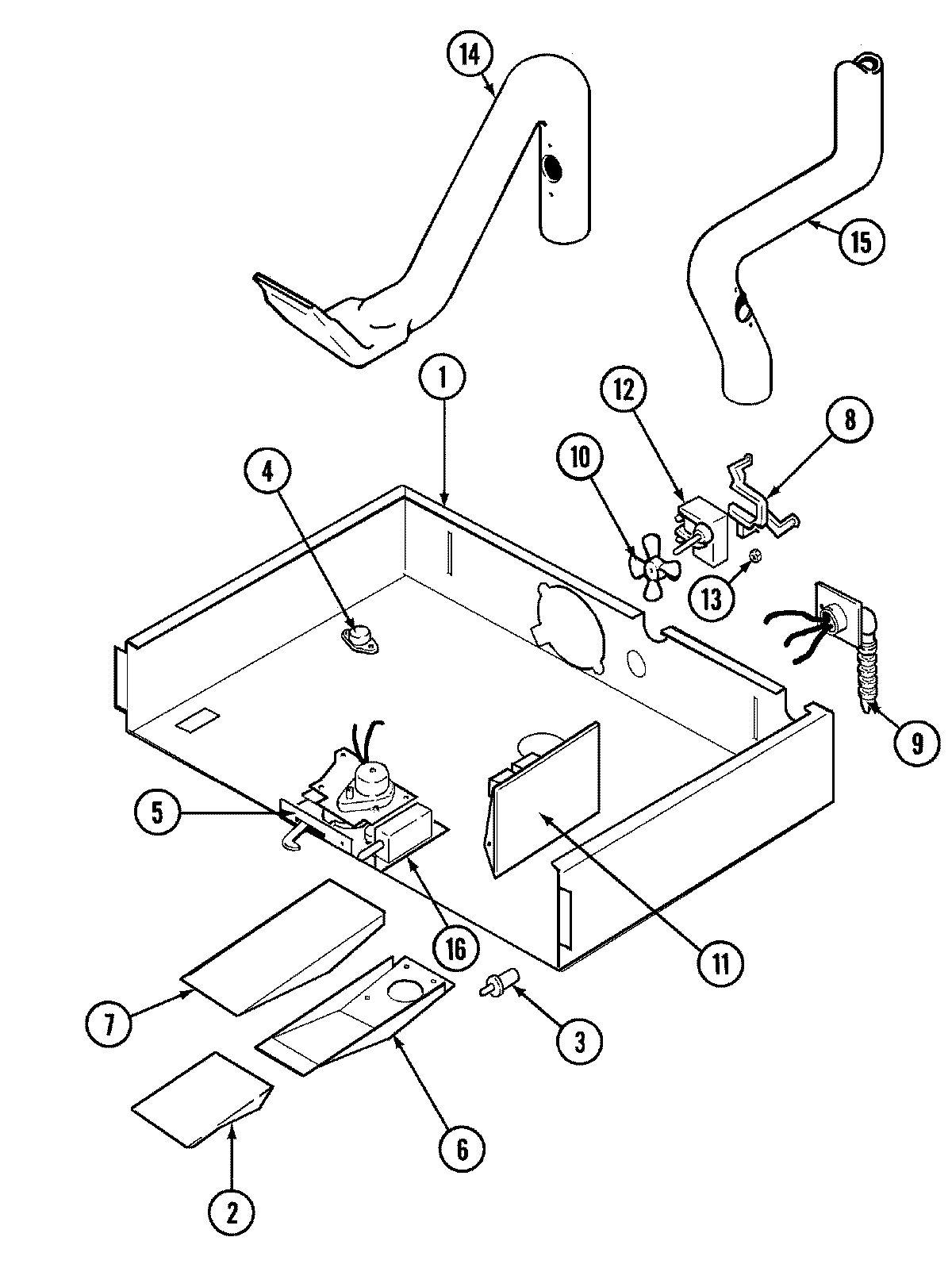

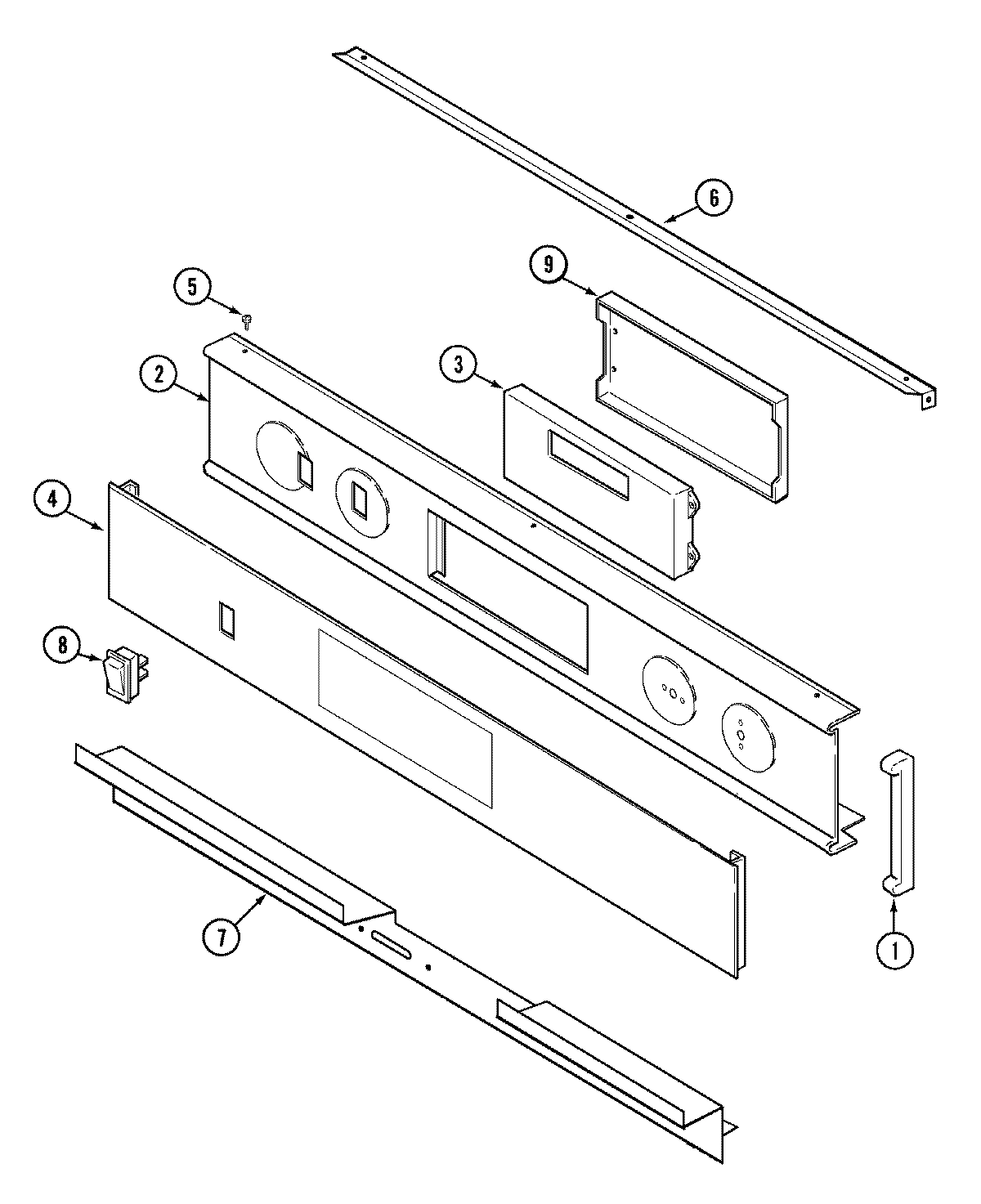

1

END CAP, PANEL (WHT) WPL 71001795 Contact Us For Availability

1

PANEL, INNER TOP (OVEN) WPL 71001976 Contact Us For Availability

1

TOP (OUTER) WPL 71001950 Contact Us For Availability

1

SCREW WPL 71001827 Contact Us For Availability

1

FRAME, DOOR (WHT) WPL 71001965 Contact Us For Availability

2

RACK, OVEN WPL Y704660 Contact Us For Availability

2

PANEL, CONTROL (WHT) WPL 71002122 Contact Us For Availability

2

PANEL, CONTROL (WHT) WPL 74004707 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71001966 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71002968 Contact Us For Availability

2

LINER, OVEN DOOR WPL 74005615 Contact Us For Availability

3

WP7902P444-60 Whirlpool Door Glass Backorder WPL WP7902P444-60 $67.01

3

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

3

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

3

CLOCK WPL 71002123 Contact Us For Availability

3

CLOCK WPL 74004708 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

TRIM, SIDE (LT/WHT) WPL 71001953 Contact Us For Availability

3

TRIM, SIDE (RT/WHT) WPL 71001954 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $87.16

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.55

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

4

TAPE SUPT (CONTROL PANEL) KIT WPL 12001405 Contact Us For Availability

4

SWITCH, MEMBRANE (WHT)----NA WPL 71002226 Contact Us For Availability

4

SWITCH, MEMBRANE ASY (WHT) WPL 71003576 Contact Us For Availability

4

TRIM, OVEN (LWR-WHT) WPL 71001955 Contact Us For Availability

4

TRIM, OVEN (LWR-WHT) WPL 74005625 Contact Us For Availability

4

RETAINER, INSULATION WPL 71001968 Contact Us For Availability

5

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $88.94

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $44.32

5

SCREW (WHT) WPL Y04100724 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

PANEL (SIDE-BTM-SIDE) WPL 71001957 Contact Us For Availability

6

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $70.84

6

SUPPORT, CONTROL PANEL WPL 71001945 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

FRAME, OVEN WPL 71001958 Contact Us For Availability

6

FRAME, OVEN WPL 71003185 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.55

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $154.88

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71001978 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003006 Contact Us For Availability

7

TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

HOOD, VENT WPL 71001891 Contact Us For Availability

7

GUSSET WPL 71001971 Contact Us For Availability

8

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

8

SWITCH, OVEN LIGHT (WHT) WPL 71002137 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

8

BACK, MAIN (INNER) WPL 71001959 Contact Us For Availability

8

GLASS, DOOR (WHT) WPL 71001973 Contact Us For Availability

8

GLASS, DOOR (WHT) WPL 71003637 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

BRACKET, CLOCK WPL 71002139 Contact Us For Availability

9

INSULATOR WPL Y705143 Contact Us For Availability

9

WIRE CABLE ASSY. (CONDUIT) WPL 71002177 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

HANDLE, DOOR (WHT) WPL 71001975 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.70

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

TUBE, VENT WPL 71001864 Contact Us For Availability

HARNESS, MAIN CONTROL WPL 71002126 Contact Us For Availability

HARNESS, DOOR SWITCH (DBL) WPL 71002128 Contact Us For Availability

HARNESS, DOOR LOCK (DBL) WPL 71002129 Contact Us For Availability

HARNESS, RELAY BOARD WPL 71002130 Contact Us For Availability

HARNESS, SENOR/LOCK WPL 74004701 Contact Us For Availability

BLADE, FAN WPL 71001852 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

CLIP, OVEN WPL 71001170 Contact Us For Availability

MANUAL, USE & CARE WPL 71002216 Contact Us For Availability

MANUAL, USE & CARE WPL 71003574 Contact Us For Availability

INSULATION (WRAP) WPL 71001960 Contact Us For Availability

PLATE, LATCH WPL 71001831 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

INSULATION (BACK) WPL 71001962 Contact Us For Availability

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

BUTTON, PLUG WPL 702929 Contact Us For Availability

INSULATION (BTM) WPL 71001963 Contact Us For Availability

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

14

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

14

TUBE, VENT (UPR) WPL 71001889 Contact Us For Availability

15

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

15

TUBE, VENT (LWR) WPL 71001890 Contact Us For Availability

16

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

17

WIRE, GROUND WPL 71001869 Contact Us For Availability

NI

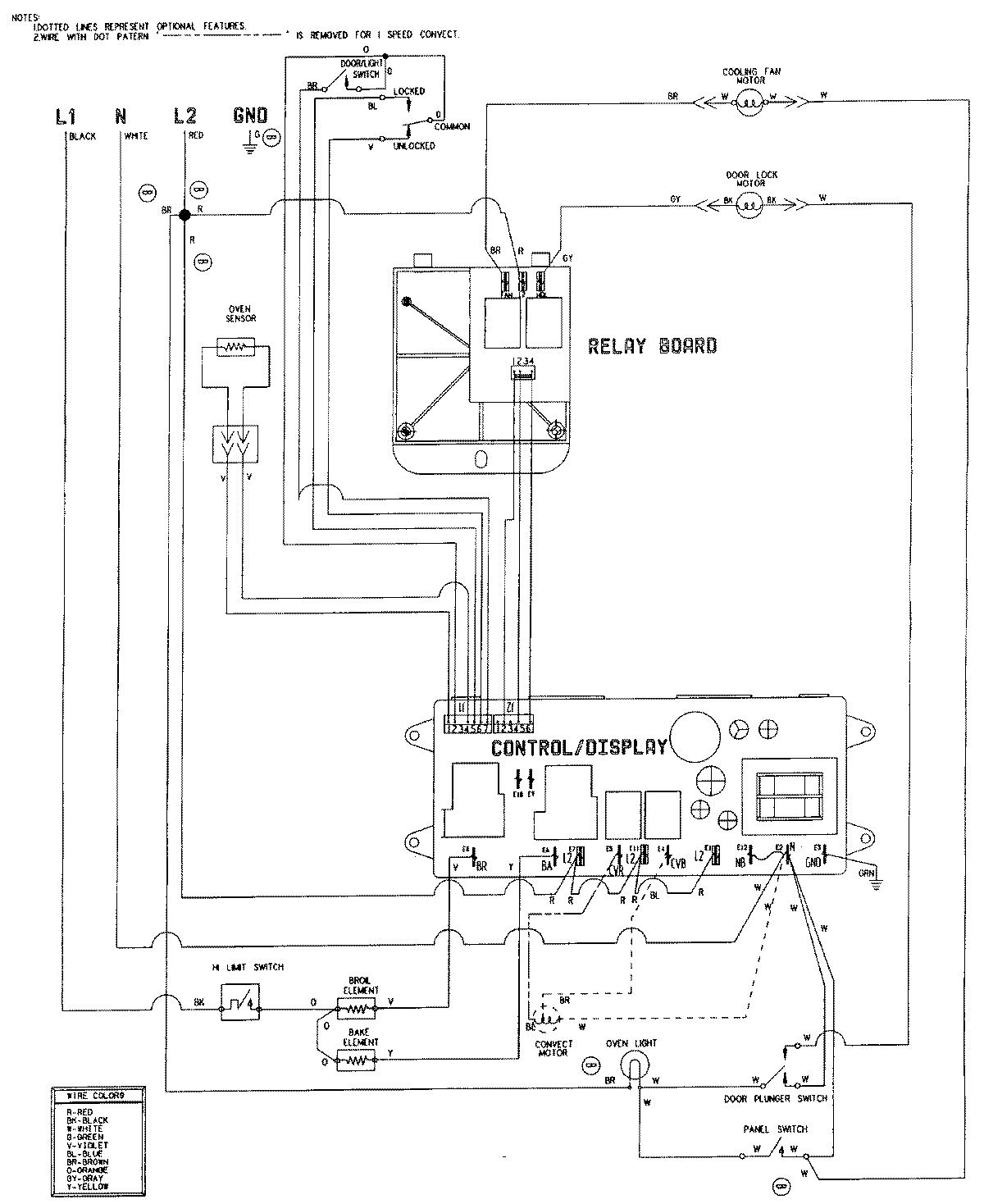

WIRING INFORMATION WPL 15001755 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002627 Contact Us For Availability
