Model Maytag W246W ELECTRIC WALL OVEN – Common Parts & Diagrams

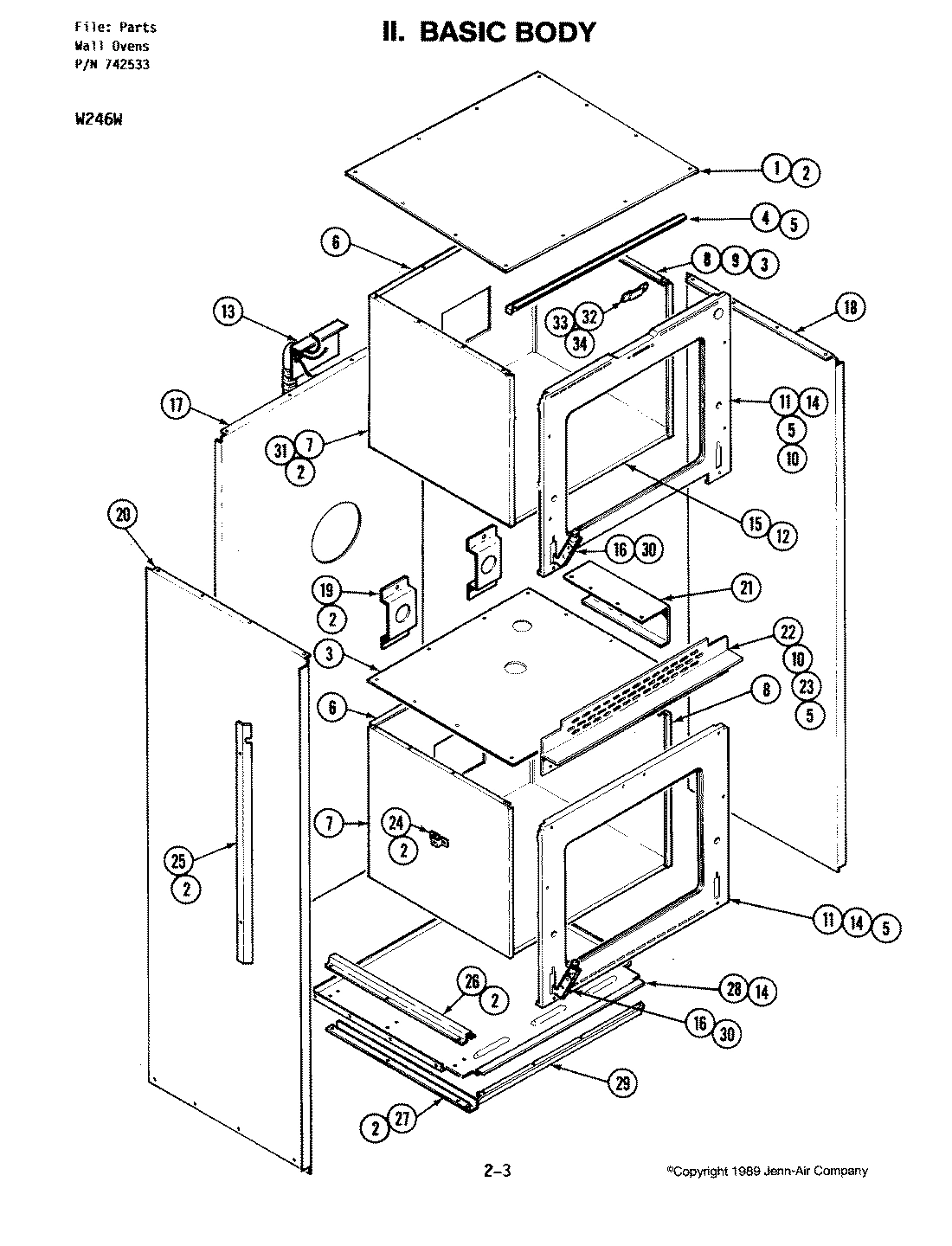

01 - BASIC BODY

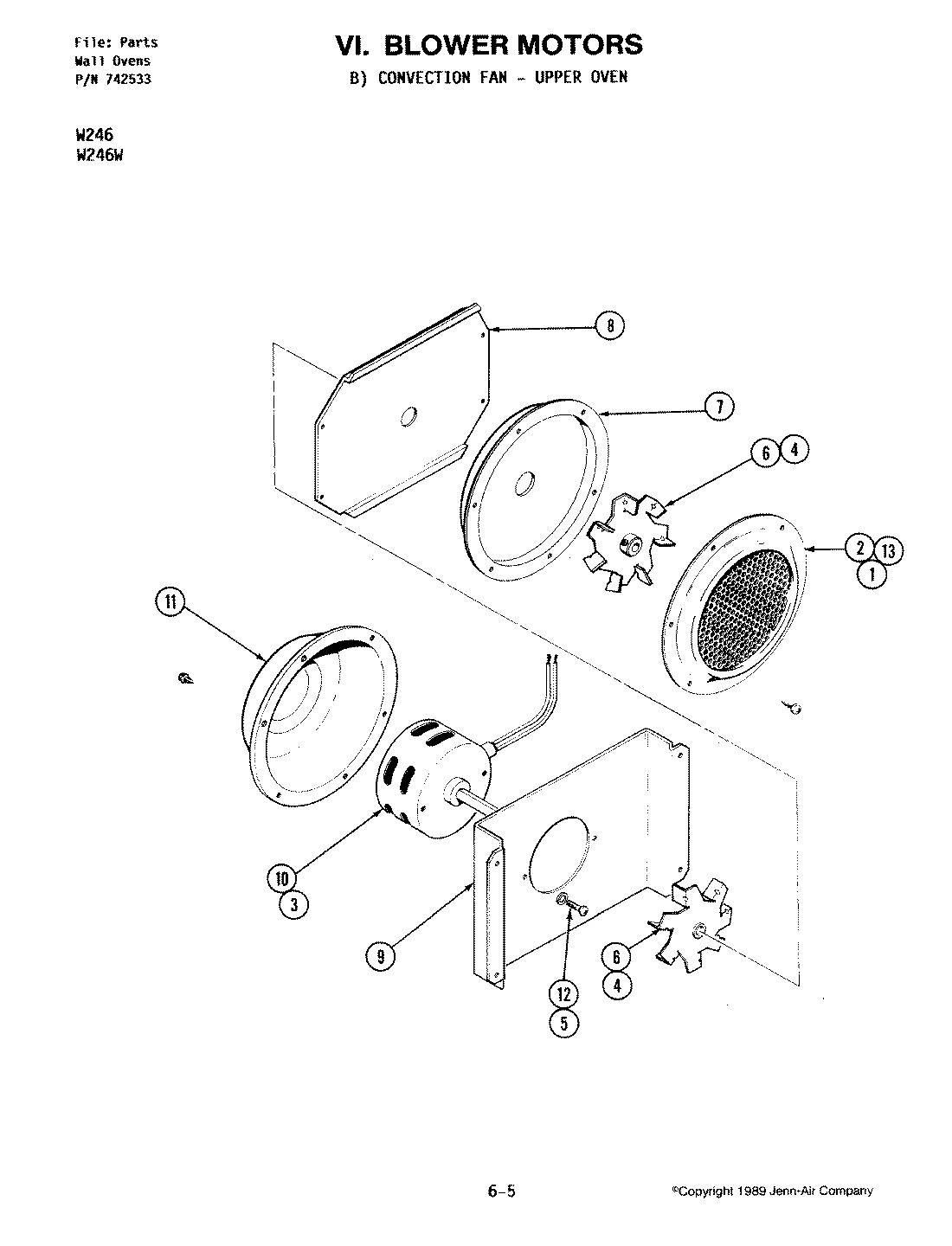

02 - BLOWER MOTOR-CONVECTION FAN

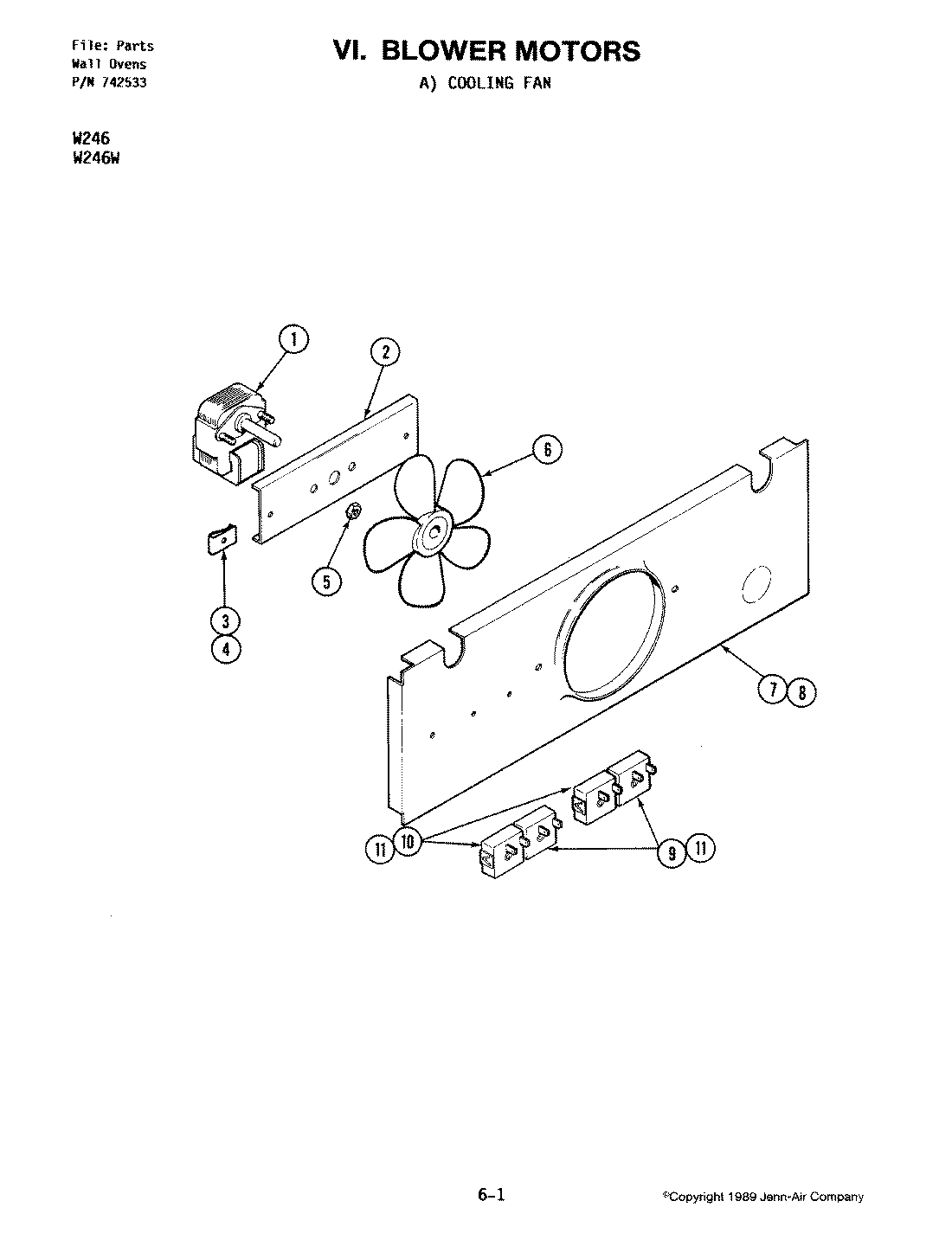

03 - BLOWER MOTOR-COOLING FAN

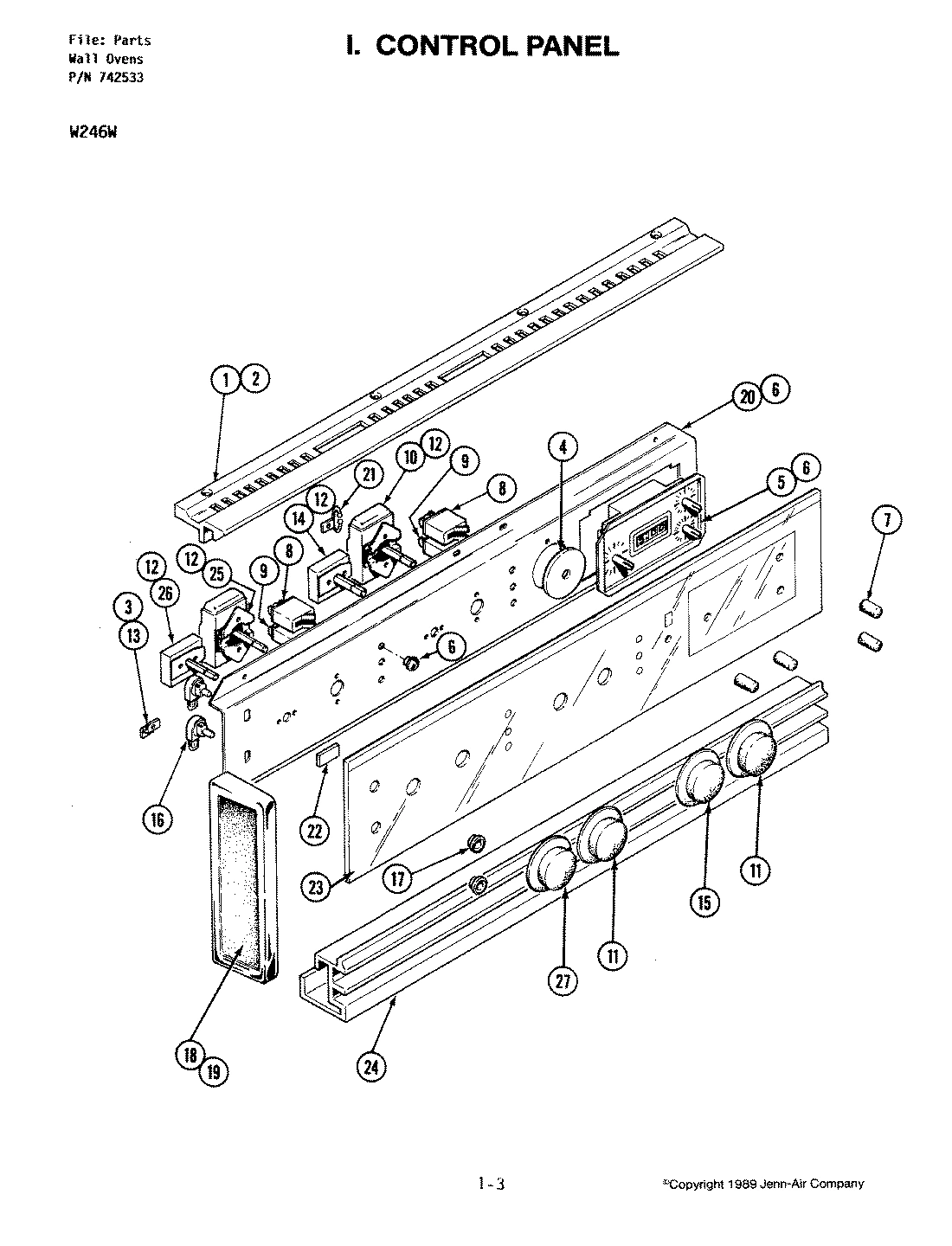

04 - CONTROL PANEL

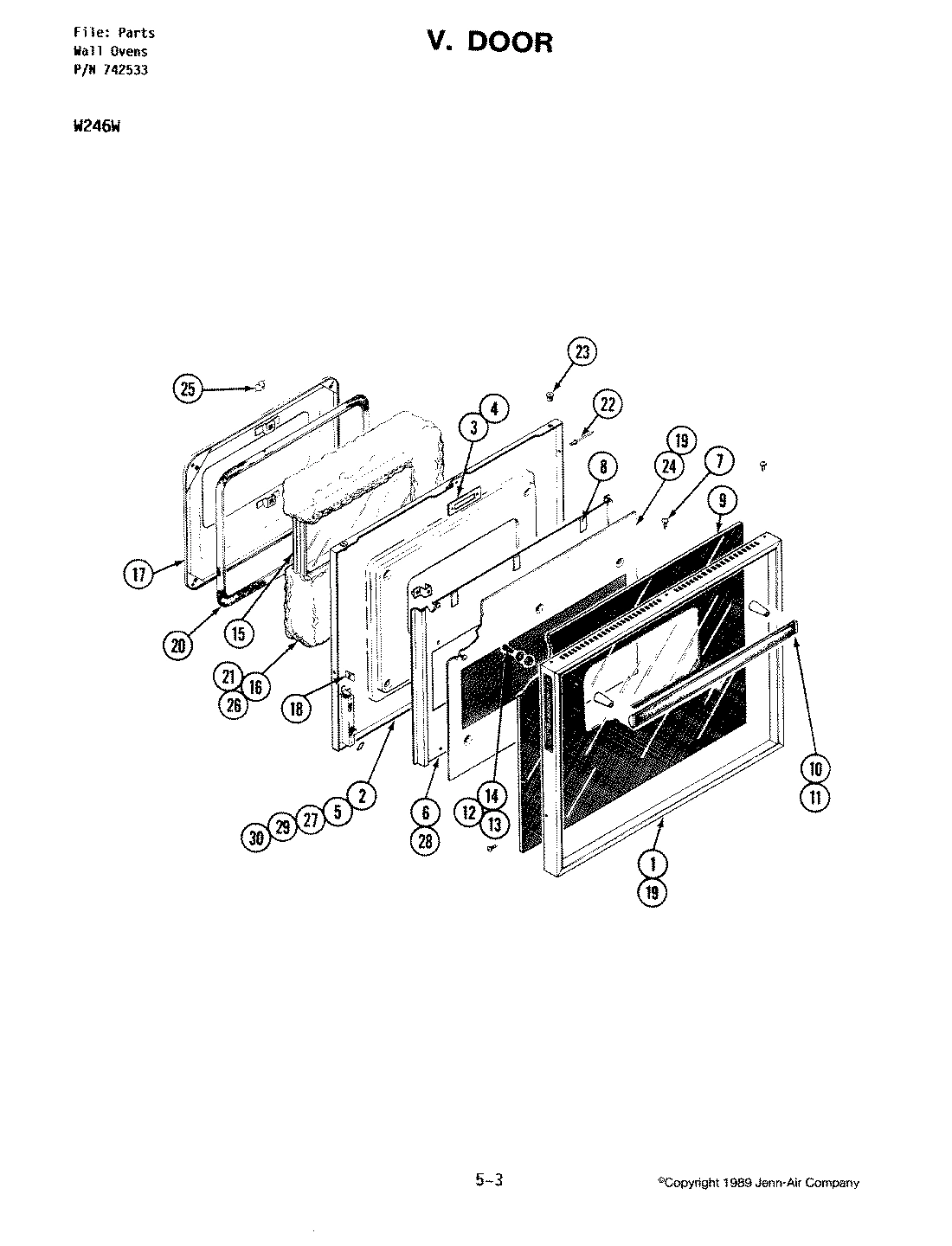

05 - DOOR

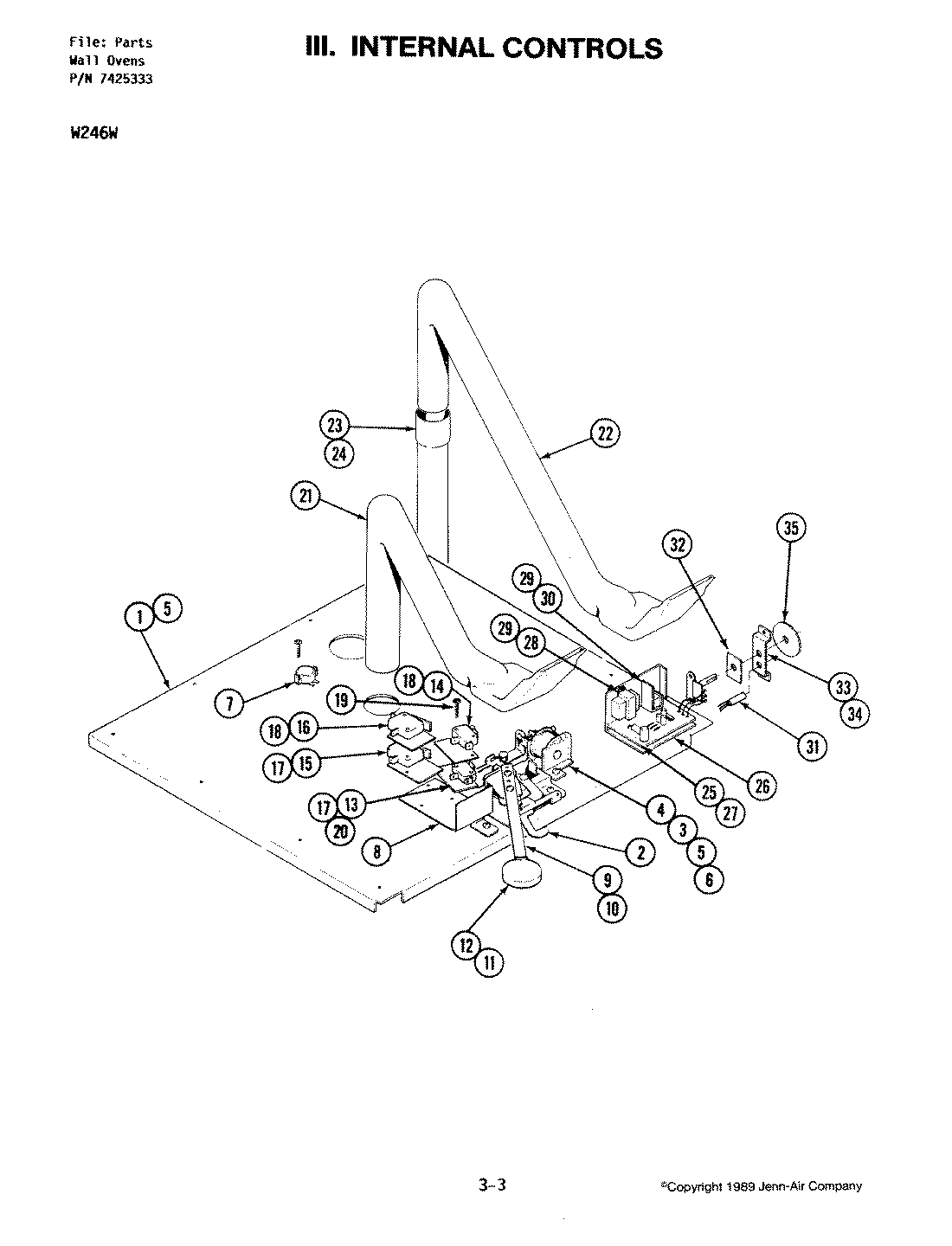

06 - INTERNAL CONTROLS

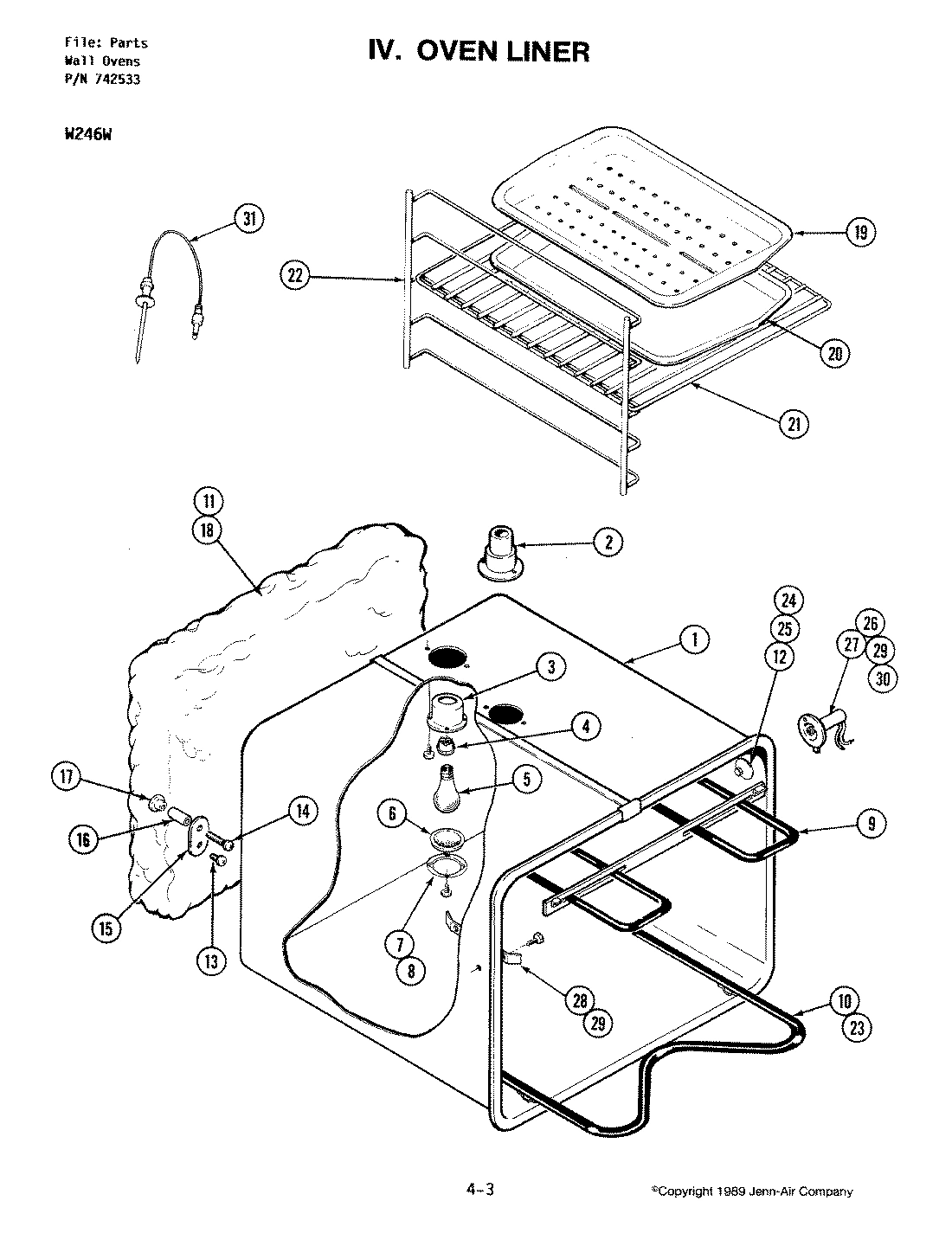

07 - OVEN LINER
Common parts from model Maytag W246W ELECTRIC WALL OVEN
1
MAY Y701721 MAY Y701721 Contact Us For Availability
1
MAY 703072 MAY 703072 Contact Us For Availability
1
MAY 703705 MAY 703705 Contact Us For Availability
1
MAY 704155 MAY 704155 Contact Us For Availability
1
MAY Y712376 MAY Y712376 Contact Us For Availability
1
MAY Y712377 MAY Y712377 Contact Us For Availability
2
MAY 701707 MAY 701707 Contact Us For Availability
2
MAY Y703570 MAY Y703570 Contact Us For Availability
2
MAY 712066 MAY 712066 Contact Us For Availability
2
MAY 712188 MAY 712188 Contact Us For Availability
2
MAY Y703357 MAY Y703357 Contact Us For Availability
2
MAY 701738 MAY 701738 Contact Us For Availability
3
MAY Y700556 MAY Y700556 Contact Us For Availability
3
MAY Y712010 MAY Y712010 Contact Us For Availability
3
MAY Y701686 MAY Y701686 Contact Us For Availability
3
MAY 704142 MAY 704142 Contact Us For Availability
4
MAY 703095 MAY 703095 Contact Us For Availability
4
MAY 701709 MAY 701709 Contact Us For Availability
4
MAY 704879 MAY 704879 Contact Us For Availability
4
MAY 701662 MAY 701662 Contact Us For Availability
4
MAY Y702526 MAY Y702526 Contact Us For Availability
4
MAY Y704145 MAY Y704145 Contact Us For Availability
5
MAY 715910 MAY 715910 Contact Us For Availability
5
MAY Y707149 MAY Y707149 Contact Us For Availability
5
MAY 704877 MAY 704877 Contact Us For Availability
5
MAY 701652 MAY 701652 Contact Us For Availability
5
MAY Y707319 MAY Y707319 Contact Us For Availability
6
MAY 701700 MAY 701700 Contact Us For Availability
6
MAY 701711 MAY 701711 Contact Us For Availability
6
MAY 701718 MAY 701718 Contact Us For Availability
6
MAY 703143 MAY 703143 Contact Us For Availability
6
MAY 712250 MAY 712250 Contact Us For Availability
6
MAY 703767 MAY 703767 Contact Us For Availability
6
MAY Y704143 MAY Y704143 Contact Us For Availability
7
MAY 701697 MAY 701697 Contact Us For Availability
7
MAY Y708733 MAY Y708733 Contact Us For Availability
7
MAY 701712 MAY 701712 Contact Us For Availability
7
MAY 704336 MAY 704336 Contact Us For Availability
7
MAY Y704485 MAY Y704485 Contact Us For Availability
7
MAY 701687 MAY 701687 Contact Us For Availability
7
MAY 703259 MAY 703259 Contact Us For Availability
7
MAY Y704144 MAY Y704144 Contact Us For Availability
8
MAY 701676 MAY 701676 Contact Us For Availability
8
MAY 701713 MAY 701713 Contact Us For Availability
8
MAY 712025 MAY 712025 Contact Us For Availability
8
MAY Y702394 MAY Y702394 Contact Us For Availability
8
MAY 701706 MAY 701706 Contact Us For Availability
8
MAY 713741 MAY 713741 Contact Us For Availability
9
MAY Y703352 MAY Y703352 Contact Us For Availability
9
MAY Y700601 MAY Y700601 Contact Us For Availability
9
MAY 704355 MAY 704355 Contact Us For Availability
9
MAY Y702393 MAY Y702393 Contact Us For Availability
9
MAY 704455 MAY 704455 Contact Us For Availability
9
MAY 704880 MAY 704880 Contact Us For Availability
9
MAY Y712547 MAY Y712547 Contact Us For Availability
9
MAY Y701729 MAY Y701729 Contact Us For Availability
10
MAY 701666 MAY 701666 Contact Us For Availability
10
MAY Y703035 MAY Y703035 Contact Us For Availability
10
MAY 704354 MAY 704354 Contact Us For Availability
10
MAY 703080 MAY 703080 Contact Us For Availability
10
MAY 704453 MAY 704453 Contact Us For Availability
10
MAY Y701724 MAY Y701724 Contact Us For Availability
11
MAY 703254 MAY 703254 Contact Us For Availability
11
MAY 703255 MAY 703255 Contact Us For Availability
11
MAY 701716 MAY 701716 Contact Us For Availability
11
MAY 704335 MAY 704335 Contact Us For Availability
11
MAY Y704482 MAY Y704482 Contact Us For Availability
11
MAY Y704454 MAY Y704454 Contact Us For Availability
11
MAY 701671 MAY 701671 Contact Us For Availability
11
MAY 701702 MAY 701702 Contact Us For Availability
12
MAY 701701 MAY 701701 Contact Us For Availability
12
MAY Y702124 MAY Y702124 Contact Us For Availability
12
MAY Y704230 MAY Y704230 Contact Us For Availability
12
MAY 704460 MAY 704460 Contact Us For Availability
12
MAY 701732 MAY 701732 Contact Us For Availability
12
MAY 712088 MAY 712088 Contact Us For Availability
13
MAY Y702360 MAY Y702360 Contact Us For Availability
13
MAY 712210 MAY 712210 Contact Us For Availability
13
MAY 702592 MAY 702592 Contact Us For Availability
13
MAY 701609 MAY 701609 Contact Us For Availability
13
MAY Y700446 MAY Y700446 Contact Us For Availability
13
MAY Y707745 MAY Y707745 Contact Us For Availability
14
MAY 703077 MAY 703077 Contact Us For Availability
14
MAY Y704231 MAY Y704231 Contact Us For Availability
14
MAY Y703351 MAY Y703351 Contact Us For Availability
14
MAY 701744 MAY 701744 Contact Us For Availability
15
MAY 701669 MAY 701669 Contact Us For Availability
15
MAY 704483 MAY 704483 Contact Us For Availability
15
MAY 701648 MAY 701648 Contact Us For Availability
15
MAY 702805 MAY 702805 Contact Us For Availability
15
MAY 701742 MAY 701742 Contact Us For Availability
16
MAY Y703419 MAY Y703419 Contact Us For Availability
16
MAY 704878 MAY 704878 Contact Us For Availability
16
MAY 701658 MAY 701658 Contact Us For Availability
16
MAY 702806 MAY 702806 Contact Us For Availability
16
MAY 701741 MAY 701741 Contact Us For Availability
17
MAY 703097 MAY 703097 Contact Us For Availability
17
MAY 704897 MAY 704897 Contact Us For Availability
17
MAY Y712174 MAY Y712174 Contact Us For Availability
17
MAY Y702350 MAY Y702350 Contact Us For Availability
17
MAY 715294 MAY 715294 Contact Us For Availability
18
MAY 703098 MAY 703098 Contact Us For Availability
18
MAY 703137 MAY 703137 Contact Us For Availability
18
MAY Y700503 MAY Y700503 Contact Us For Availability
18
MAY 703264 MAY 703264 Contact Us For Availability
18
MAY 701703 MAY 701703 Contact Us For Availability
19
MAY 703252 MAY 703252 Contact Us For Availability
19
MAY 703136 MAY 703136 Contact Us For Availability
19
MAY Y707347 MAY Y707347 Contact Us For Availability
19
MAY 702807 MAY 702807 Contact Us For Availability
19
MAY 703165 MAY 703165 Contact Us For Availability
20
MAY 703099 MAY 703099 Contact Us For Availability
20
MAY 703070 MAY 703070 Contact Us For Availability
20
MAY 702380 MAY 702380 Contact Us For Availability
20
MAY 703164 MAY 703164 Contact Us For Availability
21
MAY 703253 MAY 703253 Contact Us For Availability
21
MAY 702746 MAY 702746 Contact Us For Availability
21
MAY 701659 MAY 701659 Contact Us For Availability
21
MAY 703066 MAY 703066 Contact Us For Availability
21
MAY Y701725 MAY Y701725 Contact Us For Availability
22
MAY 704261 MAY 704261 Contact Us For Availability
22
MAY 701618 MAY 701618 Contact Us For Availability
22
MAY 701641 MAY 701641 Contact Us For Availability
22
MAY 703067 MAY 703067 Contact Us For Availability
22
MAY Y701728 MAY Y701728 Contact Us For Availability
23
MAY 703506 MAY 703506 Contact Us For Availability
23
MAY 704875 MAY 704875 Contact Us For Availability
23
MAY 701643 MAY 701643 Contact Us For Availability
23
MAY 703068 MAY 703068 Contact Us For Availability
23
MAY 708764 MAY 708764 Contact Us For Availability
24
MAY 712072 MAY 712072 Contact Us For Availability
24
MAY 704874 MAY 704874 Contact Us For Availability
24
MAY 704468 MAY 704468 Contact Us For Availability
24
MAY 703069 MAY 703069 Contact Us For Availability
24
MAY 703773 MAY 703773 Contact Us For Availability
25
MAY 703251 MAY 703251 Contact Us For Availability
25
MAY 703082 MAY 703082 Contact Us For Availability
25
MAY Y700834 MAY Y700834 Contact Us For Availability
25
MAY 703268 MAY 703268 Contact Us For Availability
25
MAY 704242 MAY 704242 Contact Us For Availability
25
MAY 703007 MAY 703007 Contact Us For Availability
26
MAY 701667 MAY 701667 Contact Us For Availability
26
MAY 703078 MAY 703078 Contact Us For Availability
26
MAY 701660 MAY 701660 Contact Us For Availability
26
MAY 701630 MAY 701630 Contact Us For Availability
26
MAY 703262 MAY 703262 Contact Us For Availability
27
MAY 700596 MAY 700596 Contact Us For Availability
27
MAY 703086 MAY 703086 Contact Us For Availability
27
MAY 703084 MAY 703084 Contact Us For Availability
27
MAY 703089 MAY 703089 Contact Us For Availability
27
MAY 703090 MAY 703090 Contact Us For Availability
27
MAY 703267 MAY 703267 Contact Us For Availability
27
MAY 703370 MAY 703370 Contact Us For Availability
27
MAY 704876 MAY 704876 Contact Us For Availability
27
MAY 700906 MAY 700906 Contact Us For Availability
27
MAY 700893 MAY 700893 Contact Us For Availability
27
MAY 703263 MAY 703263 Contact Us For Availability
28
MAY Y704223 MAY Y704223 Contact Us For Availability
28
MAY 701668 MAY 701668 Contact Us For Availability
28
MAY 701629 MAY 701629 Contact Us For Availability
28
MAY Y701541 MAY Y701541 Contact Us For Availability
29
MAY 701848 MAY 701848 Contact Us For Availability
29
MAY Y703741 MAY Y703741 Contact Us For Availability
29
MAY 715870 MAY 715870 Contact Us For Availability
29
MAY Y700584 MAY Y700584 Contact Us For Availability
30
MAY Y703449 MAY Y703449 Contact Us For Availability
30
MAY Y703274 MAY Y703274 Contact Us For Availability
30
MAY Y701731 MAY Y701731 Contact Us For Availability
31
MAY 701683 MAY 701683 Contact Us For Availability
31
MAY 703075 MAY 703075 Contact Us For Availability
31
MAY Y700884 MAY Y700884 Contact Us For Availability
32
MAY 701680 MAY 701680 Contact Us For Availability
32
MAY 703093 MAY 703093 Contact Us For Availability
33
MAY 703353 MAY 703353 Contact Us For Availability
33
MAY 703092 MAY 703092 Contact Us For Availability
34
MAY Y708359 MAY Y708359 Contact Us For Availability
35
MAY 703076 MAY 703076 Contact Us For Availability
35
MAY 703094 MAY 703094 Contact Us For Availability
× ![]()
