Model Maytag W2451B ELECTRIC WALL OVEN – Common Parts & Diagrams

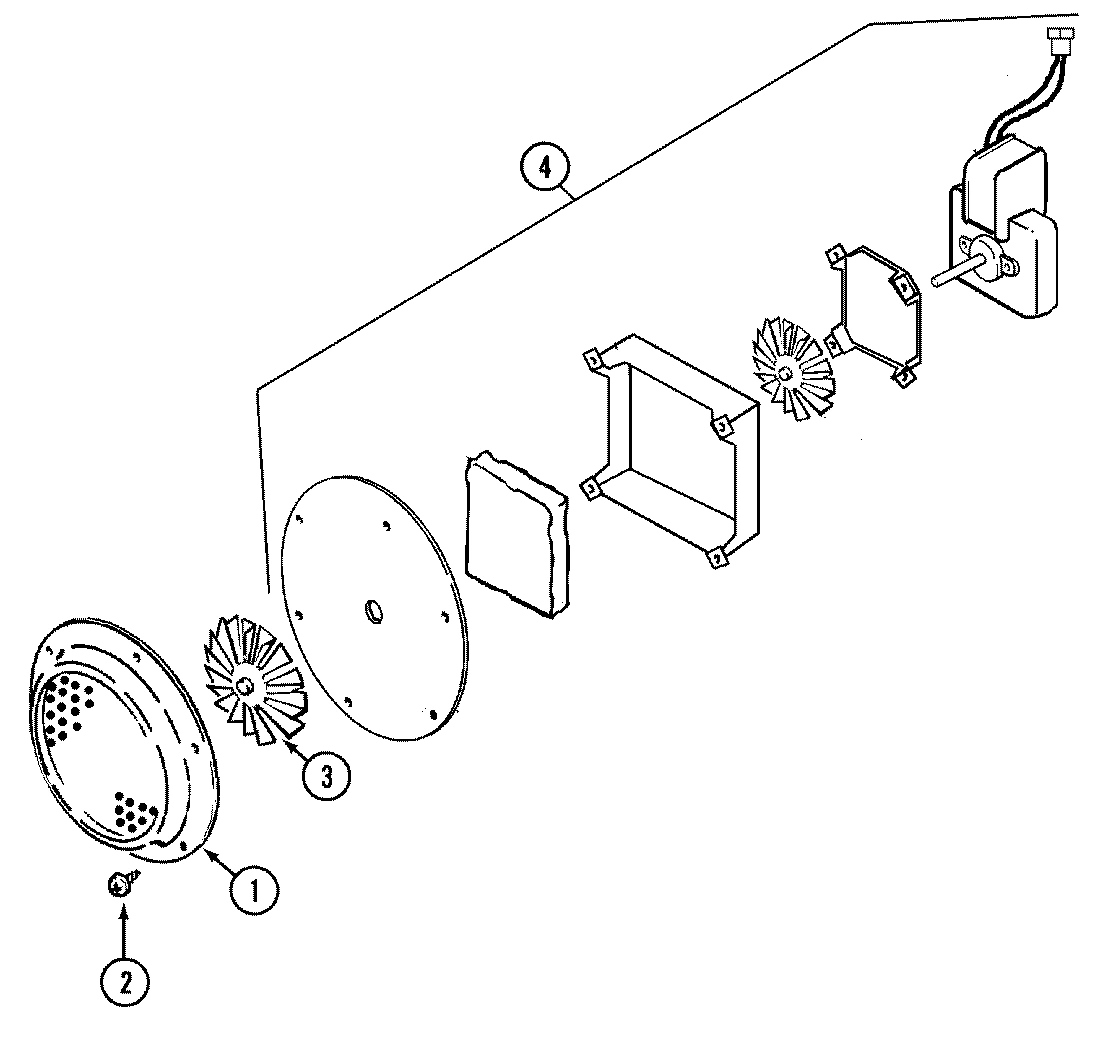

01 - BLOWER MOTOR (CONVECTION)

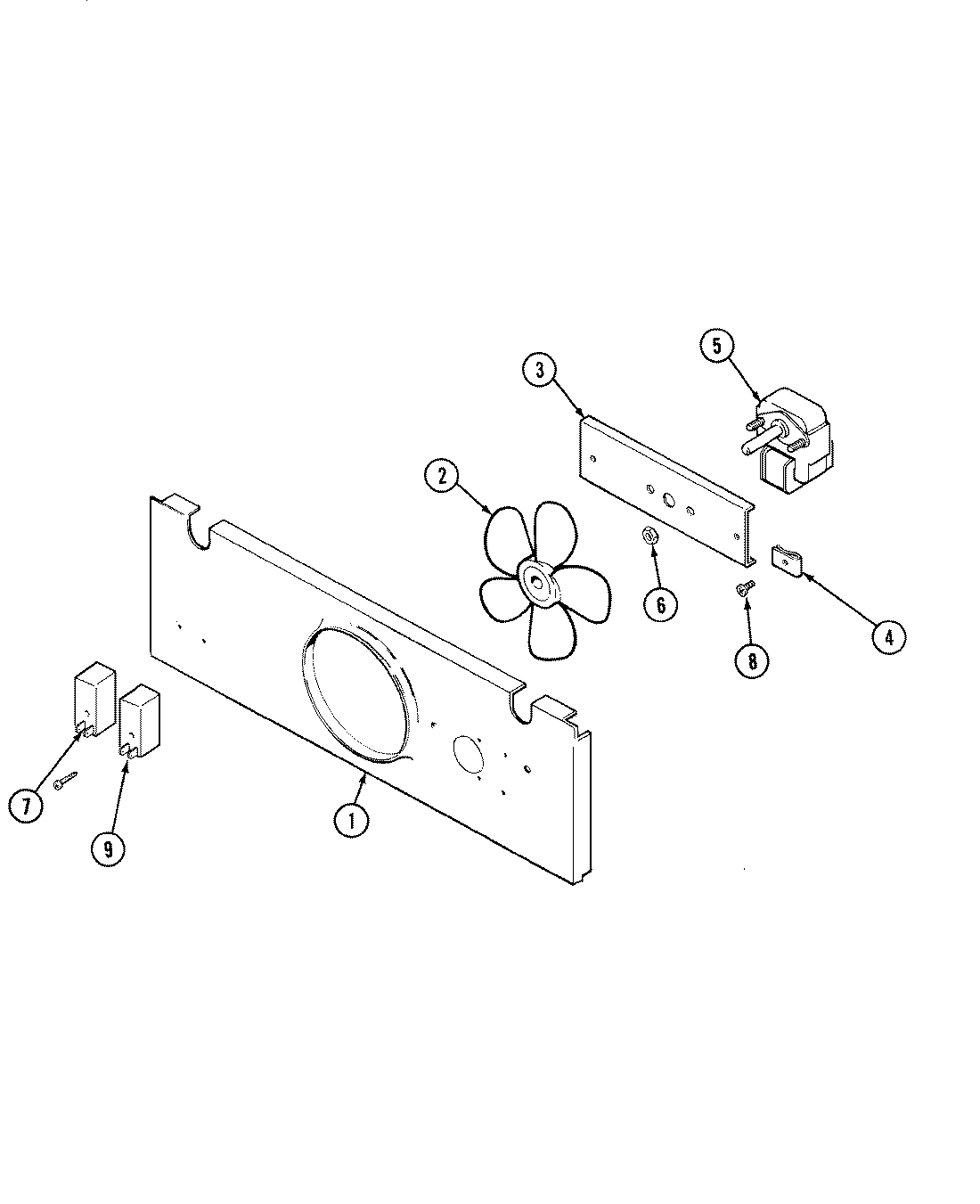

02 - BLOWER MOTOR (COOLING)

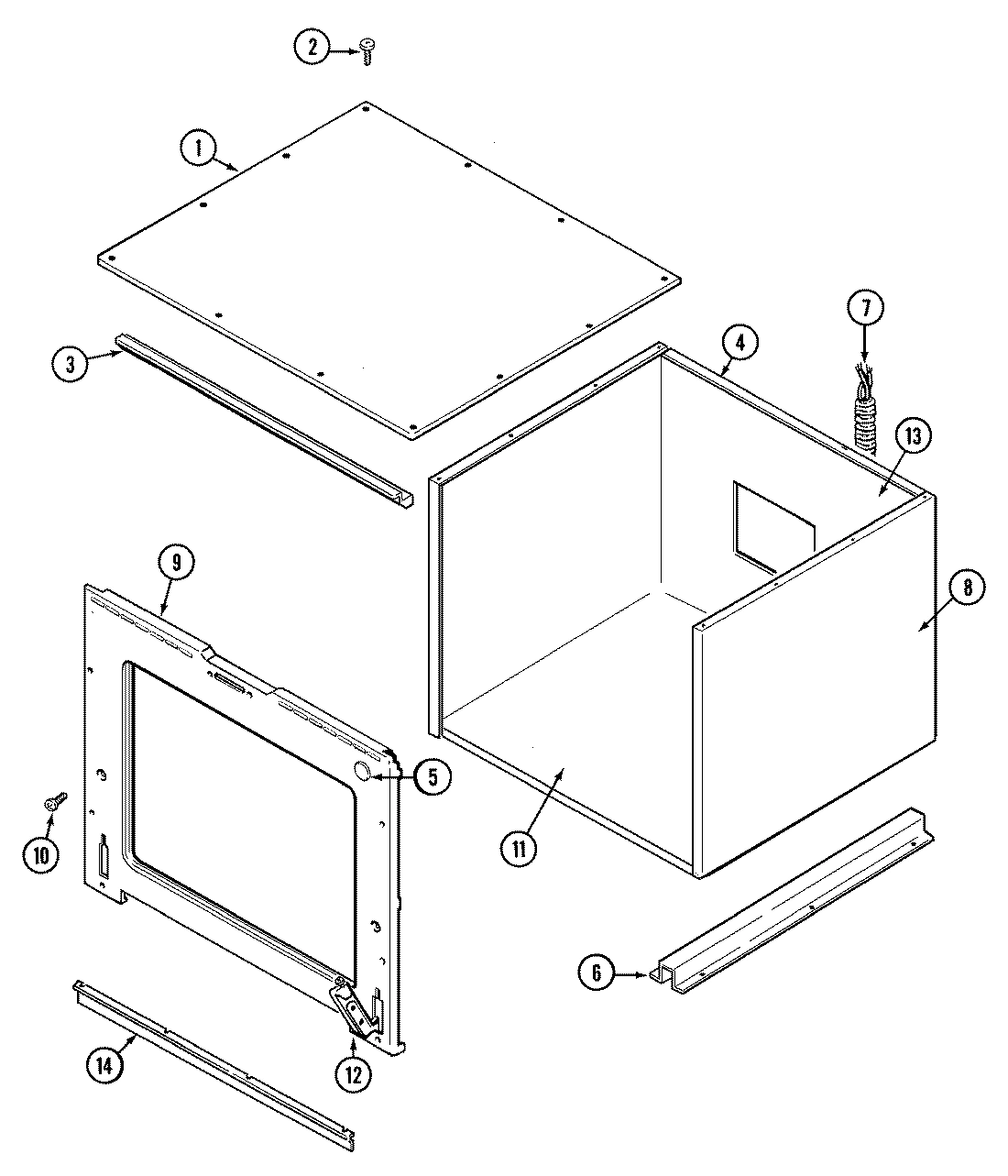

03 - BODY

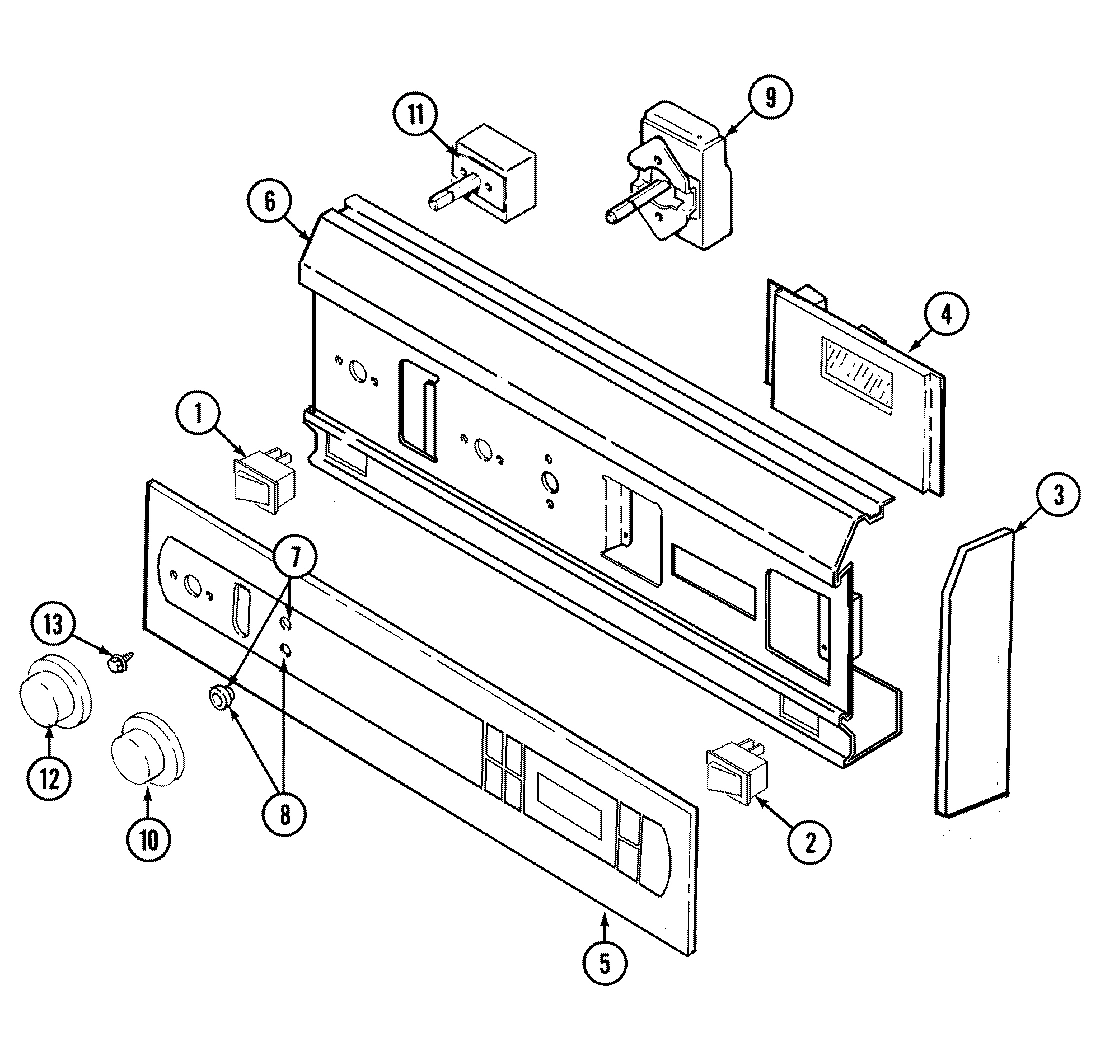

04 - CONTROL PANEL

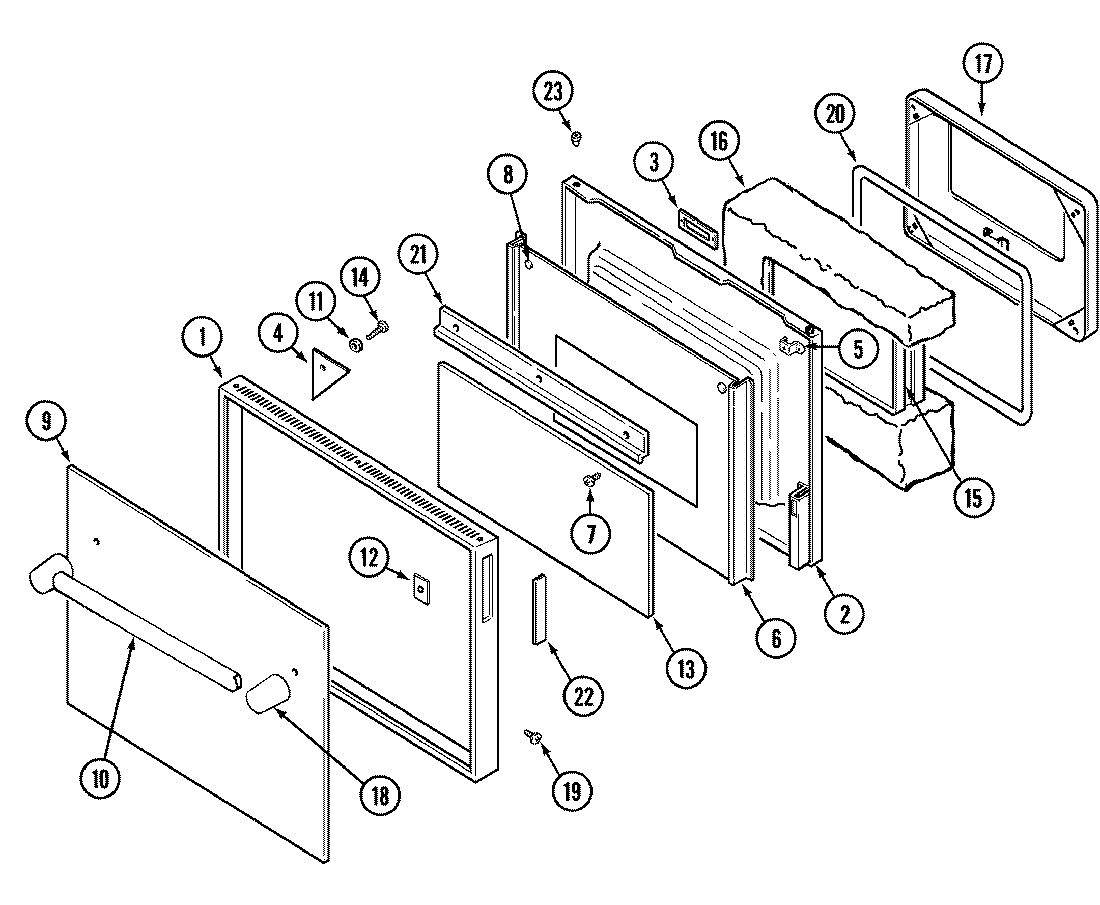

05 - DOOR

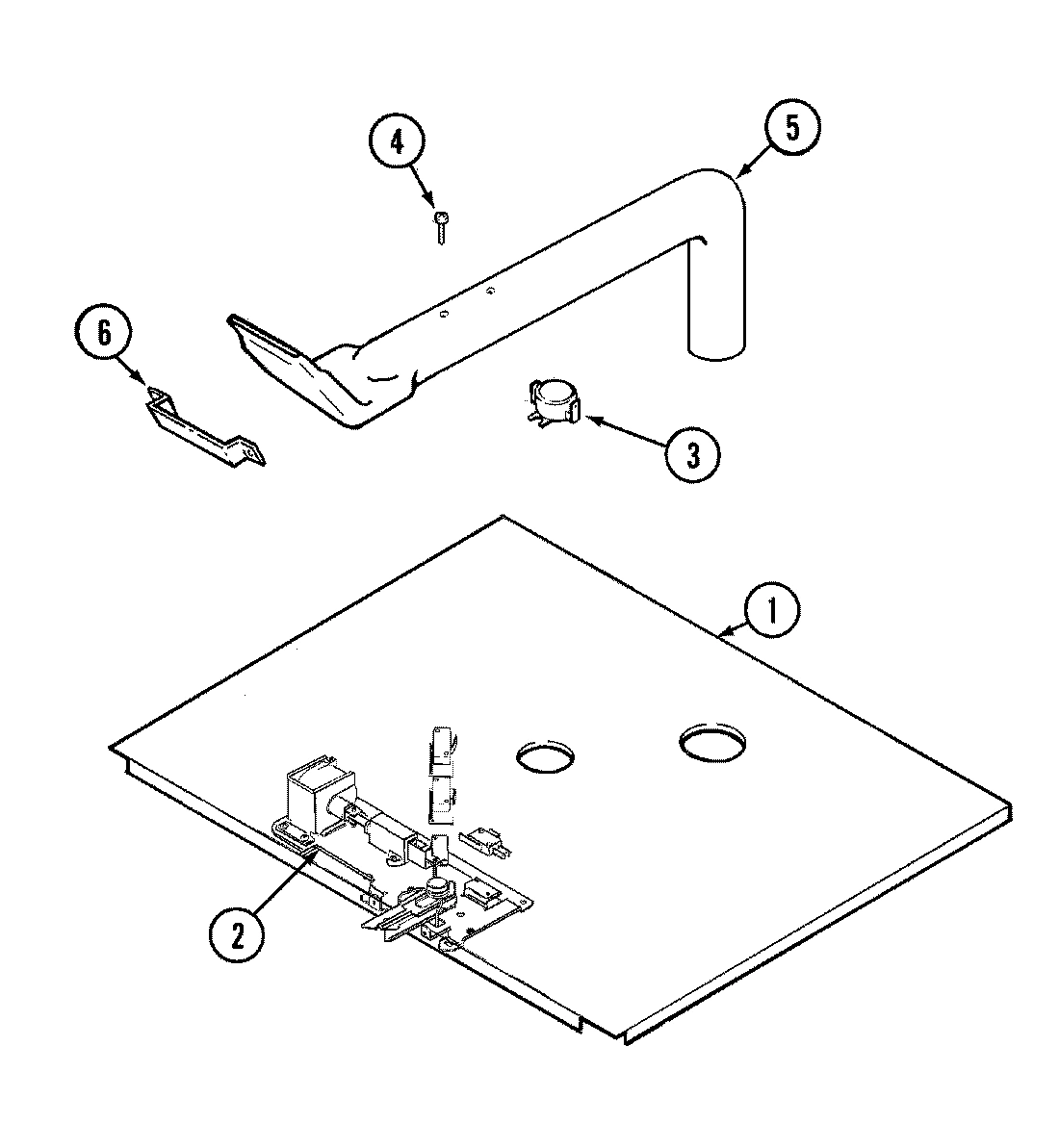

06 - INTERNAL CONTROLS

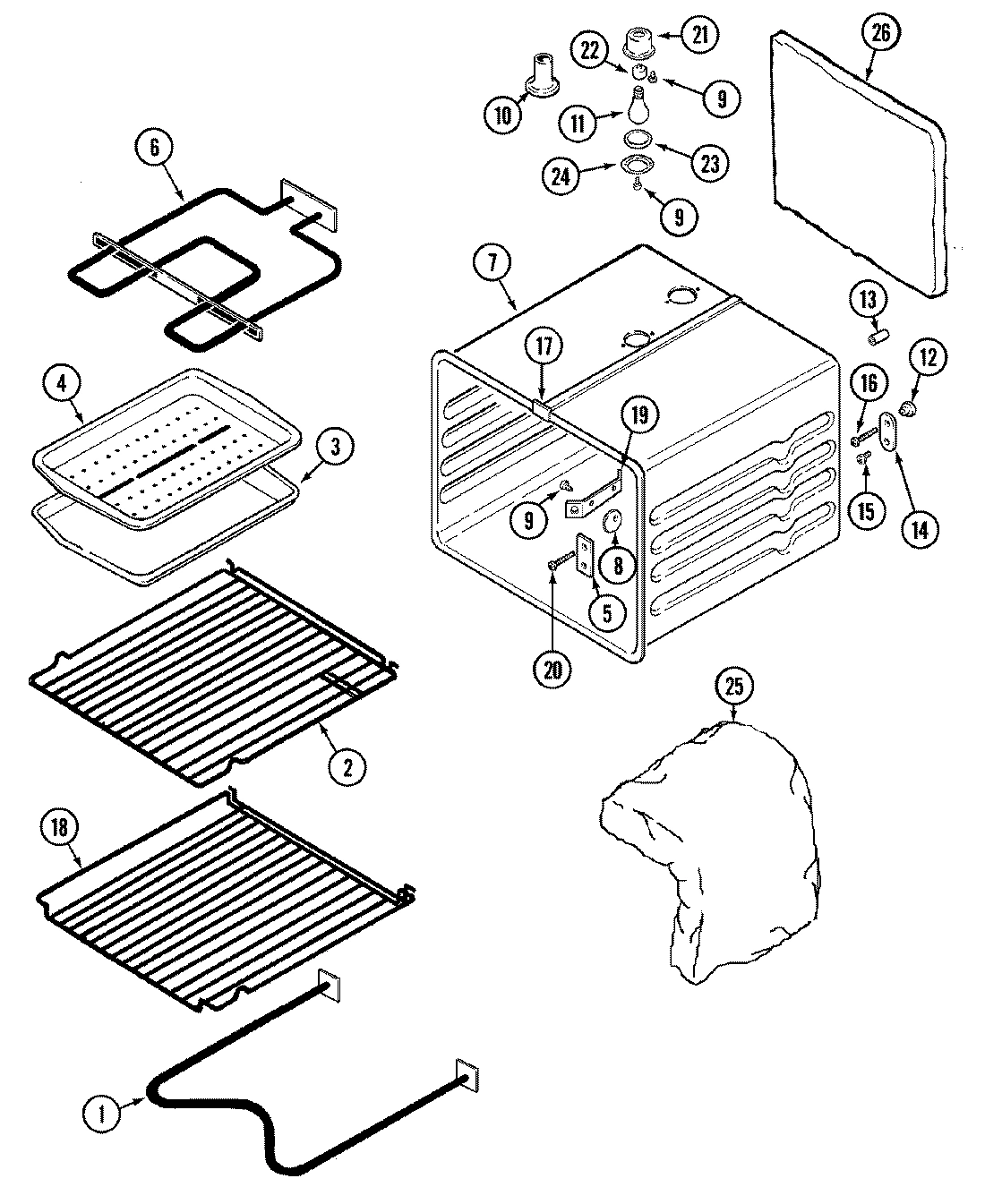

07 - OVEN

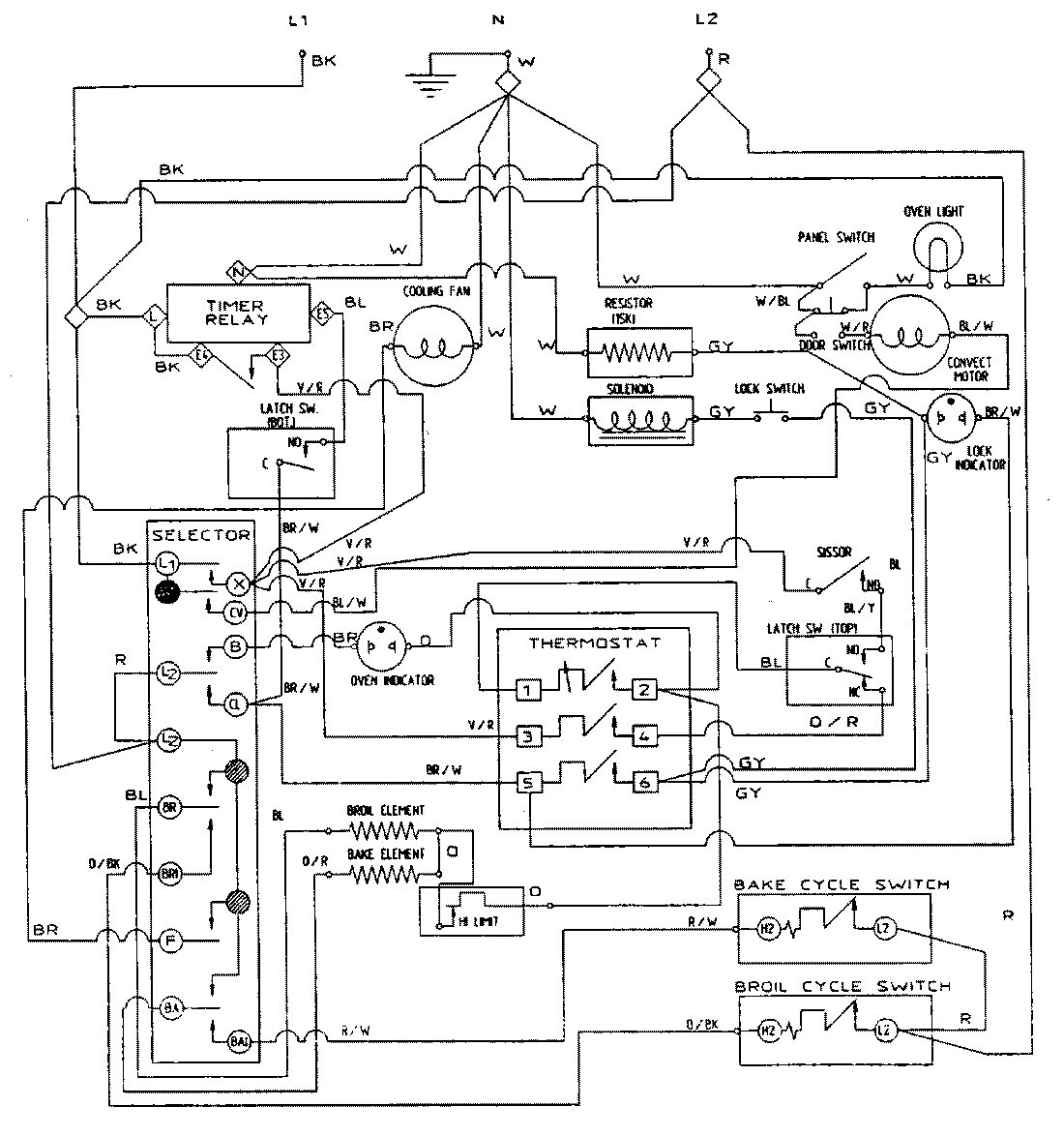

08 - WIRING INFORMATION
Common parts from model Maytag W2451B ELECTRIC WALL OVEN
1
MAY 04100616 MAY 04100616 Contact Us For Availability
1
MAY 71001148 MAY 71001148 Contact Us For Availability
1
MAY 04100633 MAY 04100633 Contact Us For Availability
1
MAY 71001132 MAY 71001132 Contact Us For Availability
2
MAY 71001192 MAY 71001192 Contact Us For Availability
2
MAY 71001137 MAY 71001137 Contact Us For Availability
2
MAY 71003079 MAY 71003079 Contact Us For Availability
2
MAY 71001098 MAY 71001098 Contact Us For Availability
2
MAY Y704661 MAY Y704661 Contact Us For Availability
3
MAY 04100618 MAY 04100618 Contact Us For Availability
3
MAY Y704691 MAY Y704691 Contact Us For Availability
3
MAY Y704692 MAY Y704692 Contact Us For Availability
3
MAY 701662 MAY 701662 Contact Us For Availability
3
MAY 71001095 MAY 71001095 Contact Us For Availability
3
MAY 701687 MAY 701687 Contact Us For Availability
3
MAY 703164 MAY 703164 Contact Us For Availability
4
MAY 71001858 MAY 71001858 Contact Us For Availability
4
MAY Y700556 MAY Y700556 Contact Us For Availability
4
MAY 04100564 MAY 04100564 Contact Us For Availability
4
MAY 71001097 MAY 71001097 Contact Us For Availability
4
MAY 704805 MAY 704805 Contact Us For Availability
4
MAY 703165 MAY 703165 Contact Us For Availability
5
MAY Y701721 MAY Y701721 Contact Us For Availability
5
MAY 71001129 MAY 71001129 Contact Us For Availability
5
MAY 71001214 MAY 71001214 Contact Us For Availability
5
MAY 701652 MAY 701652 Contact Us For Availability
5
MAY 71001459 MAY 71001459 Contact Us For Availability
5
MAY Y705342 MAY Y705342 Contact Us For Availability
6
MAY 04100563 MAY 04100563 Contact Us For Availability
6
MAY 71001215 MAY 71001215 Contact Us For Availability
6
MAY 71001295 MAY 71001295 Contact Us For Availability
6
MAY 701680 MAY 701680 Contact Us For Availability
7
MAY 704355 MAY 704355 Contact Us For Availability
7
MAY 71001146 MAY 71001146 Contact Us For Availability
7
MAY 71001140 MAY 71001140 Contact Us For Availability
7
MAY 71001725 MAY 71001725 Contact Us For Availability
7
MAY 71003059 MAY 71003059 Contact Us For Availability
7
MAY Y04100817 MAY Y04100817 Contact Us For Availability
8
MAY Y704223 MAY Y704223 Contact Us For Availability
8
MAY 04100558 MAY 04100558 Contact Us For Availability
8
MAY 71001128 MAY 71001128 Contact Us For Availability
8
MAY 71001301 MAY 71001301 Contact Us For Availability
8
MAY 712088 MAY 712088 Contact Us For Availability
9
MAY 704335 MAY 704335 Contact Us For Availability
9
MAY 704354 MAY 704354 Contact Us For Availability
9
MAY 04100566 MAY 04100566 Contact Us For Availability
9
MAY 71001220 MAY 71001220 Contact Us For Availability
9
MAY 71003278 MAY 71003278 Contact Us For Availability
9
MAY 71001138 MAY 71001138 Contact Us For Availability
9
MAY 71001142 MAY 71001142 Contact Us For Availability
9
MAY Y04100134 MAY Y04100134 Contact Us For Availability
10
MAY 703917 MAY 703917 Contact Us For Availability
10
MAY Y708733 MAY Y708733 Contact Us For Availability
10
MAY Y04100635 MAY Y04100635 Contact Us For Availability
10
MAY 701738 MAY 701738 Contact Us For Availability
11
MAY 04100621 MAY 04100621 Contact Us For Availability
11
MAY 71001143 MAY 71001143 Contact Us For Availability
11
MAY 701736 MAY 701736 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY 04100577 MAY 04100577 Contact Us For Availability
12
MAY Y04100337 MAY Y04100337 Contact Us For Availability
12
MAY Y707745 MAY Y707745 Contact Us For Availability
12
MAY 703901 MAY 703901 Contact Us For Availability
12
MAY Y704489 MAY Y704489 Contact Us For Availability
12
MAY 715294 MAY 715294 Contact Us For Availability
13
MAY 04100569 MAY 04100569 Contact Us For Availability
13
MAY 04100620 MAY 04100620 Contact Us For Availability
13
MAY Y04100363 MAY Y04100363 Contact Us For Availability
13
MAY Y704820 MAY Y704820 Contact Us For Availability
14
MAY 04100624 MAY 04100624 Contact Us For Availability
14
MAY 71001454 MAY 71001454 Contact Us For Availability
14
MAY 71001455 MAY 71001455 Contact Us For Availability
14
MAY 71001125 MAY 71001125 Contact Us For Availability
14
MAY 71001141 MAY 71001141 Contact Us For Availability
14
MAY 704963 MAY 704963 Contact Us For Availability
14
MAY 701742 MAY 701742 Contact Us For Availability
15
MAY 701168 MAY 701168 Contact Us For Availability
15
MAY 71001458 MAY 71001458 Contact Us For Availability
15
MAY Y04100270 MAY Y04100270 Contact Us For Availability
16
MAY 702336 MAY 702336 Contact Us For Availability
16
MAY 16000326 MAY 16000326 Contact Us For Availability
16
MAY 71001296 MAY 71001296 Contact Us For Availability
16
MAY 701744 MAY 701744 Contact Us For Availability
17
MAY 71003296 MAY 71003296 Contact Us For Availability
17
MAY Y04100664 MAY Y04100664 Contact Us For Availability
17
MAY 71001170 MAY 71001170 Contact Us For Availability
18
MAY Y704224 MAY Y704224 Contact Us For Availability
18
MAY Y704663 MAY Y704663 Contact Us For Availability
19
MAY 71002514 MAY 71002514 Contact Us For Availability
19
MAY Y701541 MAY Y701541 Contact Us For Availability
20
MAY 708764 MAY 708764 Contact Us For Availability
21
MAY 71001290 MAY 71001290 Contact Us For Availability
21
MAY 704142 MAY 704142 Contact Us For Availability
22
MAY Y04100580 MAY Y04100580 Contact Us For Availability
22
MAY Y704145 MAY Y704145 Contact Us For Availability
23
MAY 701643 MAY 701643 Contact Us For Availability
23
MAY Y704143 MAY Y704143 Contact Us For Availability
24
MAY Y704144 MAY Y704144 Contact Us For Availability
25
MAY 04100565 MAY 04100565 Contact Us For Availability
26
MAY 04100568 MAY 04100568 Contact Us For Availability
26
MAY 04100819 MAY 04100819 Contact Us For Availability
NI
MAY 15001166 MAY 15001166 Contact Us For Availability
× ![]()
