Model Whirlpool W2410B ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

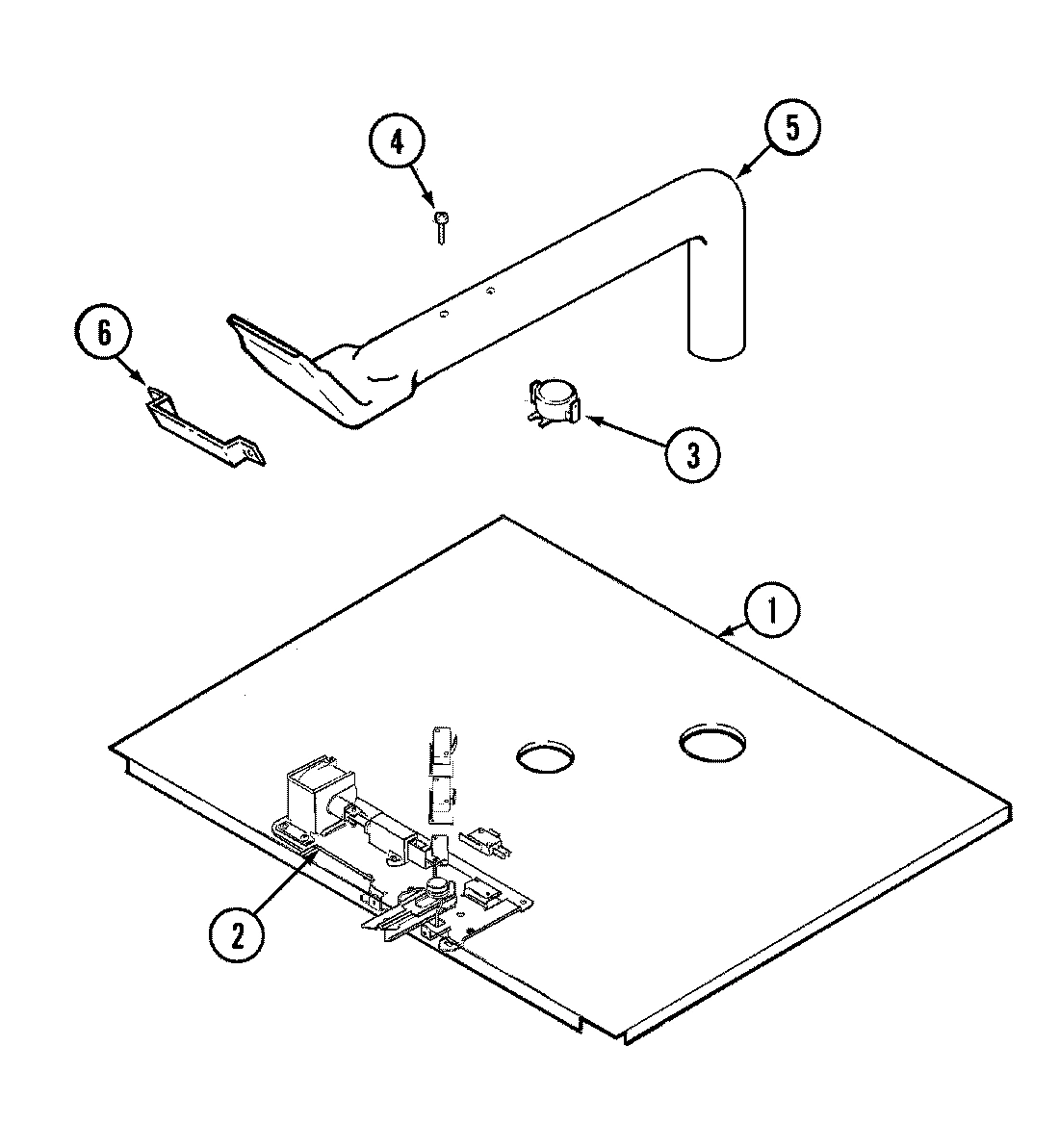

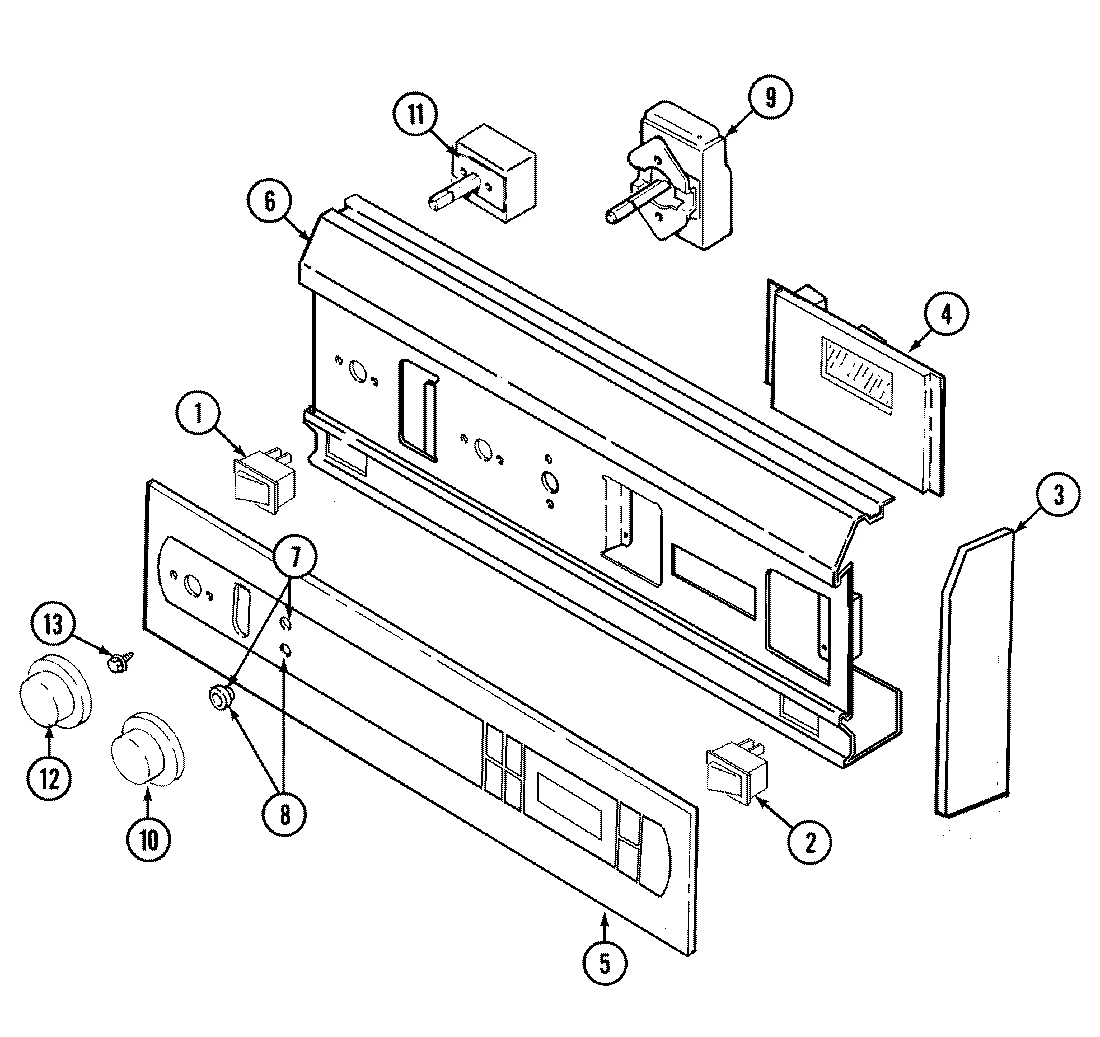

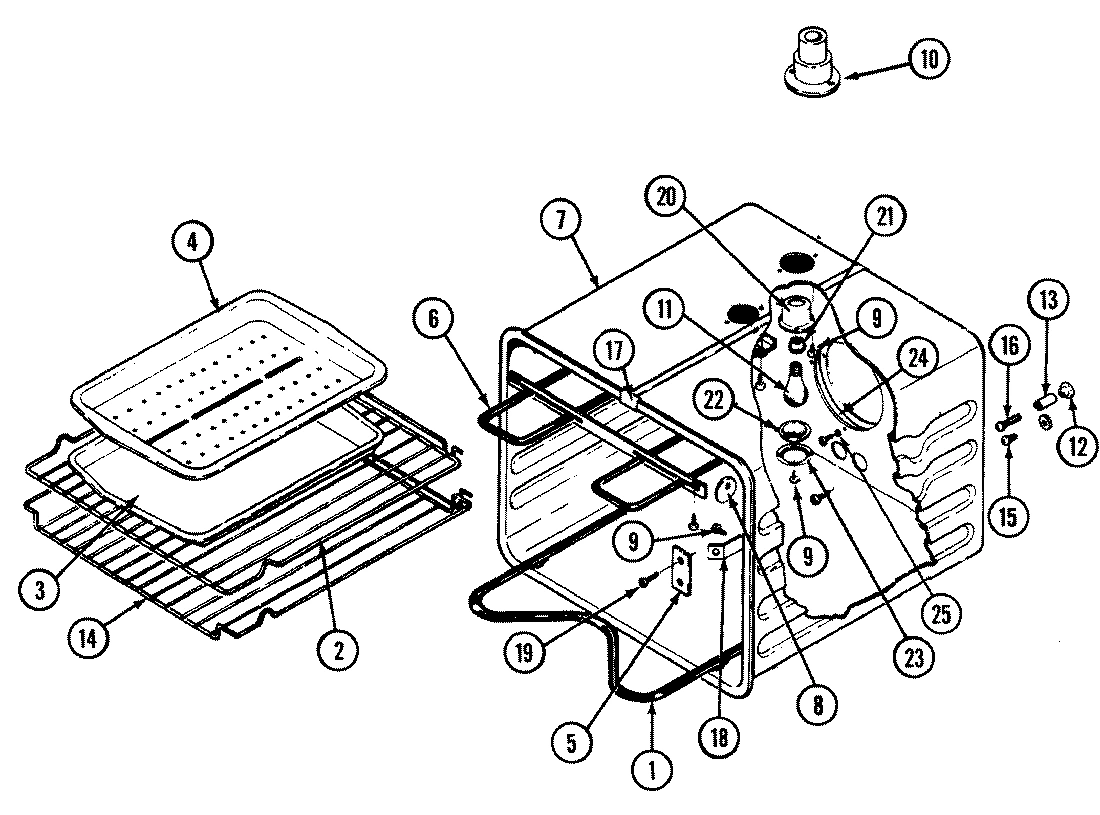

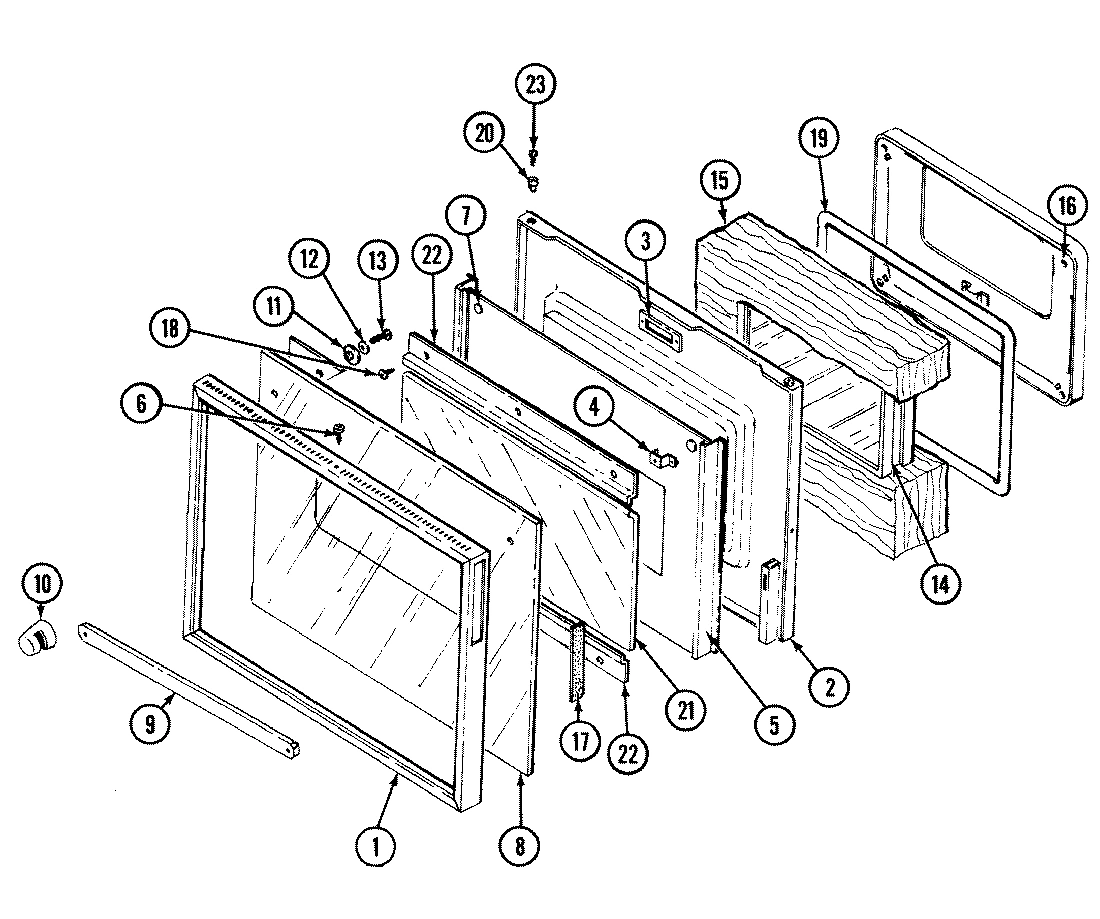

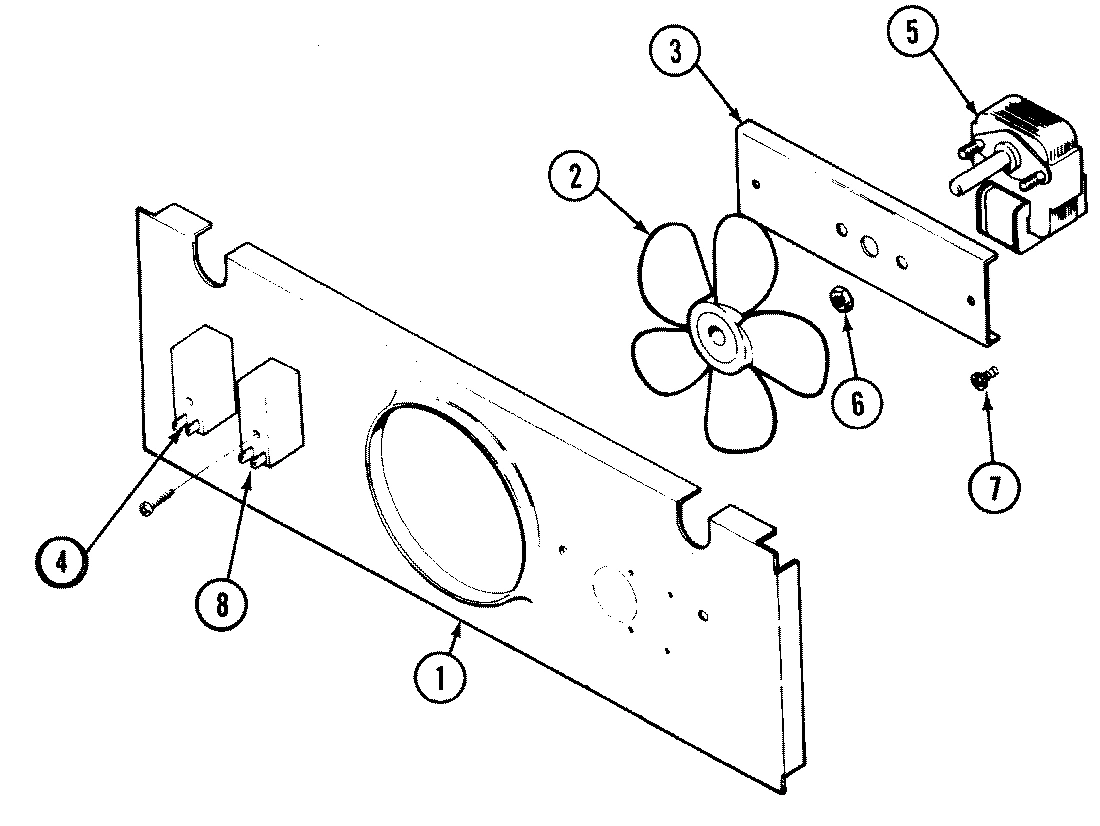

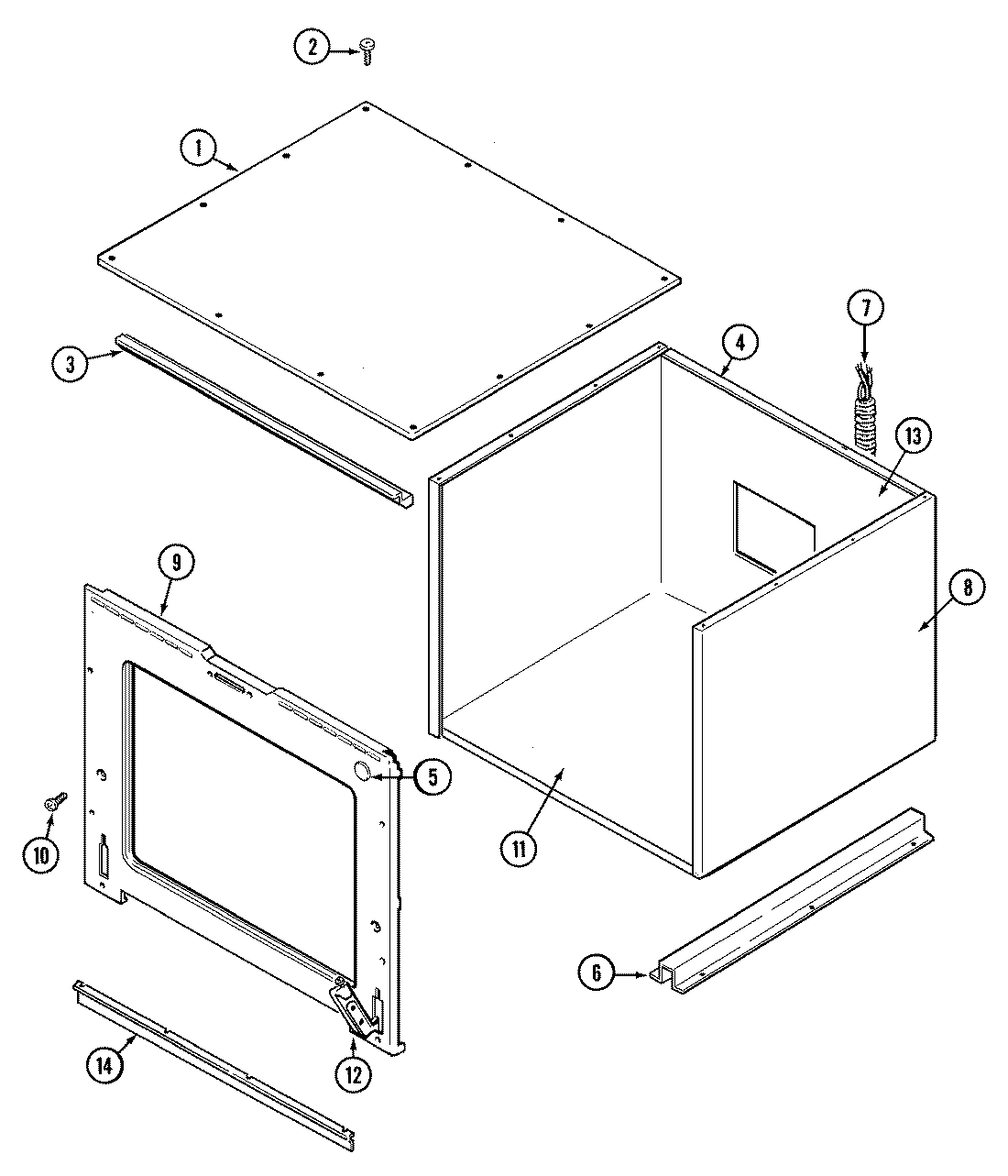

1

FRAME, DOOR WPL 04100633 Contact Us For Availability

1

SHROUD, FAN WPL 04100619 Contact Us For Availability

1

SWITCH, MOMENTARY WPL 71001148 Contact Us For Availability

1

PANEL, OUTER TOP WPL 04100616 Contact Us For Availability

1

PANEL, TOP (INNER) WPL 71001132 Contact Us For Availability

2

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.60

2

OVEN DOOR WELD WPL 71001137 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71003079 Contact Us For Availability

2

RACK, OVEN WPL Y704661 Contact Us For Availability

2

BLADE, FAN WPL 702944 Contact Us For Availability

2

SWITCH, OVEN LIGHT WPL 71001192 Contact Us For Availability

2

LATCH ASSY. WPL 71001098 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

3

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.96

3

PLATE, STRIKER WPL 71001095 Contact Us For Availability

3

MOUNT, MOTOR WPL Y704732 Contact Us For Availability

3

CAP, END (LT/BLK) WPL Y704691 Contact Us For Availability

3

CAP, END (RT/BLK) WPL Y704692 Contact Us For Availability

3

BRACKET, TOP SUPPORT WPL 04100618 Contact Us For Availability

3

THERMOSTAT WPL 701687 Contact Us For Availability

4

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

4

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

4

CLOCK WPL 71001097 Contact Us For Availability

4

BACK, OUTER WPL 04100564 Contact Us For Availability

4

SCREW WPL 707407 Contact Us For Availability

5

BAFFLE, DOOR WPL 71001295 Contact Us For Availability

5

COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability

5

MOTOR, FAN WPL Y701721 Contact Us For Availability

5

INSERT, PANEL ASSY. (BLK) WPL 71001214 Contact Us For Availability

5

BUTTON, PLUG WPL 703688 Contact Us For Availability

5

TUBE, VENT WPL 71001150 Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.52

6

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $74.79

6

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.60

6

PANEL, CONTROL WELD ASSY. WPL 71001215 Contact Us For Availability

6

RAIL, SUPPORT WPL 04100563 Contact Us For Availability

6

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

7

BUMPER, BUTTON WPL Y704223 Contact Us For Availability

7

OVEN LINER ASSY. WPL 71003059 Contact Us For Availability

7

OVEN WELD ASSY. WPL Y04100817 Contact Us For Availability

7

SCREW WPL 704335 Contact Us For Availability

7

LIGHT, INDICATOR WPL 71001140 Contact Us For Availability

7

WIRE CABLE ASSY. (UPR) WPL 71001146 Contact Us For Availability

8

GLASS, DOOR (BLK) WPL 71001142 Contact Us For Availability

8

BUTTON, PLUG WPL 702929 Contact Us For Availability

8

COVER, MOTOR OPENING WPL 703551 Contact Us For Availability

8

SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability

8

LIGHT, LOCK WPL 71001301 Contact Us For Availability

8

PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability

8

PANEL, SIDE (LT) WPL 71001128 Contact Us For Availability

9

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.60

9

HANDLE WPL Y04100635 Contact Us For Availability

9

THERMOSTAT WPL 71001138 Contact Us For Availability

9

BRACKET WPL 04100566 Contact Us For Availability

9

CLOSURE, FRONT WPL 71001220 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

END CAP (BLK) WPL Y704224 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

KNOB, THERMOSTAT WPL 703917 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

BUSHING WPL Y704489 Contact Us For Availability

SWITCH, SELECTOR (LWR) WPL 71001139 Contact Us For Availability

PANEL, BOTTOM WPL 04100621 Contact Us For Availability

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.60

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

GUSSET----NA WPL 704805 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

KNOB, SELECTOR (BLK) WPL Y703911 Contact Us For Availability

BACKPLATE, HINGE WPL 04100577 Contact Us For Availability

HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability

WASHER WPL Y703449 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.79

SCREW WPL 704963 Contact Us For Availability

SPACER WPL 04100569 Contact Us For Availability

SWITCH, AUXILIARY WPL 71001124 Contact Us For Availability

HARNESS, CONTROL (UPR) WPL 71001141 Contact Us For Availability

INSULATION WRAP WPL 04100565 Contact Us For Availability

INSULATION, BOTTOM WPL 04100568 Contact Us For Availability

BACK, INNER WPL 04100620 Contact Us For Availability

INSULATION WPL 04100819 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

MANUAL, USE & CARE WPL 71001408 Contact Us For Availability

TRIM (BLK) WPL 04100624 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

15

INSULATION, OVEN WPL 71001296 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

PLUG, DOOR WPL 71003296 Contact Us For Availability

DOOR PLUG WELD WPL Y04100664 Contact Us For Availability

SCREW WPL 705170 Contact Us For Availability

17

INSERT, FRAME (BLK)----NA WPL Y04100580 Contact Us For Availability

17

CLIP, OVEN WPL 71001170 Contact Us For Availability

18

SCREW (BLACK) WPL Y704488 Contact Us For Availability

18

CLIP, BULB WPL Y701541 Contact Us For Availability

19

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.74

19

WP701650 Whirlpool Oven Seal Backorder WPL WP701650 $99.36

20

NUT, PUSH IN WPL 701643 Contact Us For Availability

20

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

21

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

21

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

22

RETAINER, GLASS WPL 71001290 Contact Us For Availability

22

LENS, LIGHT WPL Y704143 Contact Us For Availability

23

RETAINER, LENS WPL Y704144 Contact Us For Availability

24

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

24

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

NI

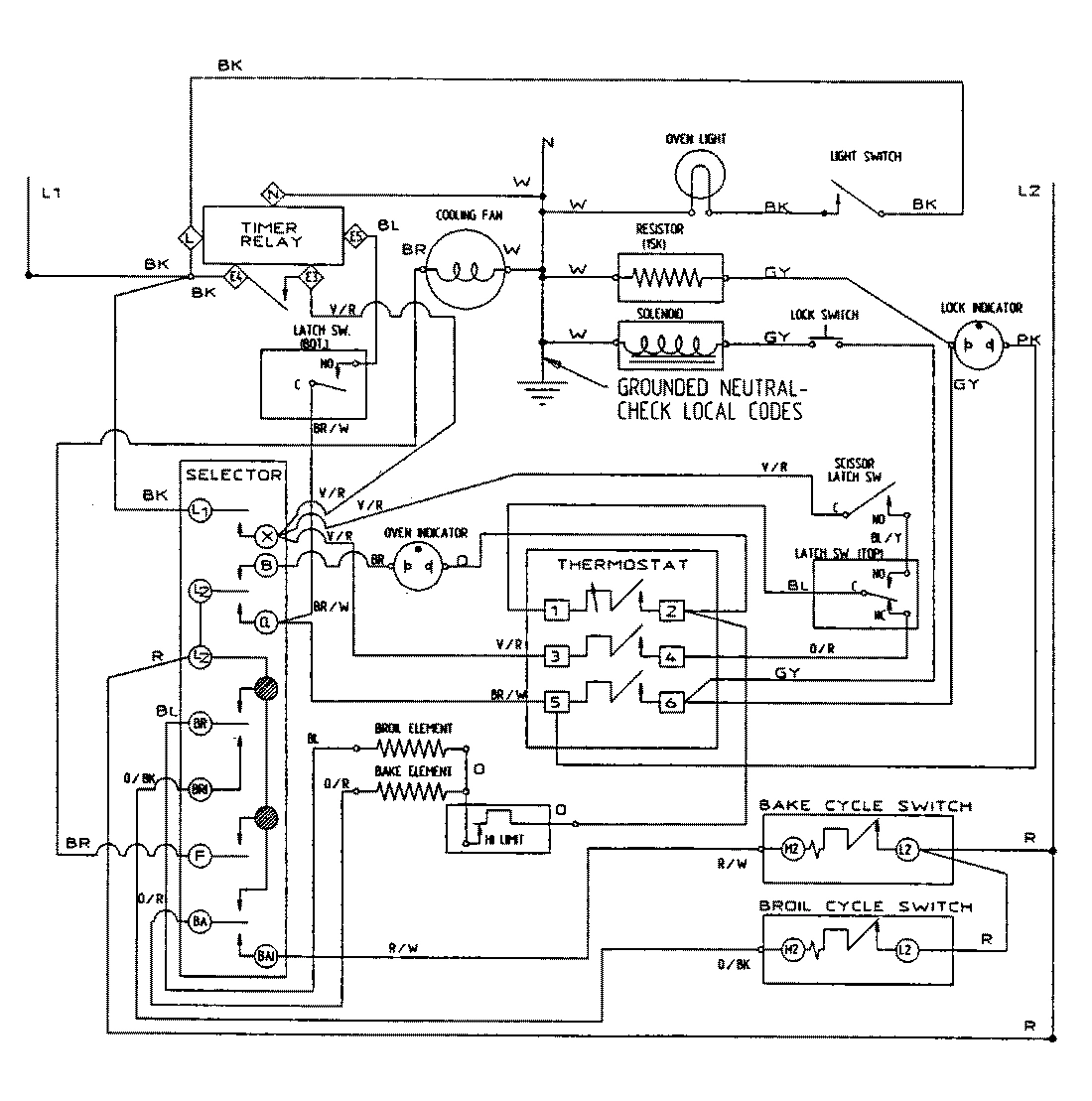

WIRING INFORMATION WPL 15001165 Contact Us For Availability
