Model Maytag W241-C ELECTRIC WALL OVEN – Common Parts & Diagrams

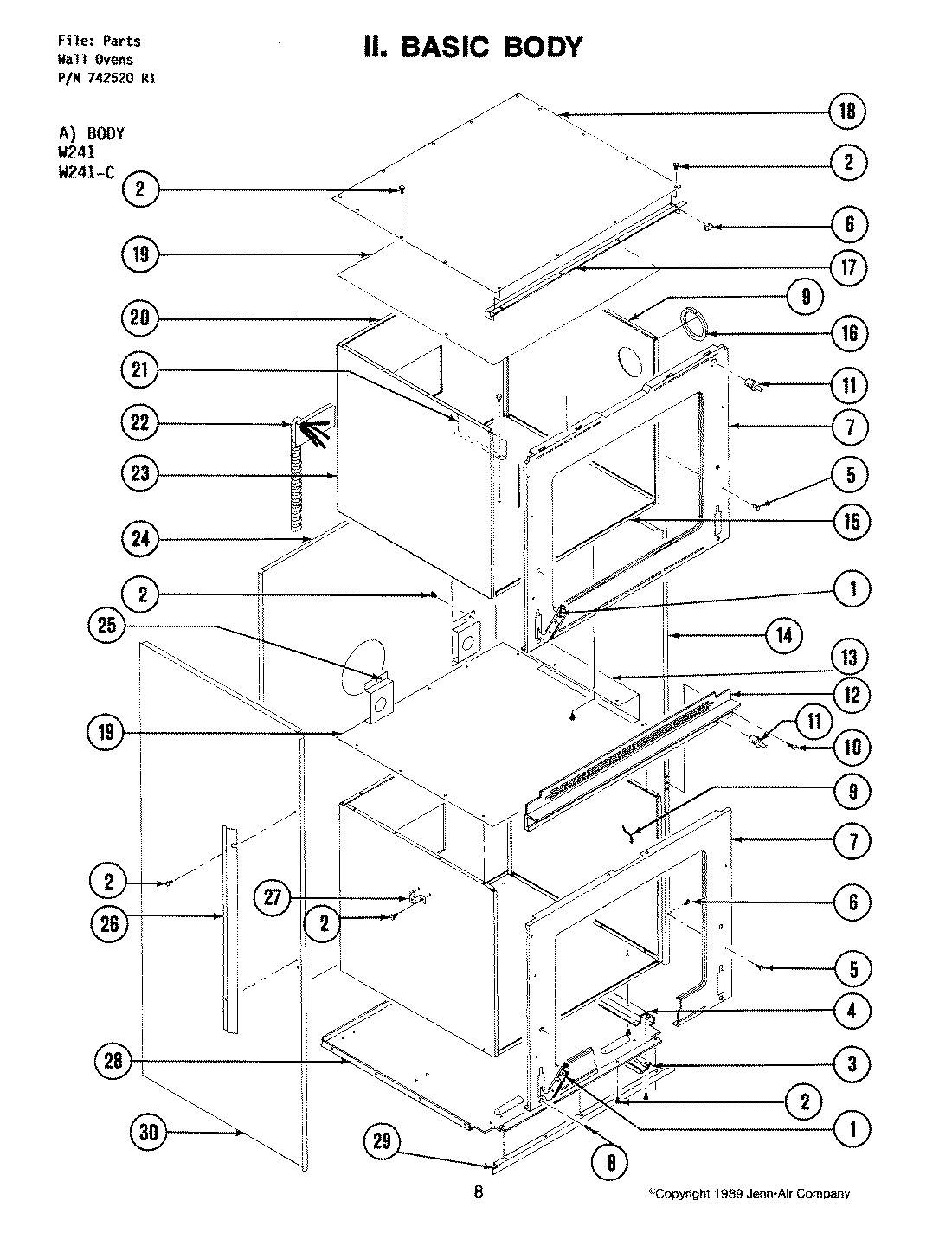

01 - BODY

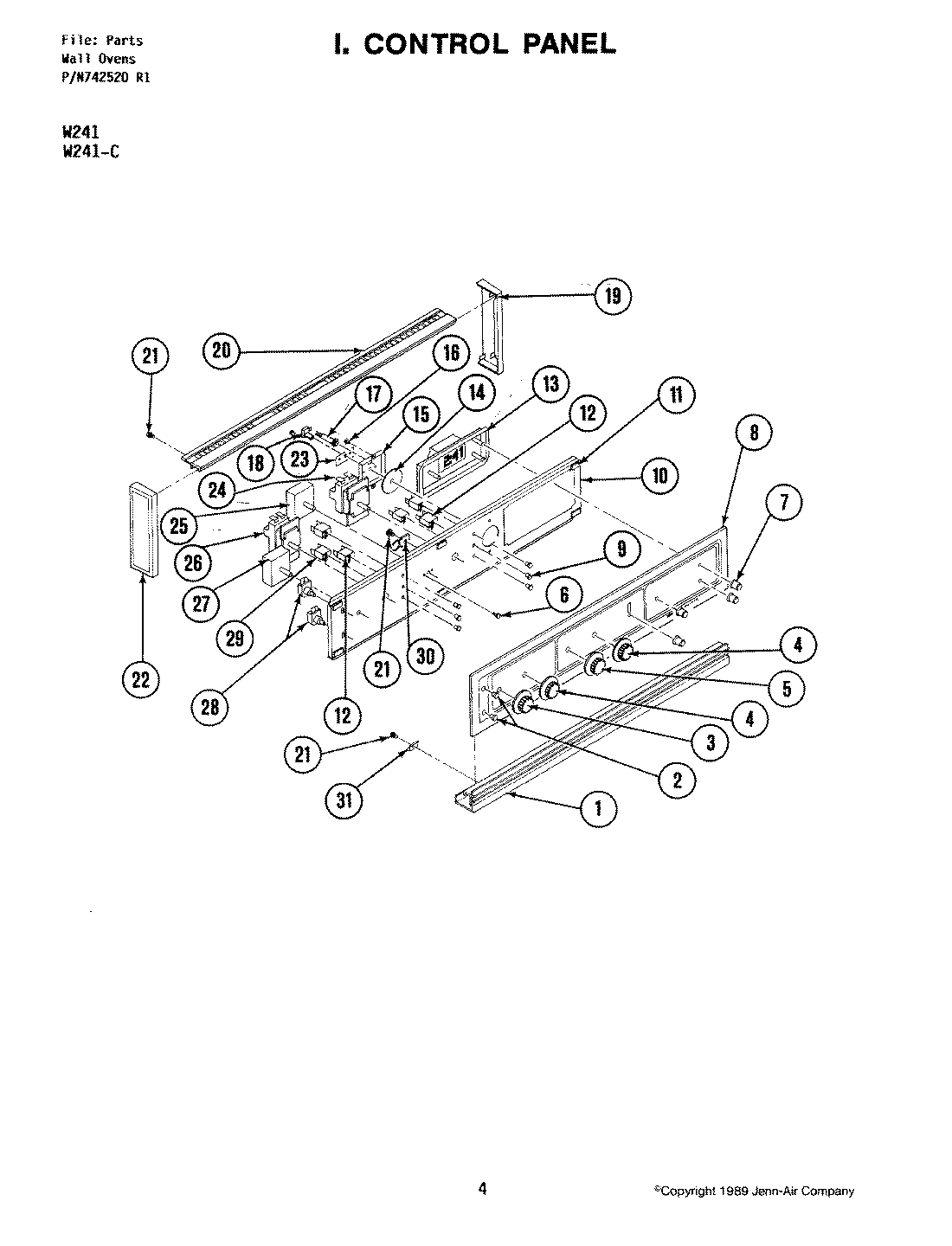

02 - CONTROL PANEL

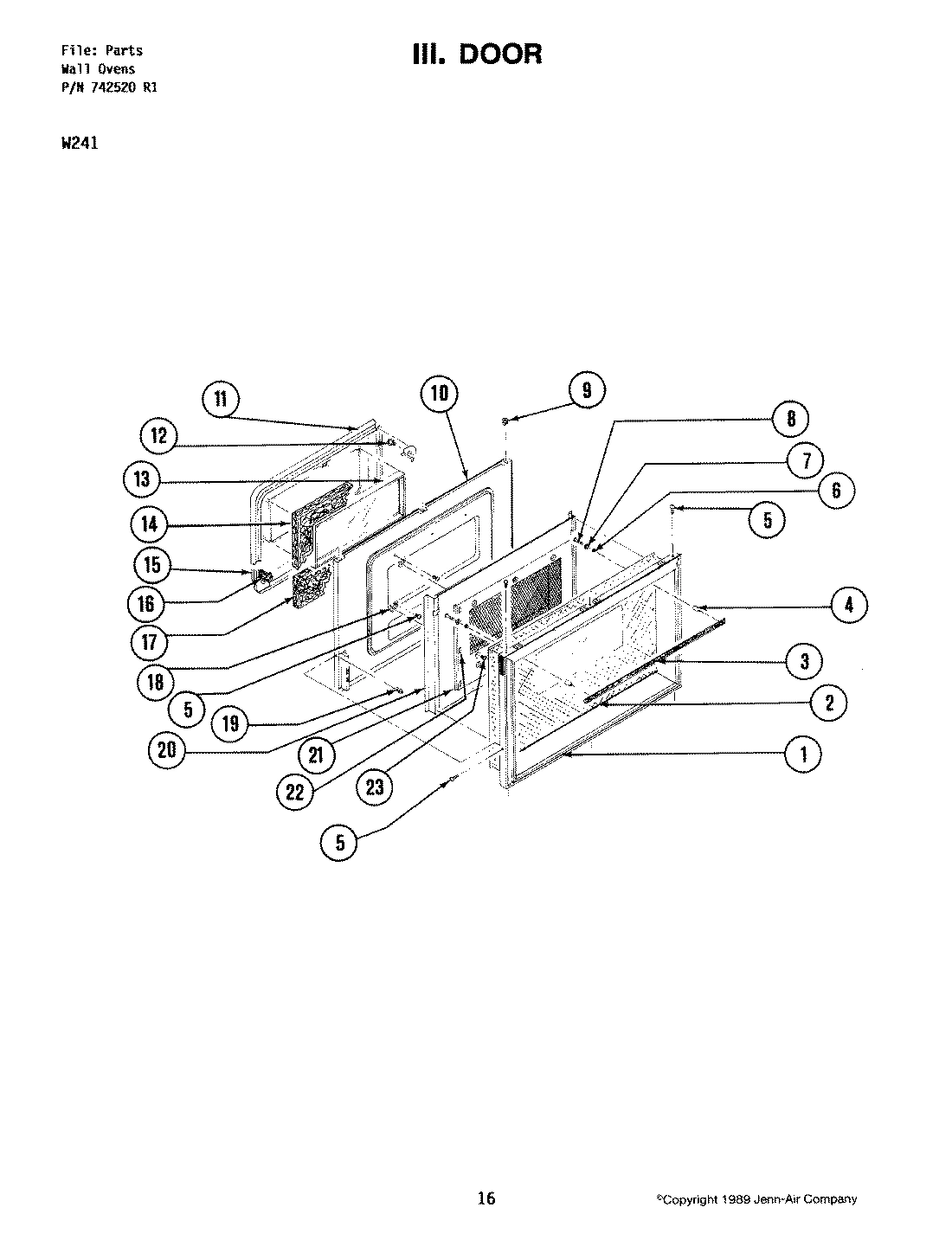

03 - DOOR

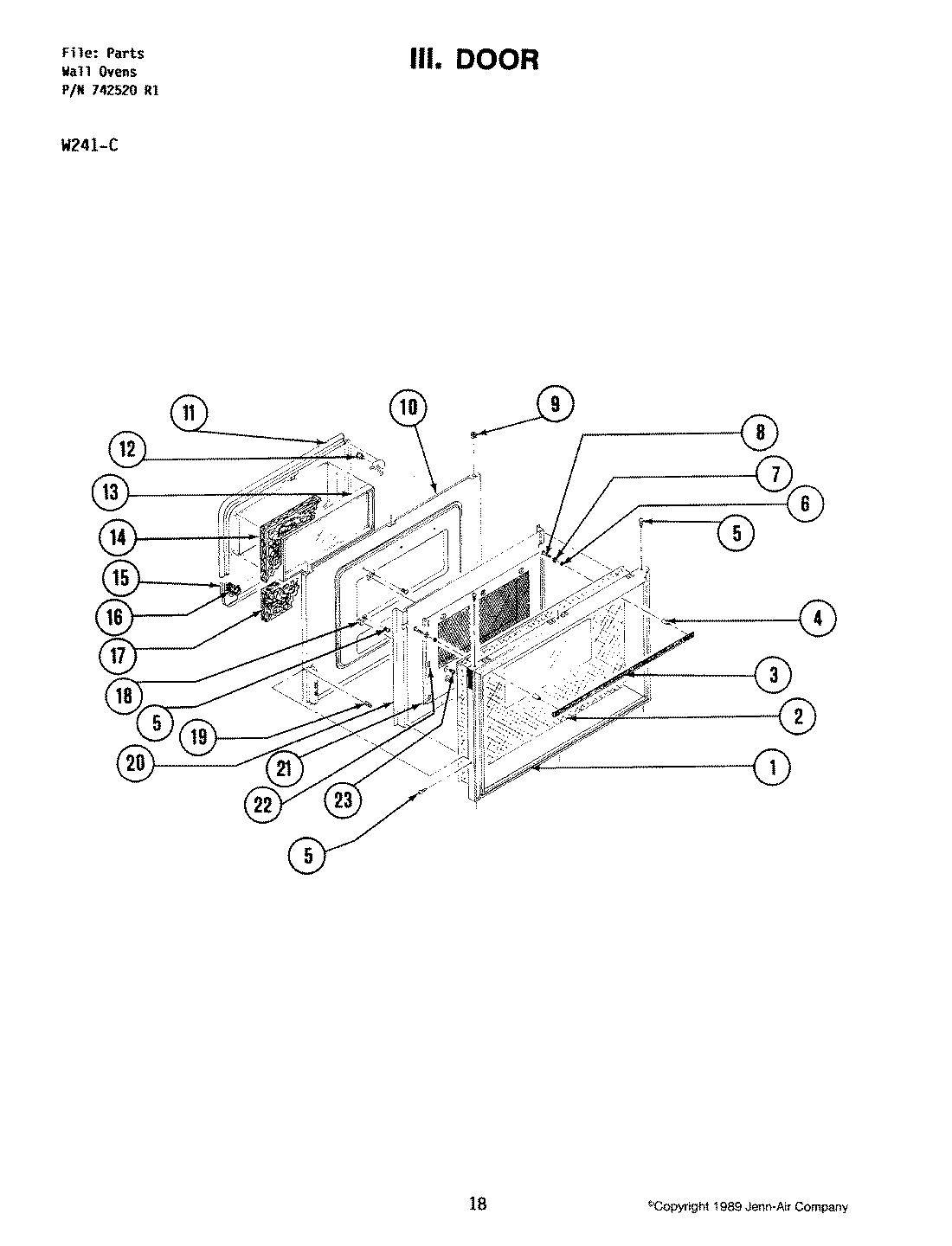

04 - DOOR (W241-C)

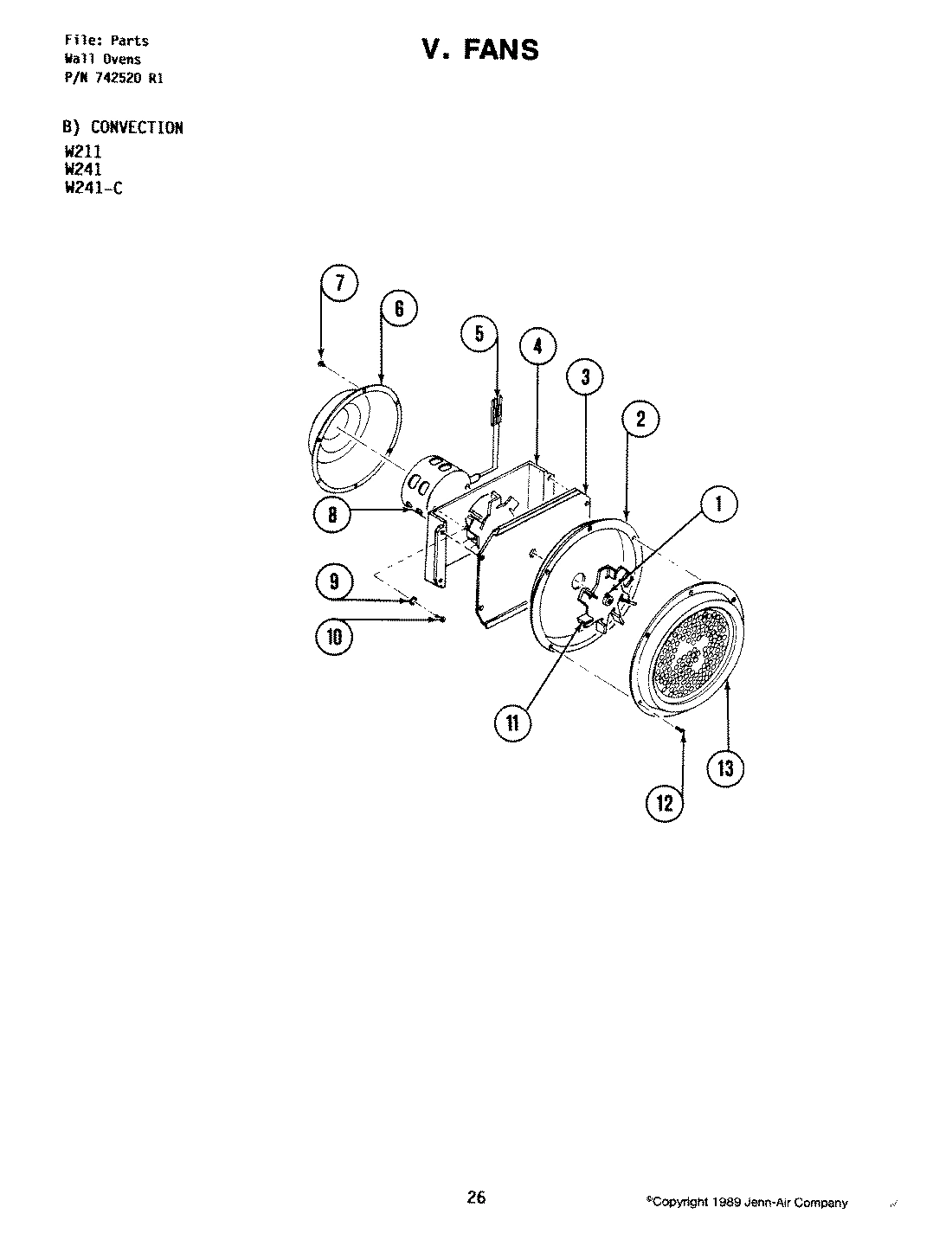

05 - FANS (CONVECTION)

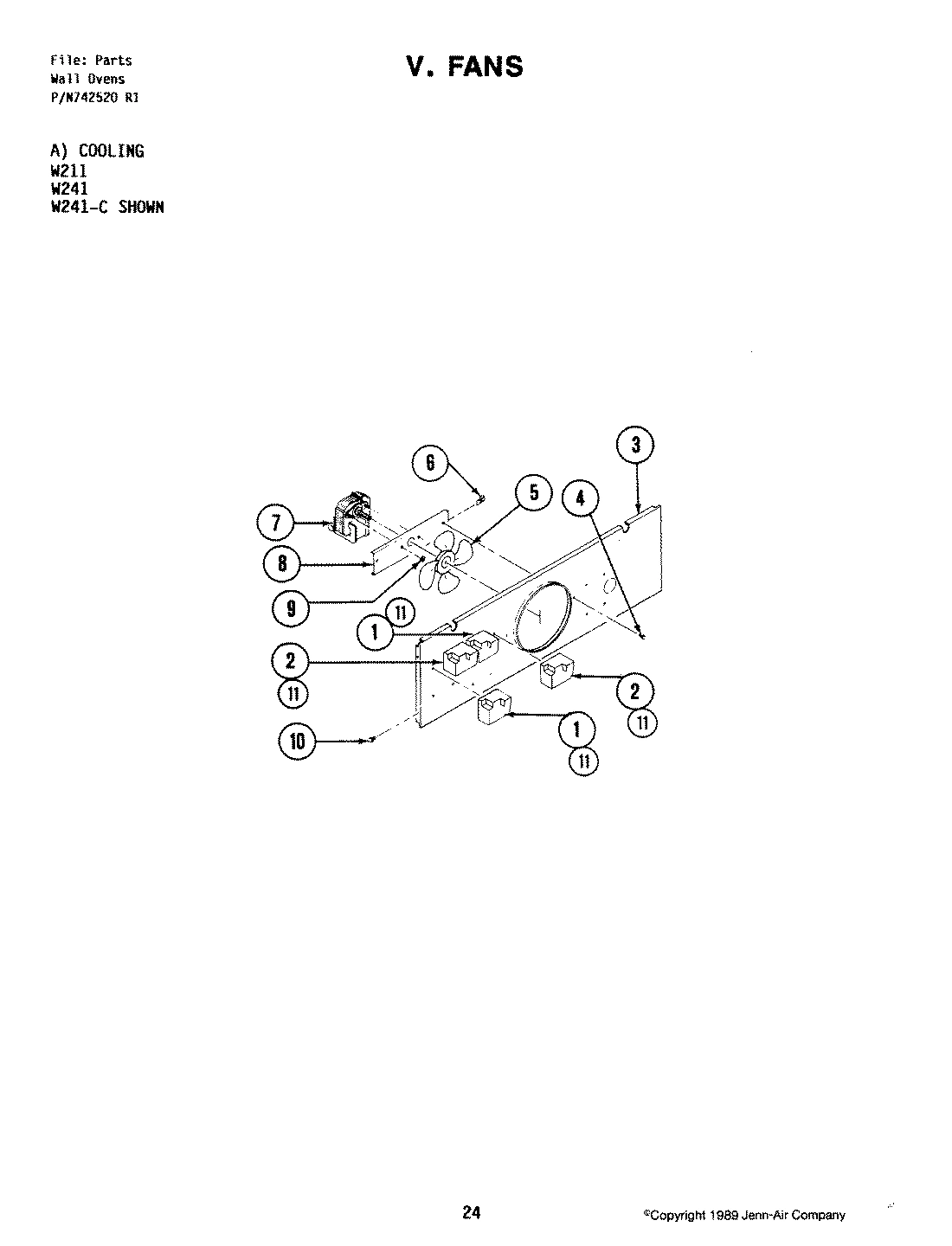

06 - FANS (COOLING)

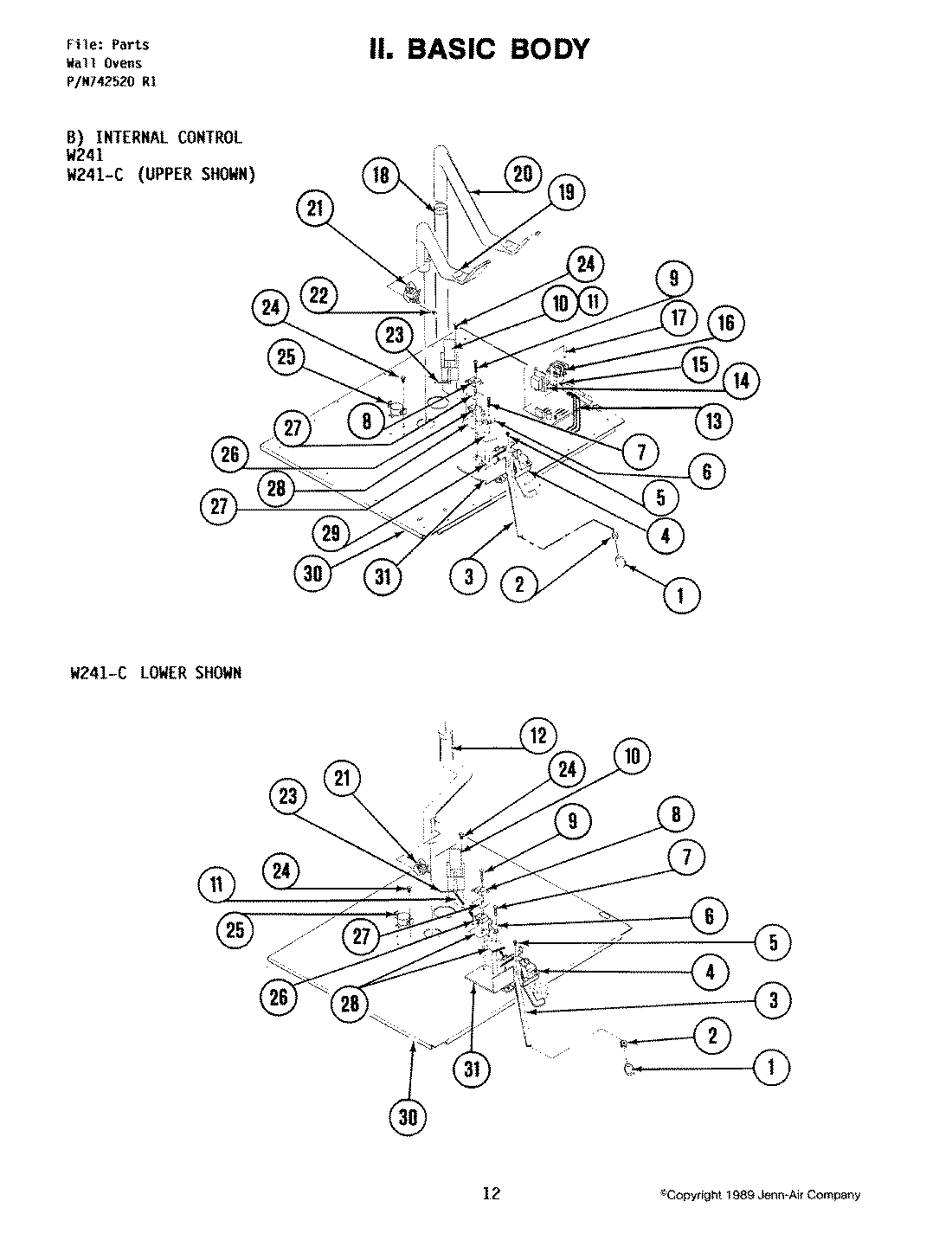

07 - INTERNAL CONTROL

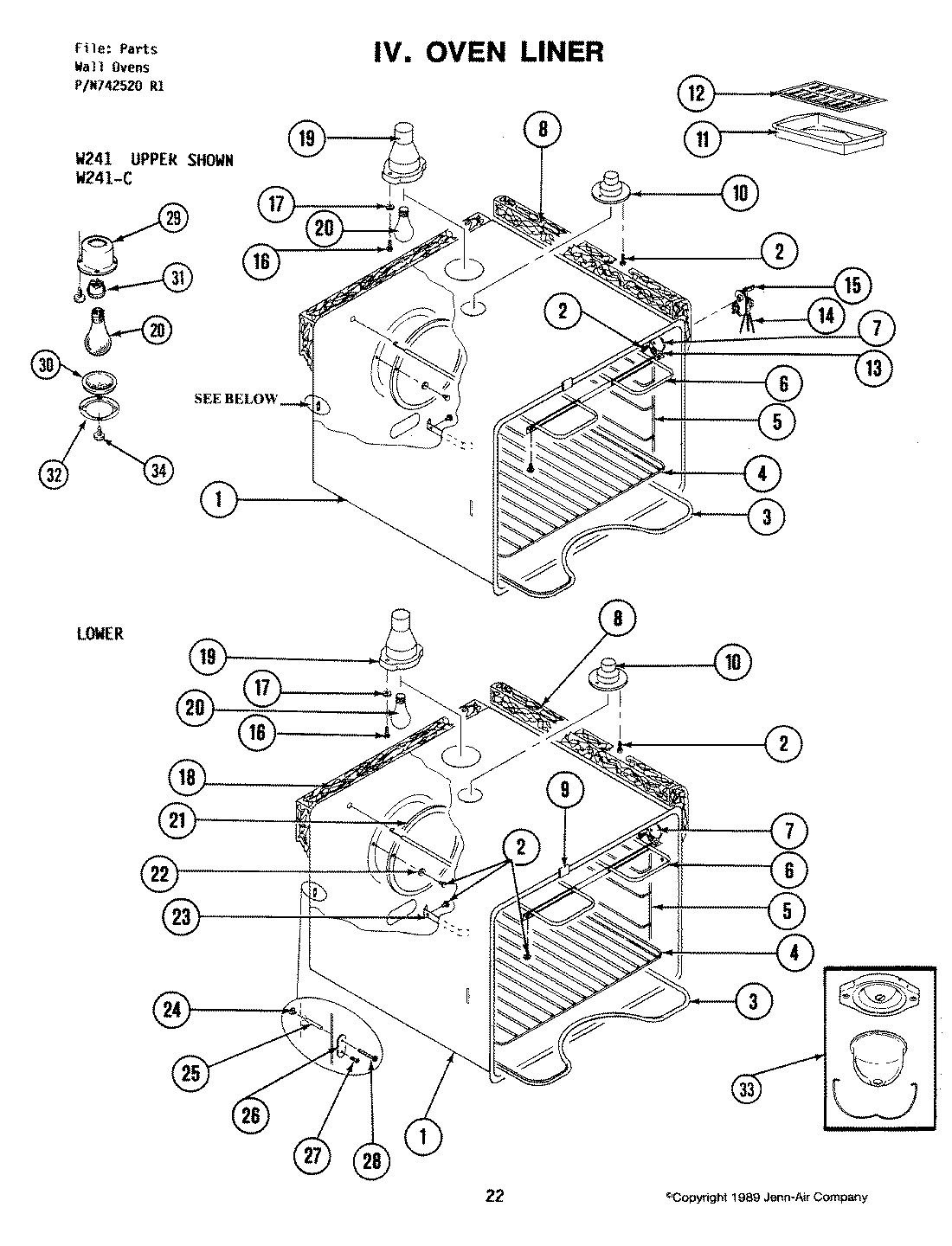

08 - OVEN
Common parts from model Maytag W241-C ELECTRIC WALL OVEN
1
MAY 703073 MAY 703073 Contact Us For Availability
1
MAY 702774 MAY 702774 Contact Us For Availability
1
MAY 703705 MAY 703705 Contact Us For Availability
1
MAY 701709 MAY 701709 Contact Us For Availability
1
MAY 701699 MAY 701699 Contact Us For Availability
1
MAY 704354 MAY 704354 Contact Us For Availability
1
MAY 701670 MAY 701670 Contact Us For Availability
1
MAY Y712548 MAY Y712548 Contact Us For Availability
2
MAY 701610 MAY 701610 Contact Us For Availability
2
MAY 701642 MAY 701642 Contact Us For Availability
2
MAY Y703706 MAY Y703706 Contact Us For Availability
2
MAY 701712 MAY 701712 Contact Us For Availability
2
MAY Y702882 MAY Y702882 Contact Us For Availability
2
MAY 701698 MAY 701698 Contact Us For Availability
2
MAY 704355 MAY 704355 Contact Us For Availability
2
MAY 701671 MAY 701671 Contact Us For Availability
3
MAY 702930 MAY 702930 Contact Us For Availability
3
MAY Y703707 MAY Y703707 Contact Us For Availability
3
MAY 701713 MAY 701713 Contact Us For Availability
3
MAY 703096 MAY 703096 Contact Us For Availability
3
MAY 704336 MAY 704336 Contact Us For Availability
3
MAY Y715957 MAY Y715957 Contact Us For Availability
3
MAY Y701690 MAY Y701690 Contact Us For Availability
3
MAY Y701724 MAY Y701724 Contact Us For Availability
4
MAY 701667 MAY 701667 Contact Us For Availability
4
MAY 703057 MAY 703057 Contact Us For Availability
4
MAY 701832 MAY 701832 Contact Us For Availability
4
MAY Y703430 MAY Y703430 Contact Us For Availability
4
MAY Y700601 MAY Y700601 Contact Us For Availability
4
MAY Y701725 MAY Y701725 Contact Us For Availability
5
WPL 707407 No Longer Available
5
MAY 703502 MAY 703502 Contact Us For Availability
5
MAY Y708733 MAY Y708733 Contact Us For Availability
5
MAY Y703059 MAY Y703059 Contact Us For Availability
5
MAY Y707347 MAY Y707347 Contact Us For Availability
5
MAY Y715563 MAY Y715563 Contact Us For Availability
5
MAY 701718 MAY 701718 Contact Us For Availability
5
MAY Y701728 MAY Y701728 Contact Us For Availability
6
MAY Y700556 MAY Y700556 Contact Us For Availability
6
MAY Y702124 MAY Y702124 Contact Us For Availability
6
MAY 715939 MAY 715939 Contact Us For Availability
6
MAY Y703433 MAY Y703433 Contact Us For Availability
6
MAY 701716 MAY 701716 Contact Us For Availability
6
MAY Y703357 MAY Y703357 Contact Us For Availability
6
MAY Y703351 MAY Y703351 Contact Us For Availability
6
MAY 708764 MAY 708764 Contact Us For Availability
6
MAY Y701729 MAY Y701729 Contact Us For Availability
7
MAY 703254 MAY 703254 Contact Us For Availability
7
MAY 703255 MAY 703255 Contact Us For Availability
7
MAY Y702547 MAY Y702547 Contact Us For Availability
7
MAY Y700446 MAY Y700446 Contact Us For Availability
7
MAY Y703431 MAY Y703431 Contact Us For Availability
7
MAY Y701721 MAY Y701721 Contact Us For Availability
7
MAY 702380 MAY 702380 Contact Us For Availability
7
MAY 701732 MAY 701732 Contact Us For Availability
7
MAY 703007 MAY 703007 Contact Us For Availability
7
MAY 712088 MAY 712088 Contact Us For Availability
8
MAY Y708690 MAY Y708690 Contact Us For Availability
8
MAY 703071 MAY 703071 Contact Us For Availability
8
MAY Y703533 MAY Y703533 Contact Us For Availability
8
MAY Y703035 MAY Y703035 Contact Us For Availability
8
MAY 701720 MAY 701720 Contact Us For Availability
8
MAY 702806 MAY 702806 Contact Us For Availability
8
MAY 701702 MAY 701702 Contact Us For Availability
9
MAY 701676 MAY 701676 Contact Us For Availability
9
MAY Y700630 MAY Y700630 Contact Us For Availability
9
MAY 701643 MAY 701643 Contact Us For Availability
9
MAY 701662 MAY 701662 Contact Us For Availability
9
MAY 702657 MAY 702657 Contact Us For Availability
9
MAY 715910 MAY 715910 Contact Us For Availability
9
MAY 702807 MAY 702807 Contact Us For Availability
9
MAY Y702618 MAY Y702618 Contact Us For Availability
10
MAY 703506 MAY 703506 Contact Us For Availability
10
MAY 703070 MAY 703070 Contact Us For Availability
10
MAY 701641 MAY 701641 Contact Us For Availability
10
MAY 701647 MAY 701647 Contact Us For Availability
10
MAY 712188 MAY 712188 Contact Us For Availability
10
MAY 715870 MAY 715870 Contact Us For Availability
10
MAY Y703449 MAY Y703449 Contact Us For Availability
10
MAY 701685 MAY 701685 Contact Us For Availability
10
MAY Y702526 MAY Y702526 Contact Us For Availability
10
MAY 701738 MAY 701738 Contact Us For Availability
11
MAY 701666 MAY 701666 Contact Us For Availability
11
MAY 701618 MAY 701618 Contact Us For Availability
11
MAY 701711 MAY 701711 Contact Us For Availability
11
MAY 704335 MAY 704335 Contact Us For Availability
11
MAY 703301 MAY 703301 Contact Us For Availability
11
MAY 703164 MAY 703164 Contact Us For Availability
12
MAY 703074 MAY 703074 Contact Us For Availability
12
MAY Y702393 MAY Y702393 Contact Us For Availability
12
MAY Y700503 MAY Y700503 Contact Us For Availability
12
MAY 703069 MAY 703069 Contact Us For Availability
12
MAY 703380 MAY 703380 Contact Us For Availability
12
MAY 703165 MAY 703165 Contact Us For Availability
13
MAY 703253 MAY 703253 Contact Us For Availability
13
MAY 701633 MAY 701633 Contact Us For Availability
13
MAY 703091 MAY 703091 Contact Us For Availability
13
MAY 702041 MAY 702041 Contact Us For Availability
13
MAY 703804 MAY 703804 Contact Us For Availability
13
MAY Y712010 MAY Y712010 Contact Us For Availability
13
MAY 701707 MAY 701707 Contact Us For Availability
13
MAY 700893 MAY 700893 Contact Us For Availability
13
MAY Y701731 MAY Y701731 Contact Us For Availability
14
MAY 703098 MAY 703098 Contact Us For Availability
14
MAY 703094 MAY 703094 Contact Us For Availability
14
MAY 701658 MAY 701658 Contact Us For Availability
14
MAY 701629 MAY 701629 Contact Us For Availability
14
MAY 703262 MAY 703262 Contact Us For Availability
15
MAY 701669 MAY 701669 Contact Us For Availability
15
MAY 703092 MAY 703092 Contact Us For Availability
15
MAY 712209 MAY 712209 Contact Us For Availability
15
MAY Y700584 MAY Y700584 Contact Us For Availability
15
MAY 701723 MAY 701723 Contact Us For Availability
15
MAY 703263 MAY 703263 Contact Us For Availability
16
MAY Y703352 MAY Y703352 Contact Us For Availability
16
MAY Y708359 MAY Y708359 Contact Us For Availability
16
MAY 701660 MAY 701660 Contact Us For Availability
16
MAY Y703274 MAY Y703274 Contact Us For Availability
16
MAY 715485 MAY 715485 Contact Us For Availability
17
MAY 703095 MAY 703095 Contact Us For Availability
17
MAY 703075 MAY 703075 Contact Us For Availability
17
MAY 701659 MAY 701659 Contact Us For Availability
17
MAY 701630 MAY 701630 Contact Us For Availability
17
MAY 701736 MAY 701736 Contact Us For Availability
18
MAY 701681 MAY 701681 Contact Us For Availability
18
MAY 701652 MAY 701652 Contact Us For Availability
18
MAY 703068 MAY 703068 Contact Us For Availability
18
MAY 701703 MAY 701703 Contact Us For Availability
19
MAY 701619 MAY 701619 Contact Us For Availability
19
MAY Y700834 MAY Y700834 Contact Us For Availability
19
MAY 703381 MAY 703381 Contact Us For Availability
19
MAY 715281 MAY 715281 Contact Us For Availability
20
MAY 701700 MAY 701700 Contact Us For Availability
20
MAY 703072 MAY 703072 Contact Us For Availability
20
MAY 701645 MAY 701645 Contact Us For Availability
20
MAY 712250 MAY 712250 Contact Us For Availability
20
MAY 703067 MAY 703067 Contact Us For Availability
20
MAY Y707319 MAY Y707319 Contact Us For Availability
21
MAY 701701 MAY 701701 Contact Us For Availability
21
MAY 701644 MAY 701644 Contact Us For Availability
21
MAY 703784 MAY 703784 Contact Us For Availability
21
MAY 702993 MAY 702993 Contact Us For Availability
21
MAY Y702727 MAY Y702727 Contact Us For Availability
21
MAY 705343 MAY 705343 Contact Us For Availability
22
MAY 712185 MAY 712185 Contact Us For Availability
22
MAY 712210 MAY 712210 Contact Us For Availability
22
MAY 701635 MAY 701635 Contact Us For Availability
22
MAY 702592 MAY 702592 Contact Us For Availability
22
MAY 712124 MAY 712124 Contact Us For Availability
22
MAY Y700725 MAY Y700725 Contact Us For Availability
23
MAY 701697 MAY 701697 Contact Us For Availability
23
MAY 703093 MAY 703093 Contact Us For Availability
23
MAY 700906 MAY 700906 Contact Us For Availability
23
MAY 701149 MAY 701149 Contact Us For Availability
23
MAY 703958 MAY 703958 Contact Us For Availability
23
MAY Y701686 MAY Y701686 Contact Us For Availability
23
MAY Y701745 MAY Y701745 Contact Us For Availability
24
MAY 703097 MAY 703097 Contact Us For Availability
24
MAY 703080 MAY 703080 Contact Us For Availability
24
MAY 715294 MAY 715294 Contact Us For Availability
25
MAY 703252 MAY 703252 Contact Us For Availability
25
MAY 703077 MAY 703077 Contact Us For Availability
25
MAY 701687 MAY 701687 Contact Us For Availability
25
MAY 703259 MAY 703259 Contact Us For Availability
25
MAY 701741 MAY 701741 Contact Us For Availability
26
MAY 703251 MAY 703251 Contact Us For Availability
26
MAY 703082 MAY 703082 Contact Us For Availability
26
MAY 702805 MAY 702805 Contact Us For Availability
26
MAY 701742 MAY 701742 Contact Us For Availability
27
MAY 712072 MAY 712072 Contact Us For Availability
27
MAY 703078 MAY 703078 Contact Us For Availability
27
MAY 703264 MAY 703264 Contact Us For Availability
27
MAY Y712087 MAY Y712087 Contact Us For Availability
28
MAY 701668 MAY 701668 Contact Us For Availability
28
MAY 701621 MAY 701621 Contact Us For Availability
28
MAY Y702350 MAY Y702350 Contact Us For Availability
28
MAY 701744 MAY 701744 Contact Us For Availability
28
MAY Y700884 MAY Y700884 Contact Us For Availability
29
MAY Y702360 MAY Y702360 Contact Us For Availability
29
MAY 701683 MAY 701683 Contact Us For Availability
29
MAY 701848 MAY 701848 Contact Us For Availability
29
MAY Y702394 MAY Y702394 Contact Us For Availability
29
MAY 704142 MAY 704142 Contact Us For Availability
30
MAY 701674 MAY 701674 Contact Us For Availability
30
MAY 702007 MAY 702007 Contact Us For Availability
30
MAY 702008 MAY 702008 Contact Us For Availability
30
MAY 703099 MAY 703099 Contact Us For Availability
30
MAY 702746 MAY 702746 Contact Us For Availability
30
MAY Y704143 MAY Y704143 Contact Us For Availability
31
MAY 701609 MAY 701609 Contact Us For Availability
31
MAY 703084 MAY 703084 Contact Us For Availability
31
MAY 703086 MAY 703086 Contact Us For Availability
31
MAY 703089 MAY 703089 Contact Us For Availability
31
MAY 703090 MAY 703090 Contact Us For Availability
31
MAY 703267 MAY 703267 Contact Us For Availability
31
MAY 703370 MAY 703370 Contact Us For Availability
31
MAY 703390 MAY 703390 Contact Us For Availability
31
MAY 701706 MAY 701706 Contact Us For Availability
31
MAY 703085 MAY 703085 Contact Us For Availability
31
MAY 703087 MAY 703087 Contact Us For Availability
31
MAY 703384 MAY 703384 Contact Us For Availability
31
MAY 703385 MAY 703385 Contact Us For Availability
31
MAY 703386 MAY 703386 Contact Us For Availability
31
MAY Y704145 MAY Y704145 Contact Us For Availability
32
MAY Y704144 MAY Y704144 Contact Us For Availability
33
MAY 712282 MAY 712282 Contact Us For Availability
34
MAY Y703741 MAY Y703741 Contact Us For Availability
× ![]()
