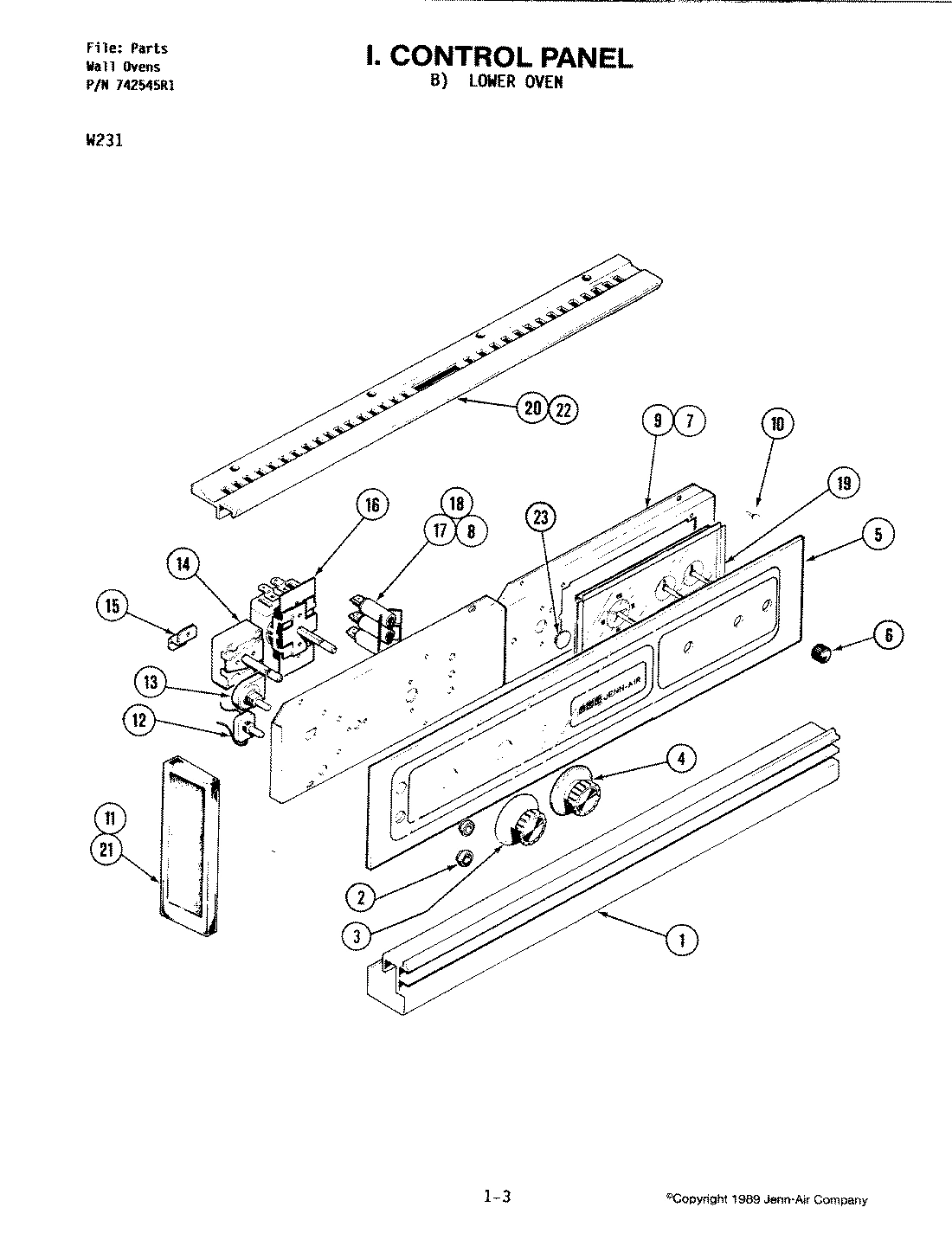

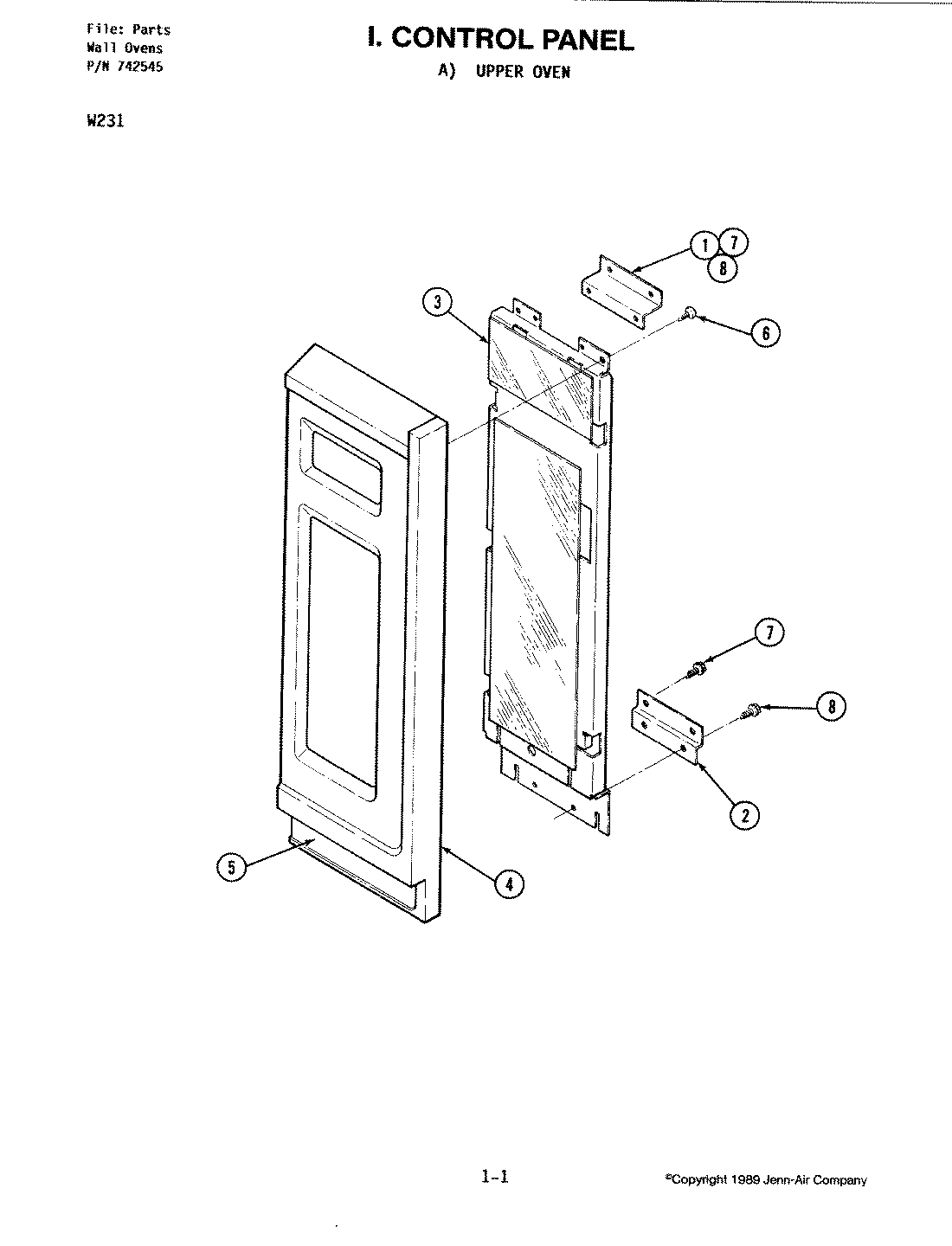

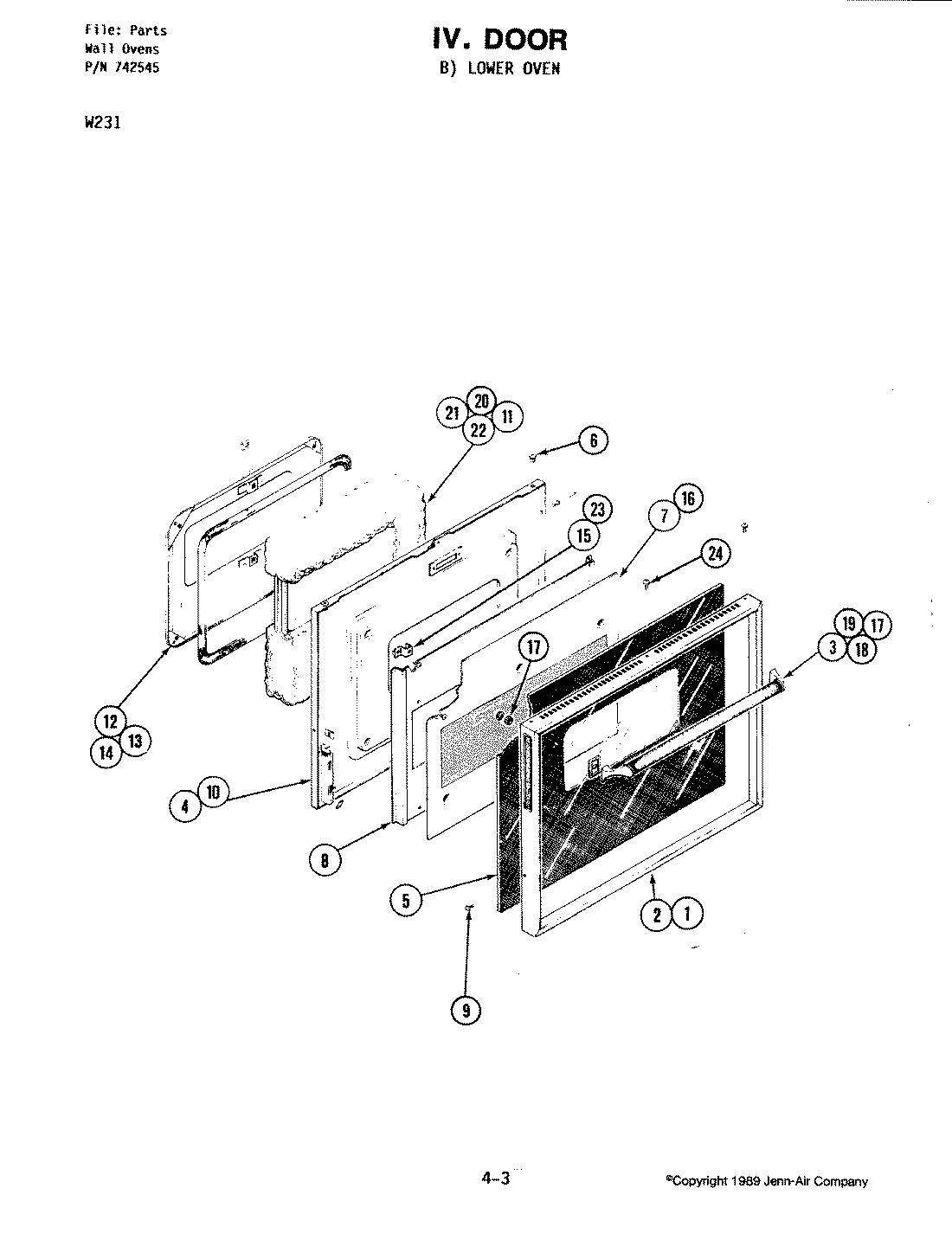

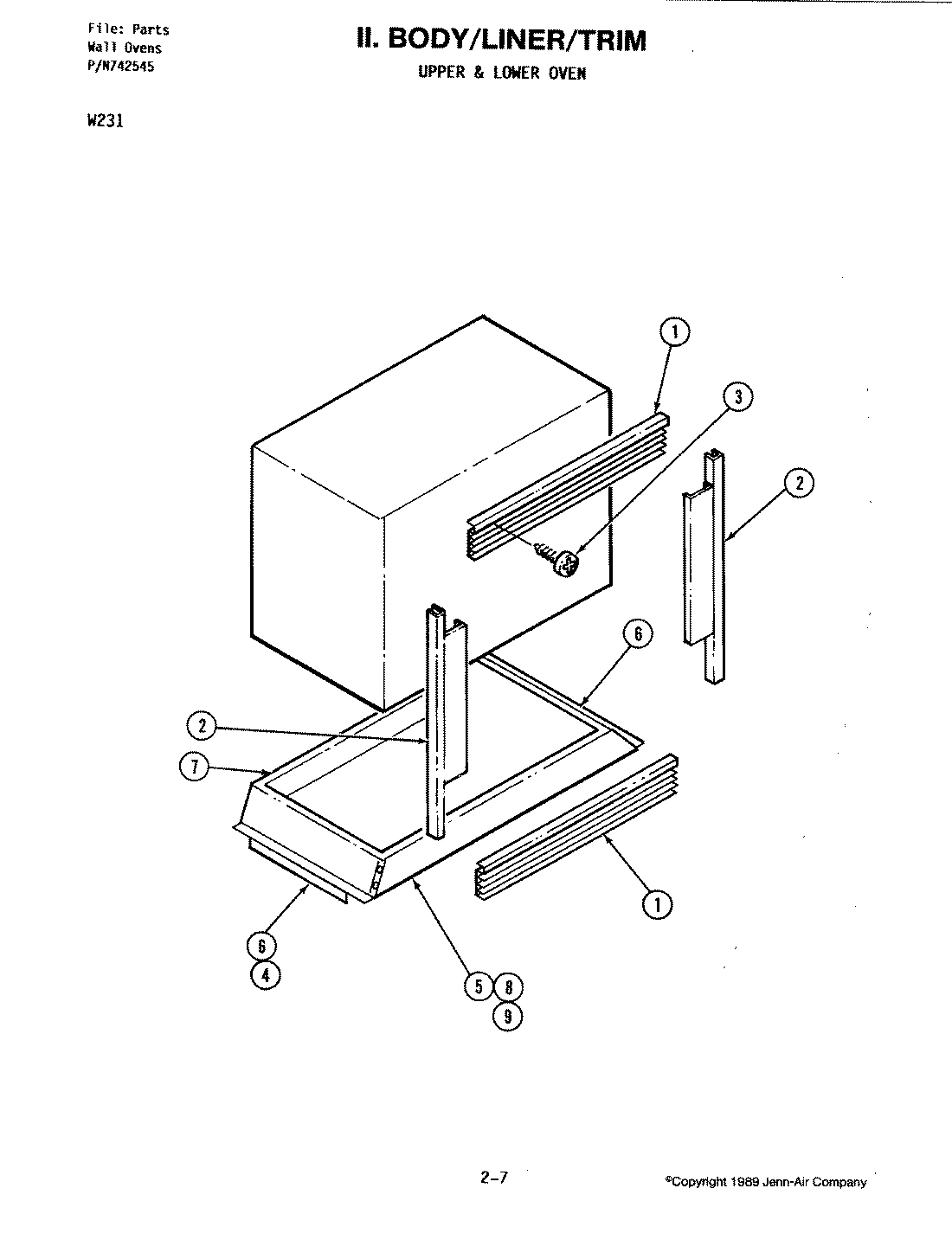

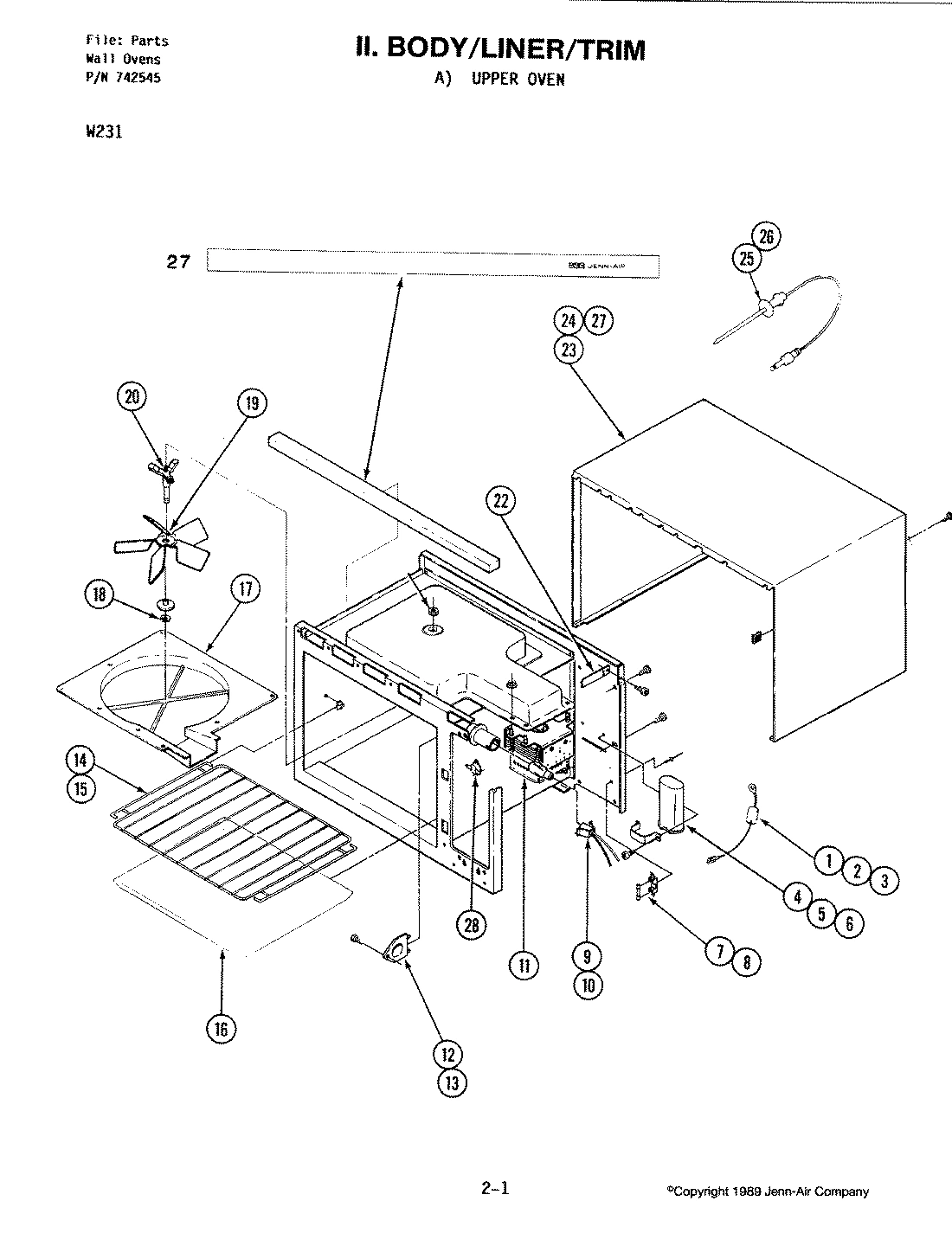

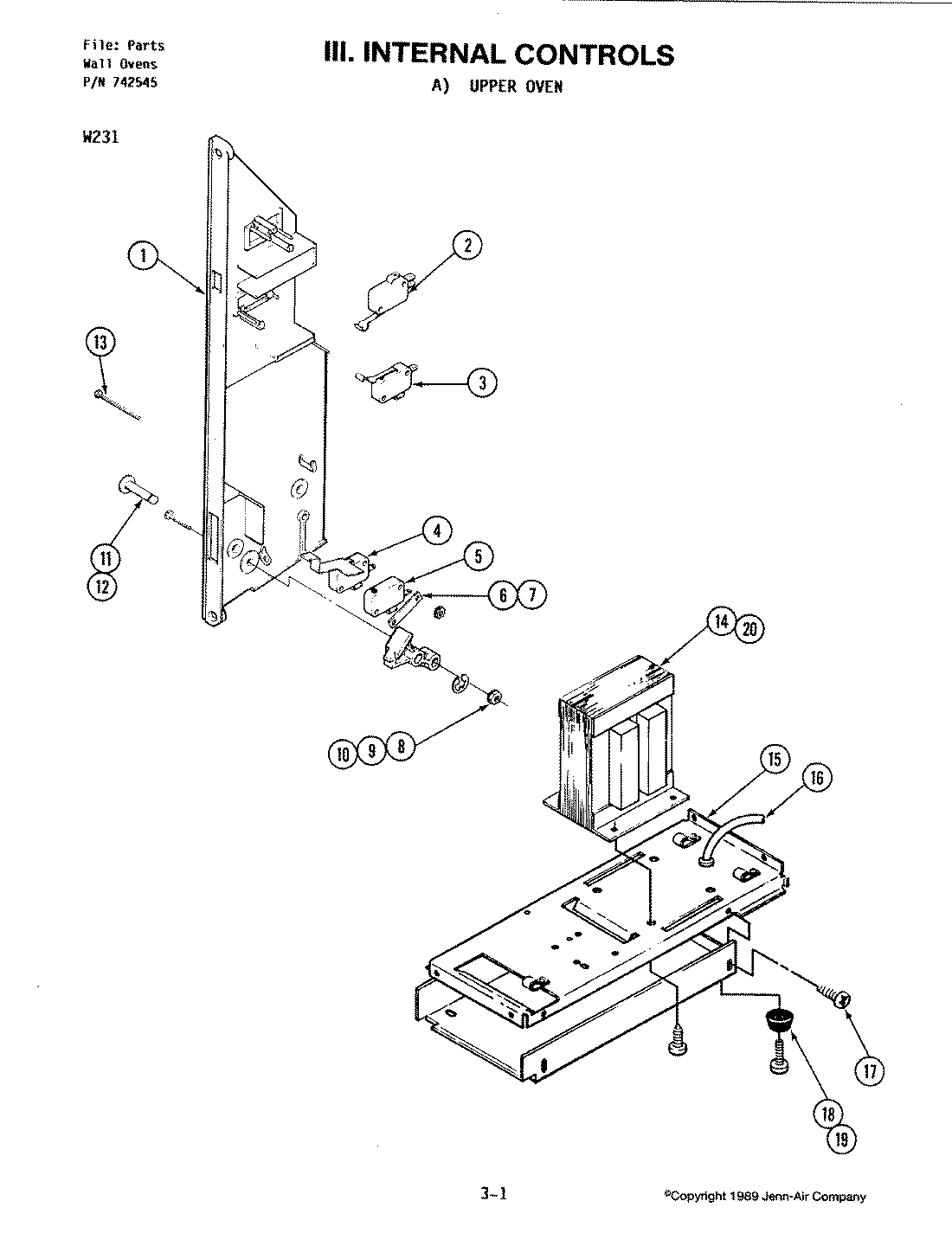

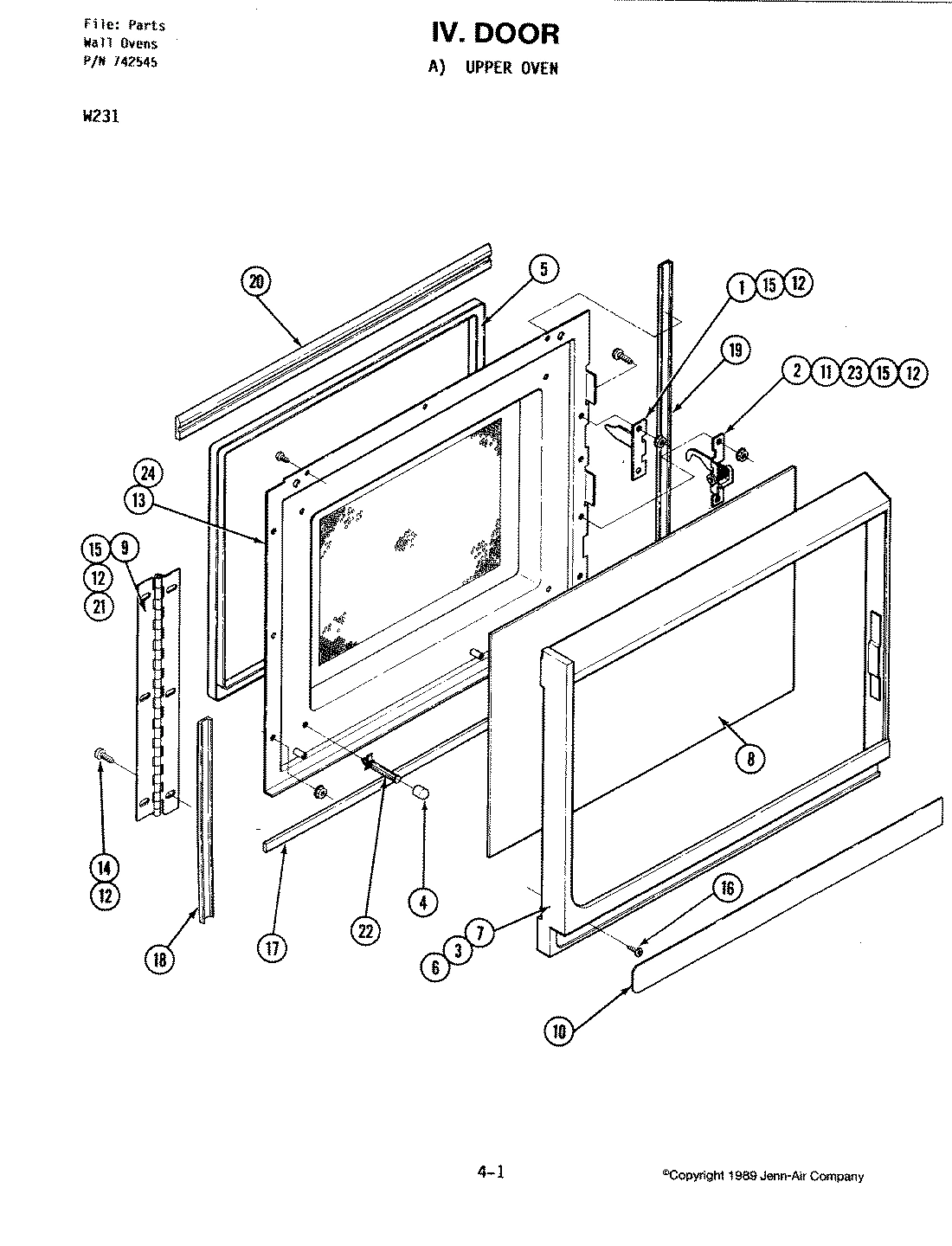

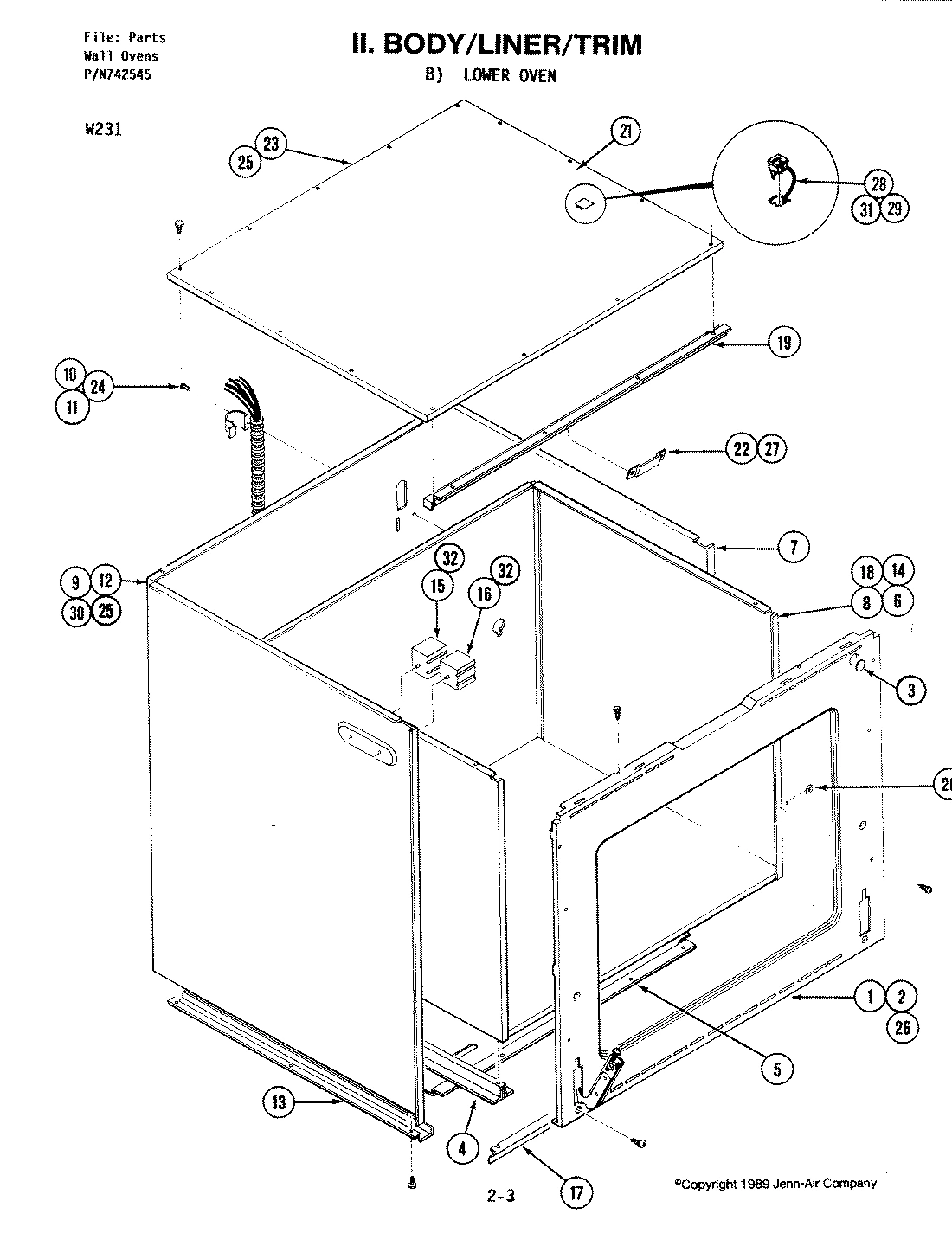

Model Whirlpool W231 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts &amp; Diagrams

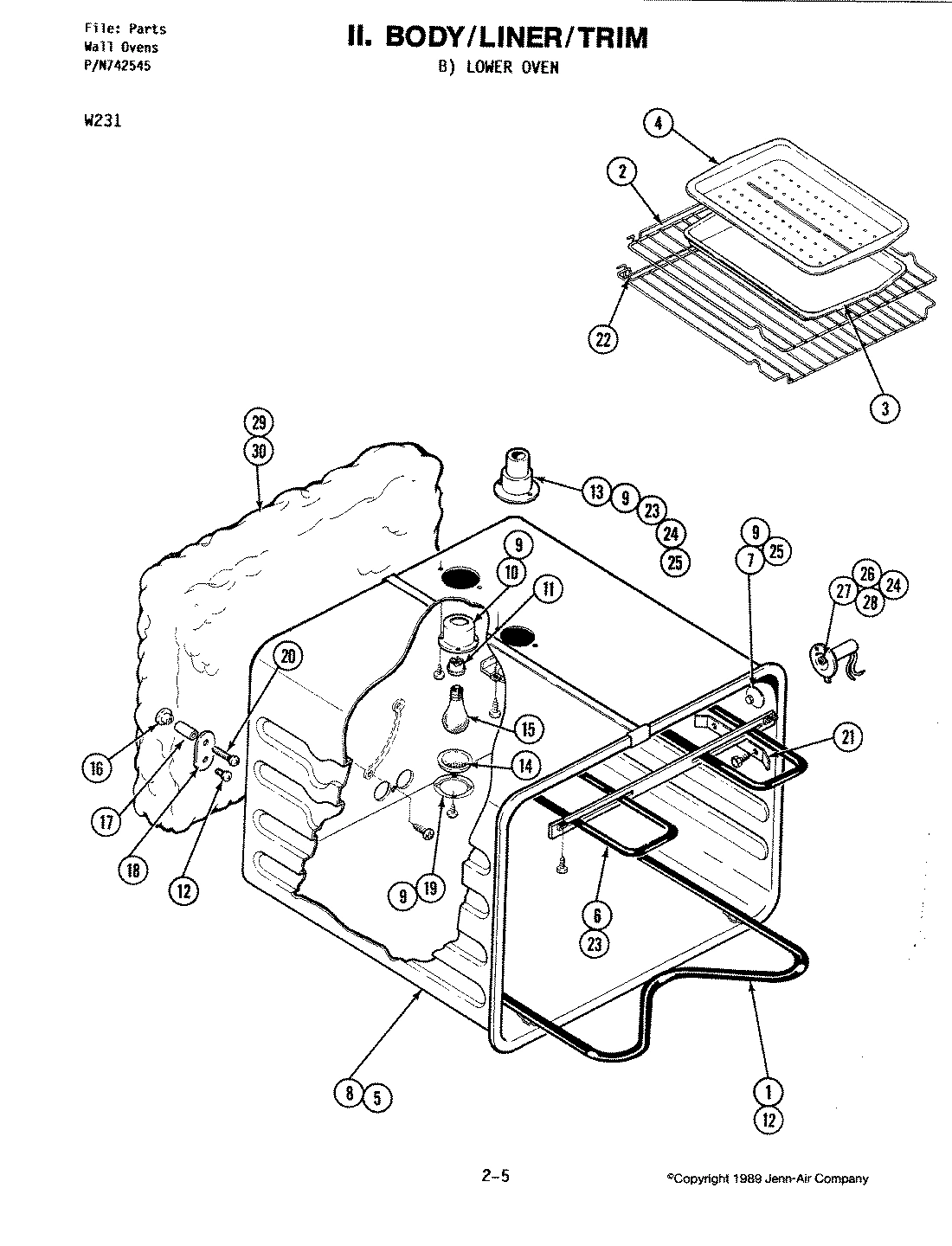

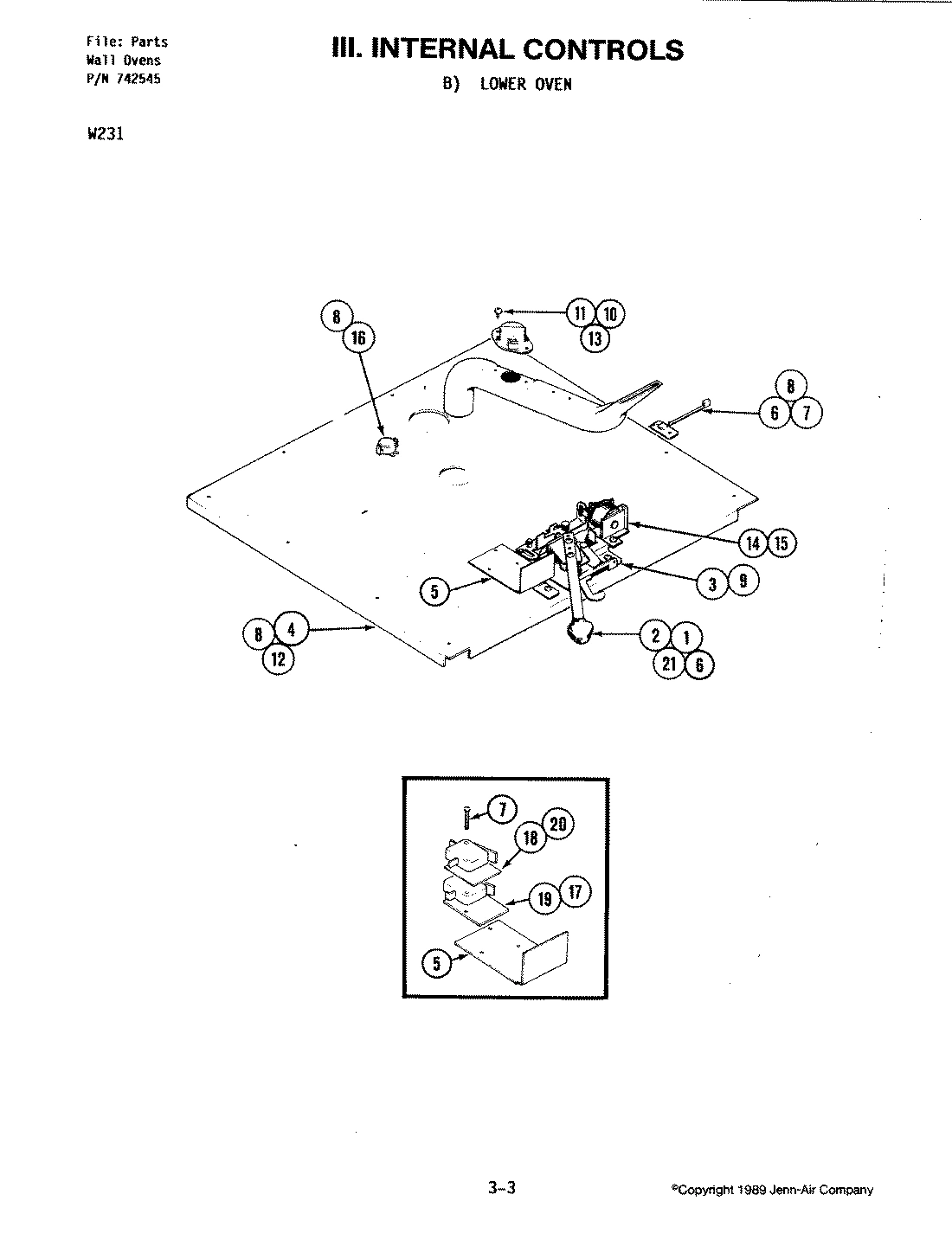

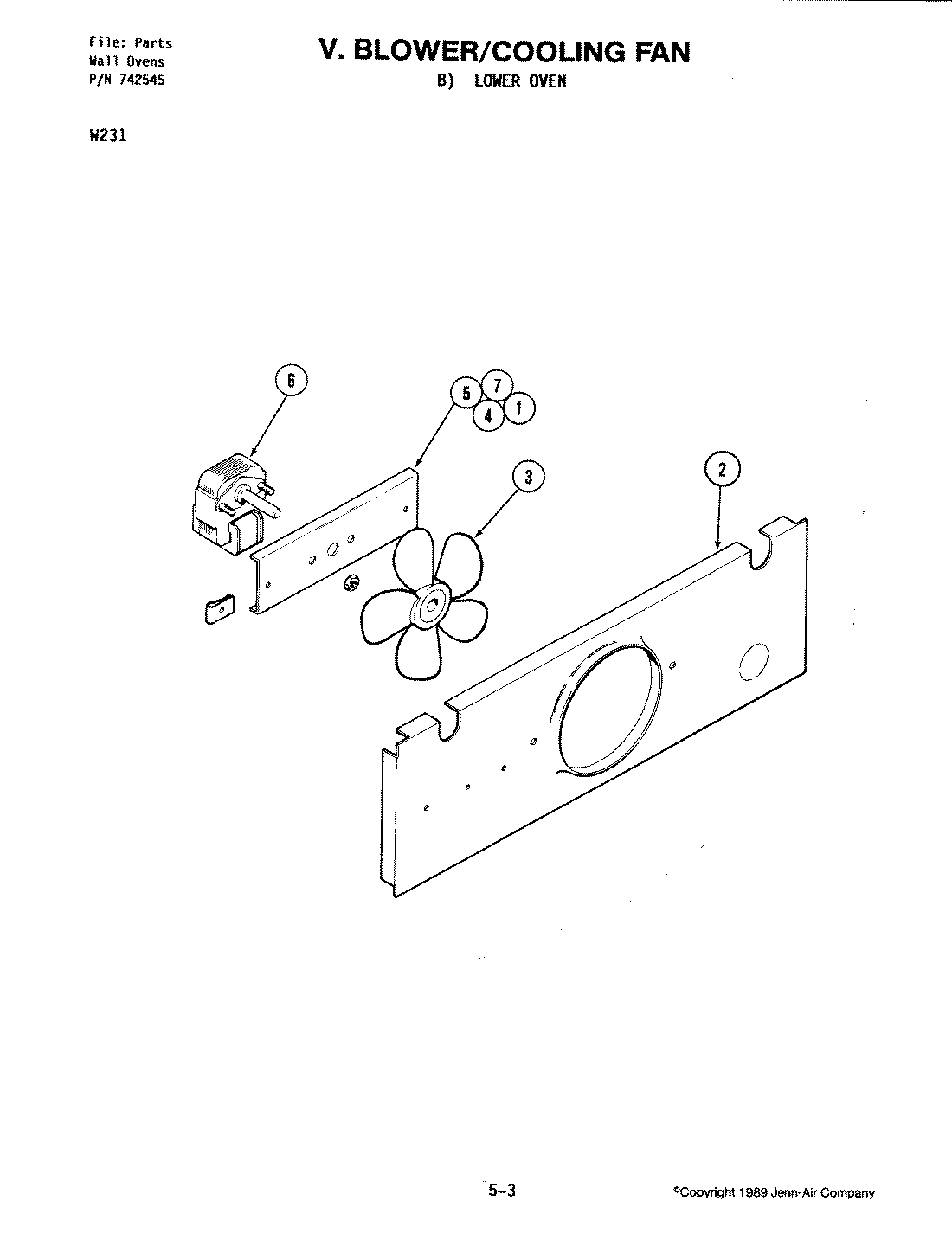

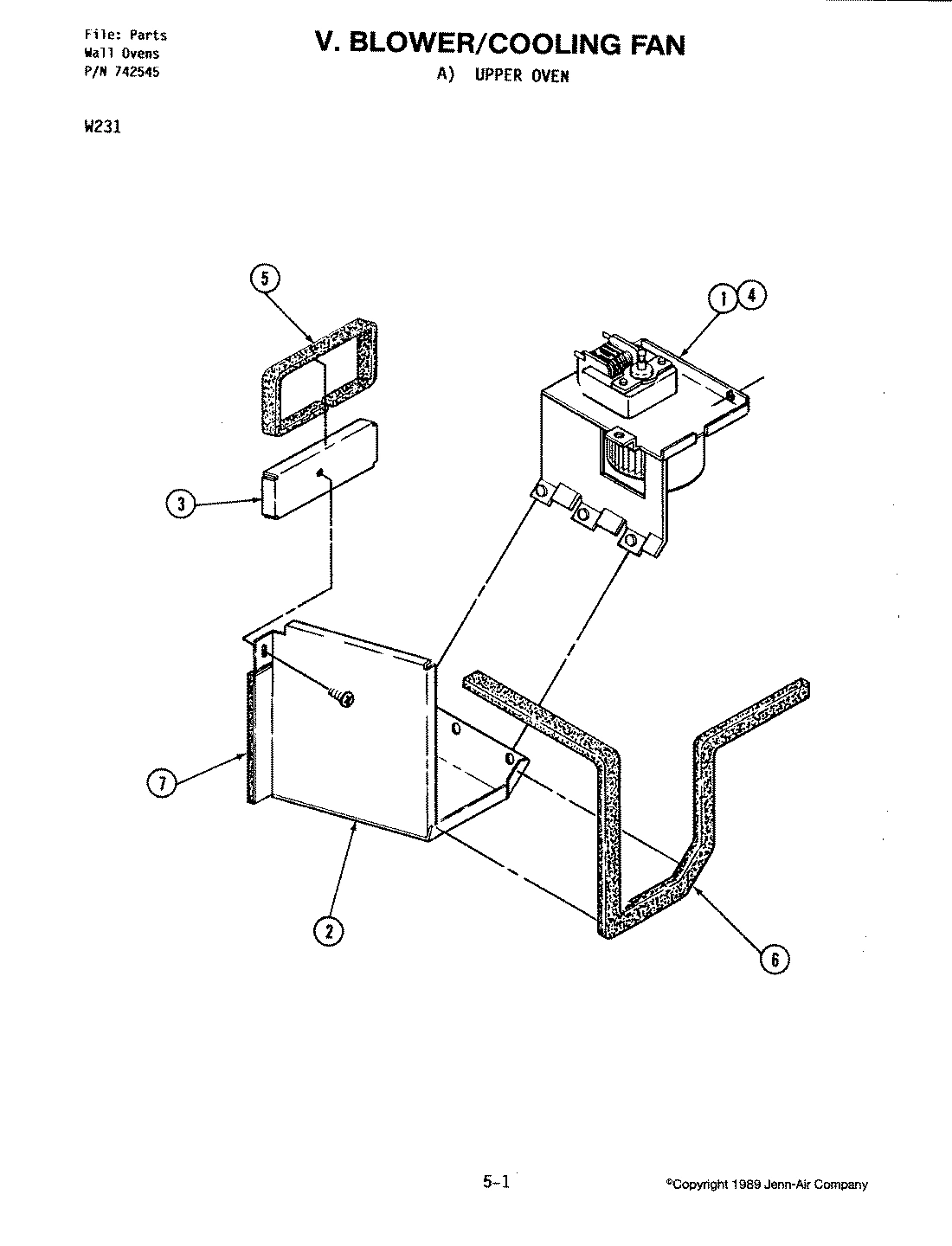

1

DIODE WPL Y04010206 Contact Us For Availability

1

EXTRUSION, BOTTOM WPL 701608 Contact Us For Availability

1

EXTRUSION (TOP & BOTTOM) WPL 704763 Contact Us For Availability

1

ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability

1

BRACKET, CONTROL PANEL-UPPER WPL 02030128 Contact Us For Availability

1

BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability

1

CLOSURE, FRONT WPL 703609 Contact Us For Availability

1

KNOB, LEVER WPL 701670 Contact Us For Availability

1

ELEMENT, BAKE WPL Y704665 Contact Us For Availability

1

BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability

2

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

2

BEZEL, SWITCH WPL 701610 Contact Us For Availability

2

EXTRUSION, SIDE WPL 704394 Contact Us For Availability

2

BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability

2

BRACKET, CONTROL PANEL-LOWER WPL 02030137 Contact Us For Availability

2

FRAME (STNLS) WPL 704999 Contact Us For Availability

2

DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability

2

HINGE WPL Y703419 Contact Us For Availability

2

SPRING, KNOB WPL 701671 Contact Us For Availability

2

PLATE, MOTOR WPL 704336 Contact Us For Availability

2

RACK, OVEN WPL Y704661 Contact Us For Availability

2

SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability

3

12200031 Whirlpool Knob Kit In Stock WPL 12200031 $30.43

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

3

SCREW WPL 703534 Contact Us For Availability

3

BRACKET, DOOR TRIM WPL 02010047 Contact Us For Availability

3

BOARD, CONTROL WPL 01210063 Contact Us For Availability

3

HANDLE WPL Y703707 Contact Us For Availability

3

SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability

3

BUTTON, PLUG WPL 703688 Contact Us For Availability

3

LATCH ASSY. WPL Y703357 Contact Us For Availability

3

BLADE, FAN WPL 701718 Contact Us For Availability

3

SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability

4

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

4

WPY703499 Whirlpool Dishwasher Thermostat Kno Backorder WPL WPY703499 $33.00

4

CAPACITOR WPL Y01020023 Contact Us For Availability

4

BUMPER WPL Y02100135 Contact Us For Availability

4

FRAME, CONTROL PANEL WPL 02060256 Contact Us For Availability

4

CLIP WPL 704487 Contact Us For Availability

4

SCREW WPL 03010138 Contact Us For Availability

4

SUPPORT, BOTTOM WPL 701667 Contact Us For Availability

4

PANEL, TOP WPL 704684 Contact Us For Availability

4

SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability

5

BRACKET WPL 02030123 Contact Us For Availability

5

PANEL, CONTROL WPL 702931 Contact Us For Availability

5

SUPPORT, FRONT WPL 704343 Contact Us For Availability

5

CHOKE, FILLER (BLK) WPL Y02100166 Contact Us For Availability

5

INSERT (NO LOGO) WPL 02100105 Contact Us For Availability

5

GLASS, OUTER WPL Y703706 Contact Us For Availability

5

TAPE, FOAM WPL 02310109 Contact Us For Availability

5

PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability

5

SHIELD, SWITCH WPL 701706 Contact Us For Availability

5

MOUNT, MOTOR WPL Y704732 Contact Us For Availability

5

CLIP, OVEN WPL Y702618 Contact Us For Availability

5

SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability

6

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $73.20

6

SCREW WPL Y03020076 Contact Us For Availability

6

KNOB, CLOCK WPL Y702547 Contact Us For Availability

6

SUPPORT, BRACKET WPL 704339 Contact Us For Availability

6

EXTRUSION, HANDLE (BLK) WPL 02120151 Contact Us For Availability

6

SCREW WPL 03020011 Contact Us For Availability

6

NUT, PUSH IN WPL 701643 Contact Us For Availability

6

TAPE, FOAM WPL 02310070 Contact Us For Availability

6

PANEL, BOTTOM WPL 701669 Contact Us For Availability

6

SCREW WPL 707407 Contact Us For Availability

6

MOTOR, FAN WPL Y701721 Contact Us For Availability

6

INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability

7

PANEL (LT) WPL 701615 Contact Us For Availability

7

BRACKET, STOP WPL 704344 Contact Us For Availability

7

FRAME, DOOR (BLK) WPL 04021262 Contact Us For Availability

7

SCREW (TOP) WPL Y03010147 Contact Us For Availability

7

PANEL, PERFORATED (UPR) WPL 703784 Contact Us For Availability

7

TAPE, FOAM WPL 02310071 Contact Us For Availability

7

PANEL, OUTER (RT) WPL 701672 Contact Us For Availability

7

CLIP, J WPL Y700556 Contact Us For Availability

7

SCREW WPL 702807 Contact Us For Availability

7

COVER, MEAT PROBE WPL 712088 Contact Us For Availability

7

NUT WPL Y03050001 Contact Us For Availability

8

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

8

NUT WPL 03050003 Contact Us For Availability

8

FUSE 15A 125V WPL Y01050005 Contact Us For Availability

8

LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability

8

GLASS, DOOR WPL Y02220096 Contact Us For Availability

8

SCREW WPL 03020041 Contact Us For Availability

8

BAFFLE WPL 712250 Contact Us For Availability

8

PANEL, SIDE (RT) WPL 701676 Contact Us For Availability

8

LINER, OVEN, (LOWER) WPL Y712588 Contact Us For Availability

9

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.55

9

SOCKET, LAMP WPL 01100041 Contact Us For Availability

9

PANEL, CONTROL (RT) WPL 705336 Contact Us For Availability

9

SCREW WPL 701171 Contact Us For Availability

9

FRONT, STOP WPL 704342 Contact Us For Availability

9

SCREW WPL 715485 Contact Us For Availability

9

WASHER (BLK) WPL 715610 Contact Us For Availability

9

HINGE, DOOR WPL Y02200017 Contact Us For Availability

9

SCREW, FLAT WPL 704745 Contact Us For Availability

9

PANEL, REAR (OUTER) WPL 701691 Contact Us For Availability

9

RING, RETAINING WPL 701675 Contact Us For Availability

9

CLIP, RETAINER WPL 03110040 Contact Us For Availability

BULB, LIGHT WPL Y01060024 Contact Us For Availability

PAD, SPACER WPL 705331 Contact Us For Availability

RIVET, ACCORDION WPL 701641 Contact Us For Availability

LINER, DOOR WPL 712188 Contact Us For Availability

CLAMP, CONDUIT WPL 701692 Contact Us For Availability

LIMIT, FAN WPL Y702750 Contact Us For Availability

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

MAGNETRON WPL 01040004 Contact Us For Availability

END CAP (RT-CHR) WPL 703136 Contact Us For Availability

LATCH, DOOR WPL 02190056 Contact Us For Availability

CABLE, WIRE WPL 712180 Contact Us For Availability

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

LENS, BULB WPL Y02400007 Contact Us For Availability

SWITCH, MOMENTARY WPL Y701620 Contact Us For Availability

PLUG, OVEN WPL Y701649 Contact Us For Availability

PANEL, OUTER (LT) WPL 701695 Contact Us For Availability

BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability

SCREW WPL 03010114 Contact Us For Availability

WP701650 Whirlpool Oven Seal Backorder WPL WP701650 $95.66

SCREW WPL 03010098 Contact Us For Availability

SWITCH, LIGHT (PUSH) WPL 700558 Contact Us For Availability

PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability

RAIL, BOTTOM WPL 700596 Contact Us For Availability

TUBE, VENT WPL 704473 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

SCREW WPL 03010131 Contact Us For Availability

RACK, OVEN WPL Y02410004 Contact Us For Availability

SWITCH, SELECTOR WPL Y703149 Contact Us For Availability

SCREW WPL Y03010121 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

PANEL, SIDE (LT) WPL 701697 Contact Us For Availability

SOLENOID WPL Y702526 Contact Us For Availability

LENS, LIGHT WPL Y704143 Contact Us For Availability

TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

SUPPORT, RACK WPL 02010049 Contact Us For Availability

ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability

SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

PIN, COTTER WPL Y701686 Contact Us For Availability

PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.69

SHELF, GLASS WPL Y02280024 Contact Us For Availability

THERMOSTAT WPL Y703148 Contact Us For Availability

SCREW WPL Y03010118 Contact Us For Availability

BUMPER, BUTTON WPL Y704223 Contact Us For Availability

SWITCH, BAKE CYCLE WPL 704354 Contact Us For Availability

THERMOSTAT WPL 701687 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

CORD, POWER (BLK) WPL 01080050 Contact Us For Availability

COVER, STIRRER WPL Y02300045 Contact Us For Availability

LIGHT, INDICATOR WPL Y700557 Contact Us For Availability

SEAL, BOTTOM WPL 02120114 Contact Us For Availability

BUSHING WPL Y703433 Contact Us For Availability

TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability

SWITCH, DOOR WPL 702805 Contact Us For Availability

SPACER, OVEN WPL 701741 Contact Us For Availability

SCREW WPL 03020092 Contact Us For Availability

CLIP, STIRRER WPL Y03110055 Contact Us For Availability

SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability

PALNUT WPL Y703431 Contact Us For Availability

PANEL, BACK WPL 701700 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability

INSULATION, WRAP WPL 701702 Contact Us For Availability

INSULATION, REAR WPL 701703 Contact Us For Availability

SWITCH, DOOR WPL 702806 Contact Us For Availability

PLATE, GROUNDING WPL 701742 Contact Us For Availability

FOOT, BASE WPL Y02230008 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability

CLOCK WPL 703420 Contact Us For Availability

SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability

PAD, MOUNTING WPL Y703430 Contact Us For Availability

SUPPORT, TOP WPL 703095 Contact Us For Availability

INSULATOR WPL Y702350 Contact Us For Availability

RETAINER, LENS WPL Y704144 Contact Us For Availability

SHAFT, STIRRER WPL 02360045 Contact Us For Availability

EXTRUSION, TOP WPL 701634 Contact Us For Availability

SEAL, TOP WPL 02120153 Contact Us For Availability

INSULATION, BOTTOM WPL 701658 Contact Us For Availability

INSULATOR WPL 703264 Contact Us For Availability

SCREW WPL 701744 Contact Us For Availability

SCREW WPL 03010094 Contact Us For Availability

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $2.55

NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability

TIE, MOUNT CABLE WPL 702746 Contact Us For Availability

END CAP (LT-CHR) WPL 703137 Contact Us For Availability

HARNESS, MAIN WPL 703717 Contact Us For Availability

BLOCK, TERMINAL WPL Y701623 Contact Us For Availability

WASHER WPL Y707664 Contact Us For Availability

SHIM WPL Y03120064 Contact Us For Availability

INSULATION, SIDE WPL 701659 Contact Us For Availability

LEVER, LATCH (BLK) WPL Y704240 Contact Us For Availability

CLIP, BULB WPL Y701541 Contact Us For Availability

BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability

SCREW WPL 712066 Contact Us For Availability

SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704663 Contact Us For Availability

CABINET (BLK) WPL 02140070 Contact Us For Availability

PLUG, HOLE WPL 702286 Contact Us For Availability

SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability

+ DBLE TAPE 36`` WPL Y05080027 Contact Us For Availability

SCREW WPL 703958 Contact Us For Availability

TOP (OUTER) WPL 701681 Contact Us For Availability

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.55

CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability

WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability

LOCKTITE (HANDLE) WPL 701149 Contact Us For Availability

25

PROBE, TEMP. WPL 01220006 Contact Us For Availability

26

JACK, PROBE WPL 01170008 Contact Us For Availability

27

TRIM, TOP (LOGO) WPL 02100177 Contact Us For Availability

28

SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability

28

OUTLET, APPLIANCE WPL 701704 Contact Us For Availability

29

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.70

30

COVER, MOTOR OPENING WPL 703551 Contact Us For Availability

31

SCREW WPL Y708690 Contact Us For Availability

32

SCREW WPL 704335 Contact Us For Availability
