Model Maytag W224 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
01 - BODY
02 - BODY (LOWER)
03 - BODY (UPPER)

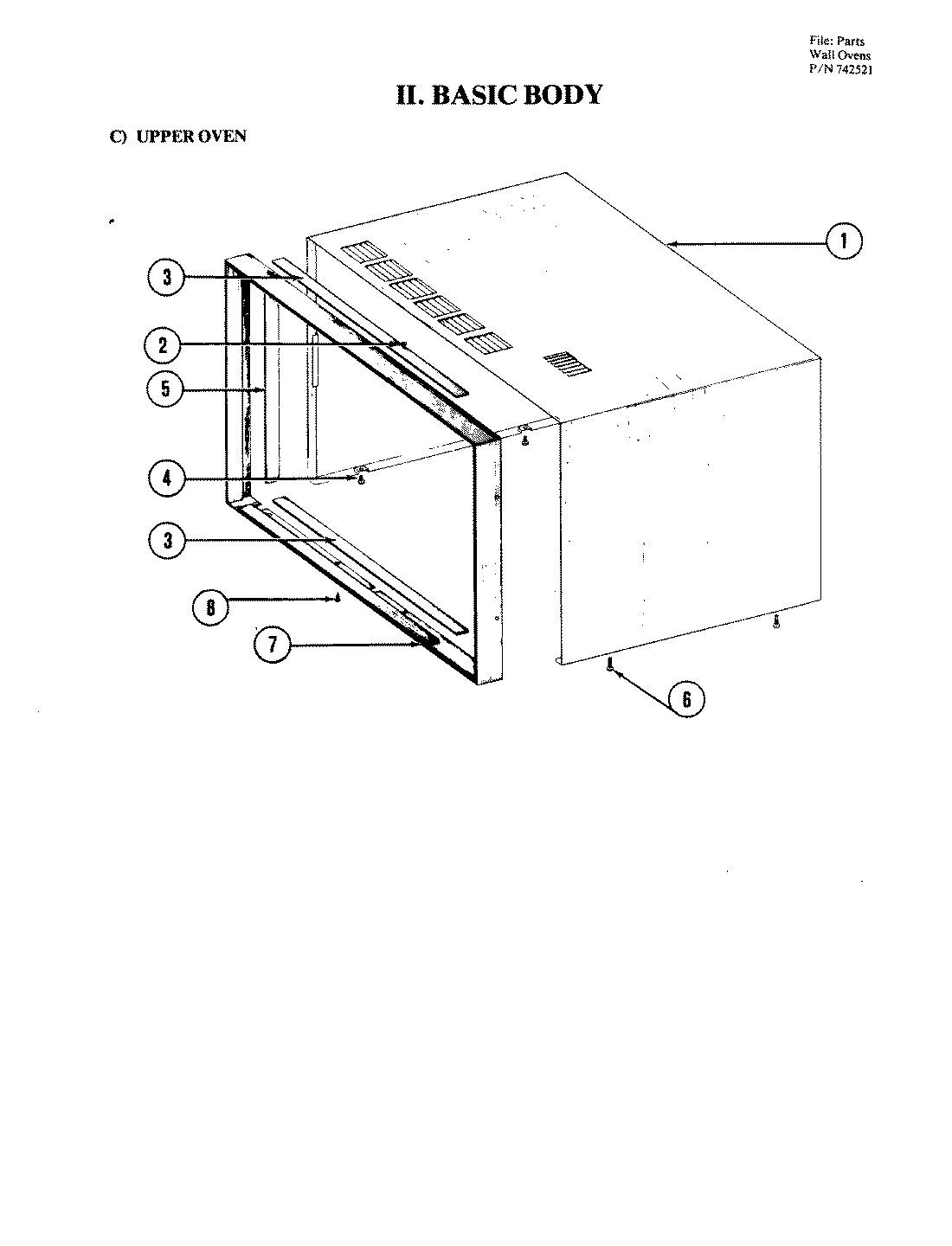

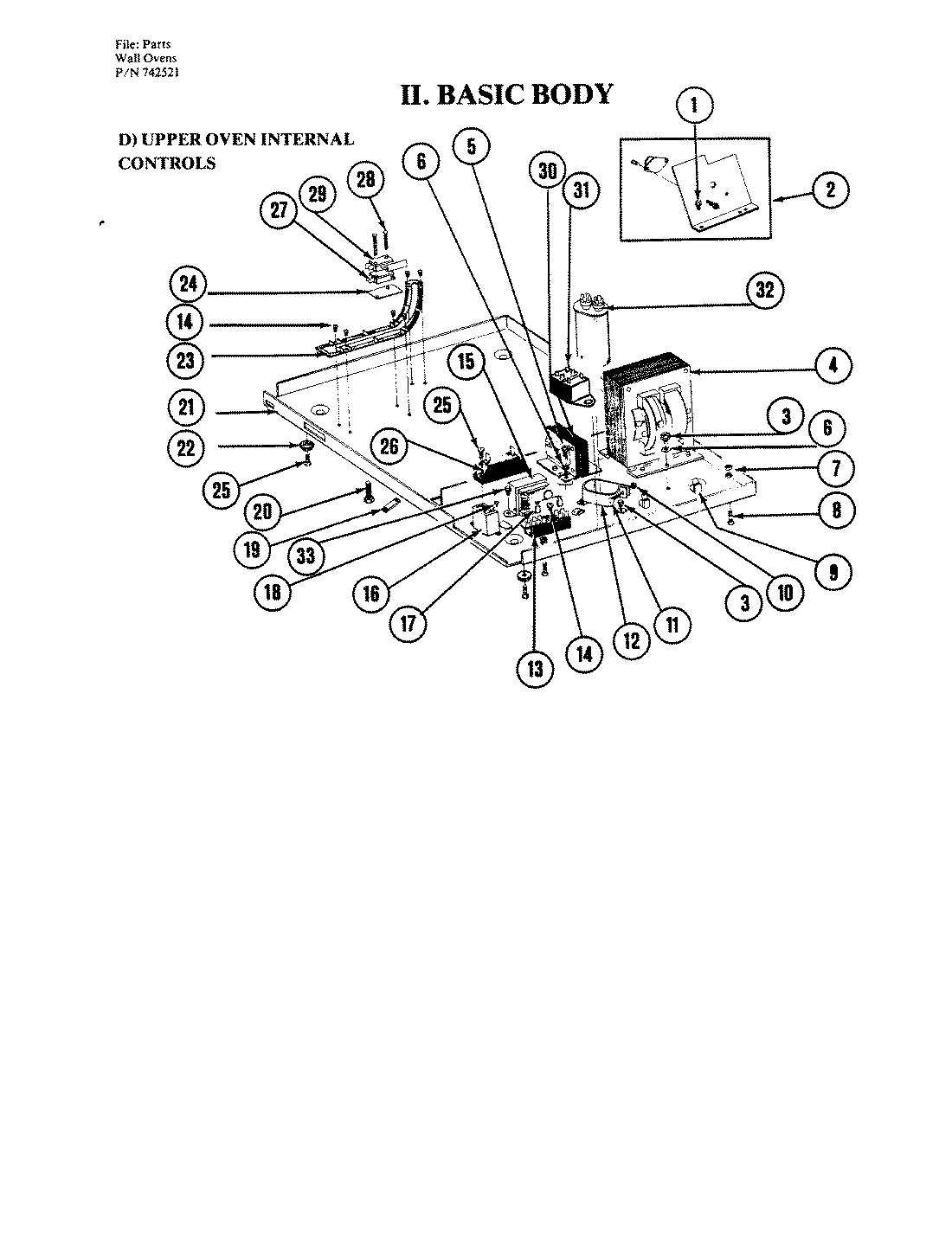

04 - BODY (UPPER)

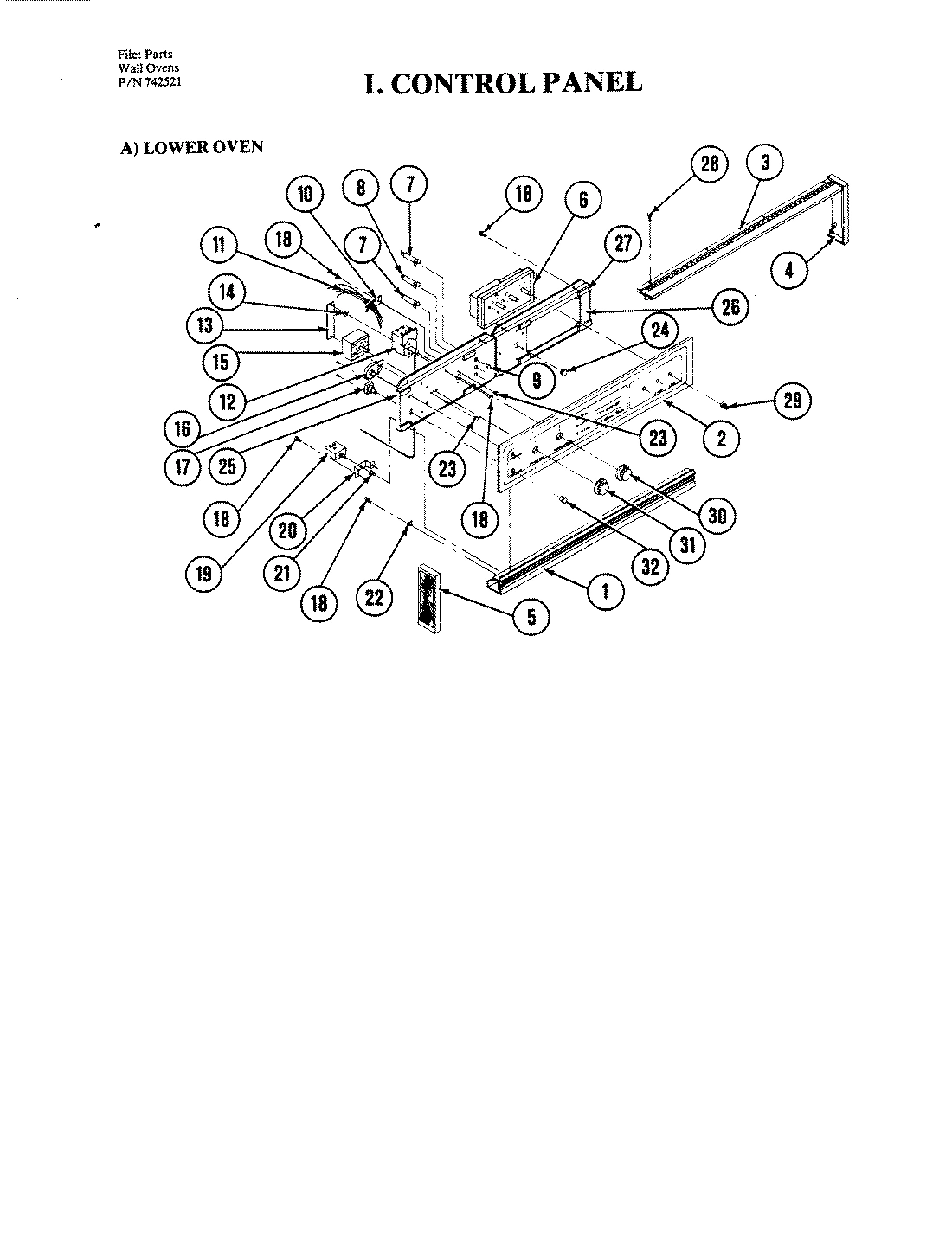

05 - CONTROL PANEL (LOWER)

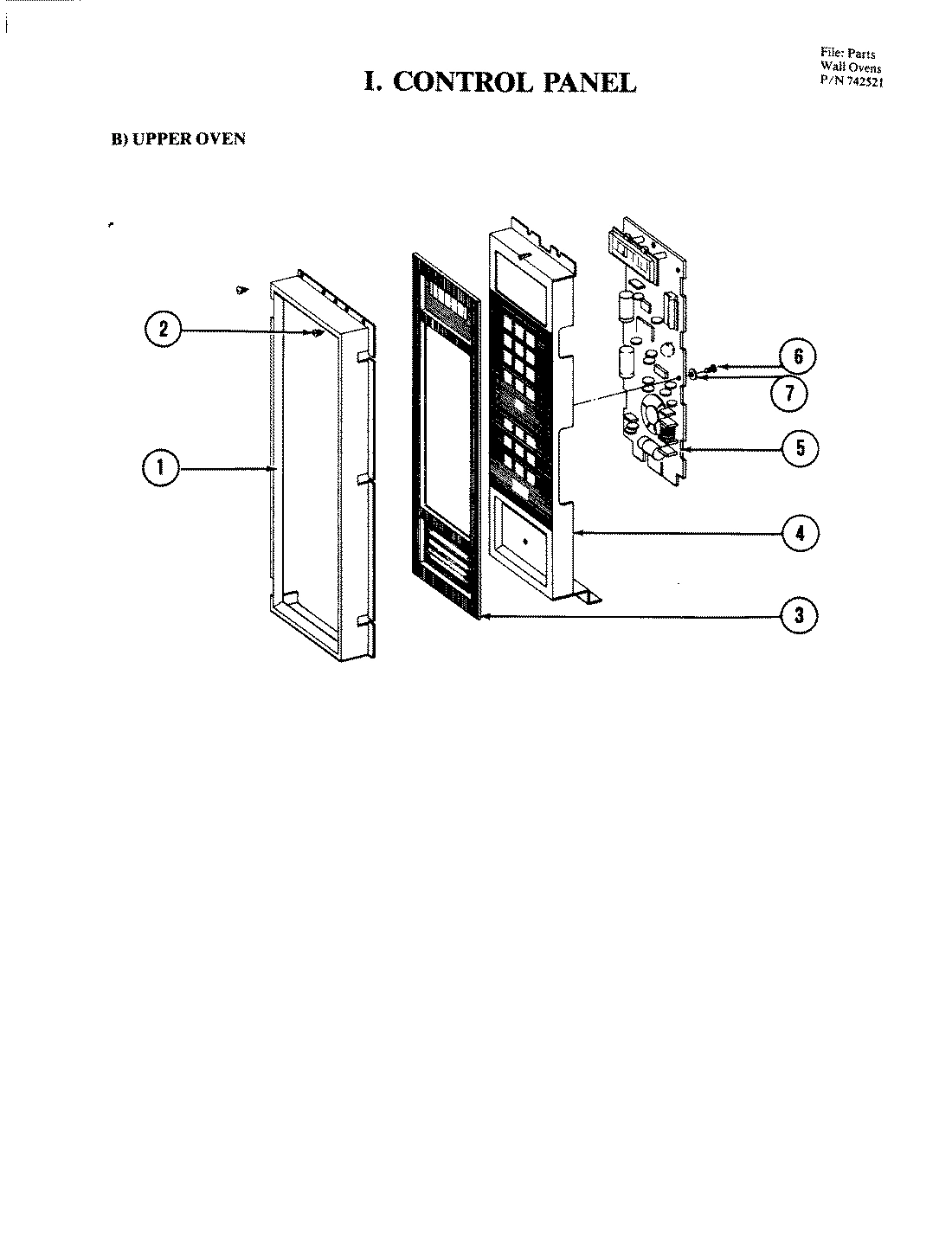

06 - CONTROL PANEL (UPPER)

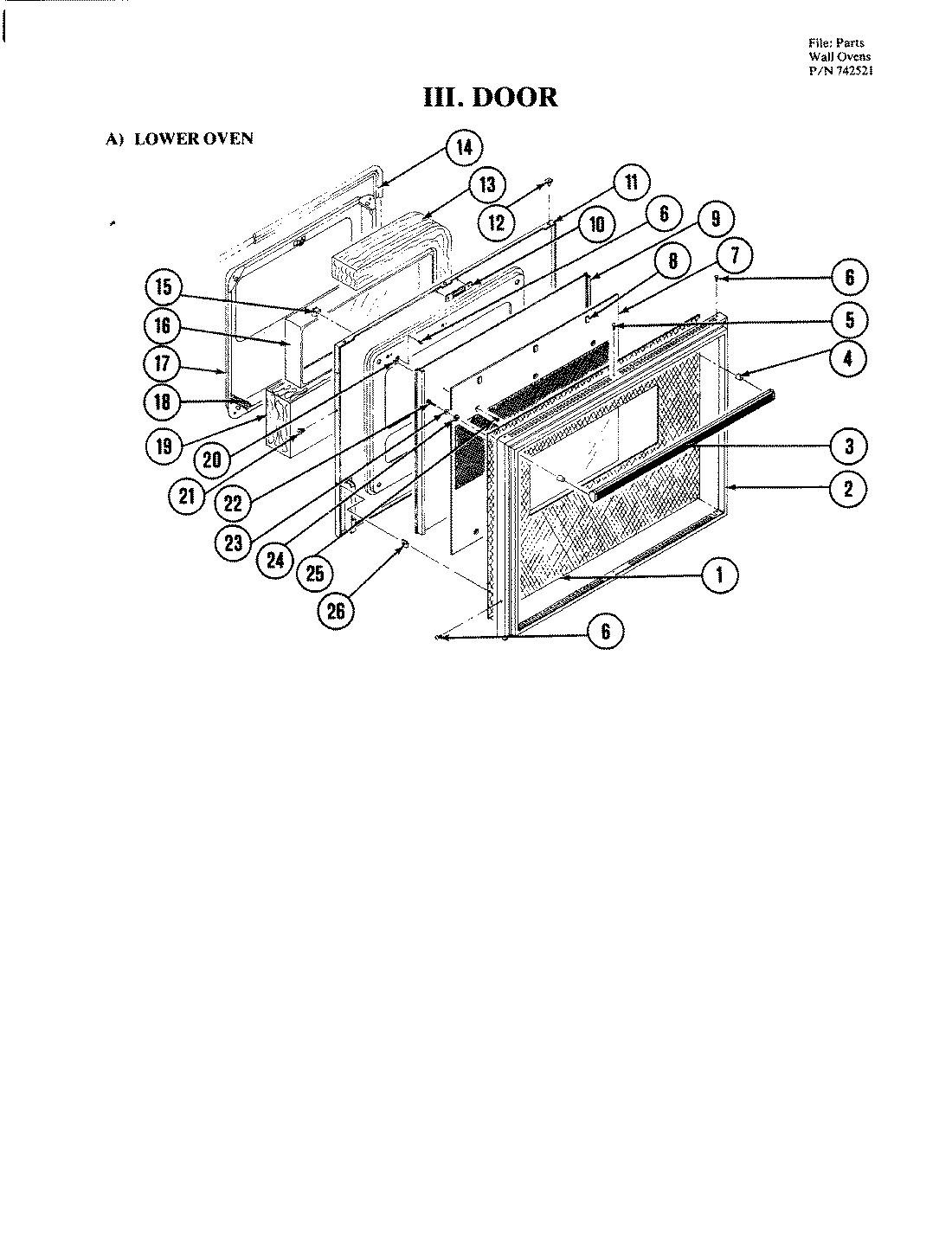

07 - DOOR (LOWER)

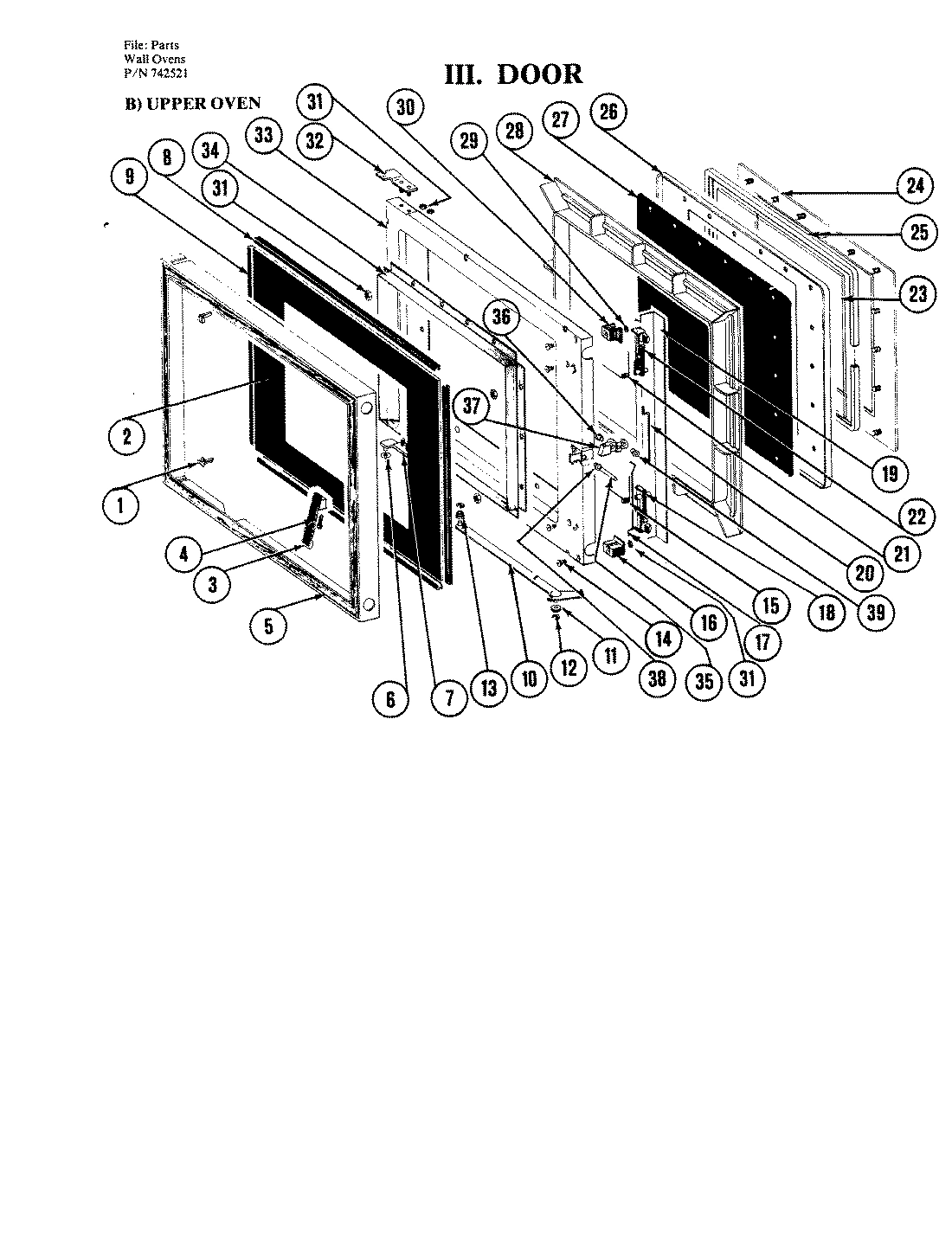

08 - DOOR (UPPER)

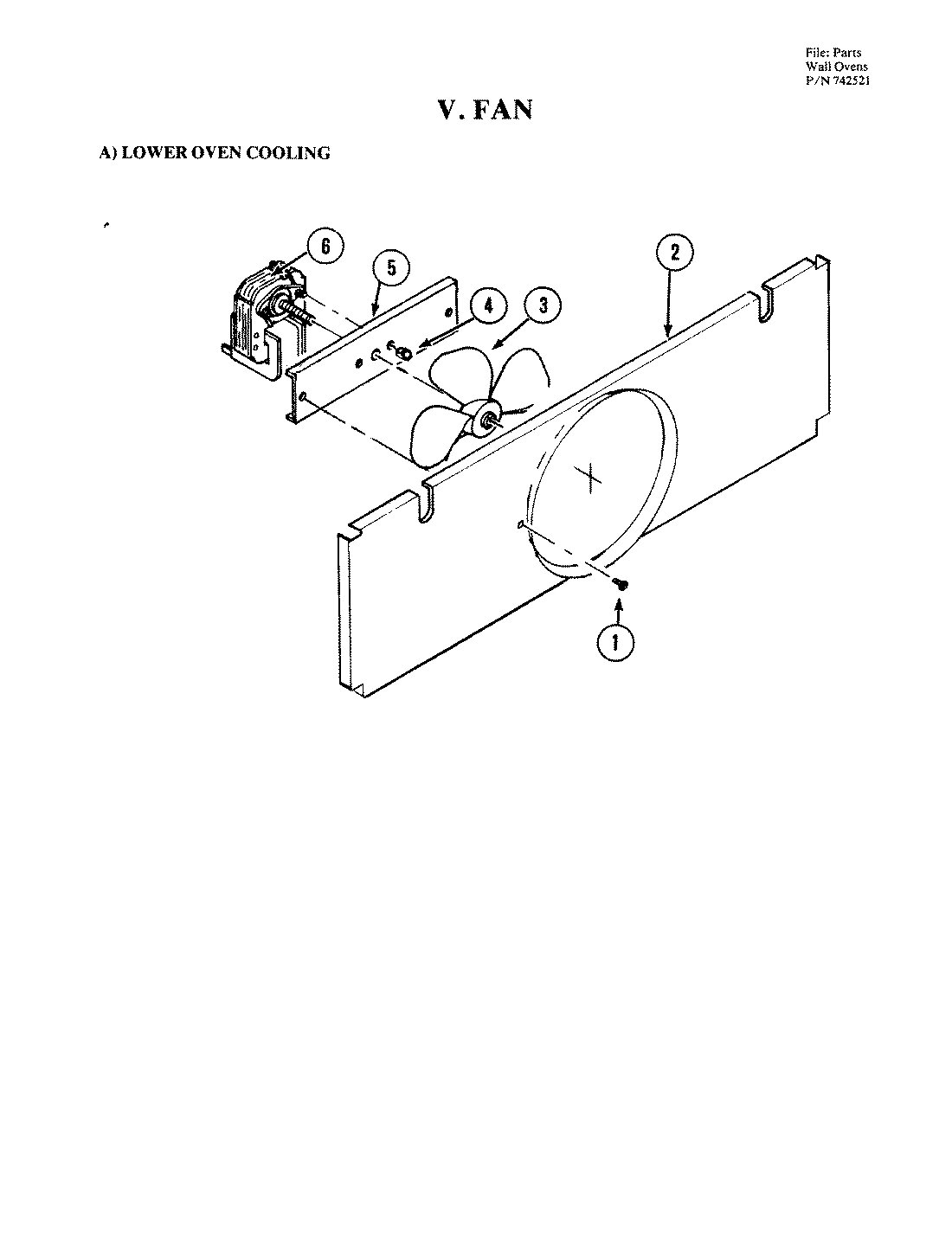

09 - FAN (LOWER)
10 - FAN (LOWER)

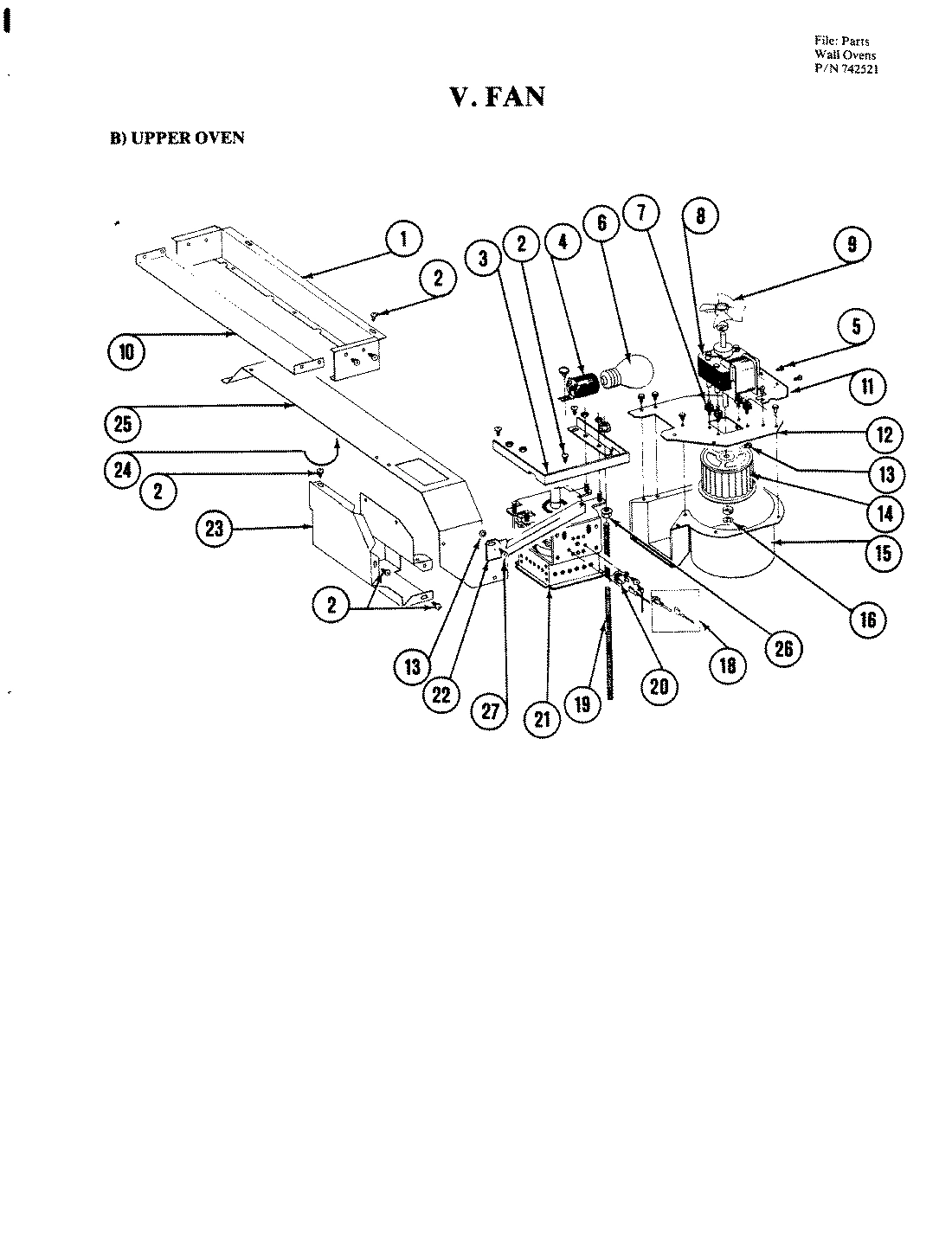

11 - FAN (UPPER)

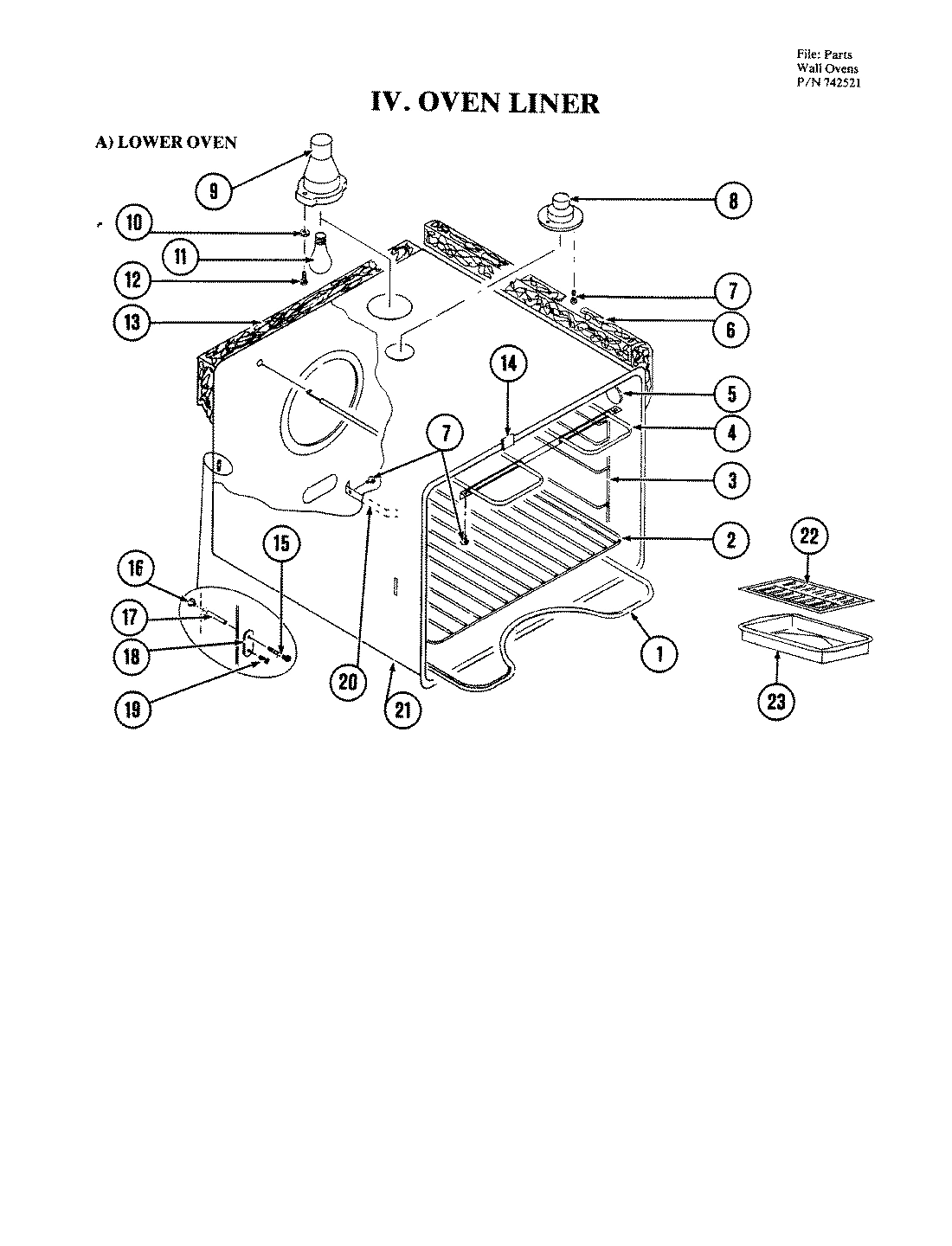

12 - OVEN (LOWER)

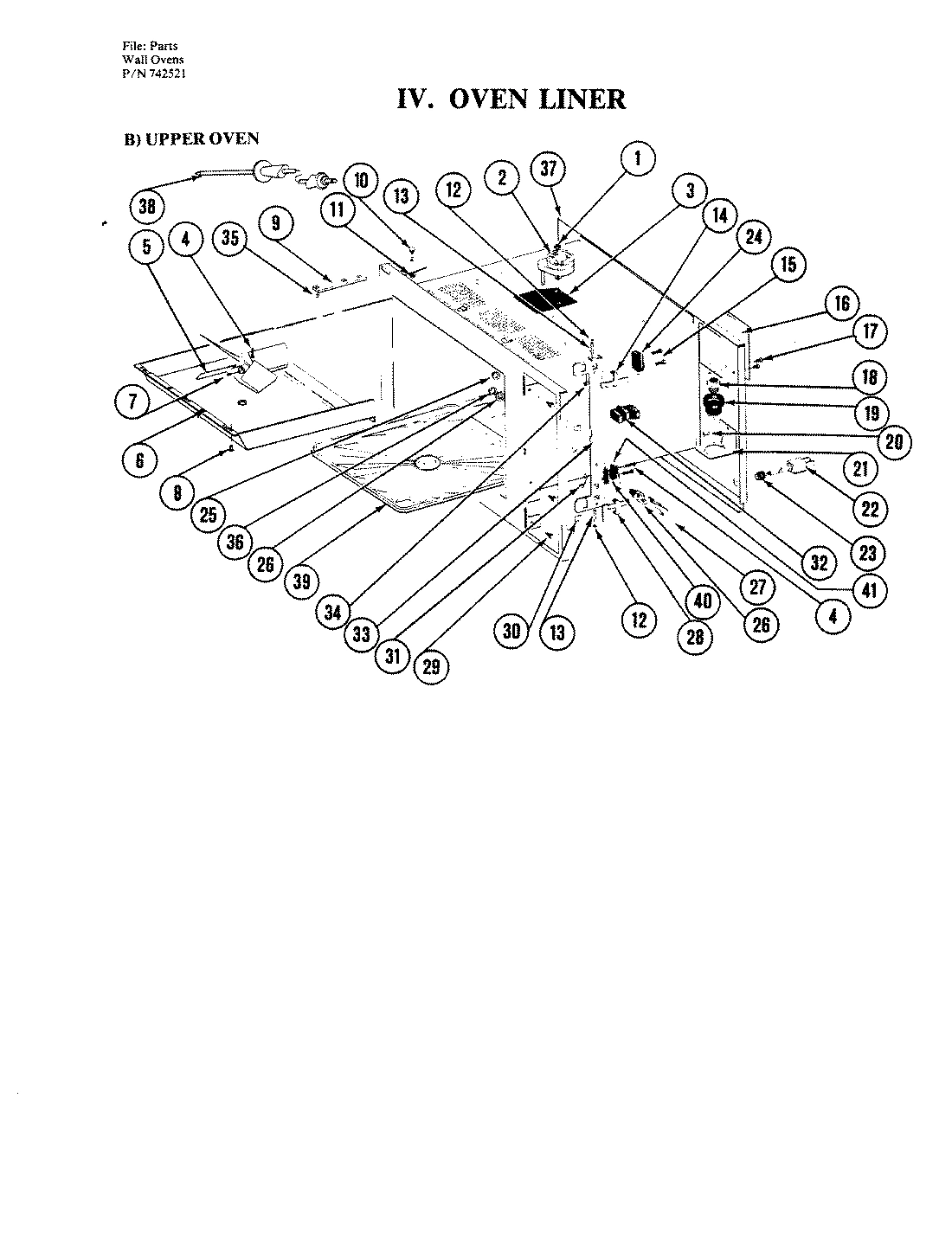

13 - OVEN (UPPER)
Common parts from model Maytag W224 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
MAY 701663 MAY 701663 Contact Us For Availability
1
MAY Y700556 MAY Y700556 Contact Us For Availability
1
MAY 766008 MAY 766008 Contact Us For Availability
1
MAY 766149 MAY 766149 Contact Us For Availability
1
MAY 702928 MAY 702928 Contact Us For Availability
1
MAY 766000 MAY 766000 Contact Us For Availability
1
MAY 701642 MAY 701642 Contact Us For Availability
1
MAY 766052 MAY 766052 Contact Us For Availability
1
MAY 701526 MAY 701526 Contact Us For Availability
1
MAY 702592 MAY 702592 Contact Us For Availability
1
MAY 766017 MAY 766017 Contact Us For Availability
1
MAY Y701724 MAY Y701724 Contact Us For Availability
1
MAY 766091 MAY 766091 Contact Us For Availability
2
MAY 702112 MAY 702112 Contact Us For Availability
2
MAY 766010 MAY 766010 Contact Us For Availability
2
MAY 766014 MAY 766014 Contact Us For Availability
2
MAY 766035 MAY 766035 Contact Us For Availability
2
MAY 701636 MAY 701636 Contact Us For Availability
2
MAY 702774 MAY 702774 Contact Us For Availability
2
MAY 766049 MAY 766049 Contact Us For Availability
2
MAY 702044 MAY 702044 Contact Us For Availability
2
MAY Y715957 MAY Y715957 Contact Us For Availability
2
MAY 701707 MAY 701707 Contact Us For Availability
2
MAY Y701725 MAY Y701725 Contact Us For Availability
2
MAY 766092 MAY 766092 Contact Us For Availability
3
MAY Y700463 MAY Y700463 Contact Us For Availability
3
MAY 701666 MAY 701666 Contact Us For Availability
3
MAY 766011 MAY 766011 Contact Us For Availability
3
MAY 701634 MAY 701634 Contact Us For Availability
3
MAY 766001 MAY 766001 Contact Us For Availability
3
MAY 702930 MAY 702930 Contact Us For Availability
3
MAY 766046 MAY 766046 Contact Us For Availability
3
MAY 701718 MAY 701718 Contact Us For Availability
3
MAY 766098 MAY 766098 Contact Us For Availability
3
MAY Y701728 MAY Y701728 Contact Us For Availability
3
MAY 766093 MAY 766093 Contact Us For Availability
4
MAY 703044 MAY 703044 Contact Us For Availability
4
MAY 701667 MAY 701667 Contact Us For Availability
4
MAY 766034 MAY 766034 Contact Us For Availability
4
MAY 766036 MAY 766036 Contact Us For Availability
4
MAY 701619 MAY 701619 Contact Us For Availability
4
MAY 766171 MAY 766171 Contact Us For Availability
4
MAY 701832 MAY 701832 Contact Us For Availability
4
MAY 701709 MAY 701709 Contact Us For Availability
4
MAY 766094 MAY 766094 Contact Us For Availability
4
MAY 708764 MAY 708764 Contact Us For Availability
4
MAY Y701729 MAY Y701729 Contact Us For Availability
4
MAY 766123 MAY 766123 Contact Us For Availability
5
MAY 702952 MAY 702952 Contact Us For Availability
5
MAY 701668 MAY 701668 Contact Us For Availability
5
MAY 701848 MAY 701848 Contact Us For Availability
5
MAY Y708733 MAY Y708733 Contact Us For Availability
5
MAY 766012 MAY 766012 Contact Us For Availability
5
MAY 766029 MAY 766029 Contact Us For Availability
5
MAY 701635 MAY 701635 Contact Us For Availability
5
MAY 766002 MAY 766002 Contact Us For Availability
5
MAY Y707347 MAY Y707347 Contact Us For Availability
5
MAY 766048 MAY 766048 Contact Us For Availability
5
MAY 701720 MAY 701720 Contact Us For Availability
5
MAY 715910 MAY 715910 Contact Us For Availability
5
MAY 766101 MAY 766101 Contact Us For Availability
5
MAY 712088 MAY 712088 Contact Us For Availability
5
MAY 766135 MAY 766135 Contact Us For Availability
6
MAY 702950 MAY 702950 Contact Us For Availability
6
MAY 701669 MAY 701669 Contact Us For Availability
6
MAY 766028 MAY 766028 Contact Us For Availability
6
MAY 703420 MAY 703420 Contact Us For Availability
6
MAY 701722 MAY 701722 Contact Us For Availability
6
MAY Y701721 MAY Y701721 Contact Us For Availability
6
MAY 701711 MAY 701711 Contact Us For Availability
6
MAY 766096 MAY 766096 Contact Us For Availability
6
MAY 701702 MAY 701702 Contact Us For Availability
6
MAY 766086 MAY 766086 Contact Us For Availability
7
MAY 701168 MAY 701168 Contact Us For Availability
7
MAY 701670 MAY 701670 Contact Us For Availability
7
MAY 766009 MAY 766009 Contact Us For Availability
7
MAY 766120 MAY 766120 Contact Us For Availability
7
MAY Y700557 MAY Y700557 Contact Us For Availability
7
MAY 766005 MAY 766005 Contact Us For Availability
7
MAY 701644 MAY 701644 Contact Us For Availability
7
MAY 700906 MAY 700906 Contact Us For Availability
7
MAY 766055 MAY 766055 Contact Us For Availability
7
MAY 701712 MAY 701712 Contact Us For Availability
7
MAY 766104 MAY 766104 Contact Us For Availability
7
MAY 766136 MAY 766136 Contact Us For Availability
8
MAY 702956 MAY 702956 Contact Us For Availability
8
MAY 701671 MAY 701671 Contact Us For Availability
8
MAY 766121 MAY 766121 Contact Us For Availability
8
MAY 715396 MAY 715396 Contact Us For Availability
8
MAY 766050 MAY 766050 Contact Us For Availability
8
MAY 701713 MAY 701713 Contact Us For Availability
8
MAY 766103 MAY 766103 Contact Us For Availability
8
MAY 701738 MAY 701738 Contact Us For Availability
8
MAY 766132 MAY 766132 Contact Us For Availability
9
MAY 702955 MAY 702955 Contact Us For Availability
9
MAY 701672 MAY 701672 Contact Us For Availability
9
MAY 766099 MAY 766099 Contact Us For Availability
9
MAY Y700630 MAY Y700630 Contact Us For Availability
9
MAY 701645 MAY 701645 Contact Us For Availability
9
MAY 766051 MAY 766051 Contact Us For Availability
9
MAY Y700601 MAY Y700601 Contact Us For Availability
9
MAY 766102 MAY 766102 Contact Us For Availability
9
MAY 715281 MAY 715281 Contact Us For Availability
9
MAY 766088 MAY 766088 Contact Us For Availability
10
MAY 701673 MAY 701673 Contact Us For Availability
10
MAY 701675 MAY 701675 Contact Us For Availability
10
MAY 702746 MAY 702746 Contact Us For Availability
10
MAY 766031 MAY 766031 Contact Us For Availability
10
MAY 702041 MAY 702041 Contact Us For Availability
10
MAY 766080 MAY 766080 Contact Us For Availability
10
MAY Y715563 MAY Y715563 Contact Us For Availability
10
MAY 766144 MAY 766144 Contact Us For Availability
10
MAY 701736 MAY 701736 Contact Us For Availability
10
MAY 766090 MAY 766090 Contact Us For Availability
11
MAY 702951 MAY 702951 Contact Us For Availability
11
MAY 701674 MAY 701674 Contact Us For Availability
11
MAY 701776 MAY 701776 Contact Us For Availability
11
MAY 701647 MAY 701647 Contact Us For Availability
11
MAY 766081 MAY 766081 Contact Us For Availability
11
MAY 701715 MAY 701715 Contact Us For Availability
11
MAY 766110 MAY 766110 Contact Us For Availability
11
MAY 766089 MAY 766089 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY Y701379 MAY Y701379 Contact Us For Availability
12
MAY 701676 MAY 701676 Contact Us For Availability
12
MAY 701716 MAY 701716 Contact Us For Availability
12
MAY 766030 MAY 766030 Contact Us For Availability
12
MAY Y703148 MAY Y703148 Contact Us For Availability
12
MAY 701643 MAY 701643 Contact Us For Availability
12
MAY 766082 MAY 766082 Contact Us For Availability
12
MAY 766105 MAY 766105 Contact Us For Availability
12
MAY 715485 MAY 715485 Contact Us For Availability
12
MAY 766127 MAY 766127 Contact Us For Availability
13
MAY 702957 MAY 702957 Contact Us For Availability
13
MAY 701677 MAY 701677 Contact Us For Availability
13
MAY 766039 MAY 766039 Contact Us For Availability
13
MAY Y701623 MAY Y701623 Contact Us For Availability
13
MAY 701658 MAY 701658 Contact Us For Availability
13
MAY 766083 MAY 766083 Contact Us For Availability
13
MAY 766076 MAY 766076 Contact Us For Availability
13
MAY 701703 MAY 701703 Contact Us For Availability
13
MAY 766129 MAY 766129 Contact Us For Availability
14
MAY 701679 MAY 701679 Contact Us For Availability
14
MAY 766022 MAY 766022 Contact Us For Availability
14
MAY 712074 MAY 712074 Contact Us For Availability
14
MAY 701662 MAY 701662 Contact Us For Availability
14
MAY 766079 MAY 766079 Contact Us For Availability
14
MAY 766107 MAY 766107 Contact Us For Availability
14
MAY Y702618 MAY Y702618 Contact Us For Availability
14
MAY 766125 MAY 766125 Contact Us For Availability
15
MAY Y702105 MAY Y702105 Contact Us For Availability
15
MAY 766025 MAY 766025 Contact Us For Availability
15
MAY 703167 MAY 703167 Contact Us For Availability
15
MAY Y700503 MAY Y700503 Contact Us For Availability
15
MAY 766069 MAY 766069 Contact Us For Availability
15
MAY 766109 MAY 766109 Contact Us For Availability
15
MAY 701744 MAY 701744 Contact Us For Availability
15
MAY 766095 MAY 766095 Contact Us For Availability
16
MAY 712085 MAY 712085 Contact Us For Availability
16
MAY 701680 MAY 701680 Contact Us For Availability
16
MAY 766040 MAY 766040 Contact Us For Availability
16
MAY 701621 MAY 701621 Contact Us For Availability
16
MAY 766108 MAY 766108 Contact Us For Availability
16
MAY 715294 MAY 715294 Contact Us For Availability
16
MAY 766142 MAY 766142 Contact Us For Availability
17
MAY 701681 MAY 701681 Contact Us For Availability
17
MAY 766019 MAY 766019 Contact Us For Availability
17
MAY 766038 MAY 766038 Contact Us For Availability
17
MAY 766140 MAY 766140 Contact Us For Availability
17
MAY Y701620 MAY Y701620 Contact Us For Availability
17
MAY 712065 MAY 712065 Contact Us For Availability
17
MAY 766074 MAY 766074 Contact Us For Availability
17
MAY 701741 MAY 701741 Contact Us For Availability
18
MAY 712072 MAY 712072 Contact Us For Availability
18
MAY 701660 MAY 701660 Contact Us For Availability
18
MAY 766075 MAY 766075 Contact Us For Availability
18
MAY 701742 MAY 701742 Contact Us For Availability
18
MAY 766026 MAY 766026 Contact Us For Availability
19
MAY 701683 MAY 701683 Contact Us For Availability
19
MAY 701774 MAY 701774 Contact Us For Availability
19
MAY 701659 MAY 701659 Contact Us For Availability
19
MAY 766077 MAY 766077 Contact Us For Availability
19
MAY 766141 MAY 766141 Contact Us For Availability
19
MAY Y707745 MAY Y707745 Contact Us For Availability
19
MAY 766115 MAY 766115 Contact Us For Availability
20
MAY 701684 MAY 701684 Contact Us For Availability
20
MAY 766150 MAY 766150 Contact Us For Availability
20
MAY 702948 MAY 702948 Contact Us For Availability
20
MAY 701652 MAY 701652 Contact Us For Availability
20
MAY 766067 MAY 766067 Contact Us For Availability
20
MAY 766139 MAY 766139 Contact Us For Availability
20
MAY Y701745 MAY Y701745 Contact Us For Availability
20
MAY 766116 MAY 766116 Contact Us For Availability
21
MAY 701685 MAY 701685 Contact Us For Availability
21
MAY 766020 MAY 766020 Contact Us For Availability
21
MAY 702949 MAY 702949 Contact Us For Availability
21
MAY 701641 MAY 701641 Contact Us For Availability
21
MAY 766068 MAY 766068 Contact Us For Availability
21
MAY 766097 MAY 766097 Contact Us For Availability
21
MAY 701733 MAY 701733 Contact Us For Availability
21
MAY 766100 MAY 766100 Contact Us For Availability
22
MAY 701688 MAY 701688 Contact Us For Availability
22
MAY 766045 MAY 766045 Contact Us For Availability
22
MAY 701609 MAY 701609 Contact Us For Availability
22
MAY Y700570 MAY Y700570 Contact Us For Availability
22
MAY 766065 MAY 766065 Contact Us For Availability
22
MAY 766111 MAY 766111 Contact Us For Availability
22
MAY 703165 MAY 703165 Contact Us For Availability
22
MAY 766066 MAY 766066 Contact Us For Availability
23
MAY Y701686 MAY Y701686 Contact Us For Availability
23
MAY 766021 MAY 766021 Contact Us For Availability
23
MAY Y702124 MAY Y702124 Contact Us For Availability
23
MAY Y700446 MAY Y700446 Contact Us For Availability
23
MAY 766062 MAY 766062 Contact Us For Availability
23
MAY 766015 MAY 766015 Contact Us For Availability
23
MAY 703164 MAY 703164 Contact Us For Availability
23
MAY 766130 MAY 766130 Contact Us For Availability
24
MAY 701687 MAY 701687 Contact Us For Availability
24
MAY 707365 MAY 707365 Contact Us For Availability
24
MAY 766151 MAY 766151 Contact Us For Availability
24
MAY 702286 MAY 702286 Contact Us For Availability
24
MAY 715939 MAY 715939 Contact Us For Availability
24
MAY 766064 MAY 766064 Contact Us For Availability
24
MAY 766146 MAY 766146 Contact Us For Availability
24
MAY 766124 MAY 766124 Contact Us For Availability
25
MAY 701689 MAY 701689 Contact Us For Availability
25
MAY 766043 MAY 766043 Contact Us For Availability
25
MAY 701615 MAY 701615 Contact Us For Availability
25
MAY 766063 MAY 766063 Contact Us For Availability
25
MAY 766018 MAY 766018 Contact Us For Availability
25
MAY 766156 MAY 766156 Contact Us For Availability
26
MAY 712086 MAY 712086 Contact Us For Availability
26
MAY 766042 MAY 766042 Contact Us For Availability
26
MAY 701617 MAY 701617 Contact Us For Availability
26
MAY 701149 MAY 701149 Contact Us For Availability
26
MAY Y700834 MAY Y700834 Contact Us For Availability
26
MAY 766061 MAY 766061 Contact Us For Availability
26
MAY 766113 MAY 766113 Contact Us For Availability
27
MAY Y701690 MAY Y701690 Contact Us For Availability
27
MAY 701618 MAY 701618 Contact Us For Availability
27
MAY 766060 MAY 766060 Contact Us For Availability
27
MAY 766133 MAY 766133 Contact Us For Availability
27
MAY 766138 MAY 766138 Contact Us For Availability
28
MAY 701691 MAY 701691 Contact Us For Availability
28
MAY 766143 MAY 766143 Contact Us For Availability
28
MAY 712066 MAY 712066 Contact Us For Availability
28
MAY 766059 MAY 766059 Contact Us For Availability
28
MAY 766126 MAY 766126 Contact Us For Availability
29
MAY 701692 MAY 701692 Contact Us For Availability
29
MAY 766003 MAY 766003 Contact Us For Availability
29
MAY Y702547 MAY Y702547 Contact Us For Availability
30
MAY 701694 MAY 701694 Contact Us For Availability
30
MAY 766027 MAY 766027 Contact Us For Availability
30
MAY 703057 MAY 703057 Contact Us For Availability
30
MAY 766078 MAY 766078 Contact Us For Availability
30
MAY 766112 MAY 766112 Contact Us For Availability
31
PANEL, OUTER (LT) MAY 701695 Contact Us For Availability
31
MAY 766044 MAY 766044 Contact Us For Availability
31
MAY 766152 MAY 766152 Contact Us For Availability
31
MAY Y703059 MAY Y703059 Contact Us For Availability
31
MAY 766058 MAY 766058 Contact Us For Availability
32
MAY 700596 MAY 700596 Contact Us For Availability
32
MAY 766033 MAY 766033 Contact Us For Availability
32
MAY 701610 MAY 701610 Contact Us For Availability
32
MAY 766057 MAY 766057 Contact Us For Availability
32
MAY 766118 MAY 766118 Contact Us For Availability
33
MAY 701697 MAY 701697 Contact Us For Availability
33
MAY 766056 MAY 766056 Contact Us For Availability
33
MAY 766128 MAY 766128 Contact Us For Availability
34
MAY 701698 MAY 701698 Contact Us For Availability
34
MAY 766053 MAY 766053 Contact Us For Availability
34
MAY 766131 MAY 766131 Contact Us For Availability
35
MAY 701699 MAY 701699 Contact Us For Availability
35
MAY 766054 MAY 766054 Contact Us For Availability
35
MAY 766073 MAY 766073 Contact Us For Availability
36
MAY 701638 MAY 701638 Contact Us For Availability
36
MAY 766070 MAY 766070 Contact Us For Availability
36
MAY 766134 MAY 766134 Contact Us For Availability
37
MAY 701700 MAY 701700 Contact Us For Availability
37
MAY 701701 MAY 701701 Contact Us For Availability
37
MAY 766072 MAY 766072 Contact Us For Availability
38
MAY 701704 MAY 701704 Contact Us For Availability
38
MAY 712089 MAY 712089 Contact Us For Availability
38
MAY 766071 MAY 766071 Contact Us For Availability
38
MAY 766154 MAY 766154 Contact Us For Availability
39
MAY 703095 MAY 703095 Contact Us For Availability
39
MAY 766085 MAY 766085 Contact Us For Availability
40
MAY 701706 MAY 701706 Contact Us For Availability
40
MAY 766023 MAY 766023 Contact Us For Availability
41
WPL 707407 No Longer Available
41
MAY 766024 MAY 766024 Contact Us For Availability
42
MAY Y702750 MAY Y702750 Contact Us For Availability
47
MAY Y708310 MAY Y708310 Contact Us For Availability
× ![]()
