Model Whirlpool W205KGW WASHER – Common Parts & Diagrams

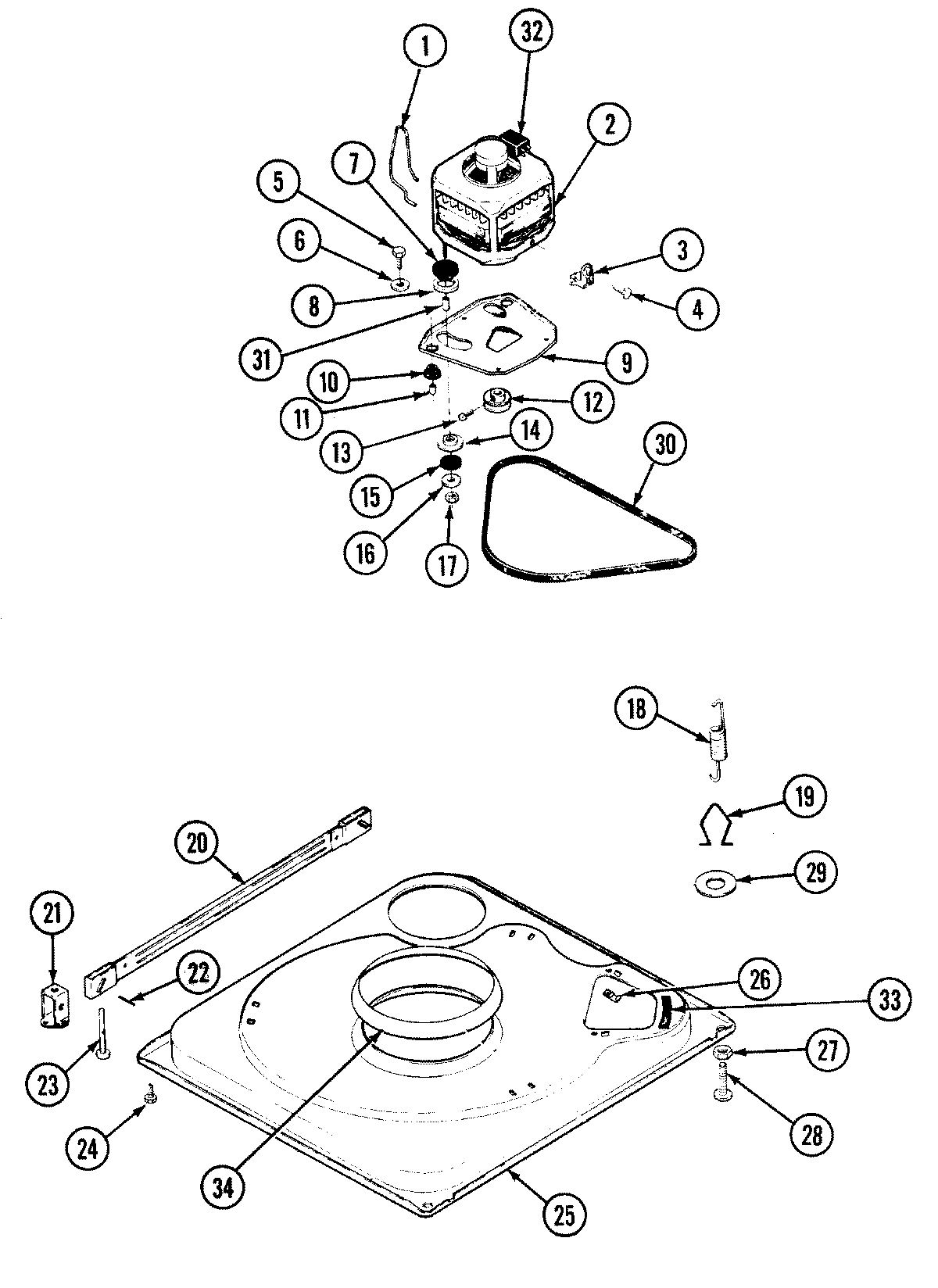

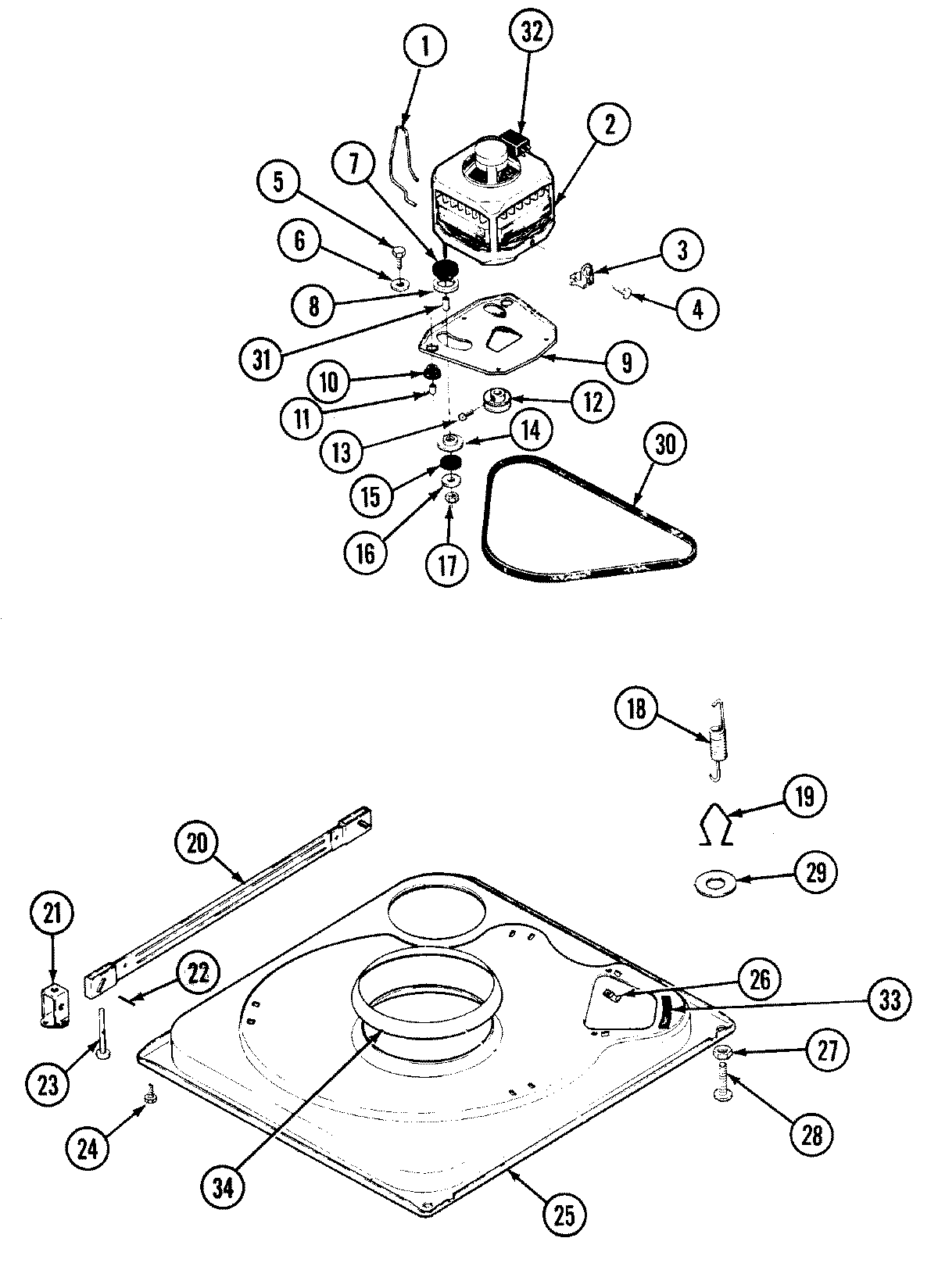

01 - BASE
Common parts from model Whirlpool W205KGW WASHER
2
MOTOR REPLACEMENT KIT WPL LA2003 Contact Us For Availability
3
SLIDE, FOOT WPL 339945 Contact Us For Availability
4
SCREW PURCHASE WPL 257418 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
8
WASHER WPL 339944 Contact Us For Availability
9
PLATE, MOTOR WPL 352810 Contact Us For Availability
11
SPACER WPL 257831 Contact Us For Availability
12
PULLEY (50HZ) WPL 331171 Contact Us For Availability
13
SET SCREW WPL 257117 Contact Us For Availability
14
MOTOR SLIDE WPL 339943 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
18
SPRING, SUSPENSION WPL 353658 Contact Us For Availability
19
HOOK, SUSPENSION SPRING WPL 352976 Contact Us For Availability
20
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
23
FOOT, SELF STABILIZER WPL 352050 Contact Us For Availability
24
FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability
25
BASE WPL 352984 Contact Us For Availability
26
SPEEDNUT WPL 257838 Contact Us For Availability
27
HEX NUT WPL 257915 Contact Us For Availability
28
FOOT, FRONT WPL 350772 Contact Us For Availability
28
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
29
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
30
BELT, DRIVE WPL 352279 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
32
SWITCH, MOTOR WPL 339765 Contact Us For Availability
33
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
34
SNUBBER WPL 353788 Contact Us For Availability
× ![]()
