Model Maytag W200 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

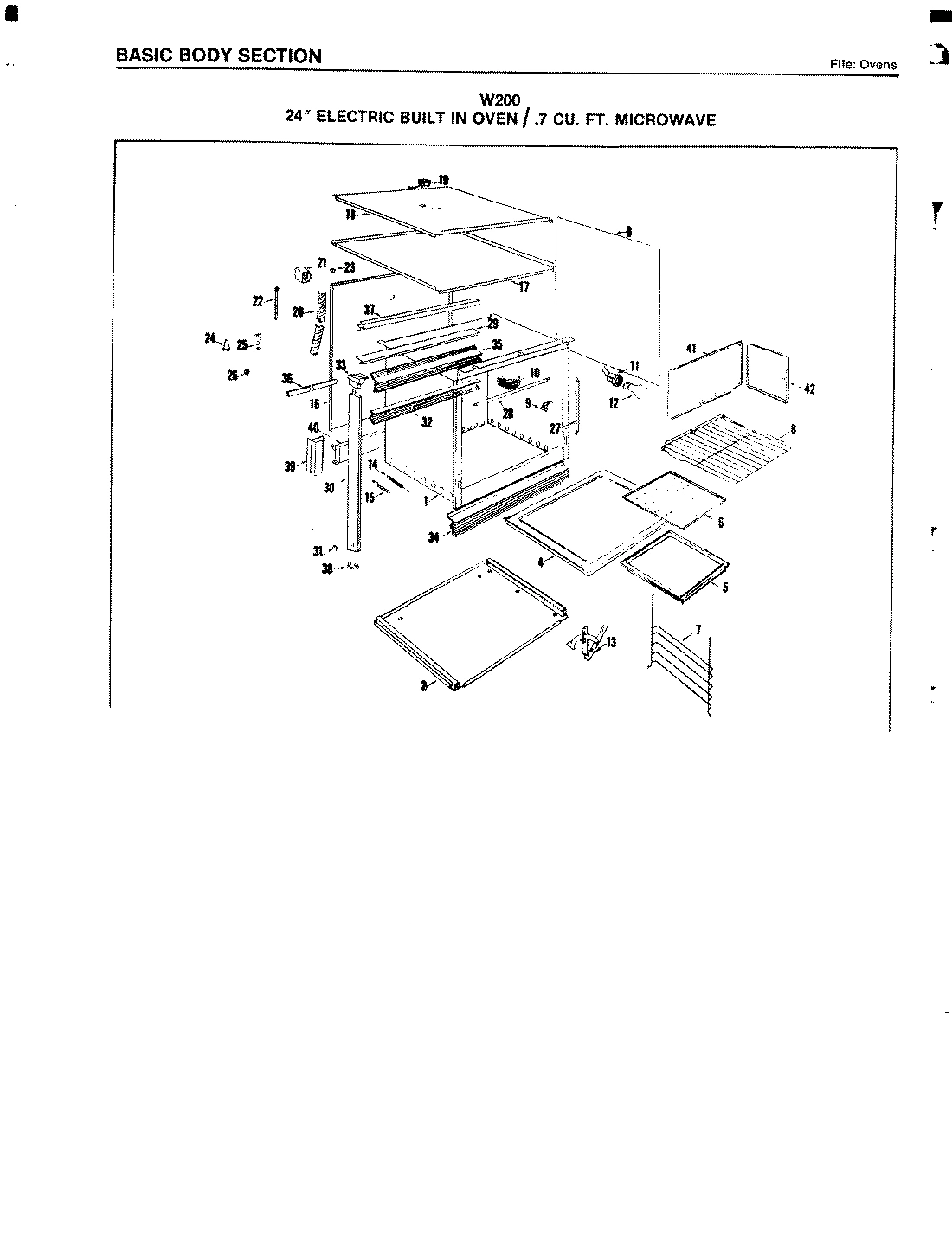

01 - BODY

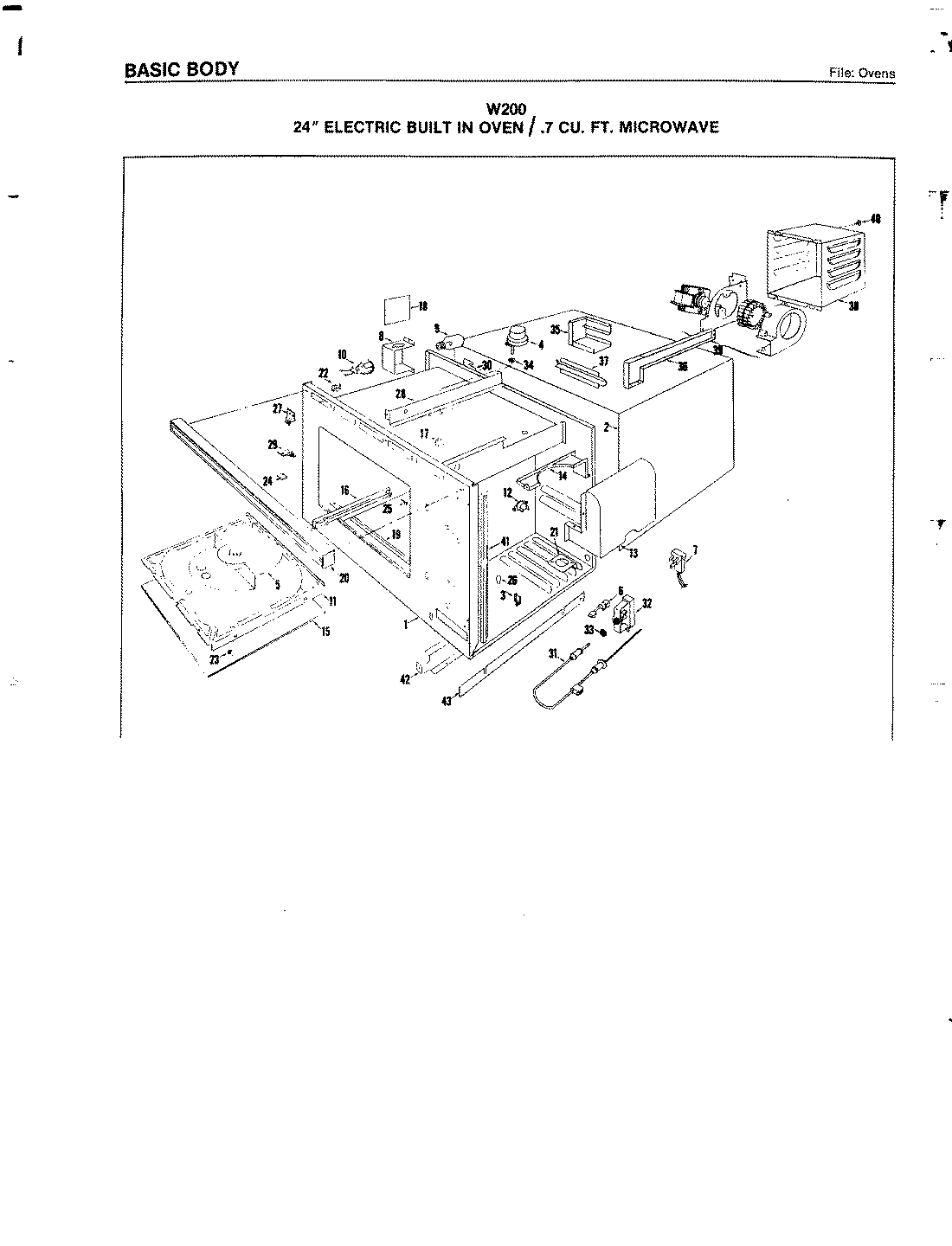

02 - BODY (MICROWAVE)

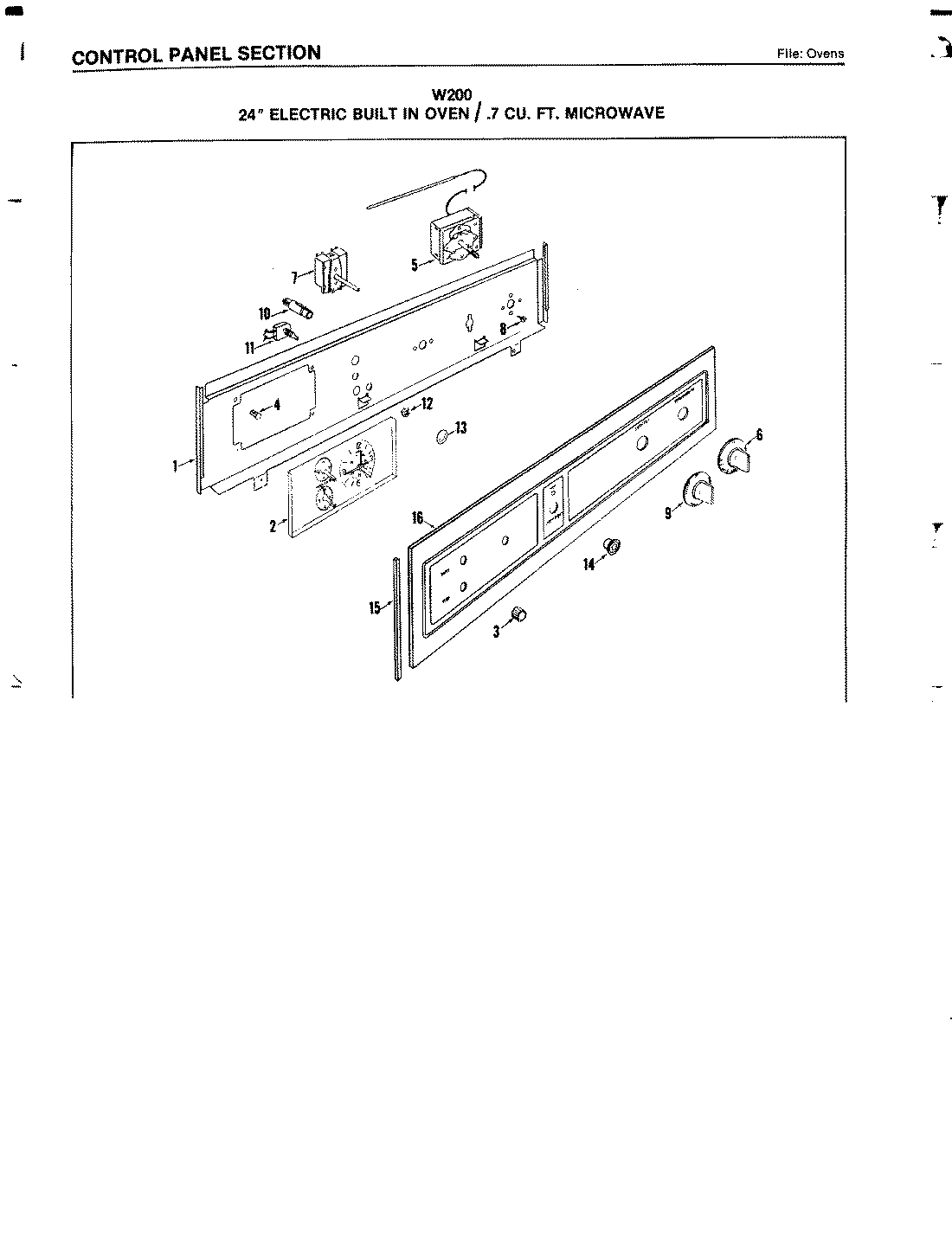

03 - CONTROL PANEL

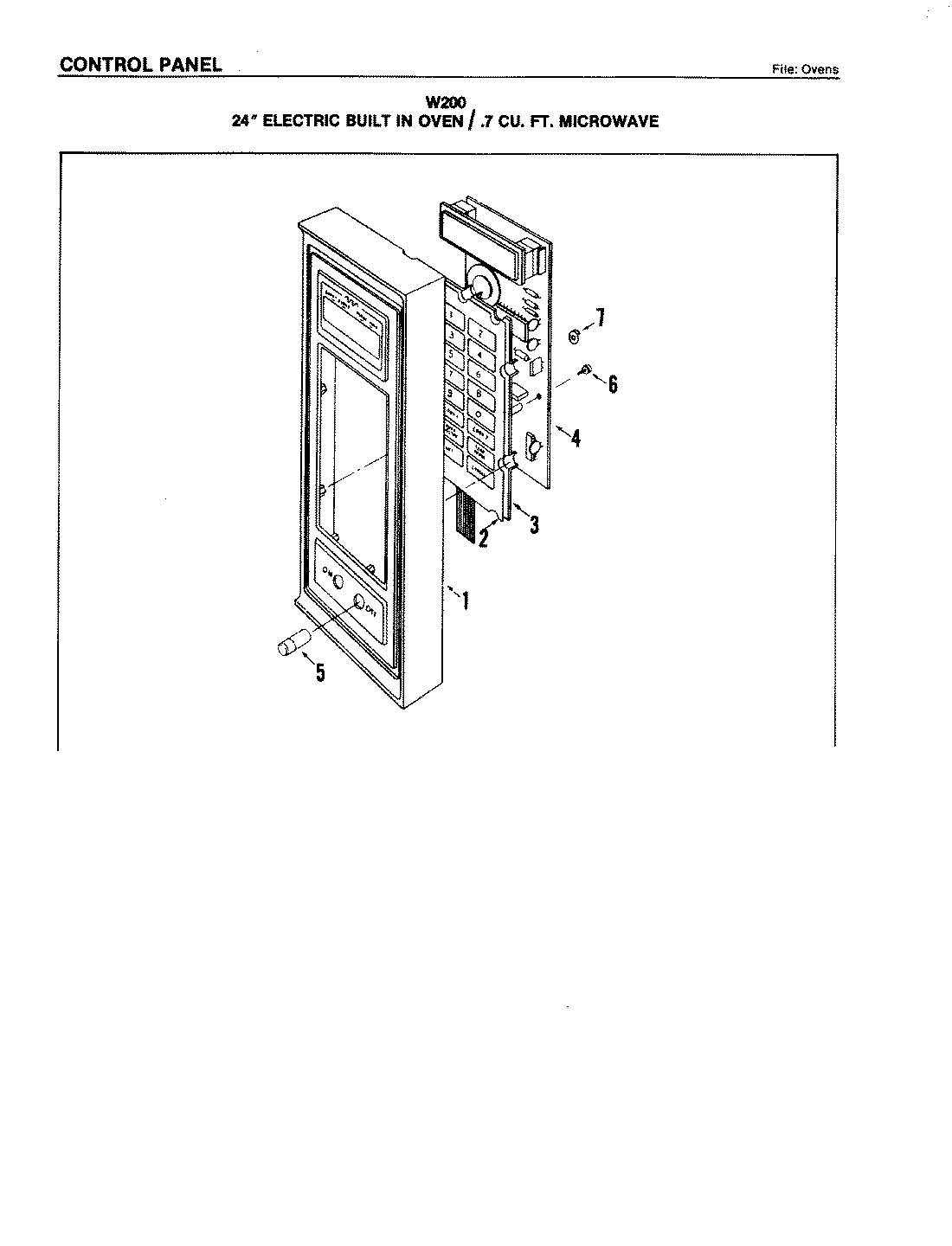

04 - CONTROL PANEL (MICROWAVE)

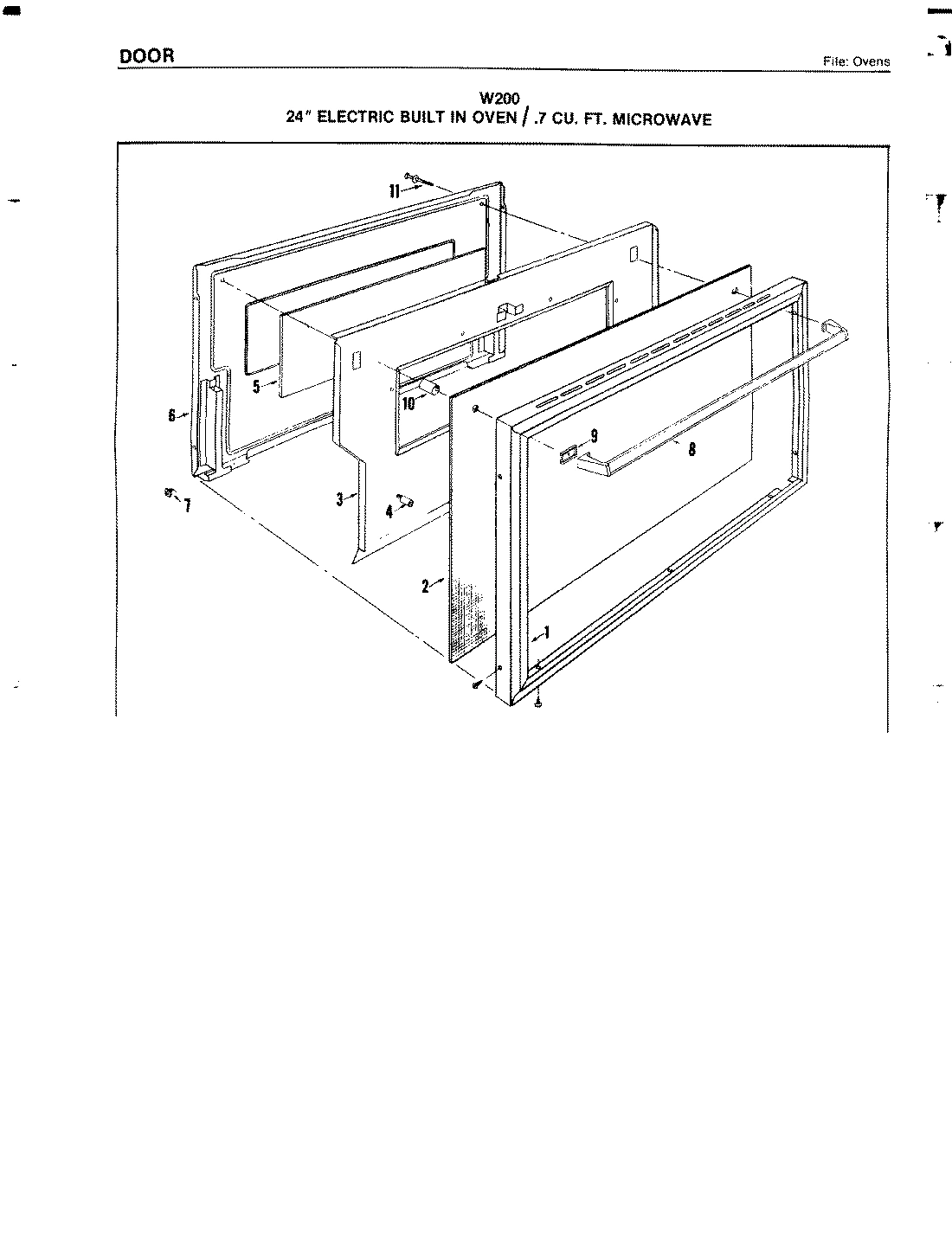

05 - DOOR

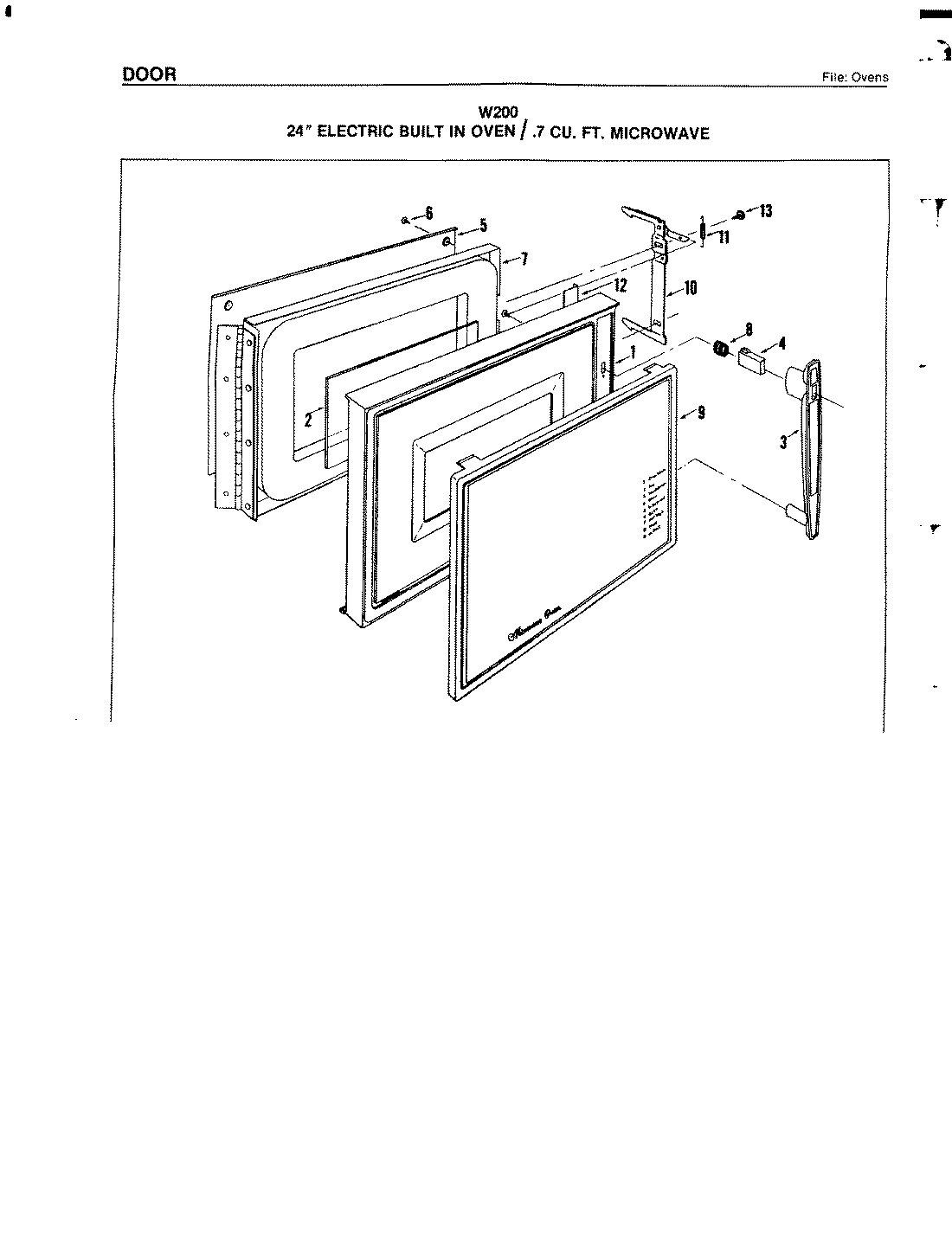

06 - DOOR (MICROWAVE)

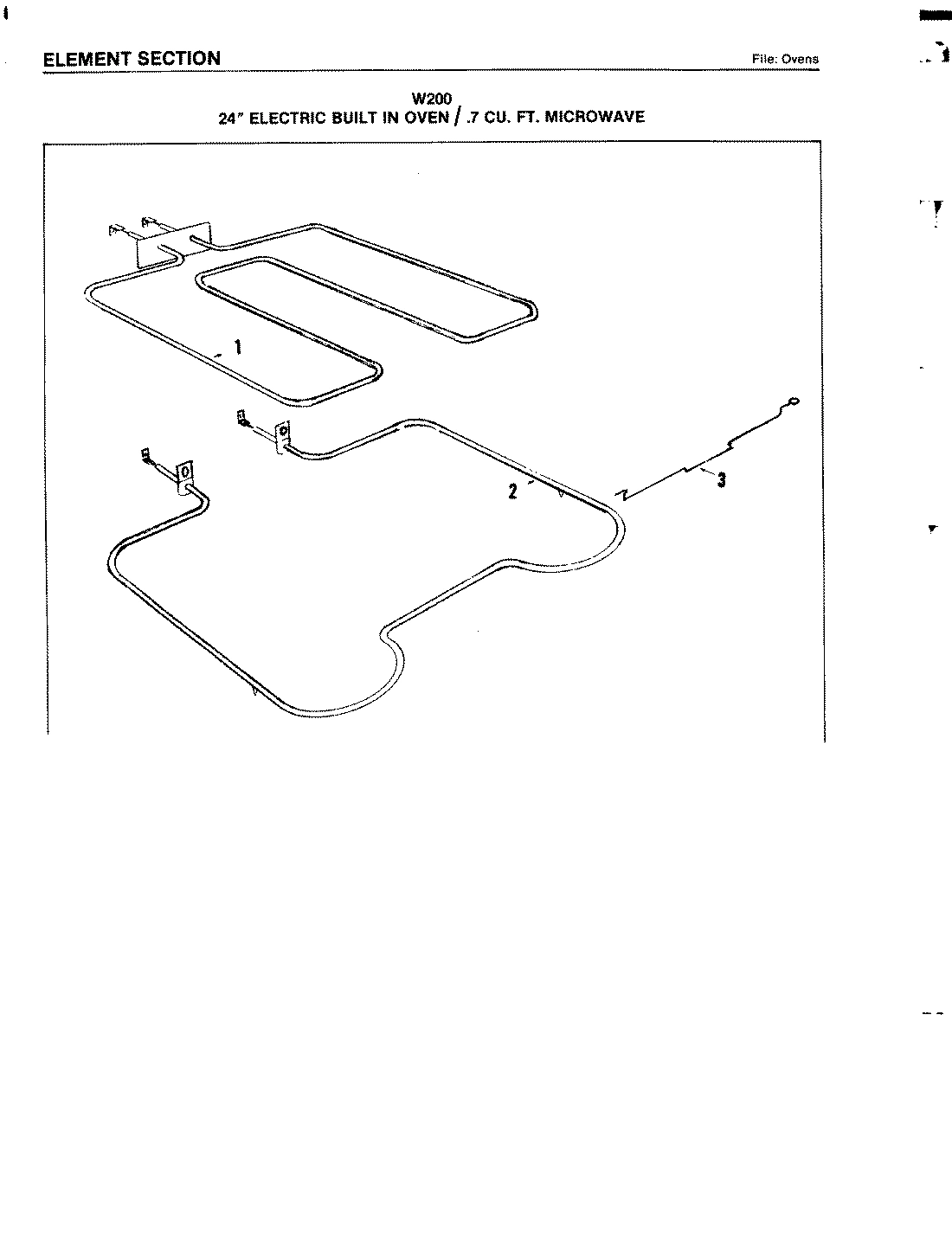

07 - ELEMENTS

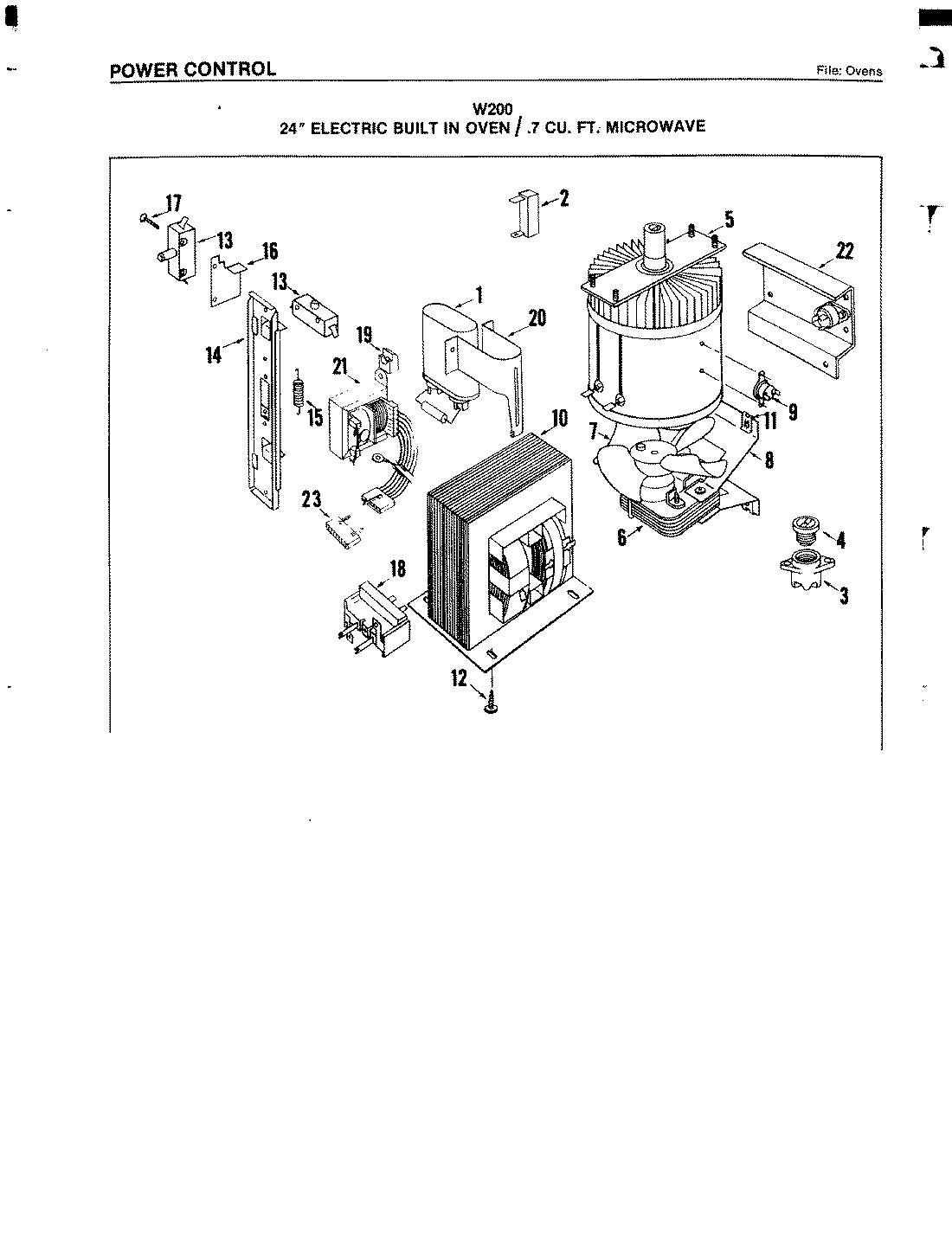

08 - POWER CONTROL (MICROWAVE)
Common parts from model Maytag W200 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
NOT REQUIRED PART OR SEE NOTE WRAPPER-BASE & MAY W10124350 Contact Us For Availability
1
MAY 701259 MAY 701259 Contact Us For Availability
1
MAY 701258 MAY 701258 Contact Us For Availability
1
MAY 701302 MAY 701302 Contact Us For Availability
1
MAY 701257 MAY 701257 Contact Us For Availability
1
MAY Y700129 MAY Y700129 Contact Us For Availability
1
MAY 700187 MAY 700187 Contact Us For Availability
2
MAY 701186 MAY 701186 Contact Us For Availability
2
MAY 701315 MAY 701315 Contact Us For Availability
2
MAY 701200 MAY 701200 Contact Us For Availability
2
MAY 701294 MAY 701294 Contact Us For Availability
2
MAY 701223 MAY 701223 Contact Us For Availability
2
MAY 701226 MAY 701226 Contact Us For Availability
2
MAY 701211 MAY 701211 Contact Us For Availability
2
MAY 701269 MAY 701269 Contact Us For Availability
2
MAY 771068 MAY 771068 Contact Us For Availability
3
MAY 701314 MAY 701314 Contact Us For Availability
3
MAY 771087 MAY 771087 Contact Us For Availability
3
MAY 701241 MAY 701241 Contact Us For Availability
3
MAY 701256 MAY 701256 Contact Us For Availability
3
MAY 700186 MAY 700186 Contact Us For Availability
3
MAY 701238 MAY 701238 Contact Us For Availability
3
MAY 701283 MAY 701283 Contact Us For Availability
3
MAY 701231 MAY 701231 Contact Us For Availability
3
MAY 700133 MAY 700133 Contact Us For Availability
3
MAY 771212 MAY 771212 Contact Us For Availability
4
MAY 701188 MAY 701188 Contact Us For Availability
4
MAY Y707347 MAY Y707347 Contact Us For Availability
4
MAY 701252 MAY 701252 Contact Us For Availability
4
MAY 701217 MAY 701217 Contact Us For Availability
4
MAY 701199 MAY 701199 Contact Us For Availability
4
MAY 701276 MAY 701276 Contact Us For Availability
4
MAY 701219 MAY 701219 Contact Us For Availability
4
MAY 701195 MAY 701195 Contact Us For Availability
4
MAY 771094 MAY 771094 Contact Us For Availability
5
MAY 700161 MAY 700161 Contact Us For Availability
5
MAY 701215 MAY 701215 Contact Us For Availability
5
MAY 701298 MAY 701298 Contact Us For Availability
5
MAY 701194 MAY 701194 Contact Us For Availability
5
MAY 701224 MAY 701224 Contact Us For Availability
5
MAY 701251 MAY 701251 Contact Us For Availability
5
MAY 700700 MAY 700700 Contact Us For Availability
5
MAY 771145 MAY 771145 Contact Us For Availability
6
MAY 700162 MAY 700162 Contact Us For Availability
6
MAY 771269 MAY 771269 Contact Us For Availability
6
MAY 701245 MAY 701245 Contact Us For Availability
6
MAY 771174 MAY 771174 Contact Us For Availability
6
MAY 701249 MAY 701249 Contact Us For Availability
6
MAY 701273 MAY 701273 Contact Us For Availability
6
MAY 700190 MAY 700190 Contact Us For Availability
7
MAY 701228 MAY 701228 Contact Us For Availability
7
MAY 701202 MAY 701202 Contact Us For Availability
7
MAY 701296 MAY 701296 Contact Us For Availability
7
MAY 701311 MAY 701311 Contact Us For Availability
7
MAY 771090 MAY 771090 Contact Us For Availability
7
MAY 771179 MAY 771179 Contact Us For Availability
7
MAY 701222 MAY 701222 Contact Us For Availability
7
MAY 701216 MAY 701216 Contact Us For Availability
8
MAY 701203 MAY 701203 Contact Us For Availability
8
MAY 700744 MAY 700744 Contact Us For Availability
8
MAY 701230 MAY 701230 Contact Us For Availability
8
MAY 701292 MAY 701292 Contact Us For Availability
8
MAY 701189 MAY 701189 Contact Us For Availability
8
MAY 701278 MAY 701278 Contact Us For Availability
8
MAY Y707149 MAY Y707149 Contact Us For Availability
9
MAY 700101 MAY 700101 Contact Us For Availability
9
MAY 701244 MAY 701244 Contact Us For Availability
9
MAY 701287 MAY 701287 Contact Us For Availability
9
MAY 701204 MAY 701204 Contact Us For Availability
9
MAY 700633 MAY 700633 Contact Us For Availability
9
MAY 771180 MAY 771180 Contact Us For Availability
10
MAY 700778 MAY 700778 Contact Us For Availability
10
MAY 701286 MAY 701286 Contact Us For Availability
10
MAY 701233 MAY 701233 Contact Us For Availability
10
MAY 701288 MAY 701288 Contact Us For Availability
10
MAY 701246 MAY 701246 Contact Us For Availability
10
MAY 701299 MAY 701299 Contact Us For Availability
11
MAY 701285 MAY 701285 Contact Us For Availability
11
MAY 701208 MAY 701208 Contact Us For Availability
11
MAY 701293 MAY 701293 Contact Us For Availability
11
MAY 701268 MAY 701268 Contact Us For Availability
11
MAY 701291 MAY 701291 Contact Us For Availability
11
MAY 701218 MAY 701218 Contact Us For Availability
12
MAY 771133 MAY 771133 Contact Us For Availability
12
MAY 701295 MAY 701295 Contact Us For Availability
12
MAY 771143 MAY 771143 Contact Us For Availability
12
MAY 701178 MAY 701178 Contact Us For Availability
12
ANGLE-HANDLE MAY 701180 Contact Us For Availability
12
MAY 700188 MAY 700188 Contact Us For Availability
12
MAY 701318 MAY 701318 Contact Us For Availability
12
MAY 701319 MAY 701319 Contact Us For Availability
12
MAY 771327 MAY 771327 Contact Us For Availability
13
MAY 700485 MAY 700485 Contact Us For Availability
13
MAY 700486 MAY 700486 Contact Us For Availability
13
MAY 701209 MAY 701209 Contact Us For Availability
13
MAY 701280 MAY 701280 Contact Us For Availability
13
MAY 771167 MAY 771167 Contact Us For Availability
13
MAY Y701274 MAY Y701274 Contact Us For Availability
13
MAY 701242 MAY 701242 Contact Us For Availability
14
MAY 701290 MAY 701290 Contact Us For Availability
14
MAY 701210 MAY 701210 Contact Us For Availability
14
MAY 771012 MAY 771012 Contact Us For Availability
14
MAY 701243 MAY 701243 Contact Us For Availability
15
MAY 701234 MAY 701234 Contact Us For Availability
15
MAY 701235 MAY 701235 Contact Us For Availability
15
INSULATION MAY 701236 Contact Us For Availability
15
MAY 701239 MAY 701239 Contact Us For Availability
15
MAY 701240 MAY 701240 Contact Us For Availability
15
MAY 771019 MAY 771019 Contact Us For Availability
15
MAY 701304 MAY 701304 Contact Us For Availability
15
MAY 701225 MAY 701225 Contact Us For Availability
15
MAY 701271 MAY 701271 Contact Us For Availability
16
MAY 701313 MAY 701313 Contact Us For Availability
16
MAY 771107 MAY 771107 Contact Us For Availability
16
MAY 701227 MAY 701227 Contact Us For Availability
16
MAY 701190 MAY 701190 Contact Us For Availability
17
MAY 701316 MAY 701316 Contact Us For Availability
17
MAY 701229 MAY 701229 Contact Us For Availability
17
MAY 701279 MAY 701279 Contact Us For Availability
18
MAY 701317 MAY 701317 Contact Us For Availability
18
MAY 701284 MAY 701284 Contact Us For Availability
18
MAY 701297 MAY 701297 Contact Us For Availability
19
MAY 701254 MAY 701254 Contact Us For Availability
19
MAY 701307 MAY 701307 Contact Us For Availability
19
MAY 701289 MAY 701289 Contact Us For Availability
20
MAY 701201 MAY 701201 Contact Us For Availability
20
MAY 701308 MAY 701308 Contact Us For Availability
20
MAY 701191 MAY 701191 Contact Us For Availability
21
MAY 700765 MAY 700765 Contact Us For Availability
21
MAY 701179 MAY 701179 Contact Us For Availability
21
MAY 701232 MAY 701232 Contact Us For Availability
21
MAY 701265 MAY 701265 Contact Us For Availability
21
MAY 701300 MAY 701300 Contact Us For Availability
22
MAY 771083 MAY 771083 Contact Us For Availability
22
MAY 771084 MAY 771084 Contact Us For Availability
22
MAY Y700418 MAY Y700418 Contact Us For Availability
22
MAY 701310 MAY 701310 Contact Us For Availability
23
MAY Y701266 MAY Y701266 Contact Us For Availability
23
MAY 771126 MAY 771126 Contact Us For Availability
23
MAY 701263 MAY 701263 Contact Us For Availability
24
MAY 771240 MAY 771240 Contact Us For Availability
24
MAY 701261 MAY 701261 Contact Us For Availability
25
MAY 771149 MAY 771149 Contact Us For Availability
25
MAY 771188 MAY 771188 Contact Us For Availability
26
MAY 707123 MAY 707123 Contact Us For Availability
26
MAY Y708311 MAY Y708311 Contact Us For Availability
26
MAY 771088 MAY 771088 Contact Us For Availability
27
MAY 701281 MAY 701281 Contact Us For Availability
27
MAY 701193 MAY 701193 Contact Us For Availability
27
MAY 701255 MAY 701255 Contact Us For Availability
28
MAY 701282 MAY 701282 Contact Us For Availability
28
MAY 701181 MAY 701181 Contact Us For Availability
29
MAY 701303 MAY 701303 Contact Us For Availability
29
MAY 701192 MAY 701192 Contact Us For Availability
30
MAY 701272 MAY 701272 Contact Us For Availability
30
MAY 701305 MAY 701305 Contact Us For Availability
30
MAY 701260 MAY 701260 Contact Us For Availability
30
MAY 701277 MAY 701277 Contact Us For Availability
31
MAY 771155 MAY 771155 Contact Us For Availability
31
MAY 701264 MAY 701264 Contact Us For Availability
32
MAY 701275 MAY 701275 Contact Us For Availability
32
MAY 701306 MAY 701306 Contact Us For Availability
32
MAY 700652 MAY 700652 Contact Us For Availability
33
MAY 701196 MAY 701196 Contact Us For Availability
33
MAY 700653 MAY 700653 Contact Us For Availability
34
MAY 701214 MAY 701214 Contact Us For Availability
34
MAY 701312 MAY 701312 Contact Us For Availability
35
MAY 701212 MAY 701212 Contact Us For Availability
35
MAY 701184 MAY 701184 Contact Us For Availability
36
EXTRUSION MAY 701213 Contact Us For Availability
36
MAY 701185 MAY 701185 Contact Us For Availability
37
MAY 701309 MAY 701309 Contact Us For Availability
37
MAY 701207 MAY 701207 Contact Us For Availability
37
MAY 701253 MAY 701253 Contact Us For Availability
37
MAY 701267 MAY 701267 Contact Us For Availability
38
MAY 701197 MAY 701197 Contact Us For Availability
38
MAY 701198 MAY 701198 Contact Us For Availability
38
MAY 701206 MAY 701206 Contact Us For Availability
39
MAY 701220 MAY 701220 Contact Us For Availability
39
MAY 701187 MAY 701187 Contact Us For Availability
40
MAY 701221 MAY 701221 Contact Us For Availability
40
MAY 701270 MAY 701270 Contact Us For Availability
41
MAY 701248 MAY 701248 Contact Us For Availability
41
MAY 701182 MAY 701182 Contact Us For Availability
42
MAY 701237 MAY 701237 Contact Us For Availability
42
MAY 701250 MAY 701250 Contact Us For Availability
42
MAY 701183 MAY 701183 Contact Us For Availability
43
MAY 701262 MAY 701262 Contact Us For Availability
× ![]()
