Model Whirlpool W181 ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

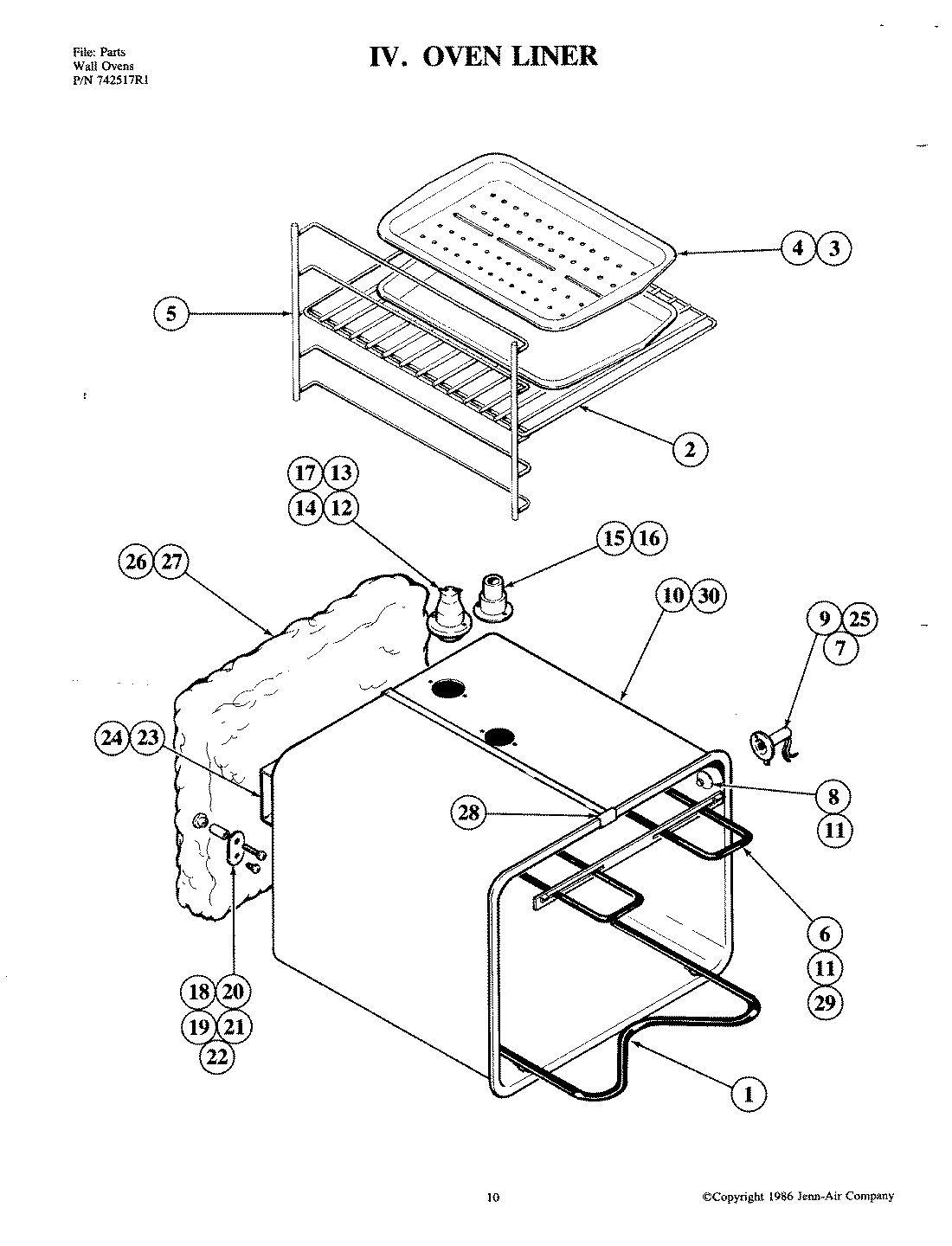

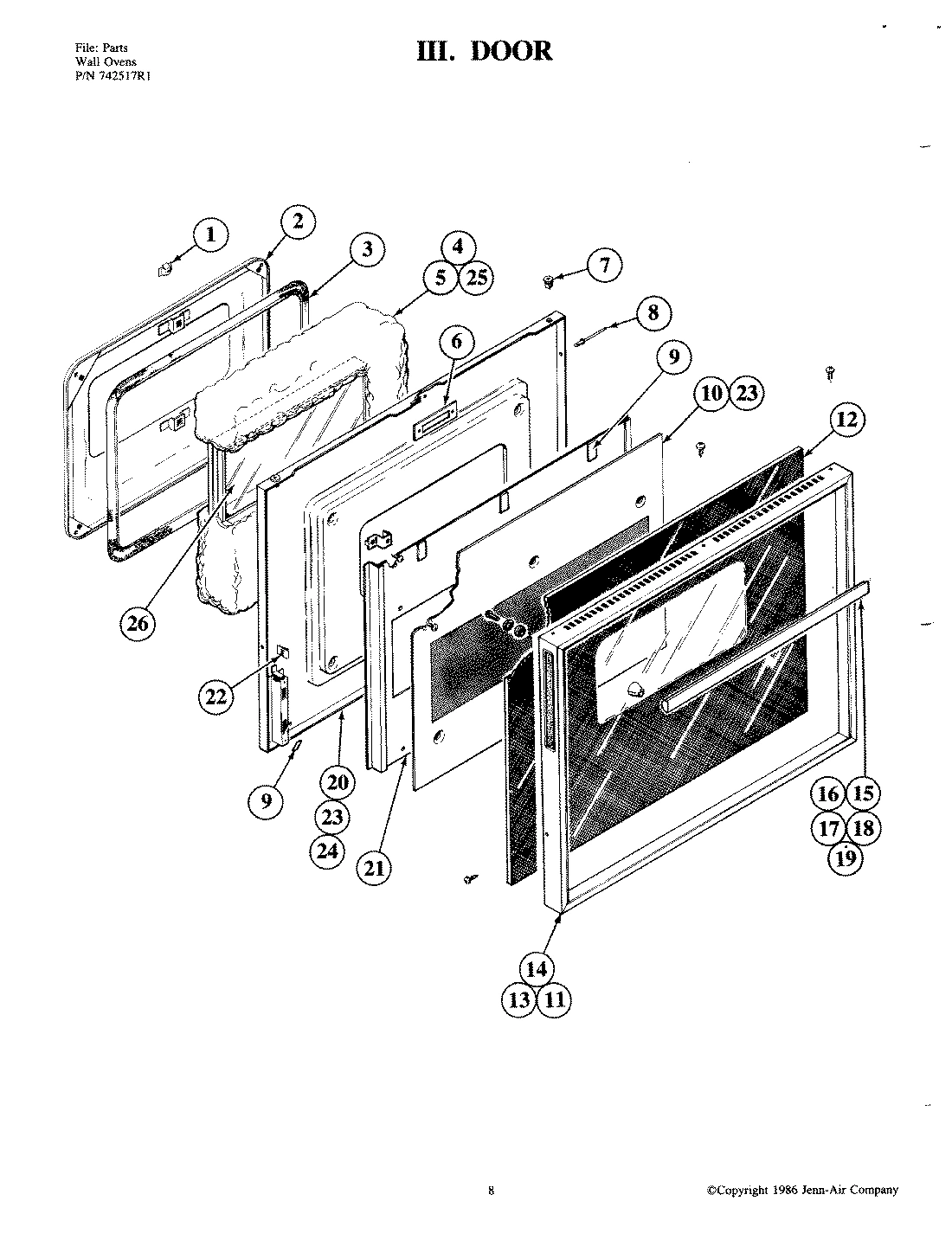

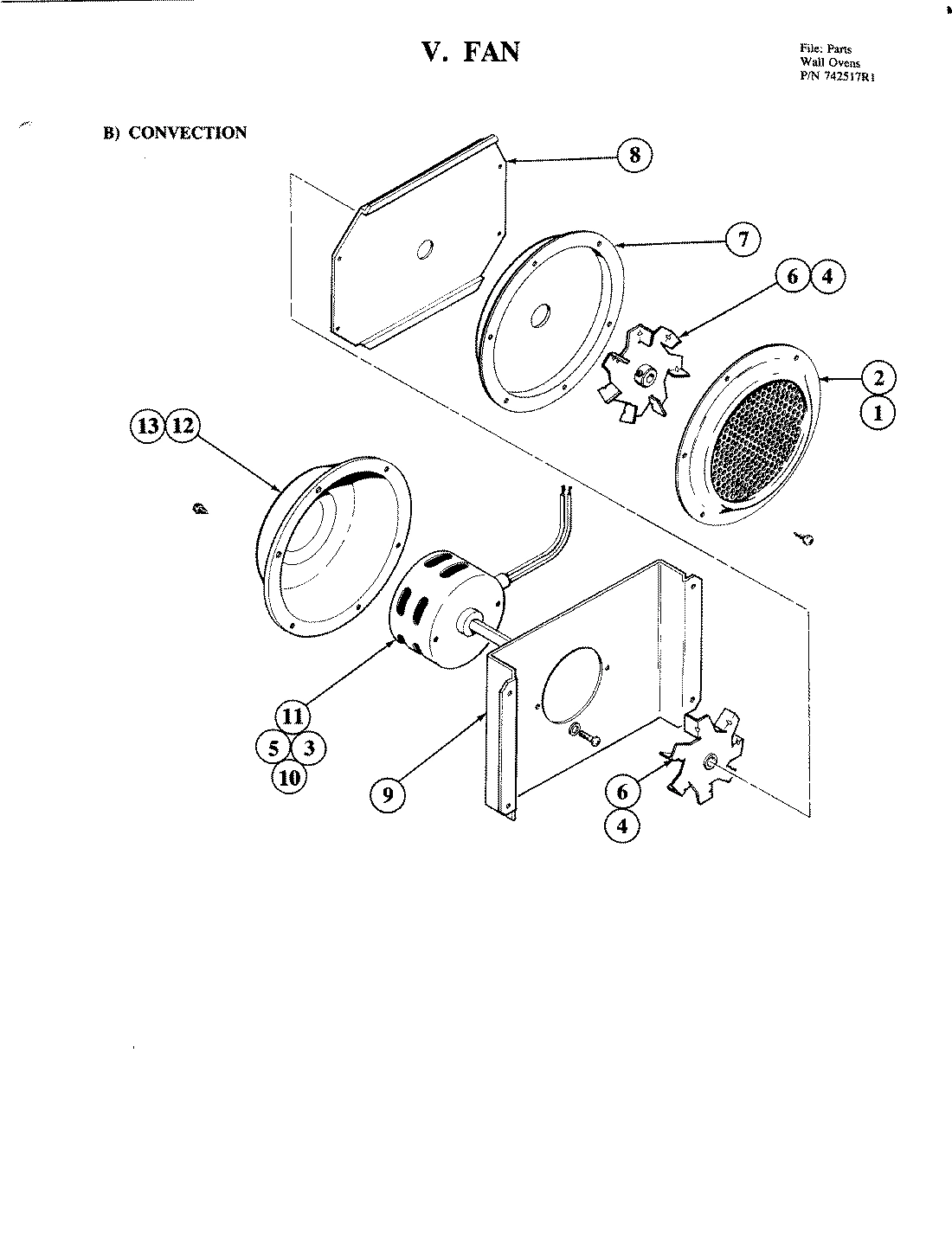

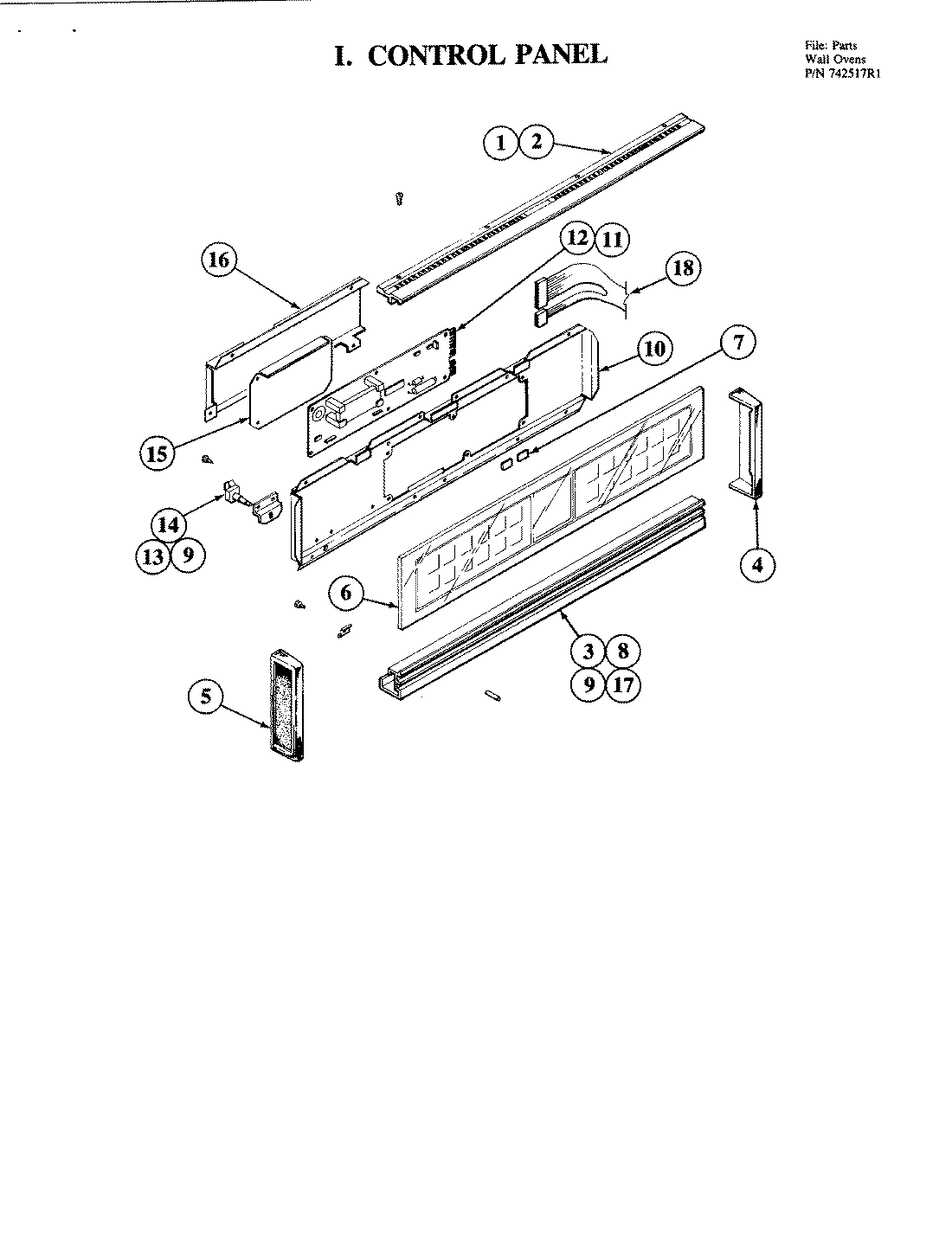

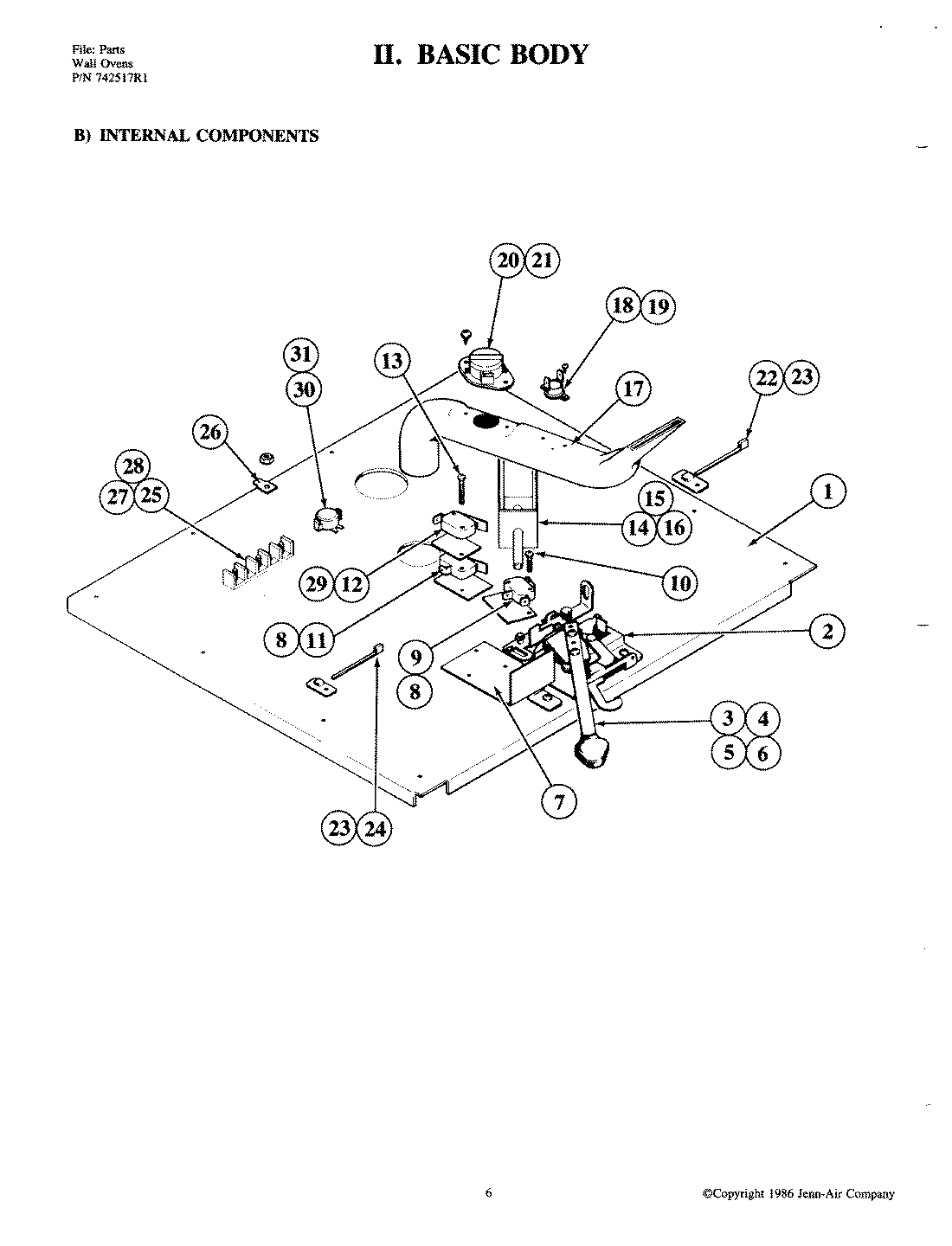

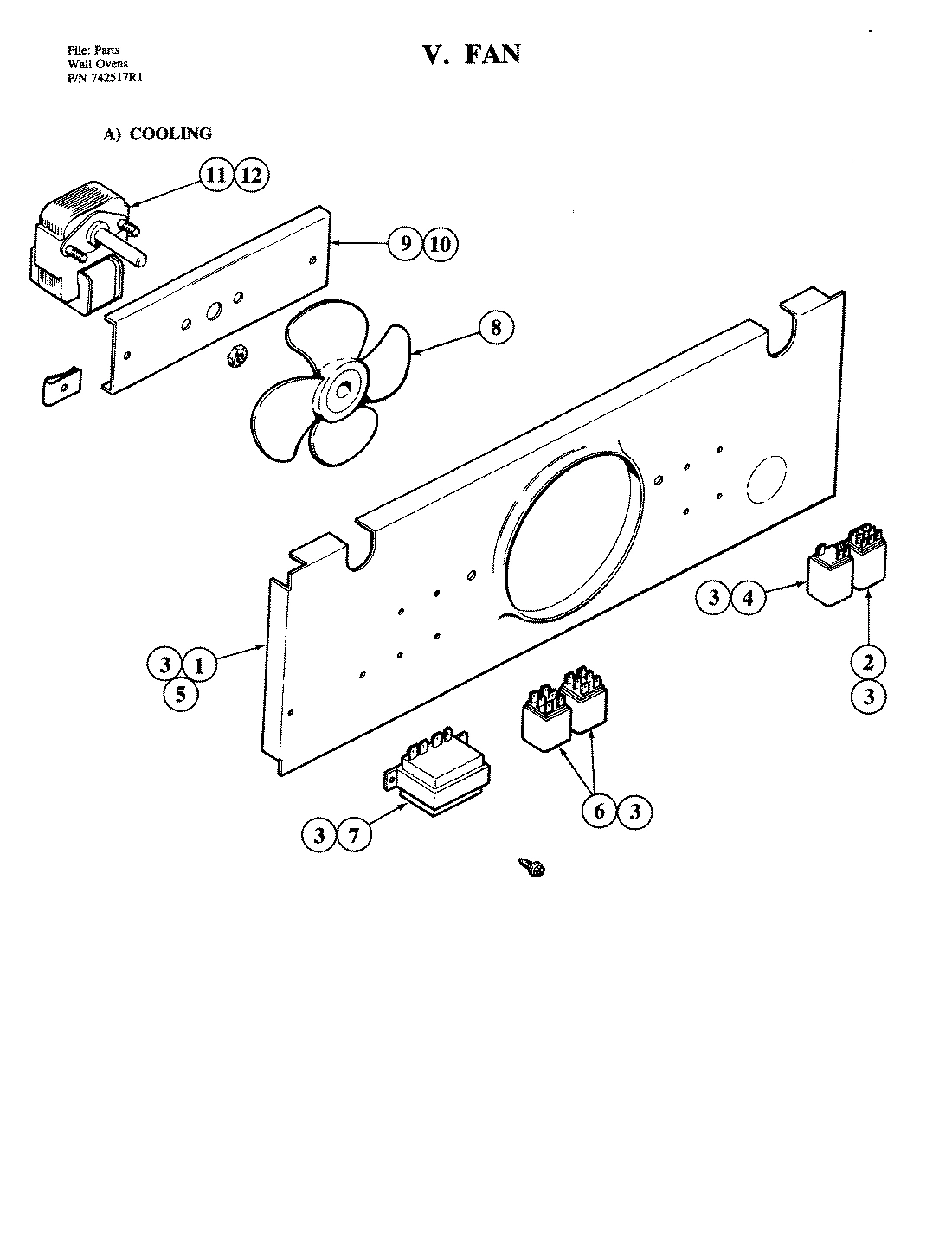

WPY04100020 Whirlpool Bake Element Backorder WPL WPY04100020 $85.18

1

TOP (OUTER) WPL 701681 Contact Us For Availability

1

PANEL, INNER WPL 701674 Contact Us For Availability

1

PANEL, TOP WPL 703768 Contact Us For Availability

1

EXTRUSION, TOP WPL 701634 Contact Us For Availability

1

SCREW WPL 701526 Contact Us For Availability

1

CLIP, RETAINER WPL Y700503 Contact Us For Availability

1

PLATE, MOTOR WPL 702044 Contact Us For Availability

2

RACK, OVEN WPL Y701725 Contact Us For Availability

2

PANEL, OUTER (RT) WPL 701672 Contact Us For Availability

2

LATCH WPL 702804 Contact Us For Availability

2

LATCH ASSY. WPL Y703357 Contact Us For Availability

2

SCREW WPL 712066 Contact Us For Availability

2

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

2

DOOR PLUG WPL 712068 Contact Us For Availability

2

RELAY, CLEAN WPL 702811 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

3

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

3

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.14

3

WP701650 Whirlpool Oven Seal Backorder WPL WP701650 $95.66

3

PANEL, REAR (OUTER) WPL 701691 Contact Us For Availability

3

LEVER, LATCH WPL Y701690 Contact Us For Availability

3

EXTRUSION, BOTTOM WPL 702928 Contact Us For Availability

4

COVER, THERMOSTAT WPL 702792 Contact Us For Availability

4

SCREW WPL 707407 Contact Us For Availability

4

CAP, END (RT) WPL 701619 Contact Us For Availability

4

SCREW, SET WPL 701709 Contact Us For Availability

4

INSULATION-TOP & SIDES WPL 702279 Contact Us For Availability

4

RELAY, CONVECT WPL 702810 Contact Us For Availability

5

SUPPORT, RACK WPL Y701728 Contact Us For Availability

5

PANEL, OUTER (LT) WPL 701695 Contact Us For Availability

5

SPRING, KNOB WPL 701671 Contact Us For Availability

5

CAP, END (LT) WPL 701635 Contact Us For Availability

5

WASHER, LOCK WPL 715910 Contact Us For Availability

5

INSULATION, BOTTOM WPL 701658 Contact Us For Availability

6

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

6

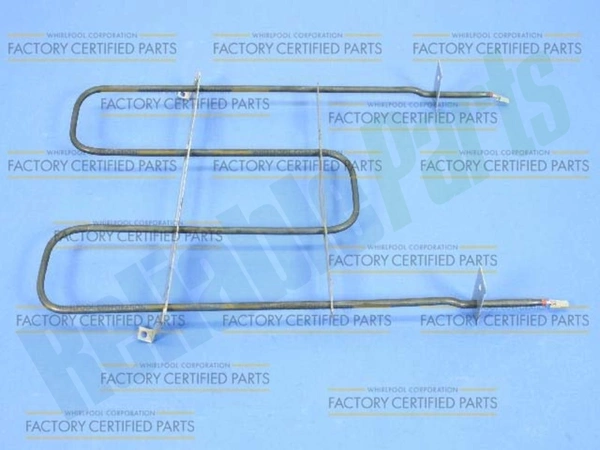

WPY04100016 Whirlpool Bake Element Backorder WPL WPY04100016 $68.67

6

BRACKET, HAT (SIDE) WPL 712072 Contact Us For Availability

6

KNOB, LEVER WPL 701670 Contact Us For Availability

6

GLASS WPL 703742 Contact Us For Availability

6

GLASS WPL 712071 Contact Us For Availability

6

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

6

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

6

RELAY, BAKE & BROIL WPL 702809 Contact Us For Availability

7

STANDOFF WPL 703007 Contact Us For Availability

7

MOUNT, MEAT PROBE WPL Y701731 Contact Us For Availability

7

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

7

PANEL, SIDE (LT) WPL 701697 Contact Us For Availability

7

SHIELD, SWITCH WPL 701706 Contact Us For Availability

7

PAD, SPACER WPL 701618 Contact Us For Availability

7

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

7

NUT, PUSH IN WPL 701643 Contact Us For Availability

7

TRANSFORMER WPL 702808 Contact Us For Availability

8

COVER (UPPER) WPL 701732 Contact Us For Availability

8

PANEL, BACK WPL 701700 Contact Us For Availability

8

INSULATOR WPL Y702350 Contact Us For Availability

8

ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability

8

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

8

RIVET, ACCORDION WPL 701641 Contact Us For Availability

8

BLADE, FAN WPL 702944 Contact Us For Availability

9

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $100.37

9

JACK, PROBE WPL Y703022 Contact Us For Availability

9

PANEL, SIDE (RT) WPL 701676 Contact Us For Availability

9

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

9

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

9

PAD, SPACER WPL 715938 Contact Us For Availability

9

MOUNT, MOTOR WPL 701720 Contact Us For Availability

9

MOUNT, MOTOR WPL Y703570 Contact Us For Availability

WELD, OVEN WPL 712069 Contact Us For Availability

SUPPORT, TOP WPL 701705 Contact Us For Availability

SCREW WPL 702380 Contact Us For Availability

BRACKET, P.C. MOUNT WPL 702788 Contact Us For Availability

CONNECTOR, 1/4`` IN-LINE WPL Y715563 Contact Us For Availability

PANEL, PERFORATED WPL 701644 Contact Us For Availability

TINNERMAN WPL 712038 Contact Us For Availability

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.55

CLIP, J WPL Y700556 Contact Us For Availability

SWITCH, DOOR WPL 702805 Contact Us For Availability

SUPPORT, CIRCUIT BOARD WPL 702800 Contact Us For Availability

MOTOR, CONVECTION WPL 701715 Contact Us For Availability

MOTOR, FAN WPL Y701721 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

RECEPTACLE, LIGHT WPL 715281 Contact Us For Availability

PANEL, BOTTOM WPL 701669 Contact Us For Availability

SWITCH, DOOR WPL 702806 Contact Us For Availability

FOAM, URETHANE WPL Y715957 Contact Us For Availability

BOARD, P.C.----NA WPL 702801 Contact Us For Availability

COVER, MOTOR WPL 701716 Contact Us For Availability

GLASS, SCREENED WPL 701642 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.96

WASHER WPL 701736 Contact Us For Availability

CLOSURE, FRONT WPL 701663 Contact Us For Availability

CLOSURE, FRONT WPL 703609 Contact Us For Availability

SCREW WPL 702807 Contact Us For Availability

SWITCH, MOUNT SWITCH WPL 702790 Contact Us For Availability

SCREW WPL 715485 Contact Us For Availability

SUPPORT, BOTTOM WPL 701667 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 701701 Contact Us For Availability

SOLENOID WPL 701685 Contact Us For Availability

CABLE, SOLENOID WPL 701688 Contact Us For Availability

CABLE, WIRE WPL 703301 Contact Us For Availability

SOLENOID WPL Y702526 Contact Us For Availability

SWITCH, PUSH WPL 702794 Contact Us For Availability

FRAMER WPL 701639 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

PANEL, BOTTOM (OUTER) WPL 701668 Contact Us For Availability

SHIELD, MOISTURE WPL 702799 Contact Us For Availability

HANDLE----NA WPL 702930 Contact Us For Availability

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

RAIL, BOTTOM WPL 700596 Contact Us For Availability

PIN, COTTER WPL Y701686 Contact Us For Availability

COVER WPL 702789 Contact Us For Availability

POST, MOUNTING WPL 701832 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

CLAMP, CONDUIT WPL 701692 Contact Us For Availability

TUBE, VENT WPL 702795 Contact Us For Availability

EXTENSION, SWITCH WPL 702793 Contact Us For Availability

SCREW WPL Y700570 Contact Us For Availability

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.55

NUT, TEE WPL 715294 Contact Us For Availability

LIMIT, FAN WPL Y702750 Contact Us For Availability

HARNESS, LOW VOLTAGE WPL 702816 Contact Us For Availability

WASHER WPL Y700446 Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

SPACER, OVEN WPL 701741 Contact Us For Availability

HARNESS, MAIN WPL 701693 Contact Us For Availability

BUSHING WPL 715939 Contact Us For Availability

PLATE, GROUNDING WPL 701742 Contact Us For Availability

BRACKET, HAT (REAR) WPL 701683 Contact Us For Availability

LIMIT, THERMOSTAT WPL 702803 Contact Us For Availability

LINER, DOOR WPL 701647 Contact Us For Availability

LINER, DOOR WPL 712188 Contact Us For Availability

21

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

21

SCREW WPL Y700699 Contact Us For Availability

21

BAFFLE, DOOR WPL 701645 Contact Us For Availability

22

SCREW WPL 701744 Contact Us For Availability

22

TINNERMAN, ``J`` WPL Y700830 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

BRACKET WPL 702791 Contact Us For Availability

23

TIE, MOUNT CABLE WPL 701679 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

HINGE, DOOR WPL 702112 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $2.55

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

SCREW WPL Y708690 Contact Us For Availability

INSULATION, SIDE WPL 701659 Contact Us For Availability

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

INSULATION, WRAP WPL 701702 Contact Us For Availability

TRIM, OVEN (LOWER) WPL 701848 Contact Us For Availability

TERMINAL WPL Y702711 Contact Us For Availability

27

INSULATION, REAR WPL 701703 Contact Us For Availability

27

BRACKET, VENT TUBE WPL 701680 Contact Us For Availability

27

NUT WPL 707161 Contact Us For Availability

CLIP, OVEN WPL Y702618 Contact Us For Availability

SWITCH, DOOR WPL 701666 Contact Us For Availability

HARNESS, WIRE WPL 702813 Contact Us For Availability

SCREW WPL 712067 Contact Us For Availability

HARNESS,(TWO WIRES) WPL 703265 Contact Us For Availability

SPACER WPL 702594 Contact Us For Availability

THERMOSTAT----NA WPL 702812 Contact Us For Availability

INSULATOR WPL 703264 Contact Us For Availability

30

BUTTON, PLUG WPL 702929 Contact Us For Availability

30

THERMOSTAT WPL 701687 Contact Us For Availability

31

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $2.55
