Model Maytag W130 ELECTRIC WALL OVEN – Common Parts & Diagrams

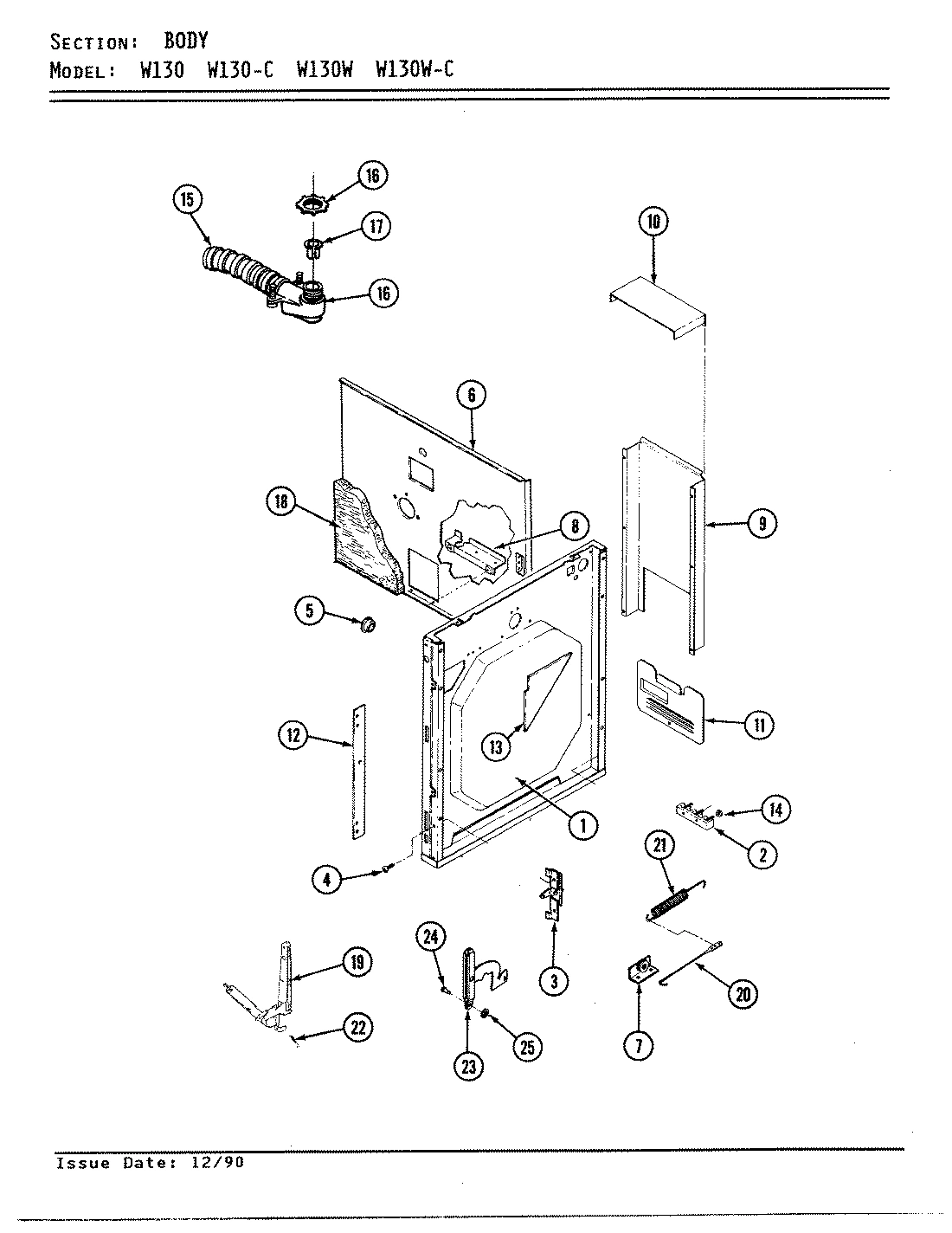

01 - BODY

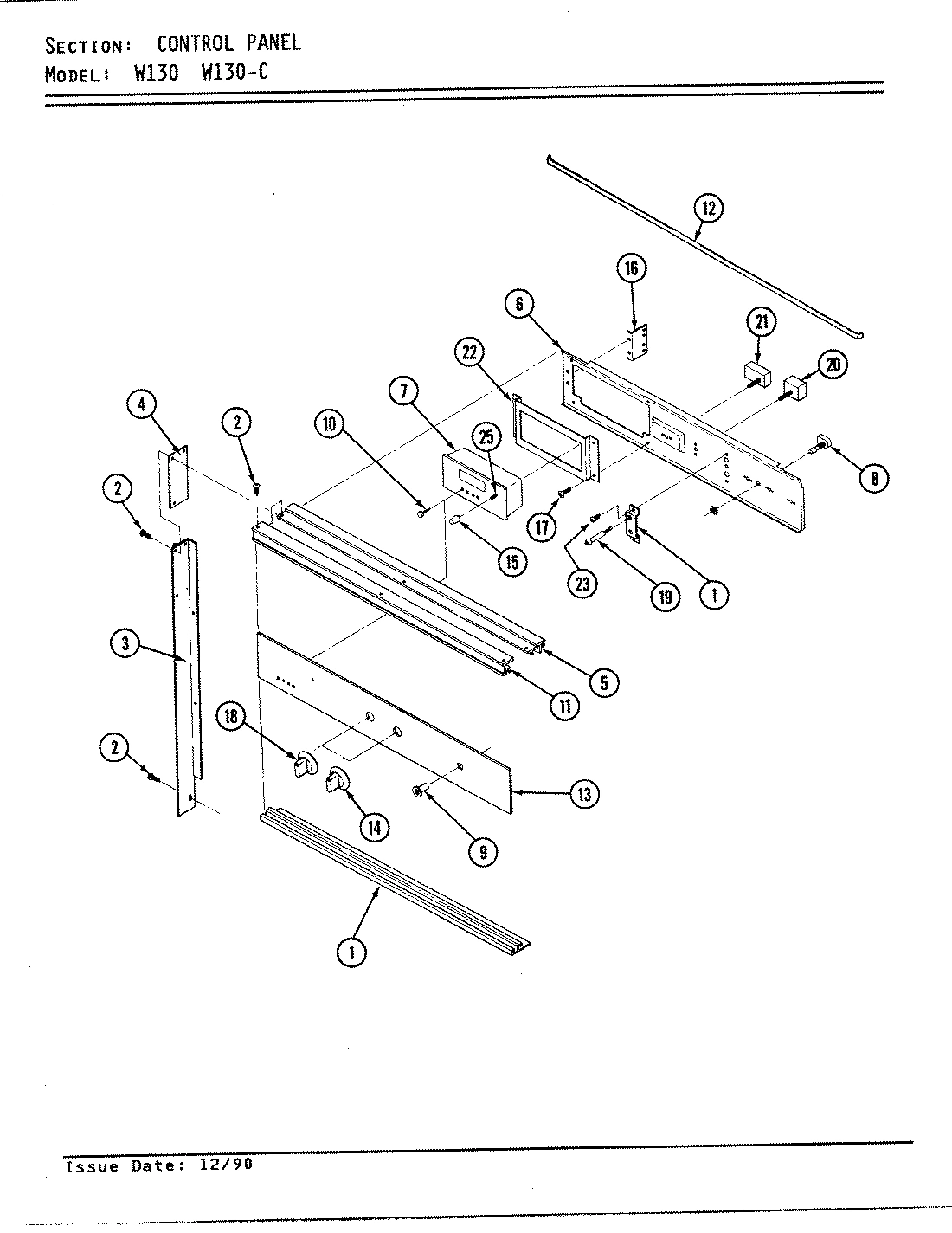

02 - CONTROL PANEL (BLK)
03 - DOOR
04 - INTERNAL CONTROLS
05 - OVEN
Common parts from model Maytag W130 ELECTRIC WALL OVEN
1
TRIM, CONTROL (BTM) MAY 790282 Contact Us For Availability
1
HANDLE, DOOR (BLK) MAY 790297 Contact Us For Availability
1
FRONT, BURNER BOX BOTTOM MAY 790350 Contact Us For Availability
1
RETAINER, INSULATION BOTTOM MAY 790362 Contact Us For Availability
2
BLOCK TERMINAL MAY 790272 Contact Us For Availability
2
GLASS, DOOR (BLK) MAY 790293 Contact Us For Availability
2
MAY 4011F180-80 MAY 4011F180-80 Contact Us For Availability
2
MAY 7101P104-60 MAY 7101P104-60 Contact Us For Availability
2
MAY Y703357 MAY Y703357 Contact Us For Availability
2
SHIELD, BOTTOM MAY 790365 Contact Us For Availability
3
HINGE, L.H. MAY 790352 Contact Us For Availability
3
HINGE, R.H. MAY 790353 Contact Us For Availability
3
TRIM, SIDE (RT) MAY 790284 Contact Us For Availability
3
TRIM, SIDE (LT) MAY 790285 Contact Us For Availability
3
MAY 3819F010-71 MAY 3819F010-71 Contact Us For Availability
3
CLIP, GLASS RETAINER (BLACK) MAY 790197 Contact Us For Availability
3
MAY 8270P010-60 MAY 8270P010-60 Contact Us For Availability
3
SHIELD, TERMINAL MAY 790369 Contact Us For Availability
3
MAY 4804F001-60 MAY 4804F001-60 Contact Us For Availability
3
MAY 7002P046-60 MAY 7002P046-60 Contact Us For Availability
4
TRIM END CAP MAY 790333 Contact Us For Availability
4
PANEL (BLACK) MAY 790360 Contact Us For Availability
4
SUPPORT, THERMAL DISC MAY 790376 Contact Us For Availability
4
MAY 7505P041-60 MAY 7505P041-60 Contact Us For Availability
4
TUBE, OVEN VENT MAY 790464 Contact Us For Availability
5
MAY 8008P019-60 MAY 8008P019-60 Contact Us For Availability
5
TRIM, TOP MAY 790286 Contact Us For Availability
5
SPACER, GLASS MAY 790260 Contact Us For Availability
5
MAY 7403P199-60 MAY 7403P199-60 Contact Us For Availability
5
LIGHT-OVEN MAY 790064 Contact Us For Availability
6
PLATE, SWITCH MTG MAY 790361 Contact Us For Availability
6
GLASS, CLEAR MAY 790295 Contact Us For Availability
6
COVER, CATCH ASSY. MAY 790346 Contact Us For Availability
6
RECEPTACLE, LAMP MAY 790312 Contact Us For Availability
7
MAY 12400018 MAY 12400018 Contact Us For Availability
7
MAY 7601P123-60 MAY 7601P123-60 Contact Us For Availability
7
MAY 7601P197-60 MAY 7601P197-60 Contact Us For Availability
7
CLOCK MAY 790279 Contact Us For Availability
7
BAFFLE DOOR MAY 790336 Contact Us For Availability
7
COVER, LOCK SWITCH MAY 790347 Contact Us For Availability
7
BRACKET, LAMP RECEPTACLE MAY 790342 Contact Us For Availability
8
MAY 3605F148-80 MAY 3605F148-80 Contact Us For Availability
8
MAY 7403P104-60 MAY 7403P104-60 Contact Us For Availability
8
KNOB, LIGHT SWITCH MAY 790299 Contact Us For Availability
8
SWITCH, OVEN LAMP MAY 790328 Contact Us For Availability
8
MAY 2402W149-15 MAY 2402W149-15 Contact Us For Availability
8
MAY 2402W164-15 MAY 2402W164-15 Contact Us For Availability
8
MAY 2402W186-19 MAY 2402W186-19 Contact Us For Availability
8
MAY 7107P017-60 MAY 7107P017-60 Contact Us For Availability
8
LINING, OVEN DOOR MAY 790357 Contact Us For Availability
8
MAY 8114P274-60 MAY 8114P274-60 Contact Us For Availability
8
MAY 4006W087-45 MAY 4006W087-45 Contact Us For Availability
8
MAY 3604W155-70 MAY 3604W155-70 Contact Us For Availability
8
SHIELD ASSY., LOWER (BLACK) MAY 790367 Contact Us For Availability
9
MAY 4001F051-51 MAY 4001F051-51 Contact Us For Availability
9
SLEEVE, LAMP SWITCH MAY 790321 Contact Us For Availability
9
SLEEVE, LAMP SWITCH MAY 790437 Contact Us For Availability
9
MAY 5700A091-60 MAY 5700A091-60 Contact Us For Availability
9
MAY 7112P051-60 MAY 7112P051-60 Contact Us For Availability
9
MAY 7902S303-60 MAY 7902S303-60 Contact Us For Availability
9
MAY 7111P002-60 MAY 7111P002-60 Contact Us For Availability
9
GASKET, OVEN MAY 790290 Contact Us For Availability
10
COVER HOUSING MAY 790349 Contact Us For Availability
10
BUTTON, CLOCK MAY 790300 Contact Us For Availability
10
SCREWS MAY 790447 Contact Us For Availability
10
HOUSING, FAN MAY 790354 Contact Us For Availability
10
SCREW, BROIL SHIELD MAY 790314 Contact Us For Availability
11
MAY 4005F302-51 MAY 4005F302-51 Contact Us For Availability
11
TRIM, TOP (FRT) MAY 790287 Contact Us For Availability
11
RETAINER, GLASS MAY 790247 Contact Us For Availability
11
SWITCH, THERMAL DISC MAY 790327 Contact Us For Availability
11
SHIELD, BROIL MAY 790366 Contact Us For Availability
12
BAFFLE SIDE MAY 790335 Contact Us For Availability
12
EXTRUSION, FILLER TRIM MAY 790463 Contact Us For Availability
12
GLASS MAY 790223 Contact Us For Availability
12
MAY 7401P016-60 MAY 7401P016-60 Contact Us For Availability
12
MAY 7417P002-60 MAY 7417P002-60 Contact Us For Availability
12
FAN ASSY. MAY 790288 Contact Us For Availability
12
RESISTOR ASSY. MAY 790381 Contact Us For Availability
12
MAY 8008P014-60 MAY 8008P014-60 Contact Us For Availability
12
MAY 7103P062-60 MAY 7103P062-60 Contact Us For Availability
13
MAY 4005F163-51 MAY 4005F163-51 Contact Us For Availability
13
GLASS, CONTROL PANEL MAY 790292 Contact Us For Availability
13
MAY 7912P048-60 MAY 7912P048-60 Contact Us For Availability
13
PAD INNER OVEN DOOR MAY 790398 Contact Us For Availability
13
COVER FAN MAY 790203 Contact Us For Availability
13
MAY 8004P013-60 MAY 8004P013-60 Contact Us For Availability
14
MAY 7103P007-60 MAY 7103P007-60 Contact Us For Availability
14
MAY 7739P024-60 MAY 7739P024-60 Contact Us For Availability
14
MAY 7744P042-60 MAY 7744P042-60 Contact Us For Availability
14
CAP, END (BLK) MAY 790210 Contact Us For Availability
14
SUPPORT, LATCH ASSY. MAY 790373 Contact Us For Availability
14
GASKET MAY 790214 Contact Us For Availability
15
MAY 3414F066-51 MAY 3414F066-51 Contact Us For Availability
15
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
15
KNOB, CLOCK MAY 790301 Contact Us For Availability
15
MAY 2410W041-15 MAY 2410W041-15 Contact Us For Availability
15
MAY 2410W041-19 MAY 2410W041-19 Contact Us For Availability
15
MAY 7003P019-60 MAY 7003P019-60 Contact Us For Availability
15
MAY 7003P039-60 MAY 7003P039-60 Contact Us For Availability
15
MAY 7403P045-60 MAY 7403P045-60 Contact Us For Availability
15
MAY Y790262 MAY Y790262 Contact Us For Availability
16
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
16
BRACKET, SWITCH PLATE MAY 790343 Contact Us For Availability
16
MAY 2410A041-15 MAY 2410A041-15 Contact Us For Availability
16
MAY 2410A041-19 MAY 2410A041-19 Contact Us For Availability
16
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
16
SUPPORT, LOCK SWITCH MAY 790374 Contact Us For Availability
17
MAY 8018P002-60 MAY 8018P002-60 Contact Us For Availability
17
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
17
MAY 7101P018-60 MAY 7101P018-60 Contact Us For Availability
17
LEVER, LOCK MAY 790304 Contact Us For Availability
17
RETAINER, LAMP GUARD MAY 790364 Contact Us For Availability
18
MAY 7735P029-60 MAY 7735P029-60 Contact Us For Availability
18
MAY 4804F002-60 MAY 4804F002-60 Contact Us For Availability
18
BUMPER, DOOR MAY 790087 Contact Us For Availability
18
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
18
BOLT MAY 790274 Contact Us For Availability
18
GASKET, LAMP RETAINER MAY 790216 Contact Us For Availability
19
MAY 7106P024-60 MAY 7106P024-60 Contact Us For Availability
19
LIGHT, INDICATOR MAY 790235 Contact Us For Availability
19
MAY 7101P012-60 MAY 7101P012-60 Contact Us For Availability
19
SCREW, DOOR HANDLE MAY 790409 Contact Us For Availability
19
LINK, LOCK SWITCH MAY 790305 Contact Us For Availability
19
GLASS, LAMPGUARD MAY 790224 Contact Us For Availability
20
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
20
STRAP, CABLE MAY 790324 Contact Us For Availability
20
SWITCH, SELECTOR MAY 790330 Contact Us For Availability
20
MAY 7002P117-60 MAY 7002P117-60 Contact Us For Availability
20
KNOB, DOOR LOCK MAY 790298 Contact Us For Availability
20
HOUSING, LAMP MAY 790355 Contact Us For Availability
21
SPRING MAY 790323 Contact Us For Availability
21
MAY 7101P279-60 MAY 7101P279-60 Contact Us For Availability
21
THERMOSTAT MAY 790332 Contact Us For Availability
21
CLIP, LATCH HANDLE MAY 790277 Contact Us For Availability
21
GASKET,LAMPGUARD MAY 790215 Contact Us For Availability
22
MAY 04000040 MAY 04000040 Contact Us For Availability
22
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
22
BRACKET CLOCK MAY 790380 Contact Us For Availability
22
CATCH ASSY. MAY 790275 Contact Us For Availability
23
MAY 3420A034-34 MAY 3420A034-34 Contact Us For Availability
23
MAY Y702750 MAY Y702750 Contact Us For Availability
23
CLIP, THERMOSTAT BULB MAY 790055 Contact Us For Availability
24
BRACKET, LIGHT SIGNAL MAY 790341 Contact Us For Availability
24
SUPPORT OVEN REAR MAY 790375 Contact Us For Availability
25
MAY 7112P019-60 MAY 7112P019-60 Contact Us For Availability
25
MAY 8312P017-60 MAY 8312P017-60 Contact Us For Availability
25
MAY 7101P064-60 MAY 7101P064-60 Contact Us For Availability
26
MAY 7101P005-60 MAY 7101P005-60 Contact Us For Availability
26
FRONT, OVEN UPPER MAY 790351 Contact Us For Availability
28
RACK, OVEN MAY 790311 Contact Us For Availability
29
PAN, BROILER MAY 790359 Contact Us For Availability
30
INSERT, BROILER PAN MAY 790232 Contact Us For Availability
× ![]()
