Model Maytag W110 ELECTRIC WALL OVEN – Common Parts & Diagrams

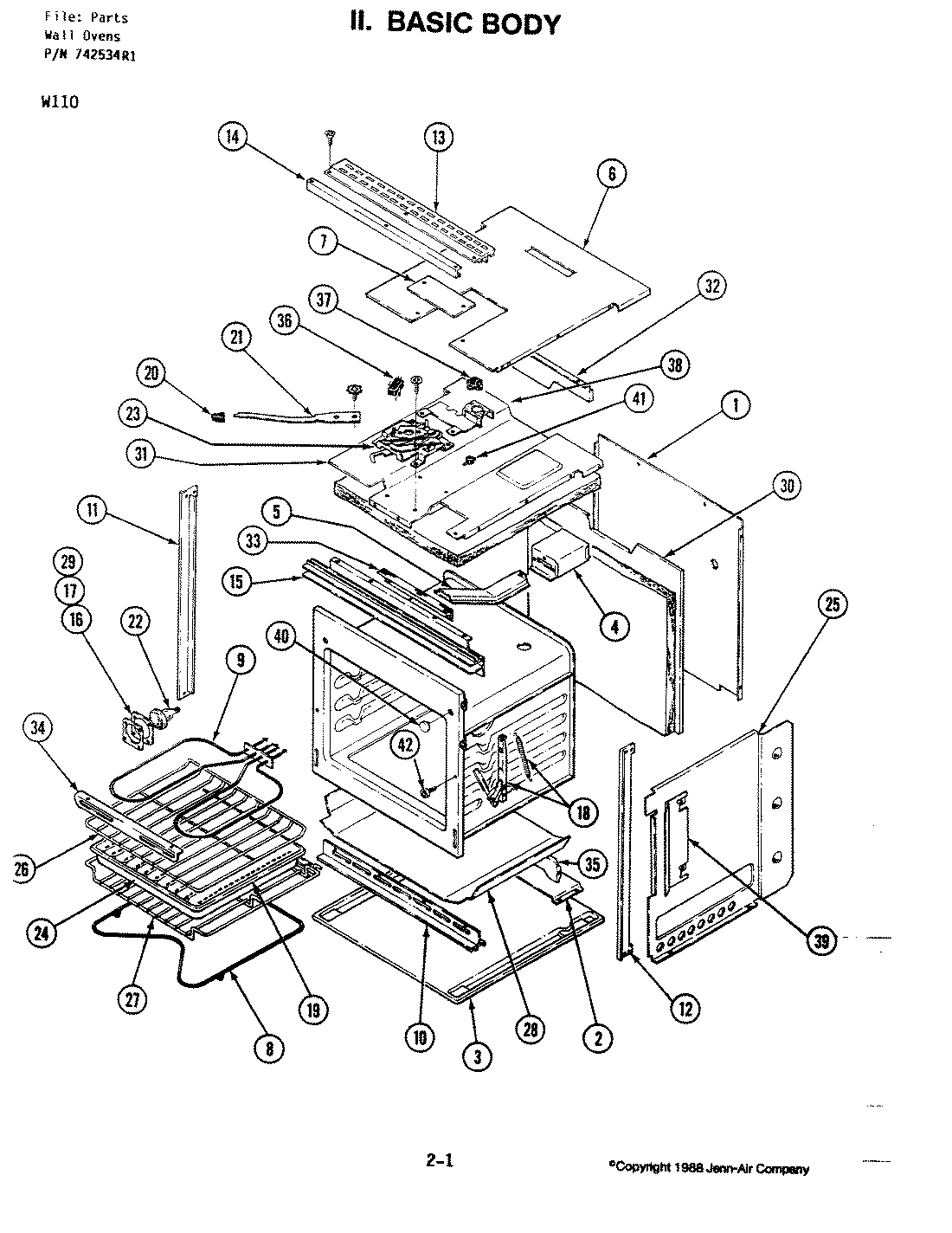

01 - BODY

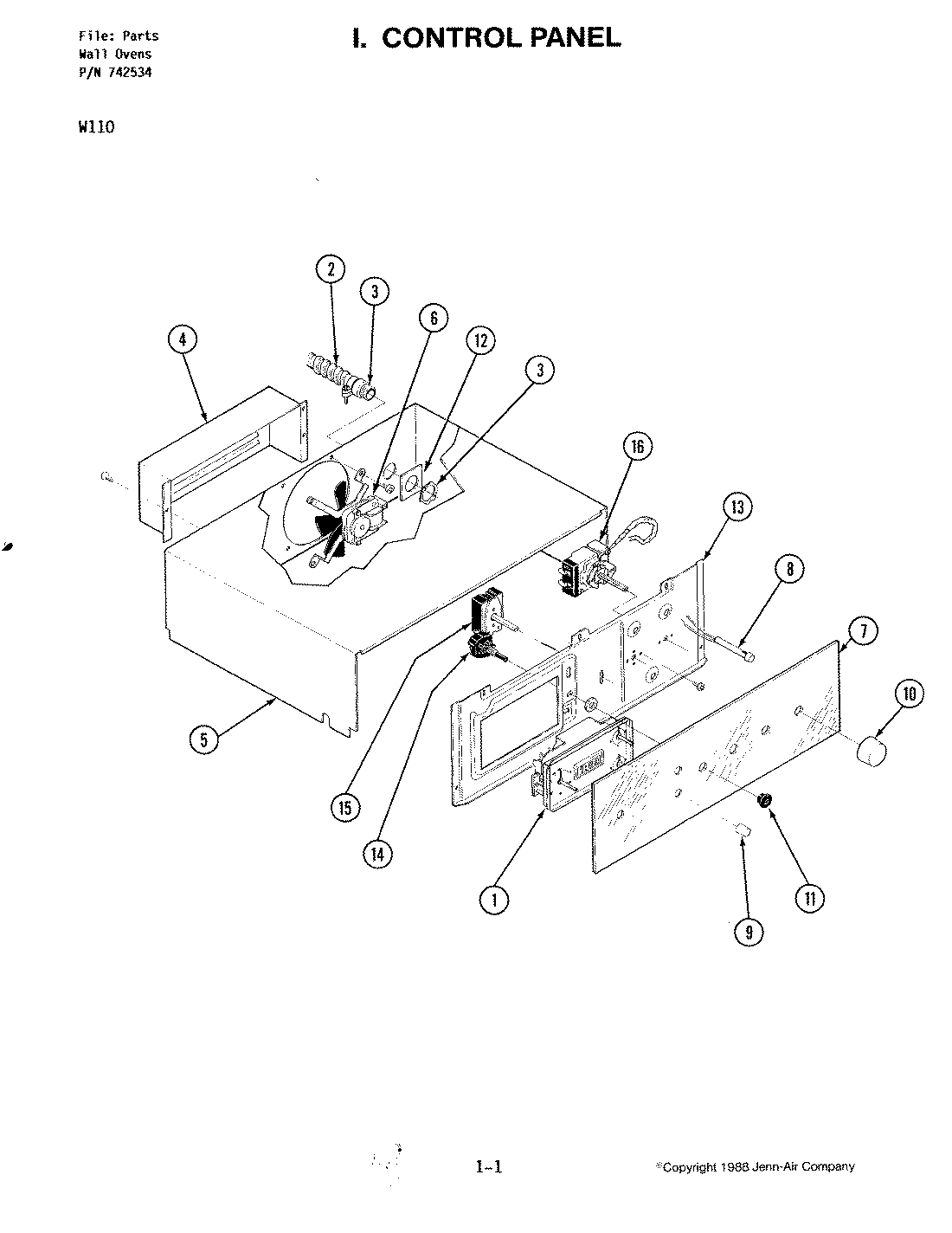

02 - CONTROL PANEL
03 - DOOR
Common parts from model Maytag W110 ELECTRIC WALL OVEN
1
BACK, MAIN MAY 790412 Contact Us For Availability
1
CLOCK MAY 790199 Contact Us For Availability
1
MAY 3601F131-51 MAY 3601F131-51 Contact Us For Availability
1
BAFFLE DOOR MAY 790181 Contact Us For Availability
2
BAFFLE BASE MAY 790385 Contact Us For Availability
2
CONDUIT, FLEXIBLE MAY 790393 Contact Us For Availability
2
CAP, END (BLK) MAY 790210 Contact Us For Availability
3
BASE, MAIN MAY 790182 Contact Us For Availability
3
CONNECTOR, CABLE MAY 790200 Contact Us For Availability
3
CLIP, GLASS RETAINER (BLACK) MAY 790197 Contact Us For Availability
4
BOX, VENT MAY 790190 Contact Us For Availability
4
COVER FAN MAY 790203 Contact Us For Availability
4
GASKET, DOOR MAY 790217 Contact Us For Availability
5
CHANNEL, VENT ASSY MAY 790195 Contact Us For Availability
5
COVER WIRE MAY 790205 Contact Us For Availability
5
SEAL, TOP MAY 790129 Contact Us For Availability
6
COVER BOX MAY 790201 Contact Us For Availability
6
FAN, ASSEMBLY MAY 790212 Contact Us For Availability
6
GLASS DOOR MAY 790222 Contact Us For Availability
7
COVER LOCK MAY 790204 Contact Us For Availability
7
GLASS, CONTROL PANEL MAY 790435 Contact Us For Availability
7
GLASS MAY 790223 Contact Us For Availability
8
ELEMENT, BAKE MAY 790208 Contact Us For Availability
8
LIGHT, INDICATOR MAY 790235 Contact Us For Availability
8
HANDLE, DOOR MAY 790227 Contact Us For Availability
9
ELEMENT, BROIL MAY 790209 Contact Us For Availability
9
KNOB, CLOCK MAY 790078 Contact Us For Availability
9
LINING, OVEN DOOR MAY 790387 Contact Us For Availability
9
LINING, OVEN DOOR MAY 790466 Contact Us For Availability
10
EXTRUSION, BOTTOM MAY 790076 Contact Us For Availability
10
KNOB, SELECTOR & THERMOSTAT MAY 790079 Contact Us For Availability
10
MAY 2410W038-15 MAY 2410W038-15 Contact Us For Availability
10
PAD, OVEN DOOR MAY 790236 Contact Us For Availability
11
MAY 7750P016-60 MAY 7750P016-60 Contact Us For Availability
11
EXTRUSION, SIDE-L MAY 790433 Contact Us For Availability
11
SLEEVE, LAMP SWITCH MAY 790437 Contact Us For Availability
11
PANEL, DOOR MAY 790250 Contact Us For Availability
12
MAY 7750P017-60 MAY 7750P017-60 Contact Us For Availability
12
EXTRUSION, SIDE-R MAY 790434 Contact Us For Availability
12
PLATE REINFORCEMENT MAY 790390 Contact Us For Availability
12
RETAINER, GASKET MAY 790245 Contact Us For Availability
13
EXTRUSION, TOP MAY 790211 Contact Us For Availability
13
SUPPORT, CLOCK MAY 790243 Contact Us For Availability
13
RETAINER, GLASS MAY 790247 Contact Us For Availability
14
EXTRUSION, TOP MAY 790077 Contact Us For Availability
14
SWITCH, OVEN LIGHT MAY 790266 Contact Us For Availability
14
MAY 7101P325-60 MAY 7101P325-60 Contact Us For Availability
14
SPACER, GLASS MAY 790260 Contact Us For Availability
15
MAY 7756P023-60 MAY 7756P023-60 Contact Us For Availability
15
EXTRUSION, VENT MAY 790392 Contact Us For Availability
15
SWITCH, SELECTOR MAY 790330 Contact Us For Availability
15
MAY Y790389 MAY Y790389 Contact Us For Availability
16
GASKET,LAMPGUARD MAY 790215 Contact Us For Availability
16
THERMOSTAT (UPR) MAY 790270 Contact Us For Availability
17
GLASS, LAMPGUARD MAY 790224 Contact Us For Availability
18
HINGE,OVEN DOOR MAY 790229 Contact Us For Availability
18
HINGE, OVEN DOOR MAY 790465 Contact Us For Availability
19
INSERT, BROILER PAN MAY 790232 Contact Us For Availability
20
KNOB, DOOR LOCK MAY 790298 Contact Us For Availability
21
LEVER LOCK MAY 790234 Contact Us For Availability
22
LIGHT-OVEN MAY 790064 Contact Us For Availability
23
LOCK, ASSEMBLY DOOR MAY 790194 Contact Us For Availability
24
PAN, BROILER MAY 790239 Contact Us For Availability
24
PANEL, SIDE LF MAY 790438 Contact Us For Availability
25
PANEL, SIDE RT MAY 790439 Contact Us For Availability
26
RACK, OVEN MAY 790244 Contact Us For Availability
27
RACK OVEN MAY 790386 Contact Us For Availability
28
RETAINERS MAY 790009 Contact Us For Availability
29
RETAINER, LAMPGUARD MAY 790249 Contact Us For Availability
30
RETAINER, REAR MAY 790441 Contact Us For Availability
31
RETAINER, TOP MAY 790443 Contact Us For Availability
32
SHIELD, AIR MAY 790442 Contact Us For Availability
33
SHIELD, TERMINAL MAY 790259 Contact Us For Availability
34
MAY Y790262 MAY Y790262 Contact Us For Availability
35
SUPPORT, LOWER MAY 790263 Contact Us For Availability
36
SWITCH, DOOR LOCK MAY 790264 Contact Us For Availability
37
SWITCH, HI-LIMIT MAY 790265 Contact Us For Availability
38
BRACKET, HI-LIMIT SWITCH MAY 790192 Contact Us For Availability
39
BAFFLE, SIDE MAY 790416 Contact Us For Availability
40
BUMPER, DOOR MAY 790087 Contact Us For Availability
41
MAY W10124350 MAY W10124350 Contact Us For Availability
41
MAY 7403P001-60 MAY 7403P001-60 Contact Us For Availability
41
RECEPTACLE, OVEN LIGHT MAY 790030 Contact Us For Availability
41
MAY 8118P245-60 MAY 8118P245-60 Contact Us For Availability
× ![]()
