Model Whirlpool W110 ELECTRIC WALL OVEN – Common Parts & Diagrams

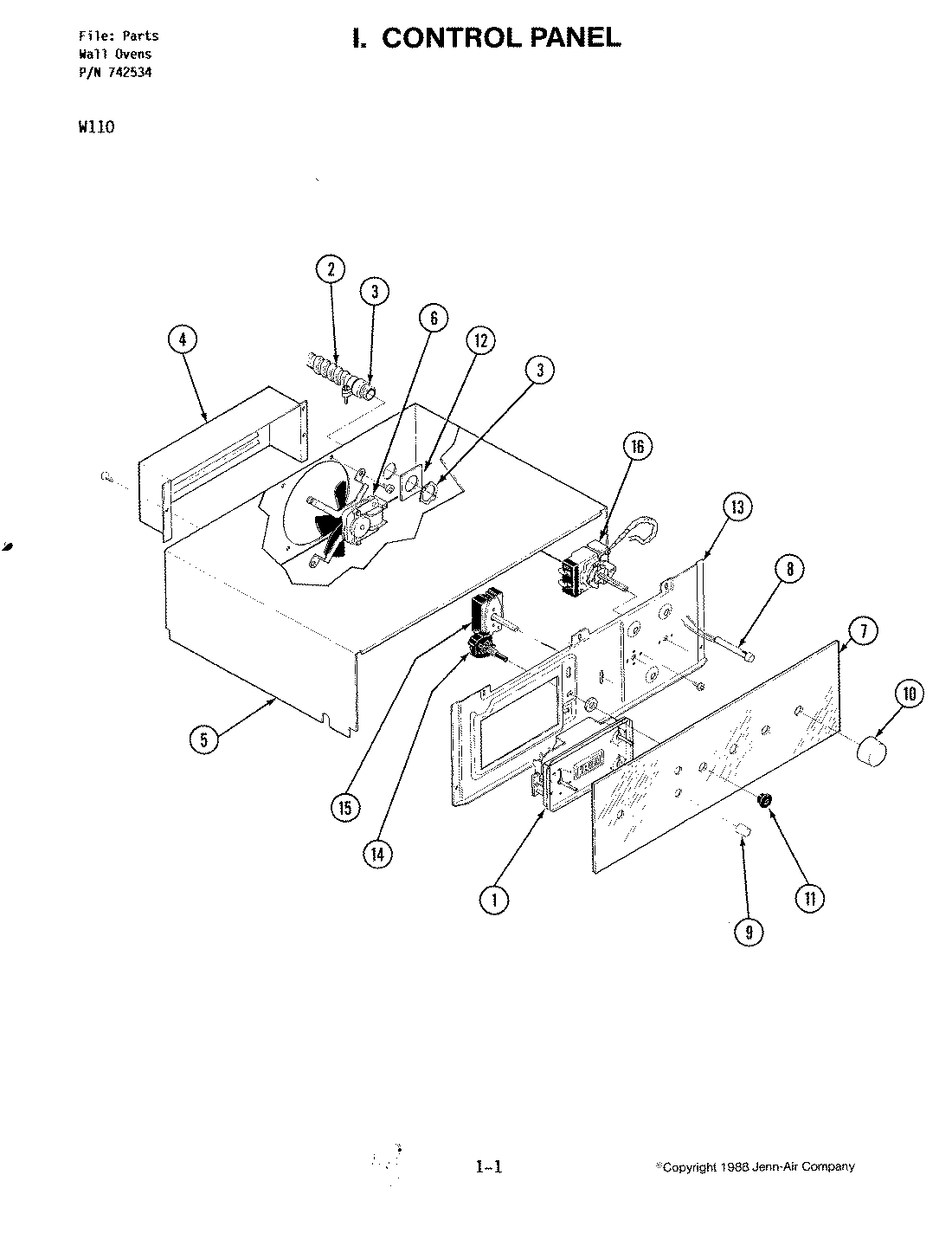

02 - CONTROL PANEL

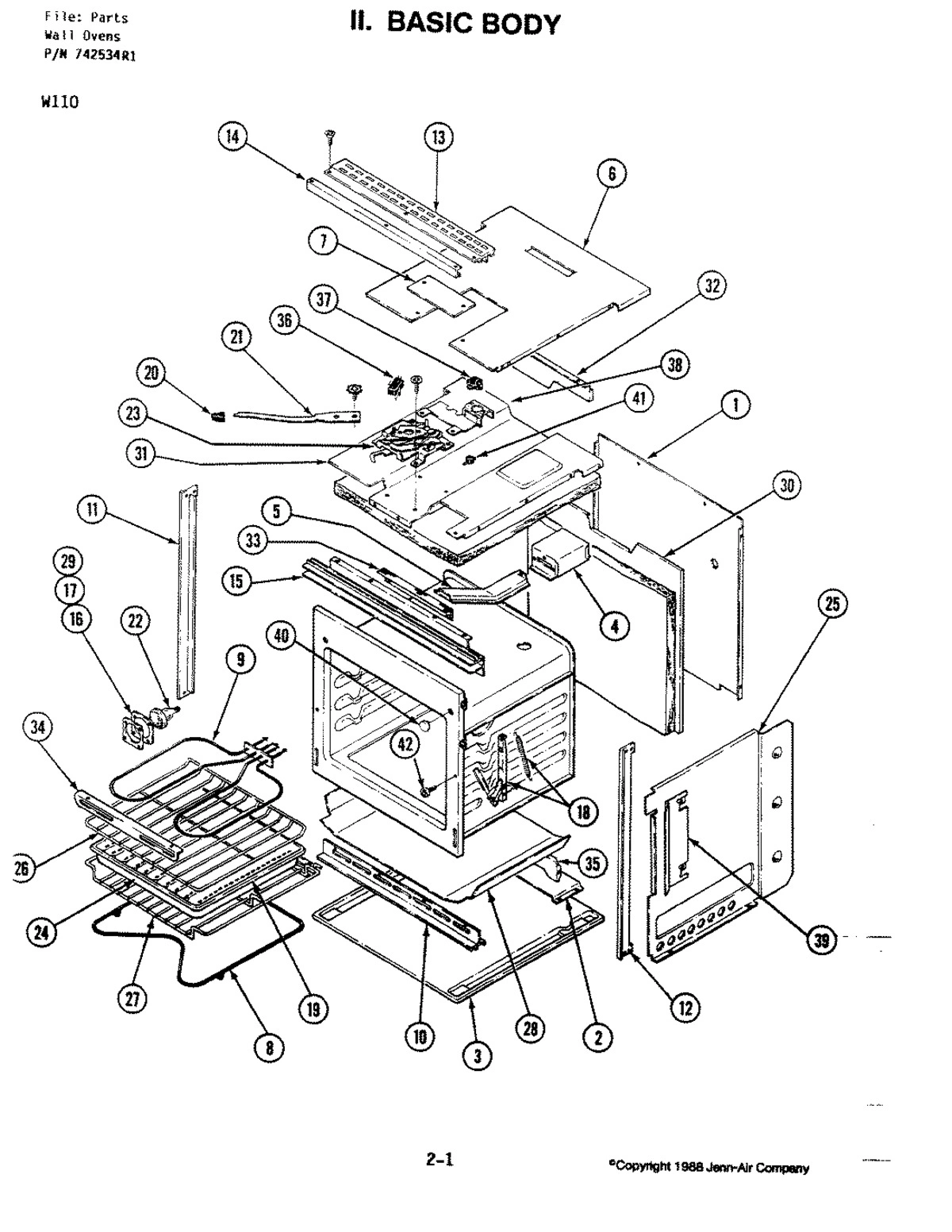

01 - BODY

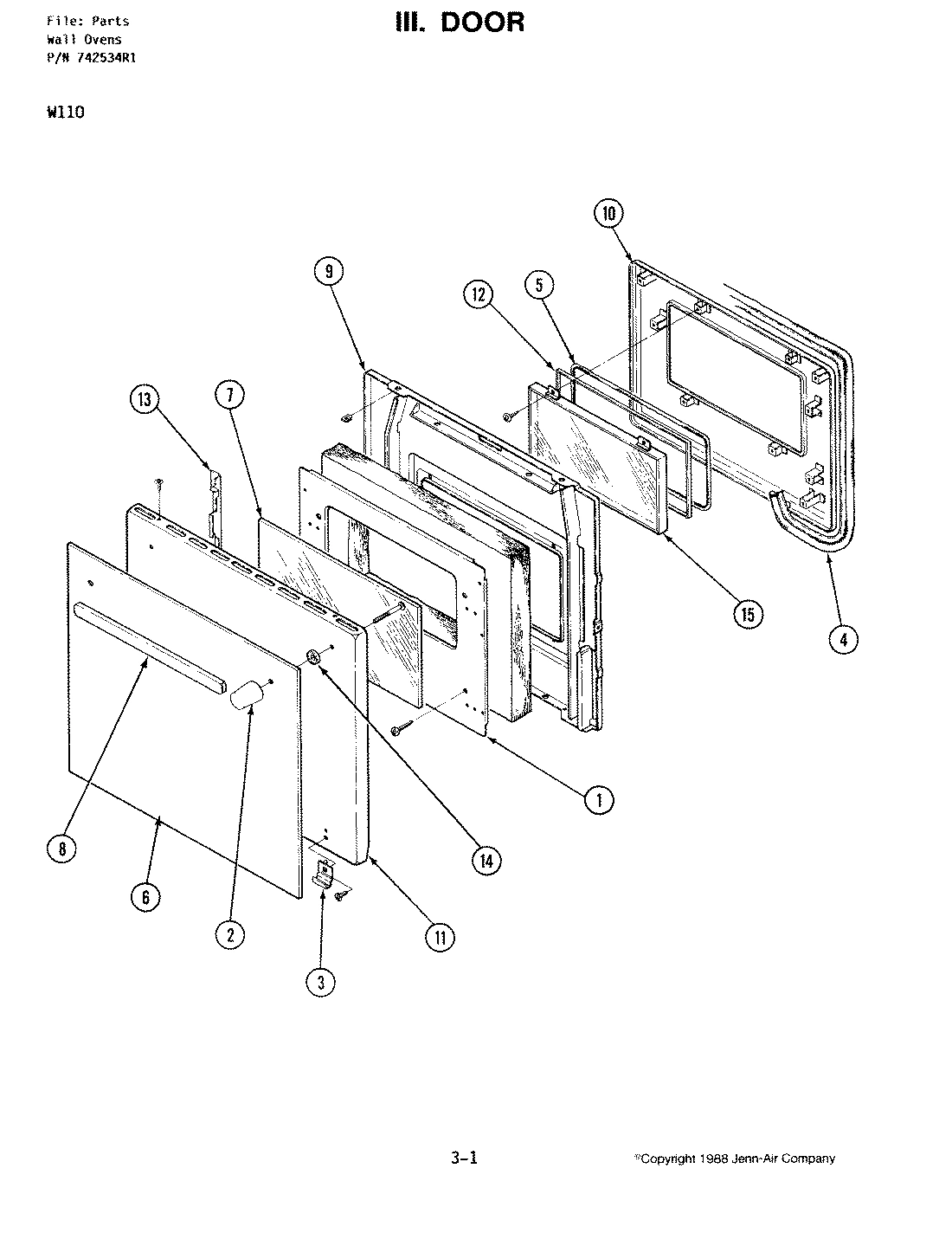

03 - DOOR
Common parts from model Whirlpool W110 ELECTRIC WALL OVEN
1
CLOCK WPL 790199 Contact Us For Availability
1
BACK, MAIN WPL 790412 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F13151 Contact Us For Availability
1
BAFFLE DOOR WPL 790181 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 790393 Contact Us For Availability
2
BAFFLE BASE WPL 790385 Contact Us For Availability
2
CAP, END (BLK) WPL 790210 Contact Us For Availability
3
CONNECTOR, CABLE WPL 790200 Contact Us For Availability
3
BASE, MAIN WPL 790182 Contact Us For Availability
3
CLIP, GLASS RETAINER (BLACK) WPL 790197 Contact Us For Availability
4
COVER FAN WPL 790203 Contact Us For Availability
4
BOX, VENT WPL 790190 Contact Us For Availability
4
GASKET, DOOR WPL 790217 Contact Us For Availability
5
COVER WIRE WPL 790205 Contact Us For Availability
5
CHANNEL, VENT ASSY WPL 790195 Contact Us For Availability
5
SEAL, TOP WPL 790129 Contact Us For Availability
6
FAN, ASSEMBLY WPL 790212 Contact Us For Availability
6
COVER BOX WPL 790201 Contact Us For Availability
6
GLASS DOOR WPL 790222 Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 790435 Contact Us For Availability
7
COVER LOCK WPL 790204 Contact Us For Availability
7
GLASS WPL 790223 Contact Us For Availability
8
LIGHT, INDICATOR WPL 790235 Contact Us For Availability
8
HANDLE, DOOR WPL 790227 Contact Us For Availability
9
KNOB, CLOCK WPL 790078 Contact Us For Availability
9
LINING, OVEN DOOR WPL 790387 Contact Us For Availability
9
LINING, OVEN DOOR WPL 790466 Contact Us For Availability
10
KNOB, SELECTOR & THERMOSTAT WPL 790079 Contact Us For Availability
10
EXTRUSION, BOTTOM WPL 790076 Contact Us For Availability
10
PAD, OVEN DOOR WPL 2410W03815 Contact Us For Availability
10
PAD, OVEN DOOR WPL 790236 Contact Us For Availability
11
SLEEVE, LAMP SWITCH WPL 790437 Contact Us For Availability
11
EXTRUSION, SIDE-L WPL 7750P01660 Contact Us For Availability
11
EXTRUSION, SIDE-L WPL 790433 Contact Us For Availability
11
PANEL, DOOR WPL 790250 Contact Us For Availability
12
PLATE REINFORCEMENT WPL 790390 Contact Us For Availability
12
EXTRUSION, SIDE-R WPL 7750P01760 Contact Us For Availability
12
EXTRUSION, SIDE-R WPL 790434 Contact Us For Availability
12
RETAINER, GASKET WPL 790245 Contact Us For Availability
13
SUPPORT, CLOCK WPL 790243 Contact Us For Availability
13
EXTRUSION, TOP WPL 790211 Contact Us For Availability
13
RETAINER, GLASS WPL 790247 Contact Us For Availability
14
SWITCH, OVEN LIGHT WPL 790266 Contact Us For Availability
14
EXTRUSION, TOP WPL 790077 Contact Us For Availability
14
SCREW, HANDLE WPL 7101P32560 Contact Us For Availability
15
SWITCH, SELECTOR WPL 790330 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P02360 Contact Us For Availability
15
EXTRUSION, VENT WPL 790392 Contact Us For Availability
15
WINDOW PACK WPL Y790389 Contact Us For Availability
16
THERMOSTAT (UPR) WPL 790270 Contact Us For Availability
16
GASKET,LAMPGUARD WPL 790215 Contact Us For Availability
17
GLASS, LAMPGUARD WPL 790224 Contact Us For Availability
18
HINGE,OVEN DOOR WPL 790229 Contact Us For Availability
18
HINGE, OVEN DOOR WPL 790465 Contact Us For Availability
20
KNOB, DOOR LOCK WPL 790298 Contact Us For Availability
21
LEVER LOCK WPL 790234 Contact Us For Availability
23
LOCK, ASSEMBLY DOOR WPL 790194 Contact Us For Availability
24
PAN, BROILER WPL 790239 Contact Us For Availability
24
PANEL, SIDE LF WPL 790438 Contact Us For Availability
25
PANEL, SIDE RT WPL 790439 Contact Us For Availability
26
RACK, OVEN WPL 790244 Contact Us For Availability
27
RACK OVEN WPL 790386 Contact Us For Availability
28
RETAINERS WPL 790009 Contact Us For Availability
29
RETAINER, LAMPGUARD WPL 790249 Contact Us For Availability
30
RETAINER, REAR WPL 790441 Contact Us For Availability
31
RETAINER, TOP WPL 790443 Contact Us For Availability
32
SHIELD, AIR WPL 790442 Contact Us For Availability
33
SHIELD, TERMINAL WPL 790259 Contact Us For Availability
34
SUPPORT, BROIL ELEMENT WPL Y790262 Contact Us For Availability
35
SUPPORT, LOWER WPL 790263 Contact Us For Availability
36
SWITCH, DOOR LOCK WPL 790264 Contact Us For Availability
37
SWITCH, HI-LIMIT WPL 790265 Contact Us For Availability
38
BRACKET, HI-LIMIT SWITCH WPL 790192 Contact Us For Availability
39
BAFFLE, SIDE WPL 790416 Contact Us For Availability
40
BUMPER, DOOR WPL 790087 Contact Us For Availability
41
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
41
SWITCH, FAN----NA WPL 7403P00160 Contact Us For Availability
41
RECEPTACLE, OVEN LIGHT WPL 790030 Contact Us For Availability
41
WIRE WPL 8118P24560 Contact Us For Availability
× ![]()
