Model Electrolux VV201 FREEZER – Common Parts & Diagrams
01 - COVER

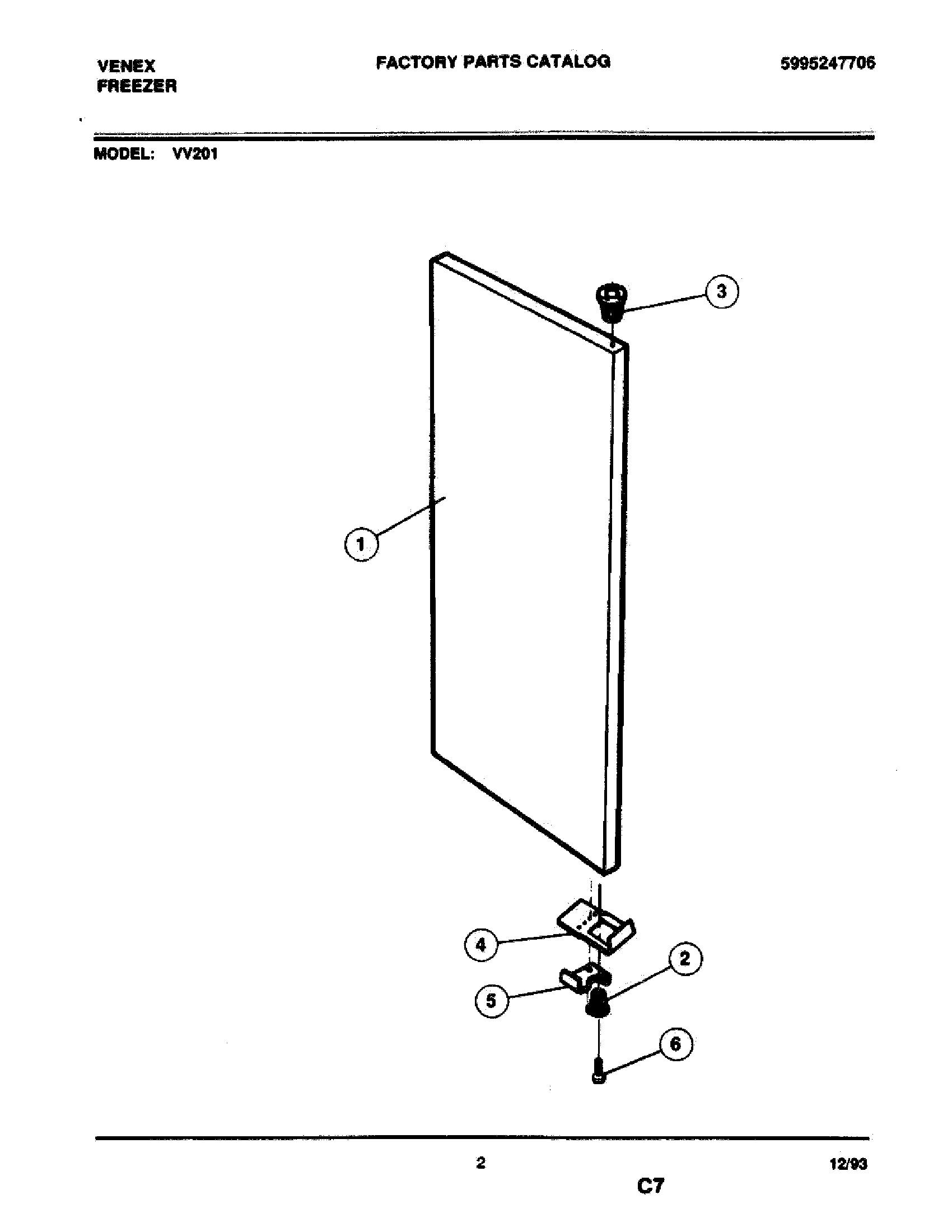

03 - DOOR

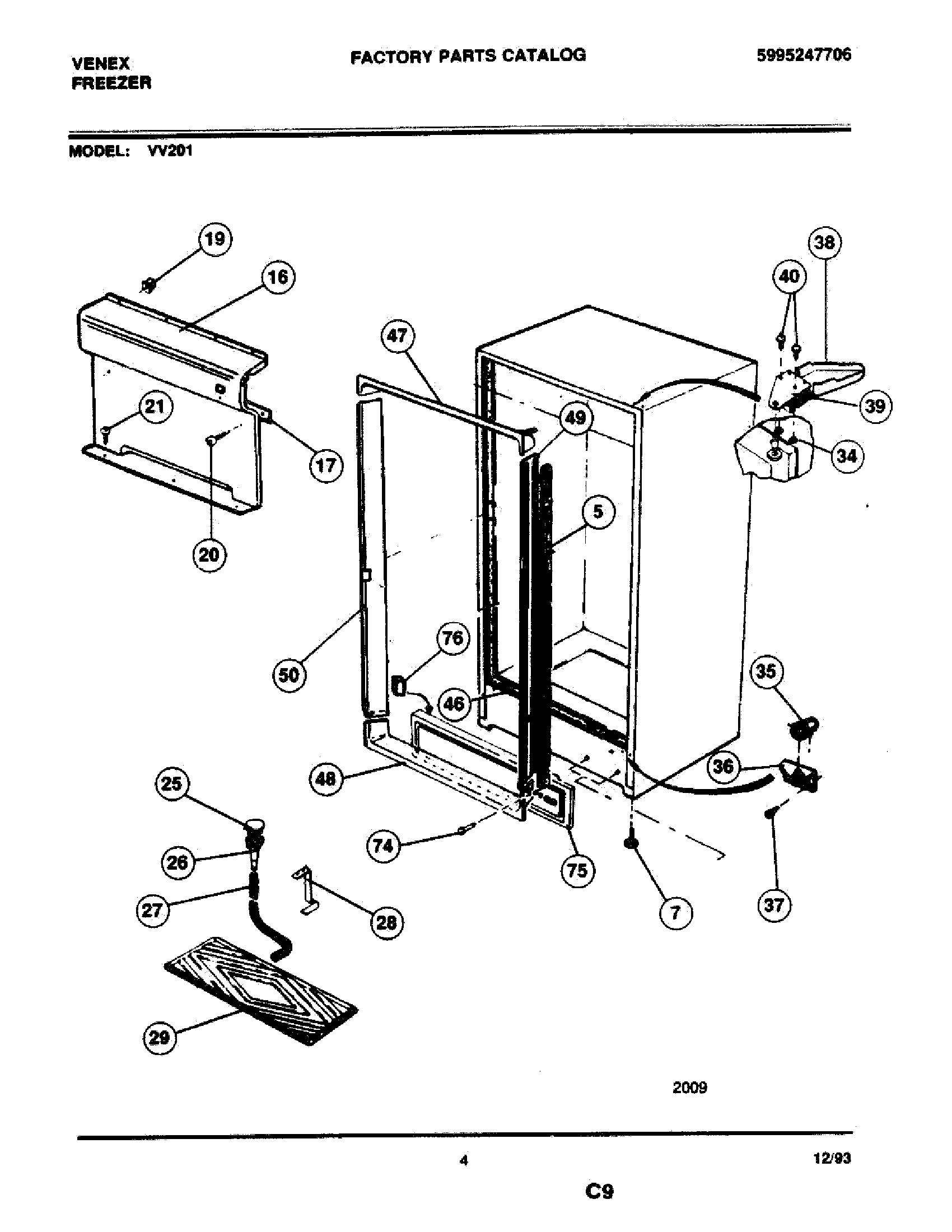

05 - CABINET

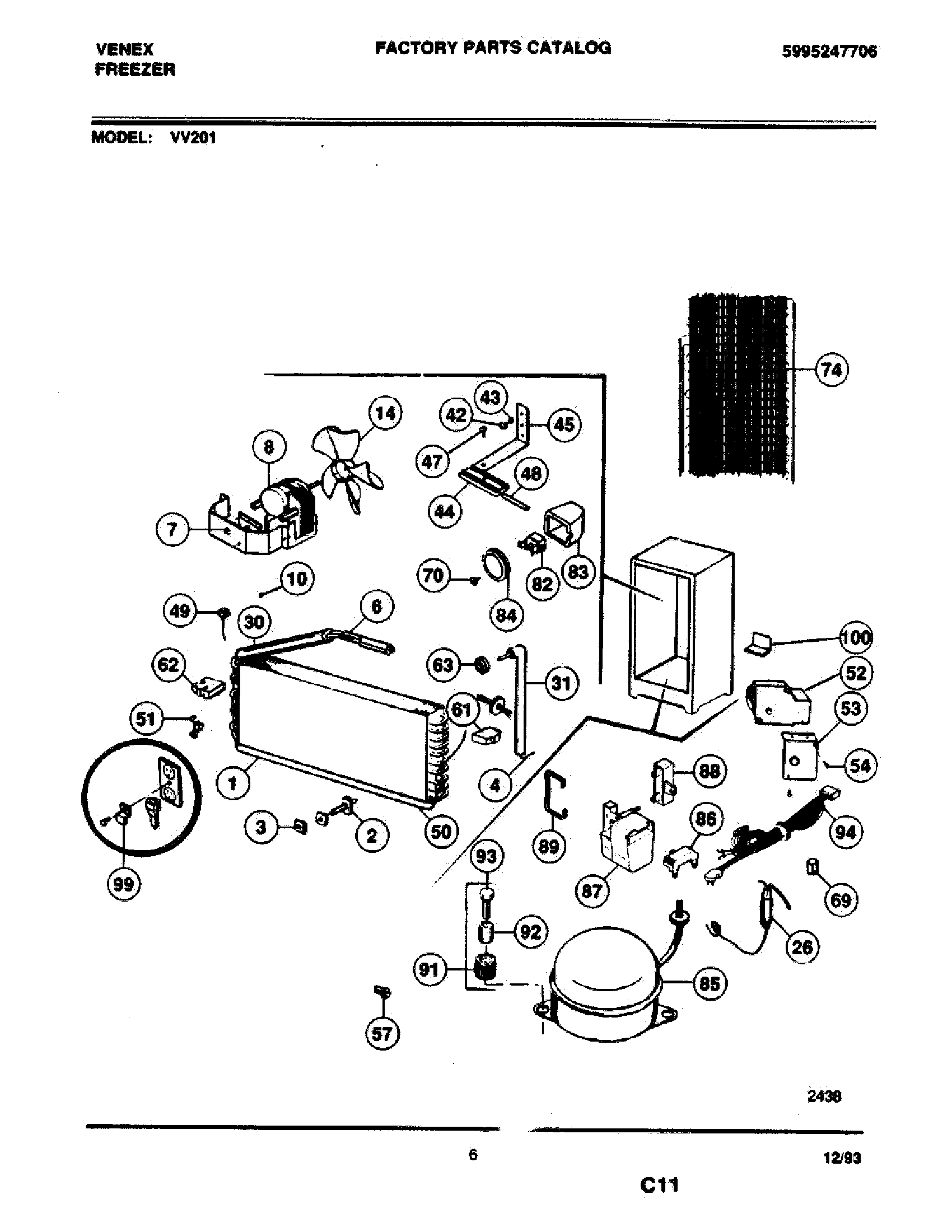

07 - SYSTEM
Common parts from model Electrolux VV201 FREEZER
WCI 06594651 WCI 06594651 Contact Us For Availability
1
WCI 216195900 No Longer Available
2
WCI 06599544 WCI 06599544 Contact Us For Availability
3
WCI 06599547 WCI 06599547 Contact Us For Availability
4
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
5
INSULATION 1/2``X 2`` WCI 5303925098 Contact Us For Availability
5
WCI 08016354 WCI 08016354 Contact Us For Availability
6
SLEEVE-EVAP TUBING WCI 5303208489 Contact Us For Availability
7
WCI 08013207 WCI 08013207 Contact Us For Availability
14
FAN BLADE WCI 3205520 Contact Us For Availability
20
SCREW-SUPPORT WCI 216283900 Contact Us For Availability
28
WCI 06594637 WCI 06594637 Contact Us For Availability
29
PAN-DEFROST WCI 5308016387 Contact Us For Availability
31
INSULATION WCI 09948773 Contact Us For Availability
34
NUT-INSERT (2) WCI 5303294372 Contact Us For Availability
35
WCI 5300091170 WCI 5300091170 Contact Us For Availability
36
WCI 5303210383 WCI 5303210383 Contact Us For Availability
38
COVER-HINGE, BLACK WCI 5303276520 Contact Us For Availability
39
PLATE-HINGE TOP WCI 5303212935 Contact Us For Availability
40
SPACER TOP BREAKER WCI 08037937 Contact Us For Availability
40
WCI 5303212937 WCI 5303212937 Contact Us For Availability
43
WASHER BRACKET WCI 5300095480 Contact Us For Availability
44
WCI 05878562 WCI 05878562 Contact Us For Availability
45
WCI 06594601 WCI 06594601 Contact Us For Availability
46
WCI 06594680 WCI 06594680 Contact Us For Availability
47
WCI 216685900 WCI 216685900 Contact Us For Availability
47
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
48
WCI 216085800 WCI 216085800 Contact Us For Availability
49
SWITCH-TERMINATION WCI 216254500 Contact Us For Availability
49
WCI 216107500 WCI 216107500 Contact Us For Availability
50
WCI 216107600 WCI 216107600 Contact Us For Availability
53
WCI 08016580 WCI 08016580 Contact Us For Availability
54
SCREW WCI 08037849 Contact Us For Availability
57
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
61
AIR SEAL, RH WCI 06599531 Contact Us For Availability
62
WCI 3200707 WCI 3200707 Contact Us For Availability
63
WCI 06594629 WCI 06594629 Contact Us For Availability
69
WCI 5303302761 WCI 5303302761 Contact Us For Availability
70
WCI 09950853 WCI 09950853 Contact Us For Availability
74
PIN BASE TRIM WCI 5309950066 Contact Us For Availability
75
WCI 5303276523 WCI 5303276523 Contact Us For Availability
76
WCI 5300118003 WCI 5300118003 Contact Us For Availability
82
WCI 216221901 WCI 216221901 Contact Us For Availability
83
COVER, CONTROL WCI 216230300 Contact Us For Availability
84
WCI 216008801 WCI 216008801 Contact Us For Availability
85
COMPRESSOR WCI 216110300 Contact Us For Availability
86
WCI 216110400 WCI 216110400 Contact Us For Availability
87
RELAY WCI 216008900 Contact Us For Availability
89
CLIP WCI 215012000 Contact Us For Availability
92
SLEEVE COMPRESSOR (3) WCI 5306594529 Contact Us For Availability
93
SCREW-COMPRESSOR (3) WCI 5303272328 Contact Us For Availability
94
HARNESS WCI 216267400 Contact Us For Availability
100
WCI 5303272330 WCI 5303272330 Contact Us For Availability
× ![]()
