Model LG VTC603MT DVD VCP/R for Thomson (RCA) – Common Parts & Diagrams
Diagram 0
Diagram 1

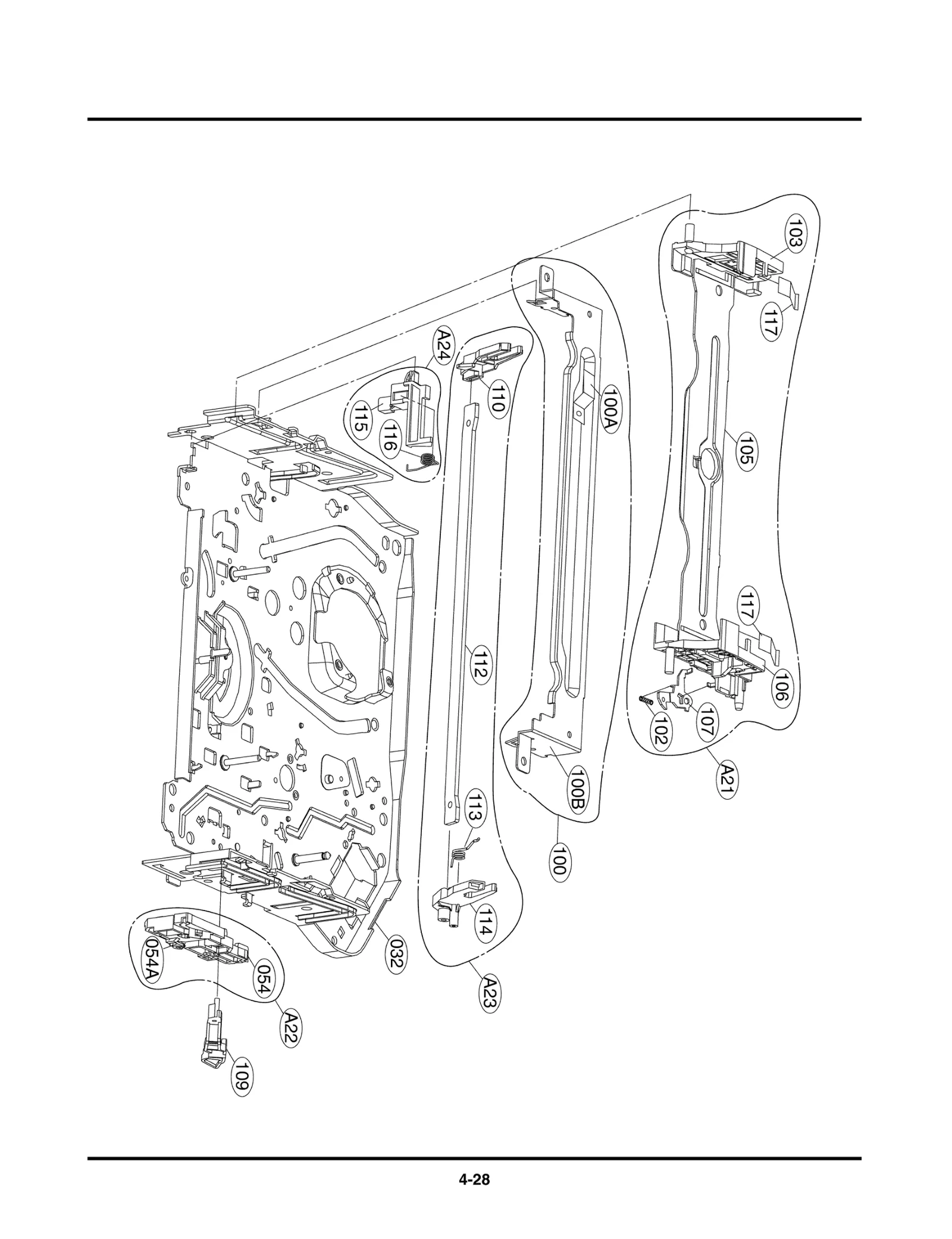

Diagram 2

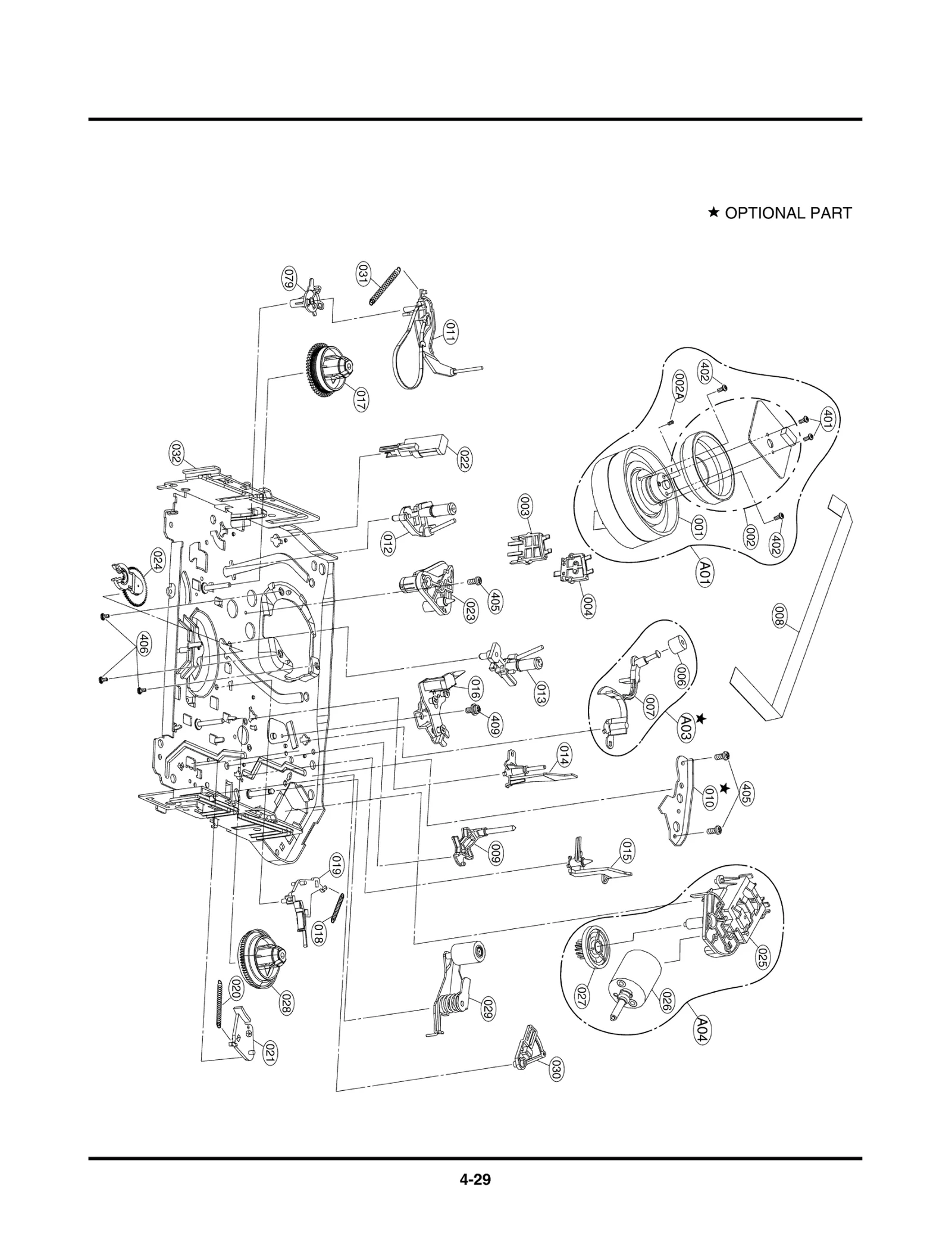

Diagram 3

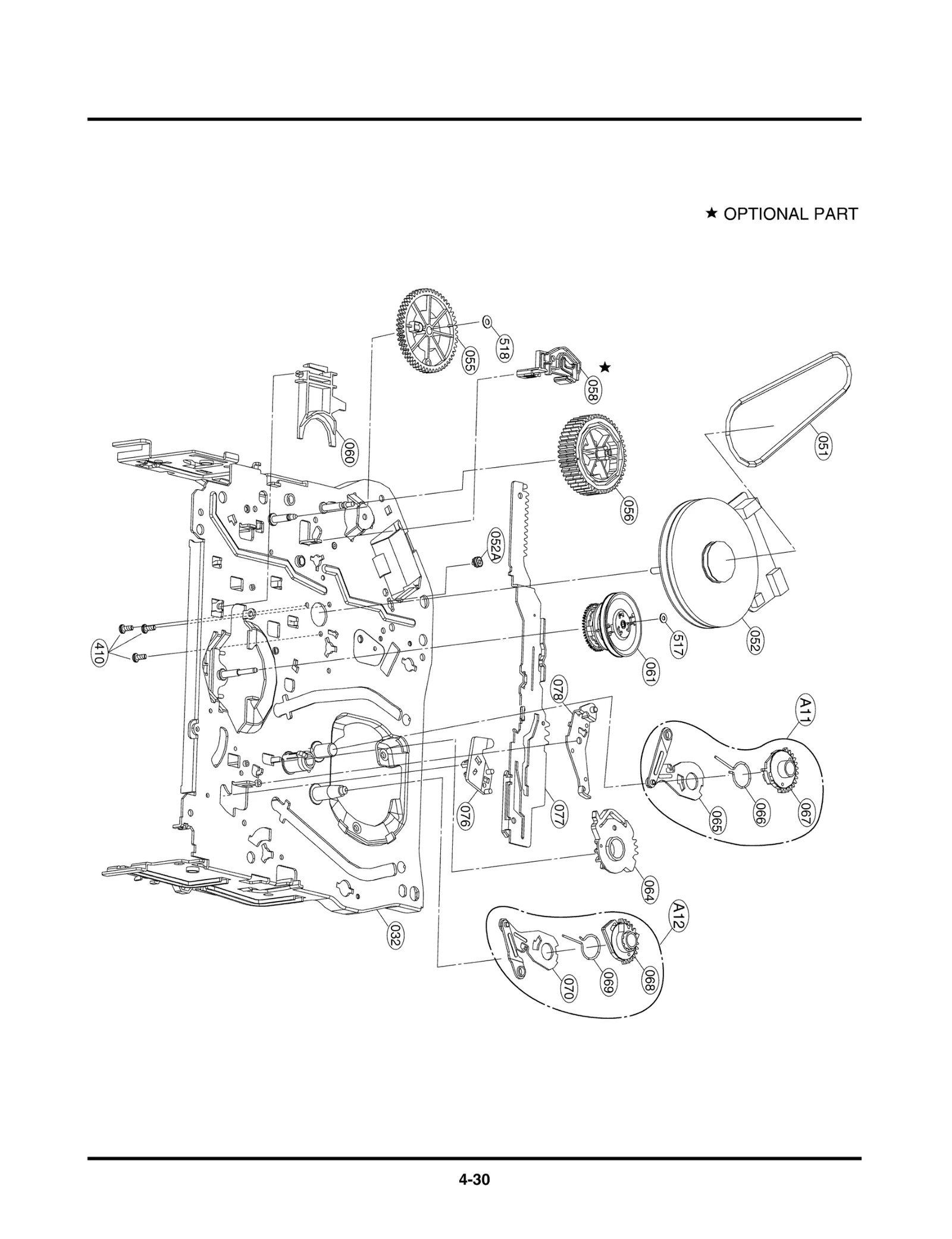

Diagram 4
Diagram 5
Common parts from model LG VTC603MT DVD VCP/R for Thomson (RCA)
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
002
LGE 4680R-B010A LGE 4680R-B010A Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
006
Roller LGE 4580R-0004A Contact Us For Availability
007
LGE 4260R-0039A LGE 4260R-0039A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14E Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,OT LGE 6871RZ5130A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023E Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
Motor,Unclassified LGE 4680R-D003A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680HP2011A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
018
LGE 4970R-0121A LGE 4970R-0121A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034C Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0014A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019C Contact Us For Availability
029
LGE 4261R-0019D LGE 4261R-0019D Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
030
GEAR ASSEMBLY LGE 4471R-0013C Contact Us For Availability
031
PICK UP,DVD LGE 6716DPH005A Contact Us For Availability
051
BELT LGE 4400R-0005A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A006A Contact Us For Availability
052
LGE 4680R-A009A LGE 4680R-A009A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A011A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A007A Contact Us For Availability
052
LGE 4680R-A008A LGE 4680R-A008A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A010A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
066
SPRING LGE 4970R-0122A Contact Us For Availability
112
BODY LGE 3070R-0002A Contact Us For Availability
250
CASE LGE 3110R-V004B Contact Us For Availability
260
LGE 3210R-V002D LGE 3210R-V002D Contact Us For Availability
283
LGE 3580R-V066B LGE 3580R-V066B Contact Us For Availability
284
SPRING DOOR P-705M P-710M LGE 442-681A Contact Us For Availability
285
LGE 3580R-T100A LGE 3580R-T100A Contact Us For Availability
300
POWER CORD LGE 6410RAHP02D Contact Us For Availability
330
CHASSIS LGE 3140R-V001A Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
409
SCREW,DRAWING LGE 1SZZR-0032B Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
465
LGE 353-046K LGE 353-046K Contact Us For Availability
467
SCREW,DRAWING LGE 353-051G Contact Us For Availability
517
WASHER LGE 1WZZR-0004D Contact Us For Availability
518
WASHER LGE 1WZZR-0004A Contact Us For Availability
801
LGE 3835RM0060E LGE 3835RM0060E Contact Us For Availability
802
LGE 3890R-H818M LGE 3890R-H818M Contact Us For Availability
803
LGE 3920R-E080A LGE 3920R-E080A Contact Us For Availability
804
BAG LGE 292-053B Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA22 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
CABLE ASSY,RF LGE 6851RN0006L Contact Us For Availability
811
PLUG ASSY LGE 6611R1G001A Contact Us For Availability
812
PLUG ASSY LGE 6611R2G001A Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R2N083A Contact Us For Availability
A00
LGE 6721RF0740B LGE 6721RF0740B Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016C Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M013C Contact Us For Availability
A03
ARM ASSY LGE 4261R-0025A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016C Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RF0377A Contact Us For Availability
A43
LGE 3721R-F356D LGE 3721R-F356D Contact Us For Availability
A46
LGE 3501R-8420B LGE 3501R-8420B Contact Us For Availability
A46A
LGE 6885R-2020A LGE 6885R-2020A Contact Us For Availability
A48
LGE 6871R-8311B LGE 6871R-8311B Contact Us For Availability
BD01
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C5G1
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C5L1
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C103
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR LGE 624-087B Contact Us For Availability
C108
CAPACITOR,ELECTROLYTIC LGE 0CE336BH638 Contact Us For Availability
C109
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE477BH630 Contact Us For Availability
C126
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C161
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C163
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C209
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C212
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C227
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C230
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C245
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C271
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C272
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C282
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C301
Capacitor,Film,DIP LGE 0CQ2232L559 Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C316
LGE 0CH1272K516 LGE 0CH1272K516 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C318
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C323
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C338
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C341
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C348
Capacitor,Ceramic,Chip LGE 0CH1473K516 Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C414
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C510
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C526
Capacitor,AL,Radial LGE 0CE4765K618 Contact Us For Availability
C530
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C546
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C550
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C559
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C583
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
LGE 0CH4120K416 LGE 0CH4120K416 Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C603
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C614
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C707
LGE 0CH4300K416 LGE 0CH4300K416 Contact Us For Availability
C803
Capacitor,Ceramic,Chip LGE 0CH1102K516 Contact Us For Availability
C822
Capacitor,Ceramic,Chip LGE 0CH1222K516 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C873
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C875
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C876
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C887
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
CS501
SWITCH,PUSH LGE 6600M000026 Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D110
DIODE,RECTIFIER LGE 0DR302000AB Contact Us For Availability
D112
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D113
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D113
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D115
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
D802
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
ES502
HOLDER ASSEMBLY LGE 4931R-0050C Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51B Contact Us For Availability
F605
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC5A1A
LGE 6957R-254AR LGE 6957R-254AR Contact Us For Availability
IC5F1
IC,LINEAR LGE 0ILNRPY001B Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGKE008B Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC201
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC202
LGE 0ILNRSG010A LGE 0ILNRSG010A Contact Us For Availability
IC203
LGE 0IJR341400C LGE 0IJR341400C Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC401
LGE 0IPRPBB006A LGE 0IPRPBB006A Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
LGE 0ILNRSG011A LGE 0ILNRSG011A Contact Us For Availability
IC501
LGE 0IMCRMI051C LGE 0IMCRMI051C Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRII006A Contact Us For Availability
IC502
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC504
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC506
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC508
IC,POWER MANAGEMENT LGE 0IPMGA7001A Contact Us For Availability
IC509
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013A Contact Us For Availability
JK5L1
LGE 6612J00024A LGE 6612J00024A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00025E Contact Us For Availability
L5F2
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L5G1
INDUCTOR RADIAL LEAD 470M K 6X LGE 0LR4700K035 Contact Us For Availability
L102
FILTER(CIRC),DRAWING LGE 616-145P Contact Us For Availability
L124
COIL,CHOKE LGE 633-088G Contact Us For Availability
L210
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L513
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L706
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
LD501
LGE 4931R-0017C LGE 4931R-0017C Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
PDV02
LGE 6630R-FB02L LGE 6630R-FB02L Contact Us For Availability
Q156
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q162
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q205
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q210
LGE 0TR388209AA LGE 0TR388209AA Contact Us For Availability
Q303
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q304
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q403
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q507
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q702
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q703
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
R2A2
Resistor,Chip LGE 0RH1005C622 Contact Us For Availability
R2C1
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R2C3
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R2C9
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R2E1
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R2F2
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R2F3
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R2F6
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R2G2
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R2H1
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R5K2
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R5K3
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R6T2
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R6T4
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R6T6
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R107
RESISTOR,FIX METAL FILM OXIDE LGE 0RS0350K619 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R113
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R115
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R116
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R117
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R119
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R155
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R159
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R163
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R170
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R225
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R229
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R232
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R235
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R236
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R269
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R281
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R287
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R291
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R305
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R309
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R311
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R317
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R318
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R319
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R327
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R332
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R339
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R406
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R407
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R409
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R412
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R415
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R417
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R422
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R500
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R508
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R511
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R513
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R513
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R515
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R515
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R518
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R528
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R541
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R544
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R554
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R557
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R559
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R606
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R707
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R751
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R811
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R836
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R866
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
RS502
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
SW502
SWITCH,DETECTOR LGE 556-213C Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW12A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
TU701
LGE 6700NFNG04A LGE 6700NFNG04A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X201
LGE 6212AA2200E LGE 6212AA2200E Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X301
CRYSTAL,STANDARD LGE 6202R1357AC Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X502
LGE 6212AA2143F LGE 6212AA2143F Contact Us For Availability
ZD502
LGE 0DZ562609BB LGE 0DZ562609BB Contact Us For Availability
ZD502
LGE 0DZ560009CA LGE 0DZ560009CA Contact Us For Availability
ZD751
LGE 0DZ102609BB LGE 0DZ102609BB Contact Us For Availability
× ![]()
Login and Registration Form
