Model Electrolux VP36DW2 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

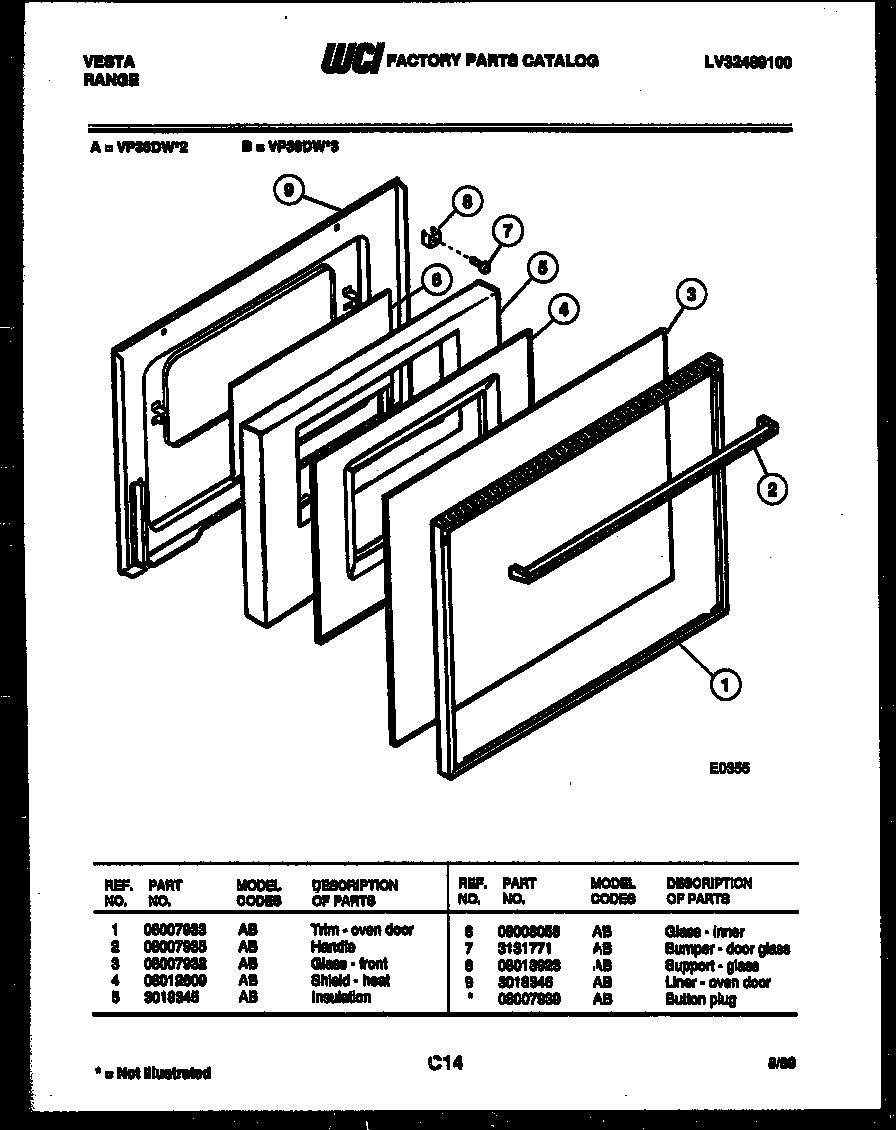

04 - DOOR PARTS

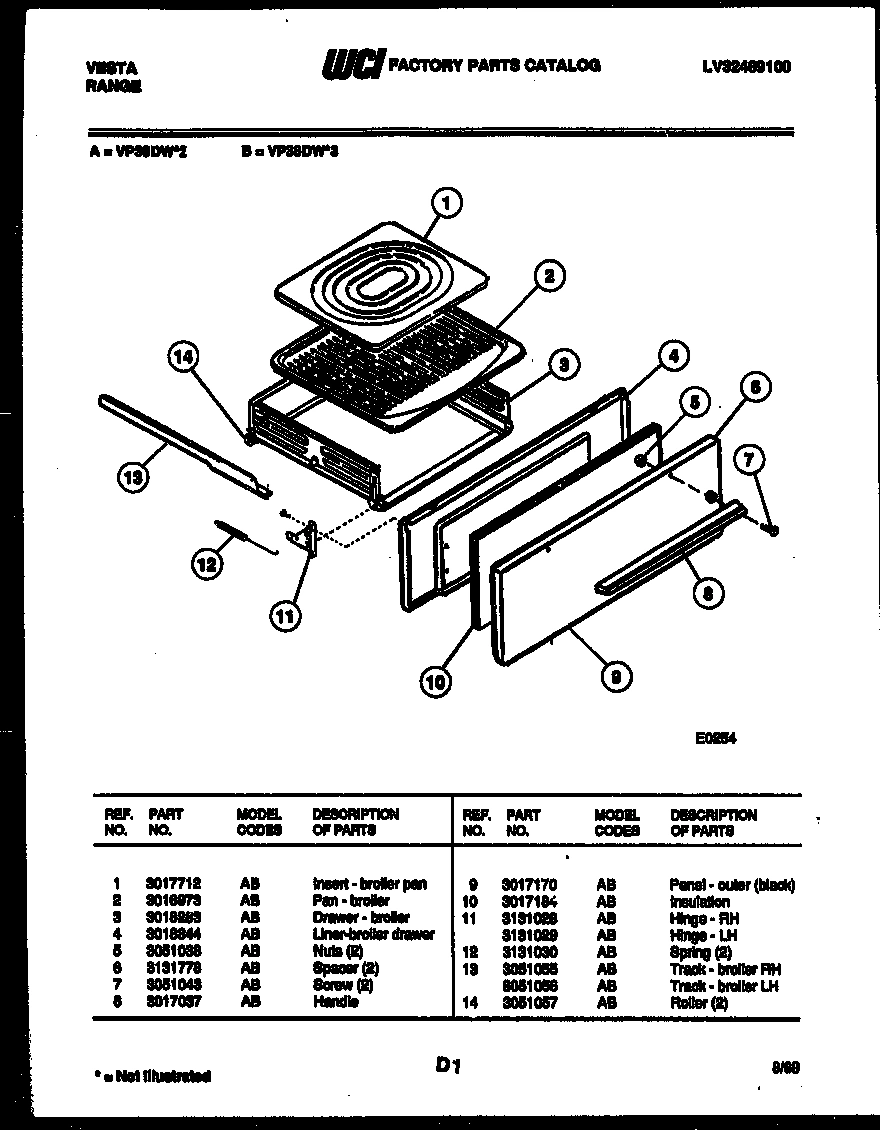

05 - BROILER DRAWER PARTS

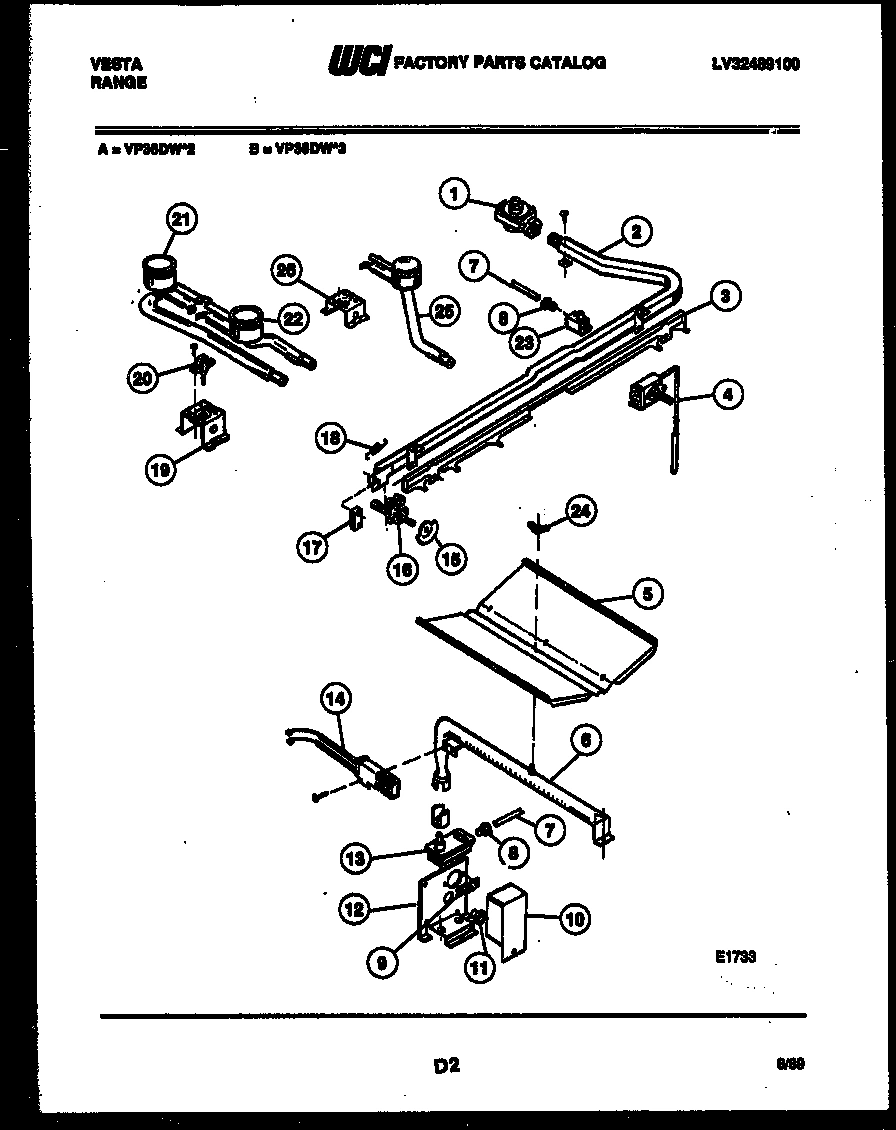

06 - BURNER PARTS

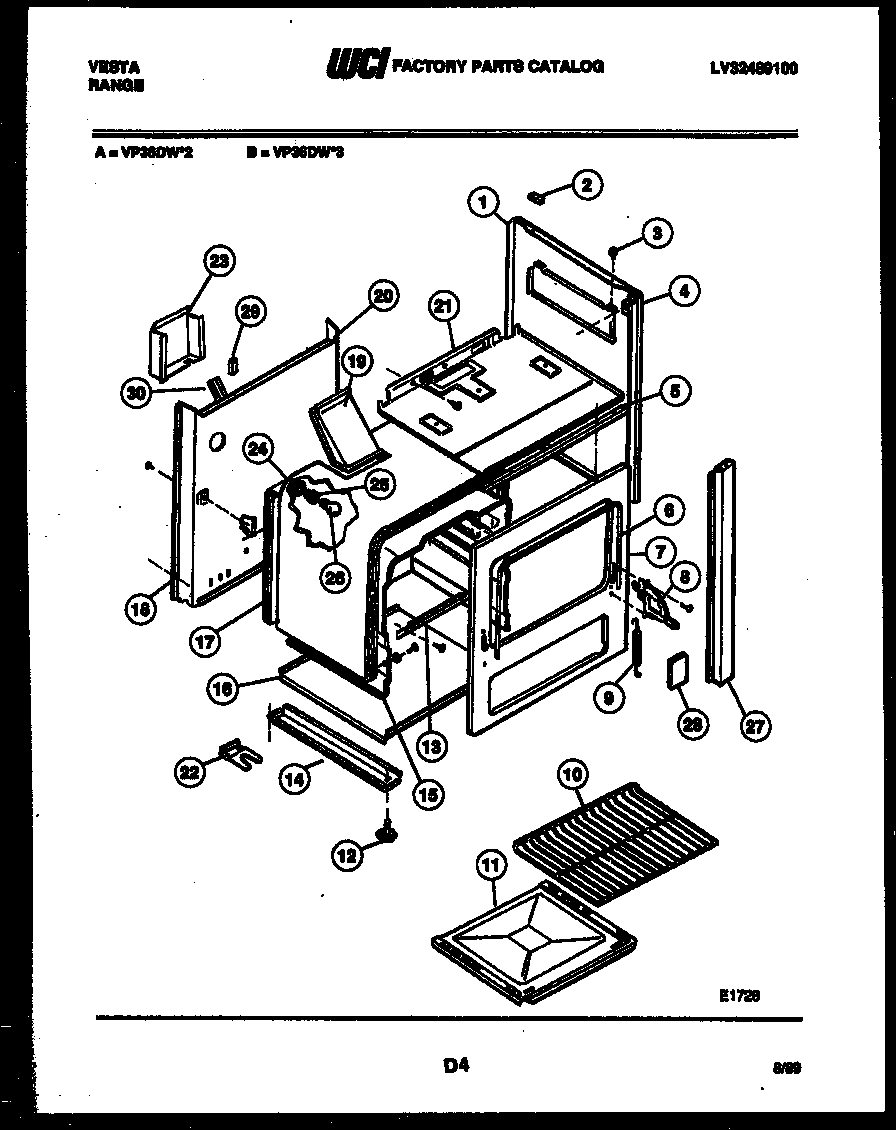

07 - BODY PARTS
Common parts from model Electrolux VP36DW2 RANGE
*29539
WCI 08007939 WCI 08007939 Contact Us For Availability
1
TRIM - GLASS WCI 08013930 Contact Us For Availability
1
PANEL - MANIFOLD WCI 3205764 Contact Us For Availability
1
TRIM - OVEN DOOR WCI 08007933 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
WCI 08014019 WCI 08014019 Contact Us For Availability
1
PNL - B/S (WHITE) WCI 3051061 Contact Us For Availability
2
WCI P161350 WCI P161350 Contact Us For Availability
2
KNOB - THERMO WCI P227495 Contact Us For Availability
2
WCI 08007935 WCI 08007935 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
MANIFOLD PIPE WCI 08013907 Contact Us For Availability
2
GROMMET-TOP REAR (2) WCI 3016129 Contact Us For Availability
3
WCI 3131756 WCI 3131756 Contact Us For Availability
3
KNOB - TOP VALVE, GRIDDLE (5) WCI 3205760 Contact Us For Availability
3
WCI 08007932 WCI 08007932 Contact Us For Availability
3
WCI 3018341 WCI 3018341 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
4
WCI 3205766 WCI 3205766 Contact Us For Availability
4
WCI 08014034 WCI 08014034 Contact Us For Availability
4
MAIN TOP - ALMD WCI 08014035 Contact Us For Availability
4
WCI 08012609 WCI 08012609 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 3131053 WCI 3131053 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI AP00091011 Contact Us For Availability
4A
WCI 3131054 WCI 3131054 Contact Us For Availability
5
WCI 3018714 WCI 3018714 Contact Us For Availability
5
WCI 08011431 WCI 08011431 Contact Us For Availability
5
WCI 3018345 WCI 3018345 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
WCI 3205765 WCI 3205765 Contact Us For Availability
6
TOP - GRATE (5) WCI 3009309 Contact Us For Availability
6
WCI 08008058 WCI 08008058 Contact Us For Availability
6
WCI 3131778 WCI 3131778 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
WCI 08008022 WCI 08008022 Contact Us For Availability
7
WCI 08013296 WCI 08013296 Contact Us For Availability
7
WCI 08013877 WCI 08013877 Contact Us For Availability
7
WCI 3131771 WCI 3131771 Contact Us For Availability
7
TUBE - 3/8 FEED WCI 3009495 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
8
DEFLECTOR - VENT WCI 10776 Contact Us For Availability
8
WCI 08013949 WCI 08013949 Contact Us For Availability
8
WCI 08013951 WCI 08013951 Contact Us For Availability
8
WCI 08013923 WCI 08013923 Contact Us For Availability
8
WCI 3017037 WCI 3017037 Contact Us For Availability
8
WCI AP269017 WCI AP269017 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
9
WCI 08008009 WCI 08008009 Contact Us For Availability
9
WCI 08013991 WCI 08013991 Contact Us For Availability
9
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
9
PANEL - OUTER BLACK WCI 3017170 Contact Us For Availability
9
WCI 08007985 WCI 08007985 Contact Us For Availability
9
WCI 08008028 WCI 08008028 Contact Us For Availability
10
WCI 08008071 WCI 08008071 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
COVER-OV SAFETY VALVE WCI 08007986 Contact Us For Availability
10
RACK (2) WCI 3015714 Contact Us For Availability
11
CORD - POWER WCI 3015249 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
SNAP - BUSHING WCI 3051101 Contact Us For Availability
11
WCI 3018282 WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
WCI 08008255 WCI 08008255 Contact Us For Availability
12
SPRING (2) WCI 3131030 Contact Us For Availability
12
SUPT-OV SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 3051080 Contact Us For Availability
13
WCI 08008076 WCI 08008076 Contact Us For Availability
13
TRACK - BROILER RH WCI 3051055 Contact Us For Availability
13
WCI 08009419 WCI 08009419 Contact Us For Availability
13
SUPT - OVEN BOTTOM WCI 3131038 Contact Us For Availability
13A
TRACK - BROILER LH WCI 3051056 Contact Us For Availability
14
WCI 08007925 WCI 08007925 Contact Us For Availability
14
WCI 3051057 WCI 3051057 Contact Us For Availability
14
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
15
RECEPT. - B/G LIGHT WCI 08008075 Contact Us For Availability
15
WCI 3131859 WCI 3131859 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018995 WCI 3018995 Contact Us For Availability
16
VALVE - TOP BURNER (5) WCI 3205761 Contact Us For Availability
16
WCI 3011645 WCI 3011645 Contact Us For Availability
17
HOUSING - B/G WCI 10775 Contact Us For Availability
17
MICRO - SWITCH WCI 3131094 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
SUPPORT-REAR (2) WCI 3051096 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
20
IGNITER-TOP BURNER 48`` WCI 3202375 Contact Us For Availability
20
BACK - MAIN WCI 3205762 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
WCI 3017993 WCI 3017993 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
WCI 3934059 WCI 3934059 Contact Us For Availability
22A
CLIP - B/S COKER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
23
WCI 3018340 WCI 3018340 Contact Us For Availability
24
NUT - WING WCI 08007979 Contact Us For Availability
24
CUP - OVEN LIGHT WCI 3051085 Contact Us For Availability
25
WCI 3131882 WCI 3131882 Contact Us For Availability
26
SUPT - GRID BURNER WCI 3018342 Contact Us For Availability
27
PANEL - FILLER (WHITE) WCI 08013993 Contact Us For Availability
27
PANEL - FILLER (ALMD) WCI 08013994 Contact Us For Availability
28
WCI 08014023 WCI 08014023 Contact Us For Availability
28A
REFLECTOR PLATE (NON-ILLUSTRATED) WCI 3018339 Contact Us For Availability
29
WCI 3018338 WCI 3018338 Contact Us For Availability
30
CHANNEL - MAIN WIRE WCI 3131046 Contact Us For Availability
× ![]()
