Model Electrolux VP30CW2 RANGE – Common Parts & Diagrams

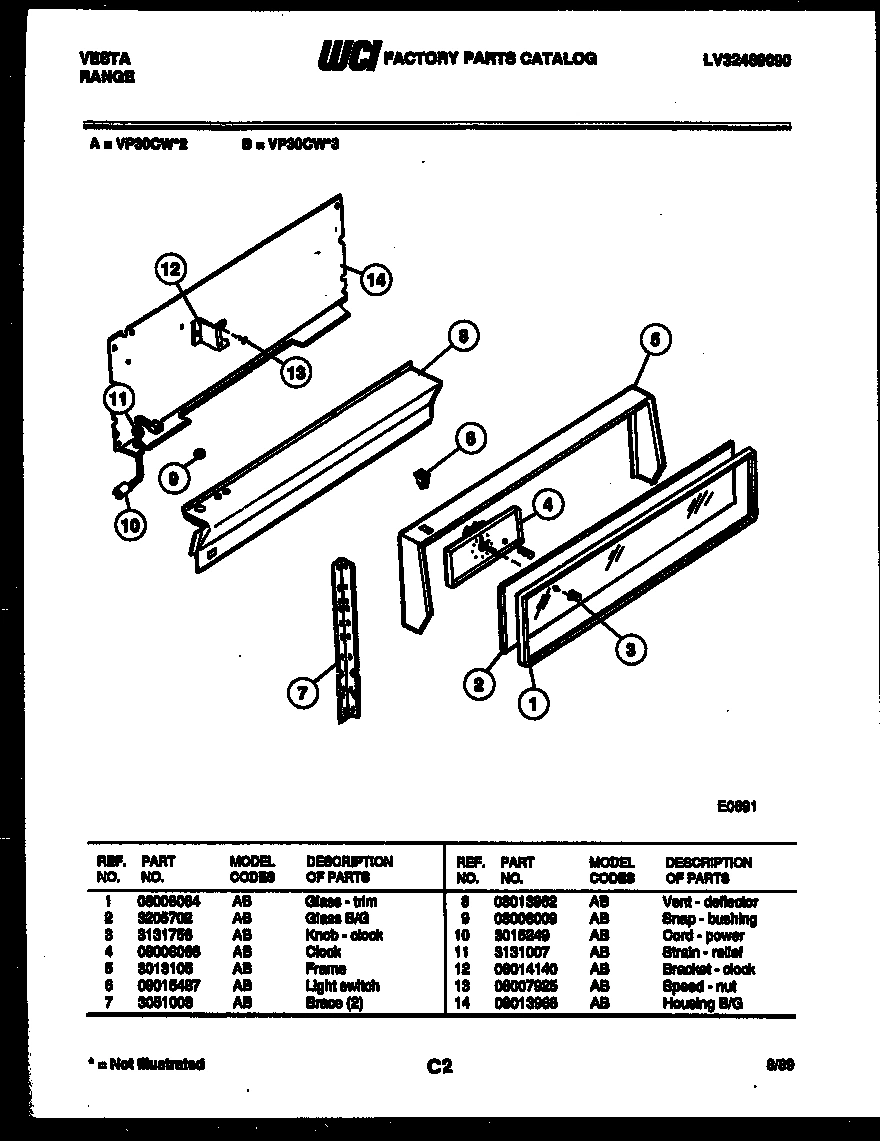

02 - BACKGUARD

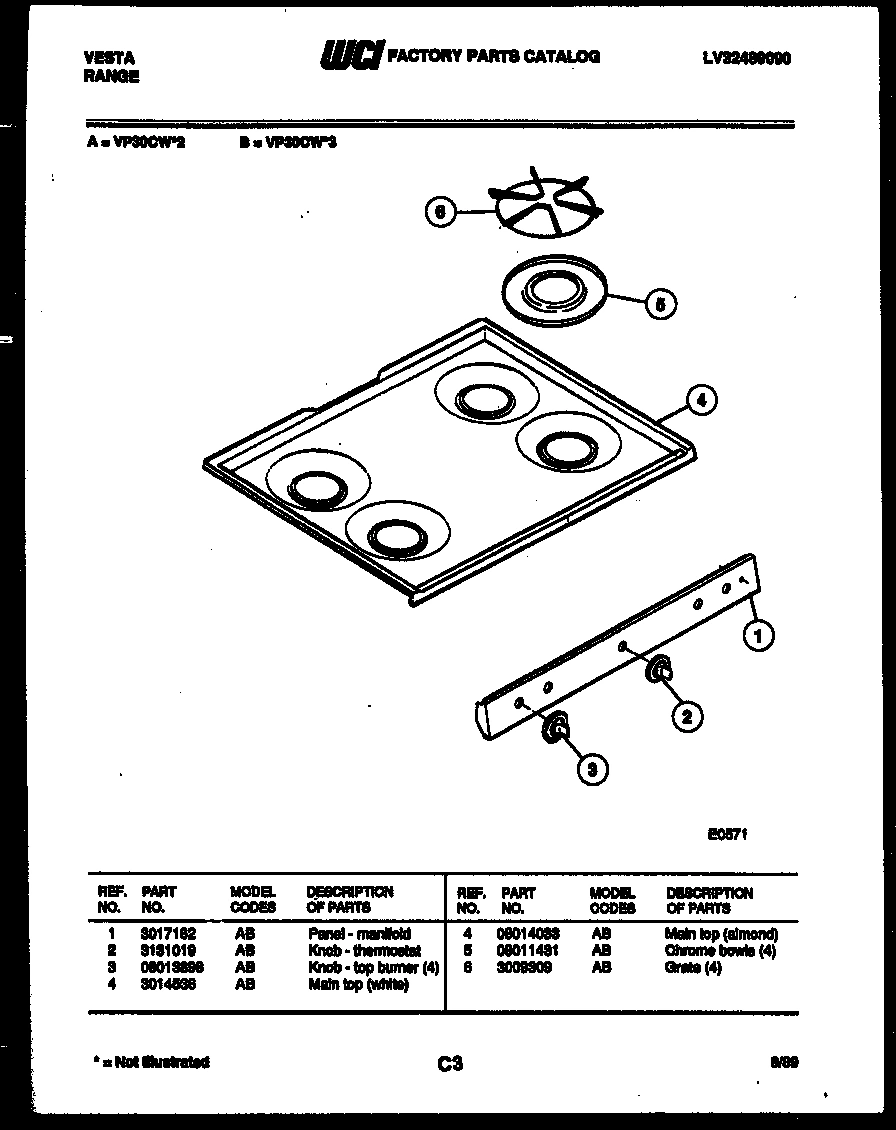

03 - COOKTOP PARTS
04 - BROILER DRAWER PARTS
05 - DOOR PARTS
06 - BURNER PARTS
07 - BODY PARTS
Common parts from model Electrolux VP30CW2 RANGE
*29457
WCI 08007939 WCI 08007939 Contact Us For Availability
1
WCI 3017162 WCI 3017162 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
TRIM - OVEN DOOR WCI 08007933 Contact Us For Availability
1
WCI 08014019 WCI 08014019 Contact Us For Availability
1
PNL - B/S (WHITE) WCI 3051061 Contact Us For Availability
2
WCI 3205702 WCI 3205702 Contact Us For Availability
2
WCI 3131019 WCI 3131019 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 3205595 WCI 3205595 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET-TOP REAR (2) WCI 3016129 Contact Us For Availability
3
WCI 3131756 WCI 3131756 Contact Us For Availability
3
KNOB - TOP BURNER (4) WCI 08013898 Contact Us For Availability
3
WCI 08007932 WCI 08007932 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
4
WCI 08008066 WCI 08008066 Contact Us For Availability
4
WCI 08014033 WCI 08014033 Contact Us For Availability
4
WCI 3014536 WCI 3014536 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
WCI 08012609 WCI 08012609 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 3131053 WCI 3131053 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI AP00091011 Contact Us For Availability
4A
WCI 3131054 WCI 3131054 Contact Us For Availability
5
WCI 3013105 WCI 3013105 Contact Us For Availability
5
WCI 08011431 WCI 08011431 Contact Us For Availability
5
WCI 3018345 WCI 3018345 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
SUPPORT - CONT PNL WCI 3131811 Contact Us For Availability
6
GRATE (4) WCI 3009309 Contact Us For Availability
6
SPACER WCI 3131778 Contact Us For Availability
6
WCI 08008058 WCI 08008058 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
WCI 08008022 WCI 08008022 Contact Us For Availability
7
BRACE (2) WCI 3051008 Contact Us For Availability
7
WCI 3131771 WCI 3131771 Contact Us For Availability
7
TUBE - 3/8 FEED WCI 3009495 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
8
VENT - DEFLECTOR WCI 08013962 Contact Us For Availability
8
WCI 08008085 WCI 08008085 Contact Us For Availability
8
WCI 08013923 WCI 08013923 Contact Us For Availability
8
WCI AP269017 WCI AP269017 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
9
WCI 08008009 WCI 08008009 Contact Us For Availability
9
PANEL - OUTER BLACK WCI 3017170 Contact Us For Availability
9
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
9
WCI 08007985 WCI 08007985 Contact Us For Availability
9
WCI 08008028 WCI 08008028 Contact Us For Availability
10
CORD - POWER WCI 3015249 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
COVER-OV SAFETY VALVE WCI 08007986 Contact Us For Availability
10
RACK (2) WCI 3015714 Contact Us For Availability
11
WCI 3131007 WCI 3131007 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
SNAP - BUSHING WCI 3051101 Contact Us For Availability
11
WCI 3018282 WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
BRACKET - CLOCK WCI 08014140 Contact Us For Availability
12
SPRING WCI 3131030 Contact Us For Availability
12
SUPT-OV SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SCREW - LEVELLING (4) WCI 3051080 Contact Us For Availability
13
WCI 08007925 WCI 08007925 Contact Us For Availability
13
TRACK - BROILER RH WCI 3051055 Contact Us For Availability
13
WCI 08009419 WCI 08009419 Contact Us For Availability
13
WCI 3131038 WCI 3131038 Contact Us For Availability
13A
TRACK - BROILER LH WCI 3051056 Contact Us For Availability
14
HOUSING B/G WCI 08013966 Contact Us For Availability
14
ROLLERS (2) WCI 3051057 Contact Us For Availability
14
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
15
CAM - VALVE (4) WCI 3131091 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018286 WCI 3018286 Contact Us For Availability
16
WCI 3131057 WCI 3131057 Contact Us For Availability
16
WCI 3011645 WCI 3011645 Contact Us For Availability
17
MICRO - SWITCH WCI 08013925 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
20
IGNITER-TOP BURNER 36`` WCI 3015196 Contact Us For Availability
20
WCI 3013340 WCI 3013340 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
BURNER-BOX WCI 3017174 Contact Us For Availability
21A
ANTI - TIP BRACKET (NON-ILLUSTRATED) WCI 3934059 Contact Us For Availability
21B
CLIP - B/S COVER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
WCI 08008357 WCI 08008357 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
24
NUT - WING WCI 08007979 Contact Us For Availability
27
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
× ![]()
