Model Electrolux VP30BW3 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - BROILER DRAWER PARTS

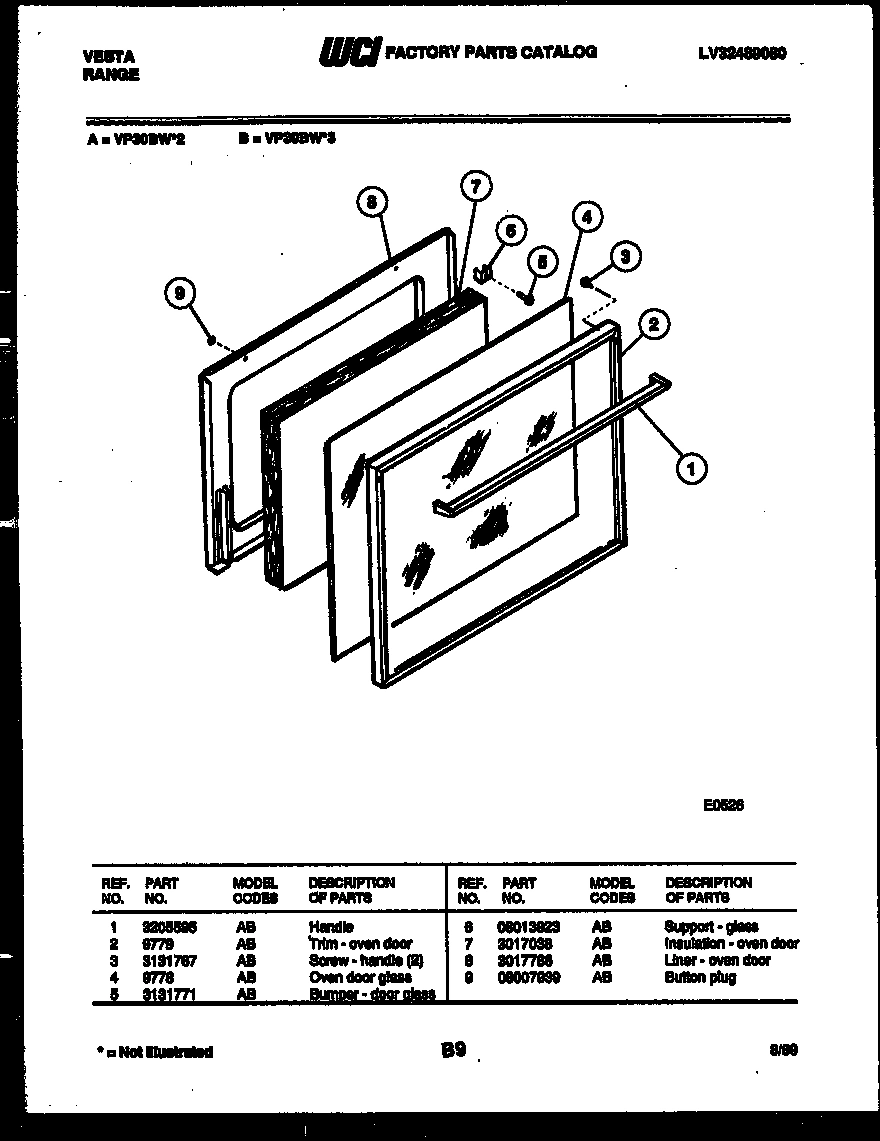

04 - DOOR PARTS

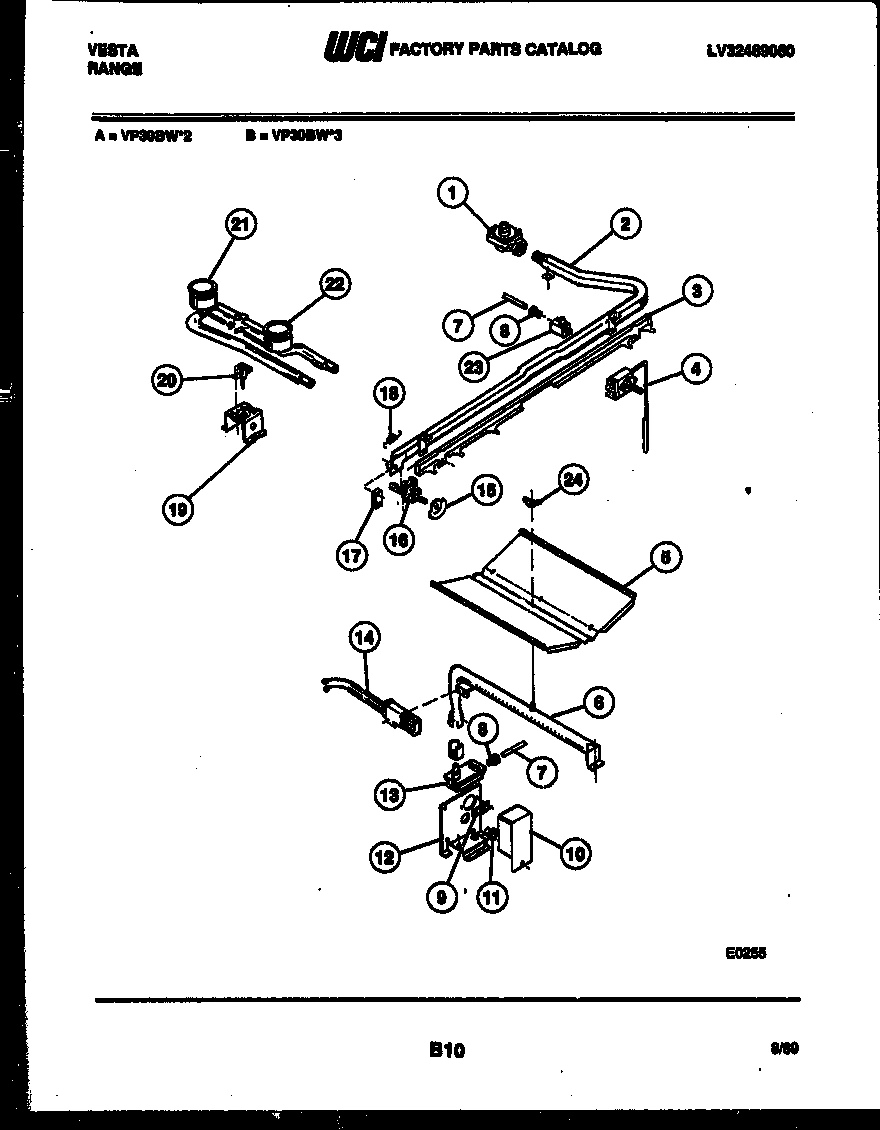

05 - BURNER PARTS

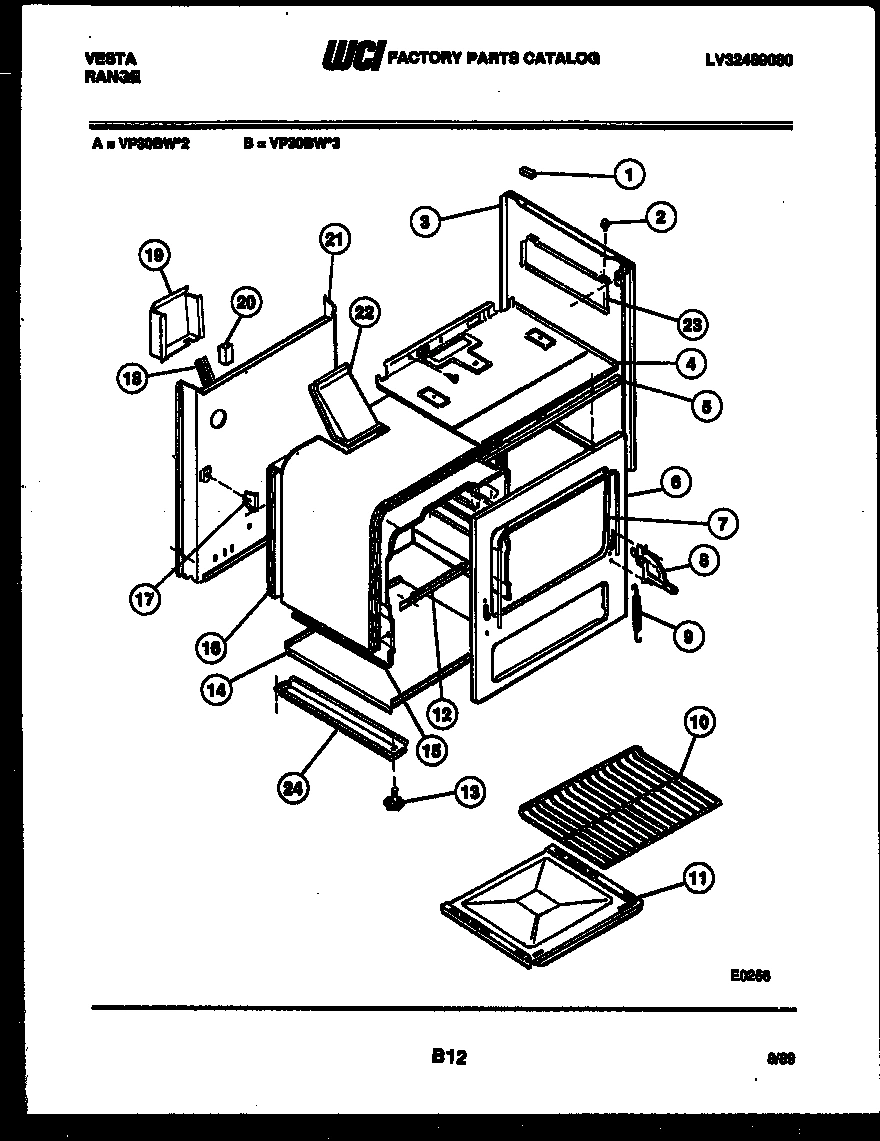

06 - BODY PARTS
Common parts from model Electrolux VP30BW3 RANGE
*29392
CLIP - BACKSPLASH (2) WCI 3131791 Contact Us For Availability
*29392
WCI 3934059 WCI 3934059 Contact Us For Availability
1
WCI 3017162 WCI 3017162 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
1
WCI 3205595 WCI 3205595 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI 3131019 WCI 3131019 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 9779 WCI 9779 Contact Us For Availability
2
MANIFOLD WCI 08013906 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
KNOB - TOP BURNER (4) WCI 08013898 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
SIDE BODY WHITE (2) WCI 3051061 Contact Us For Availability
3A
WCI 08014019 WCI 08014019 Contact Us For Availability
4
WCI 08014033 WCI 08014033 Contact Us For Availability
4
WCI 3014536 WCI 3014536 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
OVEN DOOR GLASS WCI 9778 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 3017174 WCI 3017174 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI AP00091011 Contact Us For Availability
5
WCI 08011431 WCI 08011431 Contact Us For Availability
5
WCI 3131771 WCI 3131771 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
6
GRATE (4) WCI 3009309 Contact Us For Availability
6
SPACER WCI 3051041 Contact Us For Availability
6
WCI 08013923 WCI 08013923 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
FRONT FRAME-BRONZE WCI 3205578 Contact Us For Availability
7
GLASS - TRIM WCI 08008064 Contact Us For Availability
7
WCI 3017038 WCI 3017038 Contact Us For Availability
7
TUBE - 3/8 FEED WCI 3009495 Contact Us For Availability
7
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
8
WCI 3205716 WCI 3205716 Contact Us For Availability
8
WCI 3009313 WCI 3009313 Contact Us For Availability
8
LINER - OVEN DOOR WCI 3017786 Contact Us For Availability
8
WCI AP269017 WCI AP269017 Contact Us For Availability
8A
HINGE ASSY RH WCI 3204670 Contact Us For Availability
9
WCI 3205606 WCI 3205606 Contact Us For Availability
9
PANEL - WHITE WCI 3017169 Contact Us For Availability
9
WCI 3017170 WCI 3017170 Contact Us For Availability
9
WCI 08007939 WCI 08007939 Contact Us For Availability
9
TERMINAL BLOCK WCI 3131087 Contact Us For Availability
9
SPRING - OVEN DOOR (2) WCI 08011484 Contact Us For Availability
10
WCI 08013296 WCI 08013296 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
CVR-OV SAFETY VALVE WCI 3131088 Contact Us For Availability
10
WCI 3015714 WCI 3015714 Contact Us For Availability
11
VENT - DEFLECTOR WCI 08013962 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
SNAP - BUSHING WCI 3051101 Contact Us For Availability
11
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
WCI 3015249 WCI 3015249 Contact Us For Availability
12
SPRING WCI 3131030 Contact Us For Availability
12
SPRT-OV SAFETY VALVE WCI 3131069 Contact Us For Availability
12
WCI 3131038 WCI 3131038 Contact Us For Availability
13
WCI 3131007 WCI 3131007 Contact Us For Availability
13
TRACK DRAWER RH WCI 3051055 Contact Us For Availability
13
WCI 08009419 WCI 08009419 Contact Us For Availability
13
LEG LEVELER (4) WCI 3051080 Contact Us For Availability
13A
TRACK DRAWER LH WCI 3051056 Contact Us For Availability
14
ROLLERS (2) WCI 3051057 Contact Us For Availability
14
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
15
CAM - VALVE (4) WCI 3131091 Contact Us For Availability
15
LINER LH WCI 3018285 Contact Us For Availability
15A
LINER RH WCI 3018284 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018995 WCI 3018995 Contact Us For Availability
16
WCI 3131057 WCI 3131057 Contact Us For Availability
16
WCI 3017171 WCI 3017171 Contact Us For Availability
16A
WCI 3017172 WCI 3017172 Contact Us For Availability
17
MICRO - SWITCH WCI 08013925 Contact Us For Availability
17
SUPPT - OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
SPRING - SLIDE WCI 3131096 Contact Us For Availability
18
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
19
WCI 3203964 WCI 3203964 Contact Us For Availability
19
WCI 08008357 WCI 08008357 Contact Us For Availability
20
IGNITER - TOP BRNR 36`` WCI 3207970 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
MAIN BACK WCI 3013340 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
VENT BOX WCI 3017173 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
23
SHIELD-BURNER BOX RH WCI 3131053 Contact Us For Availability
23A
SHIELD-BURNER BOX LH WCI 3131054 Contact Us For Availability
24
NUT - WING WCI 08007979 Contact Us For Availability
24
BASE RAIL WCI 08068047 Contact Us For Availability
× ![]()
