Model Whirlpool VM11EV-8P MICROWAVE – Common Parts & Diagrams

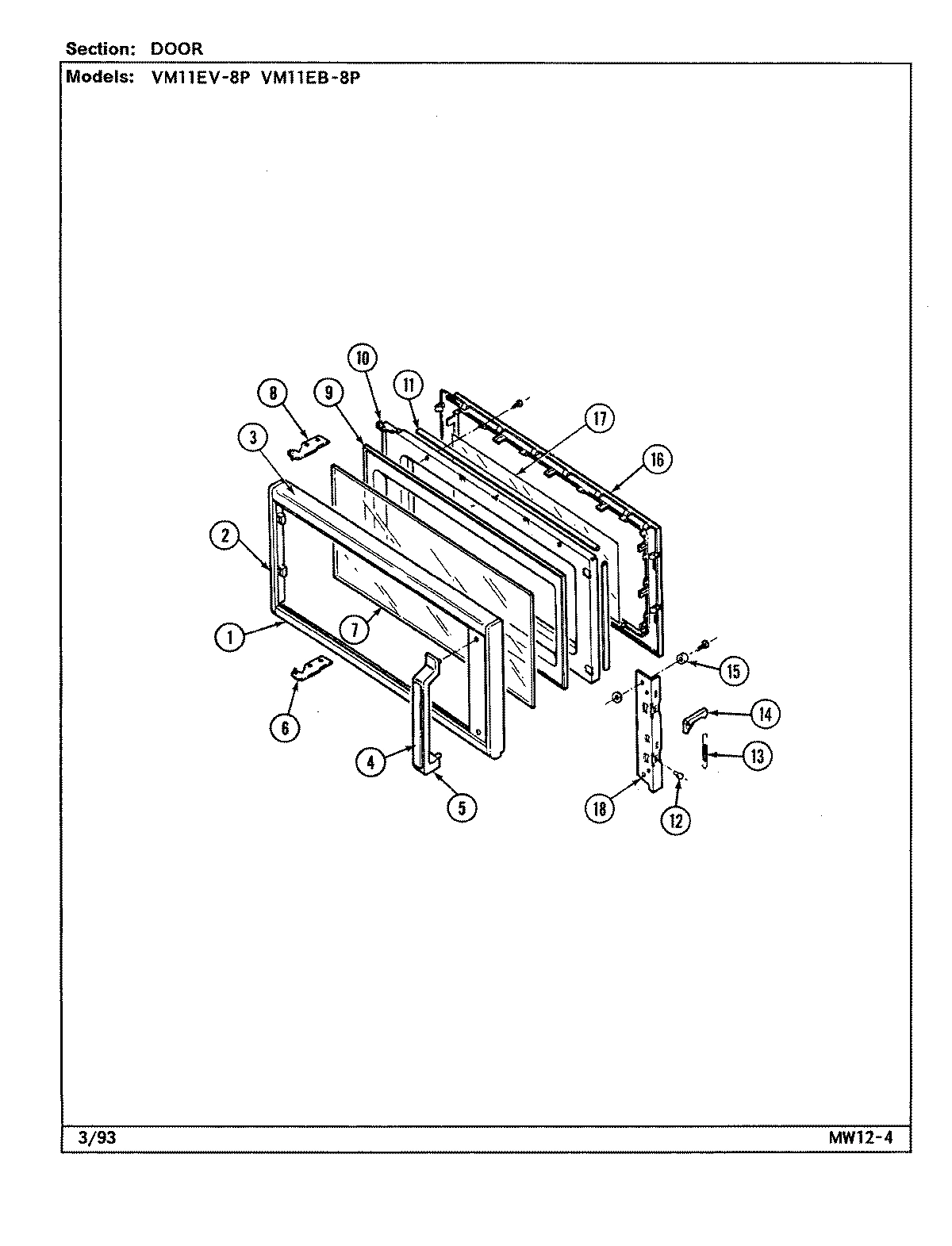

04 - DOOR

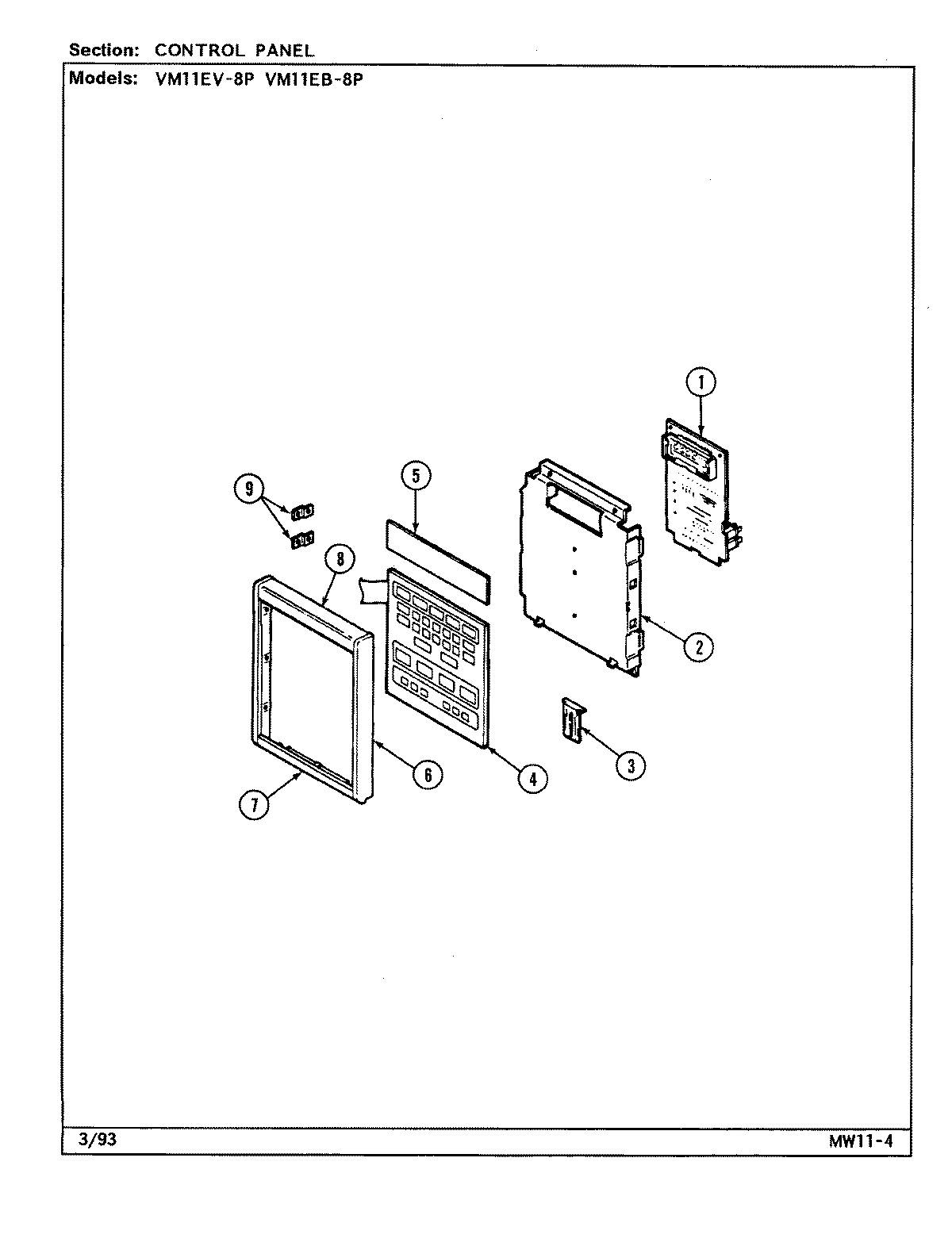

03 - CONTROL PANEL

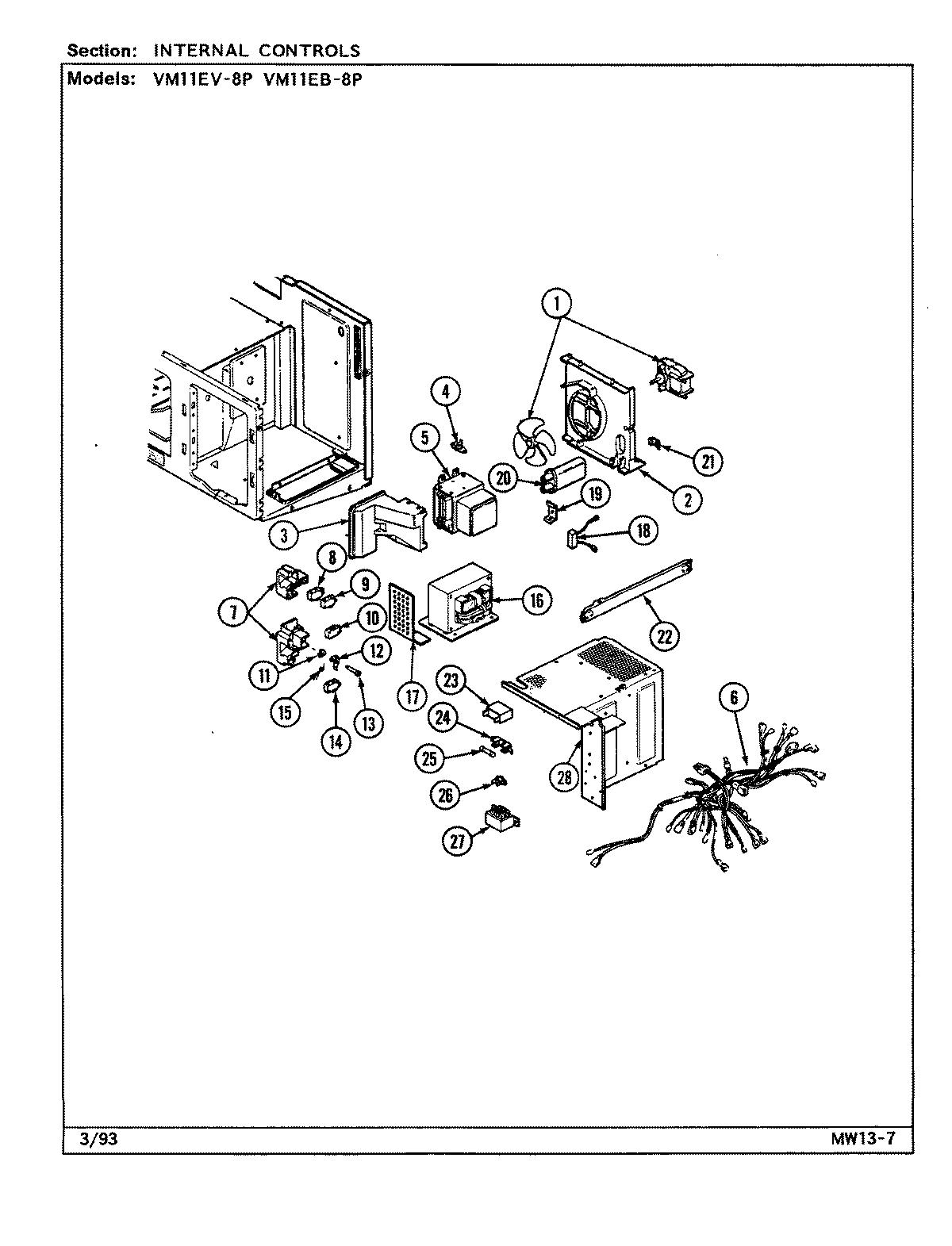

05 - INTERNAL CONTROLS

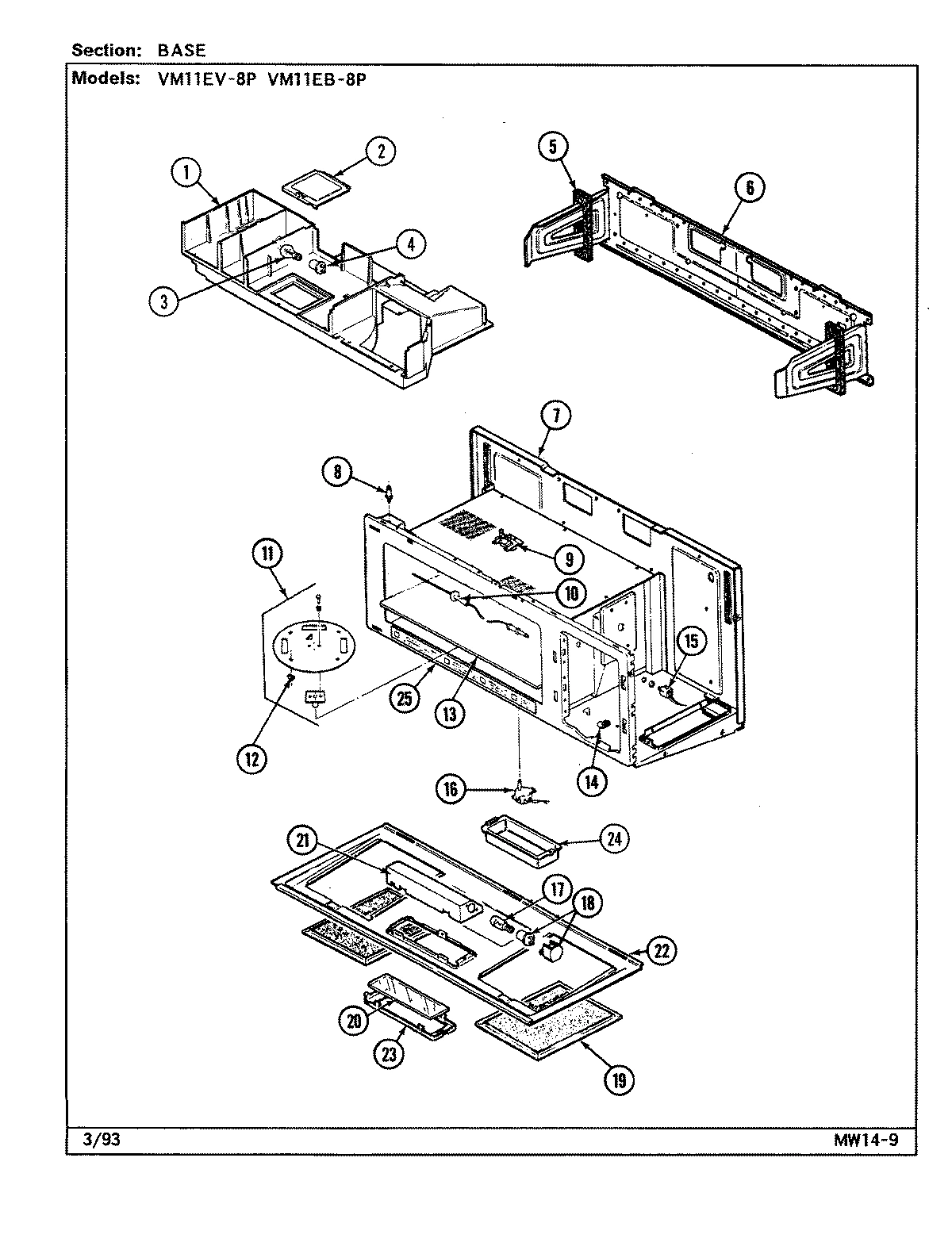

01 - BASE

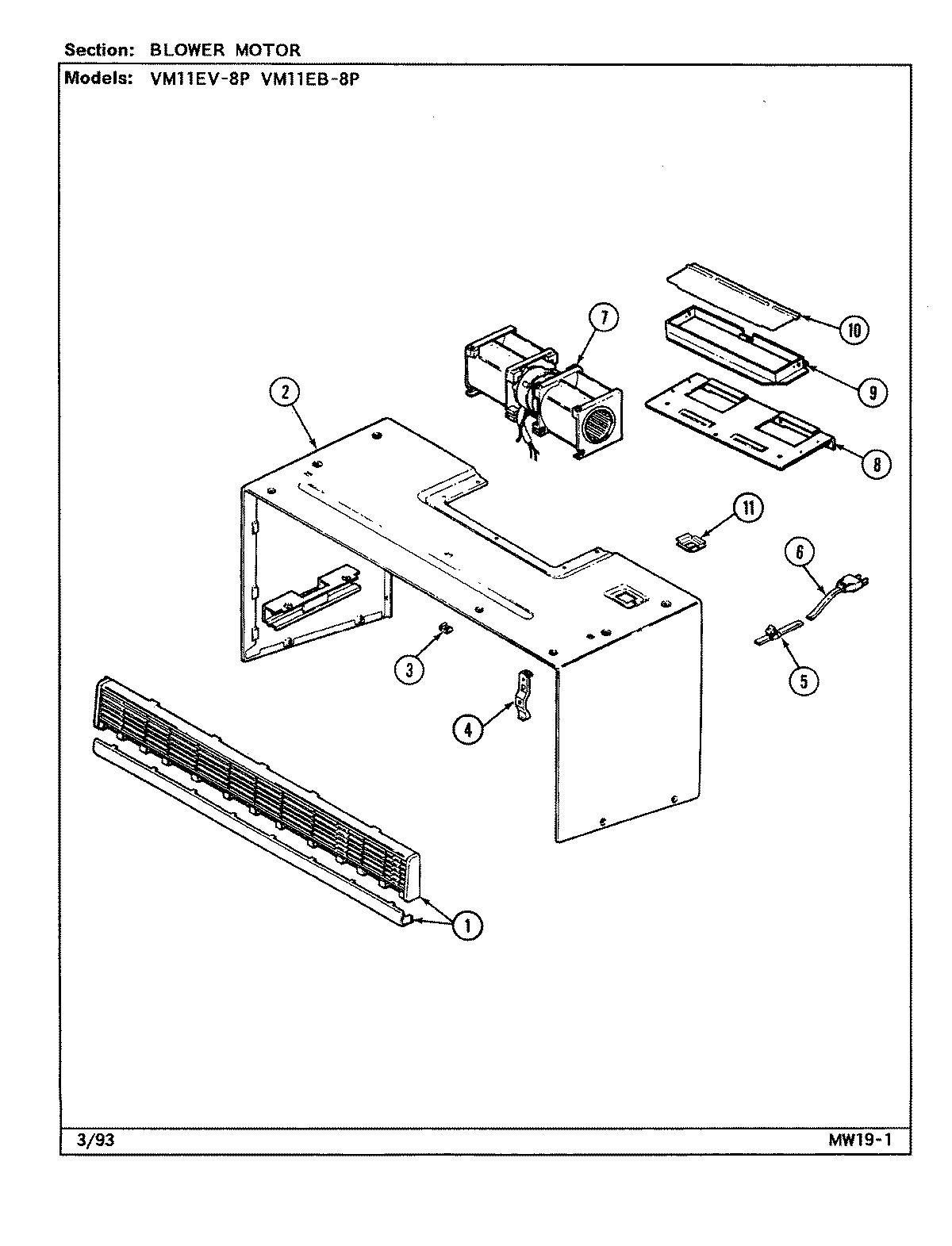

02 - BLOWER MOTOR
Common parts from model Whirlpool VM11EV-8P MICROWAVE
1
TRIM, DOOR LOWER (WHT) WPL 05200218 Contact Us For Availability
1
TRIM, DOOR LOWER WPL Y05200250 Contact Us For Availability
1
BOARD, CONTROL WPL 54001005 Contact Us For Availability
1
BOARD, CONTROL $20. WPL Y05200306 Contact Us For Availability
1
FAN MOTOR/ BLADE ASSEMBLY WPL Y05200160 Contact Us For Availability
1
DUCT ASSEMBLY (UPPER) WPL 05200262 Contact Us For Availability
1
GRILLE ASSY. (WHT) WPL 05200240 Contact Us For Availability
1
SCREW, GRILLE ASSEMBLY (WHT) WPL 54001009 Contact Us For Availability
1
INSERT, GRILLE WPL Y05200239 Contact Us For Availability
1
INSERT, GRILLE WPL Y05200269 Contact Us For Availability
2
FRAME, DOOR (WHT) WPL Y05200214 Contact Us For Availability
2
BRACKET, CONTROL PANEL WPL 05200184 Contact Us For Availability
2
COVER, MOTOR WPL Y05200161 Contact Us For Availability
2
COVER, BULB WPL 05200310 Contact Us For Availability
2
CASE, OUTER W/BRACKET (WHT) WPL 05200146 Contact Us For Availability
3
TRIM, DOOR UPPER WPL 05200249 Contact Us For Availability
3
TRIM, DOOR UPPER (WHT) WPL Y05200216 Contact Us For Availability
3
HINGE, CONTROL BOX WPL 05200141 Contact Us For Availability
3
GUIDE, AIR WPL 05200172 Contact Us For Availability
4
TRIM, HANDLE WPL Y05200206 Contact Us For Availability
4
KEY PANEL ASSY WPL Y05200304 Contact Us For Availability
4
THERMOSTAT, SWITCH WPL 31600010 Contact Us For Availability
4
RECEPTACLE, BULB WPL 05200052 Contact Us For Availability
4
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
5
HANDLE (WHT) WPL Y05200195 Contact Us For Availability
5
CRYSTAL WPL 05200181 Contact Us For Availability
5
CUSHION, MOUNTING PLATE WPL Y05200143 Contact Us For Availability
5
CLAMP, CABLE WPL Y05200026 Contact Us For Availability
6
HINGE, LOWER WPL Y05200150 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 05200140 Contact Us For Availability
6
HARNESS, WIRE WPL 05200188 Contact Us For Availability
6
MOUNTING PLATE WPL 05200142 Contact Us For Availability
6
CORD, POWER WPL Y05200148 Contact Us For Availability
7
OUTER, GLASS DOOR WPL Y05200247 Contact Us For Availability
7
TRIM, LOWER (WHT) WPL Y05200179 Contact Us For Availability
7
TRIM, CONTROL PANEL LWR WPL Y05200242 Contact Us For Availability
7
LATCH, BRACKET (UPPER) WPL 22750041 Contact Us For Availability
7
LATCH, BRACKET (LOWER) WPL 22750043 Contact Us For Availability
7
COVER, BACK WPL 05200147 Contact Us For Availability
7
MOTOR, VENTILATION WPL Y05200156 Contact Us For Availability
8
HINGE, UPPER WPL Y05200208 Contact Us For Availability
8
TRIM, CONTROL PANEL UPPER WPL 05200243 Contact Us For Availability
8
TRIM, UPPER (WHT) WPL Y05200183 Contact Us For Availability
8
SWITCH, PRIMARY WPL 31350086 Contact Us For Availability
8
BOLT, HINGE WPL Y05200222 Contact Us For Availability
8
BRACKET, MOTOR SUPPORT WPL Y05200065 Contact Us For Availability
9
FRAME, DOOR (WHT) WPL Y05200201 Contact Us For Availability
9
BRACKET, CONTROL BOX WPL 05200138 Contact Us For Availability
9
SWITCH, DOOR WPL 05200081 Contact Us For Availability
9
SENSOR, FLAME WPL Y05200144 Contact Us For Availability
9
FRAME, DAMPER WPL Y05200066 Contact Us For Availability
10
LINER, DOOR (WHT) WPL Y05200197 Contact Us For Availability
10
MANUAL, USE & CARE WPL Y05200309 Contact Us For Availability
10
SWITCH, SECONDARY WPL 31350085 Contact Us For Availability
10
PROBE, TEMPERATURE WPL Y05200169 Contact Us For Availability
10
DOOR, DAMPER WPL 23050002 Contact Us For Availability
11
SEAL, DOOR WPL Y05200203 Contact Us For Availability
11
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
11
CAM, SWITCH WPL 21950007 Contact Us For Availability
11
RIVET, PUSH WPL 29500007 Contact Us For Availability
11
STIRRER ASSY. WPL Y05200159 Contact Us For Availability
11
BRACKET, POWER CORD WPL 05200149 Contact Us For Availability
12
PIN, LATCH DOOR WPL 05200210 Contact Us For Availability
12
LEVER, HOOK WPL 26600017 Contact Us For Availability
12
SPACER, STIRRER WPL 05200219 Contact Us For Availability
13
SPRING, LATCH DOOR WPL Y05200207 Contact Us For Availability
13
SCREW, CAM WPL 30050114 Contact Us For Availability
13
BOTTOM, TRAY ASSY WPL Y05200170 Contact Us For Availability
14
LATCH, DOOR WPL Y05200204 Contact Us For Availability
14
SWITCH, MONITOR WPL 31350059 Contact Us For Availability
15
RING, SUPPORT WPL Y05200209 Contact Us For Availability
15
SPRING, HOOK WPL 30700024 Contact Us For Availability
15
PROBE SOCKET ASSY WPL 05200171 Contact Us For Availability
15
SOCKET ASSY., PROBE WPL 54001001 Contact Us For Availability
16
CHOKE, DOOR (WHT) WPL 05200199 Contact Us For Availability
16
TRANSFORMER, HIGH VOLTAGE WPL 05200165 Contact Us For Availability
17
FILM, DOOR WPL Y05200202 Contact Us For Availability
17
BARRIER, H.V. TRANSFORMER WPL 21450050 Contact Us For Availability
18
BRACKET WPL 05200275 Contact Us For Availability
18
RECEPTACLE, BULB WPL 05200135 Contact Us For Availability
18
BRACKET, RECEPTACLE WPL 05200302 Contact Us For Availability
18
RECEPTACLE, BULB (COOKTOP) WPL 05200053 Contact Us For Availability
19
BRACKET, HV CAPACITOR WPL 05200166 Contact Us For Availability
19
FILTER, AIR WPL 23900003 Contact Us For Availability
19
FILTER KIT (CHARCOAL) WPL Y05200037 Contact Us For Availability
20
CAPACITOR, HIGH VOLTAGE WPL Y05200167 Contact Us For Availability
20
LENS, BULB WPL Y05200153 Contact Us For Availability
21
BRACKET, FAN MOTOR WPL 05200162 Contact Us For Availability
21
COVER, BULB WPL 05200221 Contact Us For Availability
22
BRACKET WPL 21450048 Contact Us For Availability
22
ENCLOSURE, BOTTOM PLATE WPL 05200303 Contact Us For Availability
22
PLATE, BOTTOM (WHT) WPL Y05200155 Contact Us For Availability
23
MOTOR, CAPACITOR WPL Y05200185 Contact Us For Availability
23
BRACKET, COOKTOP GLASS WPL Y05200241 Contact Us For Availability
24
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
24
COVER, MOTOR WPL 05200270 Contact Us For Availability
25
FUSE, 125V 15A WPL Y05200186 Contact Us For Availability
25
LABEL, COOK WPL 05200311 Contact Us For Availability
26
THERMOSTAT, SWITCH WPL Y05200164 Contact Us For Availability
26
MOUNTING HARDWARE WPL Y05200280 Contact Us For Availability
27
TRANSFORMER, LOW VOLTAGE WPL 54001003 Contact Us For Availability
27
TRANSFORMER, LOW VOLTAGE WPL Y05200187 Contact Us For Availability
28
COVER, SIDE DUCT WPL 05200292 Contact Us For Availability
× ![]()
