Model Electrolux VG36DW2-23 RANGE – Common Parts & Diagrams

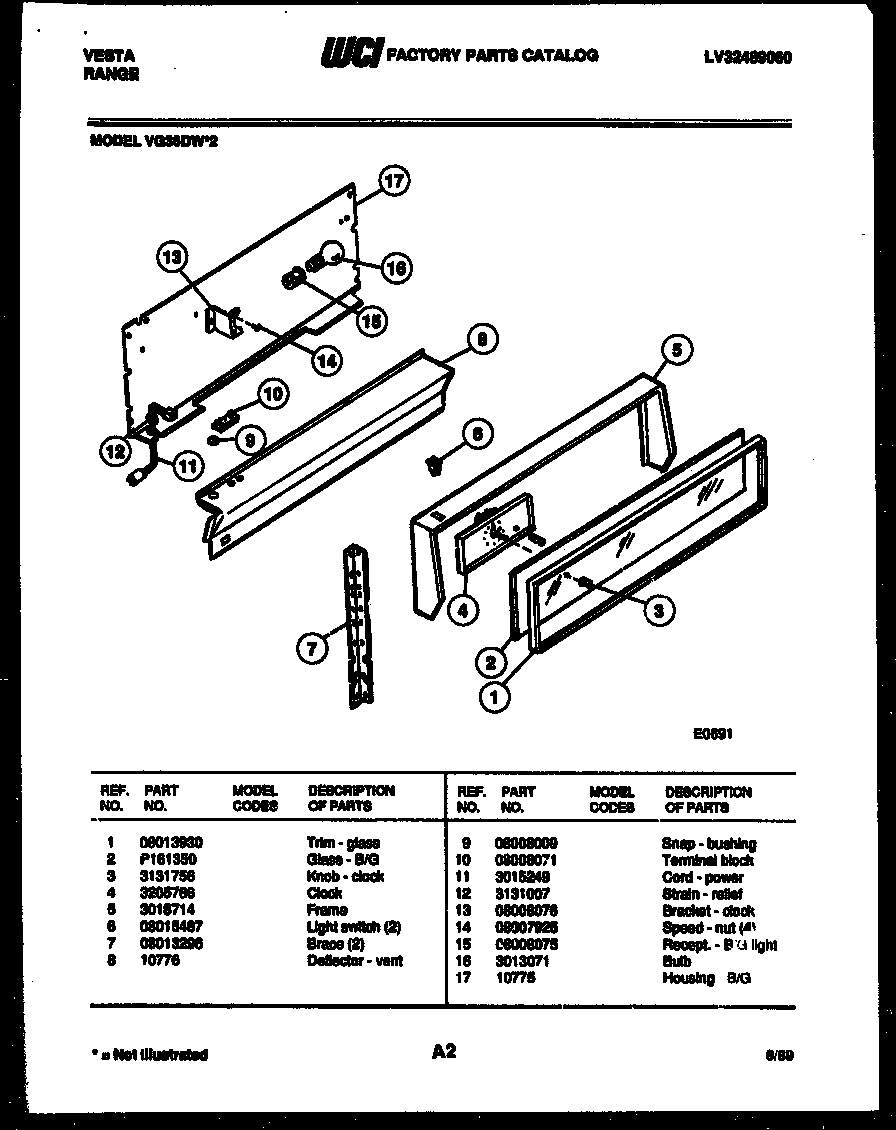

02 - BACKGUARD

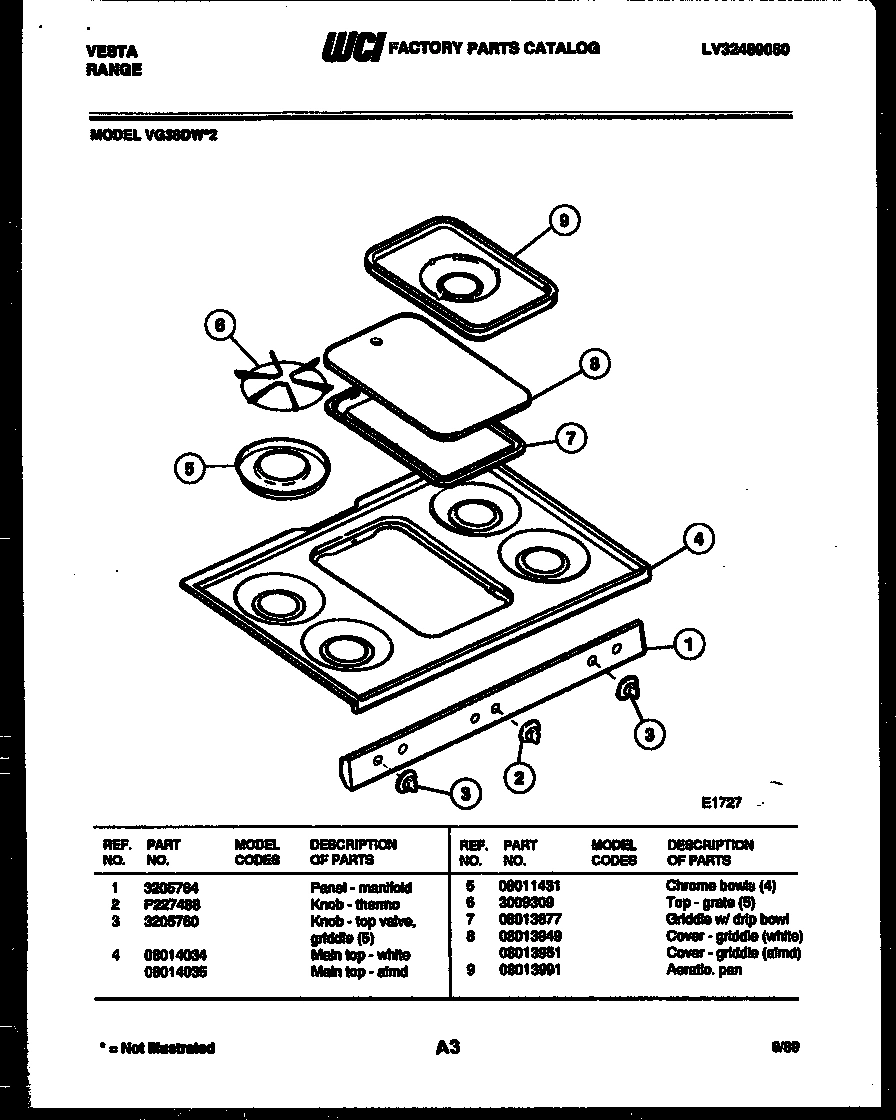

03 - COOKTOP PARTS

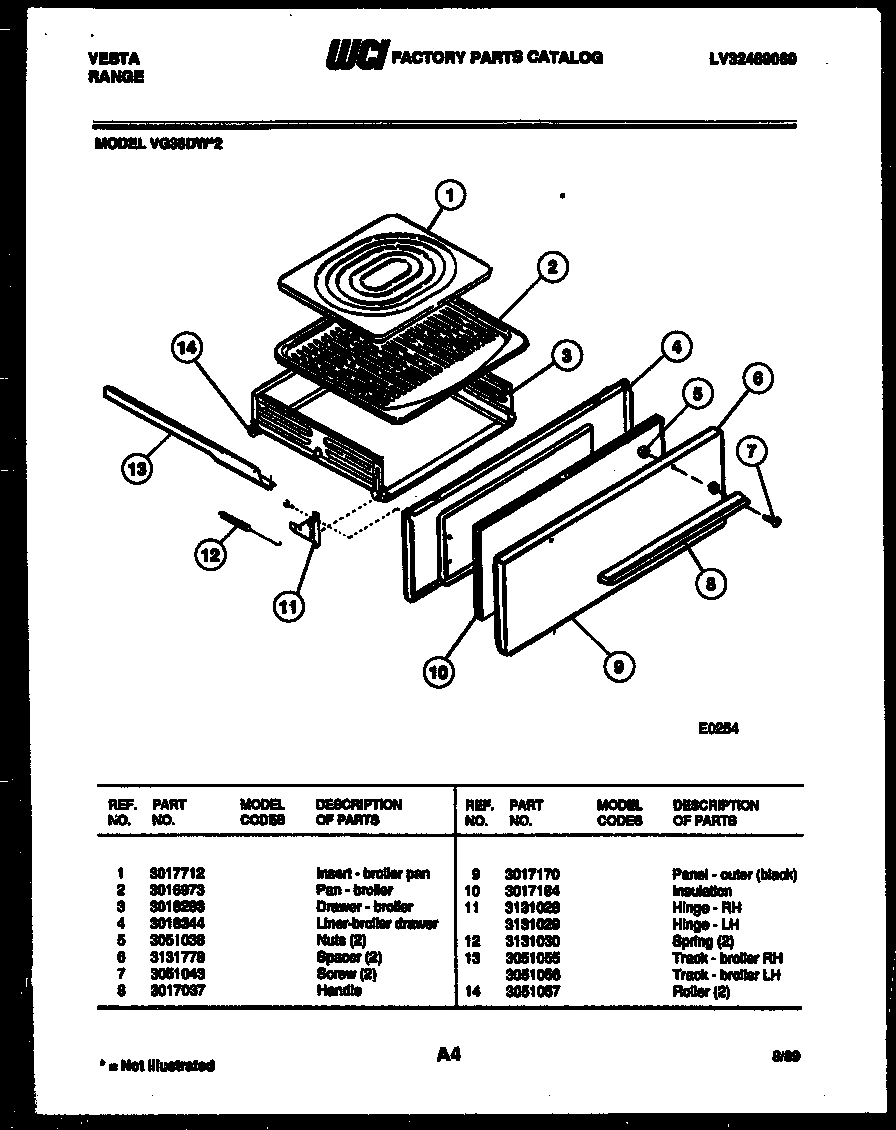

04 - BROILER DRAWER PARTS

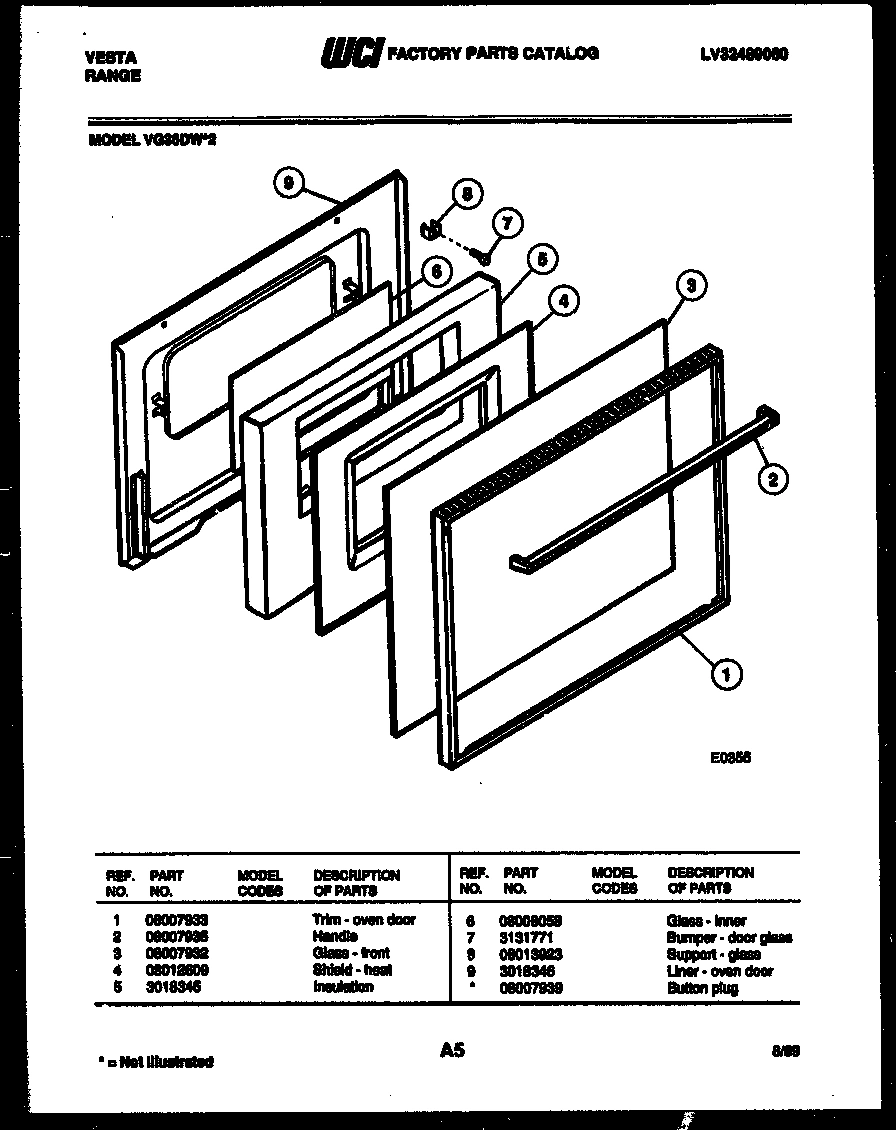

05 - DOOR PARTS

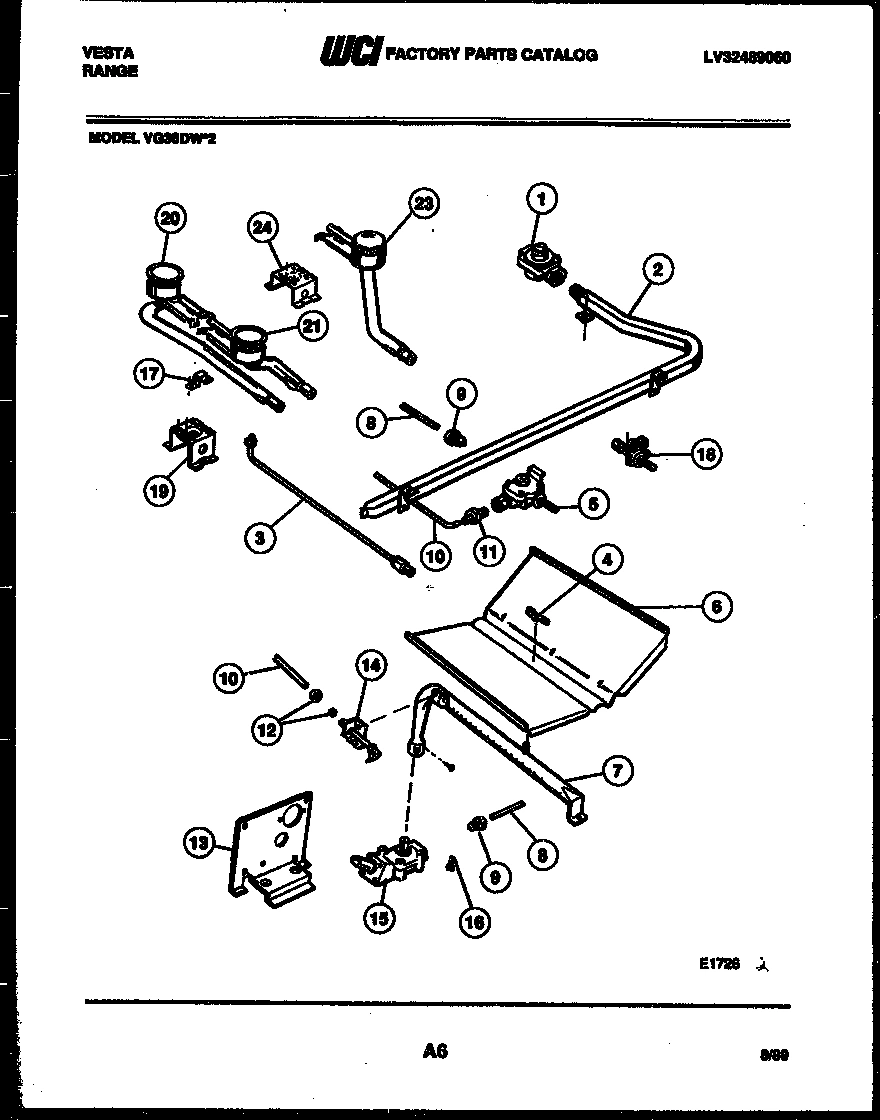

06 - BURNER PARTS

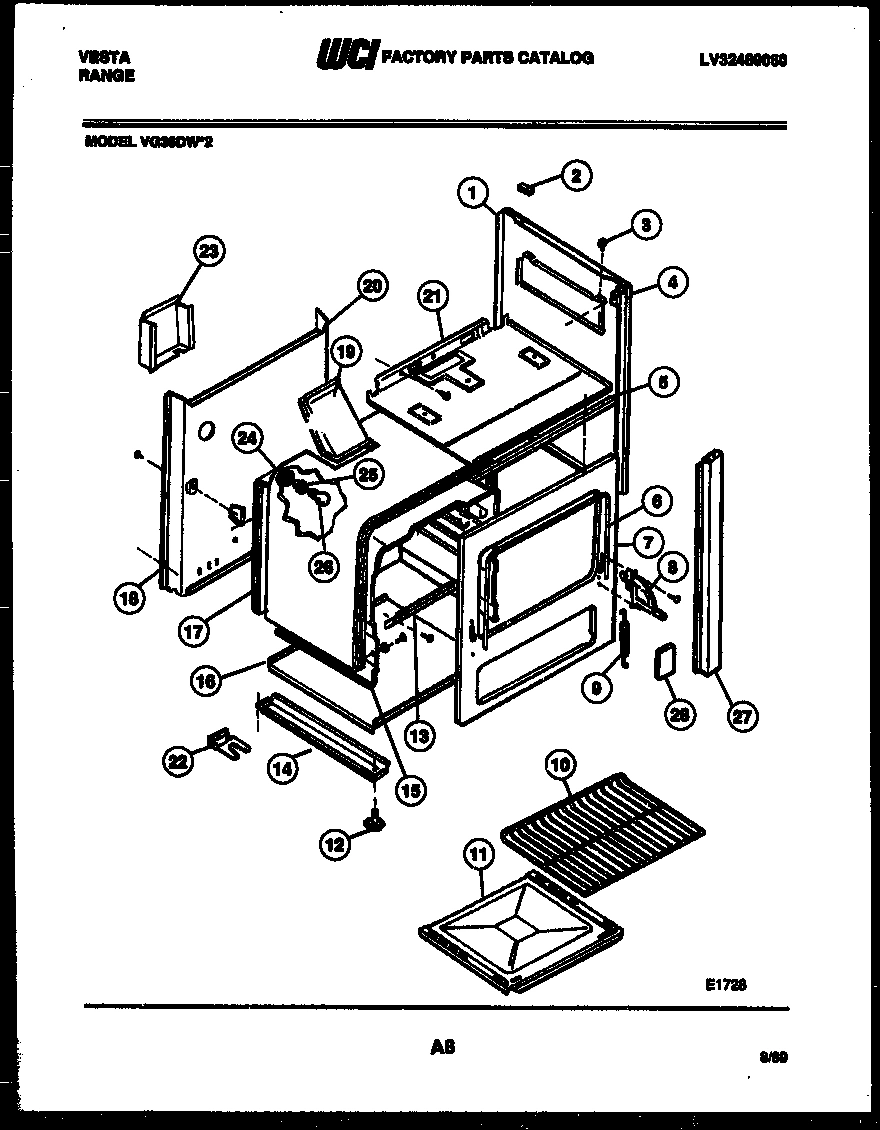

07 - BODY PARTS
Common parts from model Electrolux VG36DW2-23 RANGE
*29233
WCI 08007939 WCI 08007939 Contact Us For Availability
*29238
WCI 3018339 WCI 3018339 Contact Us For Availability
1
PANEL - MANIFOLD WCI 3205764 Contact Us For Availability
1
INSERT - BROILE PAN WCI 3017712 Contact Us For Availability
1
TRIM - OVEN DOOR WCI 08007933 Contact Us For Availability
1
WCI 08014019 WCI 08014019 Contact Us For Availability
2
WCI P161350 WCI P161350 Contact Us For Availability
2
KNOB - THERMO WCI P227488 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 08007935 WCI 08007935 Contact Us For Availability
2
WCI P245185 WCI P245185 Contact Us For Availability
2
GROMMET-TOP REAR (2) WCI 3016129 Contact Us For Availability
3
WCI 3131756 WCI 3131756 Contact Us For Availability
3
KNOB - TOP VALVE, GRIDDLE (5) WCI 3205760 Contact Us For Availability
3
WCI 08007932 WCI 08007932 Contact Us For Availability
3
TOP PILOT (RIGHT SIDE) WCI 3131075 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
3A
TOP PILOT GRIDDLE (LEFT SIDE) WCI P288035 Contact Us For Availability
4
WCI 3205766 WCI 3205766 Contact Us For Availability
4
MAIN TOP - ALMD WCI 08014035 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
WCI 08012609 WCI 08012609 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4
WCI 3131053 WCI 3131053 Contact Us For Availability
4A
WCI 3131054 WCI 3131054 Contact Us For Availability
5
WCI 3018714 WCI 3018714 Contact Us For Availability
5
WCI 08011431 WCI 08011431 Contact Us For Availability
5
WCI 3018345 WCI 3018345 Contact Us For Availability
5
WCI 08013927 WCI 08013927 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3205765 Contact Us For Availability
6
TOP - GRATE (5) WCI 3009309 Contact Us For Availability
6
WCI 3131778 WCI 3131778 Contact Us For Availability
6
WCI 08008058 WCI 08008058 Contact Us For Availability
6
WCI 3131061 WCI 3131061 Contact Us For Availability
6
WCI 08008022 WCI 08008022 Contact Us For Availability
7
WCI 08013296 WCI 08013296 Contact Us For Availability
7
WCI 08013877 WCI 08013877 Contact Us For Availability
7
WCI 3131771 WCI 3131771 Contact Us For Availability
7
WCI 3131062 WCI 3131062 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
8
DEFLECTOR - VENT WCI 10776 Contact Us For Availability
8
WCI 08013951 WCI 08013951 Contact Us For Availability
8
WCI 3017037 WCI 3017037 Contact Us For Availability
8
WCI 08013923 WCI 08013923 Contact Us For Availability
8
TUBE - FEED OVEN WCI 3009490 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
9
WCI 08008009 WCI 08008009 Contact Us For Availability
9
WCI 08013991 WCI 08013991 Contact Us For Availability
9
PANEL - OUTER BLACK WCI 3017170 Contact Us For Availability
9
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
9
WCI 08008363 WCI 08008363 Contact Us For Availability
9
WCI 08008028 WCI 08008028 Contact Us For Availability
10
WCI 08008071 WCI 08008071 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
TUBE-PILOT FEED OVEN WCI 3131063 Contact Us For Availability
10
RACK (2) WCI 3015714 Contact Us For Availability
11
CORD - POWER WCI 3015249 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
WCI 3131074 WCI 3131074 Contact Us For Availability
11
WCI 3018282 WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
WCI 3131007 WCI 3131007 Contact Us For Availability
12
SPRING (2) WCI 3131030 Contact Us For Availability
12
WCI 3131072 WCI 3131072 Contact Us For Availability
12
SCREW - LEVELING (4) WCI 3051080 Contact Us For Availability
13
WCI 08008076 WCI 08008076 Contact Us For Availability
13
TRACK - BROILER RH WCI 3051055 Contact Us For Availability
13
WCI 3131069 WCI 3131069 Contact Us For Availability
13
SUPT - OVEN BOTTOM WCI 3131038 Contact Us For Availability
13A
TRACK - BROILER LH WCI 3051056 Contact Us For Availability
14
WCI 08007925 WCI 08007925 Contact Us For Availability
14
WCI 3051057 WCI 3051057 Contact Us For Availability
14
WCI 3205598 WCI 3205598 Contact Us For Availability
14
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
15
RECEPT. - B/G LIGHT WCI 08008075 Contact Us For Availability
15
WCI 3131068 WCI 3131068 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018347 WCI 3018347 Contact Us For Availability
15C
WCI 3018286 WCI 3018286 Contact Us For Availability
16
WCI 3131067 WCI 3131067 Contact Us For Availability
16
WCI 3011645 WCI 3011645 Contact Us For Availability
17
HOUSING - B/G WCI 10775 Contact Us For Availability
17
WCI 3131078 WCI 3131078 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
VALVE - TOP BURNER (5) WCI 3205761 Contact Us For Availability
18
SUPPORT-REAR (2) WCI 3051096 Contact Us For Availability
19
SUPT - TOP BURNER (2) WCI 3016870 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
20
WCI 3131079 WCI 3131079 Contact Us For Availability
20
BACK - MAIN WCI 3205762 Contact Us For Availability
21
WCI 3131080 WCI 3131080 Contact Us For Availability
21
WCI 3017993 WCI 3017993 Contact Us For Availability
22
CLIP - CAPILLARY (2) WCI AP00091011 Contact Us For Availability
22
WCI 3934059 WCI 3934059 Contact Us For Availability
22A
CLIP - B/S COKER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
23
WCI 3131882 WCI 3131882 Contact Us For Availability
23
WCI 3018340 WCI 3018340 Contact Us For Availability
24
WCI 3051511 WCI 3051511 Contact Us For Availability
24
SUPT - GRID BURNER WCI 3018342 Contact Us For Availability
27
PANEL - FILLER (ALMD) WCI 08013994 Contact Us For Availability
28
WCI 08014023 WCI 08014023 Contact Us For Availability
× ![]()
