Model Electrolux VG21AW3-23 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - DOOR PARTS

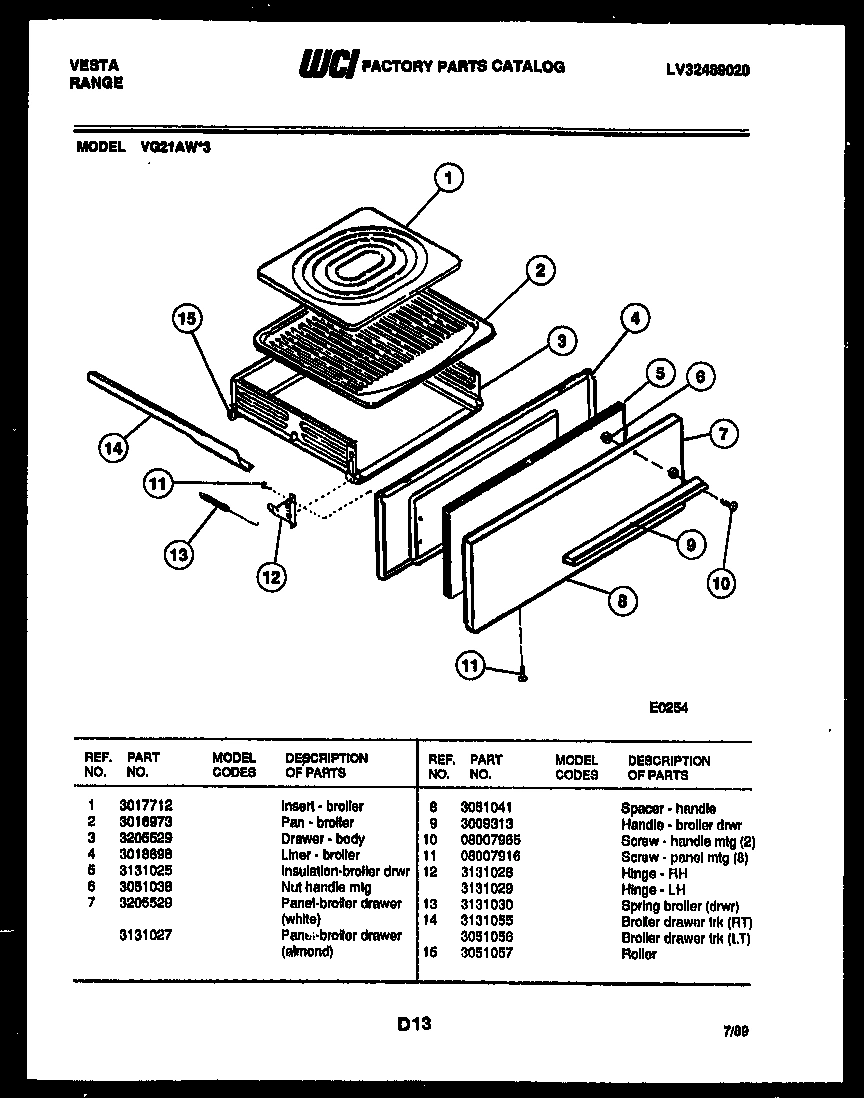

04 - BROILER DRAWER PARTS

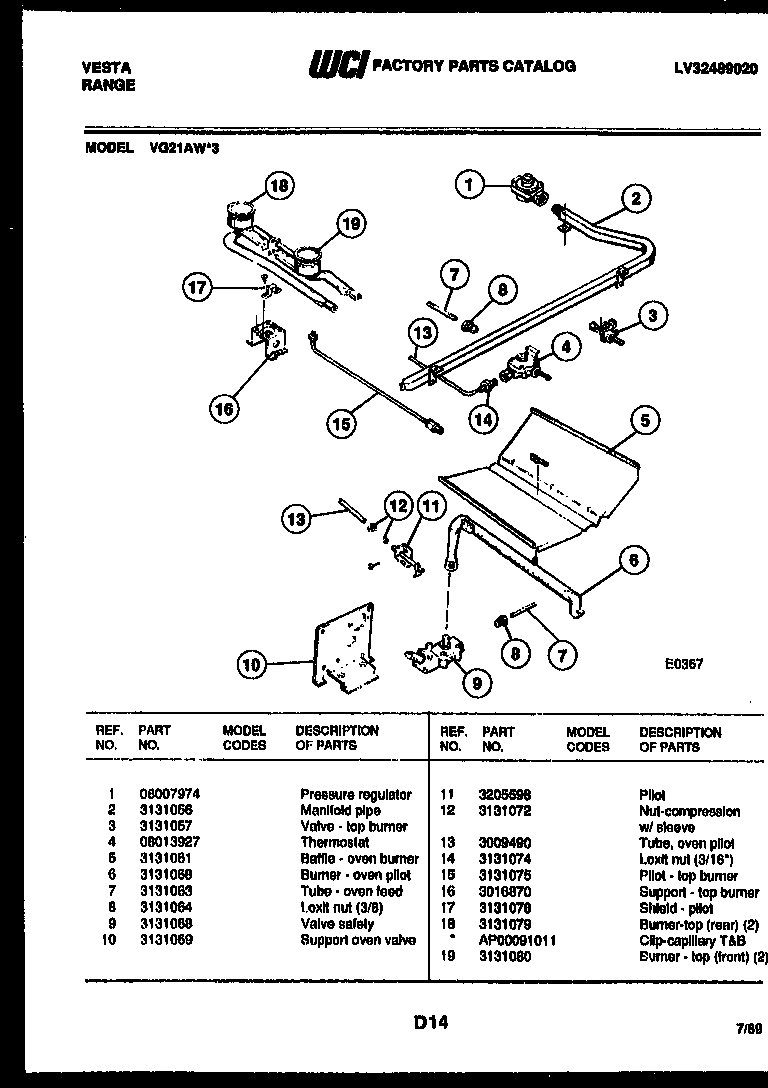

05 - BURNER PARTS

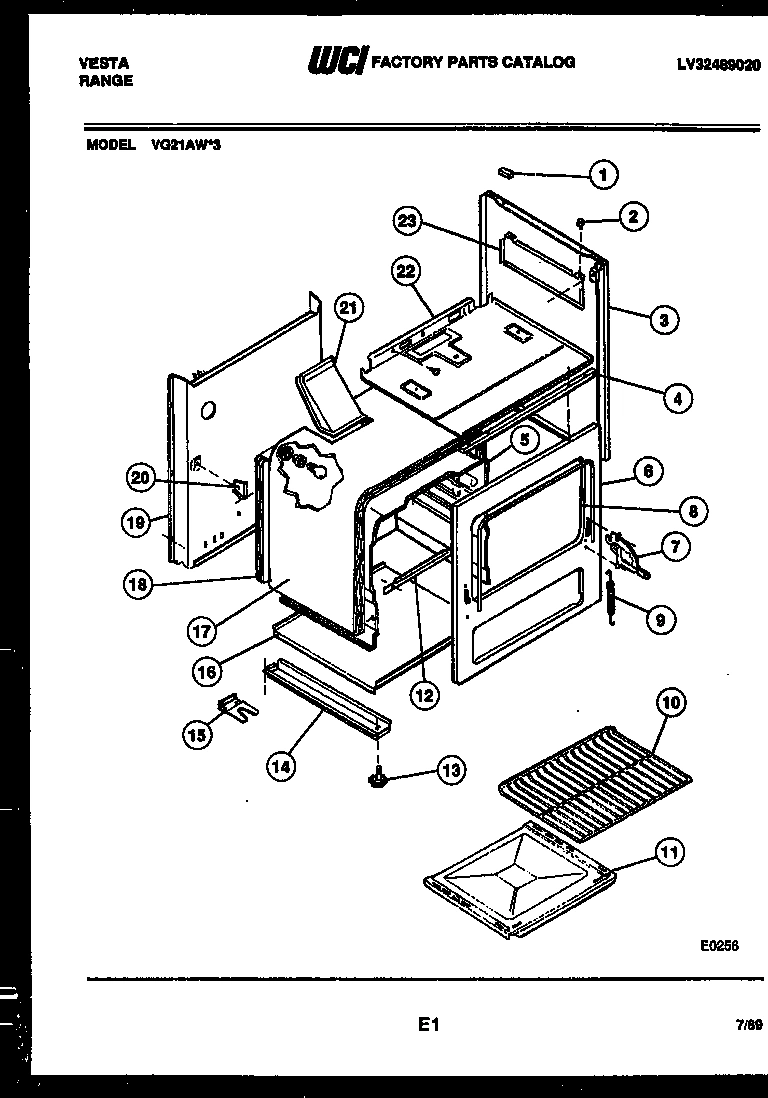

06 - BODY PARTS
Common parts from model Electrolux VG21AW3-23 RANGE
*27258
CLIP-B/S CORNER WCI 3131791 Contact Us For Availability
1
GRATE (2) WCI 3009309 Contact Us For Availability
1
LINER WCI 3017711 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
MAIN TOP (ALMD) WCI 3131014 Contact Us For Availability
2
INSULATION - WOOL WCI 3051037 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 3131056 WCI 3131056 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
PNL-MANIFOLD (ALMD) WCI 3205612 Contact Us For Availability
3
DRAWER - BODY WCI 3205529 Contact Us For Availability
3
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
3
WCI 08014091 WCI 08014091 Contact Us For Availability
4
KNOB - THERMO WCI 3131018 Contact Us For Availability
4
WCI 3051040 WCI 3051040 Contact Us For Availability
4
LINER - BROILER WCI 3018698 Contact Us For Availability
4
WCI 08013927 WCI 08013927 Contact Us For Availability
4
WCI 3051067 WCI 3051067 Contact Us For Availability
5
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
5
INSULATION-BROILER DRWR WCI 3131025 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER-TOP WCI 3018700 Contact Us For Availability
5C
OVEN LINER-BACK WCI 3018699 Contact Us For Availability
6
B/G PANEL (ALMOND) WCI 3205611 Contact Us For Availability
6
WCI 3203621 WCI 3203621 Contact Us For Availability
7
PANEL-BROILER DRAWER (ALMOND) WCI 3131027 Contact Us For Availability
7
TUBE-OVEN FEED WCI 3131063 Contact Us For Availability
7A
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
8
LOXIT NUT-3/8 WCI 3131064 Contact Us For Availability
8
SEAL - OVEN DOOR WCI 3051069 Contact Us For Availability
9
HANDLE - BROILER DRWR WCI 3009313 Contact Us For Availability
9
WCI 3131068 WCI 3131068 Contact Us For Availability
9
SPRING-HINGE L&R (2) WCI 3051079 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
10
RACK-OVEN (2) WCI 3016518 Contact Us For Availability
11
PILOT WCI 3205598 Contact Us For Availability
11
OVEN-BOTTOM WCI 3018697 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
NUT-COMPRESSION W/ SLEEVE WCI 3131072 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 3131030 Contact Us For Availability
13
TUBE OVEN PILOT WCI 3009490 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
LOXIT NUT-3/16 WCI 3131074 Contact Us For Availability
14
RAIL - BASE L&R WCI A98373000 Contact Us For Availability
14A
BROILER DRAWER TRK (LT) WCI 3051056 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15
PILOT - TOP BURNER WCI 3131075 Contact Us For Availability
15
WCI 3934059 WCI 3934059 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
16
MAIN BOTTOM WCI 3131042 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
WCI 3131043 WCI 3131043 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 3131079 Contact Us For Availability
18
INSULATION - BACK & TOP WCI 3131044 Contact Us For Availability
18A
CLIP-CAPILLARY T&B (NON-ILLUSTRATED) WCI AP00091011 Contact Us For Availability
19
BURNER - TOP (FRONT) (2) WCI 3131080 Contact Us For Availability
19
WCI 3131045 WCI 3131045 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
VENT BACK WCI 3017173 Contact Us For Availability
22
BURNER BOX WCI 3017573 Contact Us For Availability
23
SHIELD HEAT B/B RH WCI 3131053 Contact Us For Availability
23A
SHIELD HEAT B/B LH WCI 3131054 Contact Us For Availability
× ![]()
