Model GE VFD31GDSR0WW Dryer Gas – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CONTROL PANEL

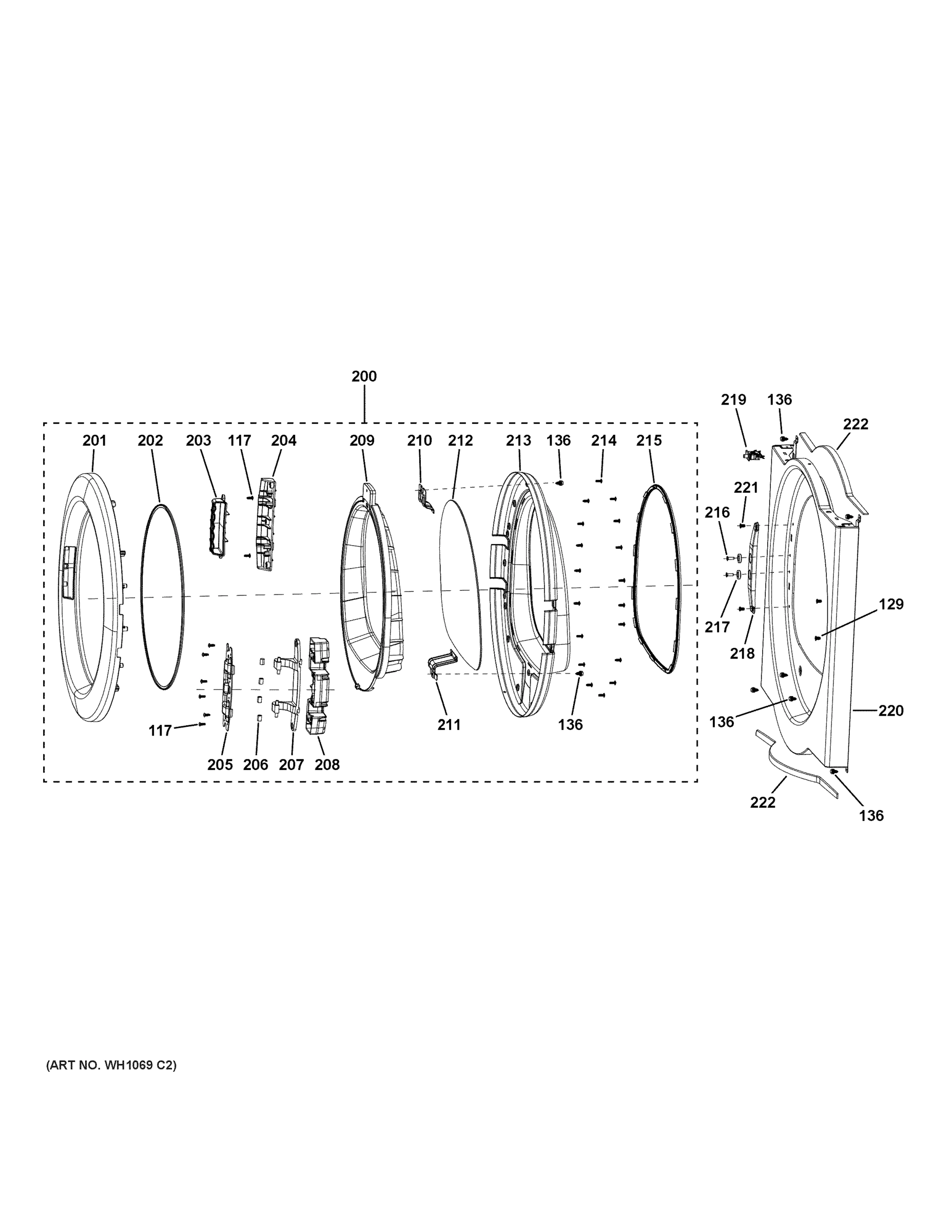

FRONT PANEL & DOOR

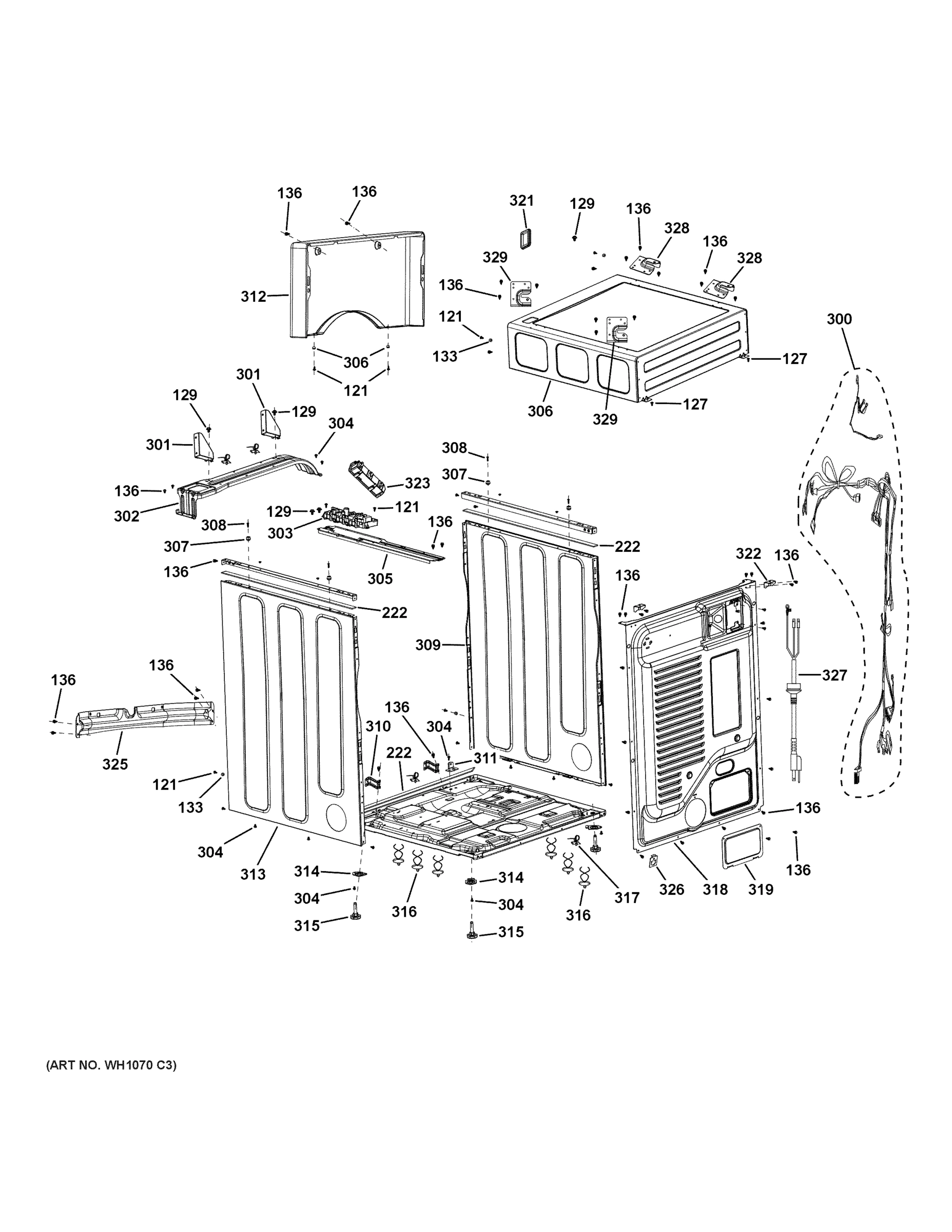

CABINET & TOP PANEL

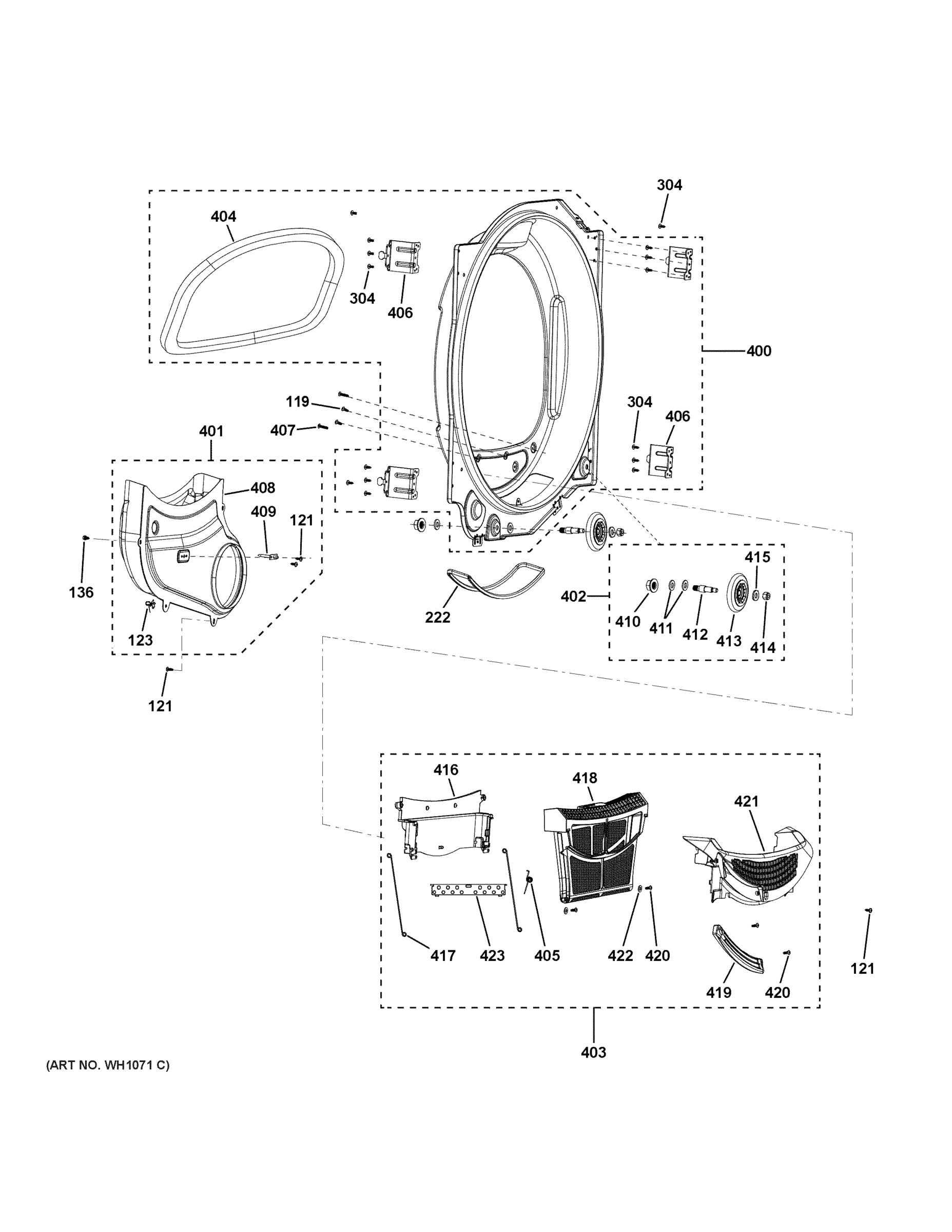

TRAP DUCT ASSEMBLY

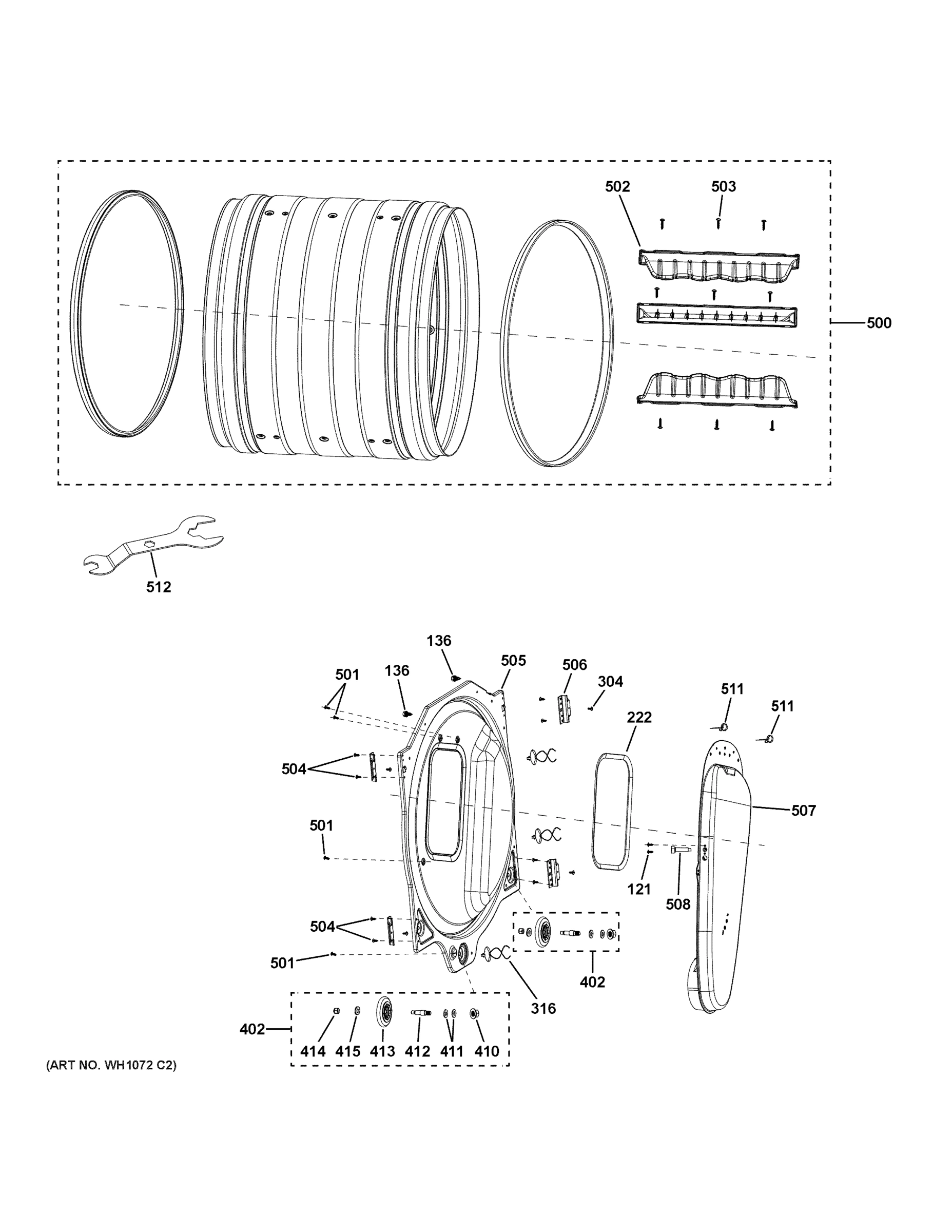

DRUM

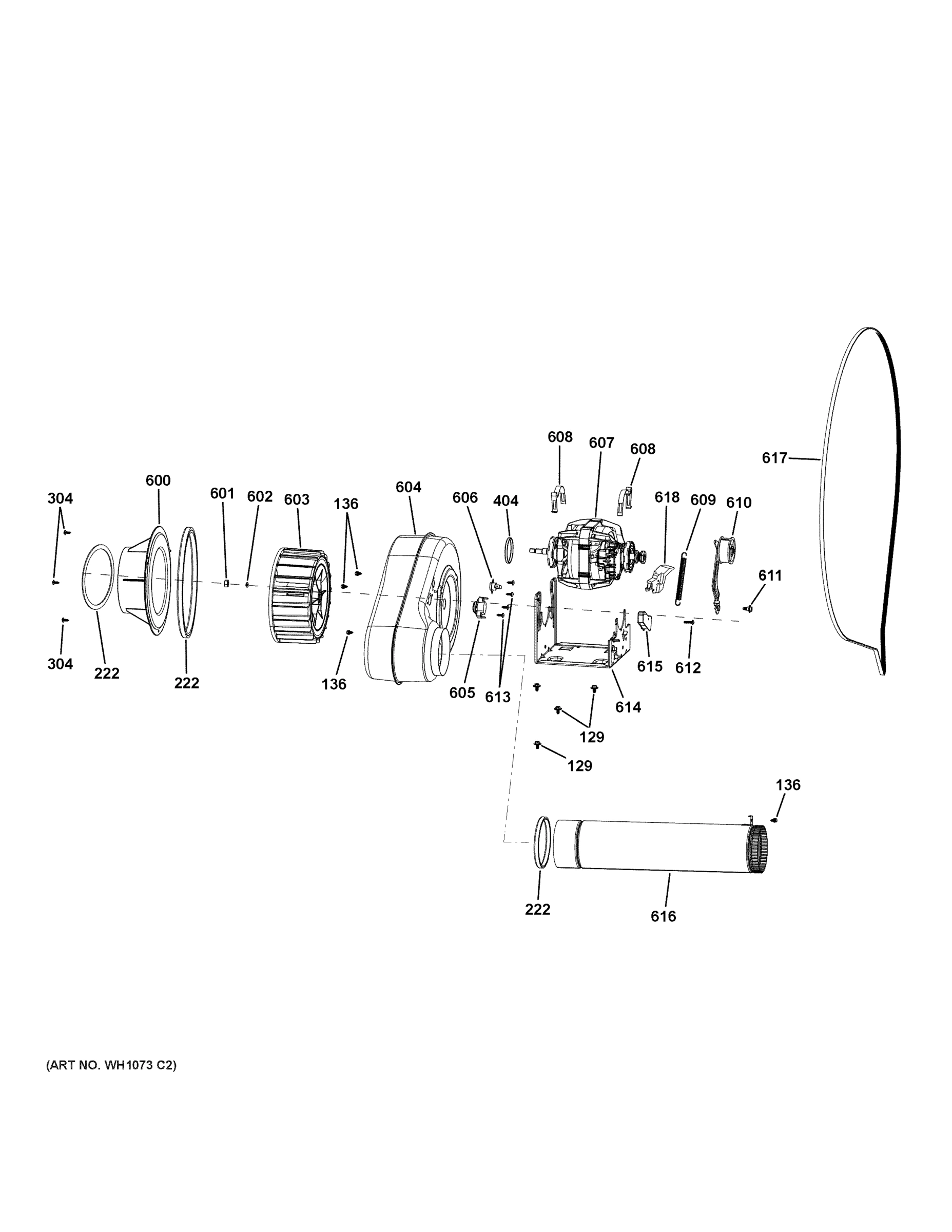

BLOWER & MOTOR ASSEMBLY

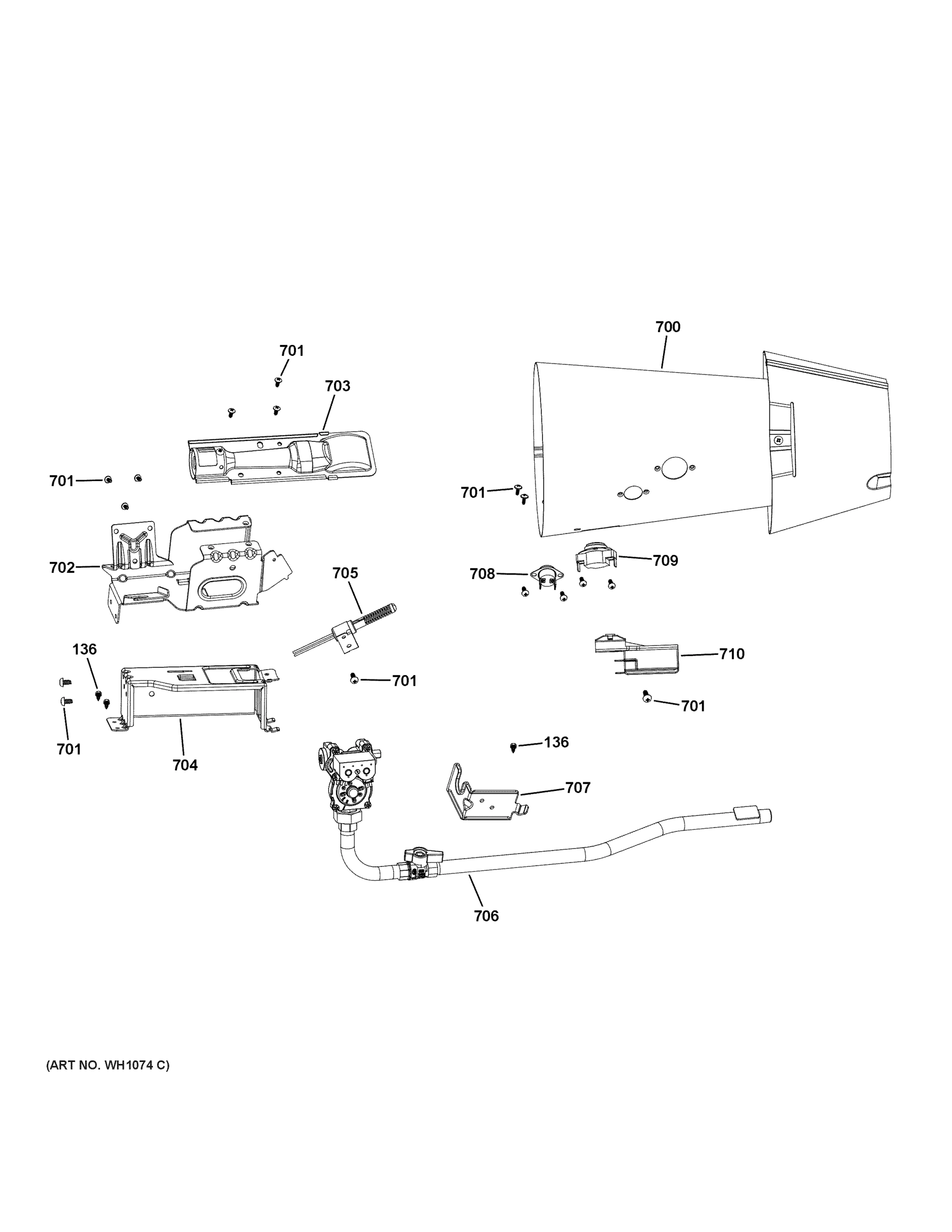

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE VFD31GDSR0WW Dryer Gas
112
CONTROL PANEL LOCK GEN WE01X33503 Contact Us For Availability
113
SILICONE KEY MAT GEN WH01X33418 Contact Us For Availability
114
USER INTERFACE BOARD COVER GEN WH01X33391 Contact Us For Availability
115
USER INTERFACE BOARD FL COMM GAS GEN WE22X37977 Contact Us For Availability
116
USER INTERFACE BOARD HOUSING GEN WH01X33387 Contact Us For Availability
117
TAPPING SCREW GEN WH02X26155 Contact Us For Availability
118
CONTROL PANEL PLATE COVER GEN WE13X33582 Contact Us For Availability
120
CONTROL PANEL FRAME GEN WE13X33829 Contact Us For Availability
132
CONTROL PANEL HOLE COVER GEN WE13X33573 Contact Us For Availability
133
LOCATOR PIN GEN WE02X28703 Contact Us For Availability
136
SCREW GEN WR01X27788 Contact Us For Availability
200
DRYER DOOR ASSEMBLY GEN WE10X33532 Contact Us For Availability
201
DRYER DOOR COVER GEN WE01X33564 Contact Us For Availability
202
DRYER DOOR WINDOW FRAME GEN WE01X33540 Contact Us For Availability
204
DRYER DOOR HANDLE BRACKET GEN WE13X33517 Contact Us For Availability
205
DRYER DOOR HINGE COVER GEN WE13X33537 Contact Us For Availability
207
DRYER DOOR HINGE GEN WE01X33562 Contact Us For Availability
208
DRYER DOOR HINGE FRAME GEN WE01X33513 Contact Us For Availability
209
DRYER DOOR GLASS FRAME GEN WE01X33515 Contact Us For Availability
210
DRYER DOOR GLASS TOP SUPPORT BRACKET GEN WE13X33575 Contact Us For Availability
211
DRYER DOOR GLASS BOTTOM SUPPORT BRACKET GEN WE13X33509 Contact Us For Availability
212
DRYER DOOR GLASS GEN WE10X33529 Contact Us For Availability
213
DRYER DOOR REAR FRAME GEN WE01X33566 Contact Us For Availability
214
SCREW ST4*25 GEN WE02X33499 Contact Us For Availability
215
DRYER DOOR SEAL GEN WE01X33518 Contact Us For Availability
216
MAGNET DOOR SCREW GEN WE02X33516 Contact Us For Availability
217
DOOR MAGNET GEN WE01X33511 Contact Us For Availability
218
DOOR FRAME MAGNET GEN WE02X33554 Contact Us For Availability
220
FRONT PANEL GEN WE13X33514 Contact Us For Availability
300
MAIN HARNESS FL COMM DRYER GAS GEN WE08X37702 Contact Us For Availability
301
TOP PANEL SUPPORT BRACKET GEN WE13X33576 Contact Us For Availability
302
CROSS BRACE GEN WE13X33550 Contact Us For Availability
303
MAIN CONTROL BOARD GEN WE22X33525 Contact Us For Availability
305
MAIN CONTROL BOARD MOUNTING BRACKET GEN WE13X34821 Contact Us For Availability
306
TOP PANEL WHITE GEN WE13X33834 Contact Us For Availability
308
BOTTOM SCREW GEN WH02X27461 Contact Us For Availability
309
SIDE PANEL RIGHT GEN WE13X35280 Contact Us For Availability
310
DUCT TRAP BRACKET GEN WE13X33557 Contact Us For Availability
311
REAR LEVELING LEG BRACKET GEN WE13X28715 Contact Us For Availability
312
TOE KICK PANEL GEN WE13X33530 Contact Us For Availability
313
SIDE PANEL LEFT GEN WE13X35282 Contact Us For Availability
314
LEVELING LEG BRACKET GEN WE13X33539 Contact Us For Availability
315
LEVELING LEG GEN WE01X33502 Contact Us For Availability
317
WIRE TIES GEN WE01X26391 Contact Us For Availability
318
REAL PANEL FL COMM DRYER GAS GEN WE13X37703 Contact Us For Availability
319
REAR PANEL ACCESS COVER GEN WE13X33588 Contact Us For Availability
321
RUBBER SHEATH GEN WE01X35283 Contact Us For Availability
322
TOP PANEL SUPPORT BRACKET REAR GEN WE13X33572 Contact Us For Availability
323
HARNESS BRACKET GEN WE13X33526 Contact Us For Availability
325
CONTROL PANEL HOUSING BOTTOM BRACKET GEN WE13X34820 Contact Us For Availability
326
VALVE COVER PLATE GEN WE13X37709 Contact Us For Availability
328
DRYER STACK BRACKET LEFT GEN WE13X33832 Contact Us For Availability
329
DRYER STACK BRACKET RIGHT GEN WE13X33833 Contact Us For Availability
400
FRONT DRUM SUPPORT ASSEMBLY GEN WE13X33512 Contact Us For Availability
401
GRILLE HOUSING ASSEMBLY GEN WE16X33524 Contact Us For Availability
402
ROLLER WHEEL ASSEMBLY GEN WE01X33551 Contact Us For Availability
403
DUCT TRAP ASSEMBLY GEN WE16X33589 Contact Us For Availability
405
LINT FILTER BAFFLE TORSION SPRING GEN WE02X35278 Contact Us For Availability
406
DRUM SUPPORT BRACKET GEN WE13X33590 Contact Us For Availability
407
SCREW ST4*20 GEN WE02X33533 Contact Us For Availability
408
DUCT TRAP GEN WE16X33544 Contact Us For Availability
410
NUT M10 GEN WE02X28700 Contact Us For Availability
414
NUT GEN WE02X26839 Contact Us For Availability
416
LINT FILTER FRAME REAR GEN WE16X35285 Contact Us For Availability
417
LINT FILTER TETHER GEN WE01X33583 Contact Us For Availability
418
LINT FILTER SCREEN GEN WE16X33519 Contact Us For Availability
419
LINT FILTER CONNECTOR GEN WE16X35281 Contact Us For Availability
421
LINT FILTER FRAME FRONT GEN WE16X35279 Contact Us For Availability
422
LINT FILTER SCREW GASKET GEN WE02X33531 Contact Us For Availability
423
LINT FILTER BAFFLE GEN WE01X35277 Contact Us For Availability
500
DRUM & BAFFLE ASSEMBLY GEN WE21X33777 Contact Us For Availability
501
SCREW ST4*12 GEN WE02X33500 Contact Us For Availability
502
DRUM BAFFLE GEN WE01X35284 Contact Us For Availability
503
SCREW GEN WE02X26576 Contact Us For Availability
505
REAR DRUM SUPPORT GEN WE13X33555 Contact Us For Availability
506
REAR DRUM SUPPORT BRACKET GEN WE13X33556 Contact Us For Availability
507
SUPPLY DUCT FL COMM DRYER GAS GEN WE16X37697 Contact Us For Availability
508
INLET THERMISTOR GEN WE04X33507 Contact Us For Availability
511
WIRE TIE GEN WH02X26866 Contact Us For Availability
512
WRENCH LEVELING LEGS/FEET GEN WE01X36380 Contact Us For Availability
600
INLET RING GEN WE13X33547 Contact Us For Availability
603
BLOWER WHEEL GEN WE16X33561 Contact Us For Availability
604
BLOWER HOUSING GEN WE16X33558 Contact Us For Availability
605
OUTLET THERMOSTAT GEN WE04X33591 Contact Us For Availability
606
OUTLET THERMISTOR GEN WE04X33504 Contact Us For Availability
607
MOTOR GEN WE03X33523 Contact Us For Availability
609
IDLER SPRING GEN WE02X33570 Contact Us For Availability
610
IDLER PULLEY GEN WE03X33520 Contact Us For Availability
611
BOLT M5*14 GEN WE02X28706 Contact Us For Availability
612
SCREW ST3*18 GEN WE02X33592 Contact Us For Availability
613
SCREW ST4*10 GEN WE02X33586 Contact Us For Availability
614
MOTOR BRACKET GEN WE13X33594 Contact Us For Availability
615
DRIVE BELT GUIDE GEN WE01X33568 Contact Us For Availability
616
EXHAUST DUCT GEN WE16X33521 Contact Us For Availability
617
DRIVE BELT GEN WE03X37700 Contact Us For Availability
618
BELT SWITCH SHIELD GEN WE01X33538 Contact Us For Availability
700
COMBUSTION CHAMBER GEN WE11X37706 Contact Us For Availability
701
SCREW M4*8 GEN WE02X37705 Contact Us For Availability
702
BURNER BRACKET GEN WE13X37710 Contact Us For Availability
703
BURNER ASSEMBLY FL COMM DRYER GEN WE11X37704 Contact Us For Availability
704
BURNER BRACKET SUPPORT GEN WE13X37707 Contact Us For Availability
705
IGNITOR GEN WE01X28027 Contact Us For Availability
706
GAS VALVE FL COMM DRYER GEN WE11X37701 Contact Us For Availability
707
GAS VALVE SUPPORT BRACKET GEN WE13X37699 Contact Us For Availability
708
INLET BACKUP THERMOSTAT GEN WE04X37698 Contact Us For Availability
709
HIGH LIMIT THERMOSTAT GEN WE04X37708 Contact Us For Availability
999
PM MINI MANUAL AND WIRING GEN 313000280 Contact Us For Availability
999
PM OWNERS AND INSTALL GEN 493000279 Contact Us For Availability
× ![]()
