Model Maytag VEND11B COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION

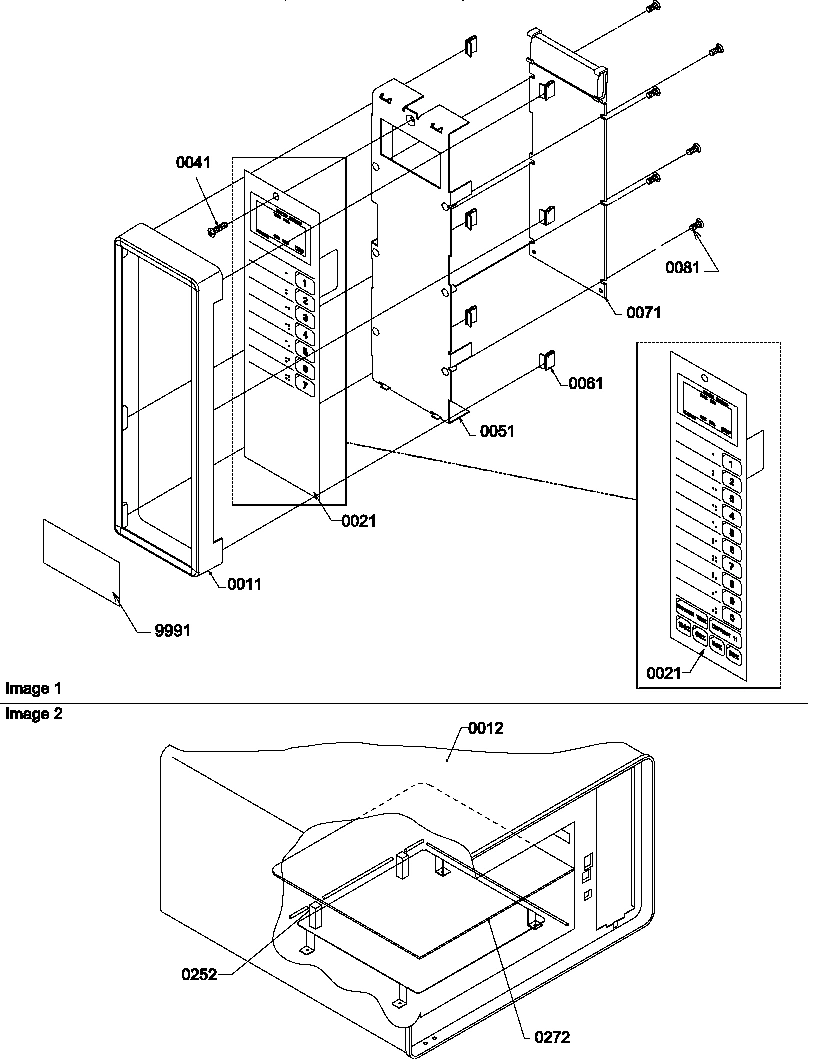

02 - CONTROL PANEL & SHELF ASSY

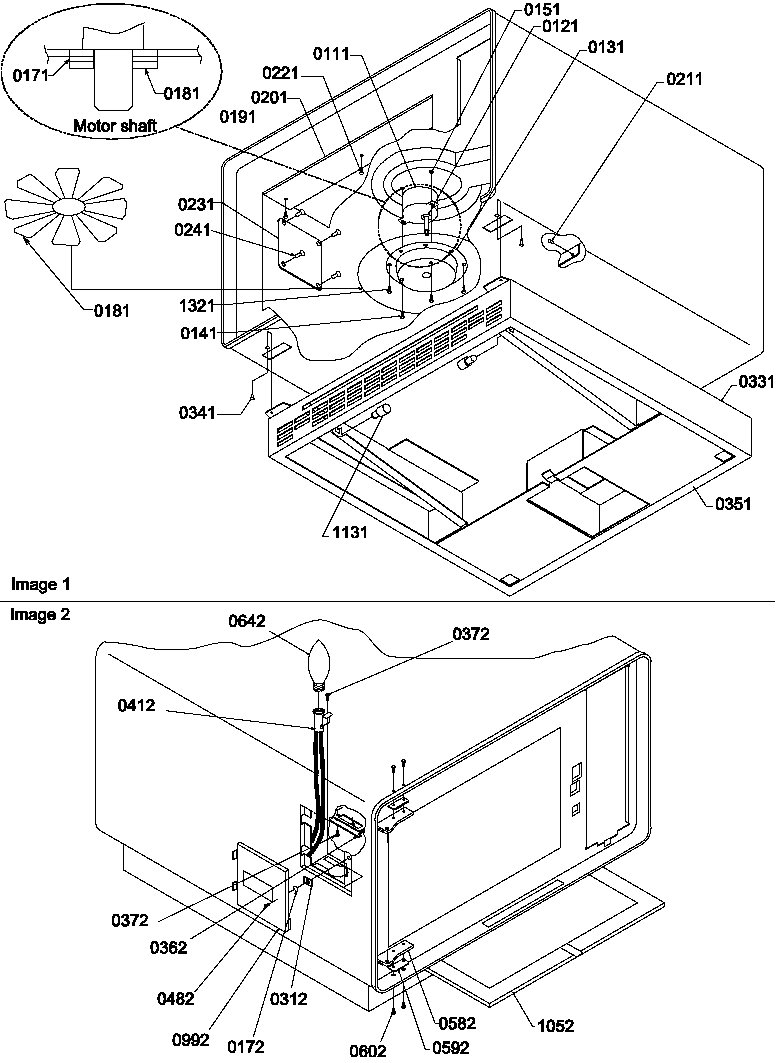

03 - MOTOR, LIGHT, & DOOR MTG

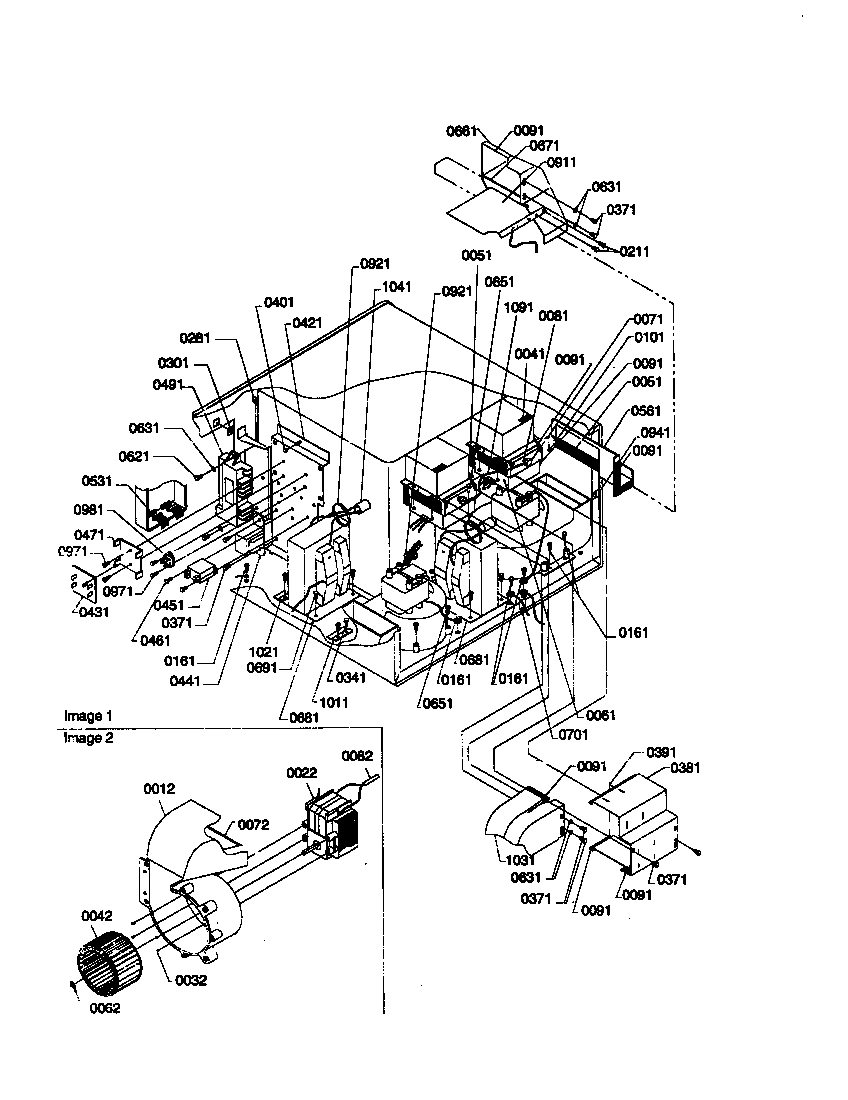

04 - ELEC COMPONENTS & BLOWER ASSEMBLIES

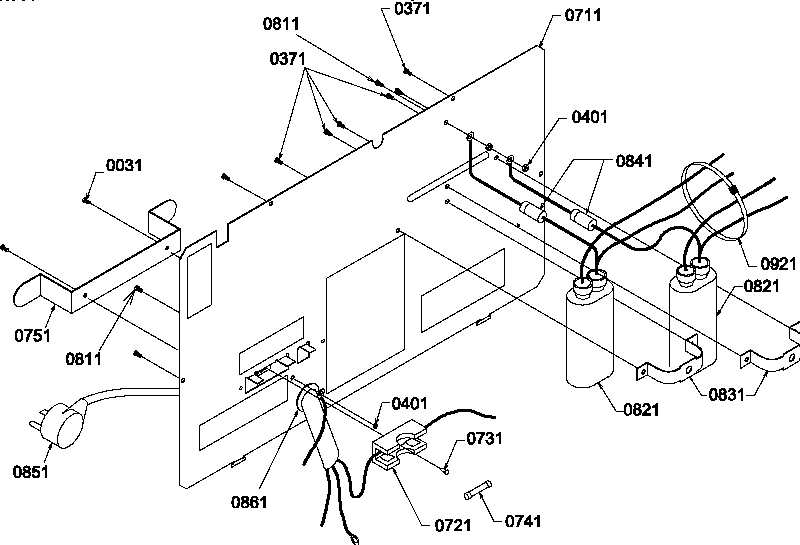

05 - REAR ACCESS PANEL ASSY

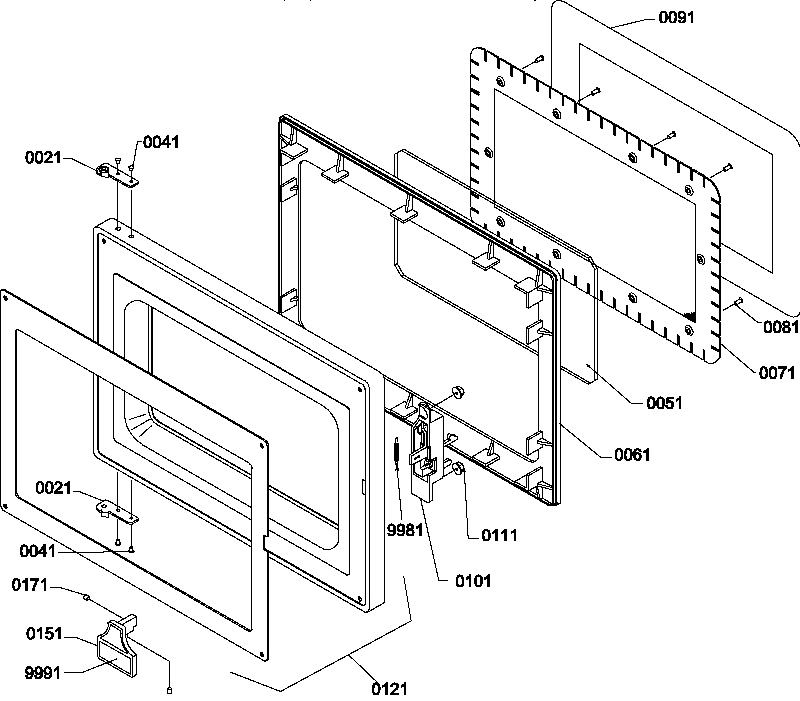

06 - DOOR ASSY
01 - CONTROL PANEL & SHELF ASSY
02 - DOOR ASSY
03 - ELEC COMPONENTS & BLOWER ASSEMBLIES
04 - MOTOR, LIGHT, & DOOR MTG
05 - REAR ACCESS PANEL ASSY
Common parts from model Maytag VEND11B COMMERCIAL MICROWAVE
11
FRAME, CONT PNL MAY 45398P04 Contact Us For Availability
12
MAY R0163301 MAY R0163301 Contact Us For Availability
12
MAY 45559P01 MAY 45559P01 Contact Us For Availability
21
VEND-10.B MEM SWI ASY MAY 4100010204 Contact Us For Availability
21
HINGE ASY KIT MAY R0163252 Contact Us For Availability
22
KIT, BLOWER MOTOR MAY R0163291 Contact Us For Availability
31
MAY A4539629 MAY A4539629 Contact Us For Availability
41
SCREW,No.8-32 X 1-1/4 FL HD SCRE MAY 5149-P Contact Us For Availability
41
MAY 54140P01 MAY 54140P01 Contact Us For Availability
41
MAY 46139P01 MAY 46139P01 Contact Us For Availability
42
WHEEL, BLOWER M35D39 MAY 36300P01 Contact Us For Availability
51
MAY 4180001602 MAY 4180001602 Contact Us For Availability
51
MAY M70D246 MAY M70D246 Contact Us For Availability
51
MAY A3030361 MAY A3030361 Contact Us For Availability
61
CLIP MAY 5522546002 Contact Us For Availability
61
MAY 10794401 MAY 10794401 Contact Us For Availability
61
MAY M55D18 MAY M55D18 Contact Us For Availability
71
KIT, CONTROLLER +$50.00 CORE MAY M31R60 Contact Us For Availability
71
PROTECTOR,THERMAL 180C 25 AMP MAY 1751802501 Contact Us For Availability
71
INNER DOOR KIT MAY R0163255 Contact Us For Availability
72
MAY 10825601 MAY 10825601 Contact Us For Availability
81
No.6 PAN HD MACHINE SCREW MAY 5057-N Contact Us For Availability
81
SCREW MAY M0251717 Contact Us For Availability
091
MAY A3030302 MAY A3030302 Contact Us For Availability
91
MAY 10785001 MAY 10785001 Contact Us For Availability
101
MAY Y35691P01S MAY Y35691P01S Contact Us For Availability
101
DOOR LATCH KIT MAY R0163256 Contact Us For Availability
101
MAY 35691P01 S MAY 35691P01 S Contact Us For Availability
111
KIT, STIRRER MOTOR MAY R0163259 Contact Us For Availability
111
No.10-24 FLANGE WHIZ-LK NUT MAY 5015-T Contact Us For Availability
121
MAY 24597P01 MAY 24597P01 Contact Us For Availability
121
OUTER DOOR ASSY. MAY R0163257 Contact Us For Availability
131
MAY 45437P01 MAY 45437P01 Contact Us For Availability
141
MAY M0234003 MAY M0234003 Contact Us For Availability
151
MAY 5010-X MAY 5010-X Contact Us For Availability
151
HANDLE-DOOR MAY NLA Contact Us For Availability
151
MAY 41628P01 MAY 41628P01 Contact Us For Availability
161
SCREW MAY 5078-CC Contact Us For Availability
171
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
172
MAY 32383P01 MAY 32383P01 Contact Us For Availability
181
MAY Y5147V MAY Y5147V Contact Us For Availability
181
MAY 5147-V MAY 5147-V Contact Us For Availability
191
MAY 10824805Q MAY 10824805Q Contact Us For Availability
201
STIRRER COVER MAY 45422P01 Contact Us For Availability
211
.187 DIA PUSH RIVET MAY 5039-T Contact Us For Availability
221
SEE NOTE COVER MOUNTING SPEED-CLINCH MAY Y00000000 Contact Us For Availability
231
MAY 2570000202 MAY 2570000202 Contact Us For Availability
241
RIVET-PLASTCx MAY 42192P01 Contact Us For Availability
252
MAY 3010003001 MAY 3010003001 Contact Us For Availability
272
MAY R0156904 MAY R0156904 Contact Us For Availability
281
MAY 42365P01 MAY 42365P01 Contact Us For Availability
301
No.8-32 CAPTIVE NUT(25) MAY 5072-D Contact Us For Availability
312
MAY M0288120 MAY M0288120 Contact Us For Availability
331
KIT, BASE MAY R0163258 Contact Us For Availability
341
.187 DIA POP RIVET STEEL MAY 5067-A Contact Us For Availability
351
MAY 10732503 MAY 10732503 Contact Us For Availability
362
MAY 4520500504 MAY 4520500504 Contact Us For Availability
371
MAY M0216716 MAY M0216716 Contact Us For Availability
381
MAY 45751P03 MAY 45751P03 Contact Us For Availability
391
MAY 45752P03 MAY 45752P03 Contact Us For Availability
401
MAY M0282007 MAY M0282007 Contact Us For Availability
412
MAY 2040100701 MAY 2040100701 Contact Us For Availability
421
MAY 10791901 MAY 10791901 Contact Us For Availability
431
BOARD, P.C. MAY 10791801 Contact Us For Availability
441
MAY 45507P01 MAY 45507P01 Contact Us For Availability
451
MAY 38806P04 MAY 38806P04 Contact Us For Availability
461
SCREW K MAY 5074-DD Contact Us For Availability
471
MAY 10741801 MAY 10741801 Contact Us For Availability
482
SCREW-SM MAY YM0214931 Contact Us For Availability
482
MAY M0214931 MAY M0214931 Contact Us For Availability
491
SVC INTERLOCK SWITCH ASY MAY 4002006801 Contact Us For Availability
531
ASSY, CONNECTOR MAY 4520400703 Contact Us For Availability
561
TRANSITION-CAV EXH FS-10 MAY 45753P01 Contact Us For Availability
582
MAY 4180032601Q MAY 4180032601Q Contact Us For Availability
592
MAY 45540P01 MAY 45540P01 Contact Us For Availability
602
No.8-32 PAN HD MACH SCR (25) MAY 5149-C Contact Us For Availability
621
MAY M0211018 MAY M0211018 Contact Us For Availability
642
M9D107 LAMP MAY 2031415101 Contact Us For Availability
651
SCREW 1`` MAY M0211021 Contact Us For Availability
661
M65D345 DUCT, AIR MAY 45407P01 Contact Us For Availability
671
M65D346 DIVIDER AIR MAY 45402P01 Contact Us For Availability
681
TRANSFORMER MAY 10133702 Contact Us For Availability
691
No.10 T X 3/8`` SCREW MAY 5018-JJ Contact Us For Availability
701
MAY M0110505 MAY M0110505 Contact Us For Availability
711
MAY R0156978 MAY R0156978 Contact Us For Availability
721
FUSE HOLDER MAY 10091101 Contact Us For Availability
731
MAY M0216529 MAY M0216529 Contact Us For Availability
741
MAY 36107P01 MAY 36107P01 Contact Us For Availability
751
MAY 45531P01 MAY 45531P01 Contact Us For Availability
811
MAY M1D888 MAY M1D888 Contact Us For Availability
821
CAPACITOR-.65 MAY D8547930 Contact Us For Availability
831
MAY 10825501 MAY 10825501 Contact Us For Availability
841
MAY B8383102 MAY B8383102 Contact Us For Availability
851
CORD, POWER (300V) MAY 1732500101 Contact Us For Availability
861
MAY M0370010 MAY M0370010 Contact Us For Availability
911
DEFLECTOR-AIR M65D344 MAY 46762P01 Contact Us For Availability
921
MAY M0321204 MAY M0321204 Contact Us For Availability
941
MAY 5147-ZZ MAY 5147-ZZ Contact Us For Availability
971
MAY M0231604 MAY M0231604 Contact Us For Availability
981
MAY R0157373 MAY R0157373 Contact Us For Availability
992
COVER LIGHT (BLK) MAY 10785604 Contact Us For Availability
999
MAY RE220002 MAY RE220002 Contact Us For Availability
1011
CLIP, BLOWER MTG MAY 45537P01 Contact Us For Availability
1021
MAY 45602P01 MAY 45602P01 Contact Us For Availability
1031
MAY 46385P01 MAY 46385P01 Contact Us For Availability
1041
MAY 12075801 MAY 12075801 Contact Us For Availability
1052
MAY 45412P01 MAY 45412P01 Contact Us For Availability
1091
LD MAY 4229913003 Contact Us For Availability
1131
MAY 5571173001 MAY 5571173001 Contact Us For Availability
9981
MAY 41205P01 MAY 41205P01 Contact Us For Availability
9991
POW BTN CVR ALUM/BLACK MAY 46508P04 Contact Us For Availability
9991
MAY 10805822 MAY 10805822 Contact Us For Availability
× ![]()
