  • LG VDS-RB4HN.AEWELGA Parts List

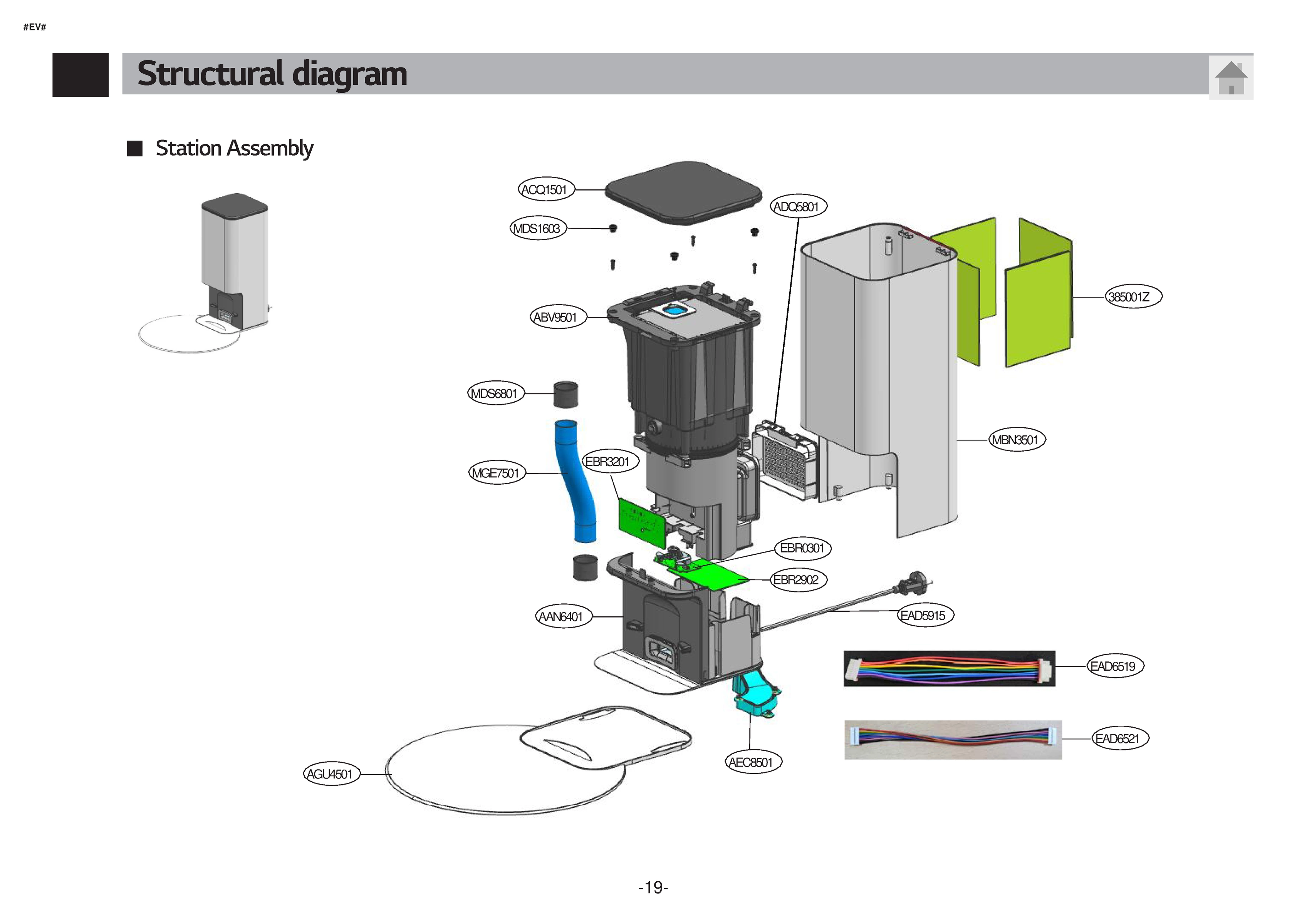

Model LG VDS-RB4HN.AEWELGA – Common Parts & Diagrams

385001Z
Damper
Damper LGE 3858EL3001Z Contact Us For Availability
View on Model
468001Q
Motor Assembly,AC
Motor Assembly,AC LGE EAU60683809 Contact Us For Availability
View on Model
AAN6401

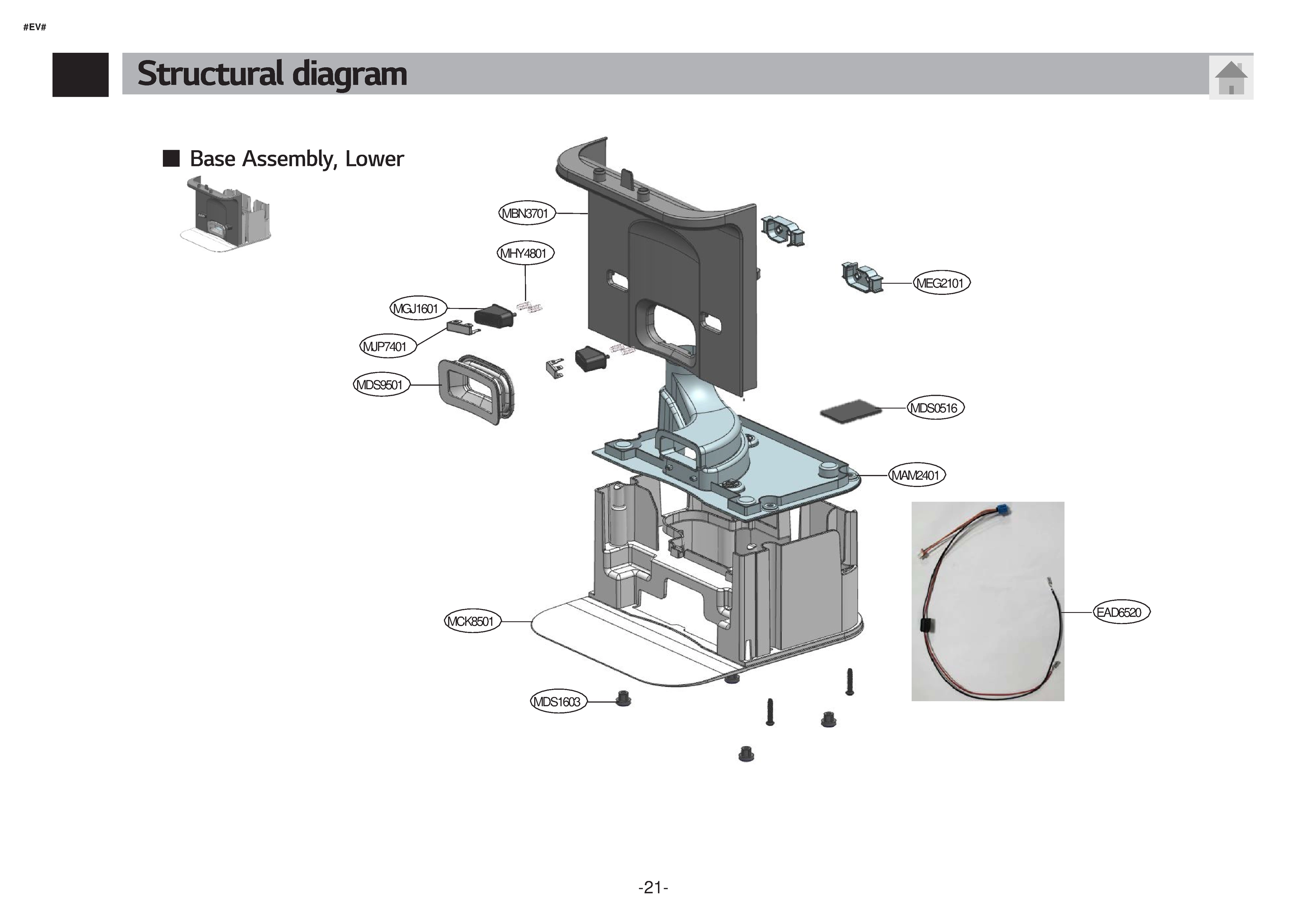

Base Assembly,Lower
Base Assembly,Lower LGE AAN30099702 Contact Us For Availability
View on Model
ABV9501

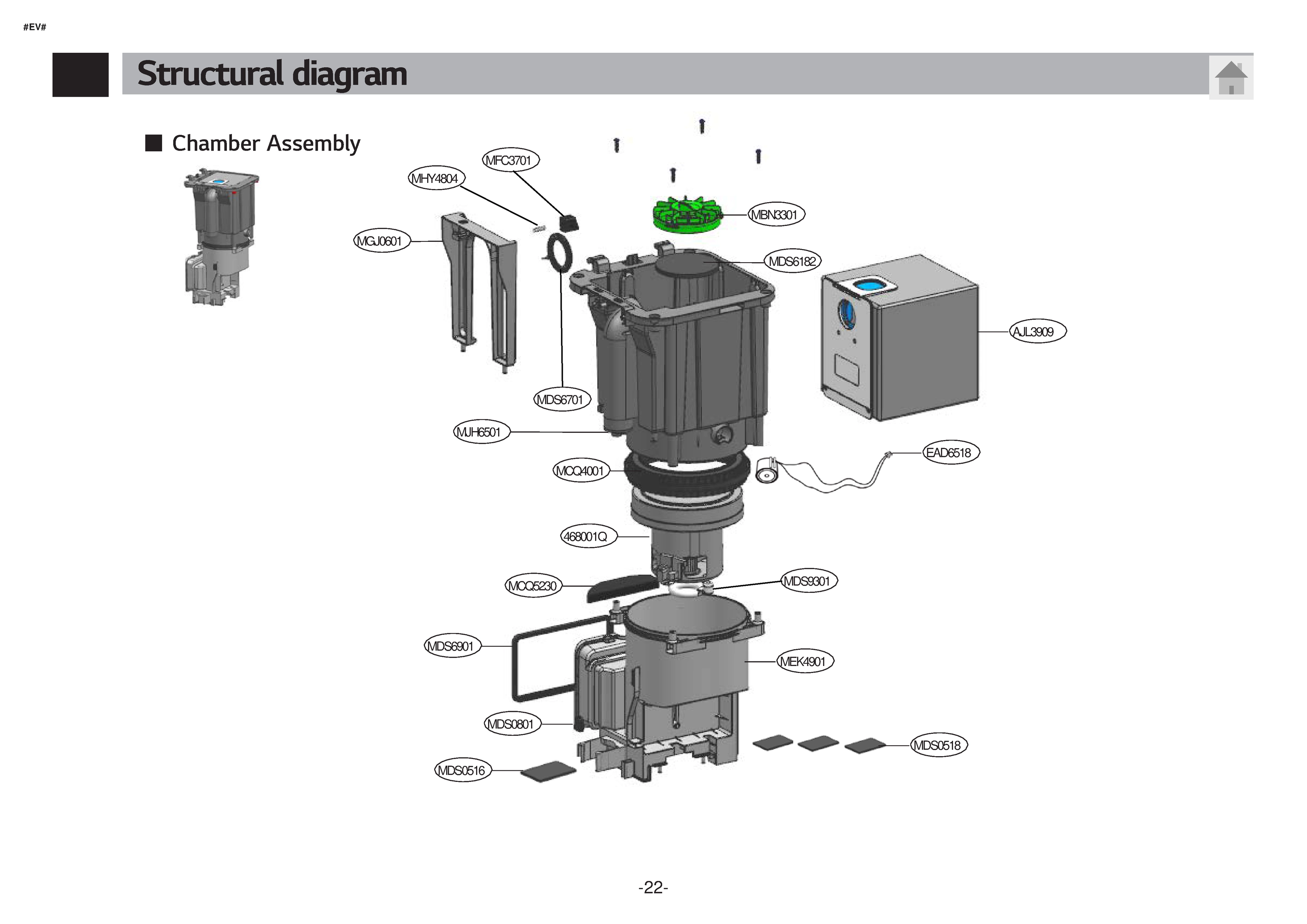

Chamber Assembly
Chamber Assembly LGE ABV73859504 Contact Us For Availability
View on Model
ACQ1501

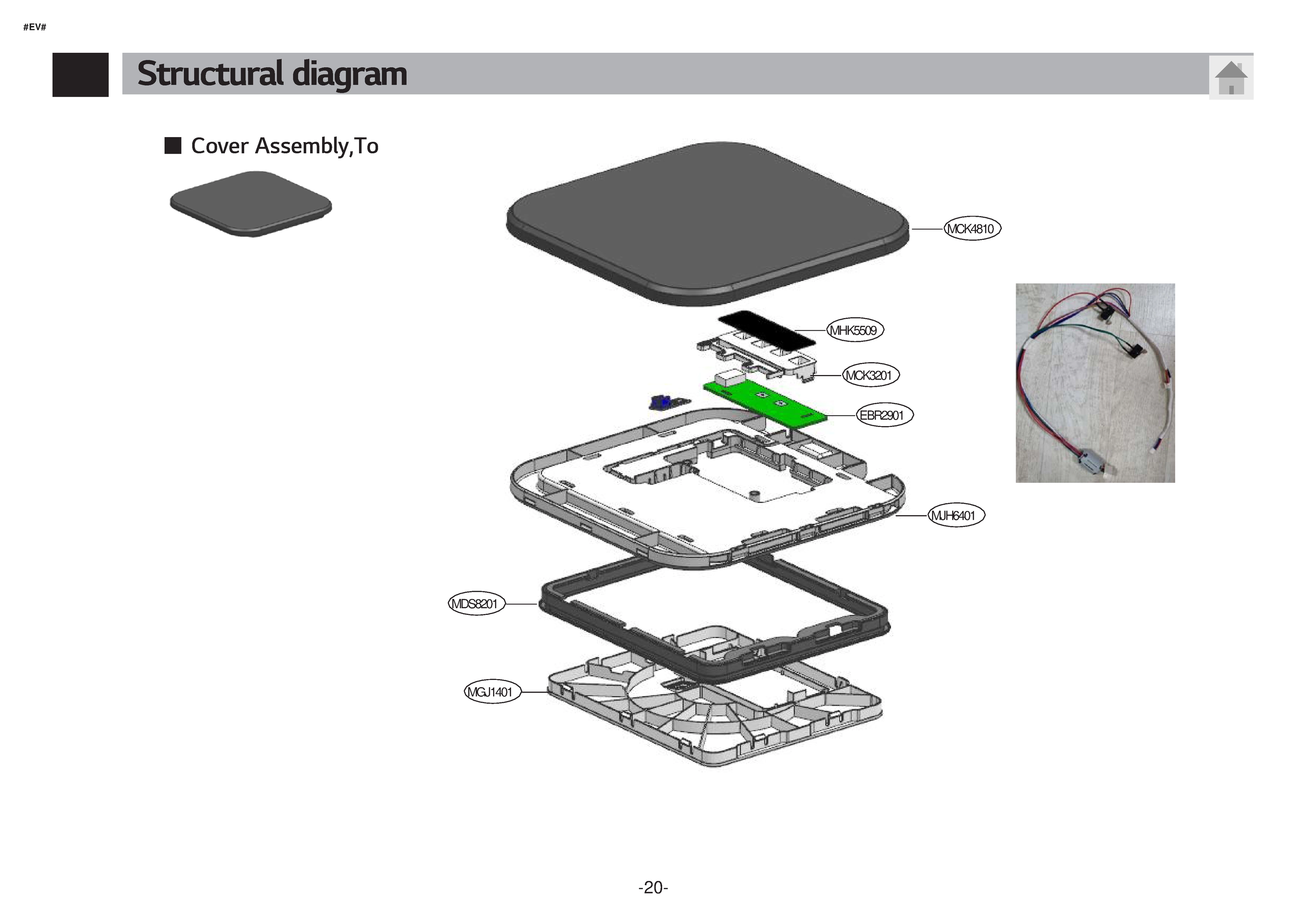

Cover Assembly,Top
Cover Assembly,Top LGE ACQ30551505 Contact Us For Availability
View on Model
AJL3909
Tank Assembly,Dust
Tank Assembly,Dust LGE AJL75313913 Contact Us For Availability
View on Model
EAD6518
Harness,Single
Harness,Single LGE EAD65896518 Contact Us For Availability
View on Model
EAD6519
Harness,Single
Harness,Single LGE EAD65896519 Contact Us For Availability
View on Model
EAD6520
Harness,Single
Harness,Single LGE EAD65896522 Contact Us For Availability
View on Model
EAD6521
Harness,Single
Harness,Single LGE EAD65896521 Contact Us For Availability
View on Model
EBR0301
PCB Assembly,Sub(H/W)
PCB Assembly,Sub(H/W) LGE EBR39390301 Contact Us For Availability
View on Model
EBR2901
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR38092901 Contact Us For Availability
View on Model
EBR3201
PCB Assembly,Main
PCB Assembly,Main LGE EBR40003106 Contact Us For Availability
View on Model
MAM2401
Base,Lower
Base,Lower LGE MAM66015202 Contact Us For Availability
View on Model
MBN3701
Case,Front
Case,Front LGE MBN66554601 Contact Us For Availability
View on Model
MCK3201
Cover,LED
Cover,LED LGE MCK71673201 Contact Us For Availability
View on Model
MCK4810
Cover,Top
Cover,Top LGE MCK71494810 Contact Us For Availability
View on Model
MCK8501
Cover,Body
Cover,Body LGE MCK71731602 Contact Us For Availability
View on Model
MCQ5230
Damper
Damper LGE MCQ69905230 Contact Us For Availability
View on Model
MDS0516
Gasket
Gasket LGE MDS63630516 Contact Us For Availability
View on Model
MDS0518
Gasket
Gasket LGE MDS63630518 Contact Us For Availability
View on Model
MDS0801
Gasket
Gasket LGE MDS64850801 Contact Us For Availability
View on Model
MDS1603
Gasket
Gasket LGE MDS64791603 Contact Us For Availability
View on Model
MDS6801
Gasket
Gasket LGE MDS67646801 Contact Us For Availability
View on Model
MDS6901
Gasket
Gasket LGE MDS67646901 Contact Us For Availability
View on Model
MEG2101
Holder,Fixing
Holder,Fixing LGE MEG66712101 Contact Us For Availability
View on Model
MEK4901
Housing,Motor
Housing,Motor LGE MEK65184901 Contact Us For Availability
View on Model
MFC3701
Lever,Release
Lever,Release LGE MFC64333701 Contact Us For Availability
View on Model
MGE7501
Pipe
Pipe LGE MGE66427501 Contact Us For Availability
View on Model
MGJ0601
Plate,Guide
Plate,Guide LGE MGJ67470601 Contact Us For Availability
View on Model
MGJ1401
Plate,Bottom
Plate,Bottom LGE MGJ67471402 Contact Us For Availability
View on Model
MHK5509
Sheet,Operation
Sheet,Operation LGE MHK65725509 Contact Us For Availability
View on Model
MHY4801
Spring,Coil
Spring,Coil LGE MHY61867306 Contact Us For Availability
View on Model
MHY4804
Spring,Coil
Spring,Coil LGE MHY62904804 Contact Us For Availability
View on Model
MJH6401
Supporter,Cover
Supporter,Cover LGE MJH66366401 Contact Us For Availability
View on Model
