Model U-Line VCBR672-SS01A Uline VCBR672-SS01A – Common Parts & Diagrams

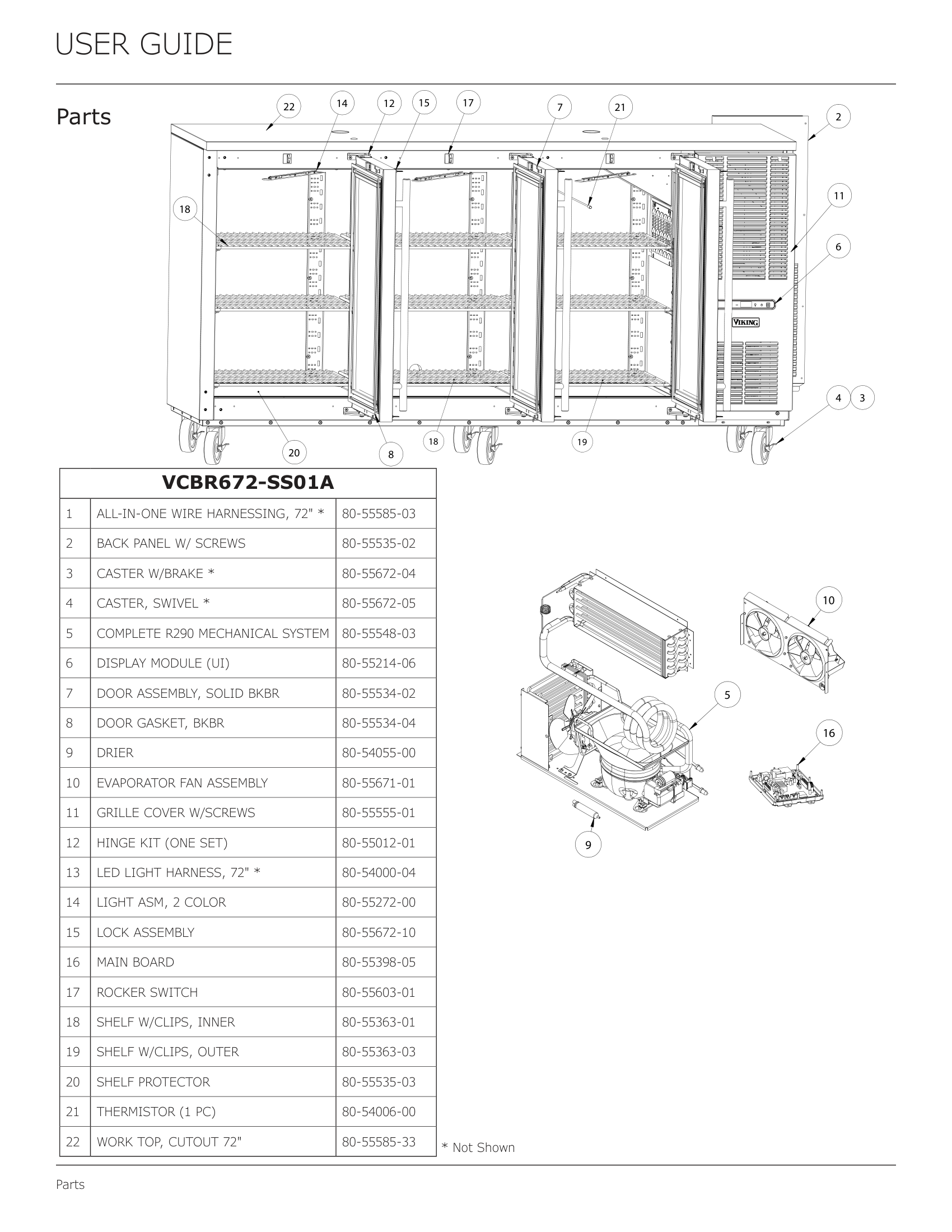

Exploded View
Common parts from model U-Line VCBR672-SS01A Uline VCBR672-SS01A
3
CASTER W/BRAKE ULC 80-55672-04 Contact Us For Availability
4
CASTER, SWIVEL ULC 80-55672-05 Contact Us For Availability
5
COMPLETE R290 MECHANICAL SYSTEM ULC 80-55548-03 Contact Us For Availability
6
DISPLAY MODULE (UI) ULC 80-55214-06 Contact Us For Availability
7
DOOR GASKET, BKBR ULC 80-55534-04 Contact Us For Availability
9
EVAPORATOR FAN ASSEMBLY ULC 80-55671-01 Contact Us For Availability
10
GRILLE COVER W/SCREWS ULC 80-55555-01 Contact Us For Availability
11
LED LIGHT HARNESS, " ULC 80-54000-04 Contact Us For Availability
12
LIGHT ASM, COLOR ULC 80-55272-00 Contact Us For Availability
13
LOCK ASSEMBLY ULC 80-55672-10 Contact Us For Availability
15
ROCKER SWITCH ULC 80-55603-01 Contact Us For Availability
16
SHELF W/CLIPS, INNER ULC 80-55363-01 Contact Us For Availability
17
SHELF W/CLIPS, OUTER ULC 80-55363-03 Contact Us For Availability
18
SHELF PROTECTOR ULC 80-55535-03 Contact Us For Availability
20
WORK TOP, CUTOUT ULC 80-55585-33 Contact Us For Availability
× ![]()
