Model UniMac UXW900Z Washer – Common Parts & Diagrams
Frame
Shock and Spring Assembly

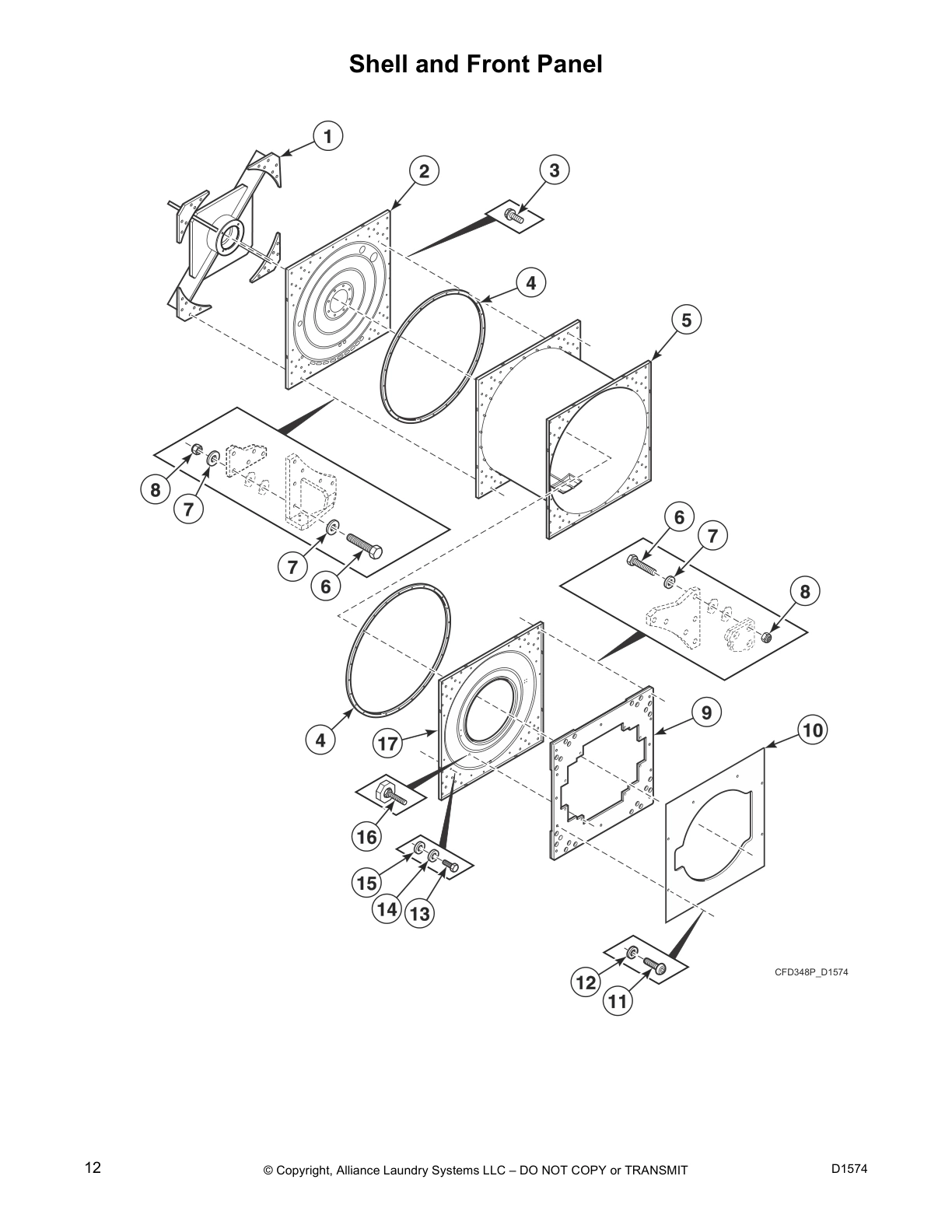

Shell and Front Panel

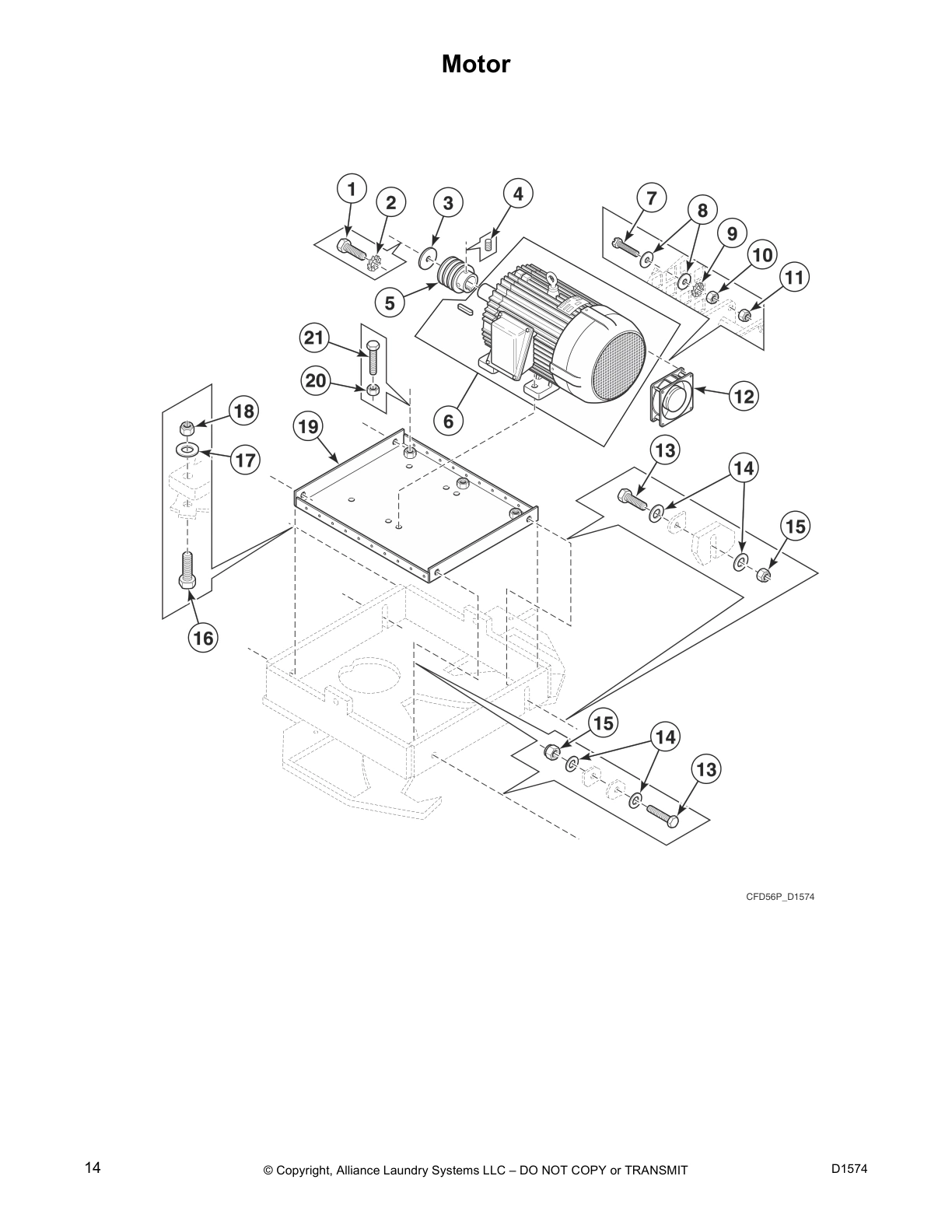

Motor

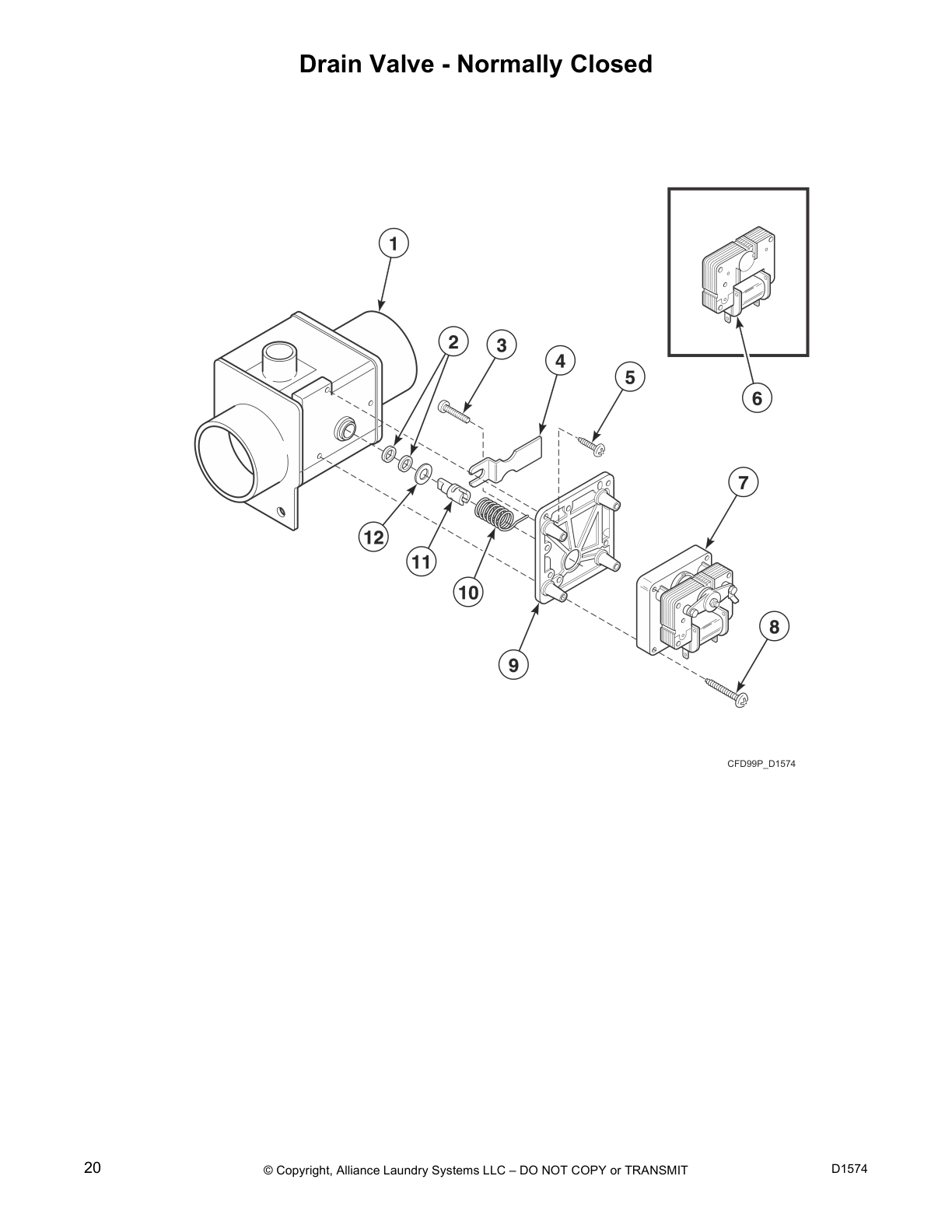

Drain Valve - Normally Closed

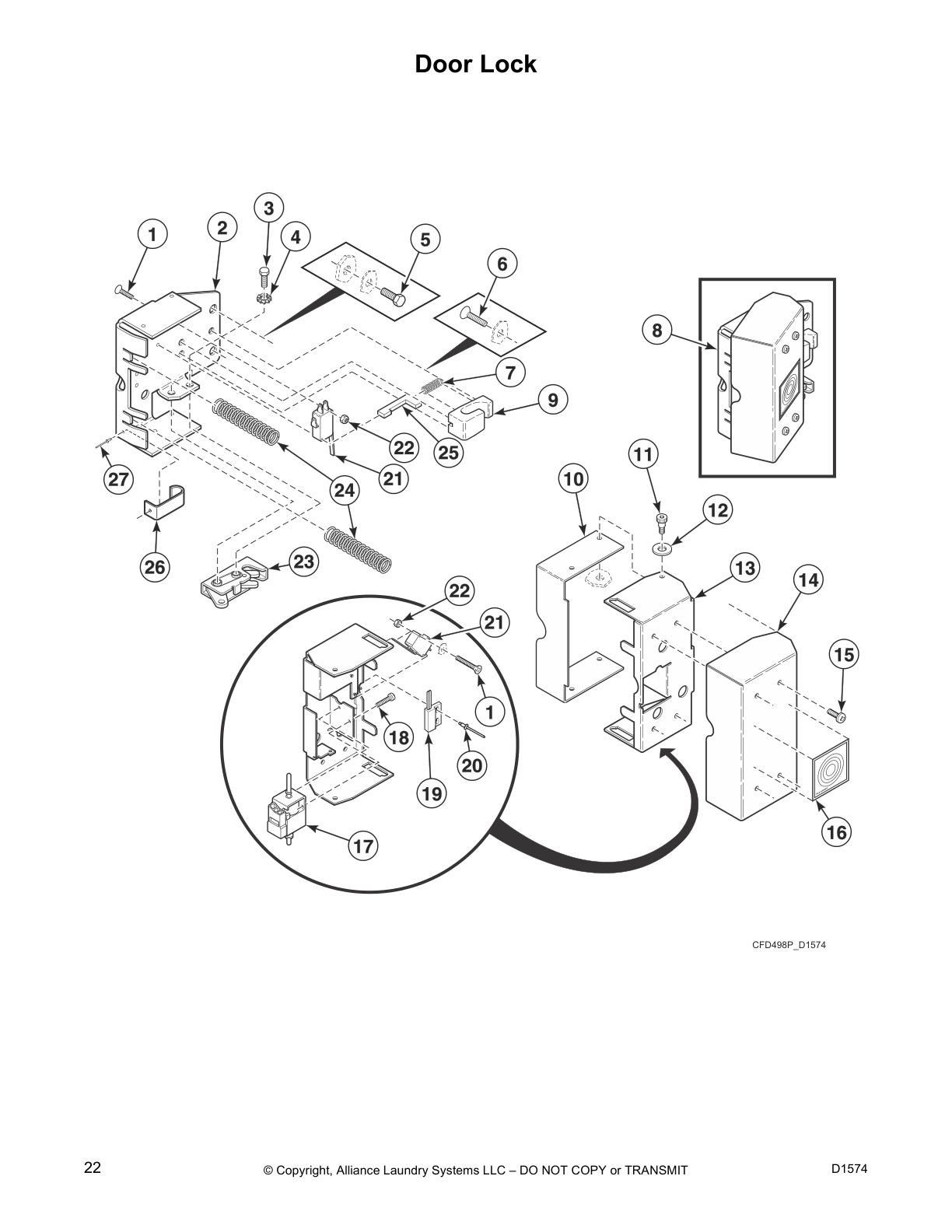

Door Lock

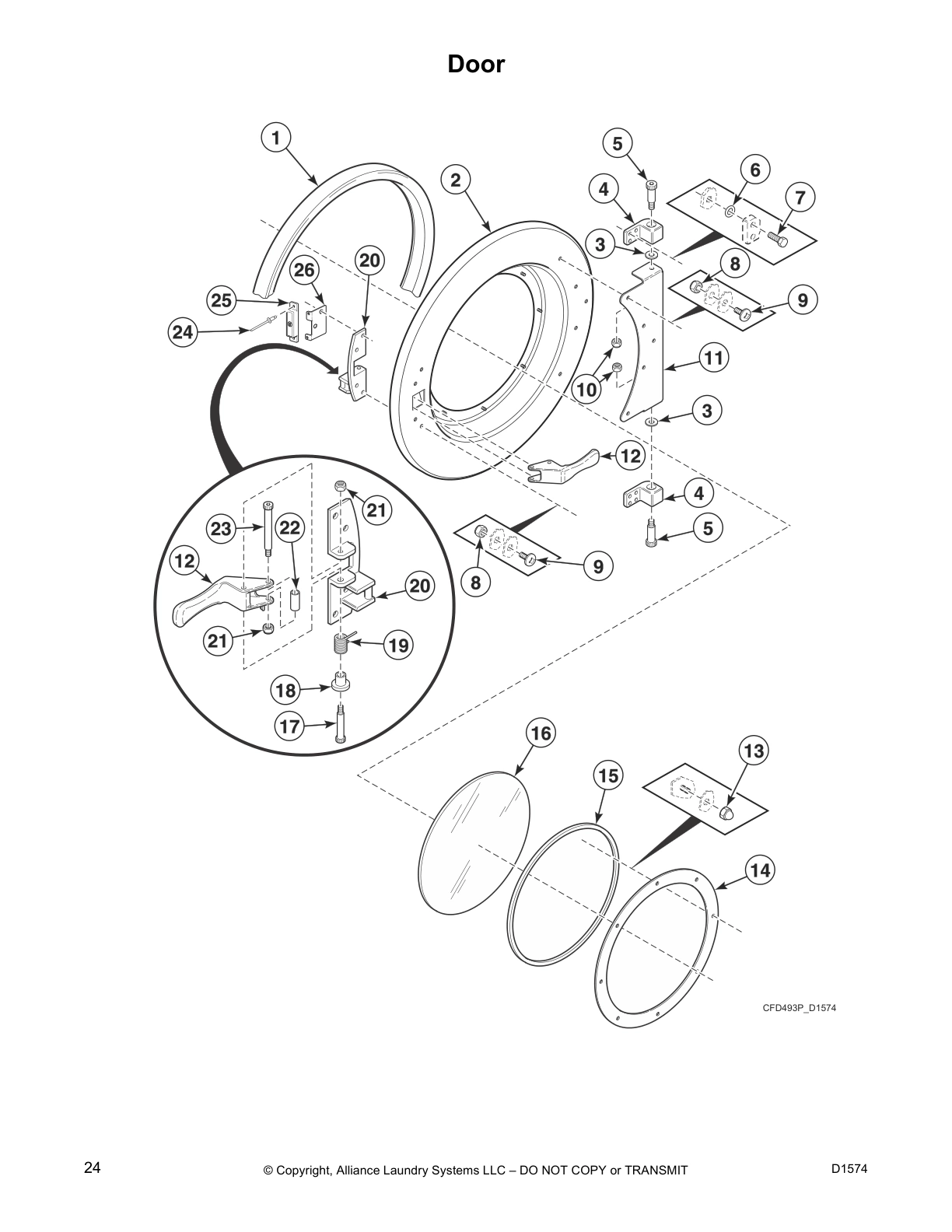

Door

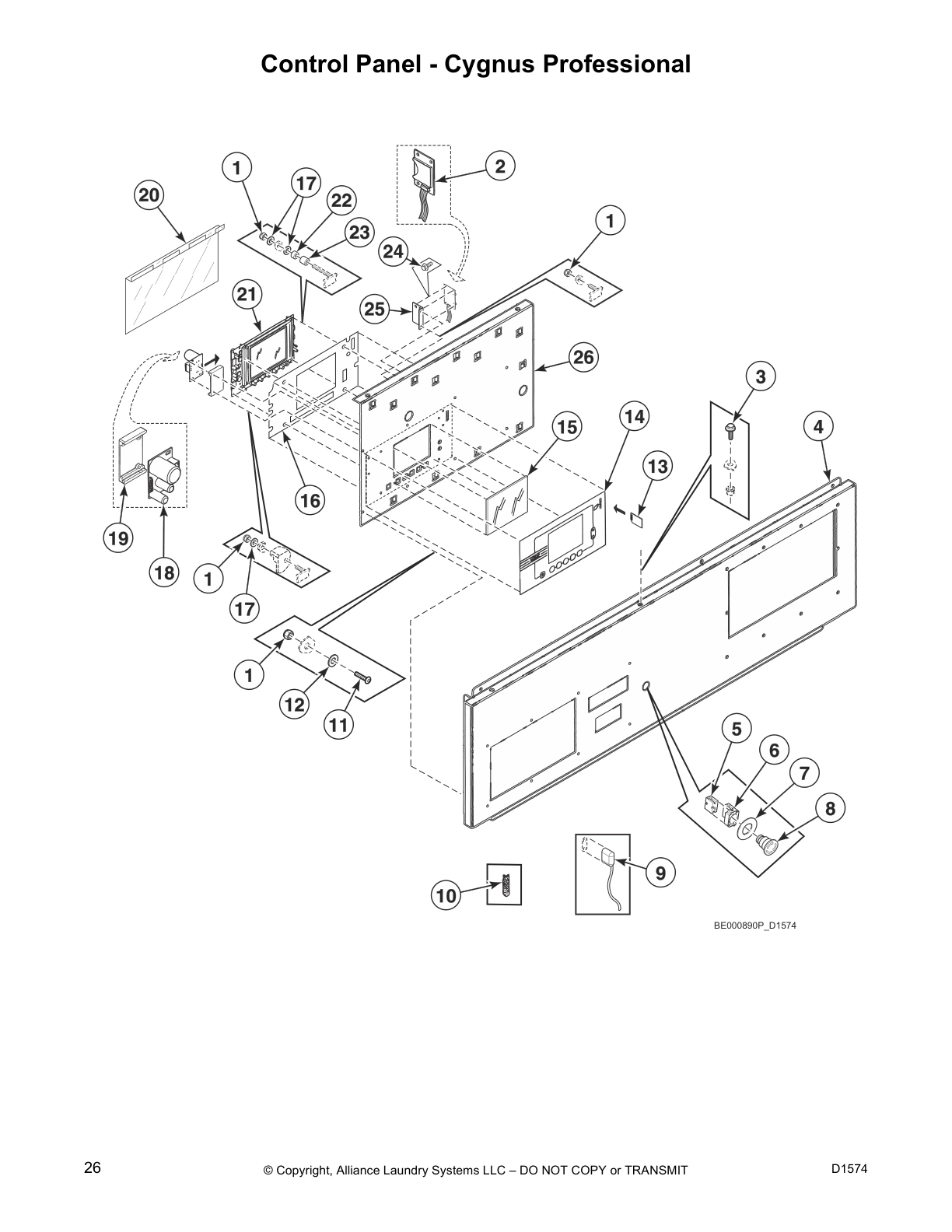

Control Panel - Cygnus Professional

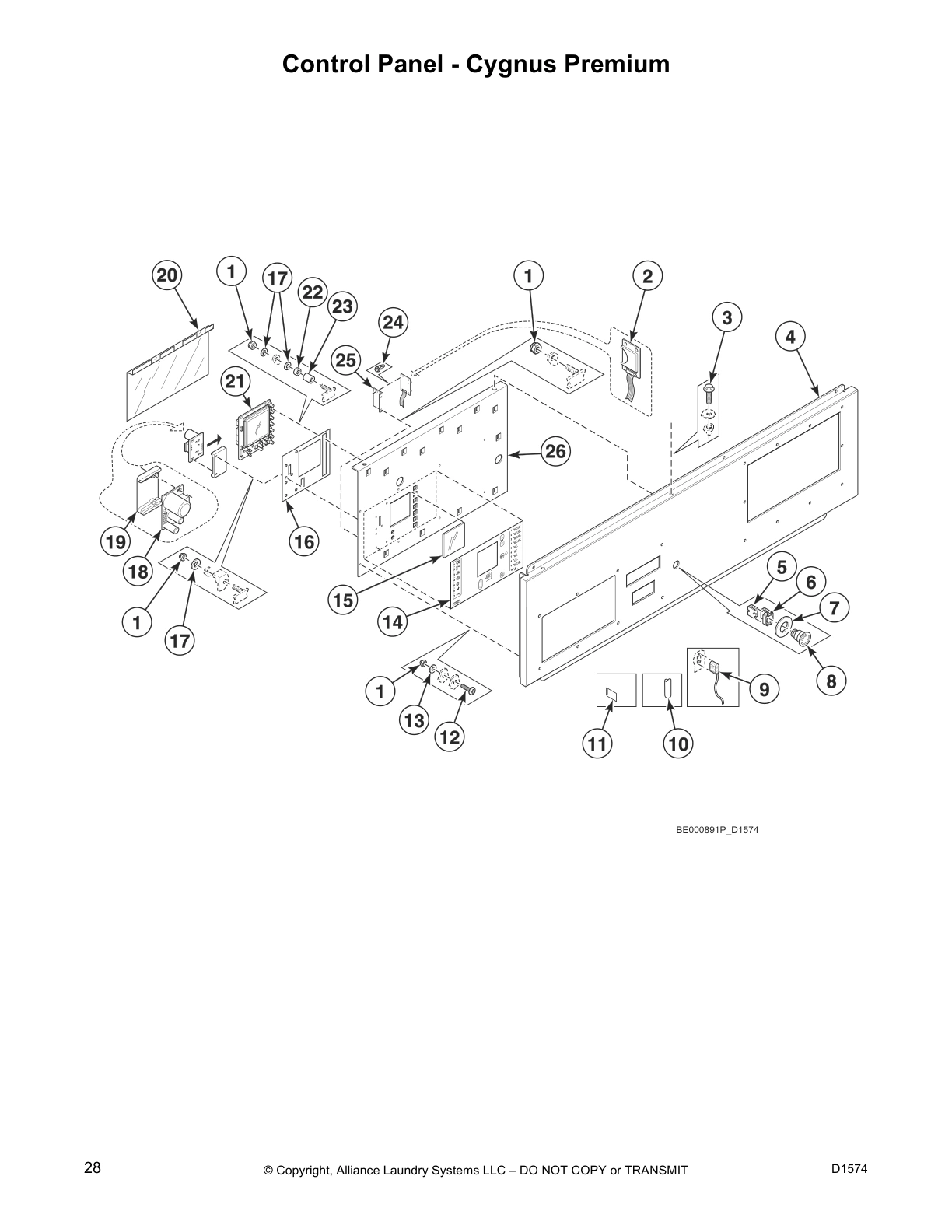

Control Panel - Cygnus Premium
Control Panel - Cygnus Ultra Pro

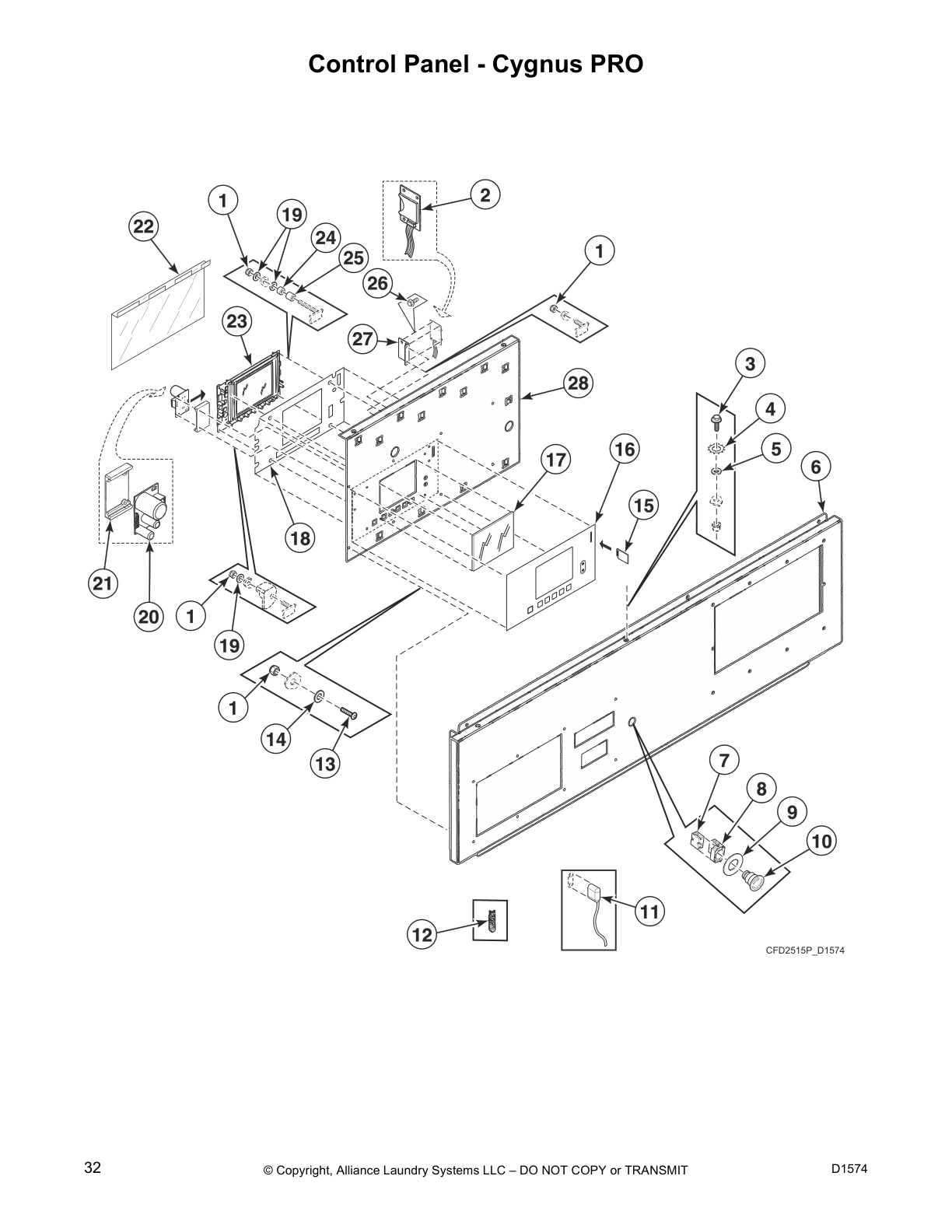

Control Panel - Cygnus PRO
Control Panel - WE-8

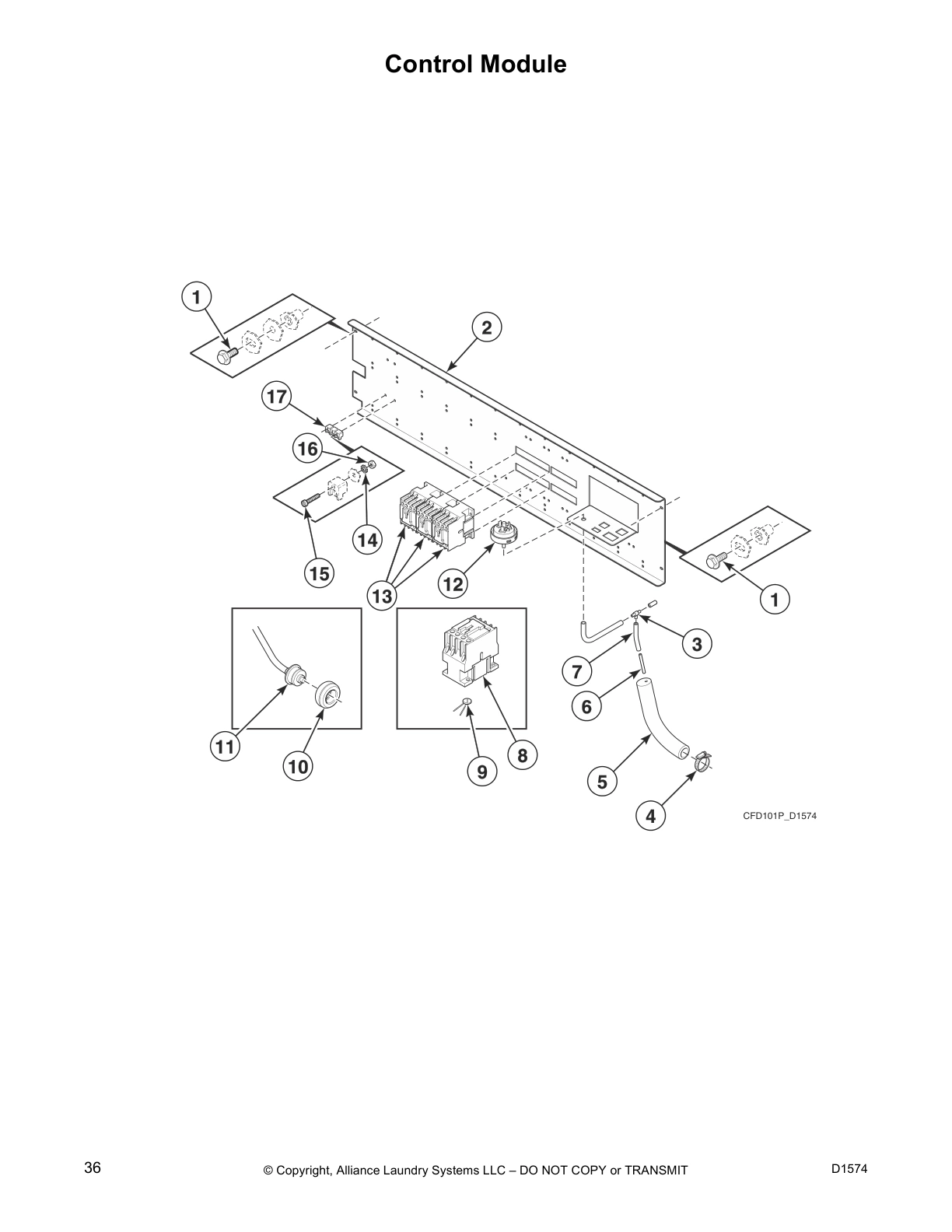

Control Module

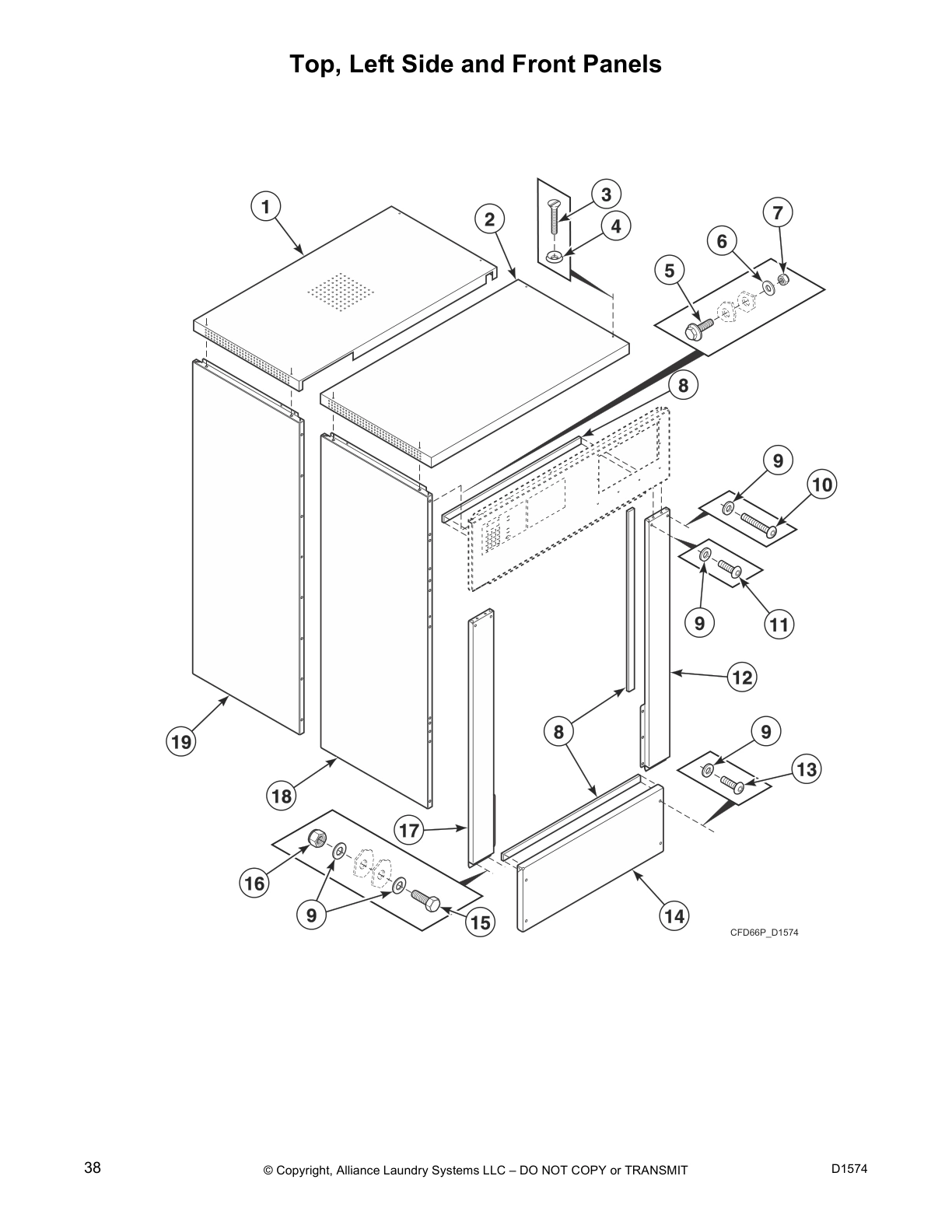

Top, Left Side and Front Panels

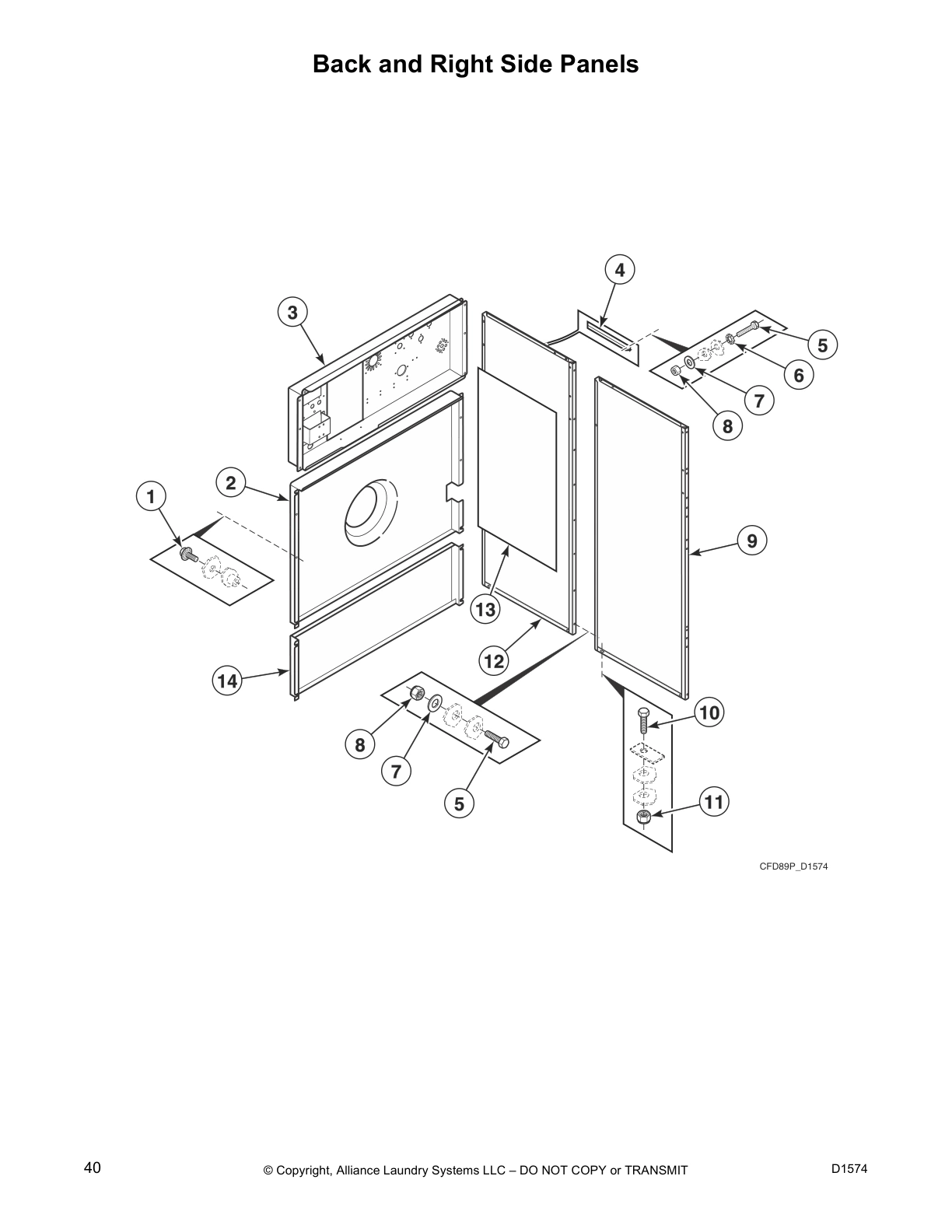

Back and Right Side Panels

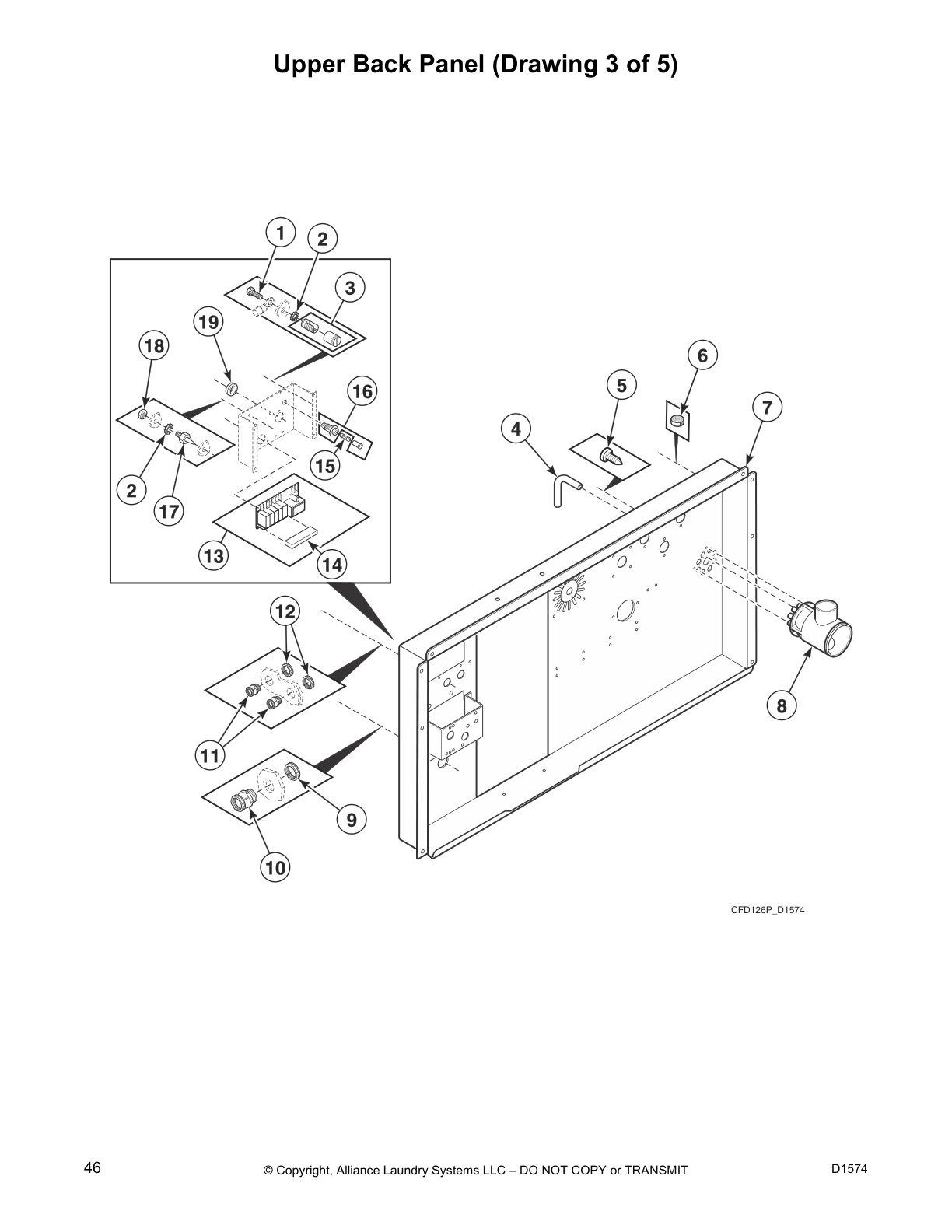

Upper Back Panel (Drawing 3 of 5)

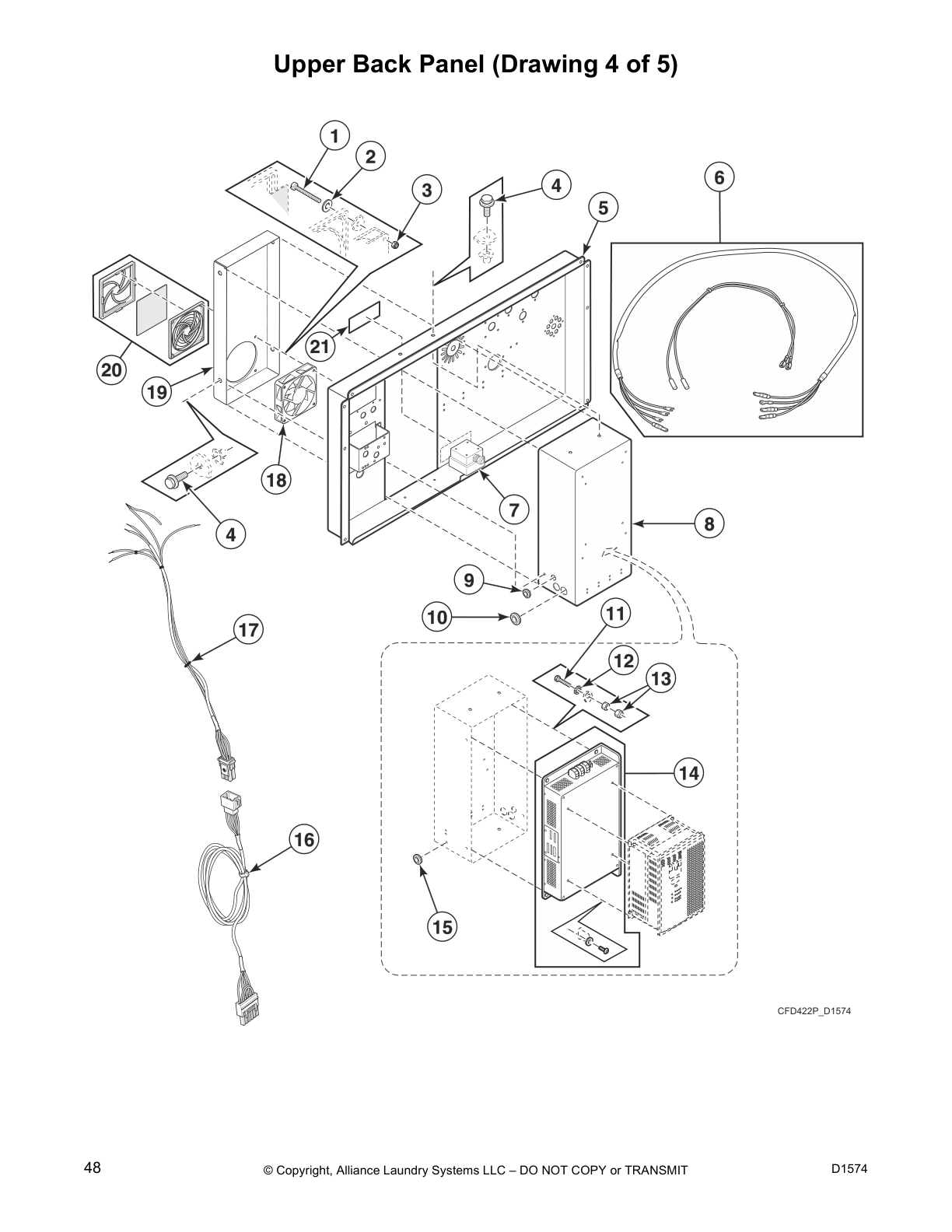

Upper Back Panel (Drawing 4 of 5)

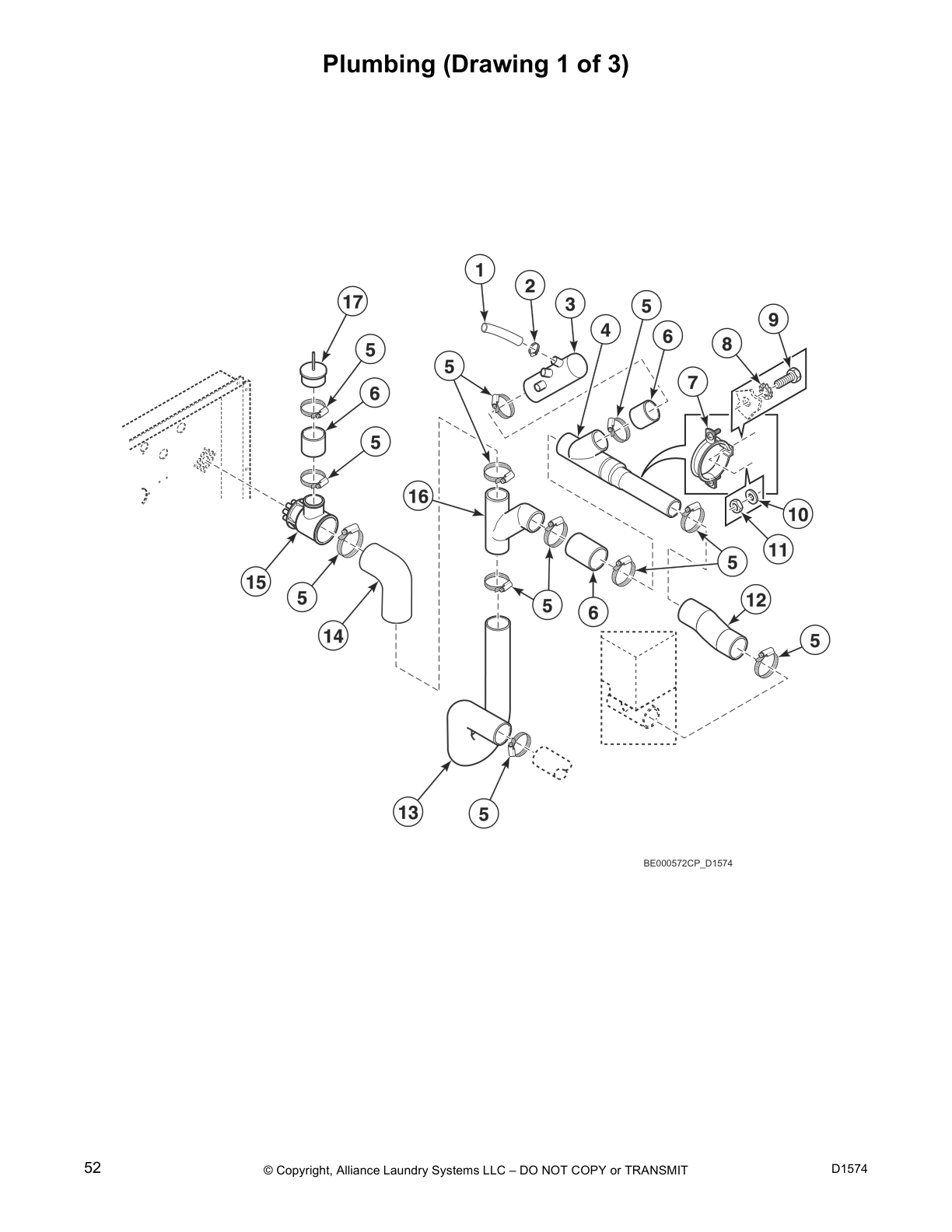

Plumbing (Drawing 1 of 3)

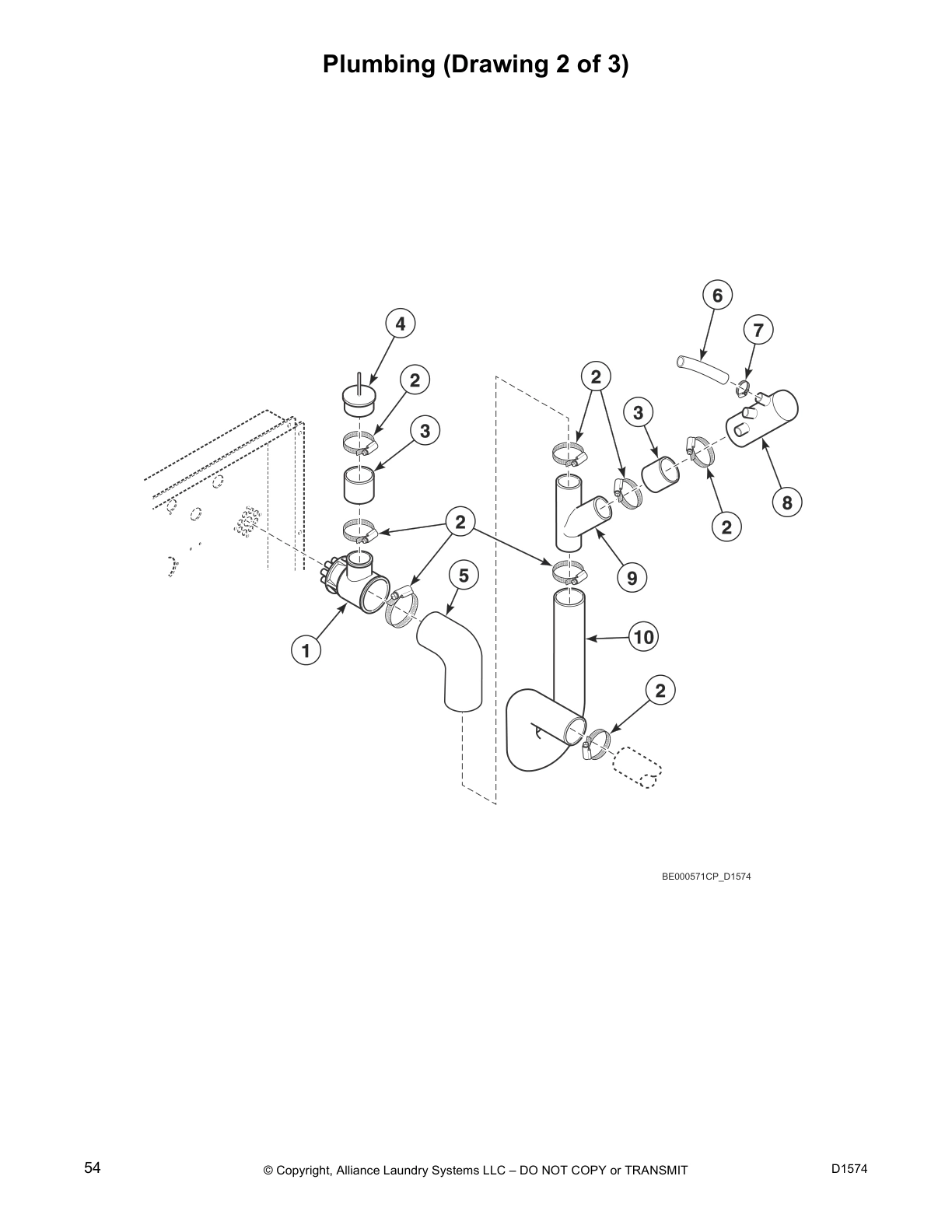

Plumbing (Drawing 2 of 3)

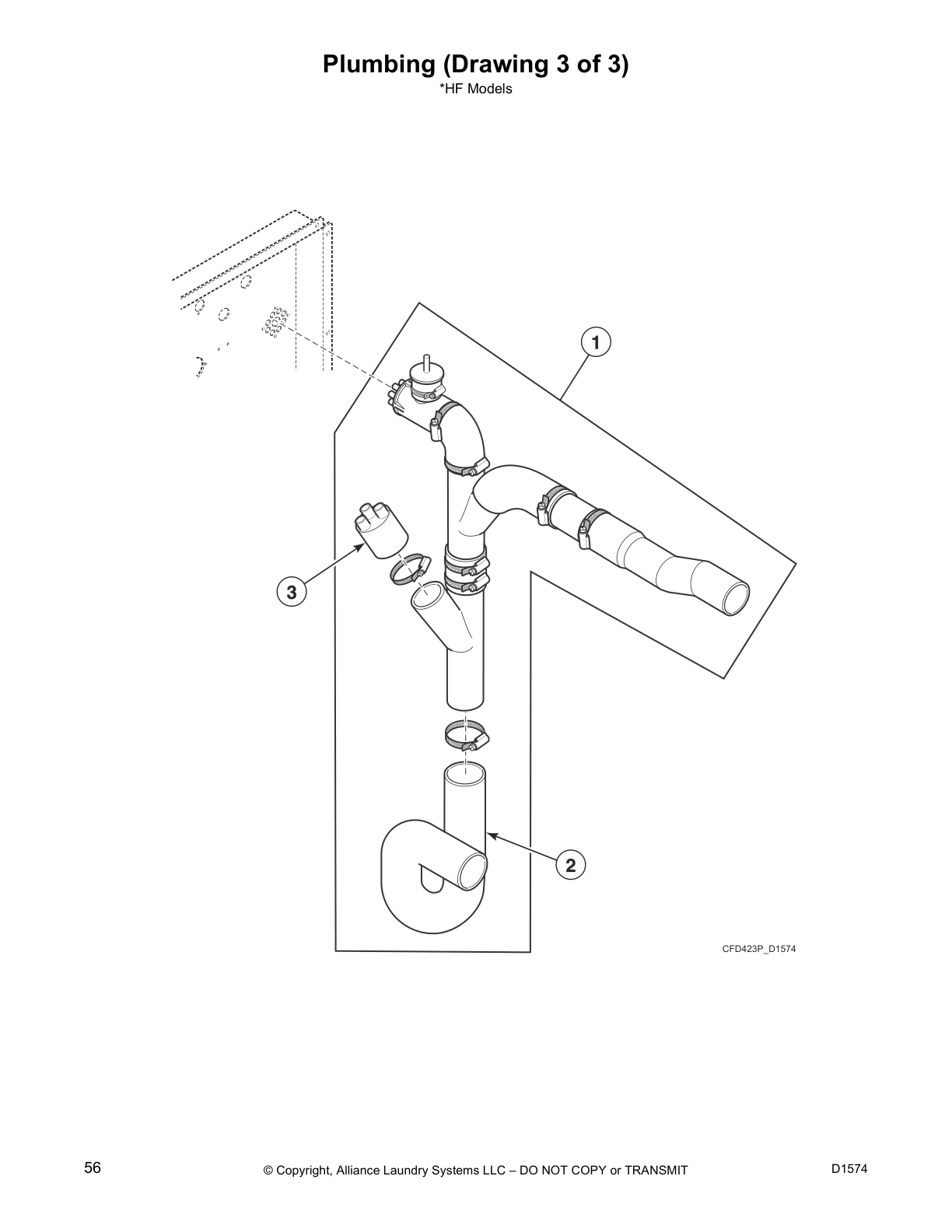

Plumbing (Drawing 3 of 3)
Balance Switch

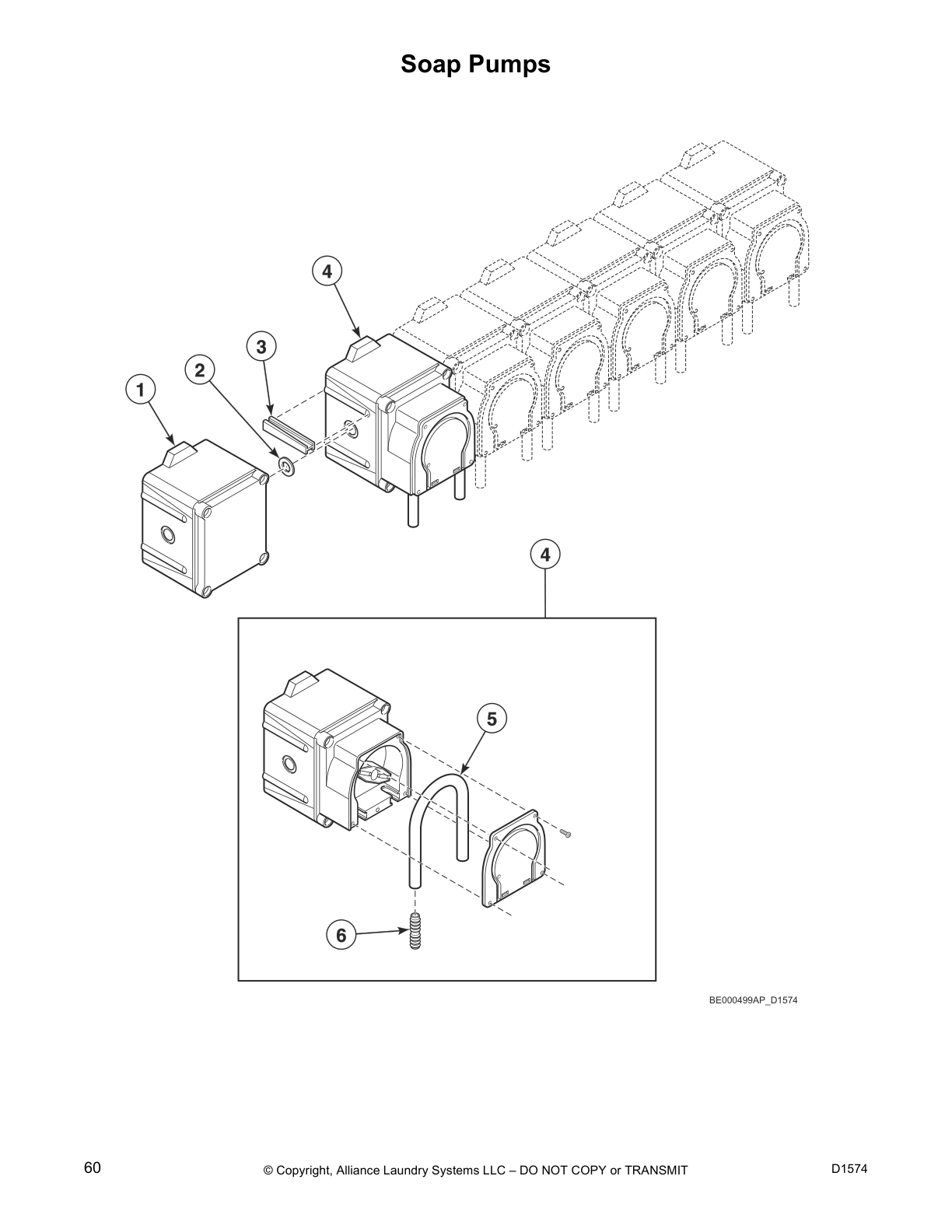

Soap Pumps

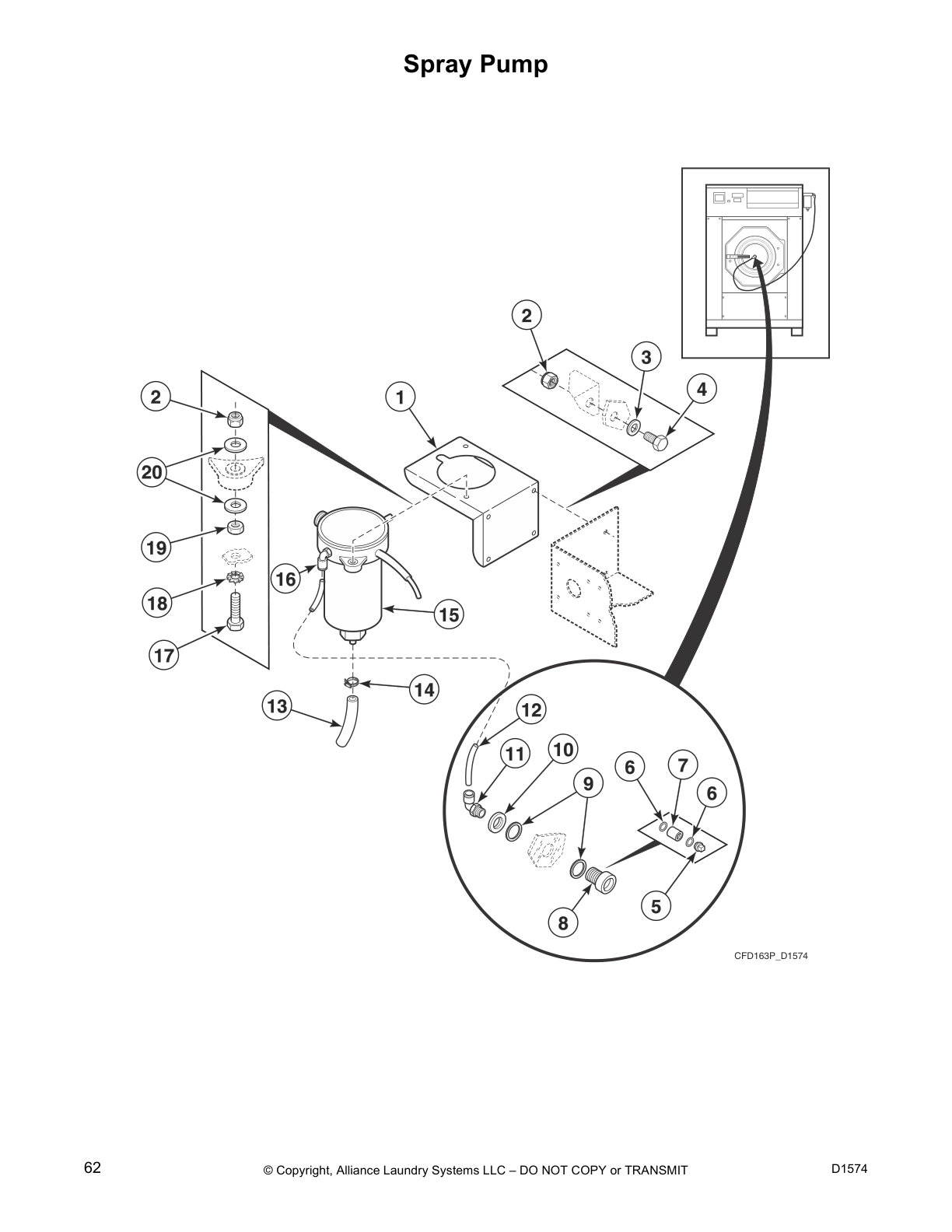

Spray Pump
Electric Heating Option

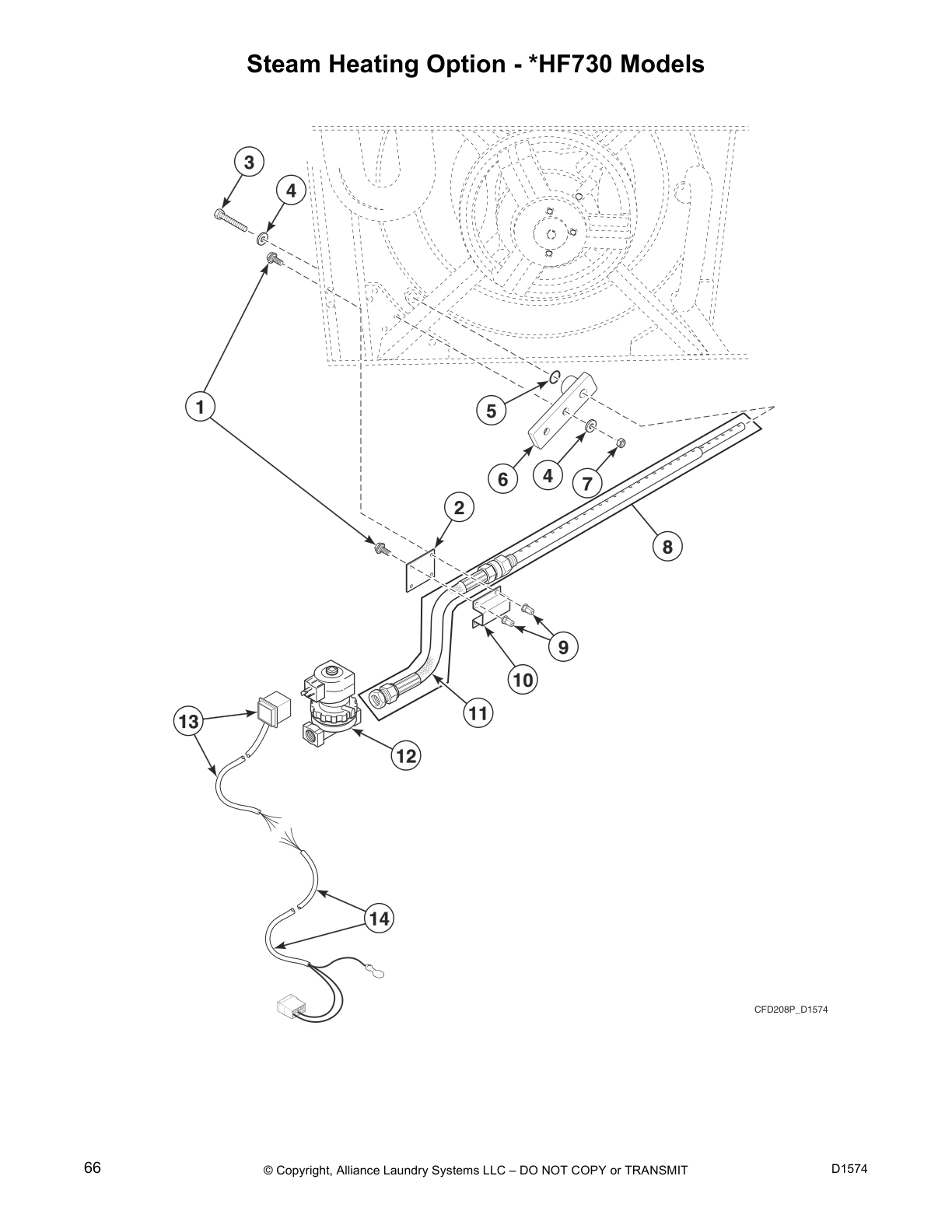

Steam Heating Option - *HF730 Models

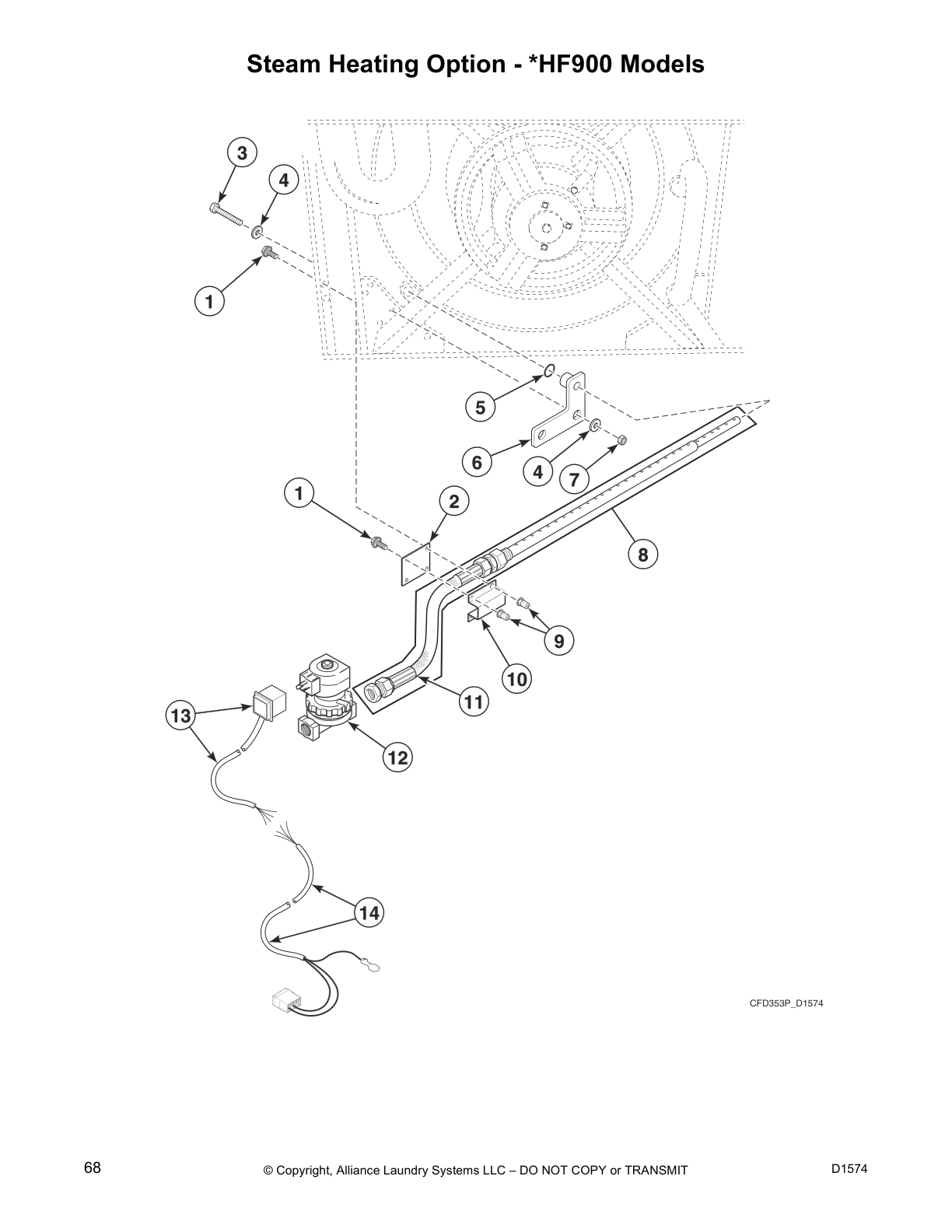

Steam Heating Option - *HF900 Models
Common parts from model UniMac UXW900Z Washer
1
Bolt SPQ 206/00071/00 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Bolt SPQ 206/00004/00 Contact Us For Availability
1
Door Seal SPQ 253/00162/02 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
2
Door SPQ 173/00040/00 Contact Us For Availability
2
Mounting Plate SPQ B12305201 Contact Us For Availability
2
Washer SPQ 202/00004/00 Contact Us For Availability
2
Side Panel Support Assembly SPQ 173/00007/02 Contact Us For Availability
2
O-Ring SPQ 204/00009/00 Contact Us For Availability
2
Hose Clamp SPQ 223/00071/00 Contact Us For Availability
2
Soap Dispenser to Tub Hose SPQ 223/00187/00 Contact Us For Availability
2
Screw SPQ 223/00246/00 Contact Us For Availability
2
Liquid Soap Dosing Pu SPQ 209/00554/52 Contact Us For Availability
3
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
3
Screw SPQ 209/00025/08 Contact Us For Availability
3
Bolt SPQ 253/00158/567 Contact Us For Availability
3
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
3
Pressure Switch Hose Tee SPQ 223/00173/10 Contact Us For Availability
3
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
3
Pressure Hose SPQ 209/00006/01 Contact Us For Availability
3
Fan Grill SPQ 209/00465/01 Contact Us For Availability
3
Manifold SPQ 153/00116/00 Contact Us For Availability
3
Drain Valve to Drain Pipe Hose SPQ 223/00141/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 207/00018/00 Contact Us For Availability
4
SPQ 255/00001/00 SPQ 255/00001/00 Contact Us For Availability
4
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
4
Tilt Switch Bracket SPQ 203/00006/00 Contact Us For Availability
4
Inverter to Motor Harness SPQ 204/00114/00 Contact Us For Availability
4
Washer SPQ 153/00103/01 Contact Us For Availability
4
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
5
SPQ 173/00054/00 SPQ 173/00054/00 Contact Us For Availability
5
SPQ B12300601 SPQ B12300601 Contact Us For Availability
5
SPQ 253/10519/00 SPQ 253/10519/00 Contact Us For Availability
5
Door Lock Kit SPQ 205/00123/00 Contact Us For Availability
5
SPQ 202/00106/00 SPQ 202/00106/00 Contact Us For Availability
5
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
5
Plug SPQ B12347501 Contact Us For Availability
5
Elbow SPQ 223/00302/00 Contact Us For Availability
6
SPQ 206/00122/00 SPQ 206/00122/00 Contact Us For Availability
6
O-Ring SPQ 223/00244/00 Contact Us For Availability
6
Hose Barb SPQ 223/00016/00 Contact Us For Availability
6
Liquid Soap Manifold SPQ 211/00087/00 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
6
SPQ 223/00177/00 SPQ 223/00177/00 Contact Us For Availability
7
Drain Valve Motor SPQ 209/00203/12 Contact Us For Availability
7
Bolt SPQ 205/00122/00 Contact Us For Availability
7
Y Pipe SPQ 223/00223/00 Contact Us For Availability
7
SPQ 210/30570/20 SPQ 210/30570/20 Contact Us For Availability
7
SPQ 211/00126/00 SPQ 211/00126/00 Contact Us For Availability
8
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
8
SPQ 201/00008/00 SPQ 201/00008/00 Contact Us For Availability
8
SPQ 209/00099/20 SPQ 209/00099/20 Contact Us For Availability
8
SPQ 211/00091/00 SPQ 211/00091/00 Contact Us For Availability
9
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
9
Drain Valve Motor Mounting Plate SPQ 209/00115/04 Contact Us For Availability
9
SPQ 208/00132/00 SPQ 208/00132/00 Contact Us For Availability
9
SPQ 209/00520/00 SPQ 209/00520/00 Contact Us For Availability
9
Noise Suppressor SPQ 209/00356/00 Contact Us For Availability
9
SPQ 209/00406/00 SPQ 209/00406/00 Contact Us For Availability
9
SPQ 253/00017/00 SPQ 253/00017/00 Contact Us For Availability
9
Nut SPQ 206/00101/00 Contact Us For Availability
9
SPQ 223/00176/00 SPQ 223/00176/00 Contact Us For Availability
10
Tub Front SPQ 173/00010/00 Contact Us For Availability
10
Nut SPQ 204/00007/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00170/02 Contact Us For Availability
10
Thermostat Seal SPQ 225/10004/00 Contact Us For Availability
10
Washer SPQ 202/00110/00 Contact Us For Availability
10
Screw SPQ 208/00121/00 Contact Us For Availability
10
Grommet SPQ 223/00198/00 Contact Us For Availability
11
Drain Valve Shaft SPQ 209/00170/10 Contact Us For Availability
11
Bolt SPQ 208/00125/00 Contact Us For Availability
11
Bolt SPQ 205/00108/00 Contact Us For Availability
11
Soap Injector Coupling SPQ 223/00182/00 Contact Us For Availability
12
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
12
Side Panel Gasket SPQ 190/00005/00 Contact Us For Availability
12
Nut SPQ 211/00170/00 Contact Us For Availability
12
Vent Hose SPQ 223/00107/02 Contact Us For Availability
12
Soap Injector Hose SPQ 223/00180/00 Contact Us For Availability
13
Screw SPQ 248/00114/00 Contact Us For Availability
13
Nut SPQ 207/00123/00 Contact Us For Availability
13
Lower Rear Panel SPQ 246/00079/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
13
Nut SPQ 204/00107/00 Contact Us For Availability
14
Motor Pulley SPQ 201/00001/00 Contact Us For Availability
14
Door Glass Seal Retaining Ring SPQ 173/00041/00 Contact Us For Availability
14
Connector SPQ 209/00996/00 Contact Us For Availability
15
SPQ 204/00113/00 SPQ 204/00113/00 Contact Us For Availability
15
Datacard SPQ 209/02022/00 Contact Us For Availability
15
Front Left Panel SPQ 206/00042/00 Contact Us For Availability
15
Fuse SPQ 209/00468/00 Contact Us For Availability
16
Tub Gasket SPQ 252/00006/00 Contact Us For Availability
16
SPQ 206/00003/00 SPQ 206/00003/00 Contact Us For Availability
16
Door Glass SPQ 253/00515/754 Contact Us For Availability
16
Overlay SPQ B12568801 Contact Us For Availability
16
Side Panel SPQ 204/00109/00 Contact Us For Availability
16
Y Pipe SPQ 253/00030/00 Contact Us For Availability
16
Soap Injector Elbow Coupling SPQ 223/00181/00 Contact Us For Availability
17
Nut SPQ 173/00022/00 Contact Us For Availability
17
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
17
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
17
Washer SPQ 223/00123/00 Contact Us For Availability
17
Washer SPQ 173/00003/20 Contact Us For Availability
17
Standoff SPQ 211/00120/00 Contact Us For Availability
17
Bolt SPQ 205/00103/00 Contact Us For Availability
18
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
18
Screw SPQ B12322501 Contact Us For Availability
18
Nut SPQ 204/00116/00 Contact Us For Availability
18
Insulating Sticker SPQ 229/00268/00 Contact Us For Availability
18
Washer SPQ 203/00004/00 Contact Us For Availability
19
Reed Switch Assembly SPQ C003000 Contact Us For Availability
19
Nut SPQ 204/00106/00 Contact Us For Availability
19
Inverter Box Top SPQ 173/00009/04 Contact Us For Availability
20
SPQ 204/00012/00 SPQ 204/00012/00 Contact Us For Availability
20
Soap Injector Orifice Nipple SPQ 202/00101/00 Contact Us For Availability
21
Circuit Board Cover SPQ 223/00374/00 Contact Us For Availability
22
Printboard Separator SPQ 229/00289/00 Contact Us For Availability
24
Pop Rivet SPQ F431223 Contact Us For Availability
24
Standoff SPQ 211/00128/00 Contact Us For Availability
25
Magnet SPQ F8390801 Contact Us For Availability
25
Bolt SPQ 211/00122/00 Contact Us For Availability
26
Lock Spring Leaf SPQ 211/00072/00 Contact Us For Availability
26
Emergency Switch Pushbutton SPQ 211/00145/00 Contact Us For Availability
27
Rivet SPQ B12336401 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 209/00581/10 SPQ 209/00581/10 Contact Us For Availability
× ![]()
