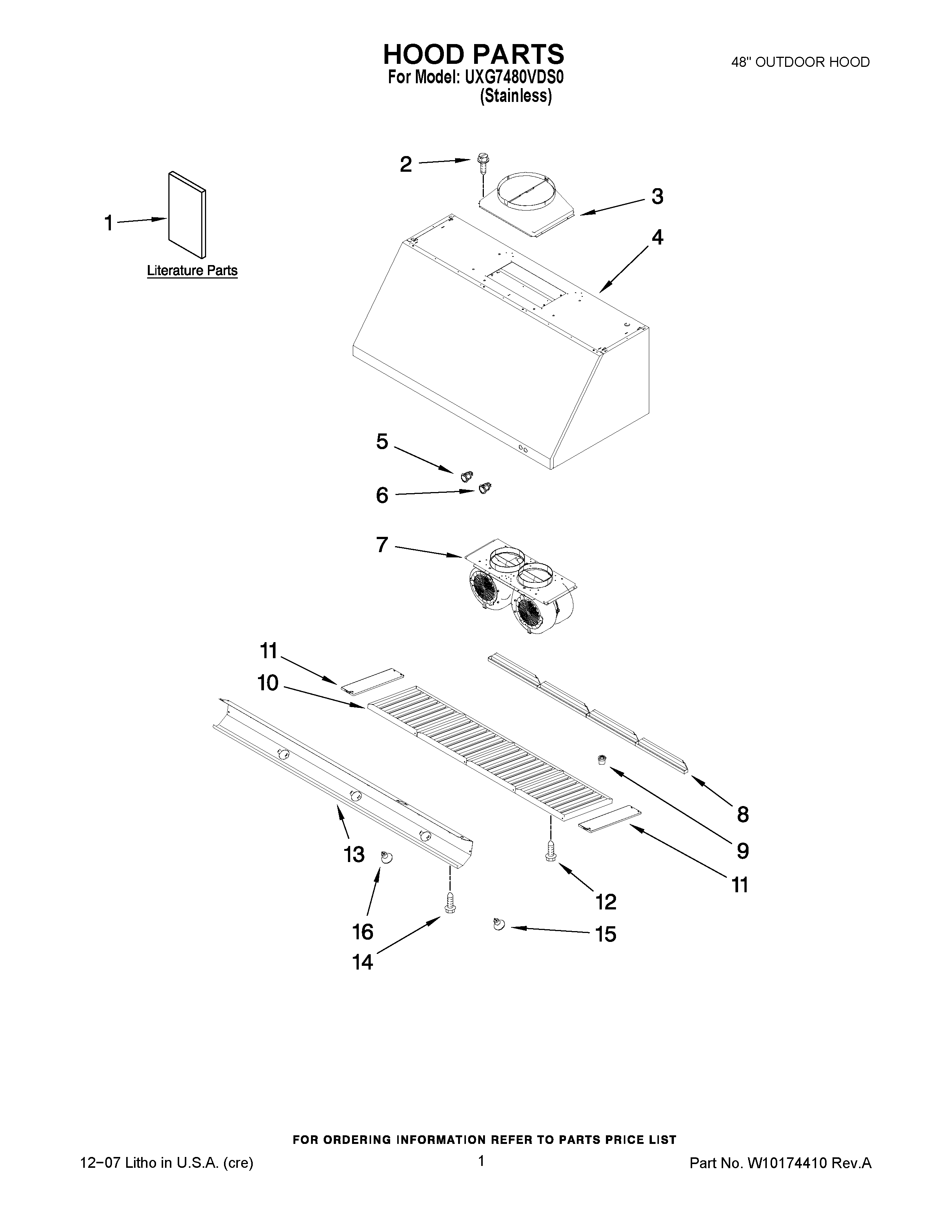

Model Whirlpool UXG7480VDS0 48`` OUTDOOR HOOD – Common Parts & Diagrams

1
INSTRUCTIONS, INSTALLATION / USE & CARE GUIDE
INSTRUCTIONS, INSTALLATION / USE & CARE GUIDE WPL W10153187 Contact Us For Availability
View on Model
3
EXTENSION,AIR DUCT
EXTENSION,AIR DUCT WPL W10174611 Contact Us For Availability
View on Model
4
HOOD (NOT SERVICED)
HOOD (NOT SERVICED) WPL NP Contact Us For Availability
View on Model
5
SWITCH, LIGHT
SWITCH, LIGHT WPL W10174612 Contact Us For Availability
View on Model
6
SWITCH, FAN
SWITCH, FAN WPL W10174613 Contact Us For Availability
View on Model
7
BLOWER ASSY
BLOWER ASSY WPL W10174615 Contact Us For Availability
View on Model
8
SUPPORT, FILTER(4)
SUPPORT, FILTER(4) WPL W10174616 Contact Us For Availability
View on Model
9
HANDLE, FILTER (8)
HANDLE, FILTER (8) WPL W10174618 Contact Us For Availability
View on Model
11
PANEL, SIDE FILTER
PANEL, SIDE FILTER WPL W10174625 Contact Us For Availability
View on Model
12
SCREW (8)
SCREW (8) WPL W10174619 Contact Us For Availability
View on Model
13
PANEL, LIGHT
PANEL, LIGHT WPL W10174638 Contact Us For Availability
View on Model
14
SCREW (6)
SCREW (6) WPL W10174622 Contact Us For Availability
View on Model
15
TOOL,LIGHT REMOVAL
TOOL,LIGHT REMOVAL WPL W10174624 Contact Us For Availability
View on Model
16
BULB,HALOGEN (3)
BULB,HALOGEN (3) WPL W10174623 Contact Us For Availability
View on Model
NI
SCREW
SCREW WPL W10174610 Contact Us For Availability
View on Model
NI
NUT
NUT WPL W10174626 Contact Us For Availability
View on Model
