Model UniMac UXG235P Washer – Common Parts & Diagrams

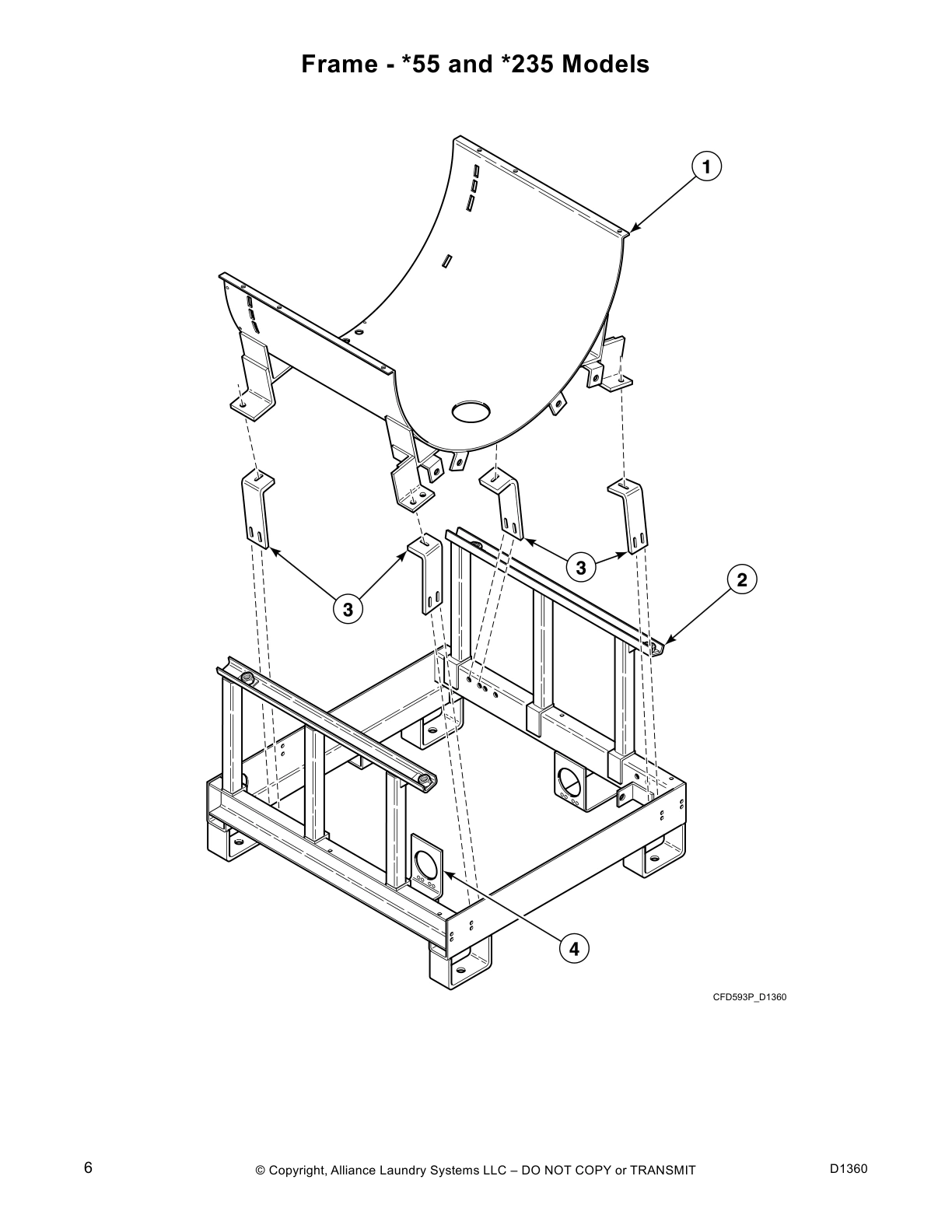

Frame - *55 and *235 Models

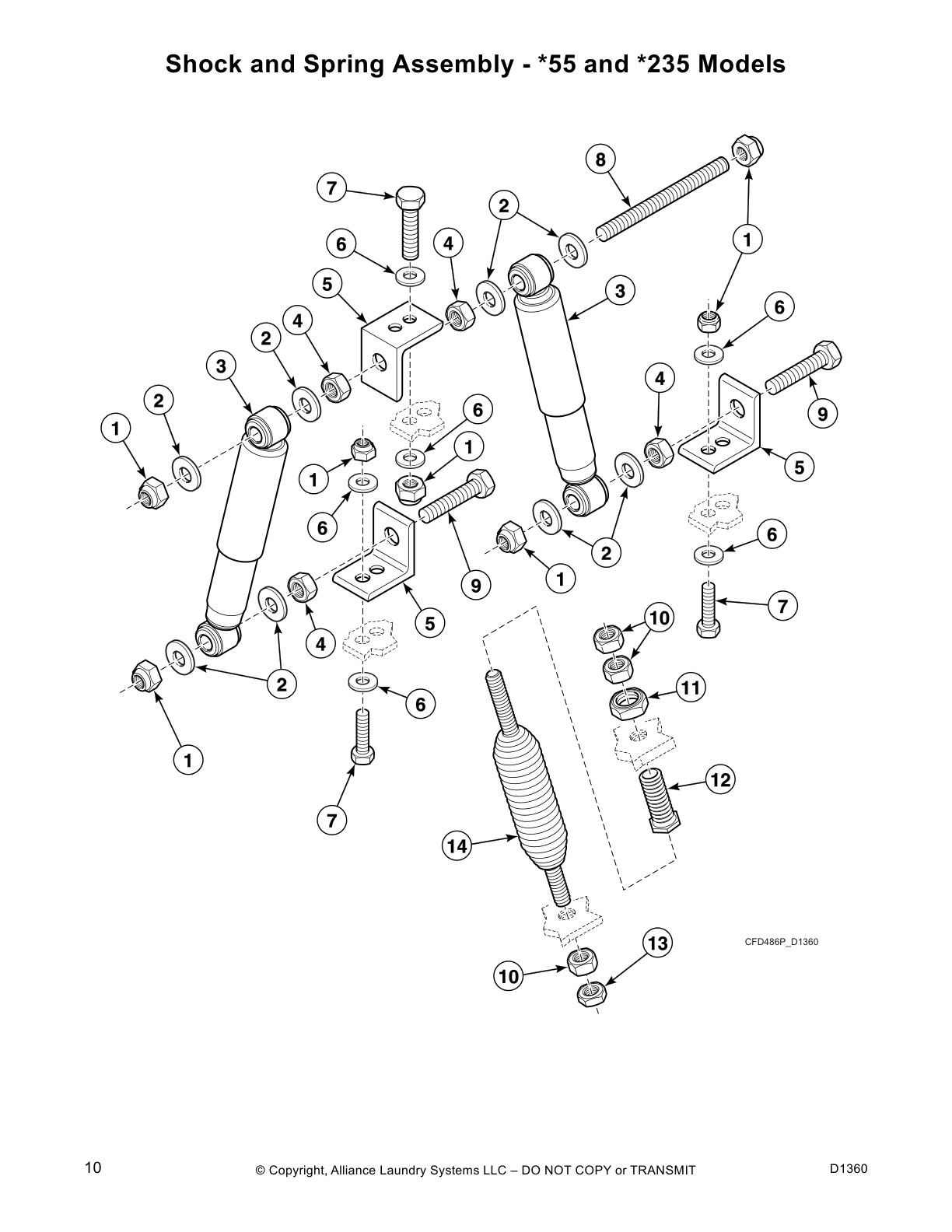

Shock and Spring Assembly - *55 and *235 Models

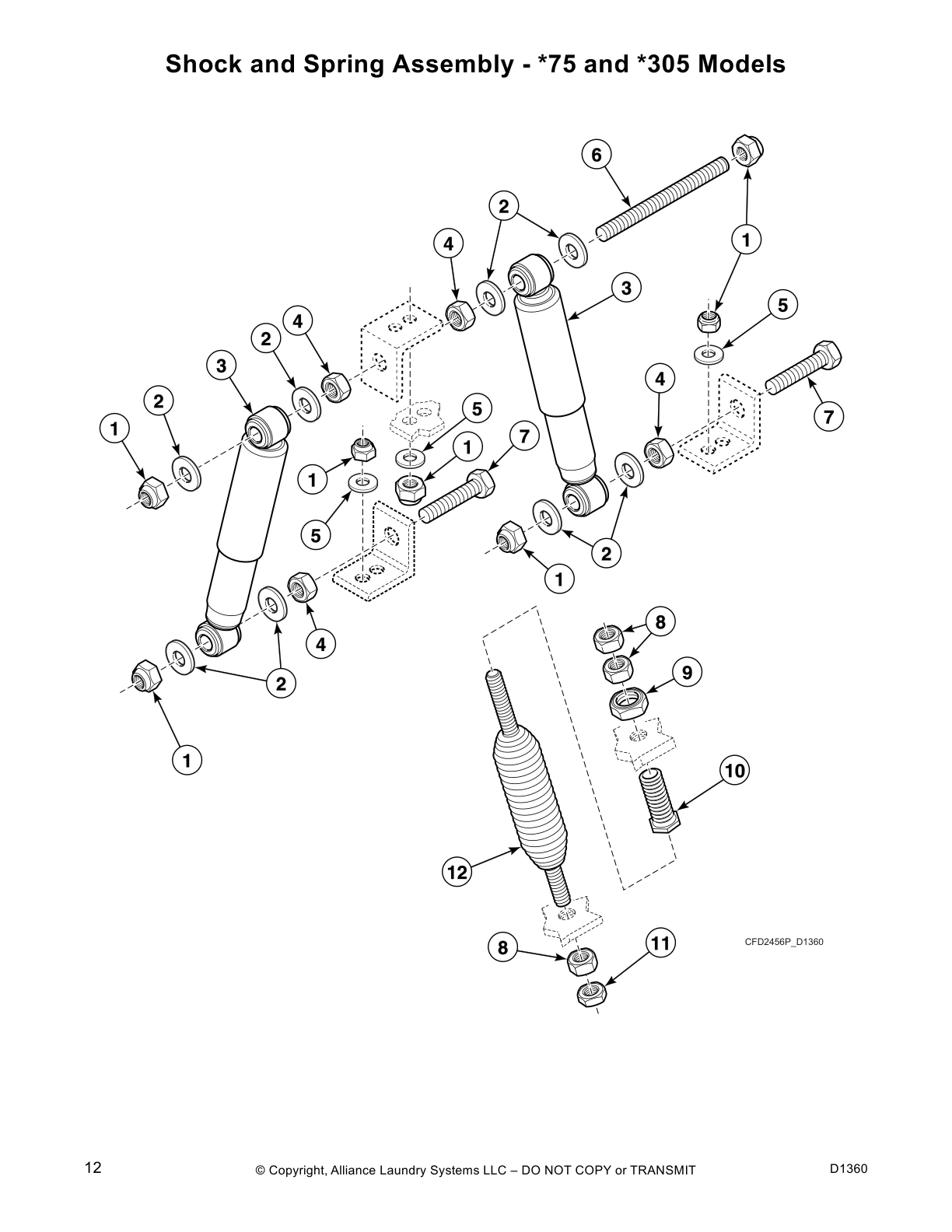

Shock and Spring Assembly - *75 and *305 Models

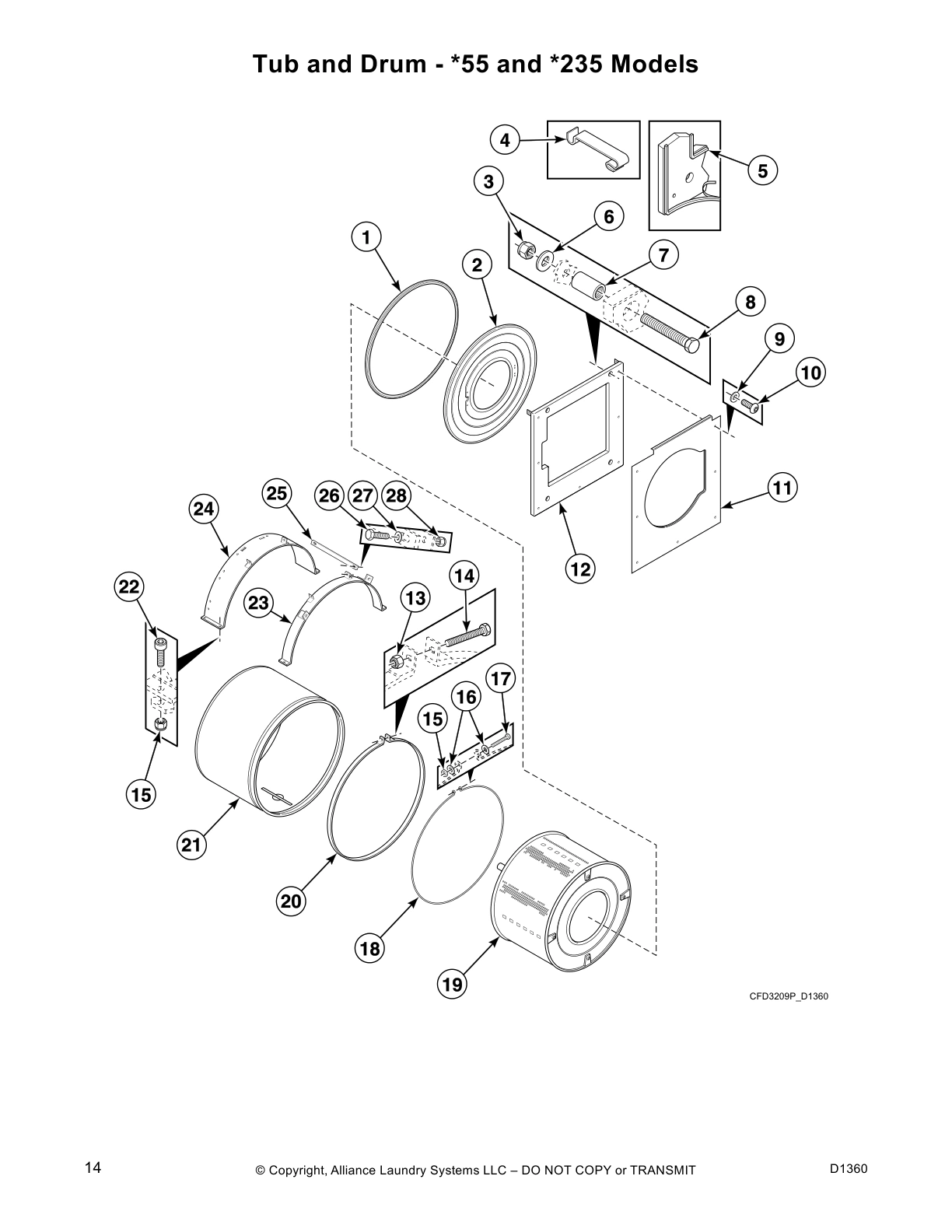

Tub and Drum - *55 and *235 Models

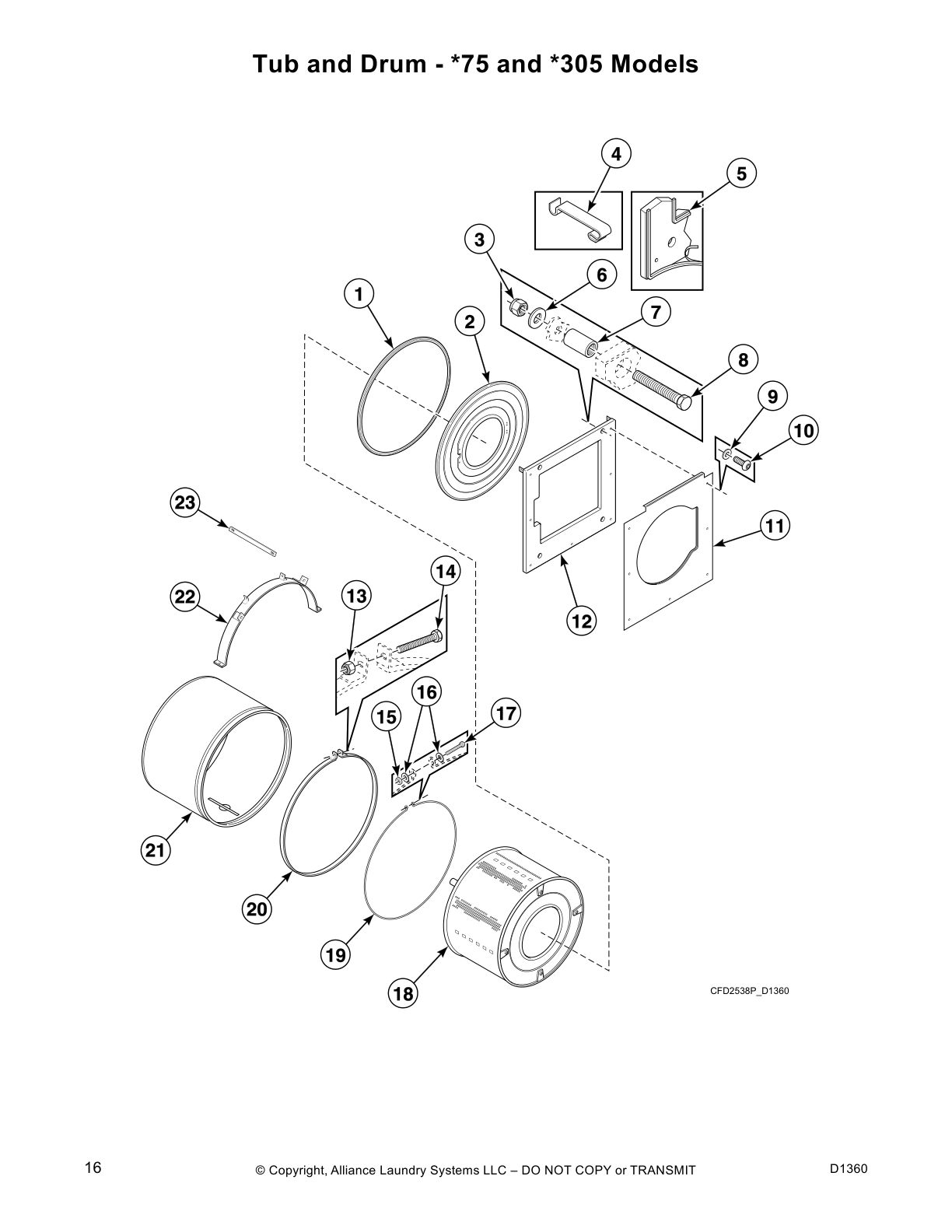

Tub and Drum - *75 and *305 Models

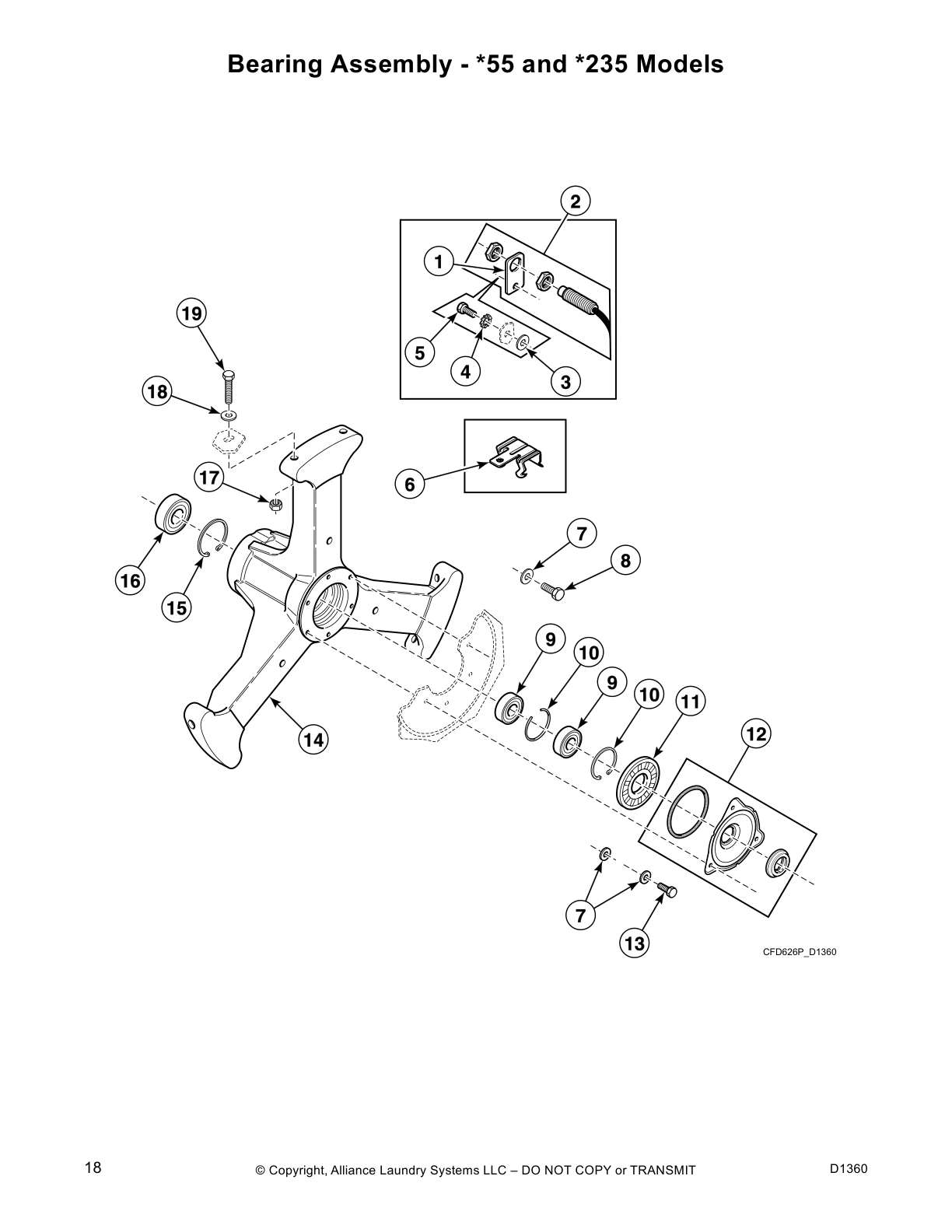

Bearing Assembly - *55 and *235 Models

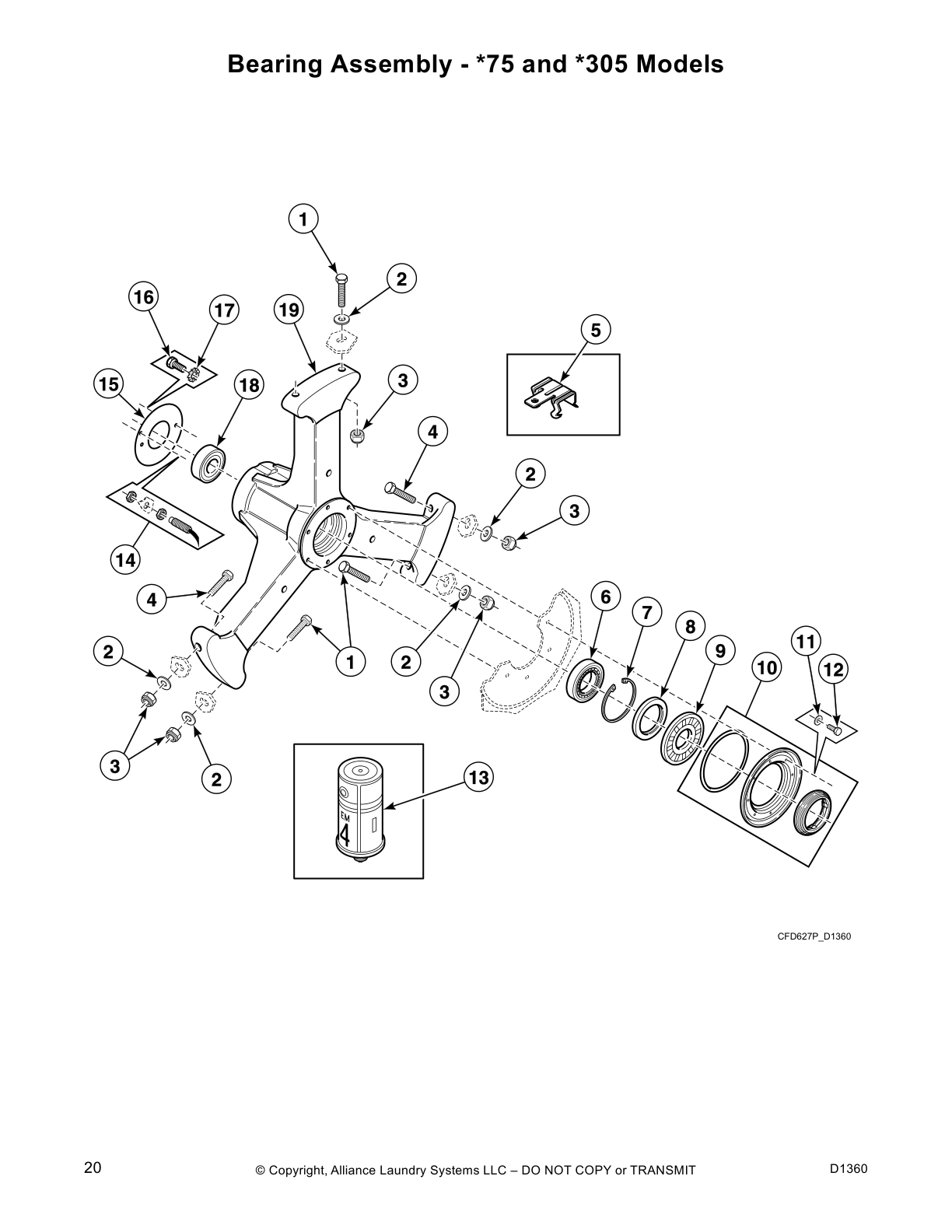

Bearing Assembly - *75 and *305 Models

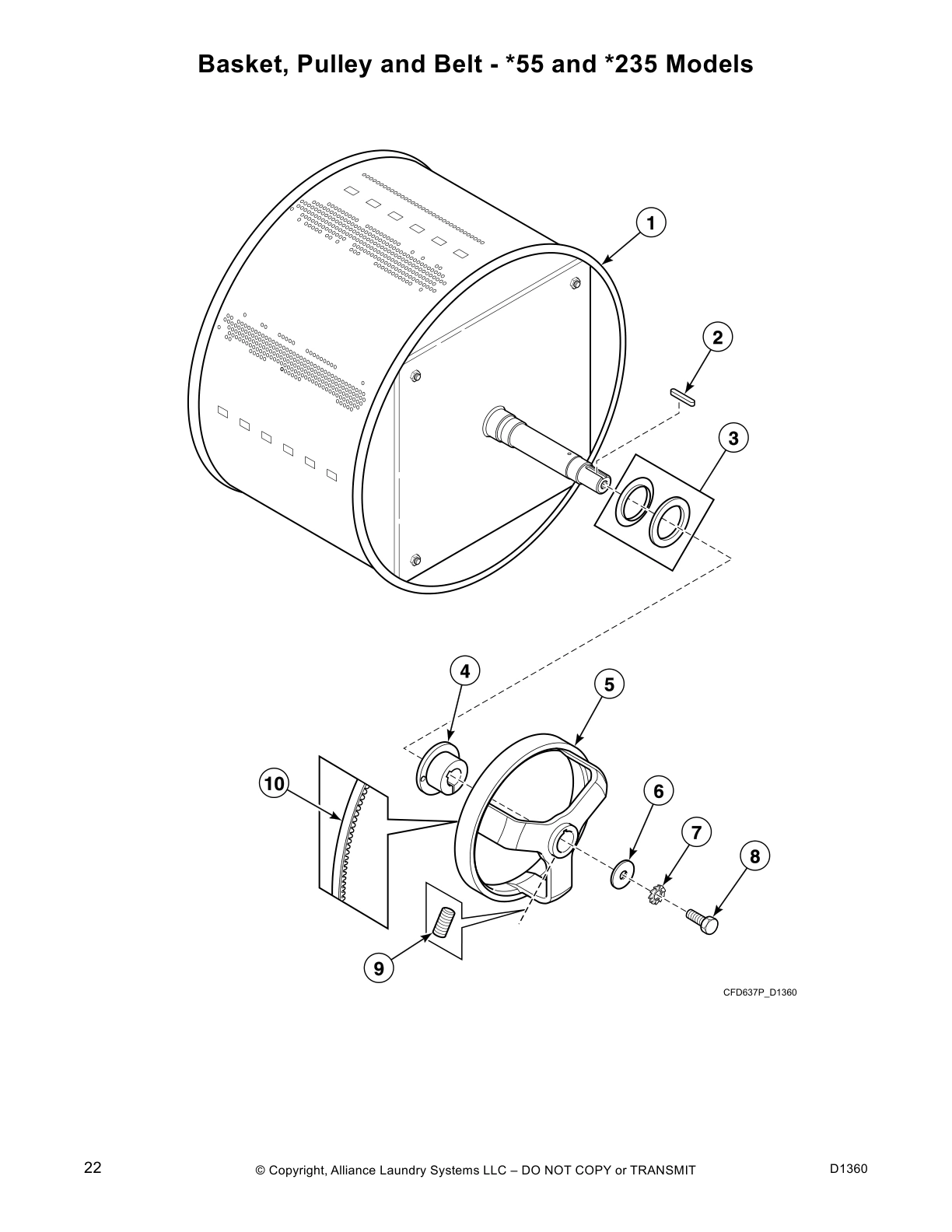

Basket, Pulley and Belt - *55 and *235 Models

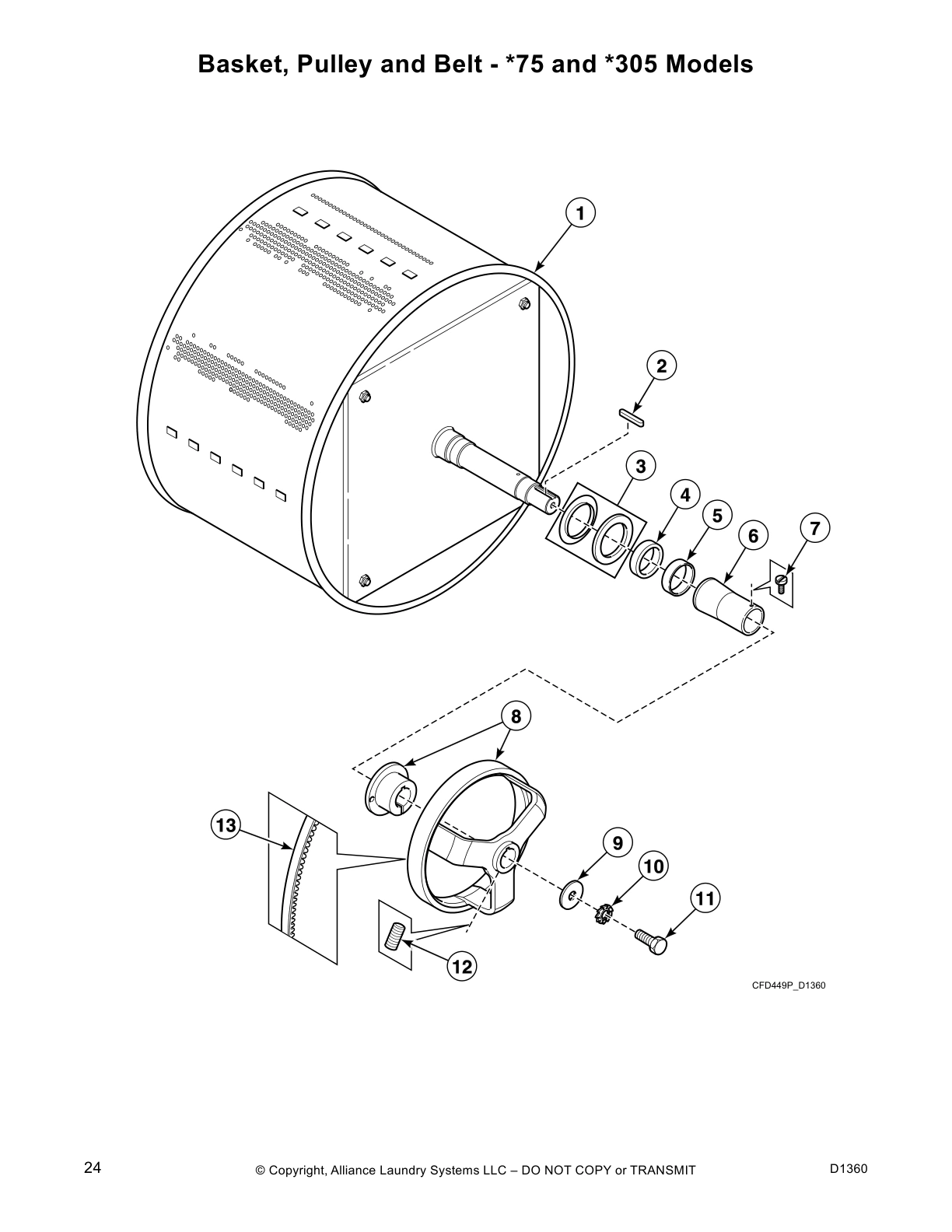

Basket, Pulley and Belt - *75 and *305 Models

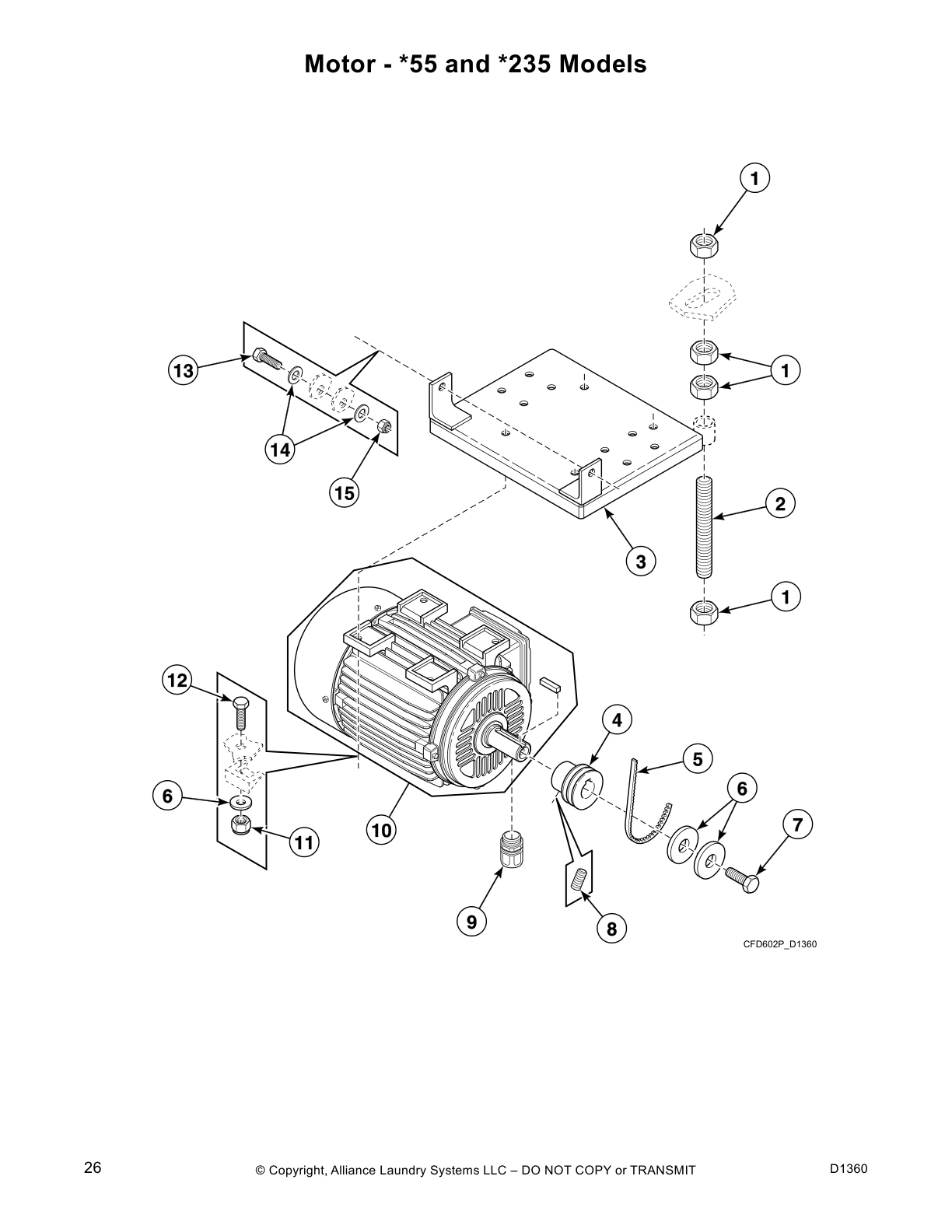

Motor - *55 and *235 Models

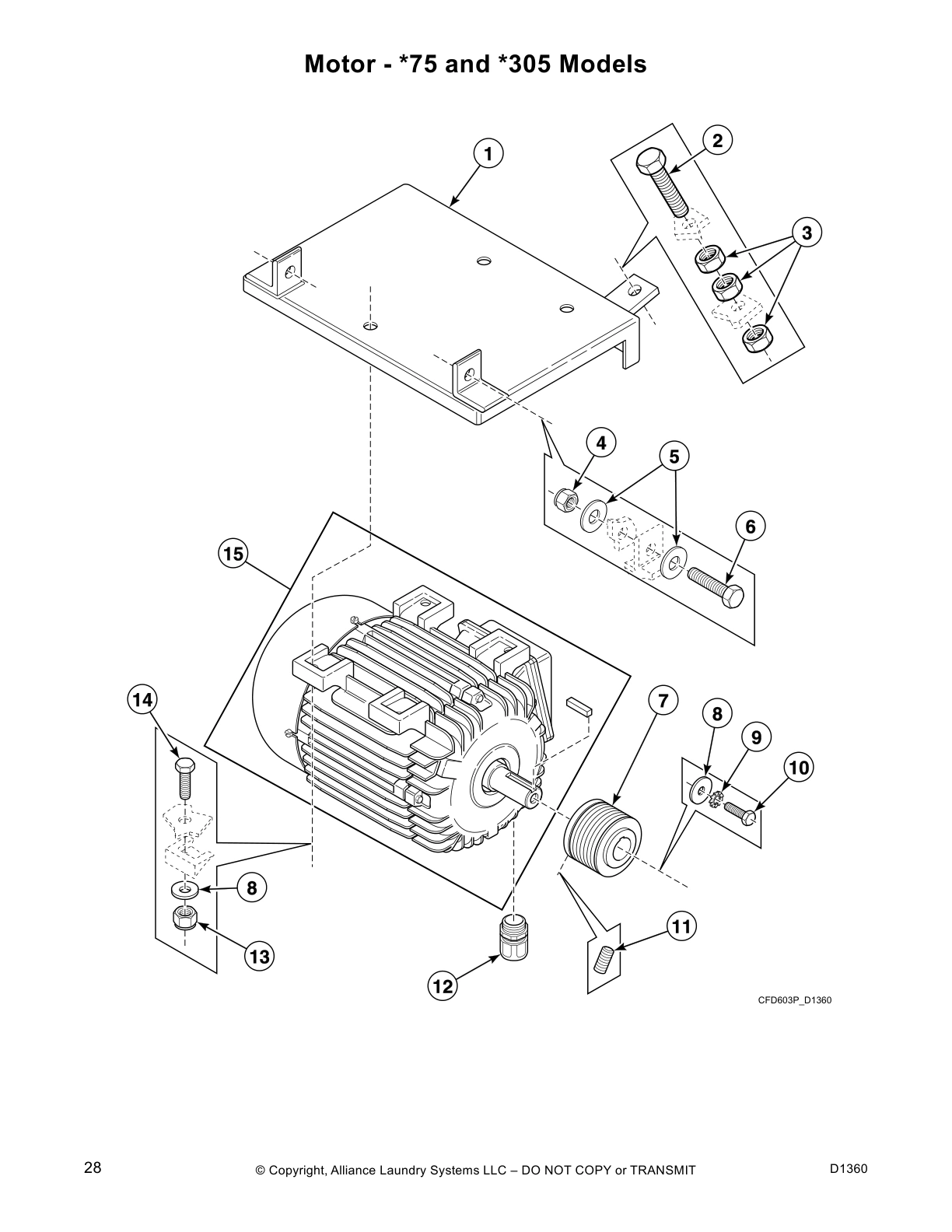

Motor - *75 and *305 Models

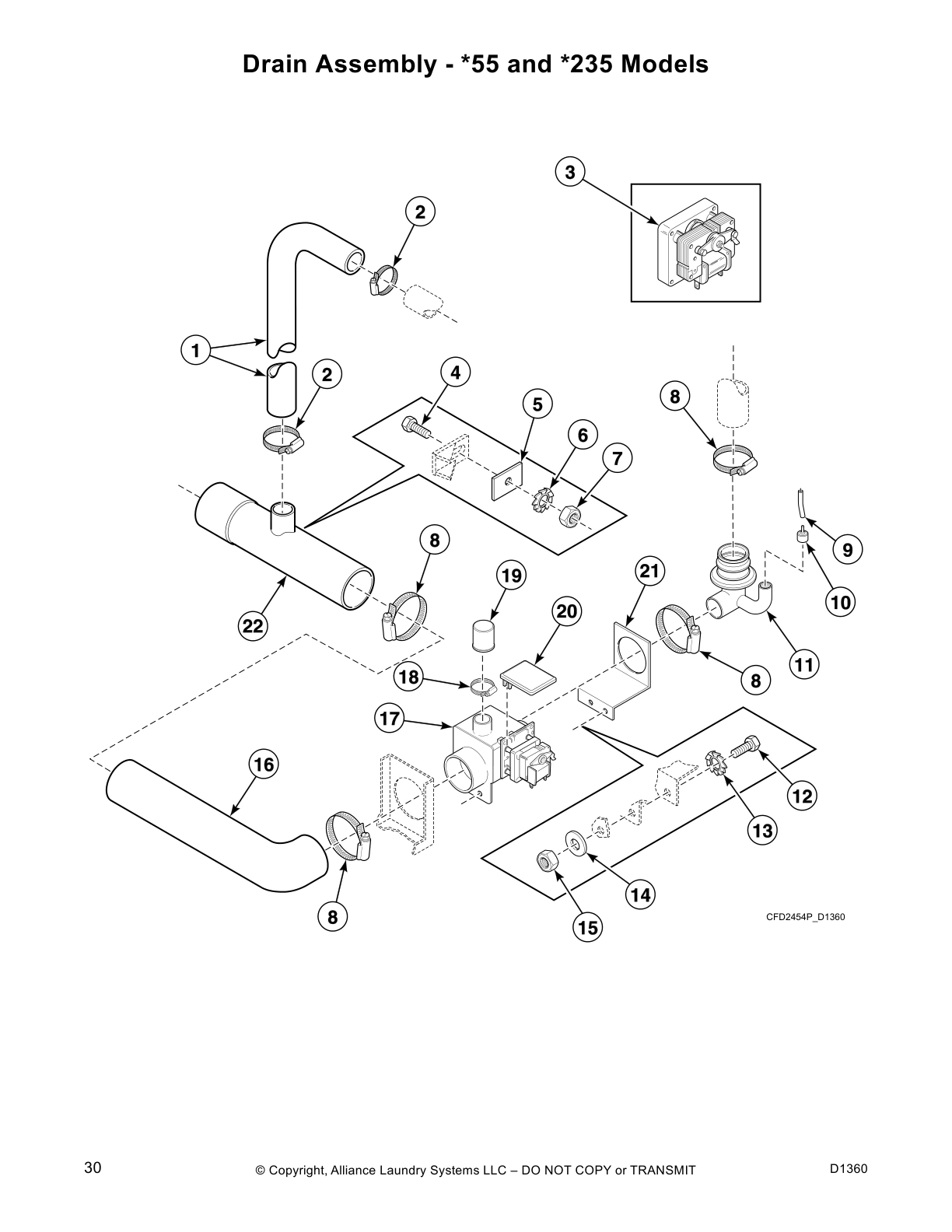

Drain Assembly - *55 and *235 Models

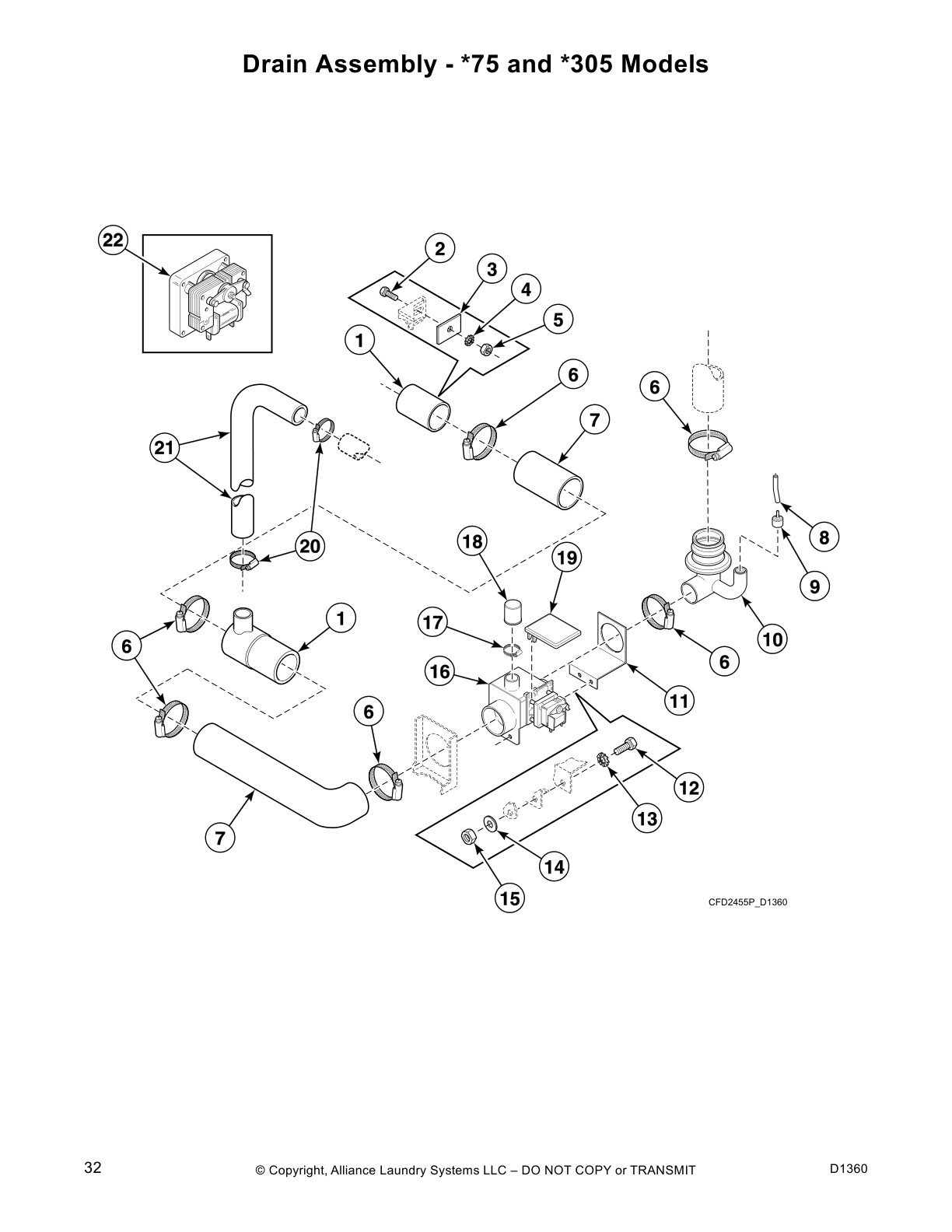

Drain Assembly - *75 and *305 Models

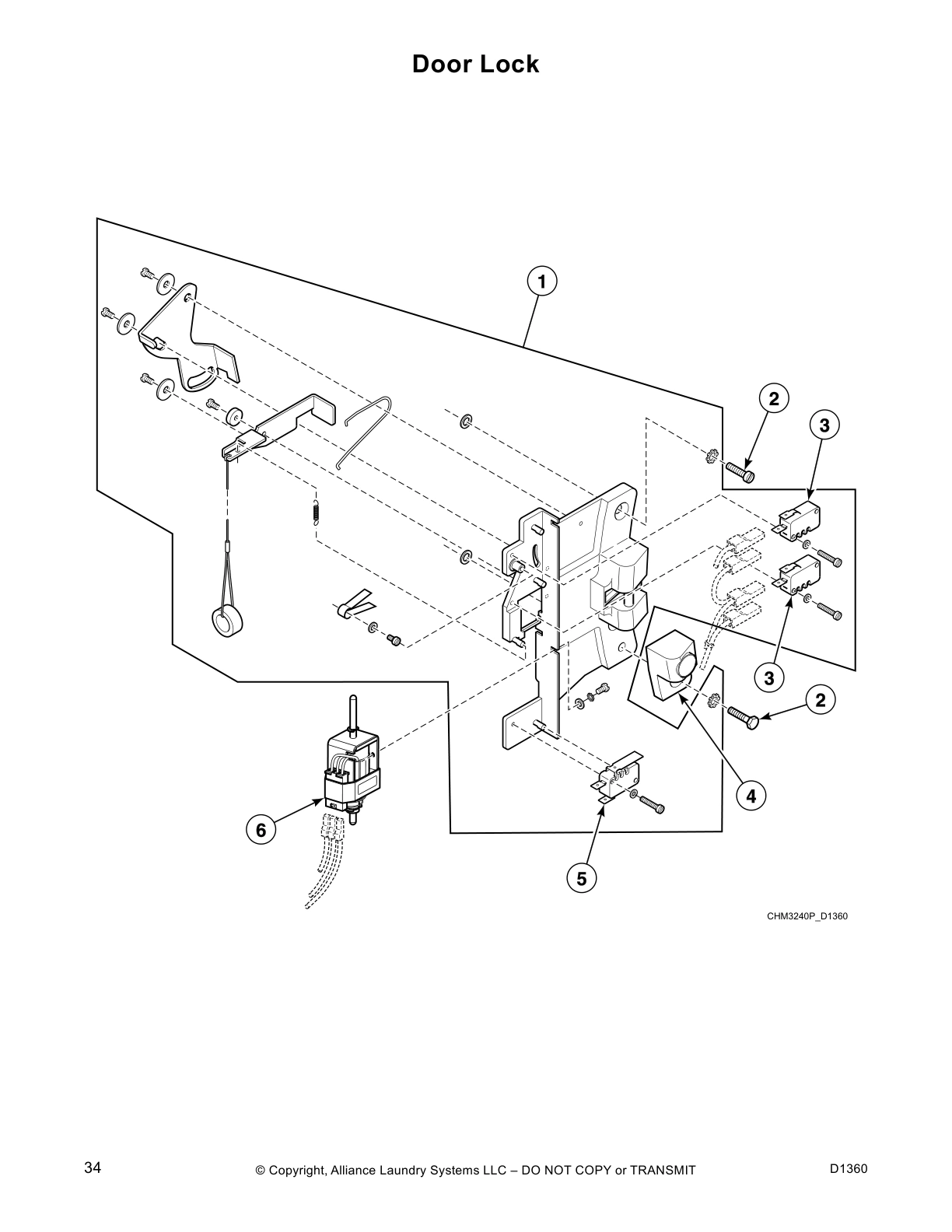

Door Lock

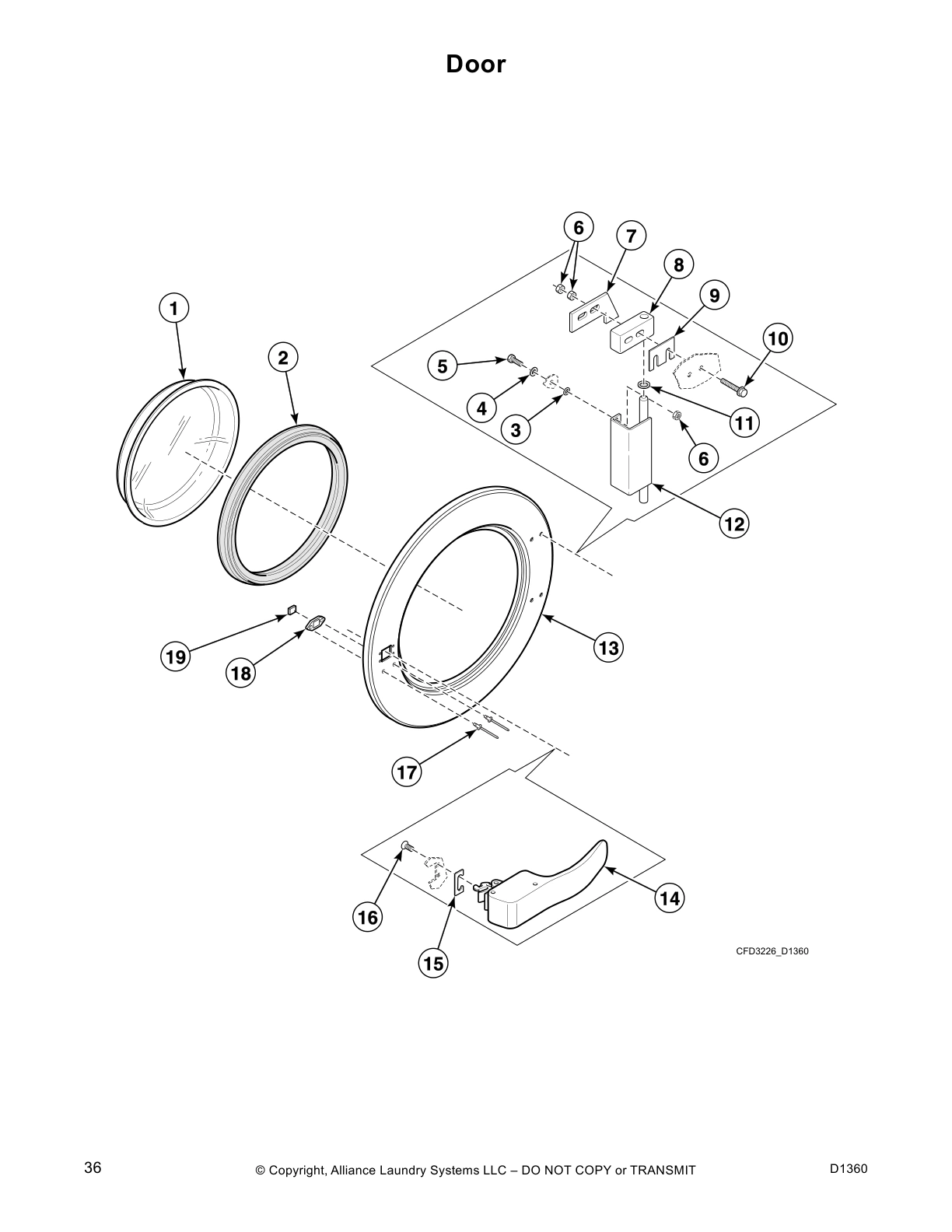

Door

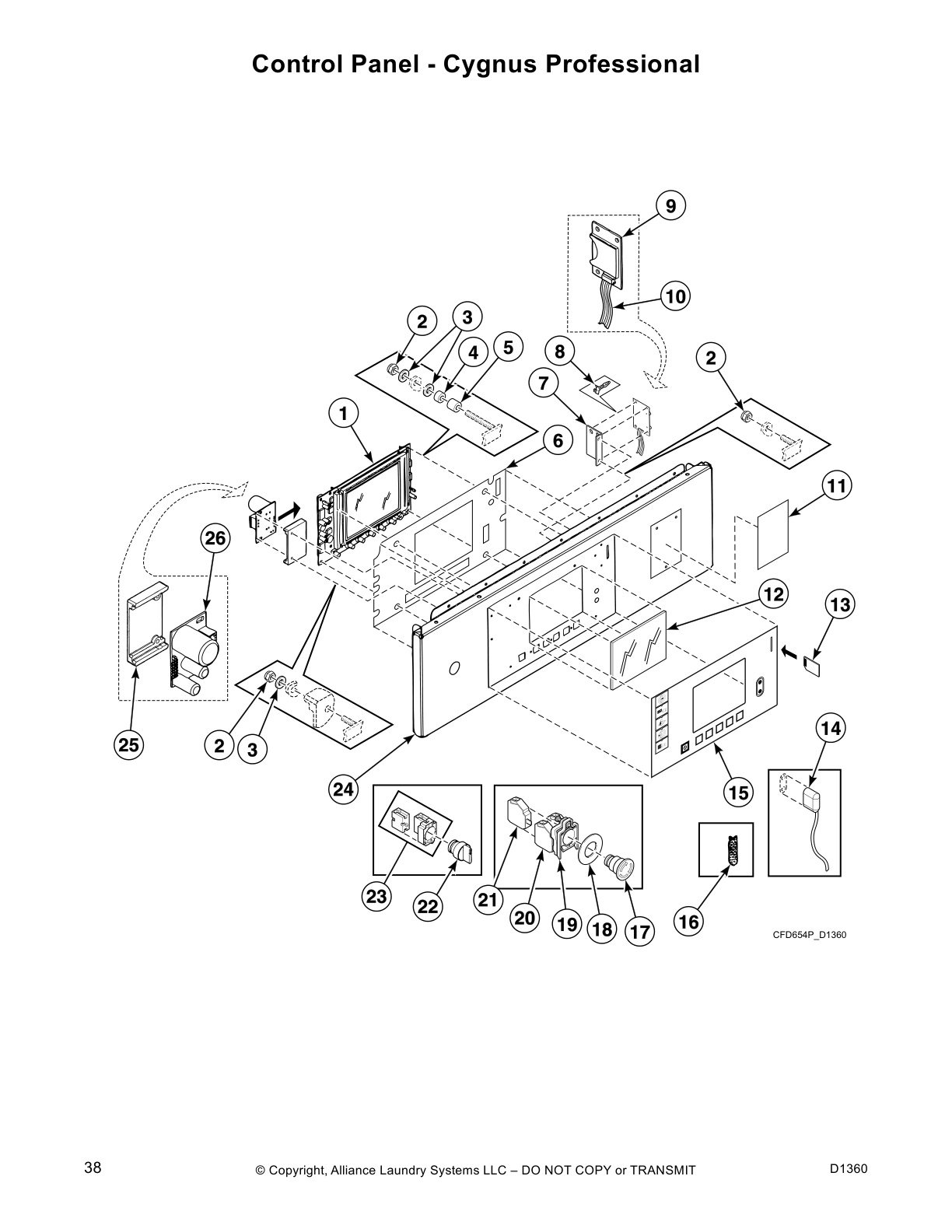

Control Panel - Cygnus Professional

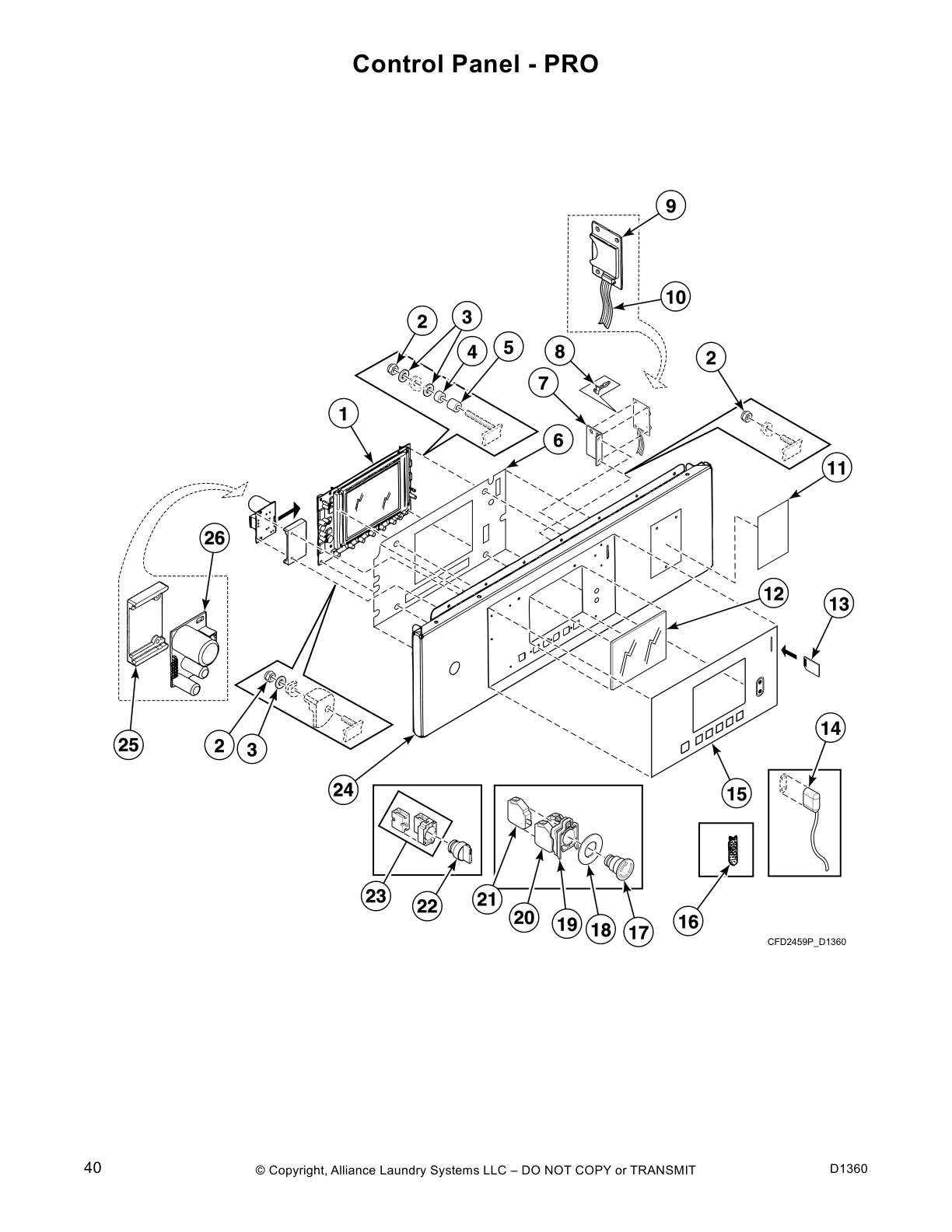

Control Panel - PRO

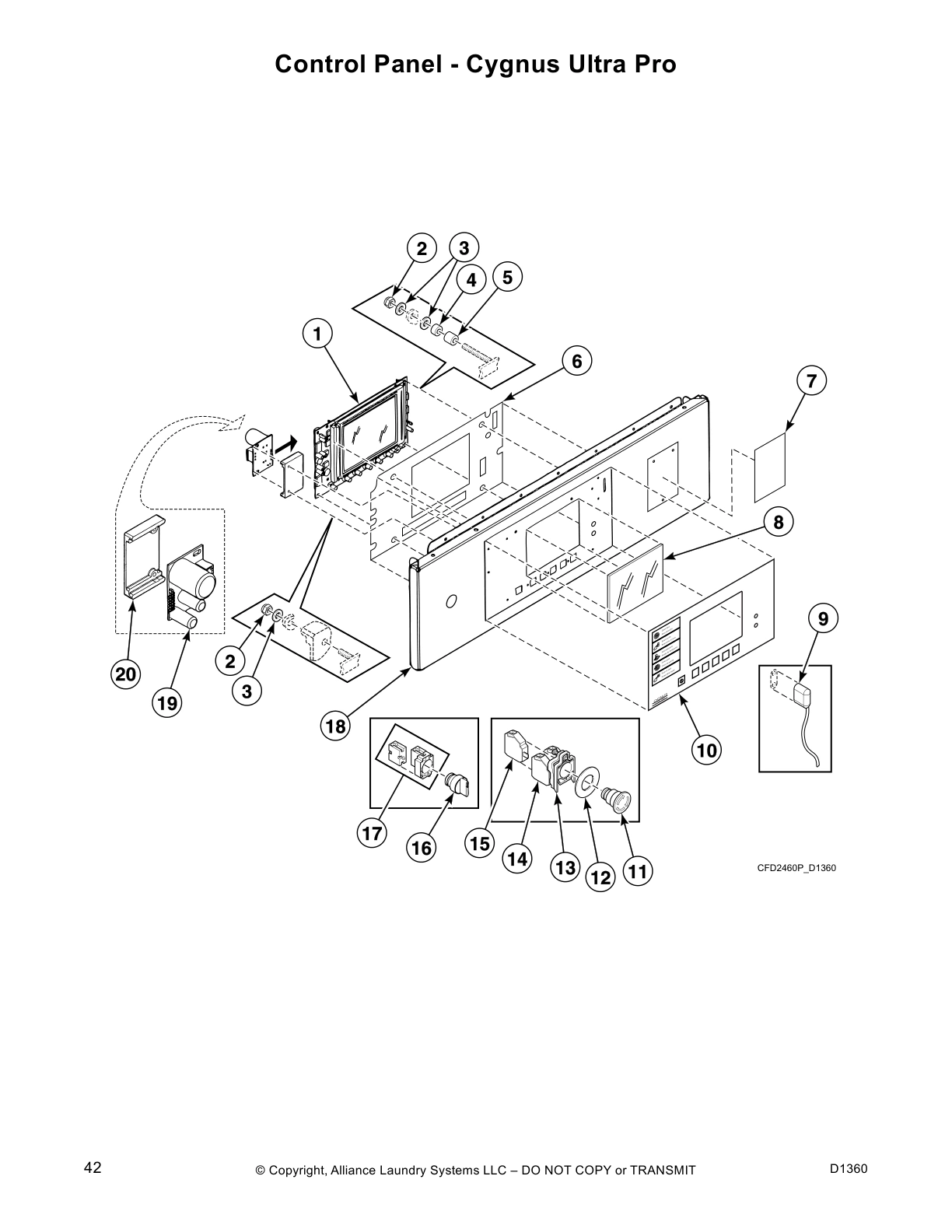

Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra

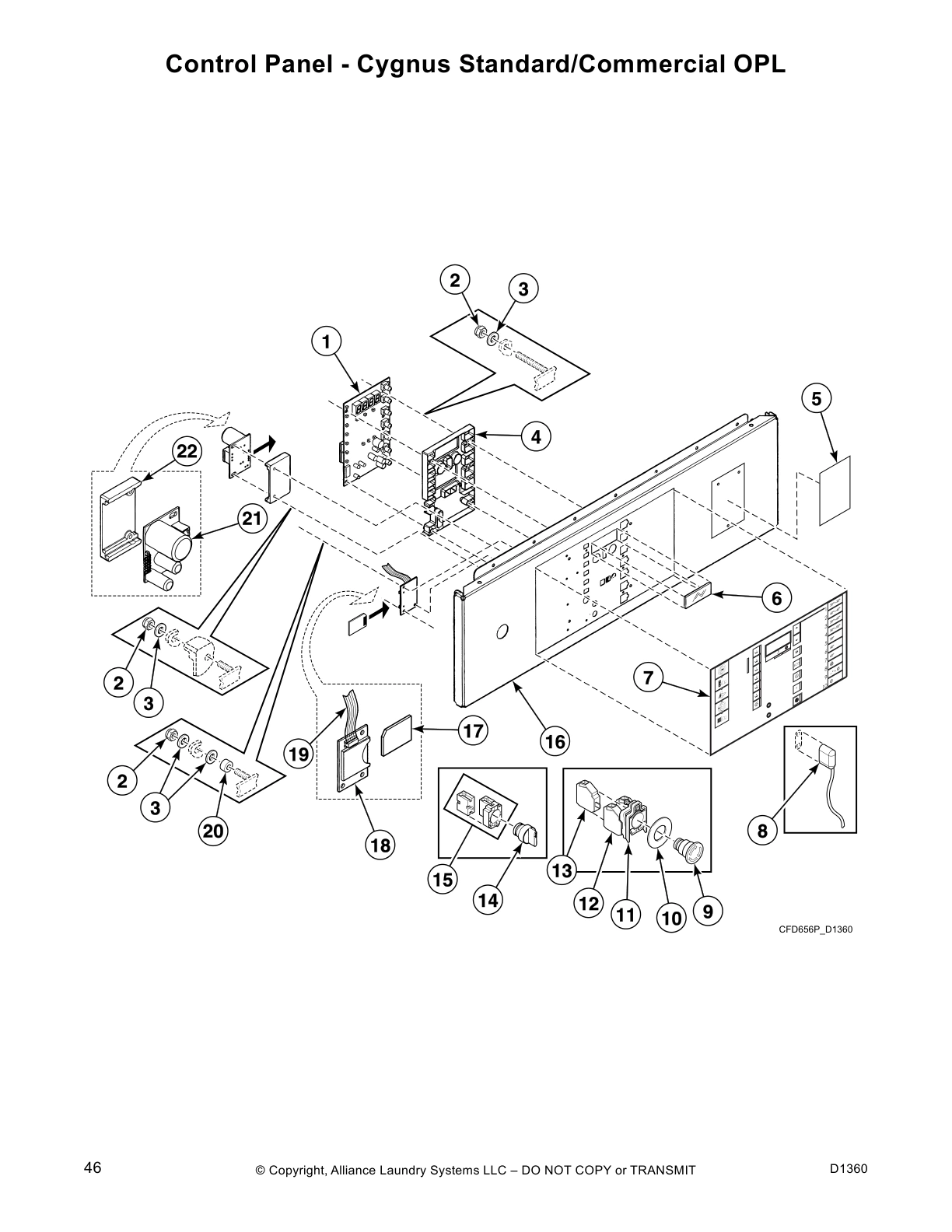

Control Panel - Cygnus Standard/Commercial OPL

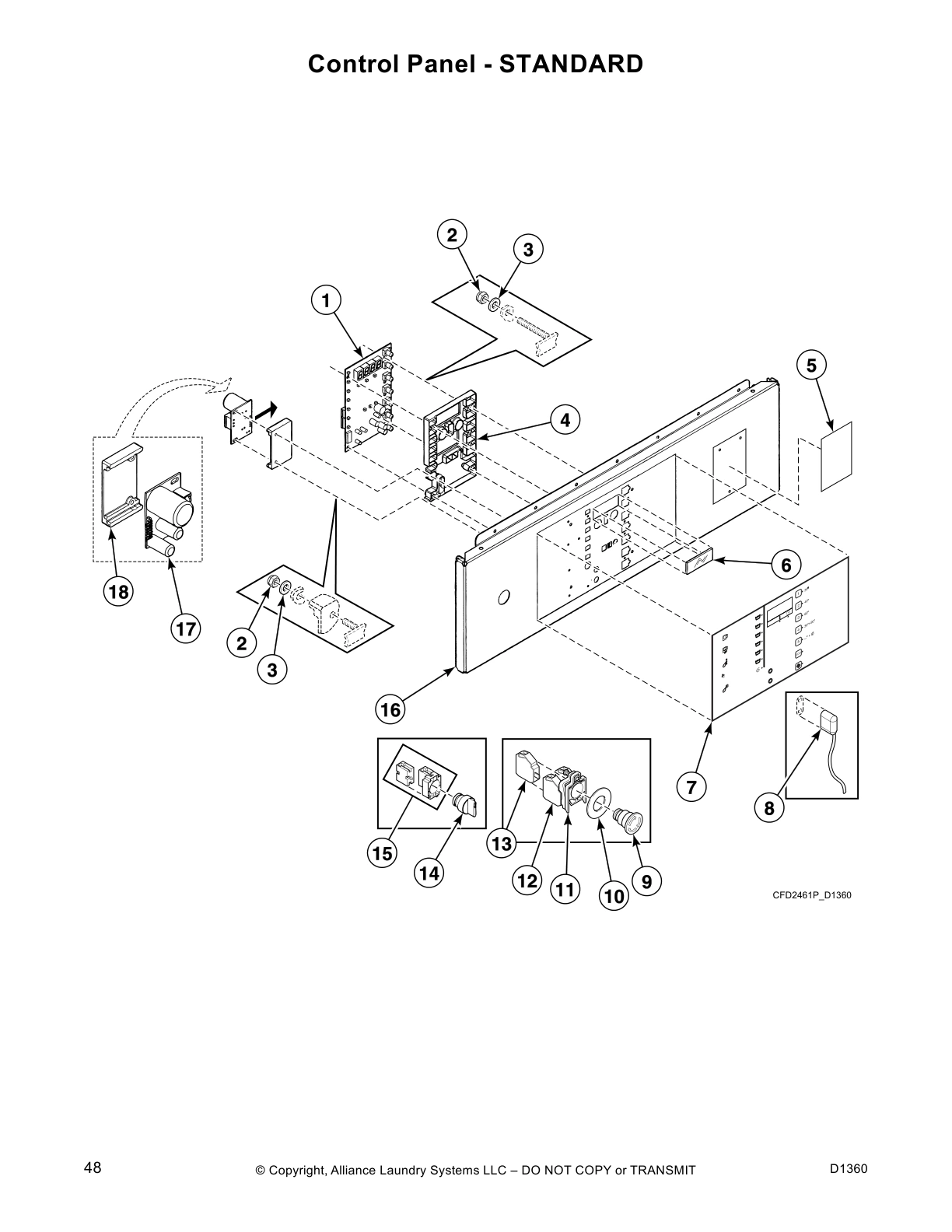

Control Panel - STANDARD

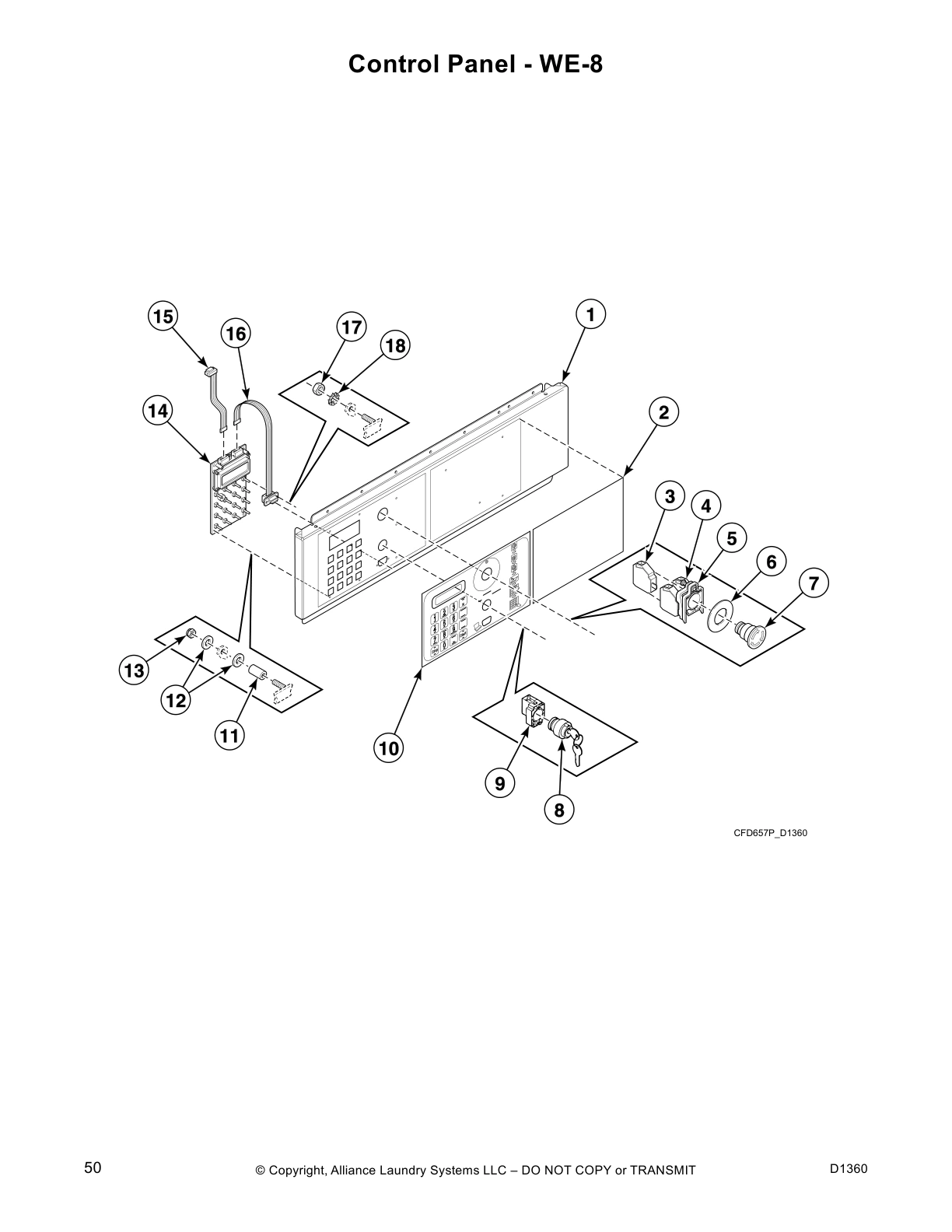

Control Panel - WE-8

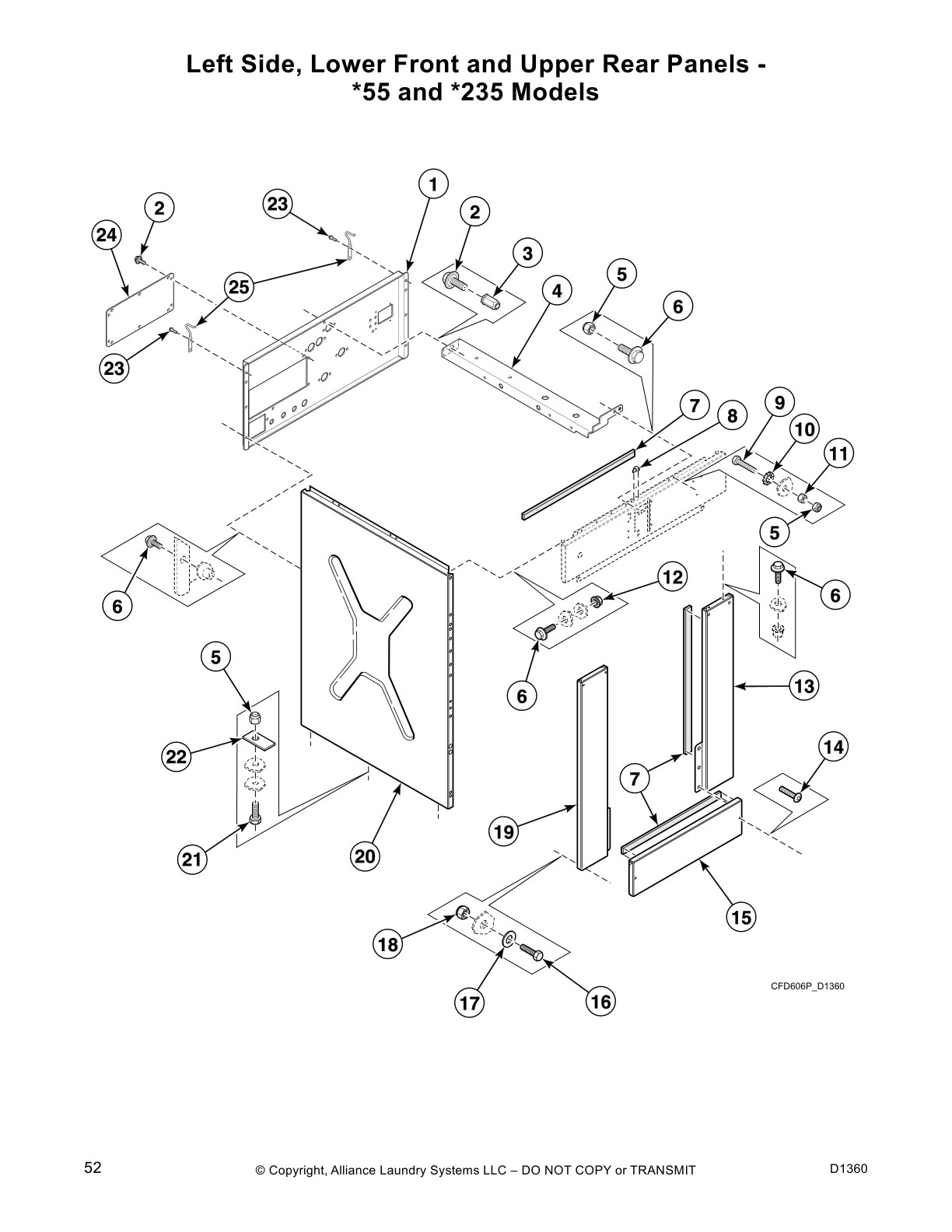

Left Side, Lower Front and Upper Rear Panels -
*55 and *235 Models

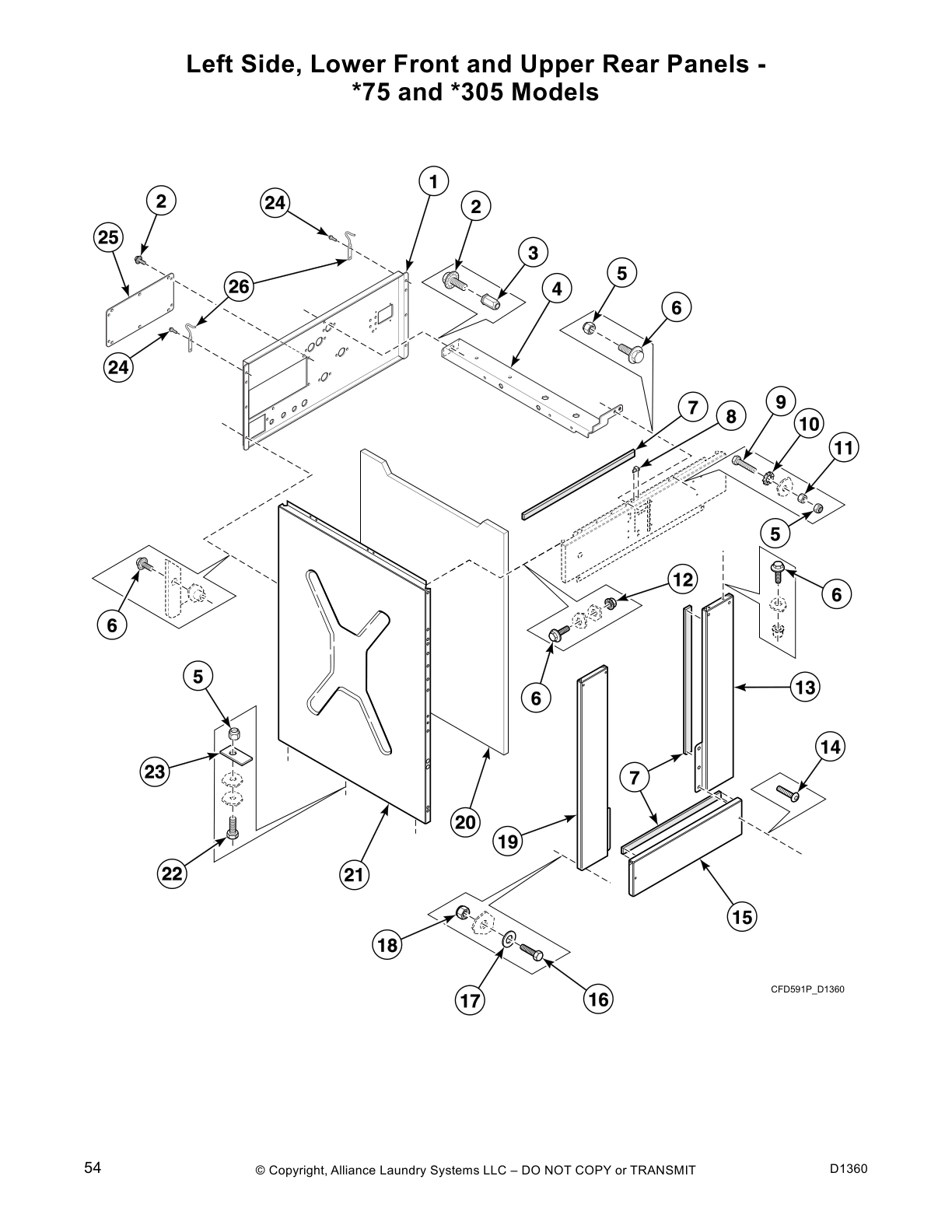

Left Side, Lower Front and Upper Rear Panels -
*75 and *305 Models

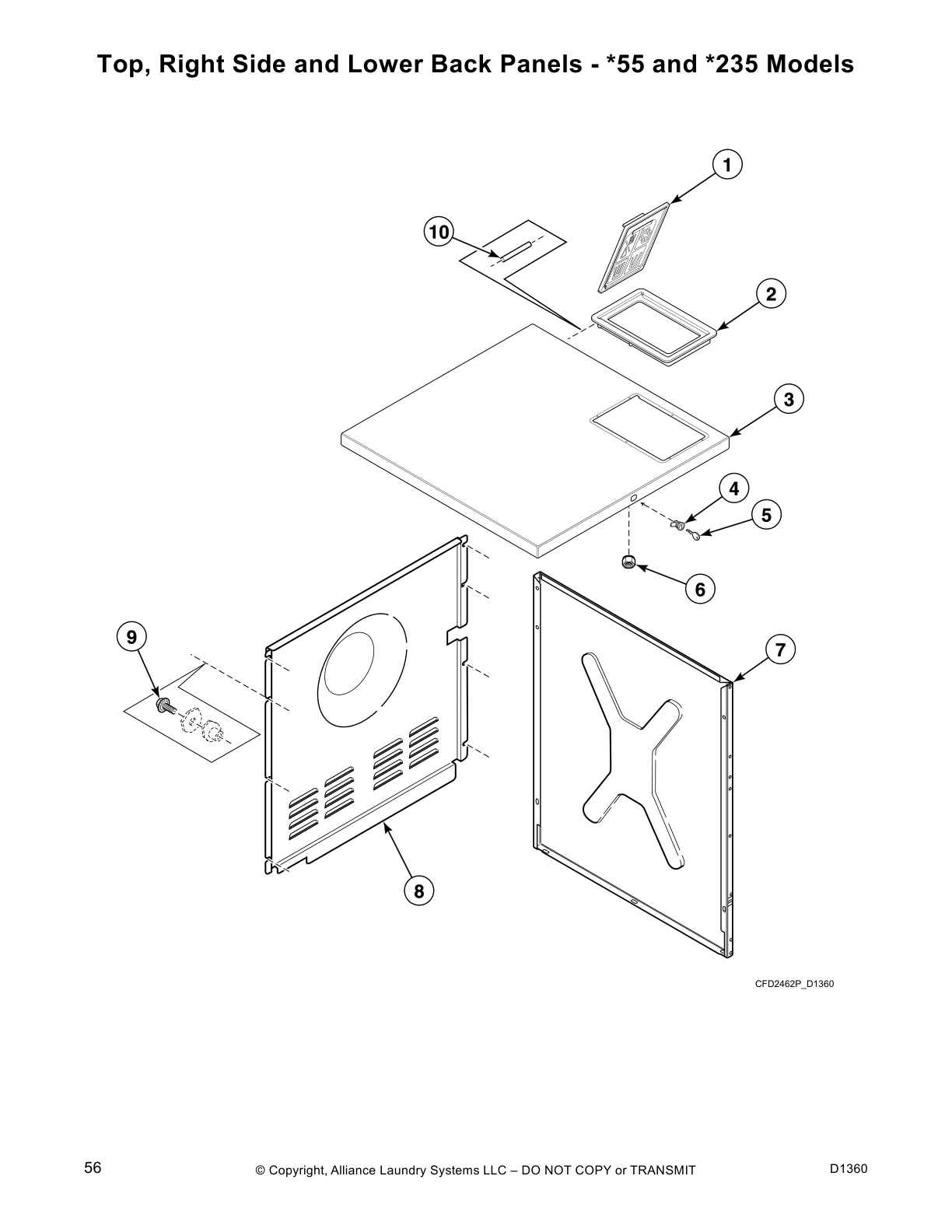

Top, Right Side and Lower Back Panels - *55 and *235 Models

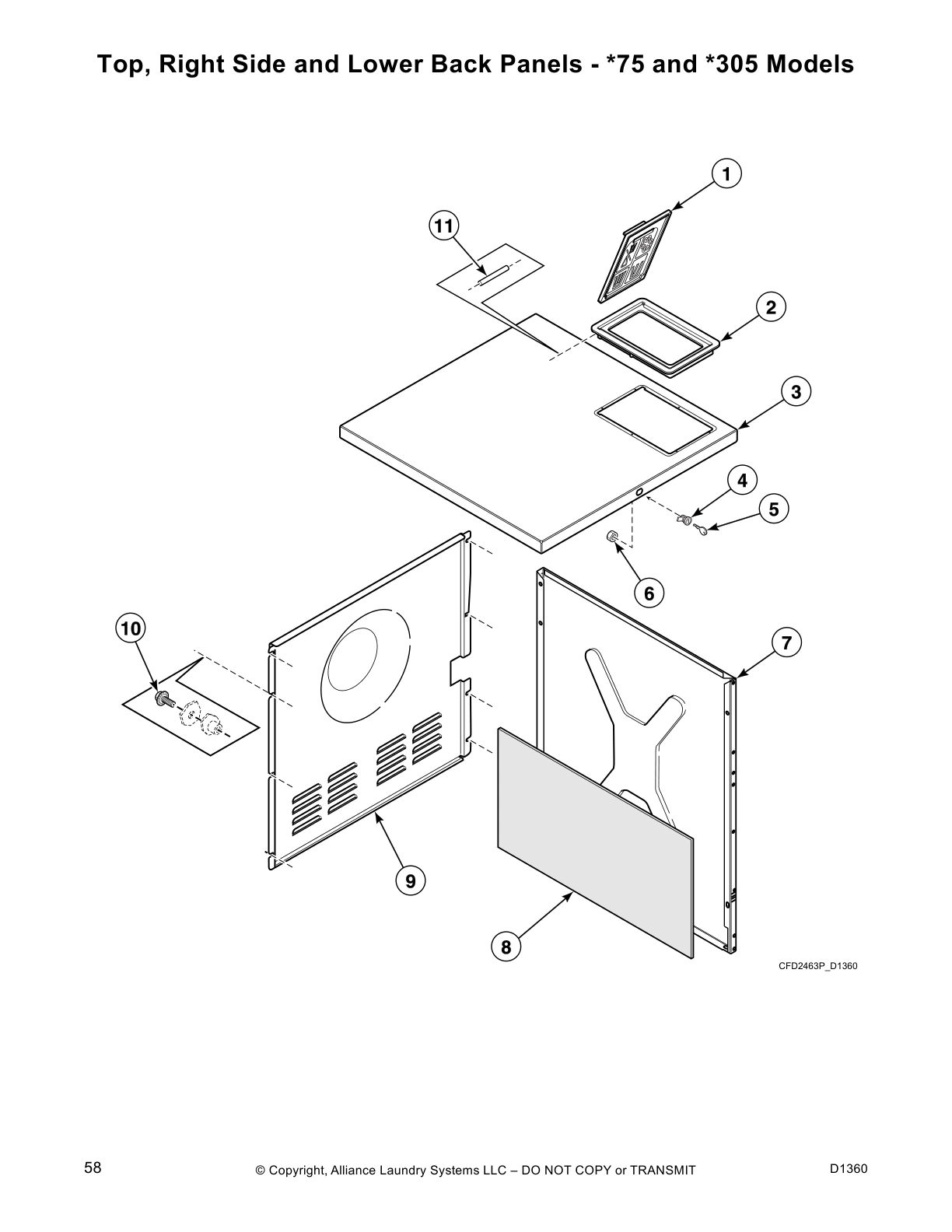

Top, Right Side and Lower Back Panels - *75 and *305 Models

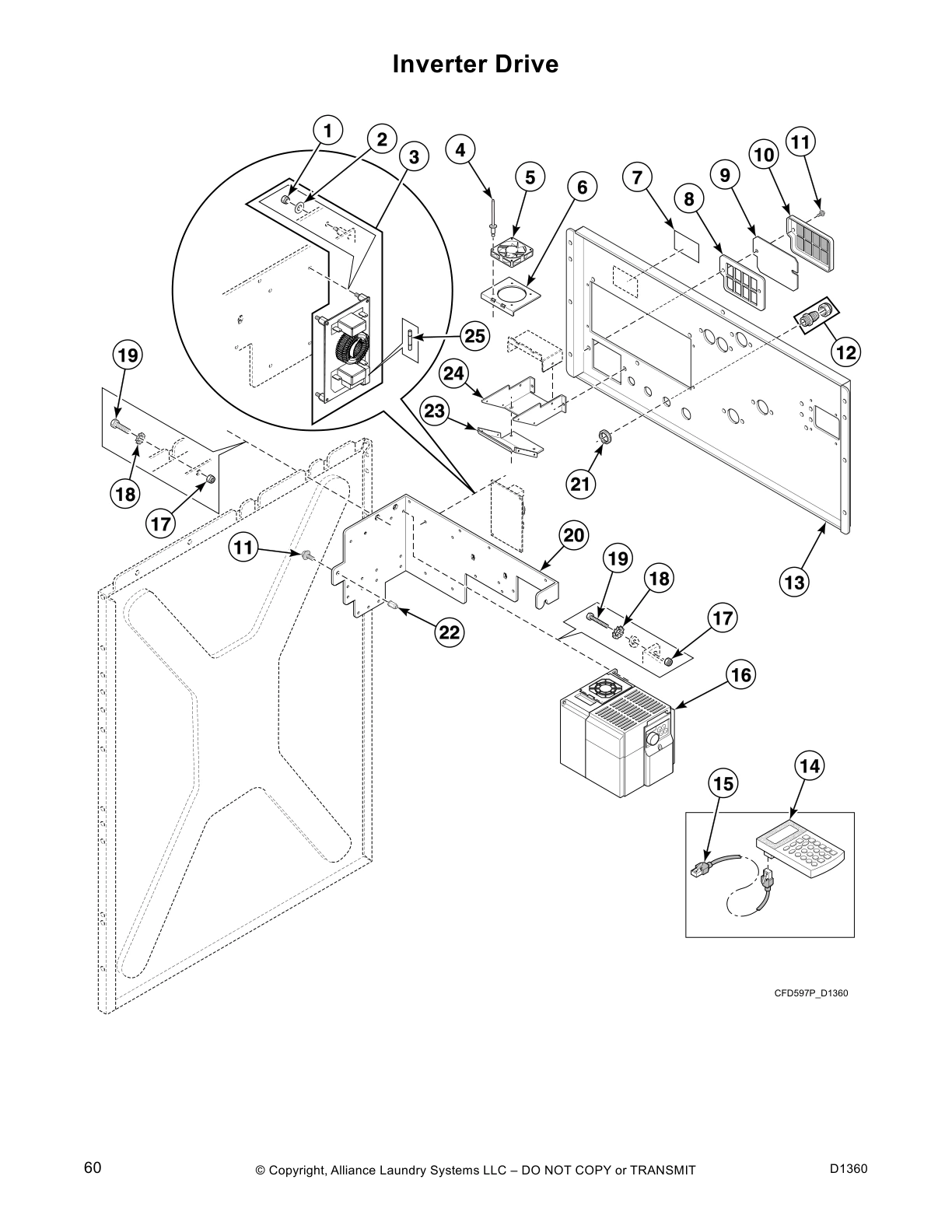

Inverter Drive

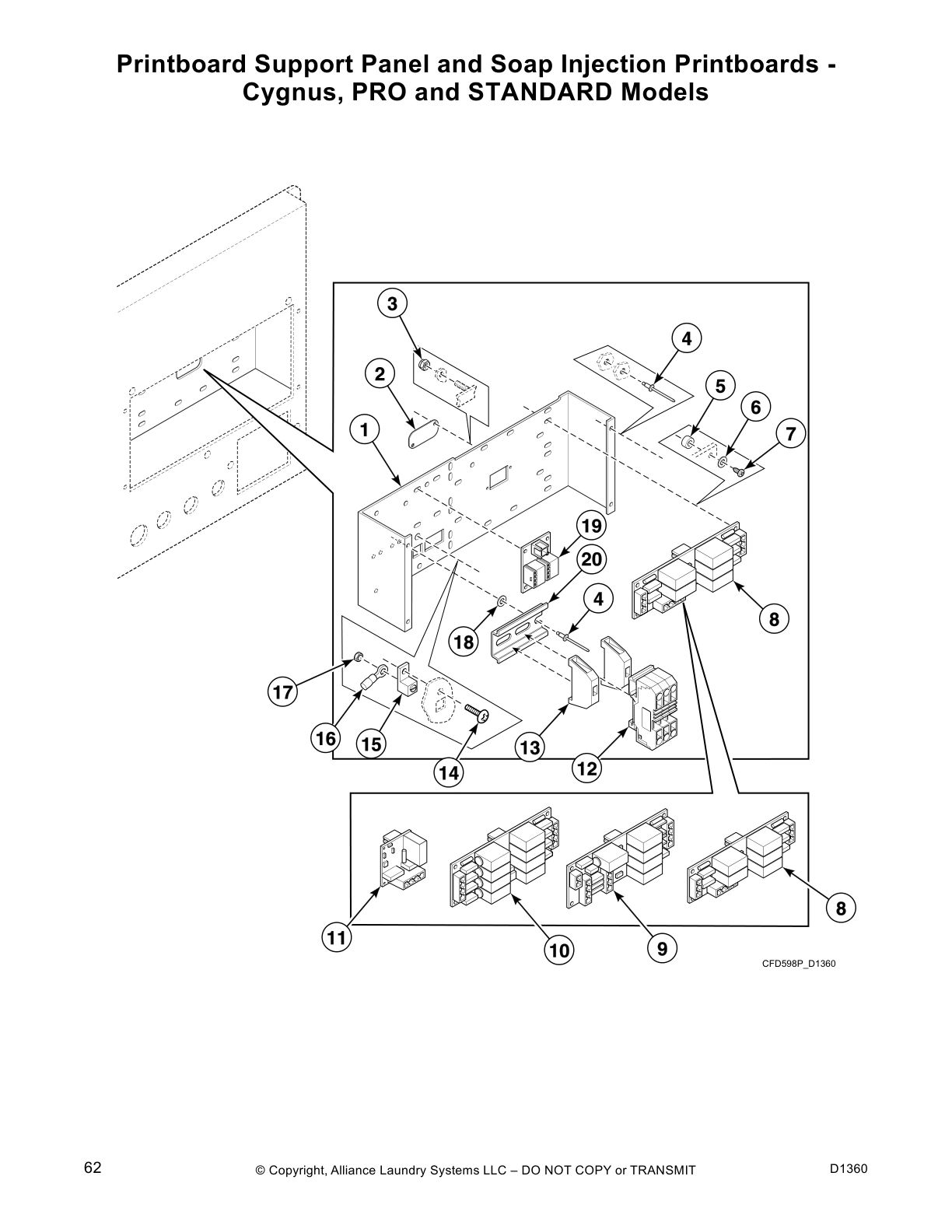

Printboard Support Panel and Soap Injection Printboards -
Cygnus, PRO and STANDARD Models

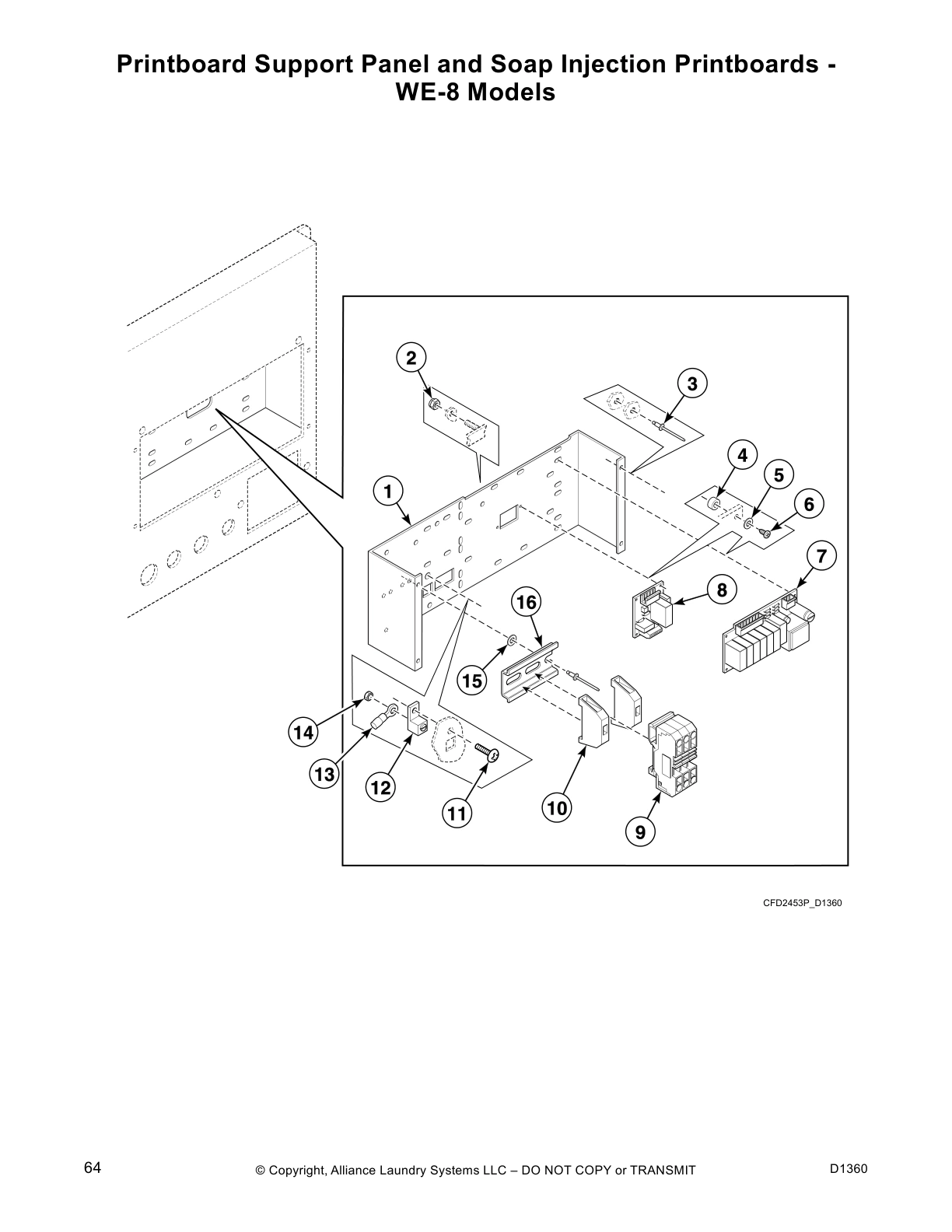

Printboard Support Panel and Soap Injection Printboards -
WE-8 Models

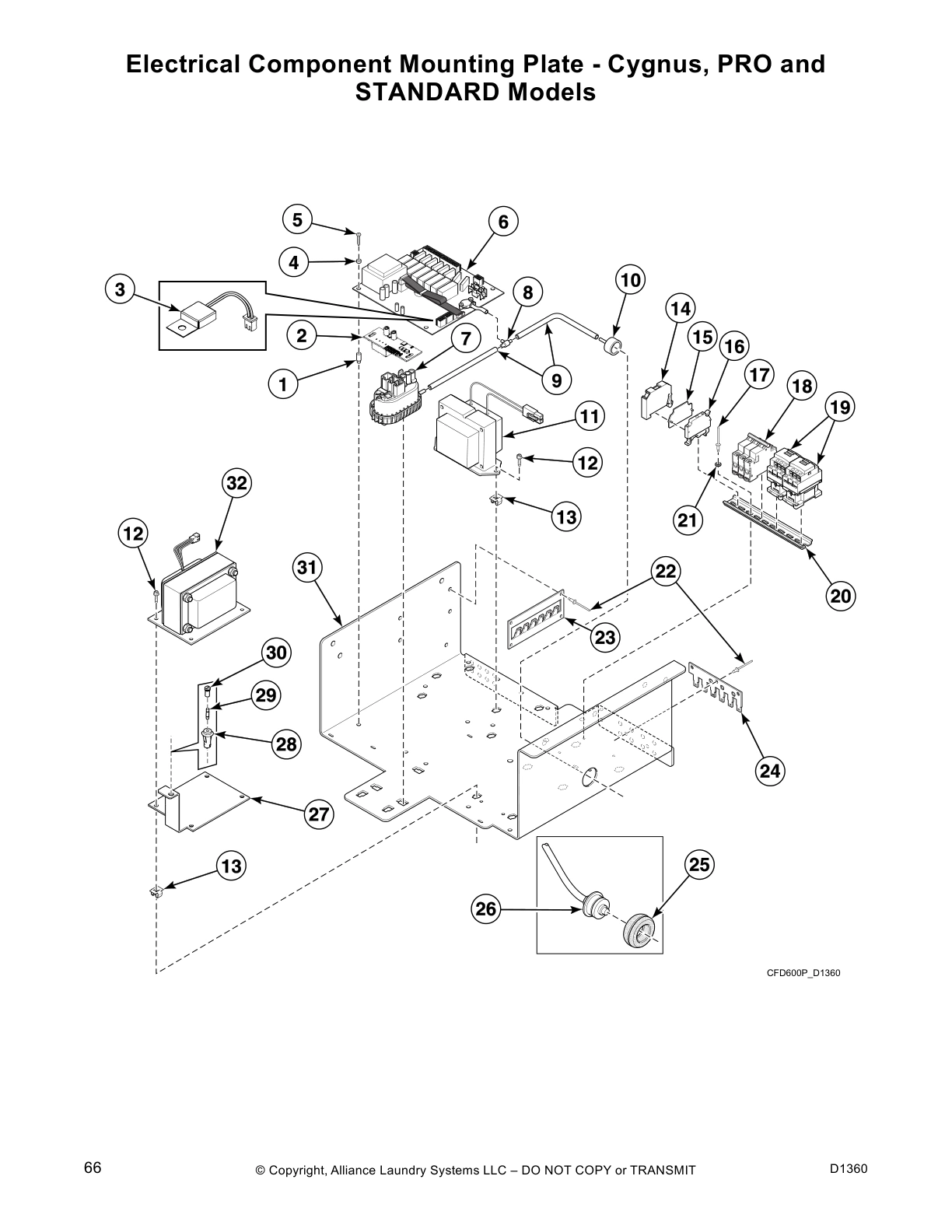

Electrical Component Mounting Plate - Cygnus, PRO and
STANDARD Models

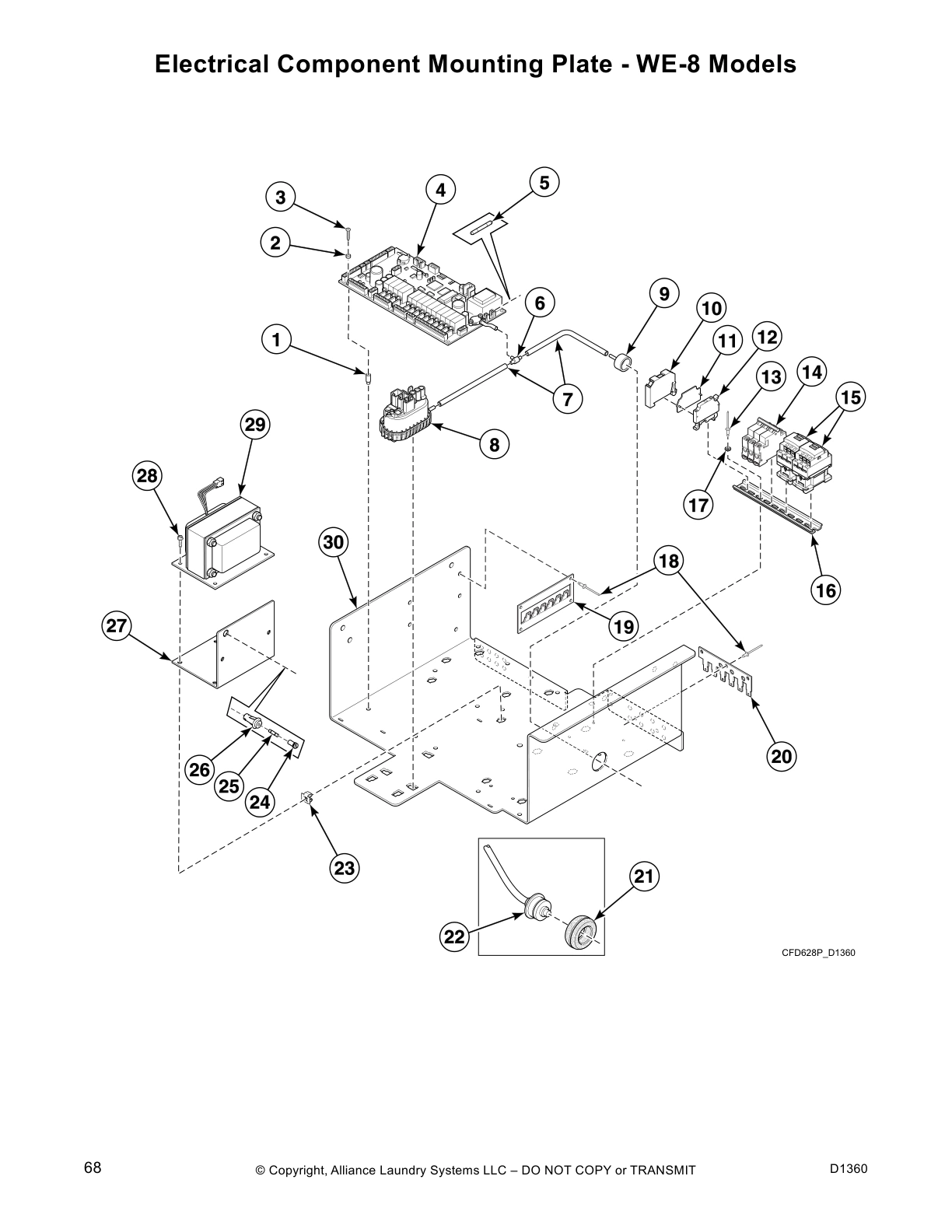

Electrical Component Mounting Plate - WE-8 Models

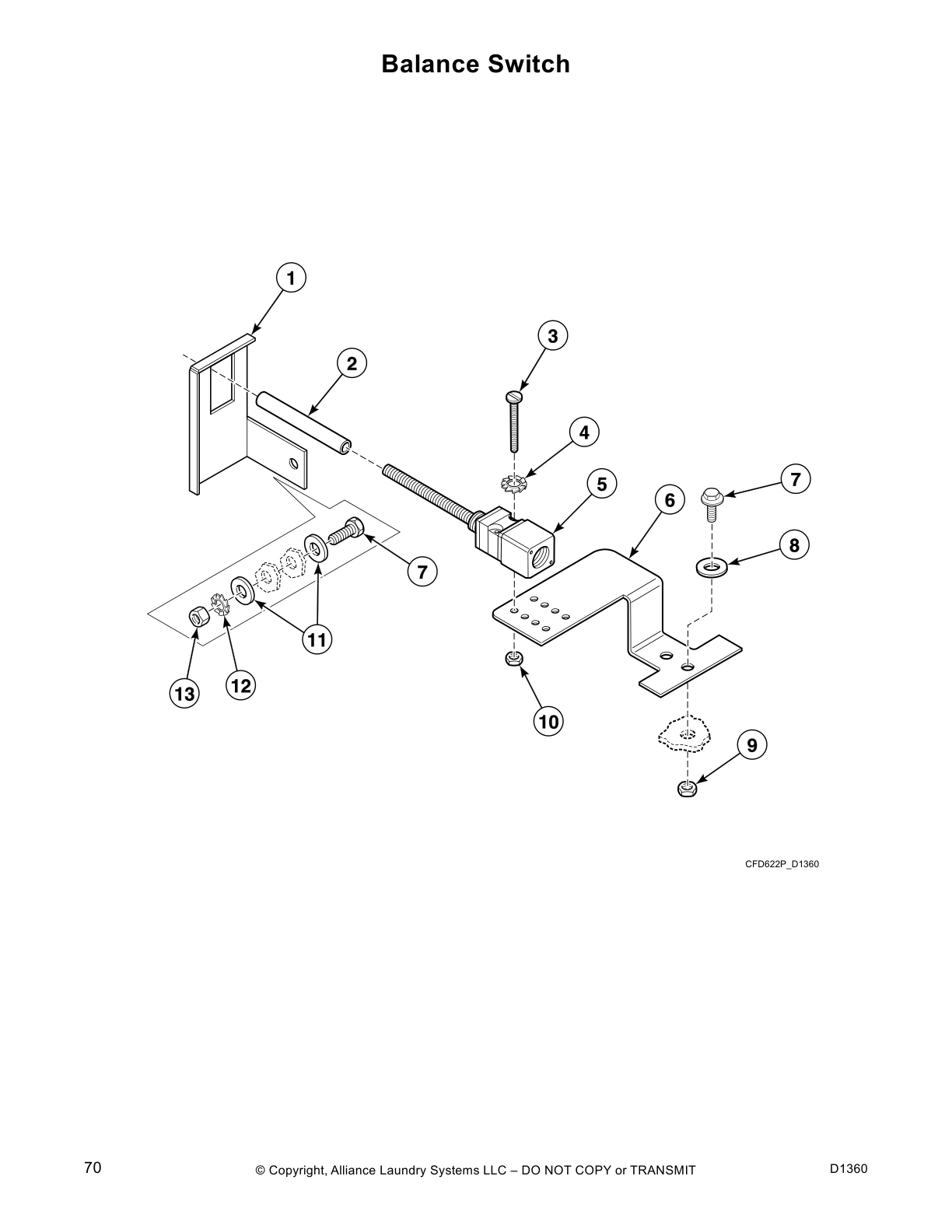

Balance Switch

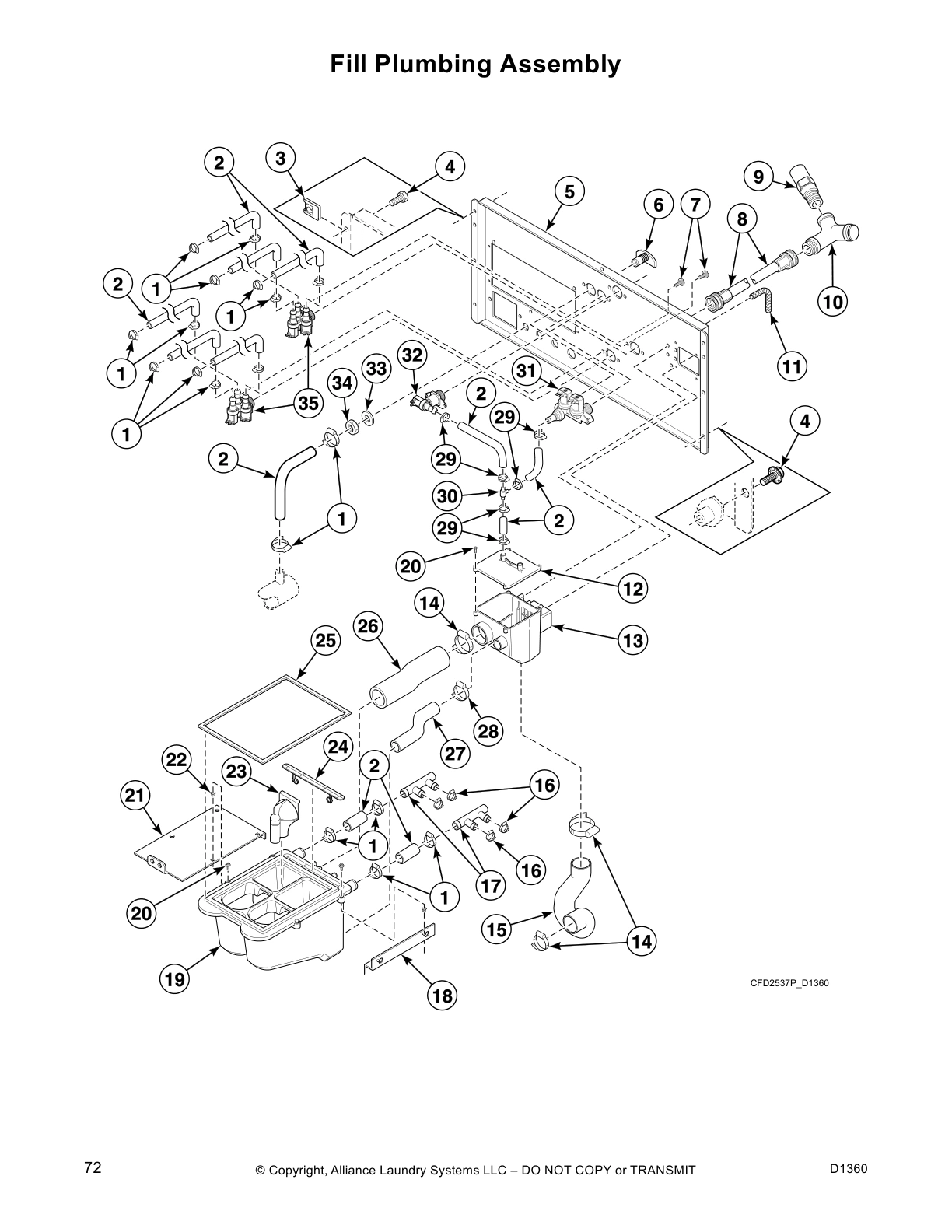

Fill Plumbing Assembly

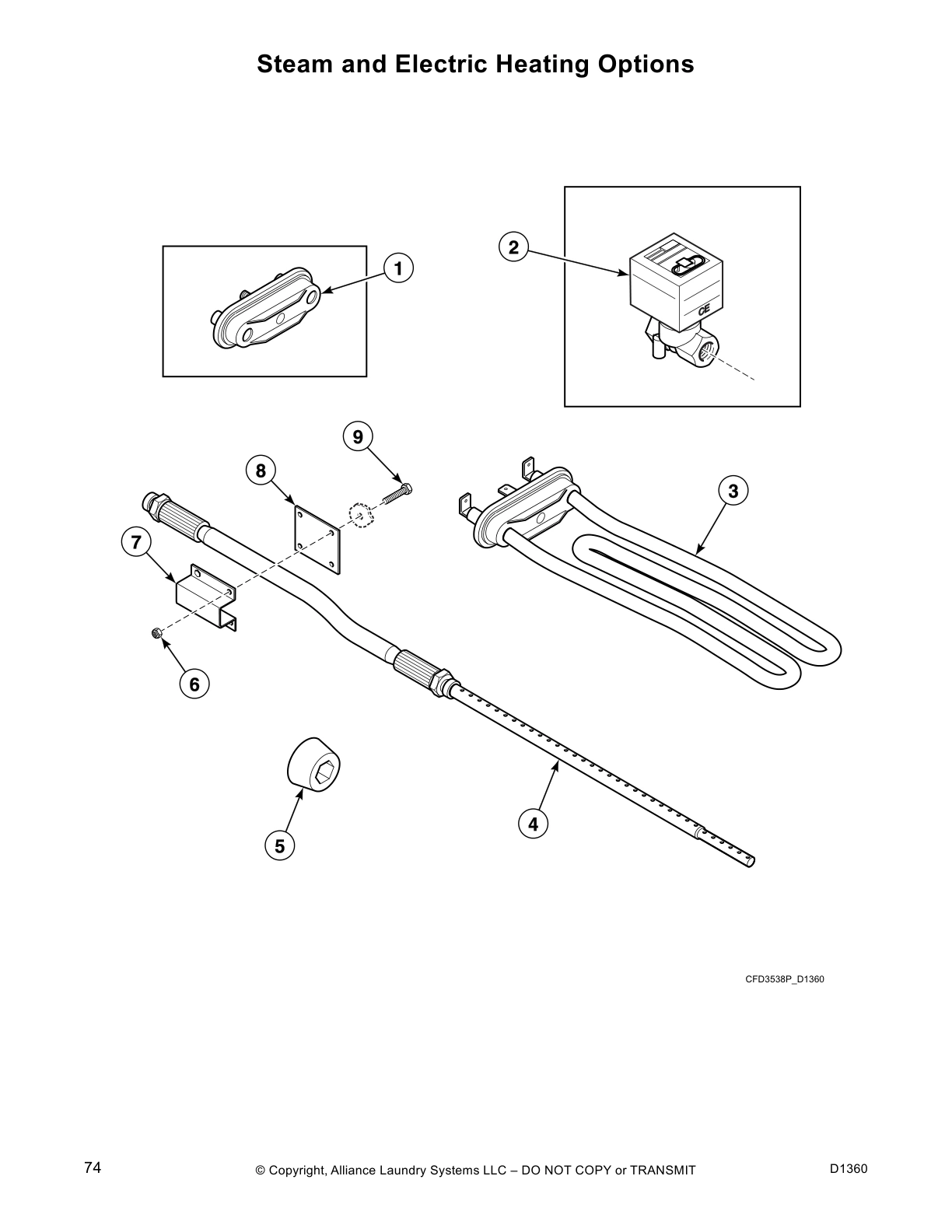

Steam and Electric Heating Options

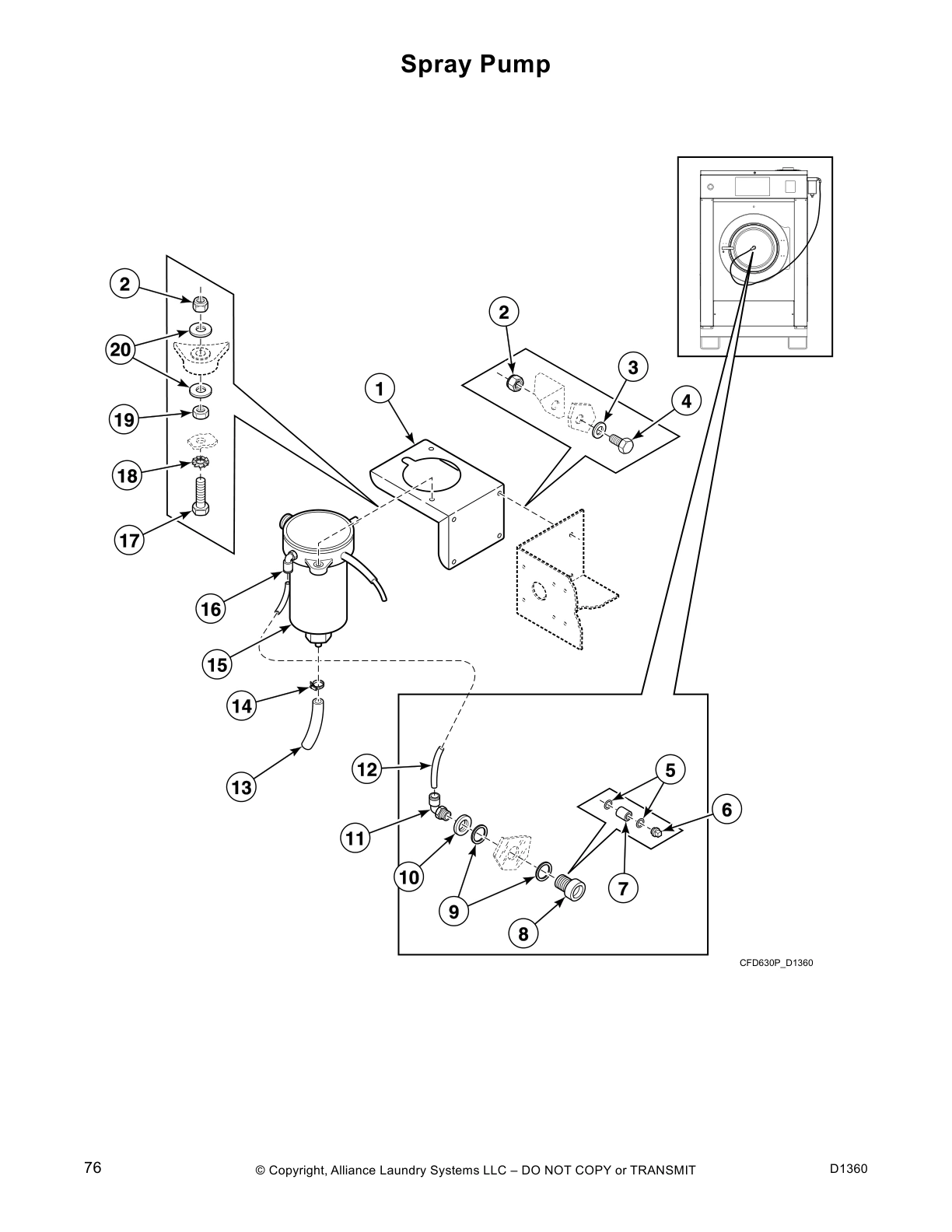

Spray Pump
Common parts from model UniMac UXG235P Washer
Steam Valve Harness SPQ B12455904 Contact Us For Availability
Power Jumper Harness SPQ B12455804 Contact Us For Availability
Electric Heat Harness SPQ B12381301 Contact Us For Availability
Branch Harness SPQ B12349704 Contact Us For Availability
SPQ B12348506 SPQ B12348506 Contact Us For Availability
SPQ B12348501 SPQ B12348501 Contact Us For Availability
1
Speed Detector Bracket SPQ 152/00055/00 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element Plug SPQ F360202 Contact Us For Availability
2
Key SPQ 212/00026/00 Contact Us For Availability
2
Steam Valve SPQ 209/00476/00 Contact Us For Availability
3
Drive Source Harness SPQ 204/00011/00 Contact Us For Availability
3
Water Inlet Tee SPQ 223/00041/00 Contact Us For Availability
3
Heating Element SPQ 209/00562/20 Contact Us For Availability
4
Panel Lock SPQ 44089303P Contact Us For Availability
4
Nut SPQ 204/00113/00 Contact Us For Availability
4
Main Control SPQ B12565801 Contact Us For Availability
4
Steam Injector SPQ 119/00087/50 Contact Us For Availability
5
Gasket SPQ 246/00092/00 Contact Us For Availability
5
Pulley SPQ 226/00148/00 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
5
Steam Connection Plug SPQ 206/00178/00 Contact Us For Availability
6
SPQ 206/00072/00 SPQ 206/00072/00 Contact Us For Availability
6
Drain Valve to Drain Tube Hose SPQ 223/00071/00 Contact Us For Availability
6
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
6
Nut SPQ B12509101 Contact Us For Availability
7
Spacer SPQ 115/00151/00 Contact Us For Availability
7
Pressure Hose SPQ 223/00328/00 Contact Us For Availability
7
Door Hinge Blocking Plate SPQ B12565001 Contact Us For Availability
8
SPQ 206/00071/00 SPQ 206/00071/00 Contact Us For Availability
8
Top Cover Latch SPQ F8201001 Contact Us For Availability
8
Central Control Board SPQ 209/00438/50 Contact Us For Availability
8
Water Hose SPQ F200164 Contact Us For Availability
10
Drain Tub to Drain Valve Hose SPQ B12403201 Contact Us For Availability
11
Spacer SPQ 211/00140/00 Contact Us For Availability
12
Bolt SPQ 206/00009/00 Contact Us For Availability
12
Washer SPQ 203/00003/00 Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
13
Nut SPQ 204/00004/00 Contact Us For Availability
13
Manifold SPQ F8333201 Contact Us For Availability
14
Bolt SPQ 206/00066/00 Contact Us For Availability
14
Bearing Housing Assembly SPQ 139/10006/00 Contact Us For Availability
14
Bolt SPQ 206/00003/00 Contact Us For Availability
14
Nut SPQ 202/00002/00 Contact Us For Availability
14
Circuit Breaker SPQ B12487101 Contact Us For Availability
14
Cable Tie SPQ F140605 Contact Us For Availability
16
Bearing SPQ F100134 Contact Us For Availability
16
Inverter Drive SPQ F8420920 Contact Us For Availability
17
Dispenser Assembly SPQ F8047401 Contact Us For Availability
18
Tub Clamp Ring SPQ 238/00011/00 Contact Us For Availability
18
Magnet Holder SPQ B12389701 Contact Us For Availability
19
Bolt SPQ 248/00114/00 Contact Us For Availability
19
Siphon Cover SPQ F8047901 Contact Us For Availability
21
Noise Filter SPQ F8420919 Contact Us For Availability
22
Screw SPQ 206/00111/00 Contact Us For Availability
22
Hose Clamp SPQ 209/00051/11 Contact Us For Availability
22
E-Stop Drive Fan Harness SPQ 211/00170/00 Contact Us For Availability
23
Tub Front Mounting Strap SPQ 115/00161/00 Contact Us For Availability
23
Access Cover SPQ F8047801 Contact Us For Availability
24
Fuse Holder Cap SPQ 70329501 Contact Us For Availability
24
Dispenser Gasket SPQ F8308301 Contact Us For Availability
25
Fuse SPQ 802492 Contact Us For Availability
25
Hose Clamp SPQ 223/00223/00 Contact Us For Availability
26
Fuse Holder Body SPQ 70329401P Contact Us For Availability
30
Water Valve Adapter SPQ 223/00050/01 Contact Us For Availability
32
Water Hose SPQ F200166 Contact Us For Availability
NI
Hardware Kit SPQ F407P4 Contact Us For Availability
NI
Bearing Replacement Tool Kit SPQ 381P3P Contact Us For Availability
NI
SPQ 381P3-1 SPQ 381P3-1 Contact Us For Availability
NI
Door Lock Harness SPQ B12495002 Contact Us For Availability
NI
Key Switch Harness SPQ B12495501 Contact Us For Availability
NI
E-Stop Drive Harness SPQ B12348903 Contact Us For Availability
NI
E-Stop Harness SPQ B12348902 Contact Us For Availability
NI
Noise and Vibration Reduction Kit SPQ B12612101 Contact Us For Availability
NI
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
NI
SPQ B12501502 SPQ B12501502 Contact Us For Availability
NI
SPQ B12495601 SPQ B12495601 Contact Us For Availability
NI
Main Control Tray Harness SPQ B12381103 Contact Us For Availability
NI
Control Supply Harness SPQ B12348303 Contact Us For Availability
NI
SPQ B12348103 SPQ B12348103 Contact Us For Availability
NI
Out-of-Balance Switch Harness SPQ B12349902 Contact Us For Availability
NI
Inlet Valve Harness SPQ B12349202 Contact Us For Availability
NI
Steam Heat Kit SPQ B12551001 Contact Us For Availability
NI
Heat Harness SPQ B12455905 Contact Us For Availability
NI
Heating Harness SPQ B12455805 Contact Us For Availability
NI
Steam Heat Harness SPQ B12382302 Contact Us For Availability
NI
Branch Harness SPQ B12381204 Contact Us For Availability
NI
Relay SPQ B12349604 Contact Us For Availability
NI
SPQ B12348502 SPQ B12348502 Contact Us For Availability
NI
SPQ B12308001 SPQ B12308001 Contact Us For Availability
× ![]()
