Model Unimac UX33PVQA7 Washer – Common Parts & Diagrams

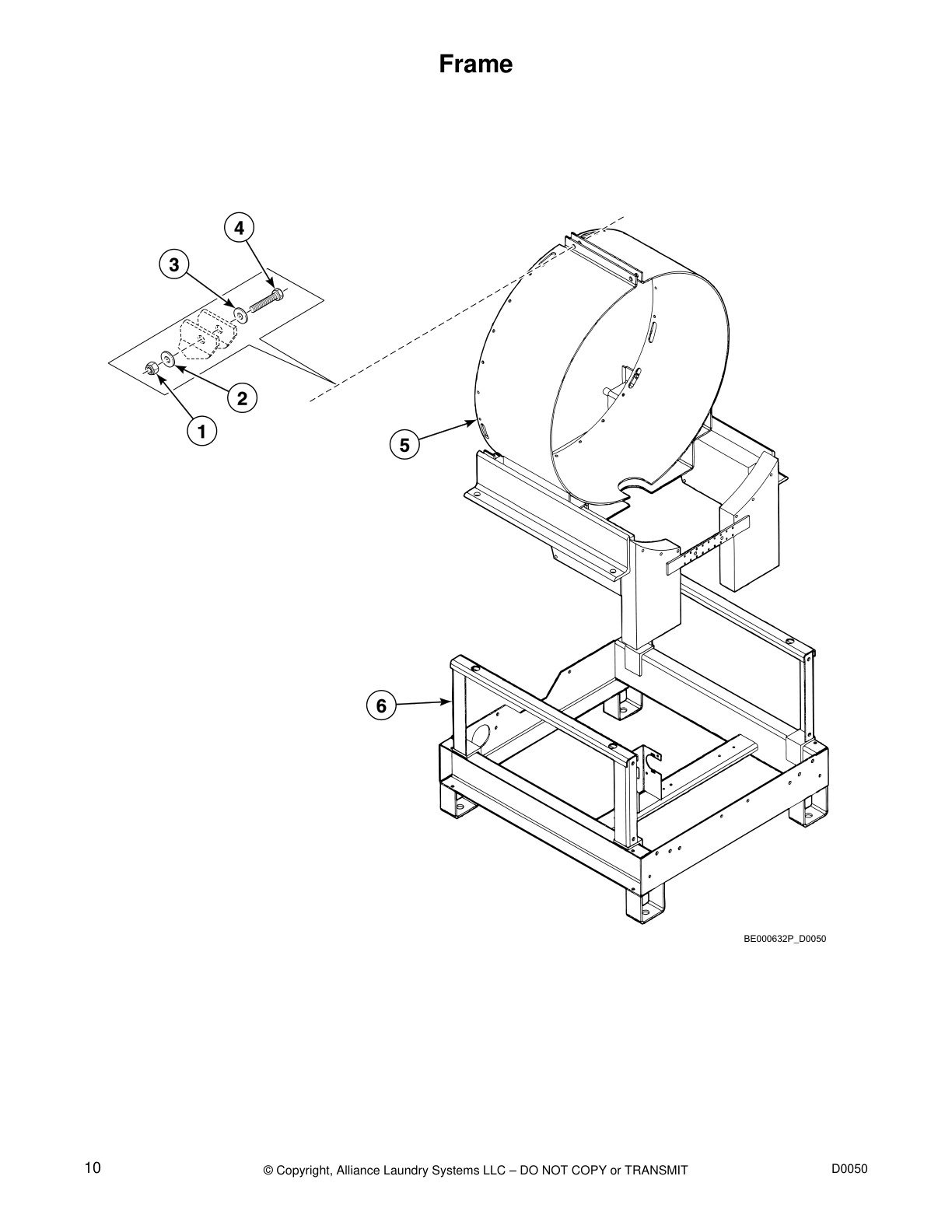

Frame

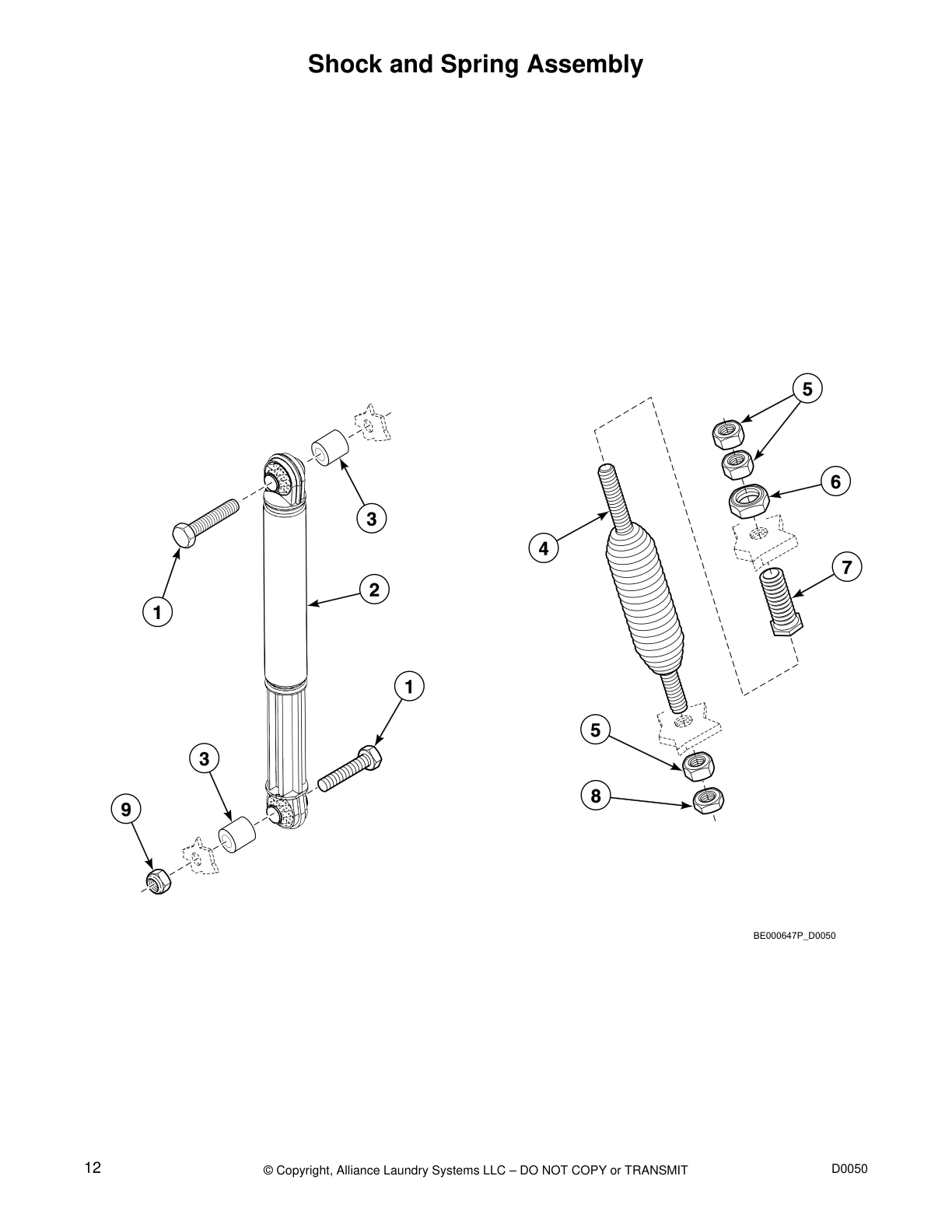

Shock and Spring Assembly

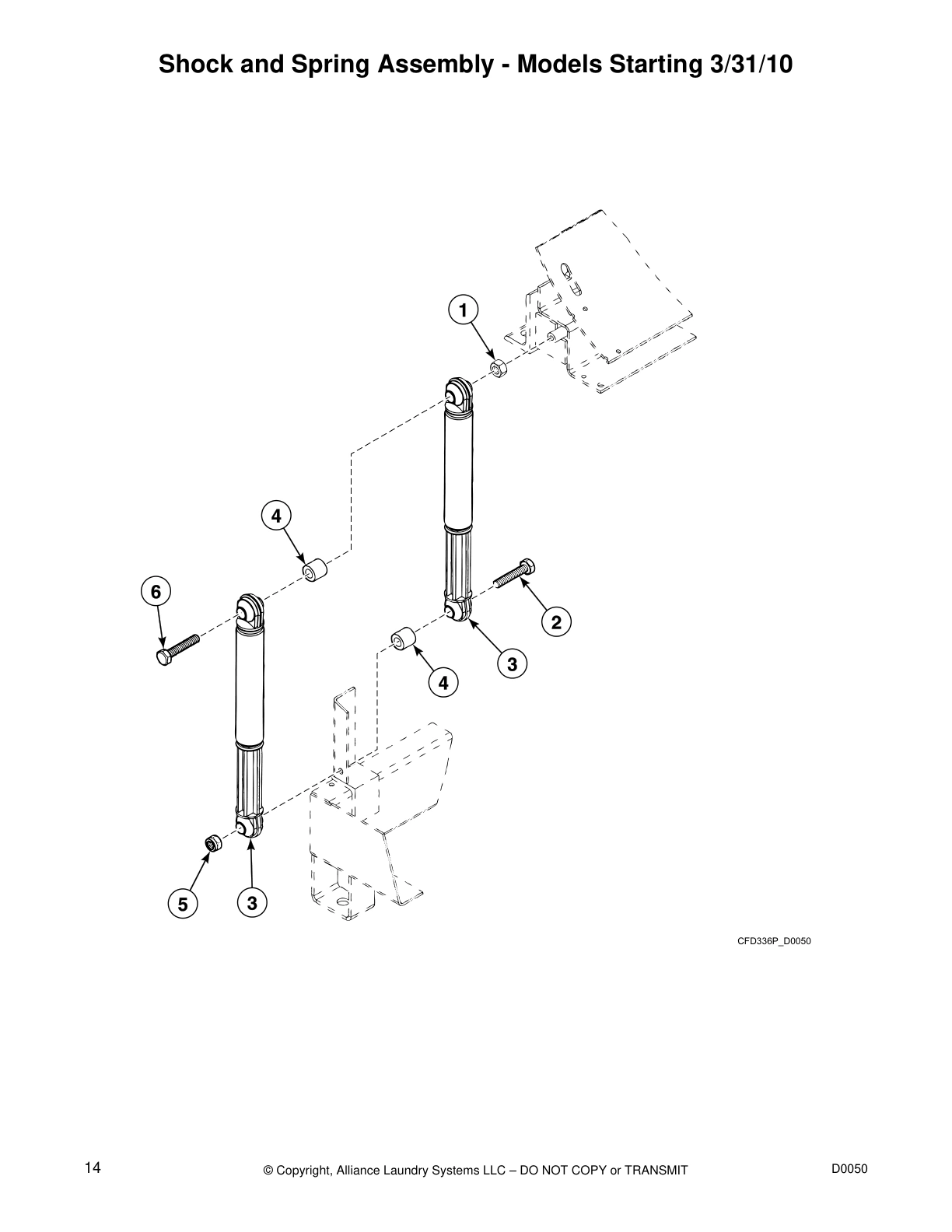

Shock and Spring Assembly - Models Starting 3/31/10

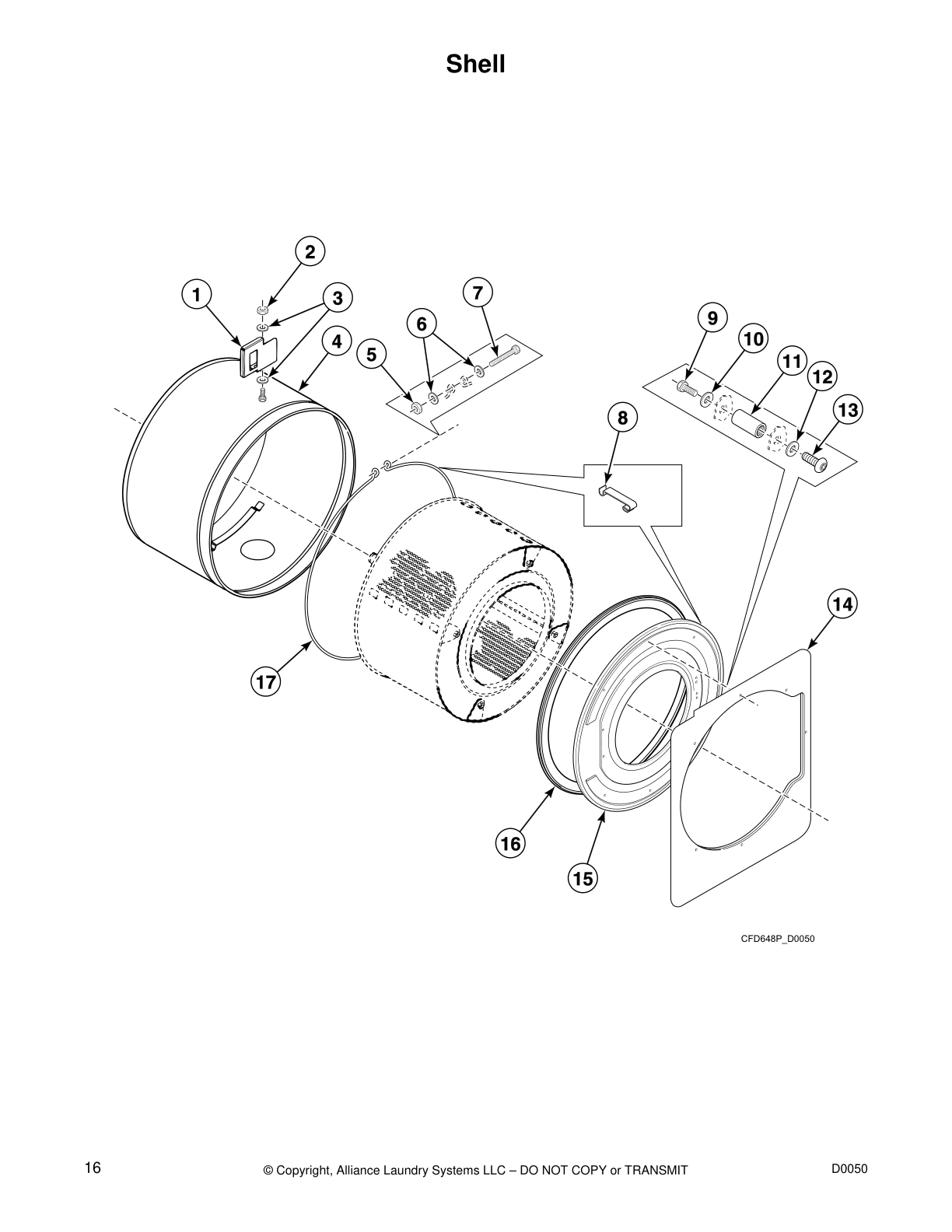

Shell

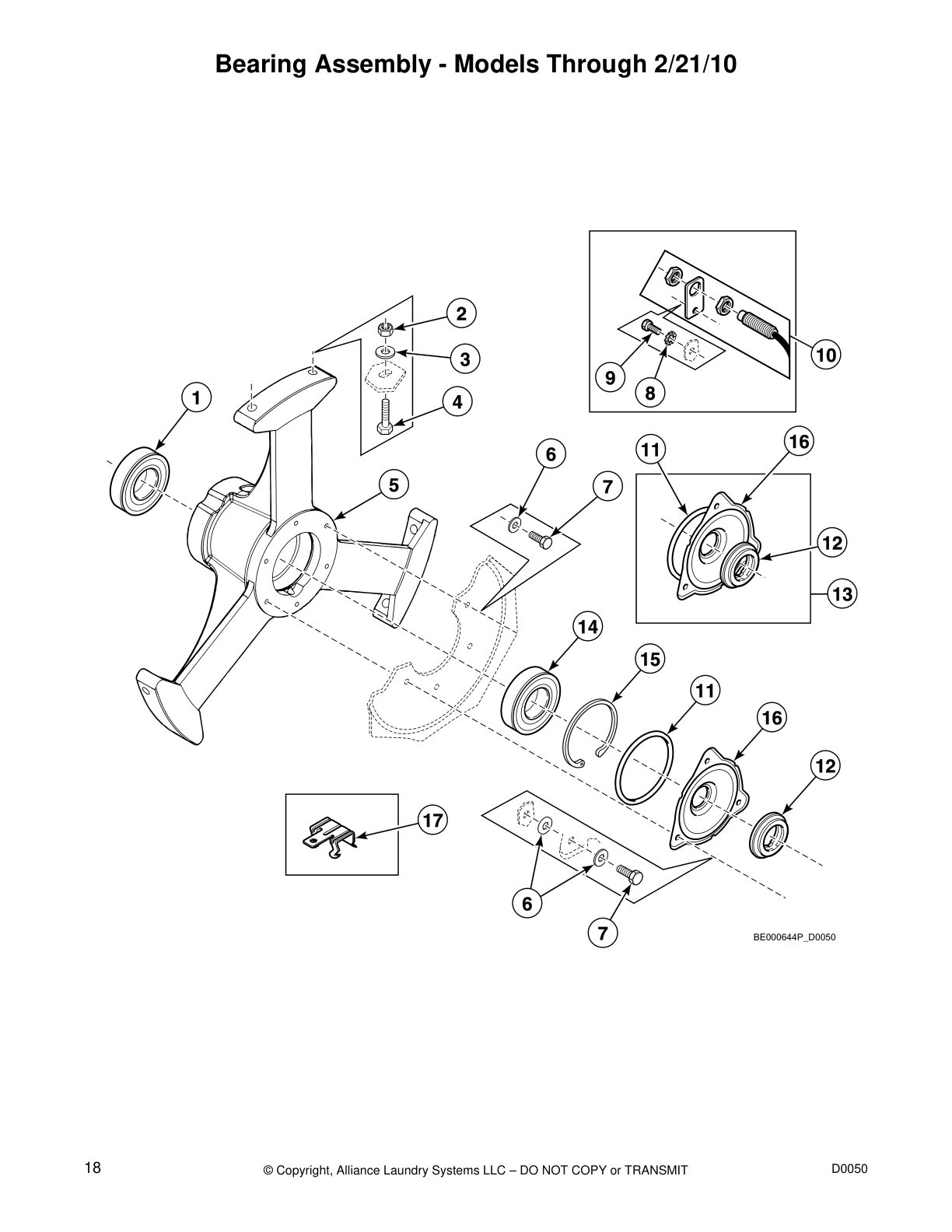

Bearing Assembly - Models Through 2/21/10

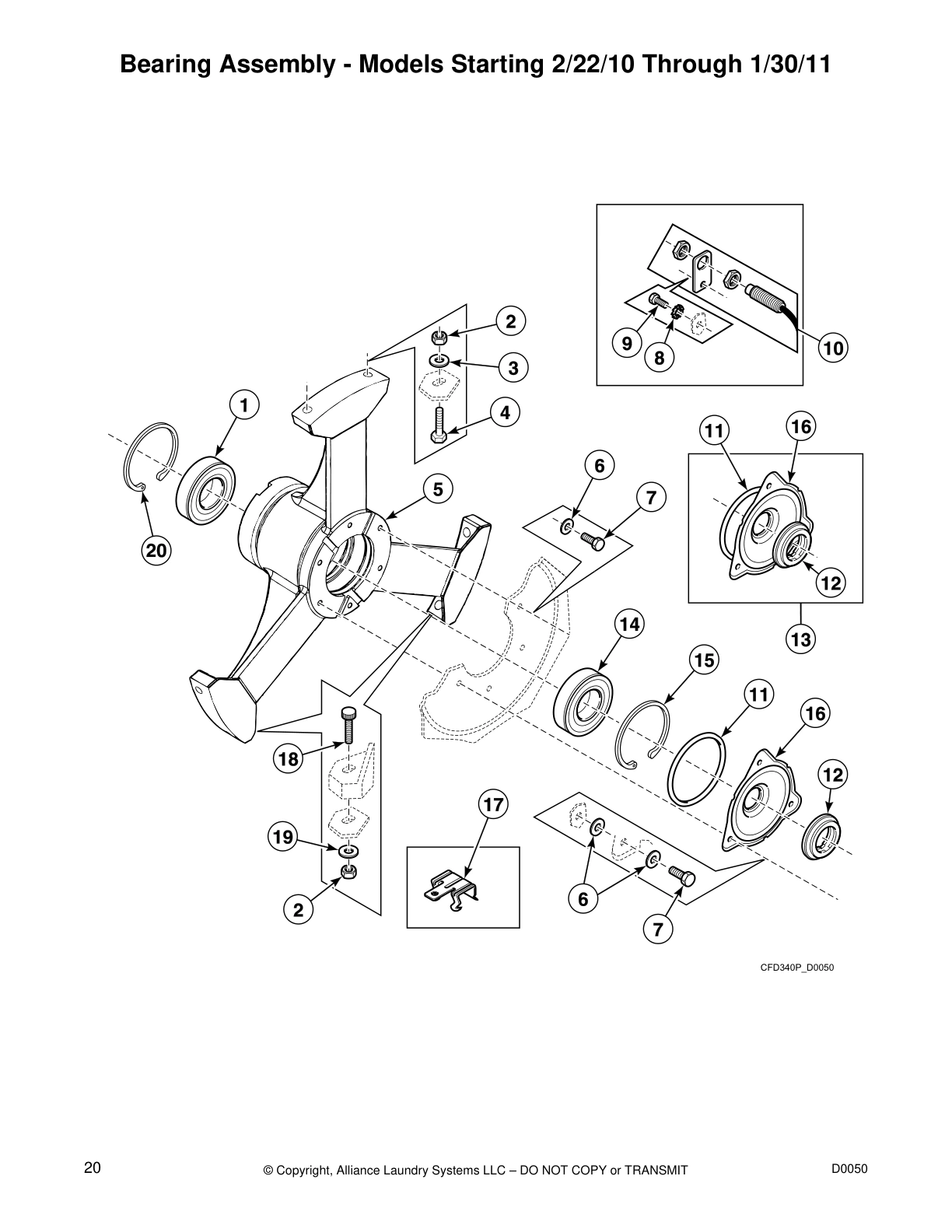

Bearing Assembly - Models Starting 2/22/10 Through 1/30/11

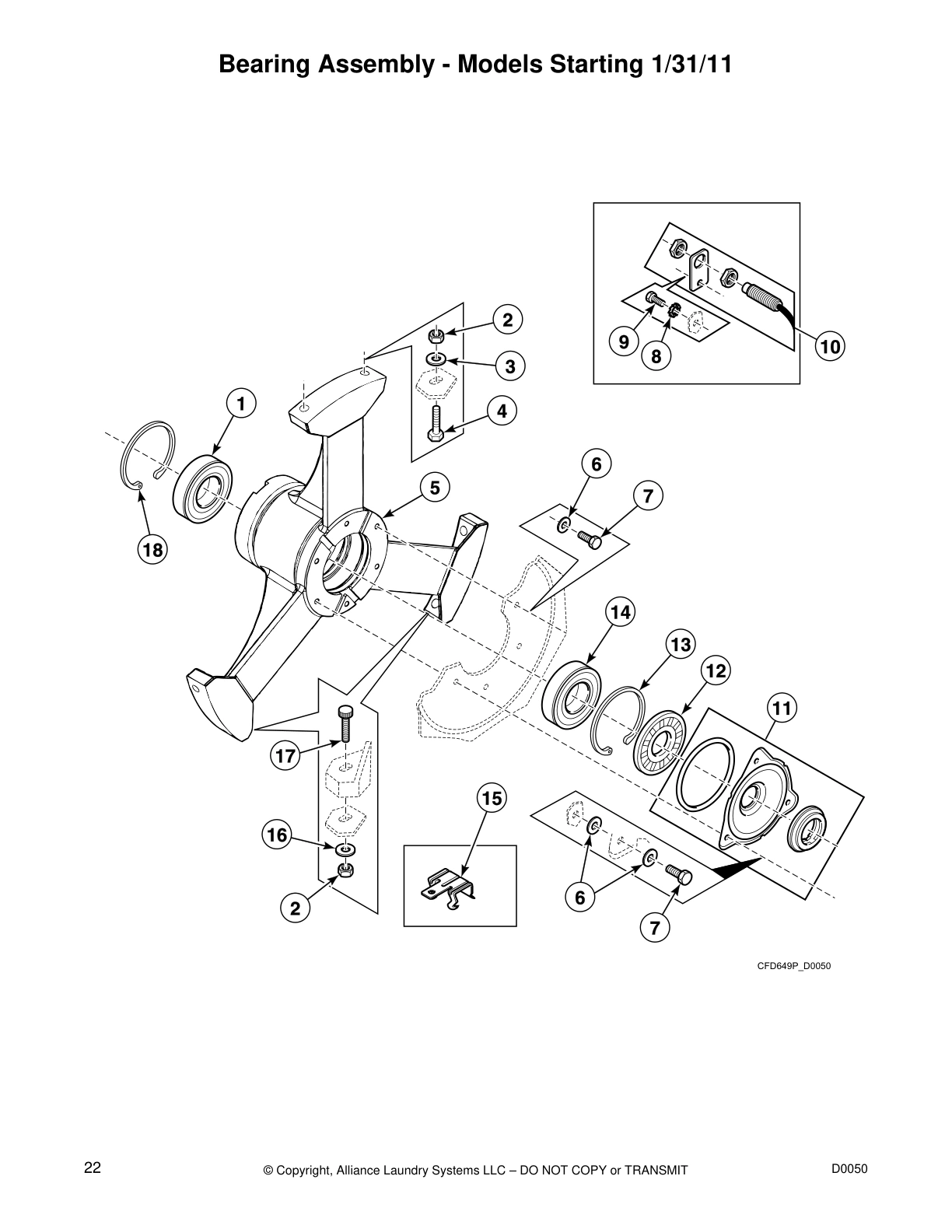

Bearing Assembly - Models Starting 1/31/11

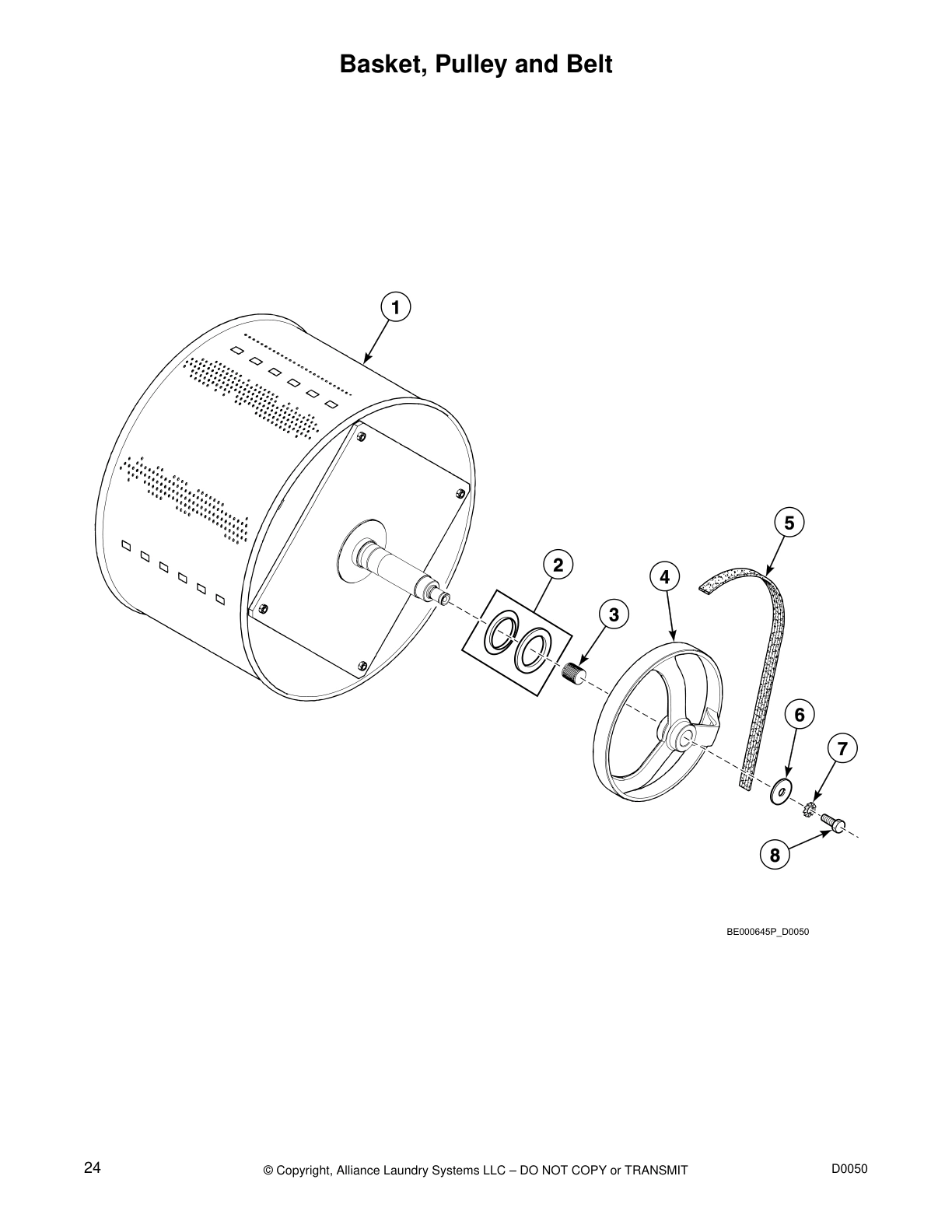

Basket, Pulley and Belt

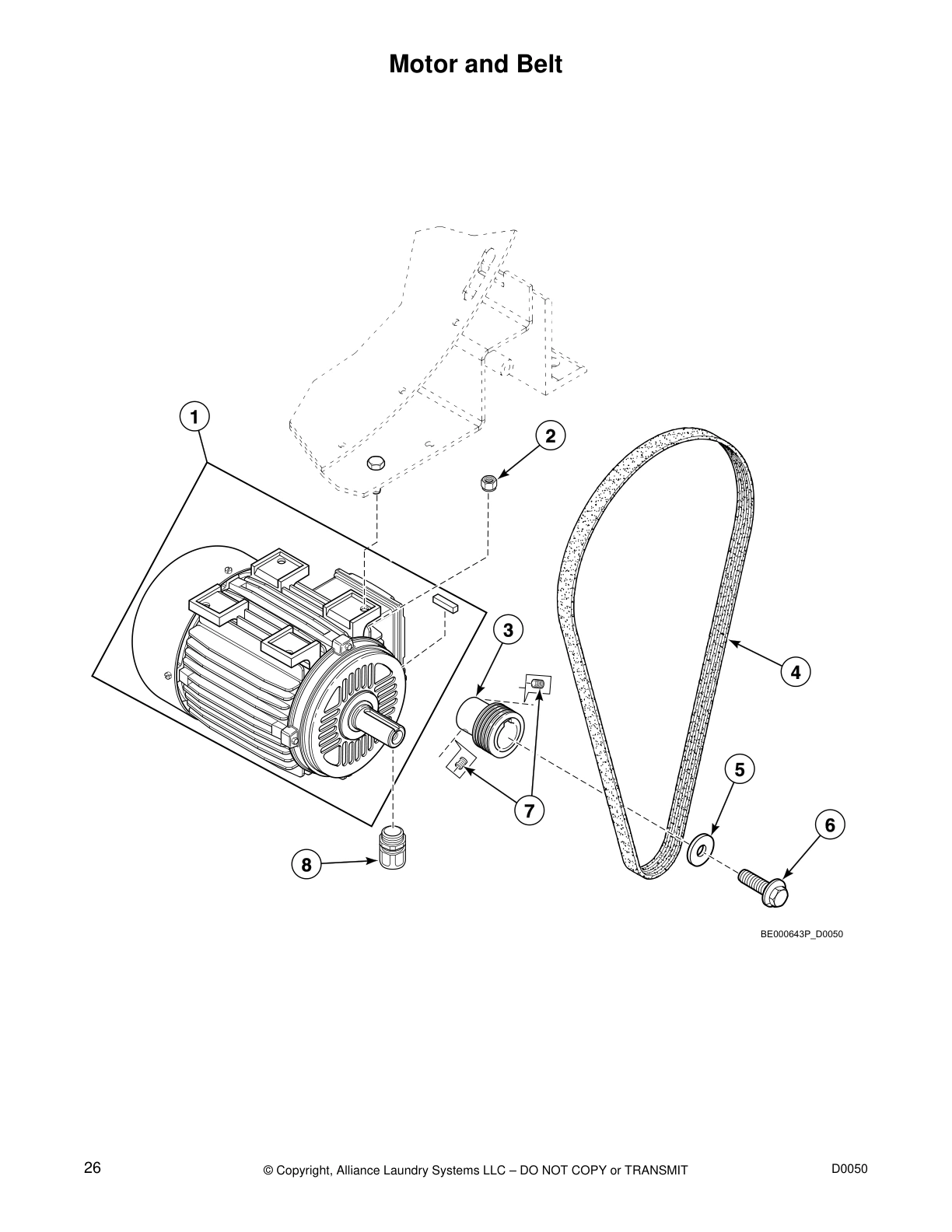

Motor and Belt

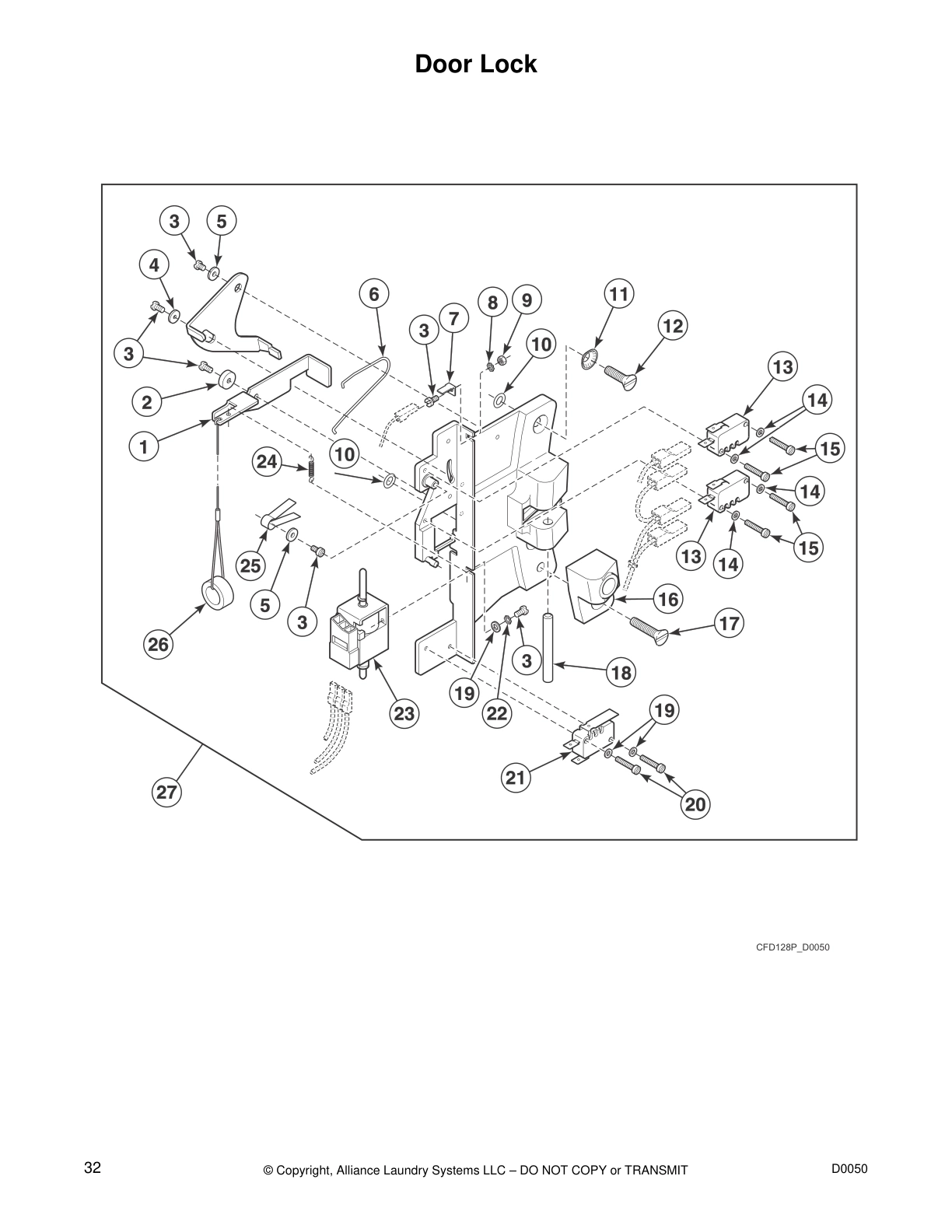

Door Lock
Door

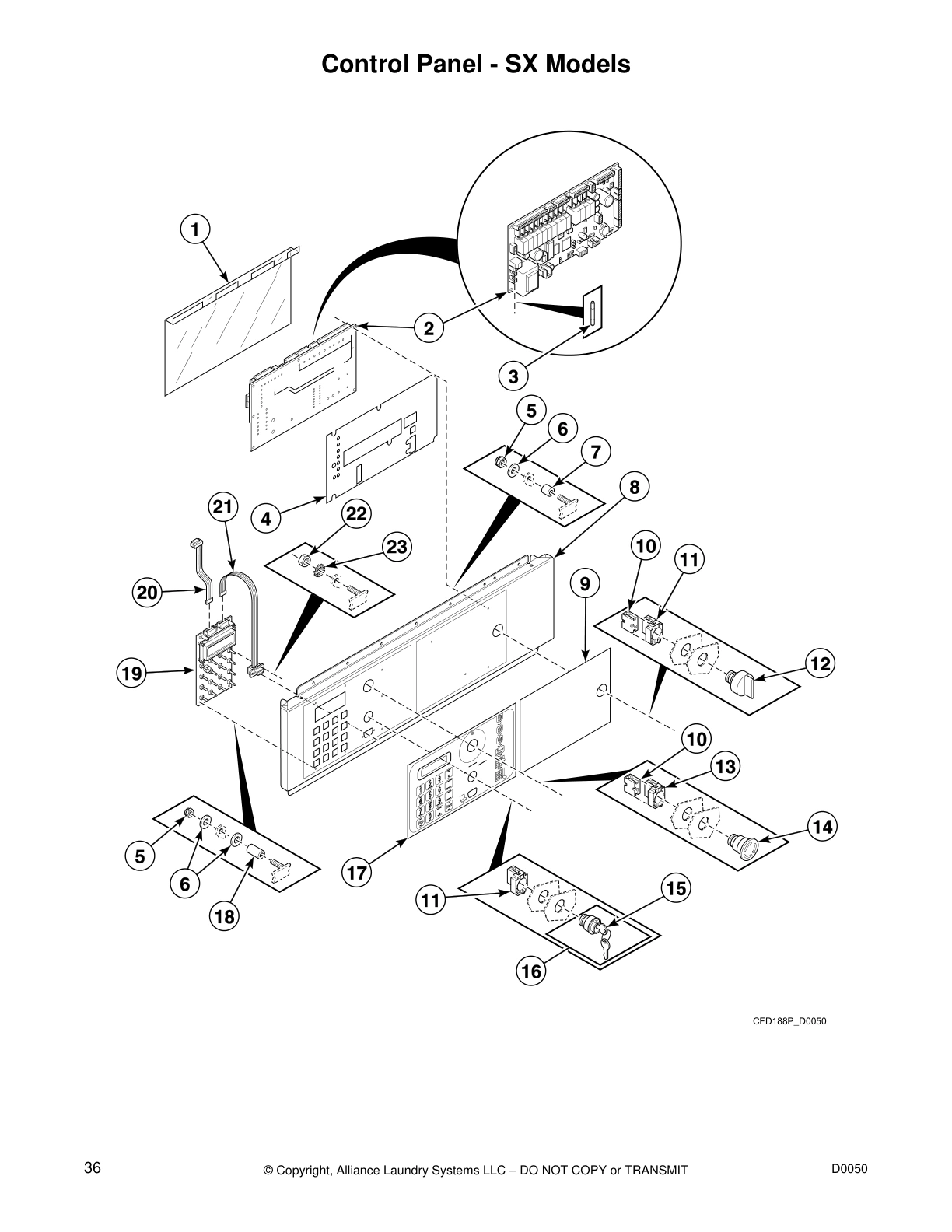

Control Panel - SX Models

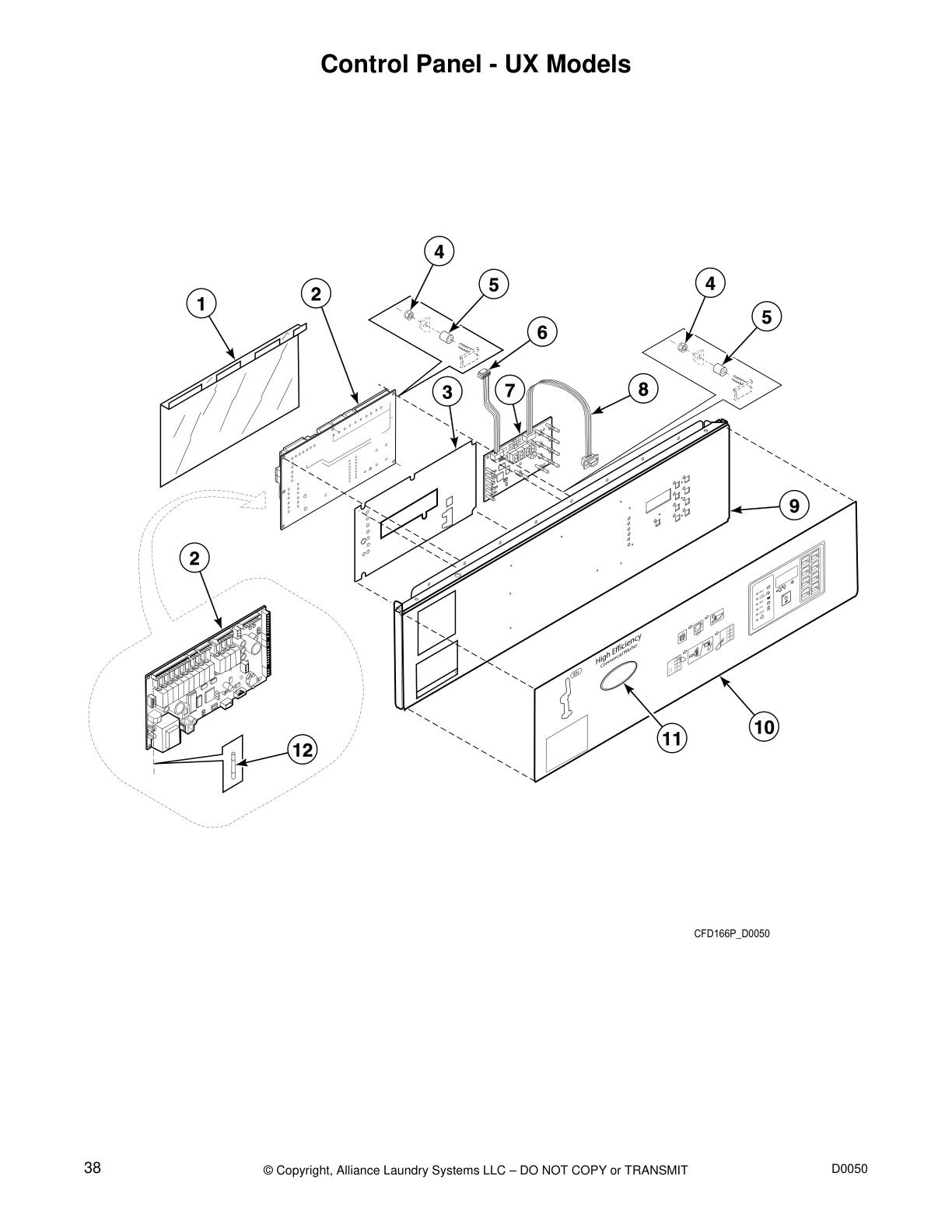

Control Panel - UX Models

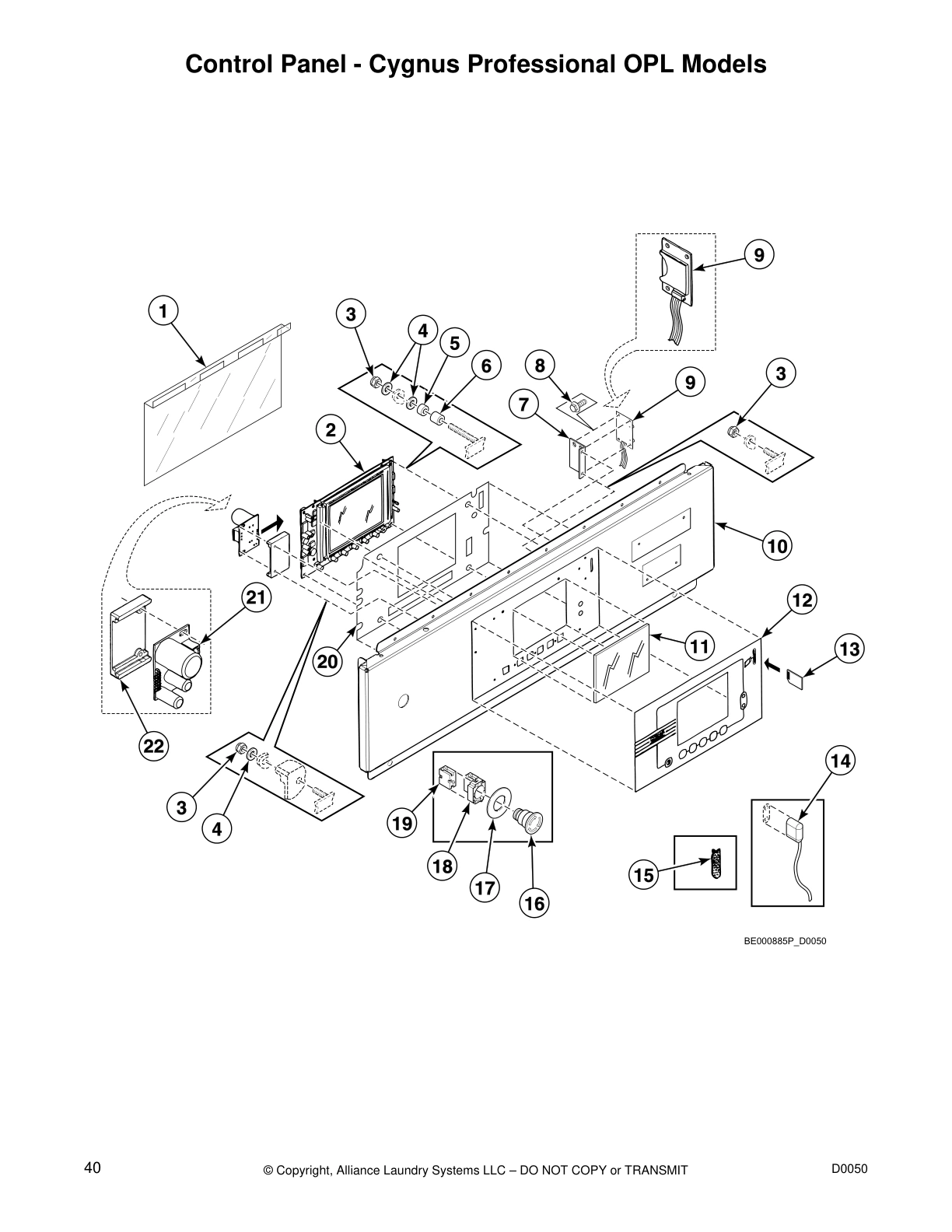

Control Panel - Cygnus Professional OPL Models

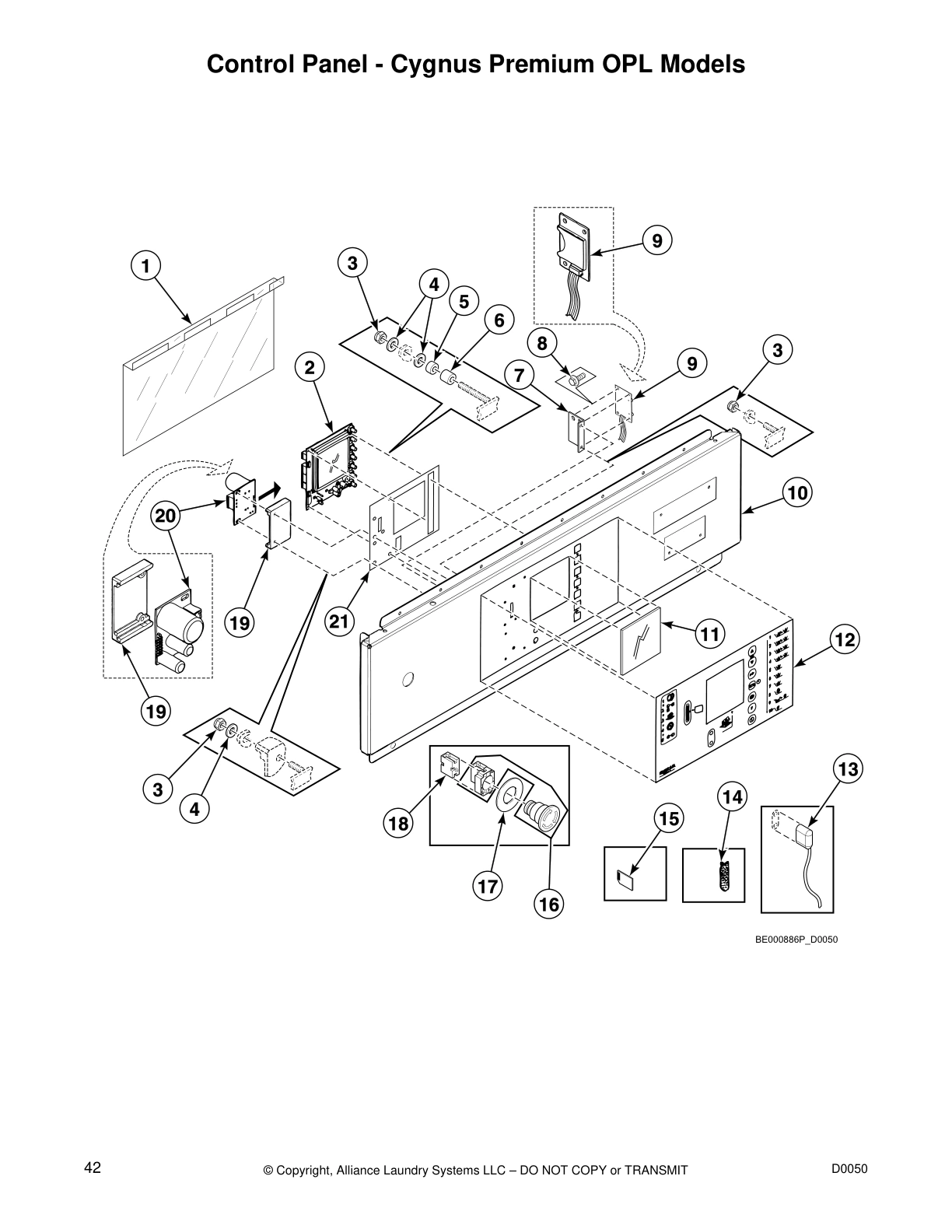

Control Panel - Cygnus Premium OPL Models

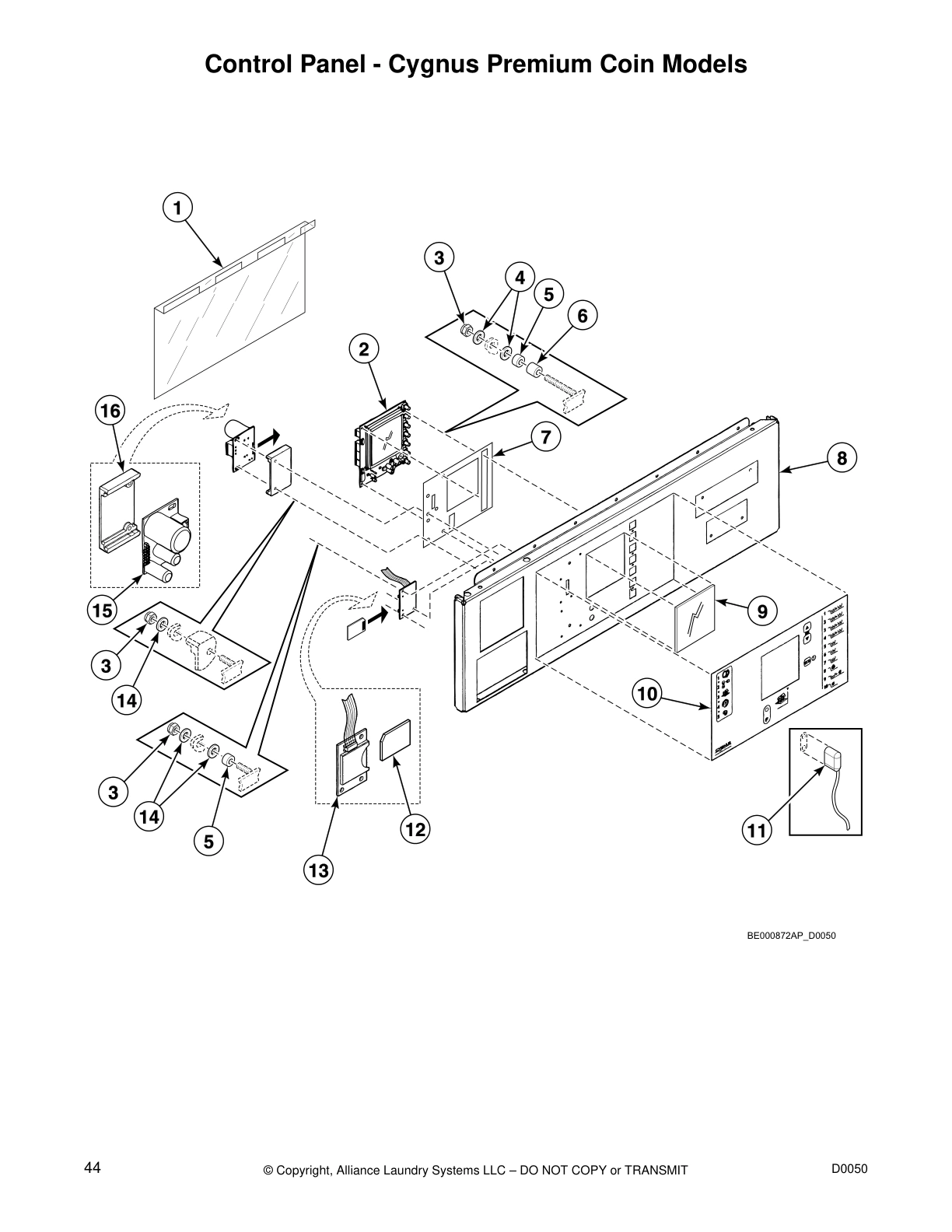

Control Panel - Cygnus Premium Coin Models

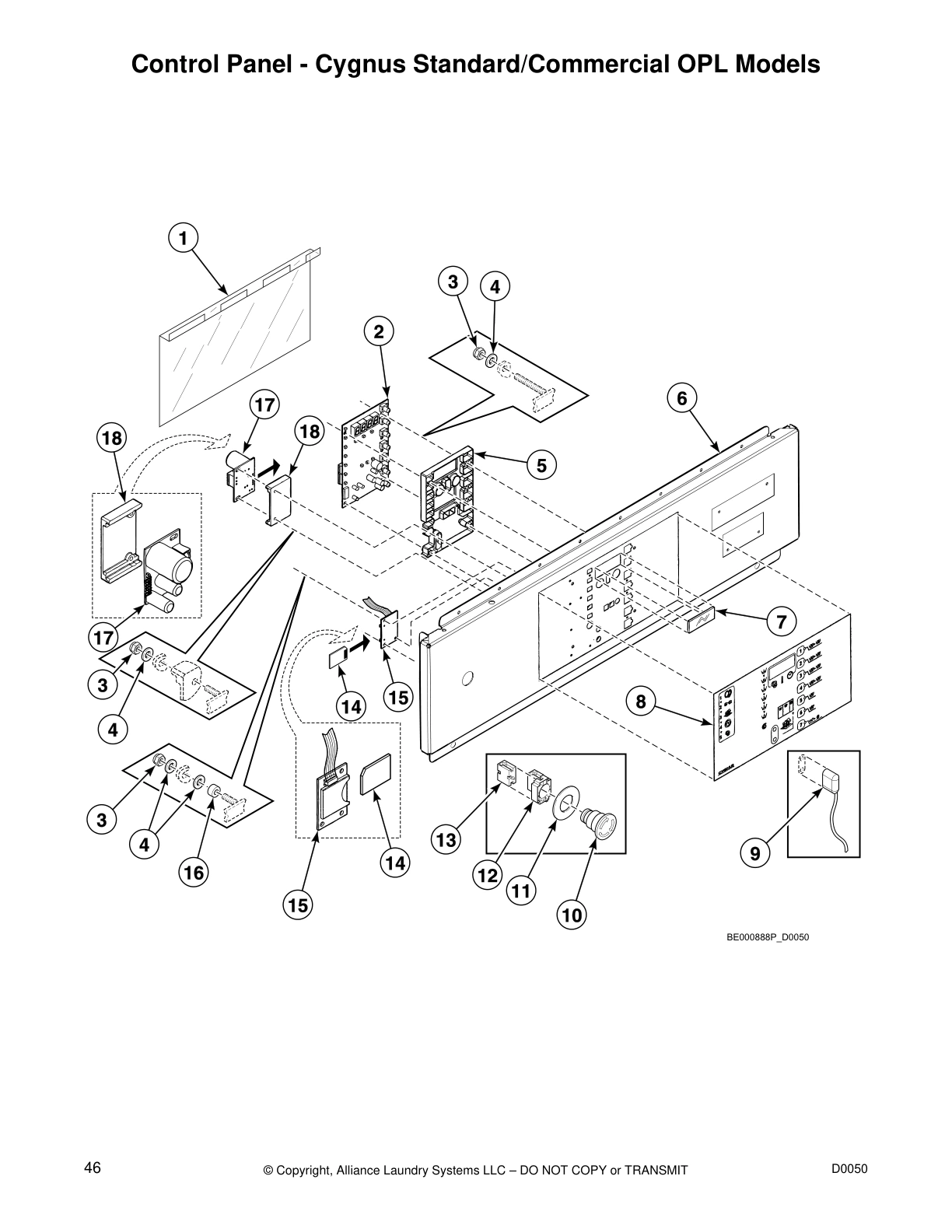

Control Panel - Cygnus Standard/Commercial OPL Models

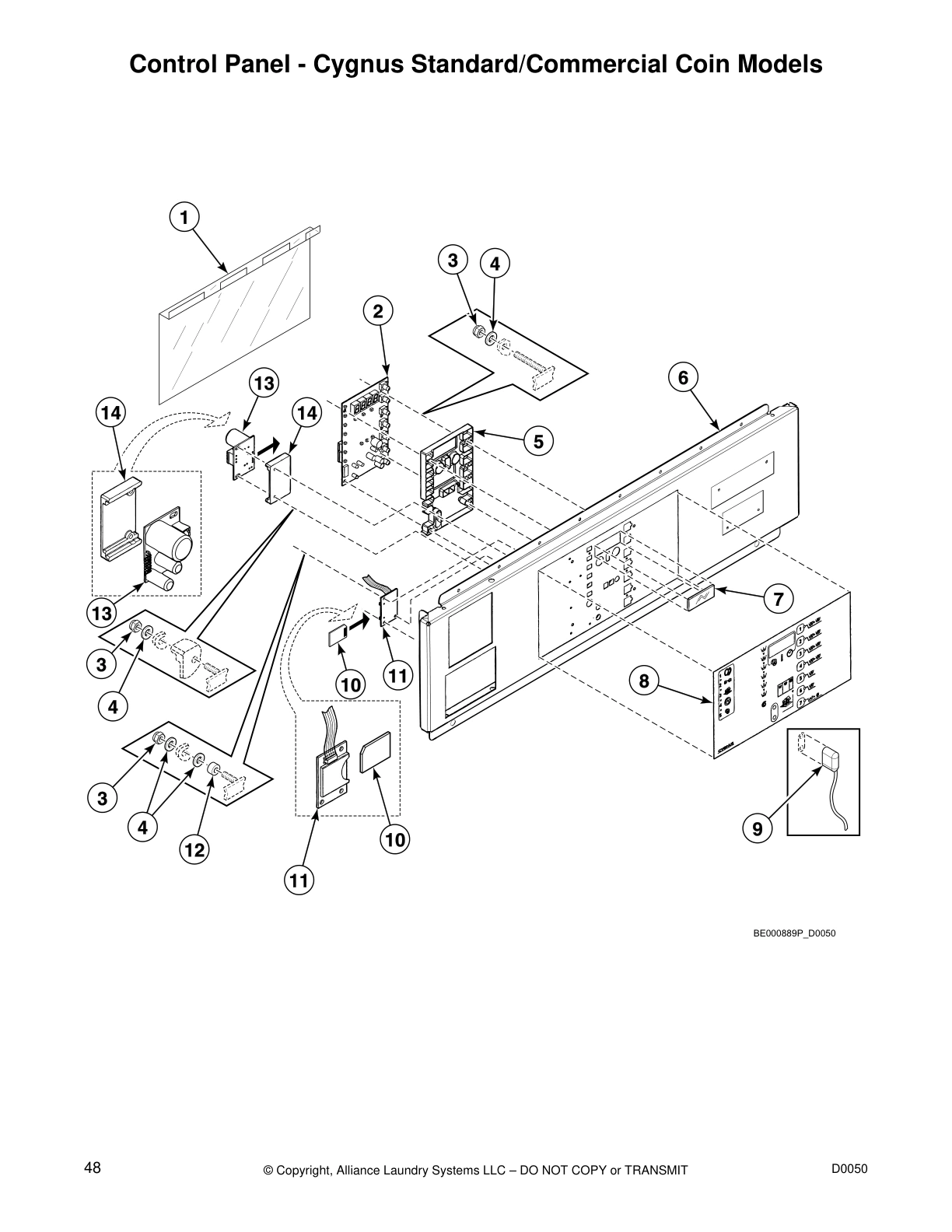

Control Panel - Cygnus Standard/Commercial Coin Models

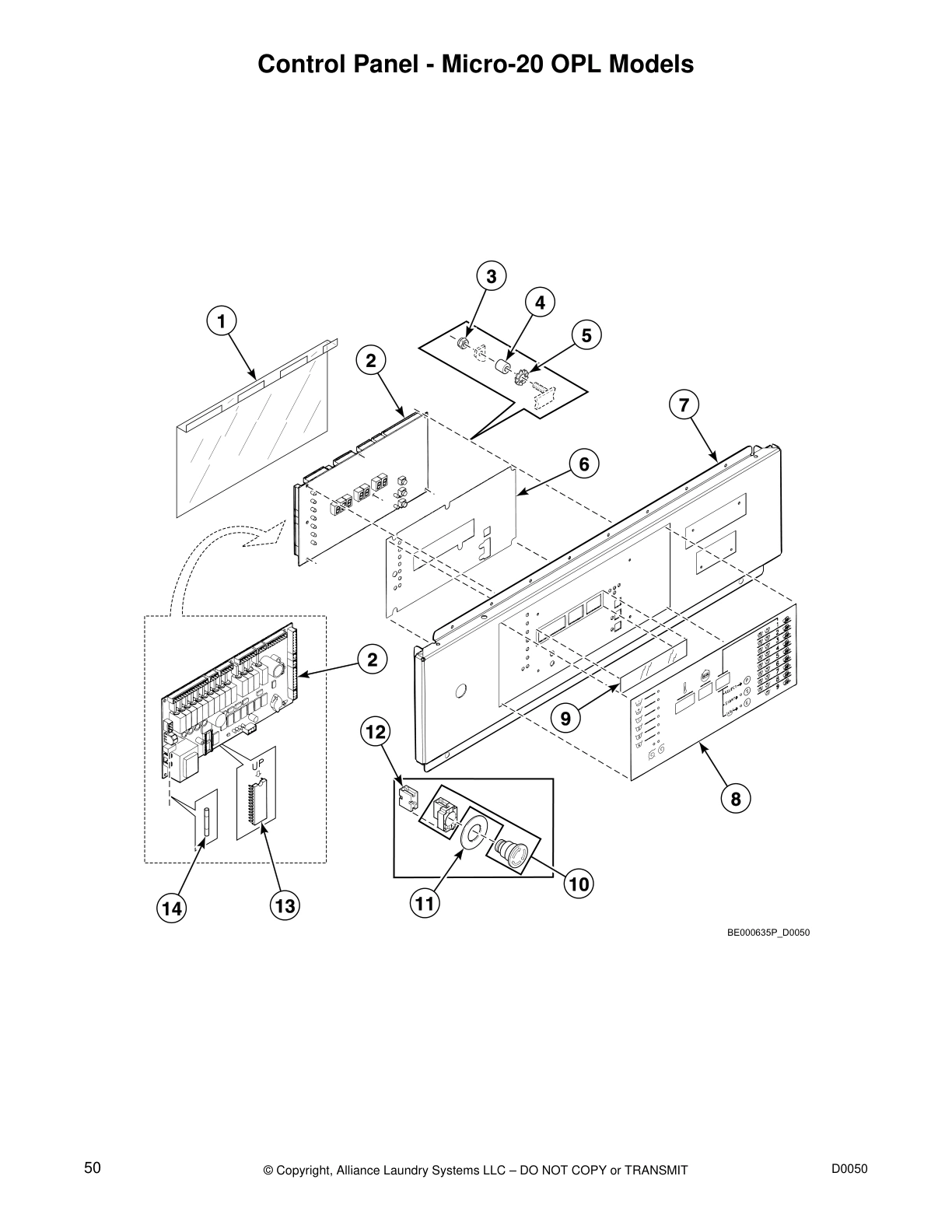

Control Panel - Micro-20 OPL Models

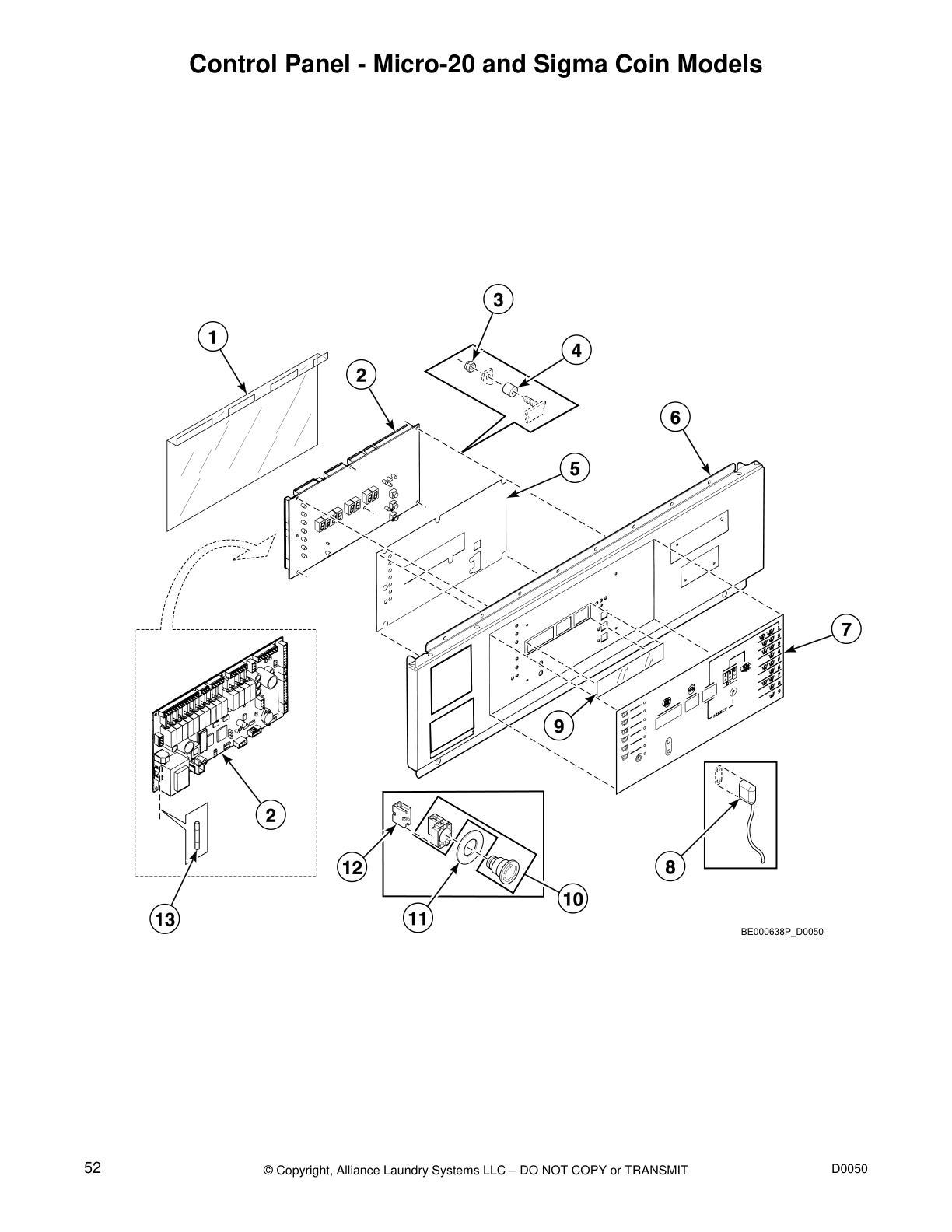

Control Panel - Micro-20 and Sigma Coin Models

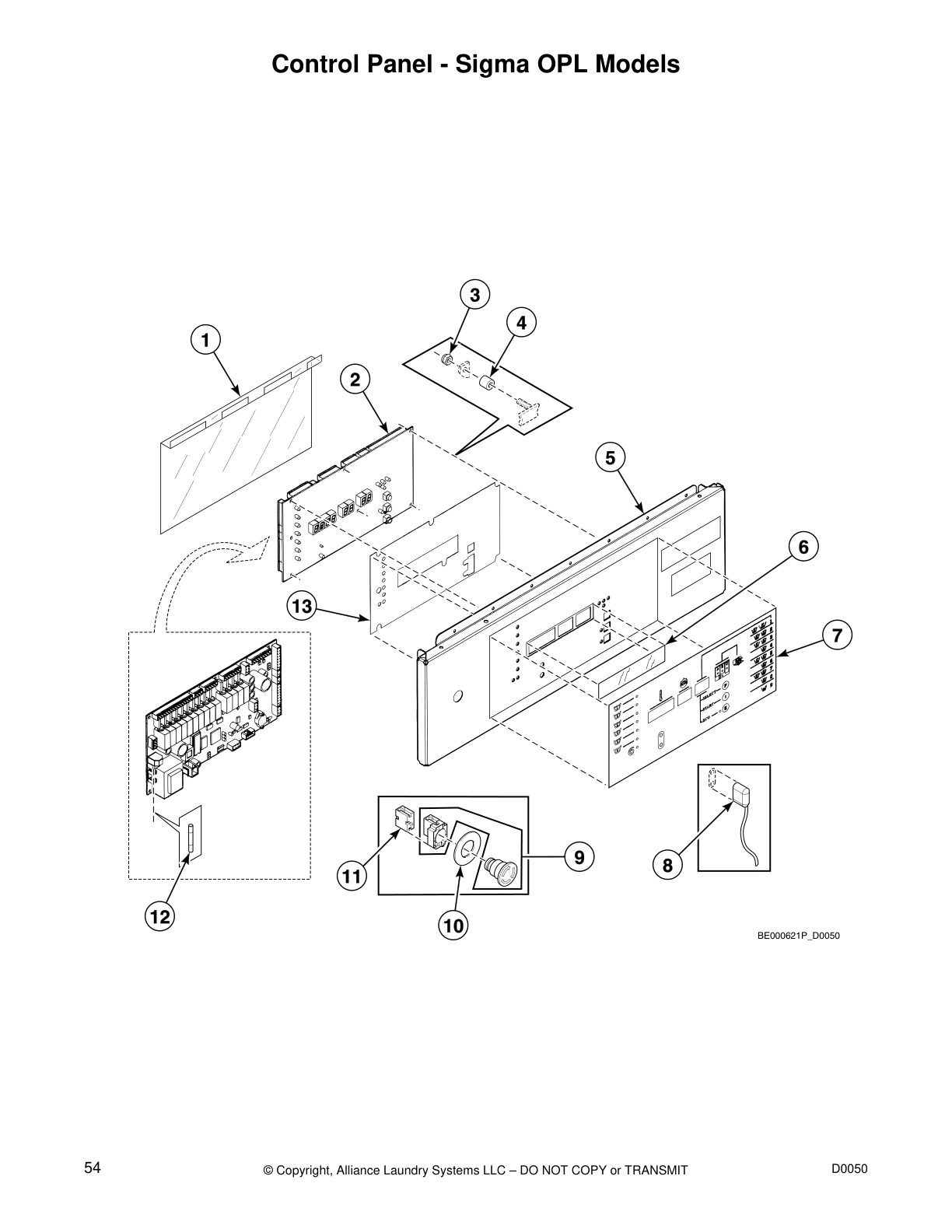

Control Panel - Sigma OPL Models

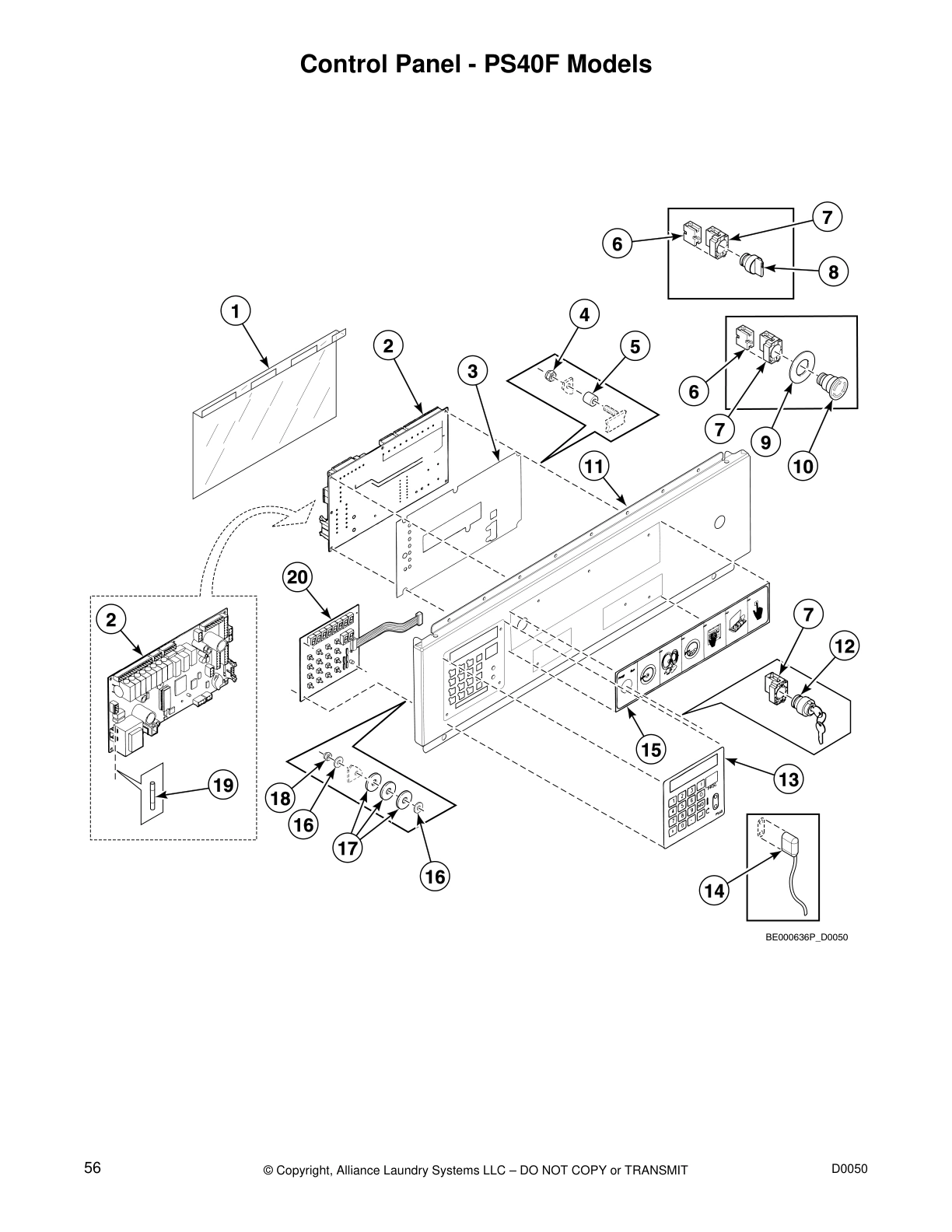

Control Panel - PS40F Models
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter

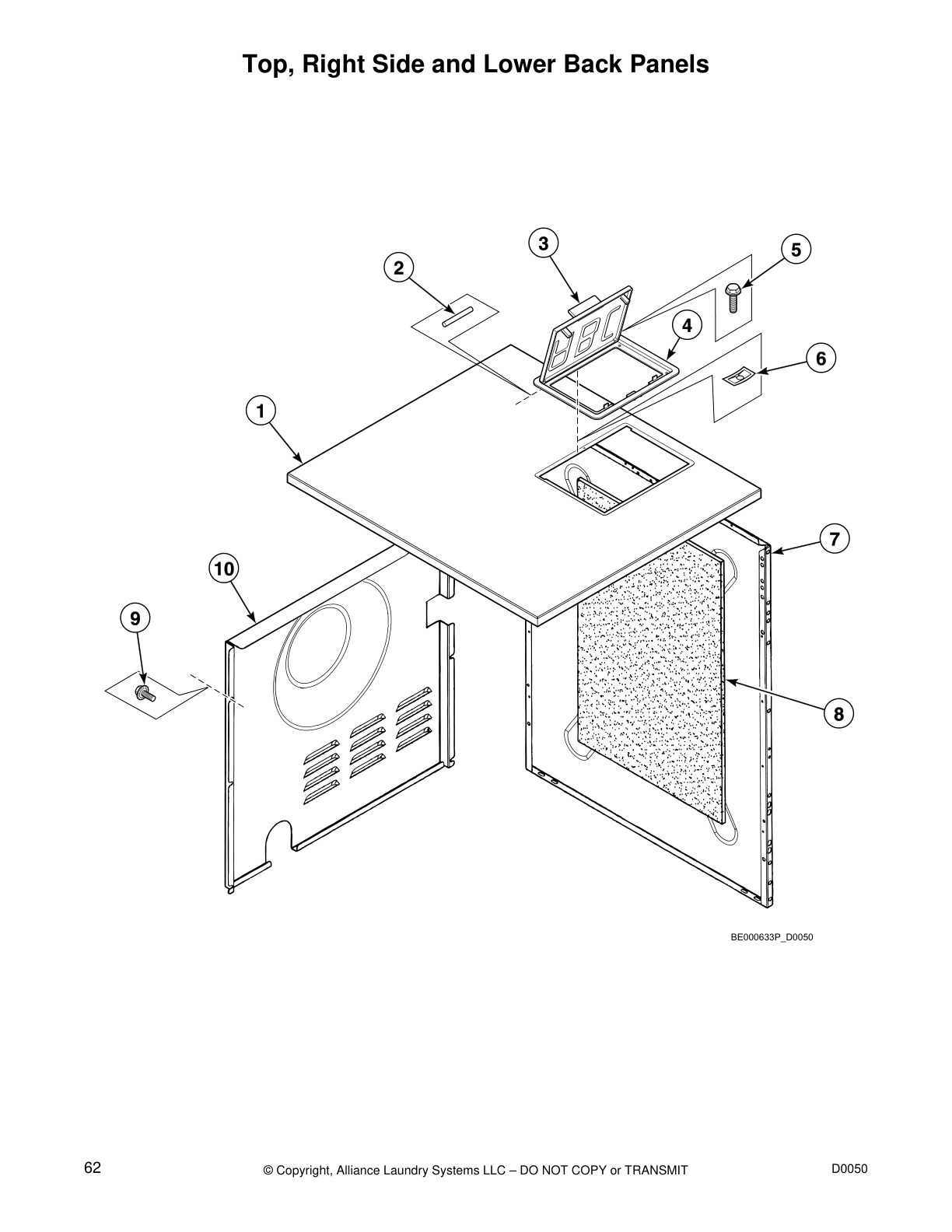

Top, Right Side and Lower Back Panels

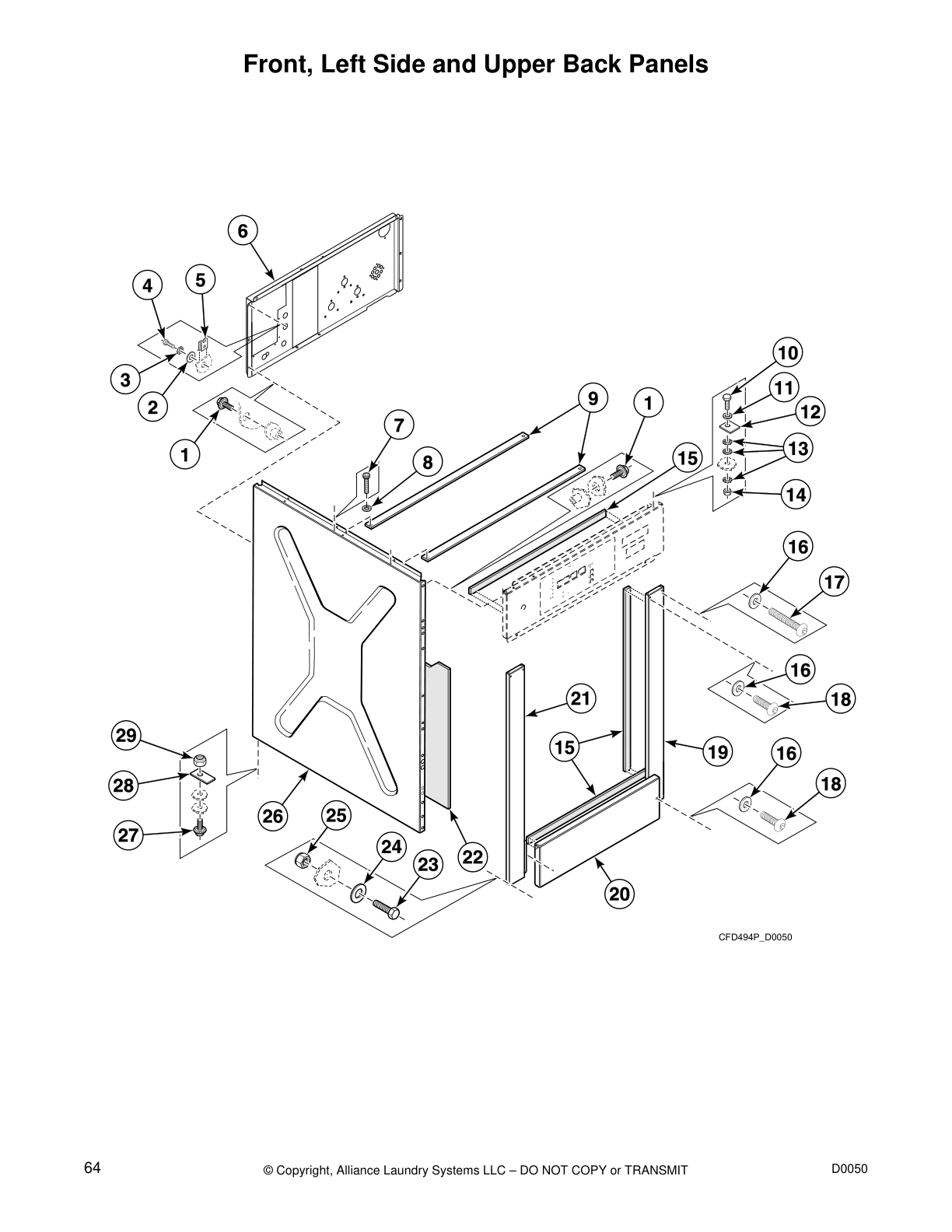

Front, Left Side and Upper Back Panels

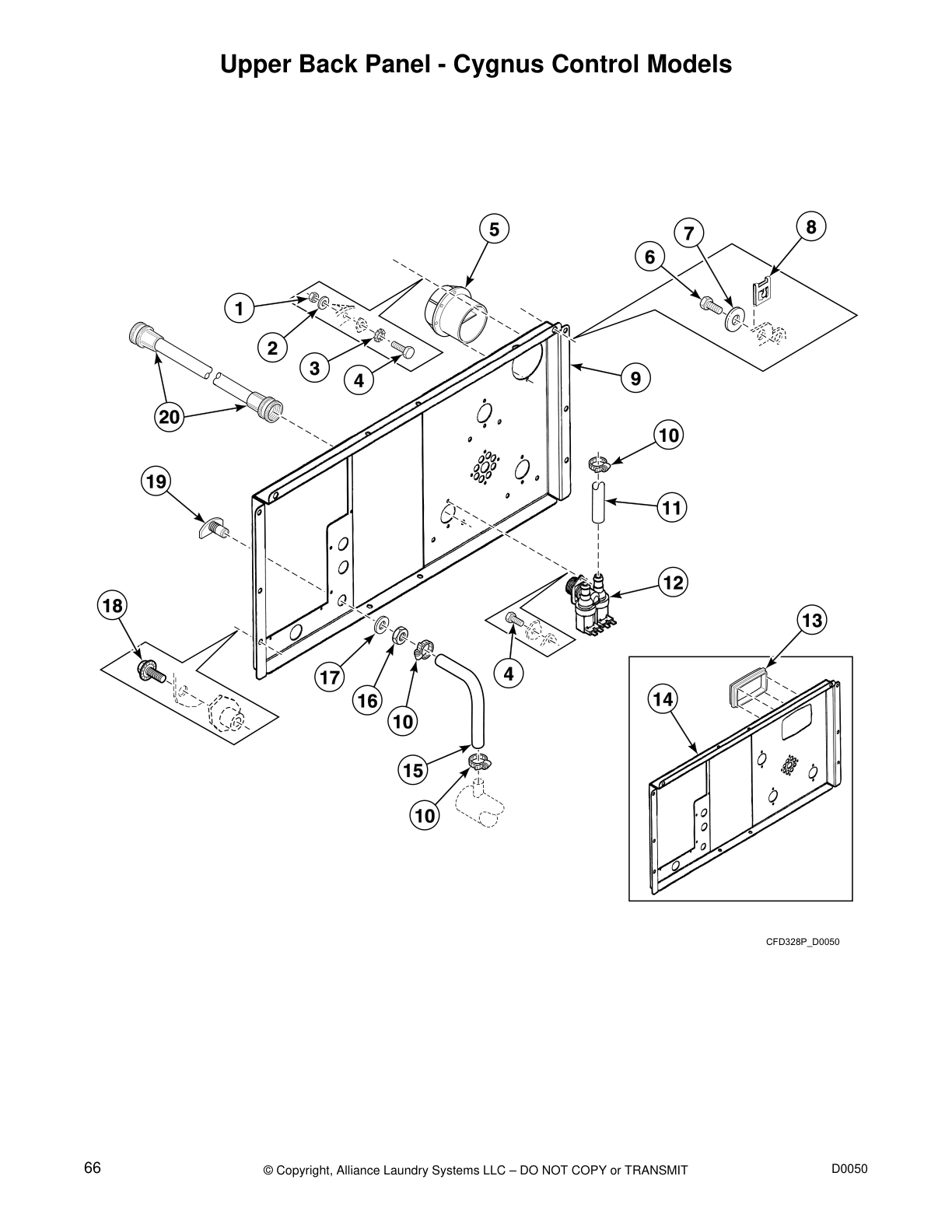

Upper Back Panel - Cygnus Control Models

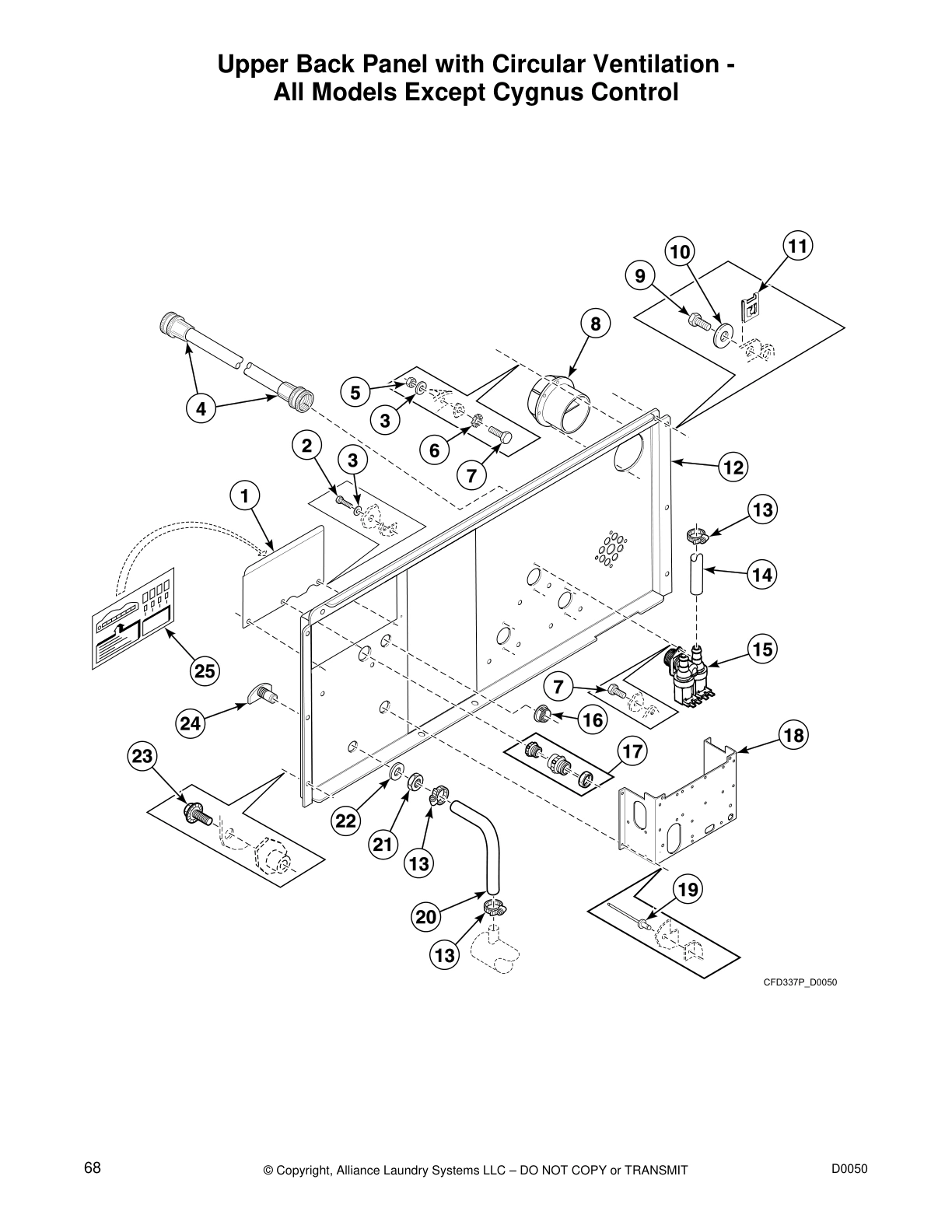

Upper Back Panel with Circular Ventilation -
All Models Except Cygnus Control

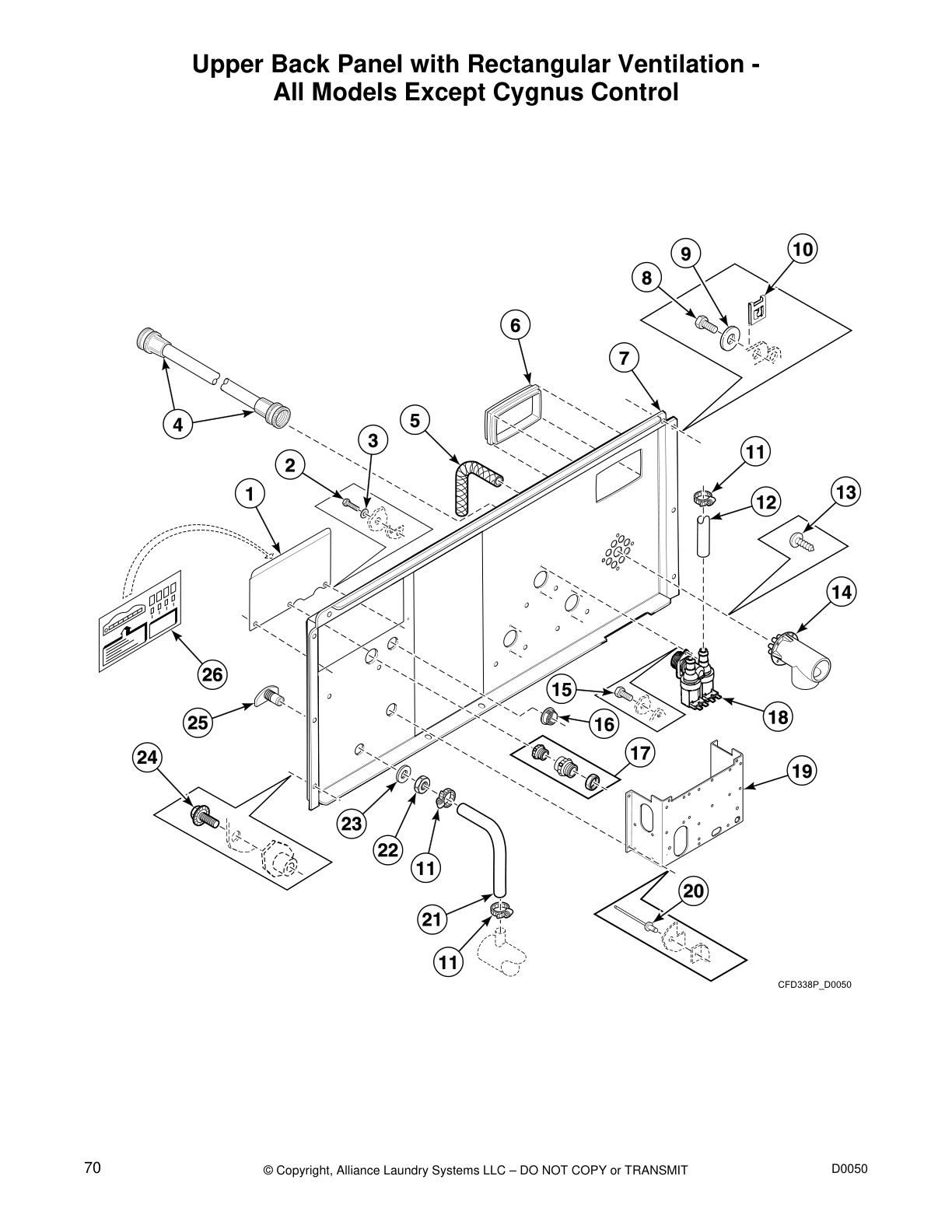

Upper Back Panel with Rectangular Ventilation -
All Models Except Cygnus Control

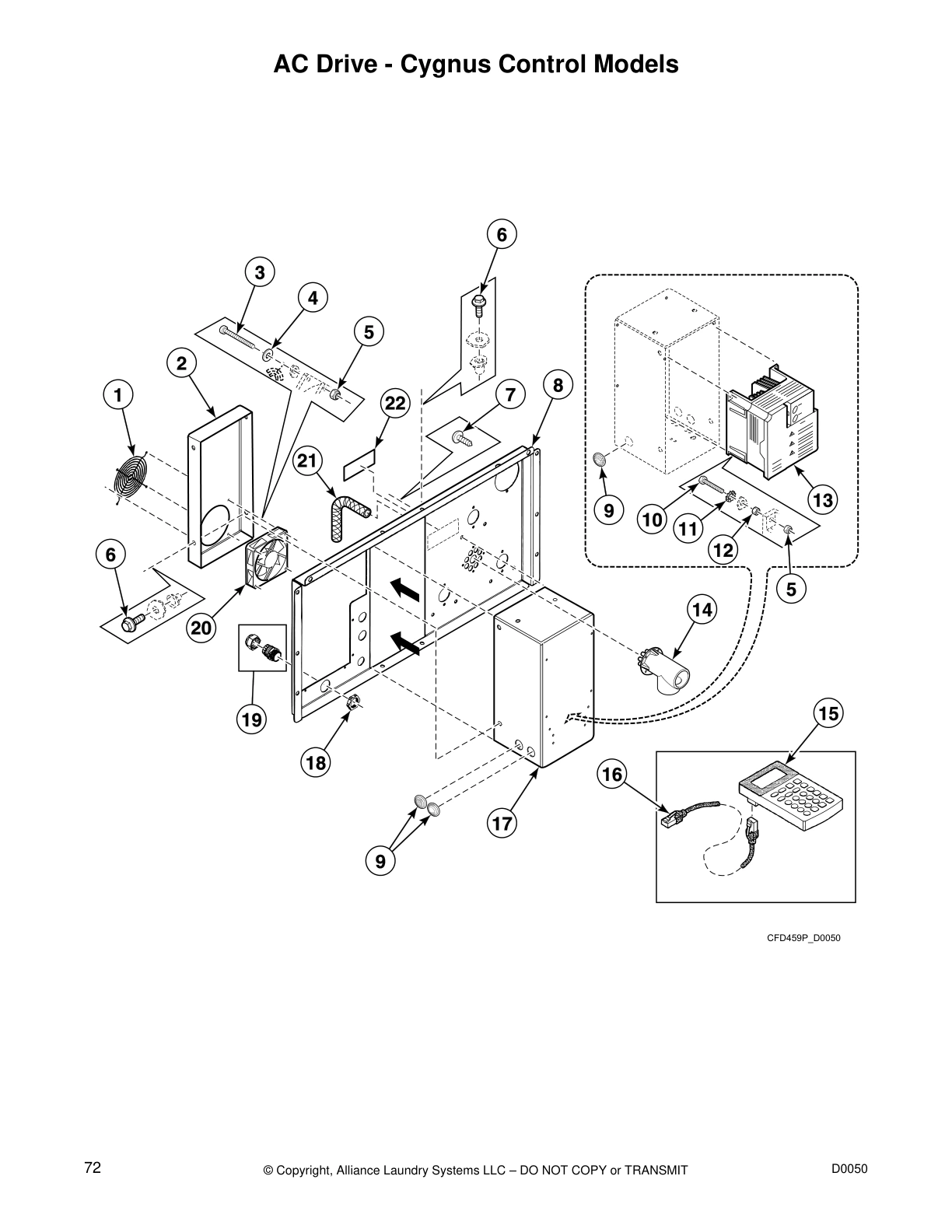

AC Drive - Cygnus Control Models

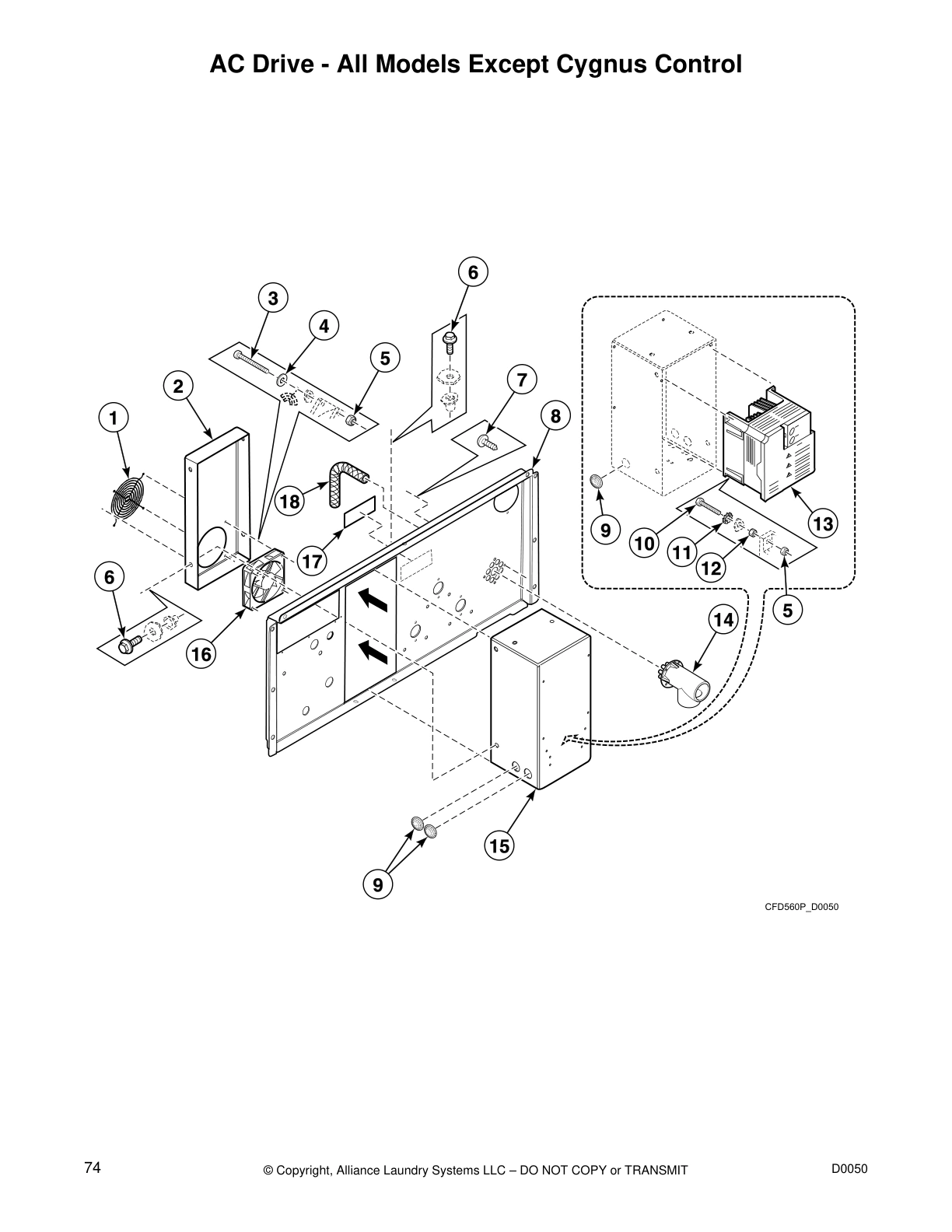

AC Drive - All Models Except Cygnus Control
Main Switch and Noise Filter

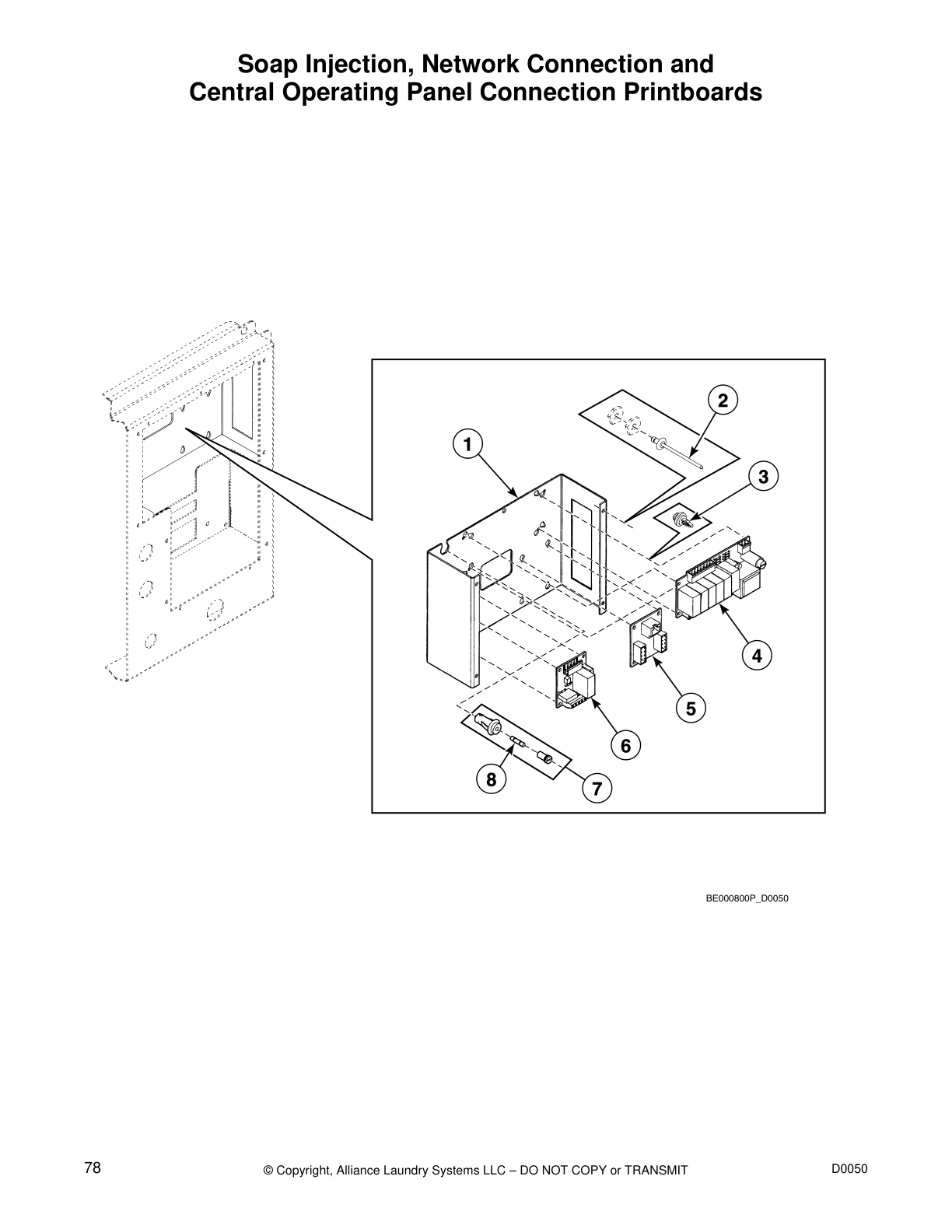

Soap Injection, Network Connection and
Central Operating Panel Connection Printboards

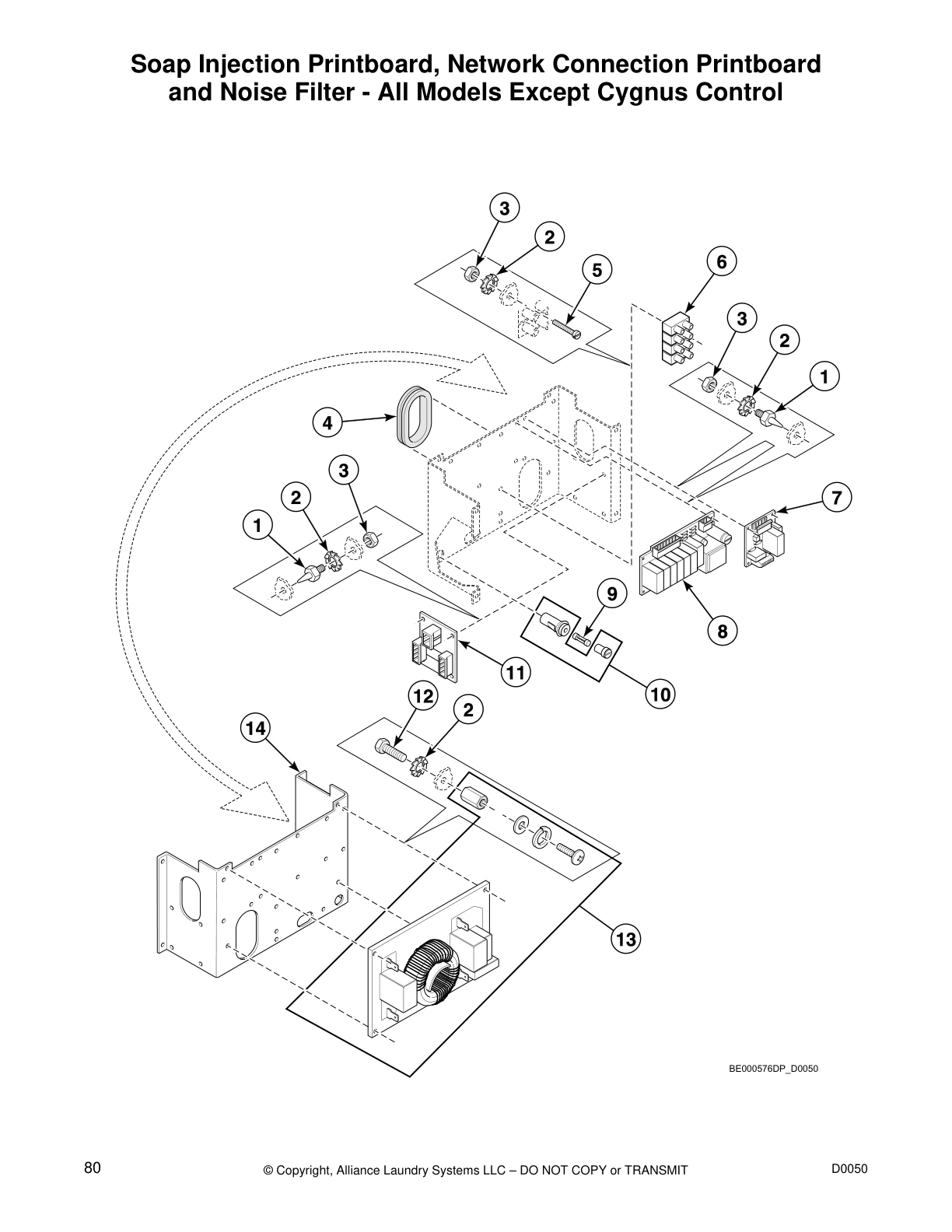

Soap Injection Printboard, Network Connection Printboard
and Noise Filter - All Models Except Cygnus Control

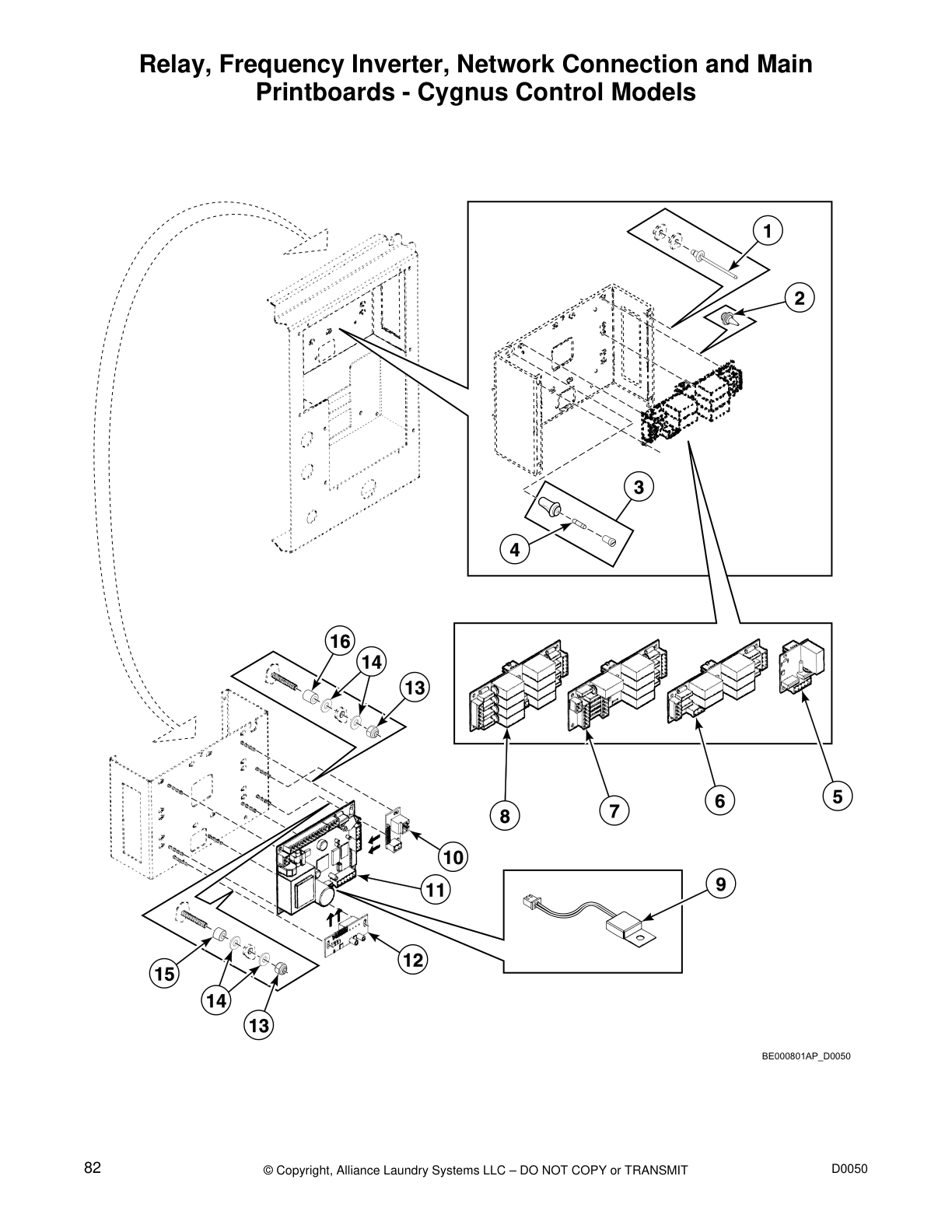

Relay, Frequency Inverter, Network Connection and Main
Printboards - Cygnus Control Models

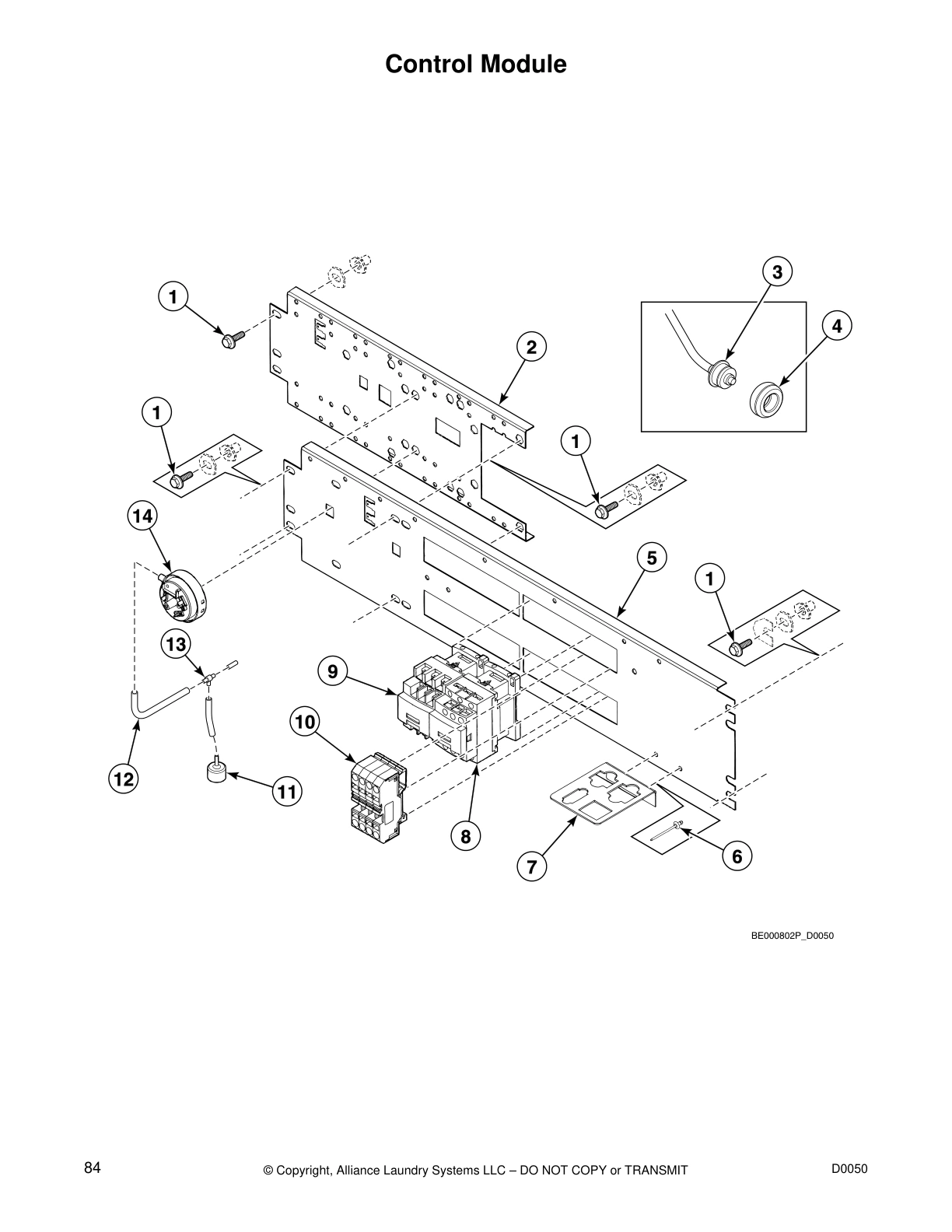

Control Module

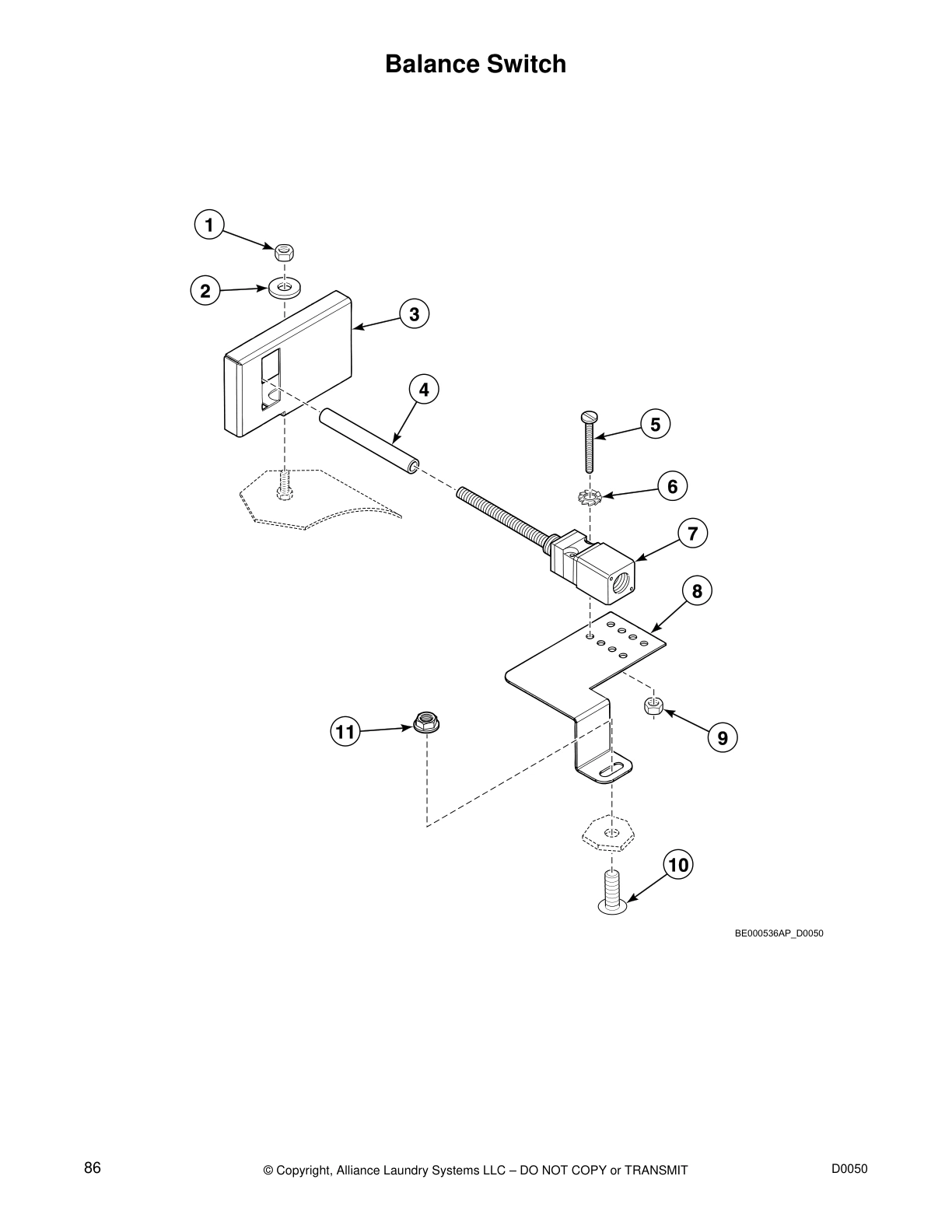

Balance Switch

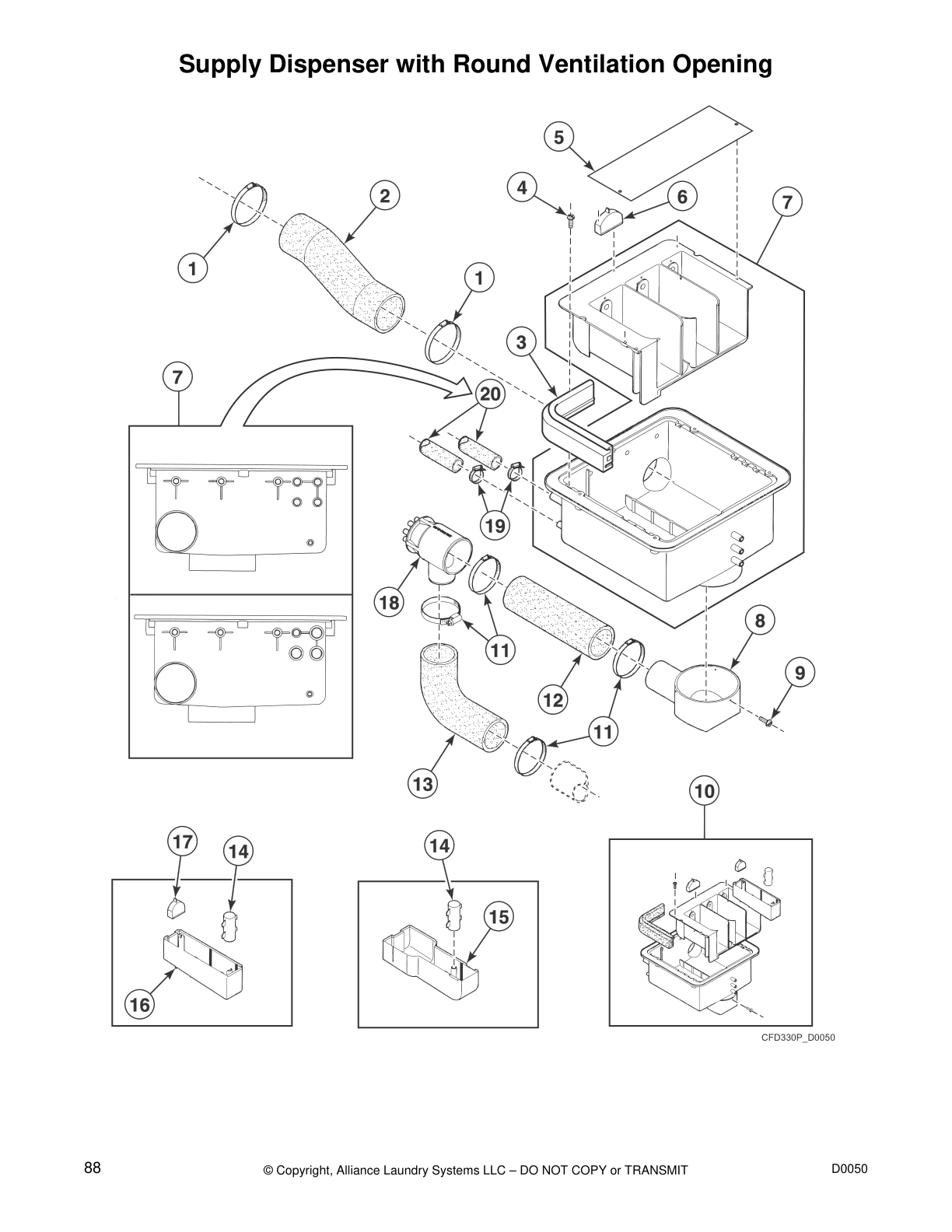

Supply Dispenser with Round Ventilation Opening

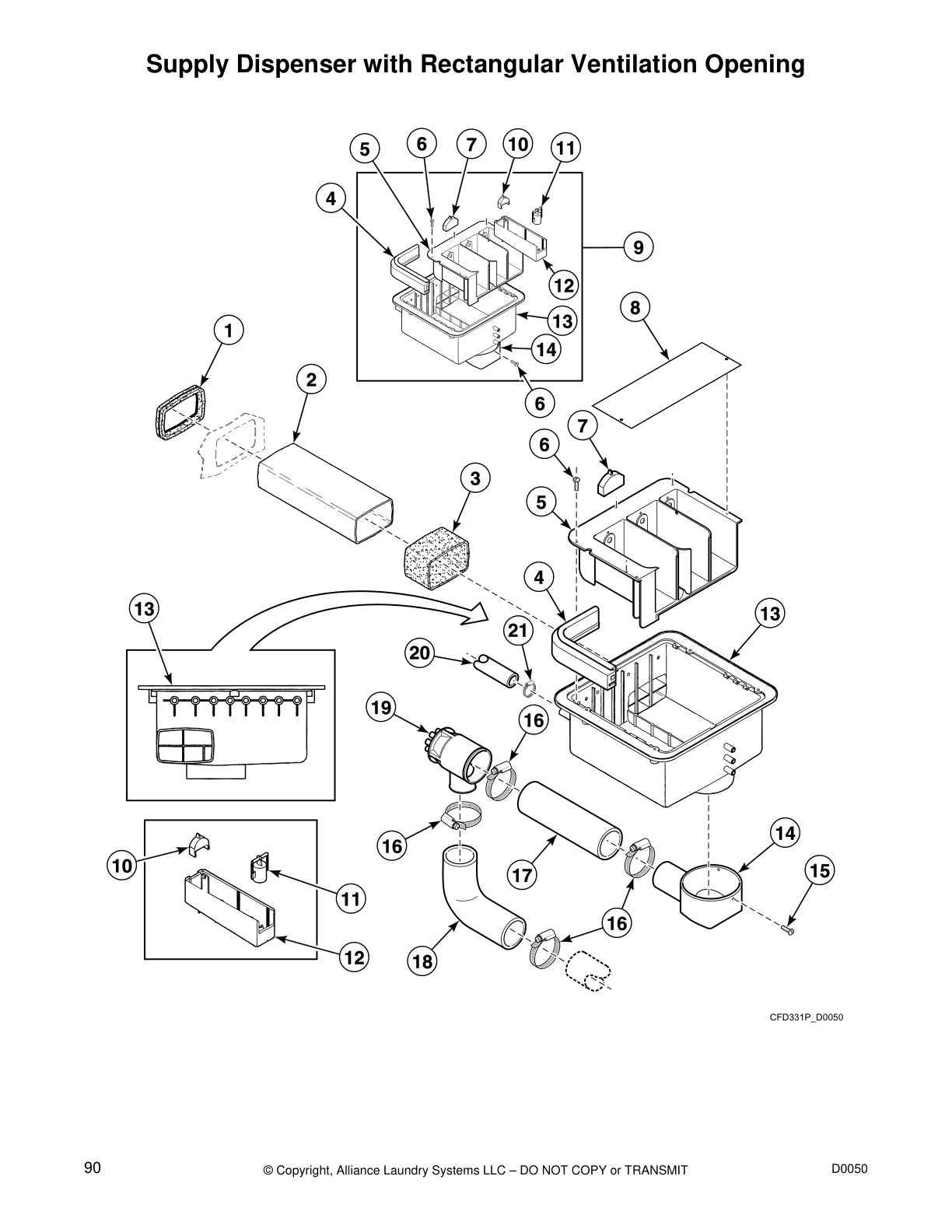

Supply Dispenser with Rectangular Ventilation Opening

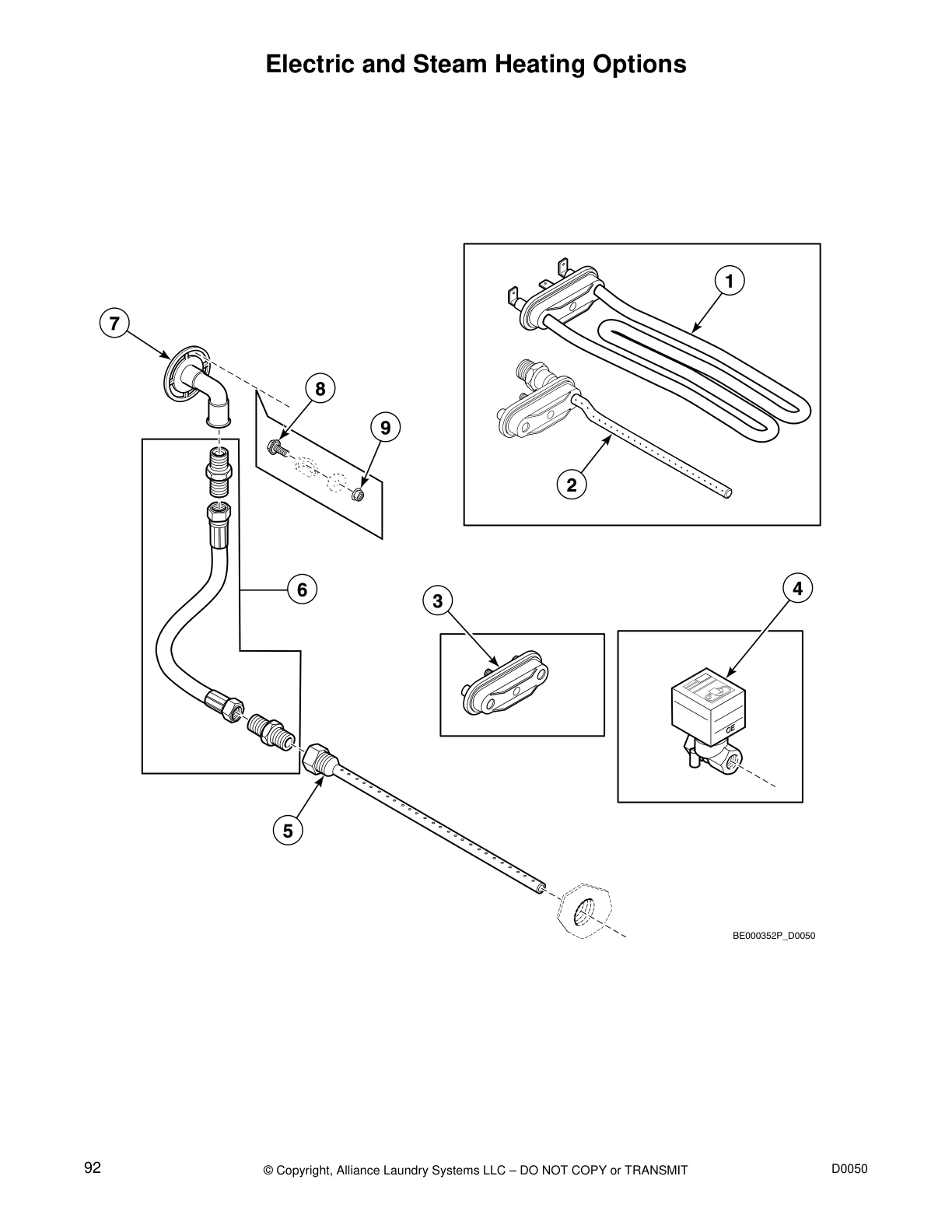

Electric and Steam Heating Options

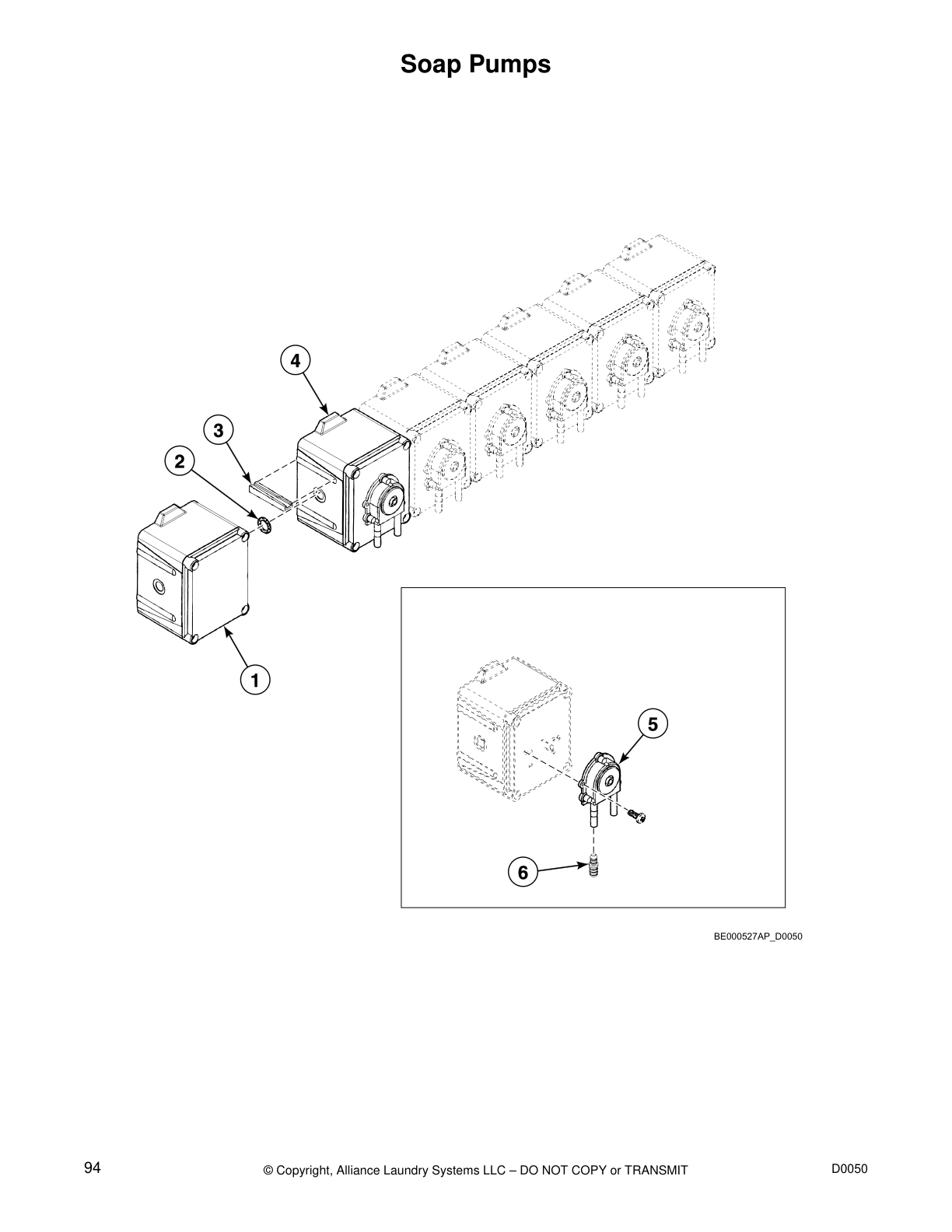

Soap Pumps

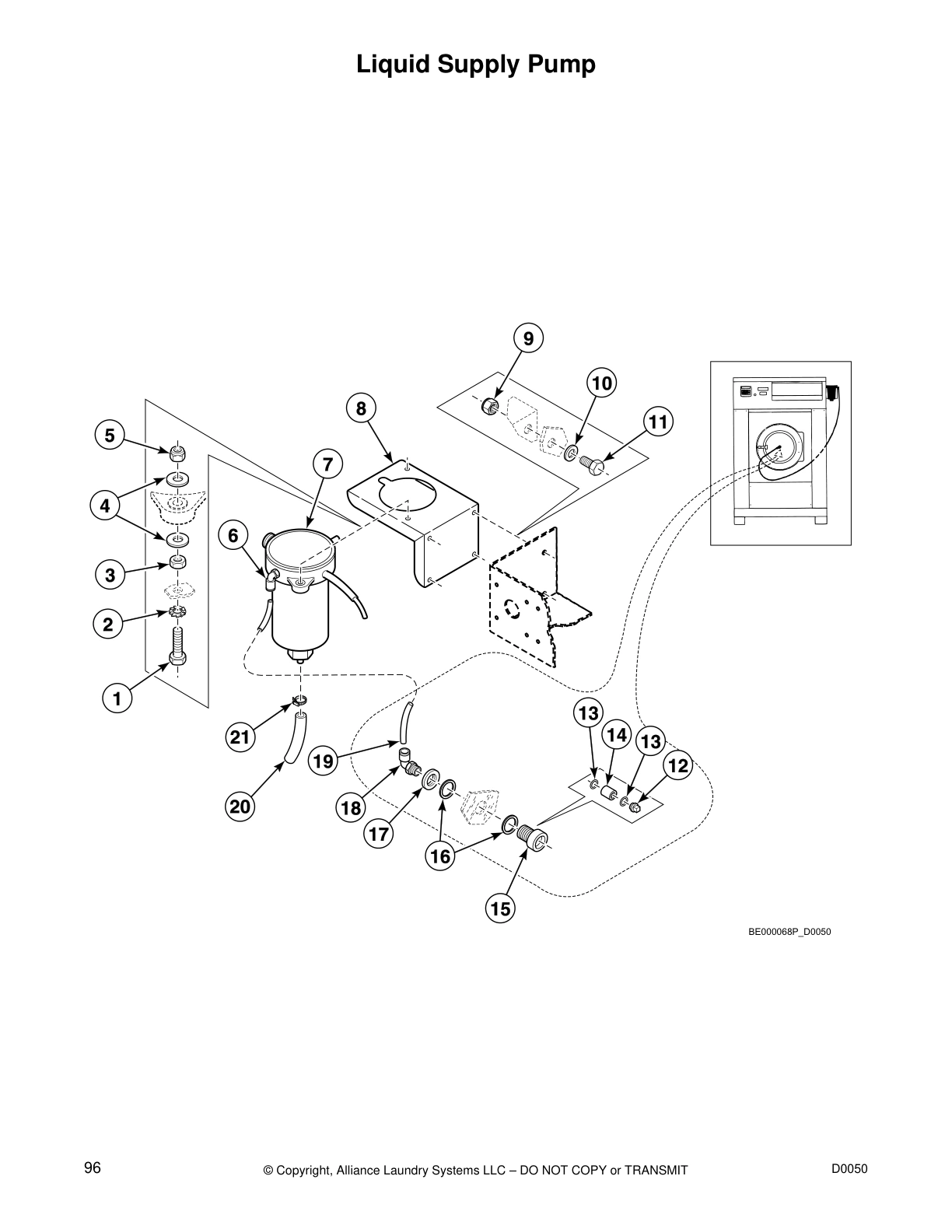

Liquid Supply Pump
Common parts from model Unimac UX33PVQA7 Washer
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
SPQ 211/00107/00 SPQ 211/00107/00 Contact Us For Availability
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Bolt SPQ 206/00037/00 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Nut SPQ 204/00003/00 Contact Us For Availability
1
Tilt Detector Plate SPQ 111/01854/00 Contact Us For Availability
1
Bearing SPQ F100134 Contact Us For Availability
1
Drum SPQ 136/00021/00 Contact Us For Availability
1
Interlock Lever SPQ 217/00052/04 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Graphic Overlay SPQ 229/00283/00 Contact Us For Availability
1
Top Panel SPQ 111/22741/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Electrical Connection Plate SPQ 111/00094/10 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
1
Bolt SPQ 205/00103/00 Contact Us For Availability
2
Washer SPQ 201/00005/00 Contact Us For Availability
2
Bolt SPQ 206/00052/00 Contact Us For Availability
2
Tilt Detector Plate SPQ 201/00010/00 Contact Us For Availability
2
Nut SPQ 203/00004/00 Contact Us For Availability
2
Bearing Housing SPQ 212/00037/00 Contact Us For Availability
2
Main Control SPQ 800922 Contact Us For Availability
2
Soap Dispenser Cover Hinge Rod SPQ 111/50004/00 Contact Us For Availability
2
Washer SPQ 206/00014/00 Contact Us For Availability
2
Filter SPQ 227/00180/00 Contact Us For Availability
2
Standoff SPQ 211/00146/00 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 223/00107/00 Contact Us For Availability
2
Water Hose SPQ 223/00229/00 Contact Us For Availability
2
Steam Injector SPQ 209/00562/20 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 204/00111/00 Contact Us For Availability
3
Screw SPQ 203/00001/00 Contact Us For Availability
3
Shock Absorber SPQ F250500 Contact Us For Availability
3
Bolt SPQ 204/00112/00 Contact Us For Availability
3
Basket Kit SPQ B12380401 Contact Us For Availability
3
Pulley SPQ 185/00086/00 Contact Us For Availability
3
Bolt SPQ 118/00125/00 Contact Us For Availability
3
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Insulating Sticker SPQ 800921 Contact Us For Availability
3
SPQ F200166 SPQ F200166 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Washer SPQ 227/00179/00 Contact Us For Availability
3
Fuse SPQ 209/00468/00 Contact Us For Availability
3
Electrical Component Mounting Plate SPQ 209/00027/10 Contact Us For Availability
3
Out-of-Balance Switch Boot SPQ 111/00108/01 Contact Us For Availability
3
Soap Spray Nozzle SPQ 223/00245/00 Contact Us For Availability
3
Heating Element Plug SPQ 209/00564/10 Contact Us For Availability
4
SPQ 206/00053/00 SPQ 206/00053/00 Contact Us For Availability
4
Separator SPQ 224/00054/00 Contact Us For Availability
4
Suspension Spring SPQ 247/00010/01 Contact Us For Availability
4
Bolt SPQ B12328701 Contact Us For Availability
4
SPQ 202/00101/00 SPQ 202/00101/00 Contact Us For Availability
4
Tolerance Ring SPQ B12545901 Contact Us For Availability
4
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
4
Screw SPQ 204/00008/00 Contact Us For Availability
4
Door Hinge Plate Assembly SPQ 217/00021/00 Contact Us For Availability
4
SPQ F200164 SPQ F200164 Contact Us For Availability
4
Inverter Box Cover SPQ 111/01174/01 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
Fuse Holder SPQ 209/00202/01 Contact Us For Availability
4
Thermostat SPQ 111/10003/40 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
4
Soap Box Assembly Plate SPQ 223/00109/00 Contact Us For Availability
5
Tub Front Panel Clip SPQ B12329601 Contact Us For Availability
5
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
5
SPQ 201/00012/00 SPQ 201/00012/00 Contact Us For Availability
5
Bearing Housing SPQ 206/00057/00 Contact Us For Availability
5
Washer SPQ 201/00004/00 Contact Us For Availability
5
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
5
Bolt SPQ 223/00103/03 Contact Us For Availability
5
Rivet SPQ 202/00004/00 Contact Us For Availability
5
Tilt Switch Bracket SPQ 207/00018/00 Contact Us For Availability
5
Soap Dispenser SPQ B12347501 Contact Us For Availability
5
Steam Inlet SPQ 209/00581/10 Contact Us For Availability
5
Liquid Soap Dosing Pu SPQ 209/00554/05 Contact Us For Availability
6
SPQ 204/00016/00 SPQ 204/00016/00 Contact Us For Availability
6
SPQ 206/00060/00 SPQ 206/00060/00 Contact Us For Availability
6
SPQ B12328601 SPQ B12328601 Contact Us For Availability
6
SPQ 150/10118/00 SPQ 150/10118/00 Contact Us For Availability
6
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
6
Pulley SPQ 215/00004/00 Contact Us For Availability
6
Bolt SPQ 206/00006/00 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
Nut SPQ 207/00125/00 Contact Us For Availability
6
Screw SPQ 204/00114/00 Contact Us For Availability
6
Rivet SPQ 225/10004/00 Contact Us For Availability
6
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
6
SPQ 223/00181/00 SPQ 223/00181/00 Contact Us For Availability
7
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
7
SPQ B12328501 SPQ B12328501 Contact Us For Availability
7
SPQ 201/00201/00 SPQ 201/00201/00 Contact Us For Availability
7
Washer SPQ 255/00117/00 Contact Us For Availability
7
Screw SPQ 206/00056/00 Contact Us For Availability
7
SPQ 206/00113/00 SPQ 206/00113/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
Support Connector SPQ 111/10003/30 Contact Us For Availability
7
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
7
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
7
Bolt SPQ 118/00105/01 Contact Us For Availability
8
SPQ 204/00019/00 SPQ 204/00019/00 Contact Us For Availability
8
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
8
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
8
Side Panel Gasket SPQ 208/00104/00 Contact Us For Availability
8
SPQ 111/01833/00 SPQ 111/01833/00 Contact Us For Availability
8
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
8
Grommet SPQ 208/00130/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
SPQ 111/00107/01 SPQ 111/00107/01 Contact Us For Availability
8
SPQ 223/00222/00 SPQ 223/00222/00 Contact Us For Availability
8
Nut SPQ F360202 Contact Us For Availability
9
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
9
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
9
SPQ 111/00969/00 SPQ 111/00969/00 Contact Us For Availability
9
SPQ 204/00007/00 SPQ 204/00007/00 Contact Us For Availability
9
Parameter Unit Assembly SPQ 111/01822/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
Central Control Board SPQ 209/00058/00 Contact Us For Availability
9
SPQ 119/00082/00 SPQ 119/00082/00 Contact Us For Availability
10
Washer SPQ 201/00007/00 Contact Us For Availability
10
Washer SPQ 201/00202/00 Contact Us For Availability
10
Screw SPQ 208/00120/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 118/00124/00 Contact Us For Availability
10
Control Panel Decal SPQ 225/00425/00 Contact Us For Availability
10
Nut SPQ 208/00025/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Terminal Block SPQ 209/01625/00 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
10
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
11
Coupling SPQ 150/00210/00 Contact Us For Availability
11
O-Ring SPQ 205/00107/00 Contact Us For Availability
11
O-Ring SPQ 217/00002/00 Contact Us For Availability
11
Seal Plate Assembly SPQ B12333701 Contact Us For Availability
11
Washer SPQ 203/00010/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Domed Label SPQ 225/00424/00 Contact Us For Availability
11
Nut SPQ 208/00002/00 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
11
Siphon Break SPQ 223/00222/04 Contact Us For Availability
12
Screw SPQ 207/00112/00 Contact Us For Availability
12
Washer SPQ 202/00104/00 Contact Us For Availability
12
Fuse SPQ 800923 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Bolt SPQ 206/00027/00 Contact Us For Availability
12
Pressure Switch Cap SPQ 209/00619/01 Contact Us For Availability
12
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
13
Nut SPQ 204/00116/00 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Drive SPQ F8421101 Contact Us For Availability
13
Noise Filter SPQ 227/00242/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00035/02 Contact Us For Availability
13
Outer and Inner Box Kit SPQ 223/00222/60 Contact Us For Availability
13
Soap Injector Orifice Nipple SPQ 223/00177/00 Contact Us For Availability
14
Tub Front Panel SPQ 150/10113/00 Contact Us For Availability
14
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
14
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
14
Right Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Inverter Kit SPQ F8421001 Contact Us For Availability
14
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
14
Liquid Soap Dispenser Insert SPQ 223/00102/04 Contact Us For Availability
14
Soap Injector Coupling SPQ 211/00126/00 Contact Us For Availability
15
Tub Front Gasket SPQ 185/00049/00 Contact Us For Availability
15
Caddy Bracket SPQ 224/00052/00 Contact Us For Availability
15
Lock Shaft SPQ 207/00009/00 Contact Us For Availability
15
Screw SPQ B12350903 Contact Us For Availability
15
Rinse Insert SPQ 223/00102/08 Contact Us For Availability
16
Tub Front Ring Clamp SPQ 223/00242/00 Contact Us For Availability
16
Screw SPQ 224/00051/00 Contact Us For Availability
16
Seal Cover SPQ 219/00001/00 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Plug SPQ 211/00091/00 Contact Us For Availability
16
Hose Clamp SPQ 223/00013/00 Contact Us For Availability
16
Softener Spray Nozzle SPQ 223/00102/03 Contact Us For Availability
16
Soap Injector Hose SPQ 223/00176/00 Contact Us For Availability
17
Nut SPQ 219/00007/00 Contact Us For Availability
17
Washer SPQ 206/00055/00 Contact Us For Availability
17
Door Solenoid Assembly SPQ 207/00102/00 Contact Us For Availability
17
Left Front Panel SPQ 208/00121/00 Contact Us For Availability
17
Inverter Drive Box SPQ 111/01174/00 Contact Us For Availability
17
Soap Dispenser Hose SPQ 223/00261/00 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00102/05 Contact Us For Availability
18
Nut SPQ 201/00013/00 Contact Us For Availability
18
Interlock Coil Spring SPQ 217/00017/03 Contact Us For Availability
18
Side Panel Gasket SPQ 208/00124/00 Contact Us For Availability
18
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
18
Siphon Break Hose SPQ B12310304 Contact Us For Availability
18
Pressure Hose SPQ 223/00182/00 Contact Us For Availability
19
Inverter Box Cover SPQ 271/35945/00 Contact Us For Availability
19
Fuse SPQ 209/00372/01 Contact Us For Availability
19
Outlet Pipe Plate Assembly SPQ 150/00003/10 Contact Us For Availability
19
Liquid Soap Manifold SPQ 223/00250/00 Contact Us For Availability
19
Cable Tie SPQ 223/00180/00 Contact Us For Availability
20
Crossbar SPQ 150/01803/00 Contact Us For Availability
20
Shrink Fit SPQ 223/00044/00 Contact Us For Availability
20
Soap Injector Elbow Coupling SPQ 223/00179/10 Contact Us For Availability
21
Lever Spring SPQ B12495102 Contact Us For Availability
21
SPQ 150/00003/20 SPQ 150/00003/20 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
21
Pressure Hose SPQ 204/00201/00 Contact Us For Availability
21
SPQ F140605 SPQ F140605 Contact Us For Availability
22
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
22
SPQ 246/00079/00 SPQ 246/00079/00 Contact Us For Availability
22
Vent Tube SPQ 201/00002/00 Contact Us For Availability
23
Washer SPQ 203/00007/00 Contact Us For Availability
23
Nut SPQ 224/00049/00 Contact Us For Availability
23
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
24
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
25
SPQ 204/00109/00 SPQ 204/00109/00 Contact Us For Availability
27
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
27
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
28
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
NI
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
NI
SPQ 203/00002/00 SPQ 203/00002/00 Contact Us For Availability
NI
SPQ 206/00005/00 SPQ 206/00005/00 Contact Us For Availability
NI
SPQ B12388303 SPQ B12388303 Contact Us For Availability
NI
SPQ 155/00162/00 SPQ 155/00162/00 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
Fuse SPQ 209/00438/50 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
NI
SPQ 118/01063/00 SPQ 118/01063/00 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
