Model Unimac UX165PVNU6 Washer – Common Parts & Diagrams

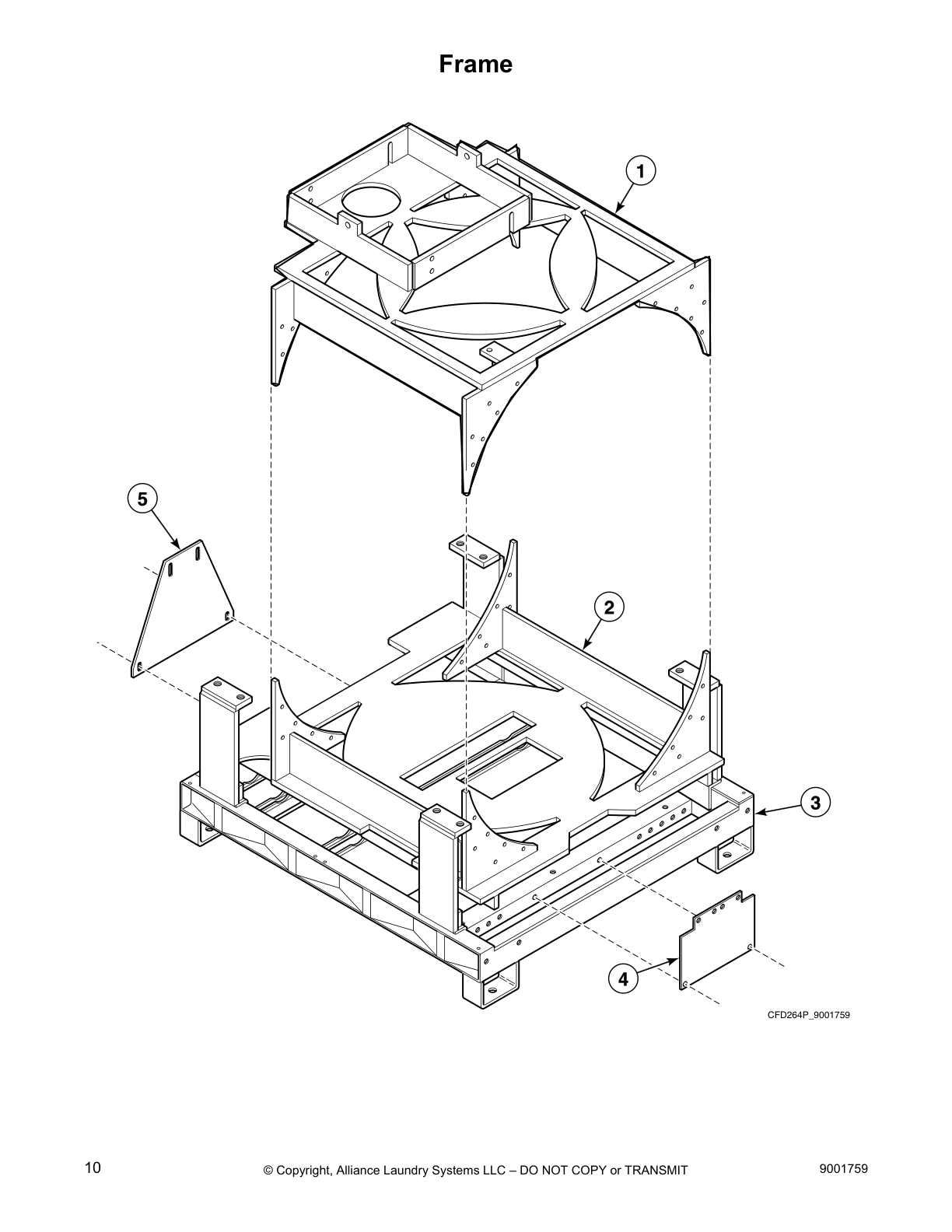

Frame

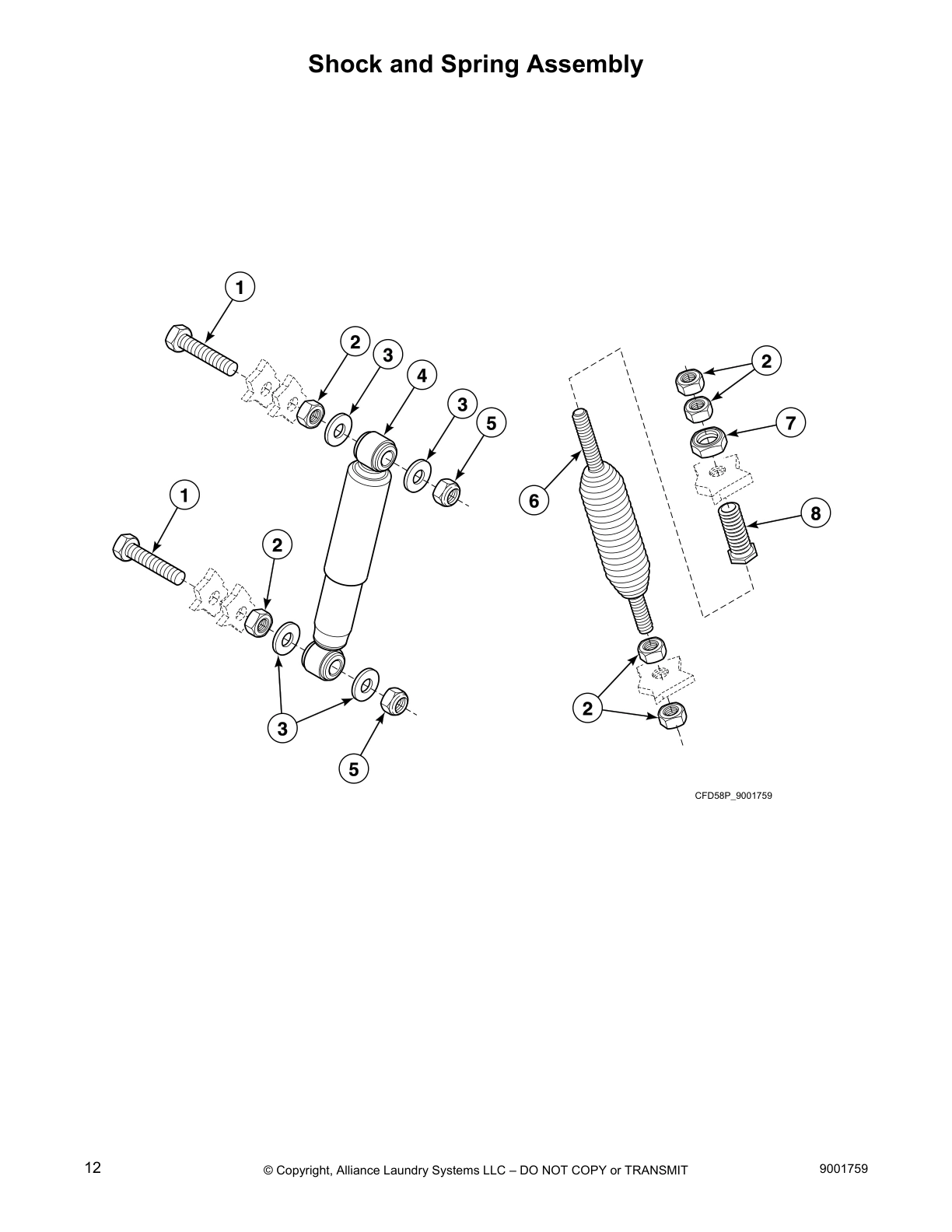

Shock and Spring Assembly

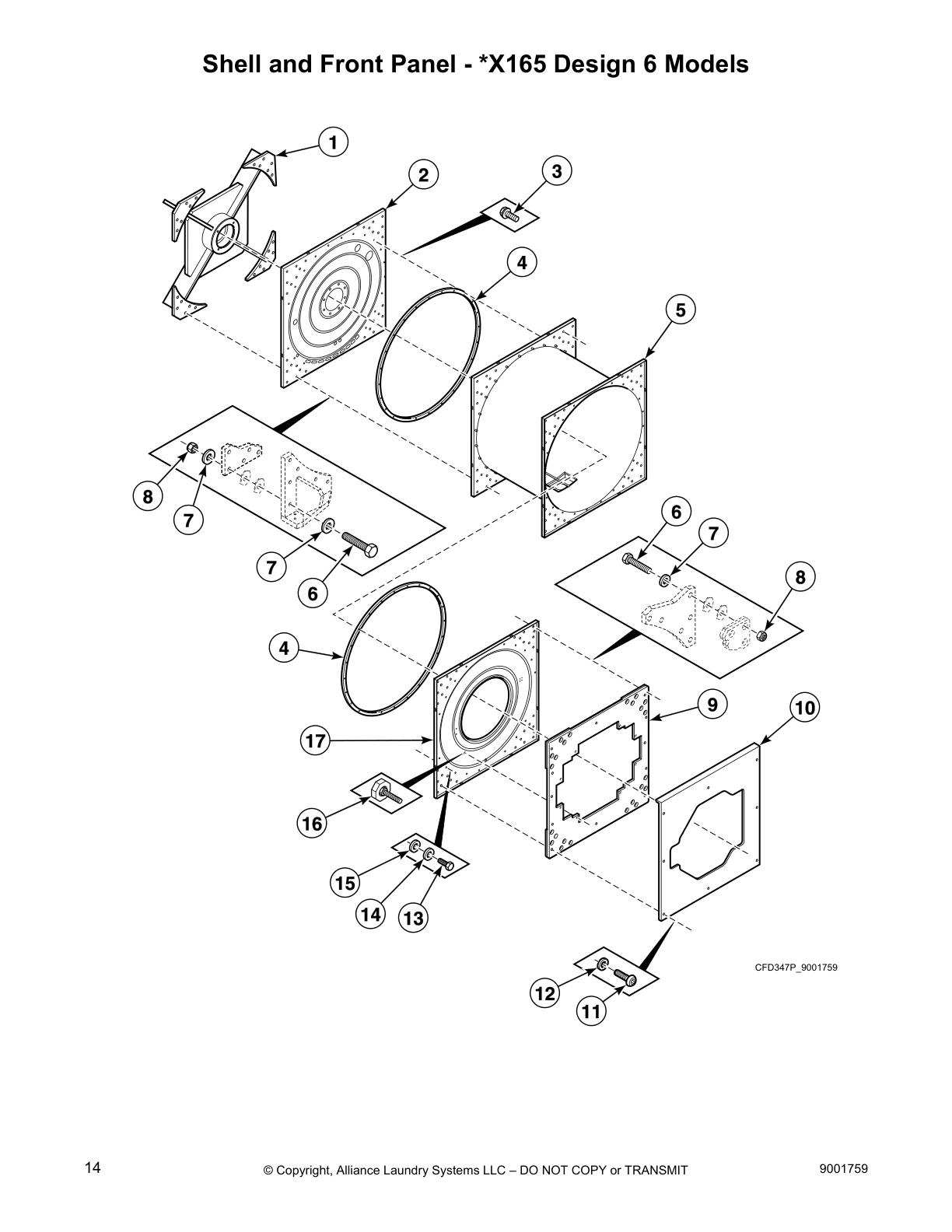

Shell and Front Panel - *X165 Design 6 Models

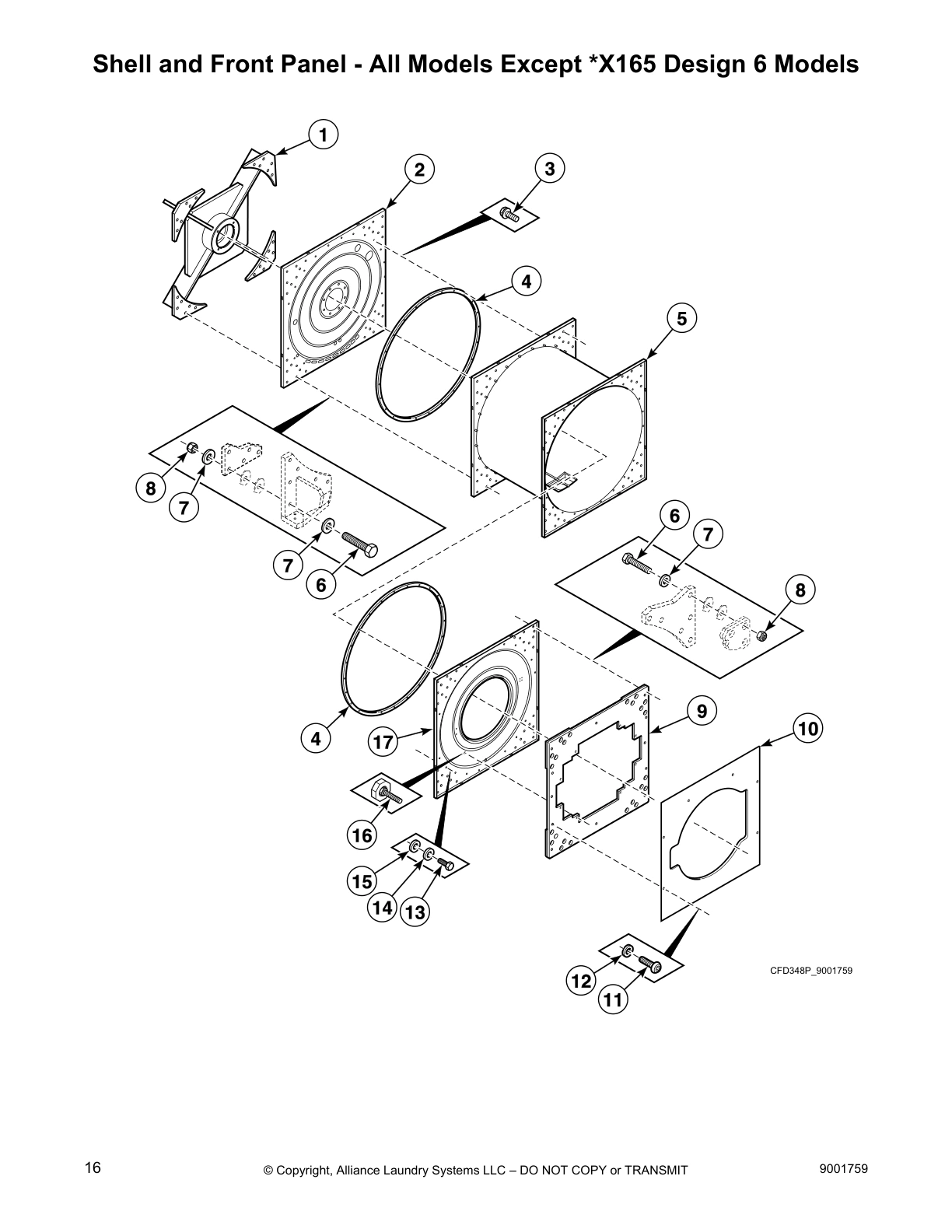

Shell and Front Panel - All Models Except *X165 Design 6 Models

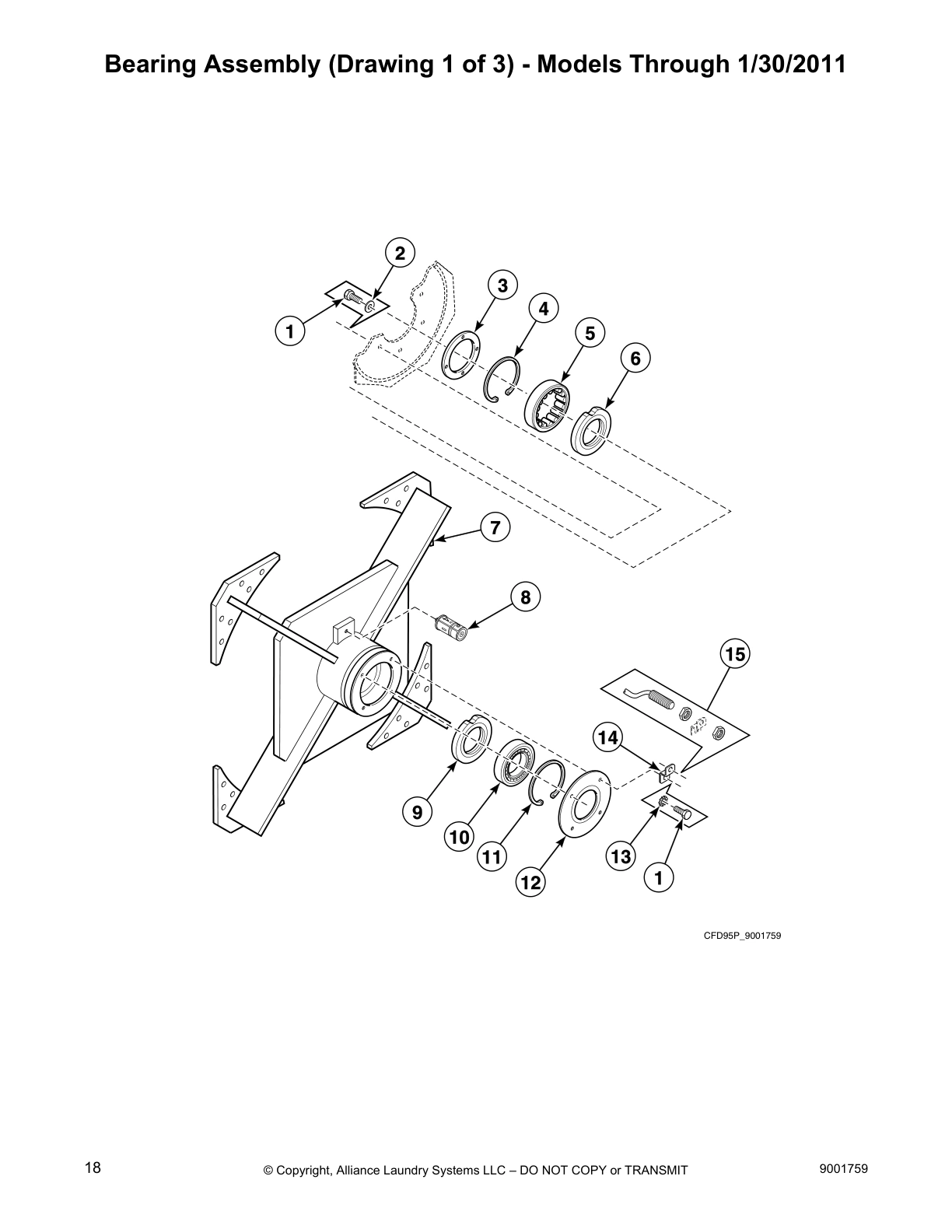

Bearing Assembly (Drawing 1 of 3) - Models Through 1/30/2011

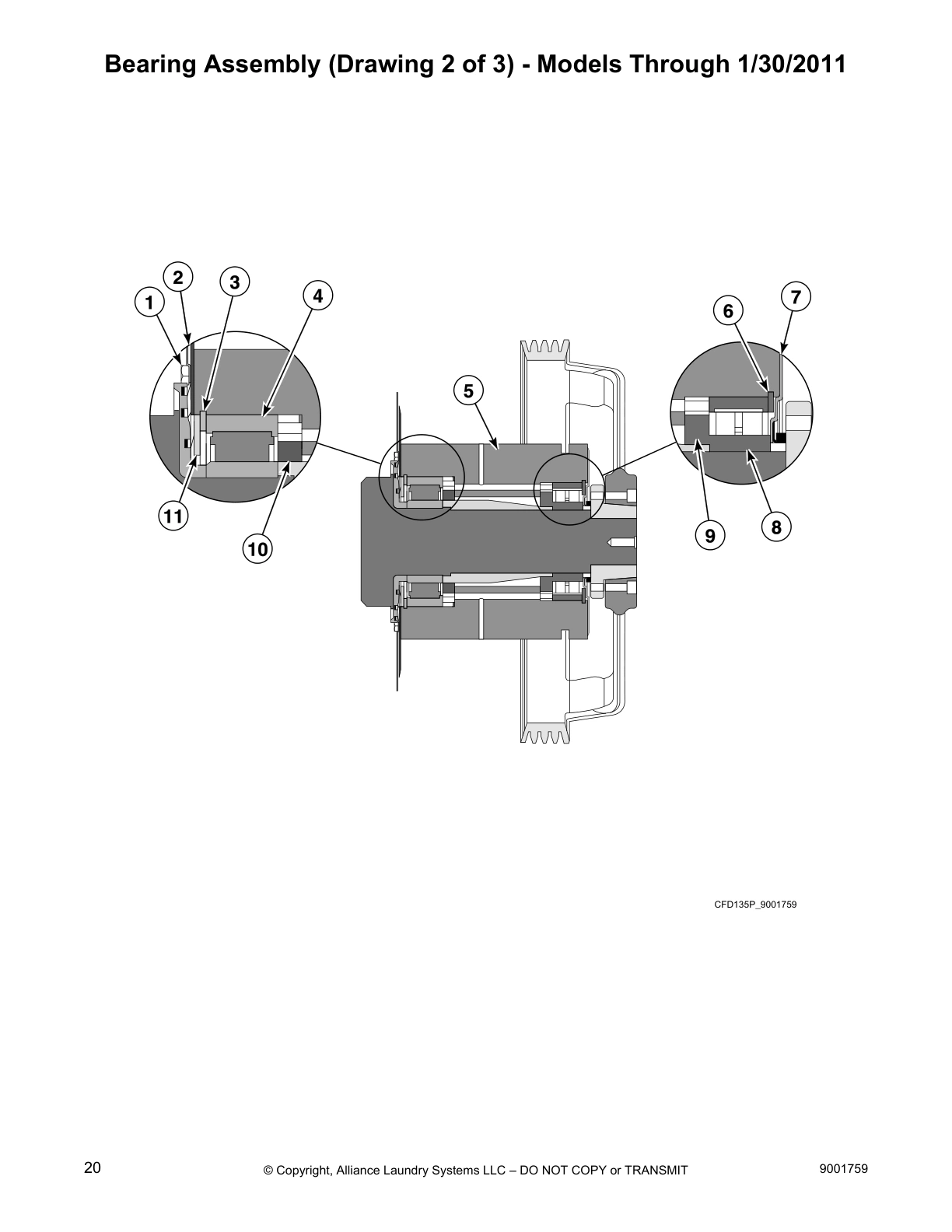

Bearing Assembly (Drawing 2 of 3) - Models Through 1/30/2011

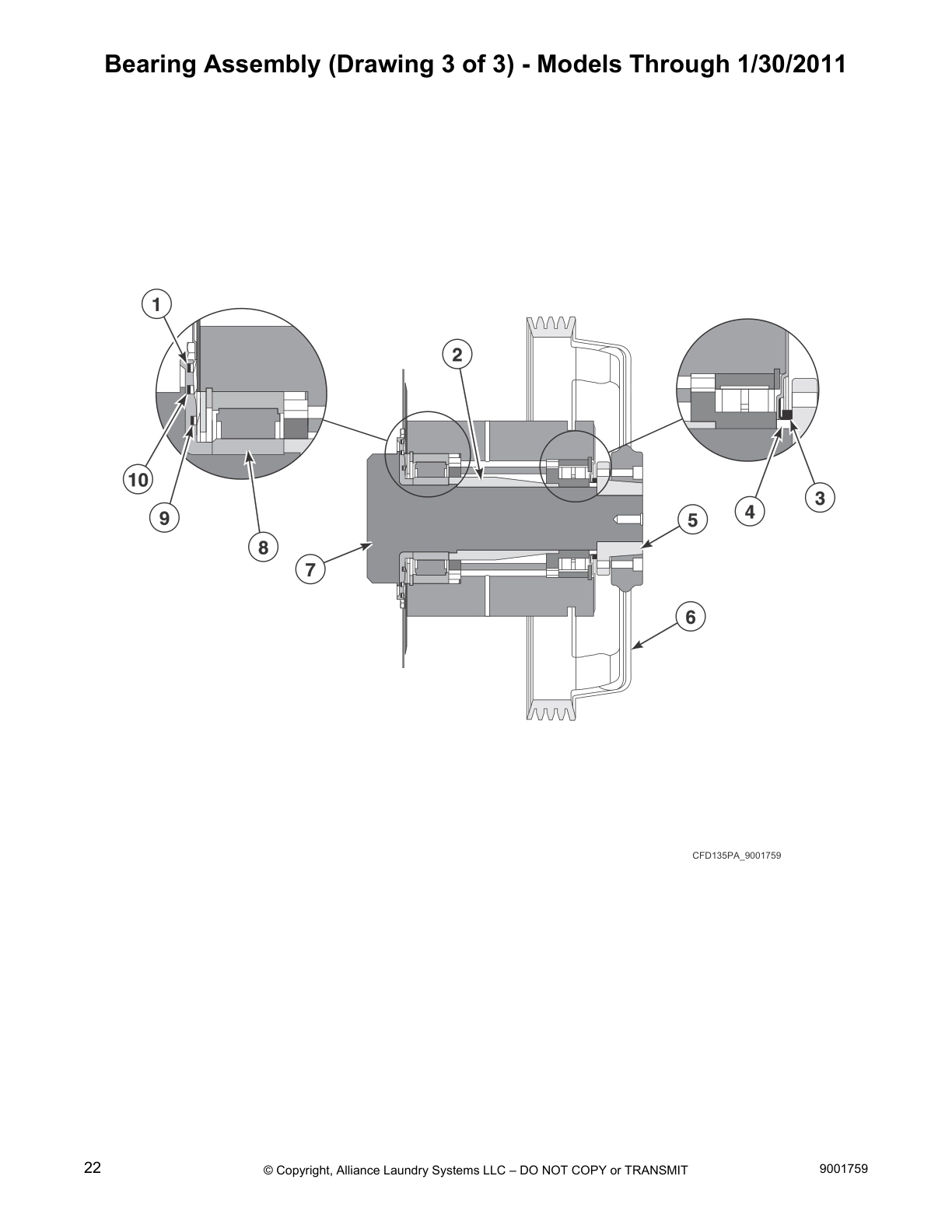

Bearing Assembly (Drawing 3 of 3) - Models Through 1/30/2011

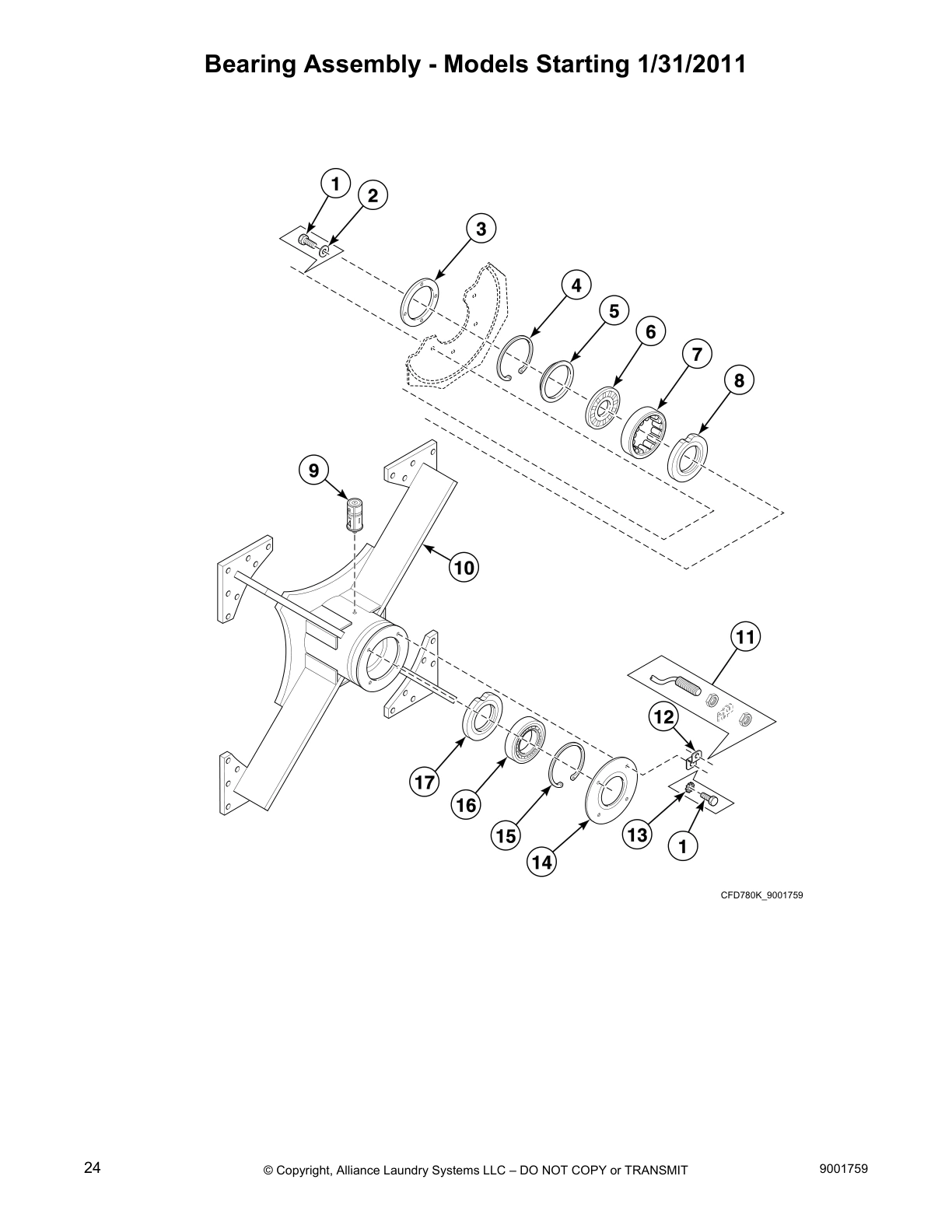

Bearing Assembly - Models Starting 1/31/2011

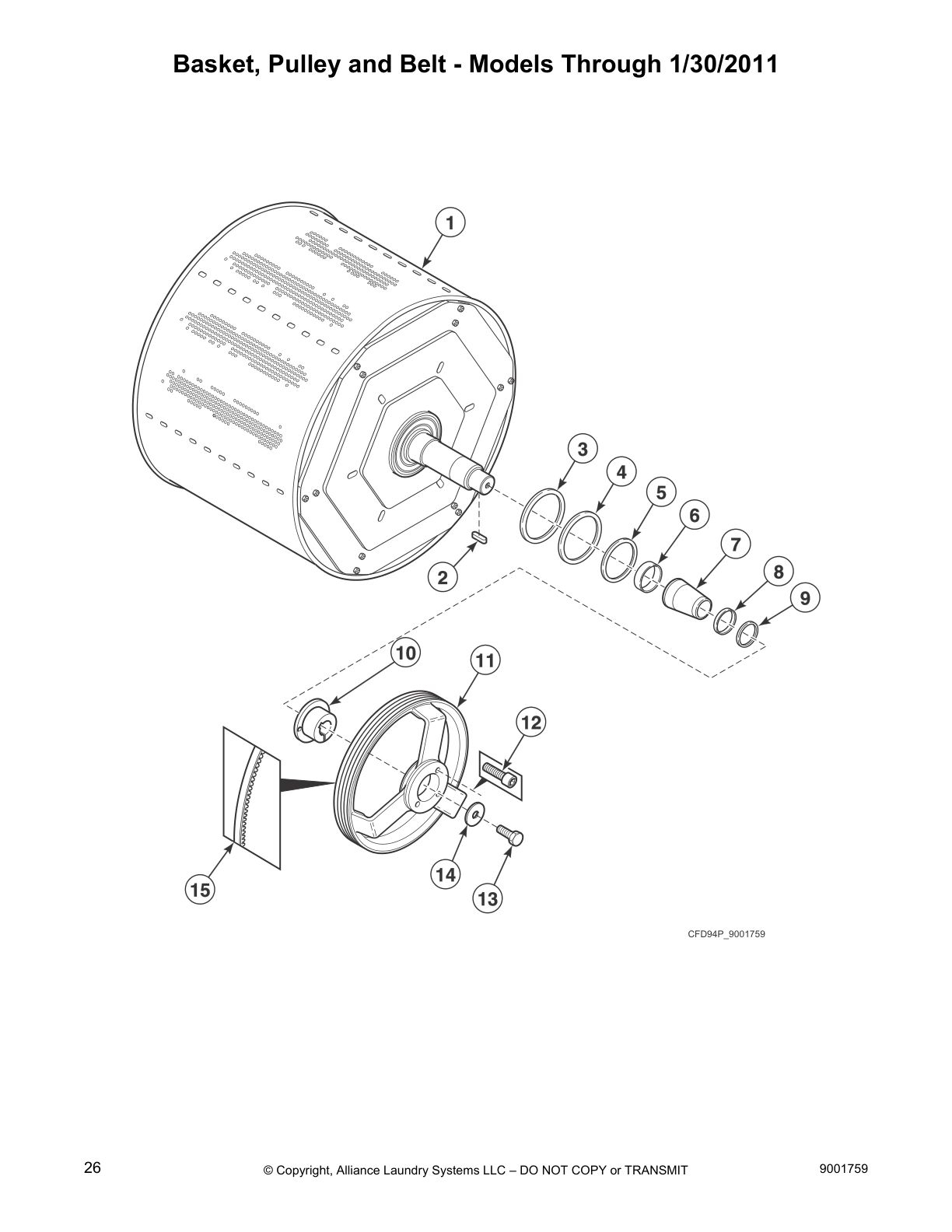

Basket, Pulley and Belt - Models Through 1/30/2011

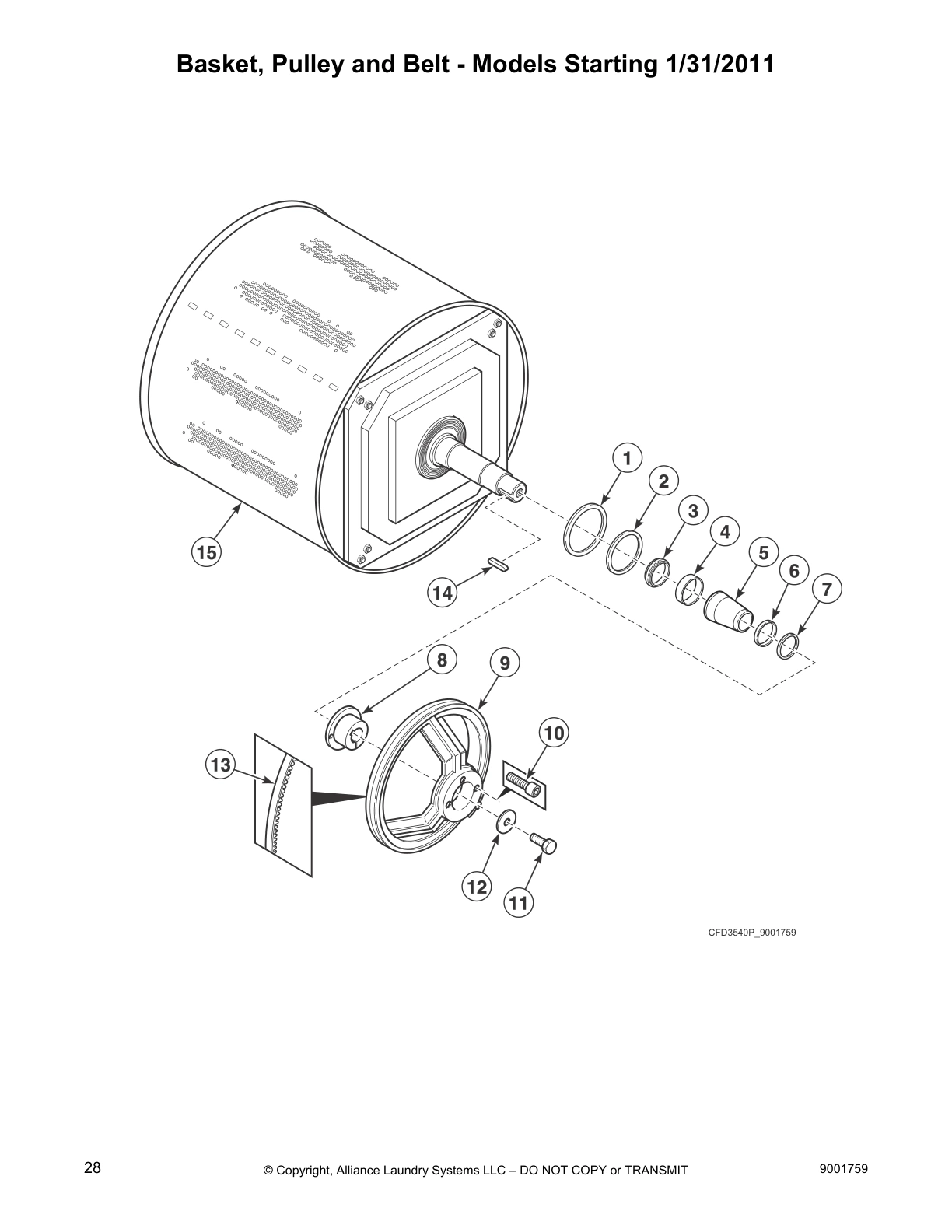

Basket, Pulley and Belt - Models Starting 1/31/2011

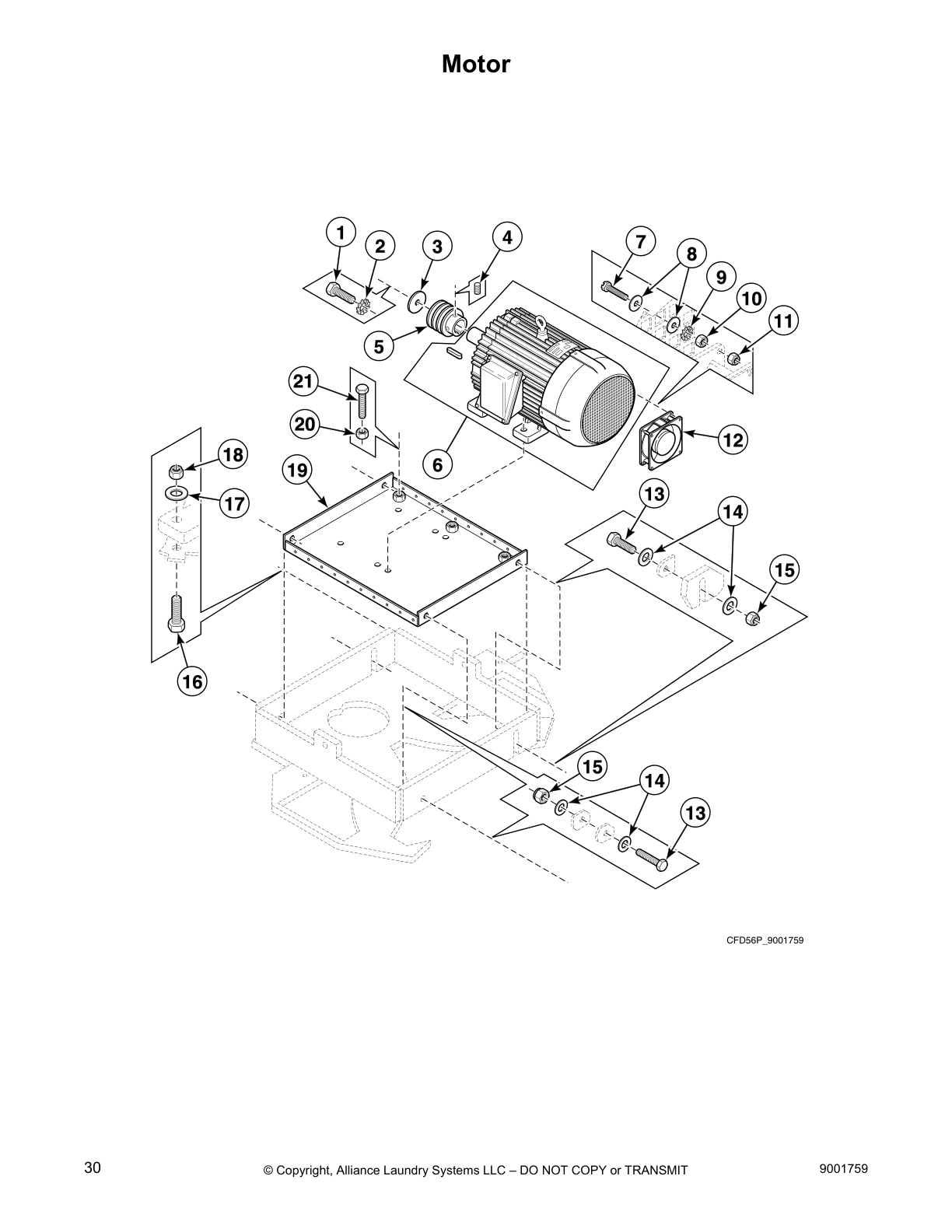

Motor

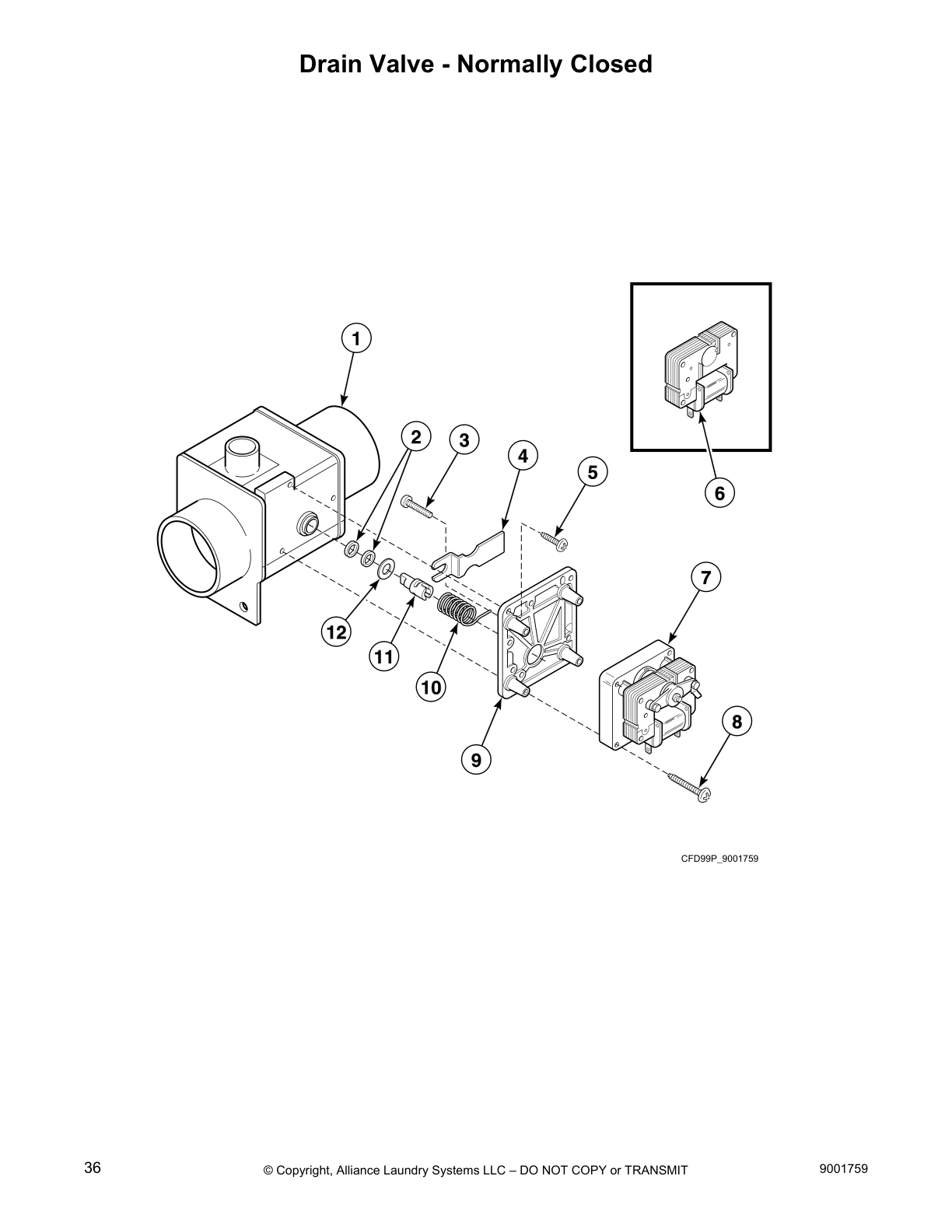

Drain Valve - Normally Closed

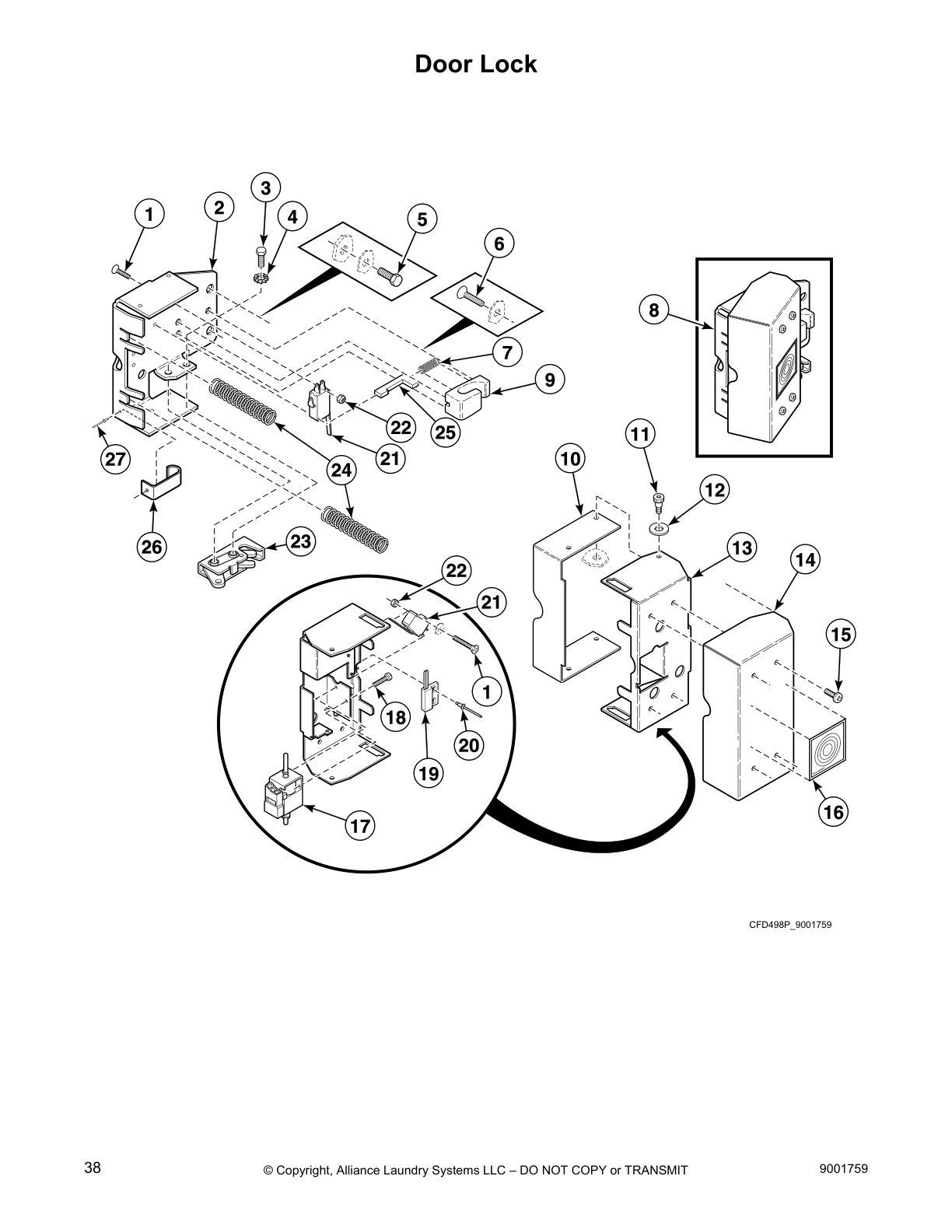

Door Lock

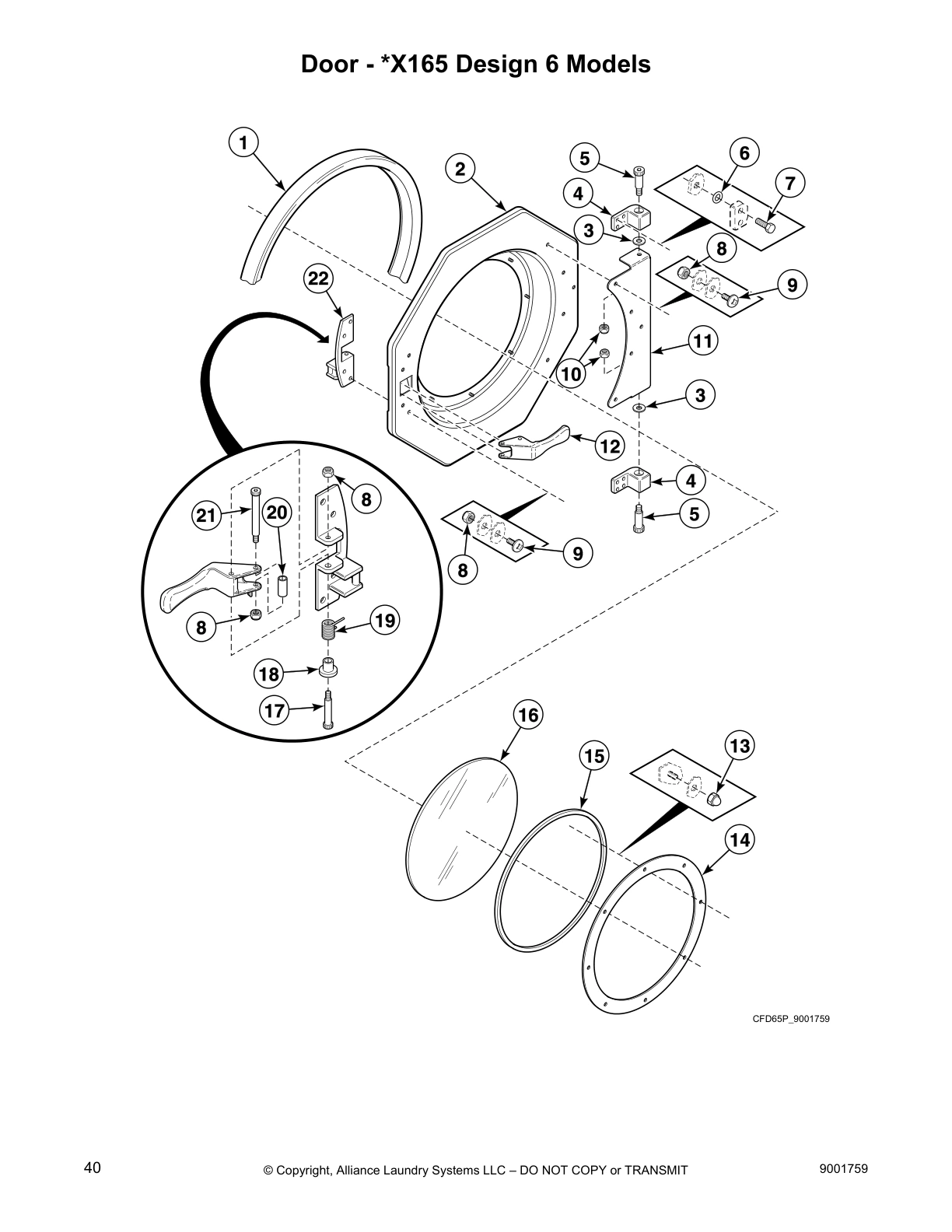

Door - *X165 Design 6 Models

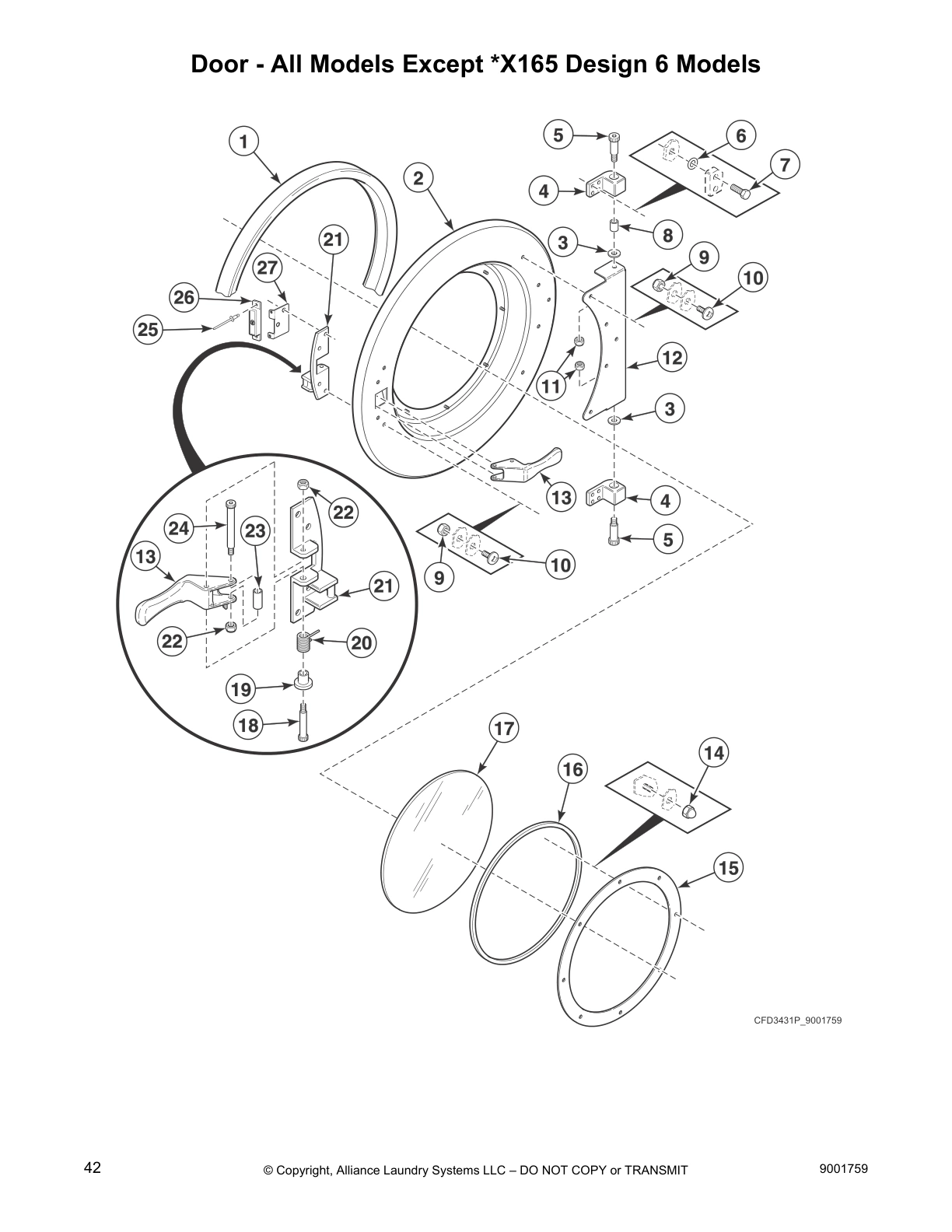

Door - All Models Except *X165 Design 6 Models

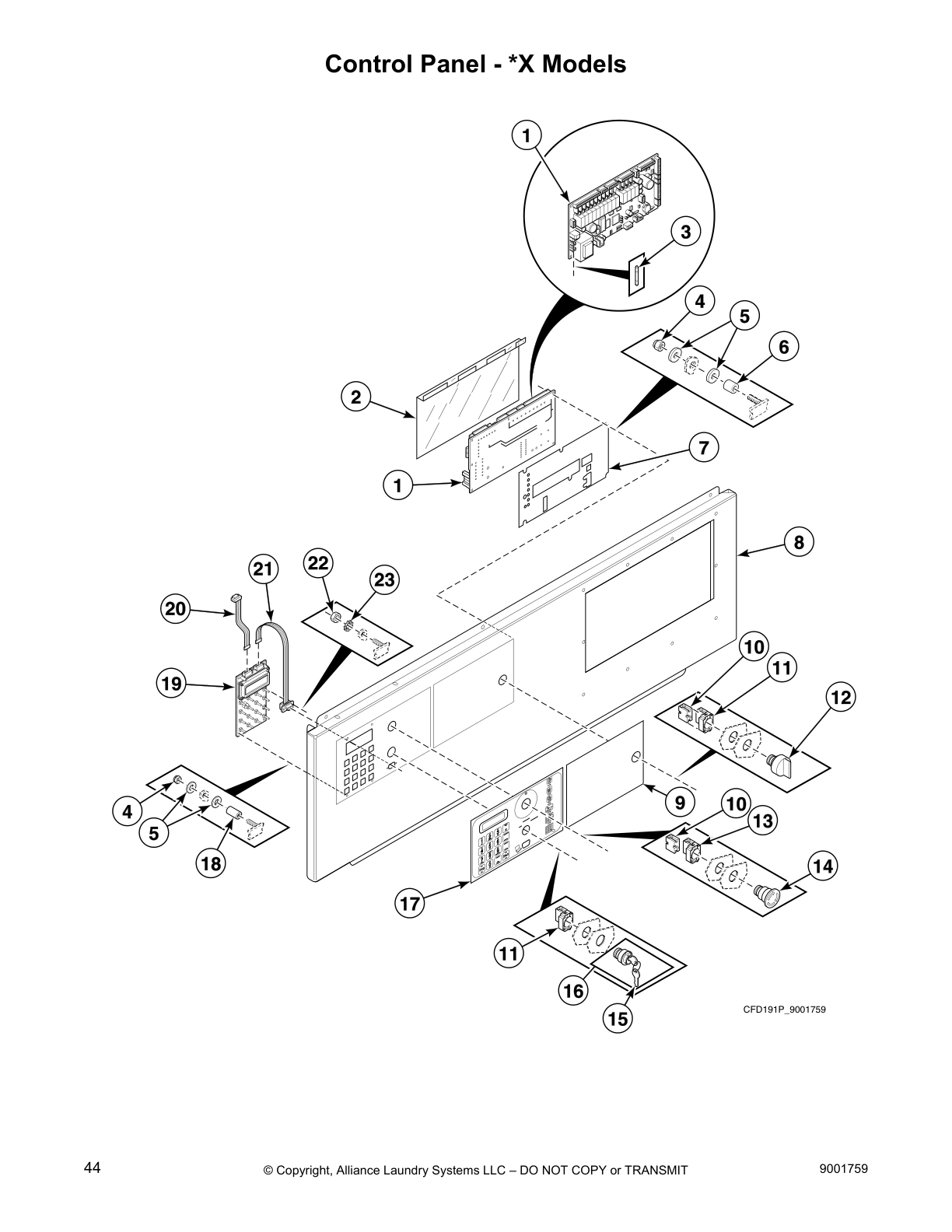

Control Panel - *X Models

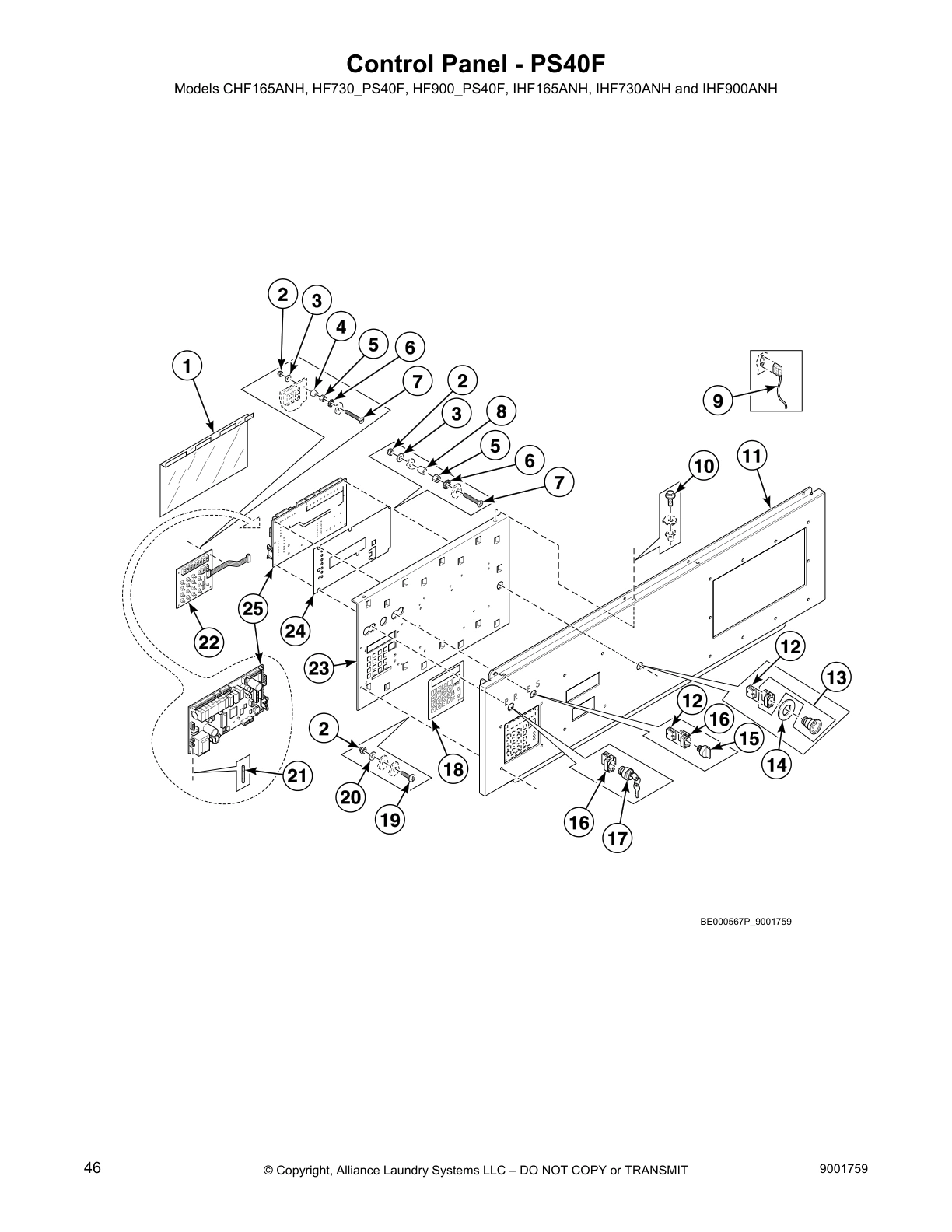

Control Panel - PS40F

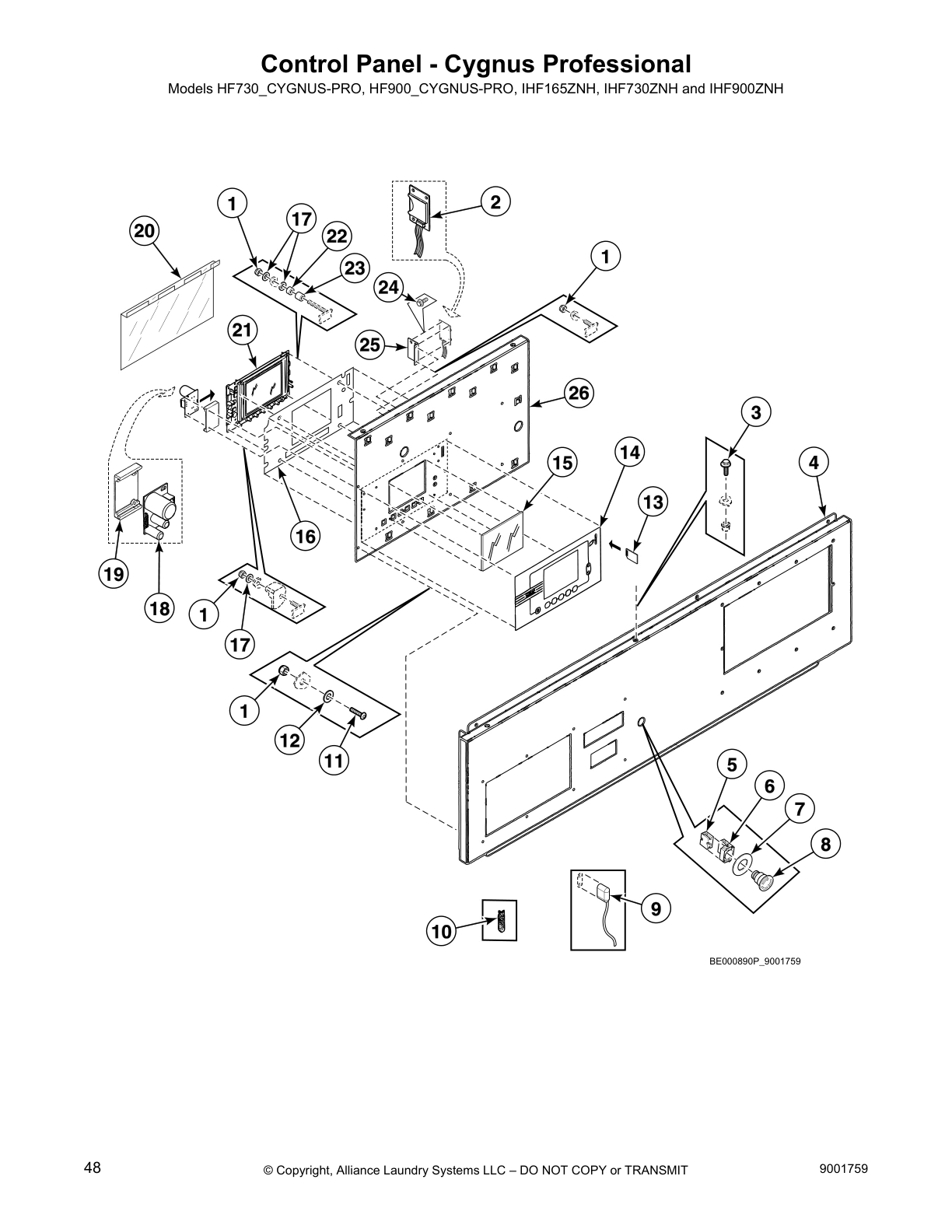

Control Panel - Cygnus Professional

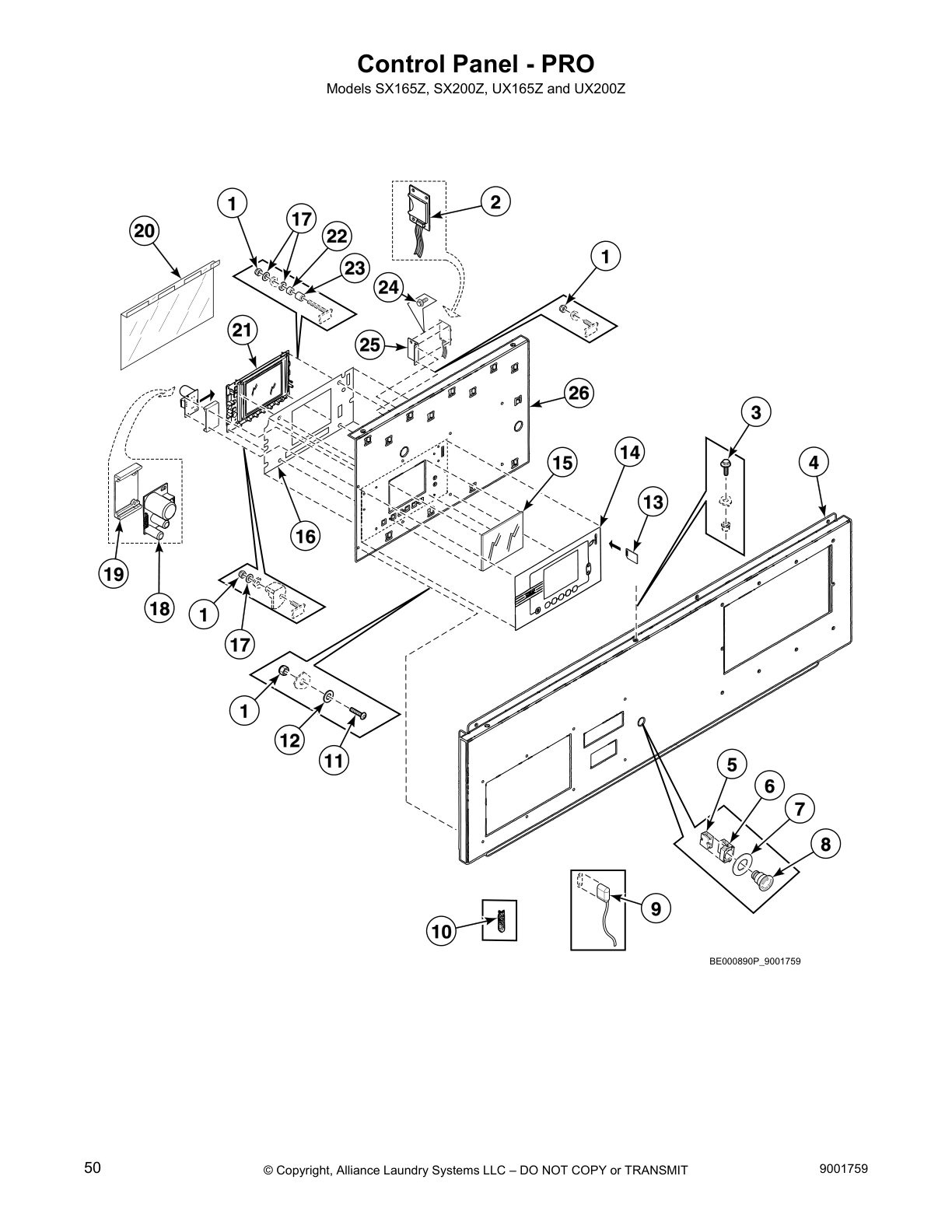

Control Panel - PRO

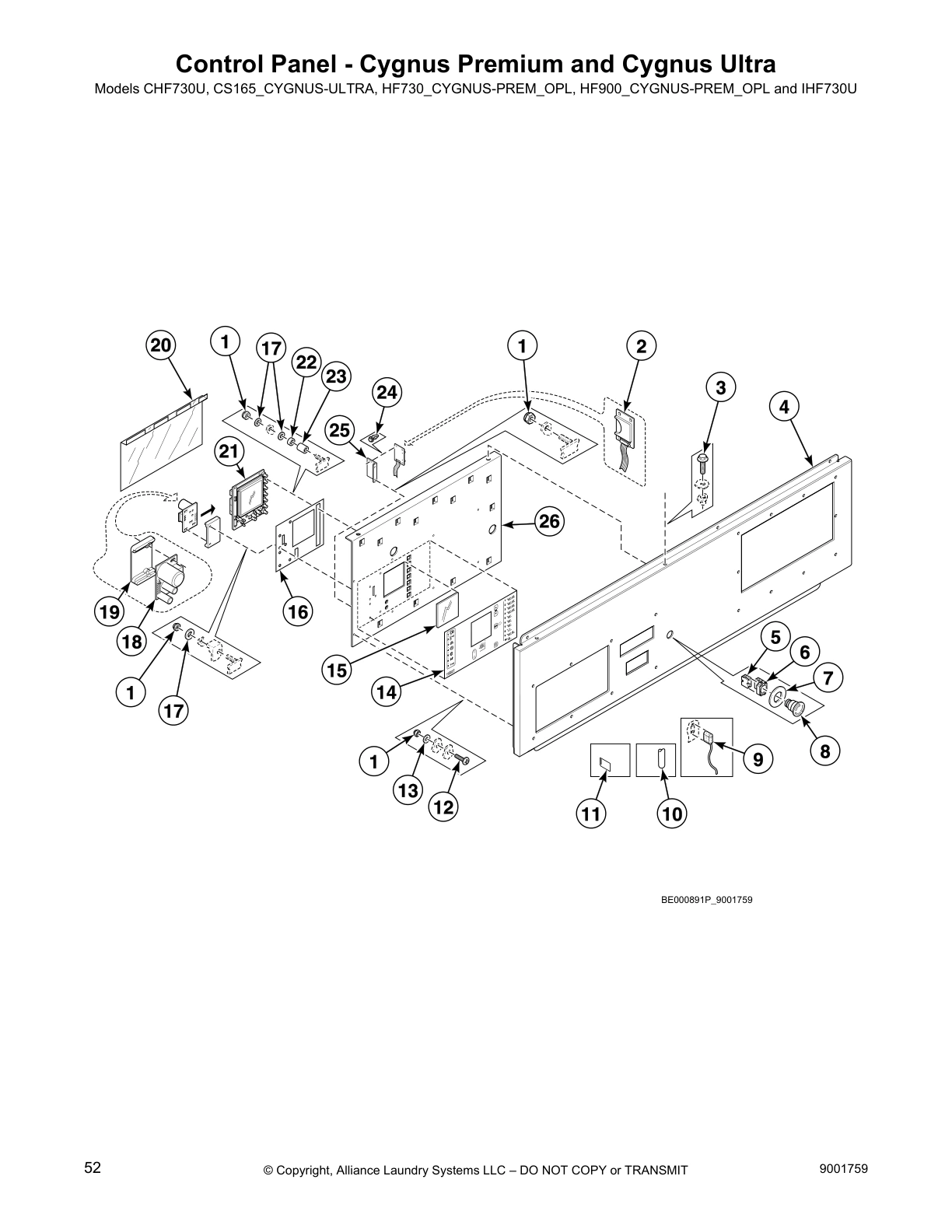

Control Panel - Cygnus Premium and Cygnus Ultra

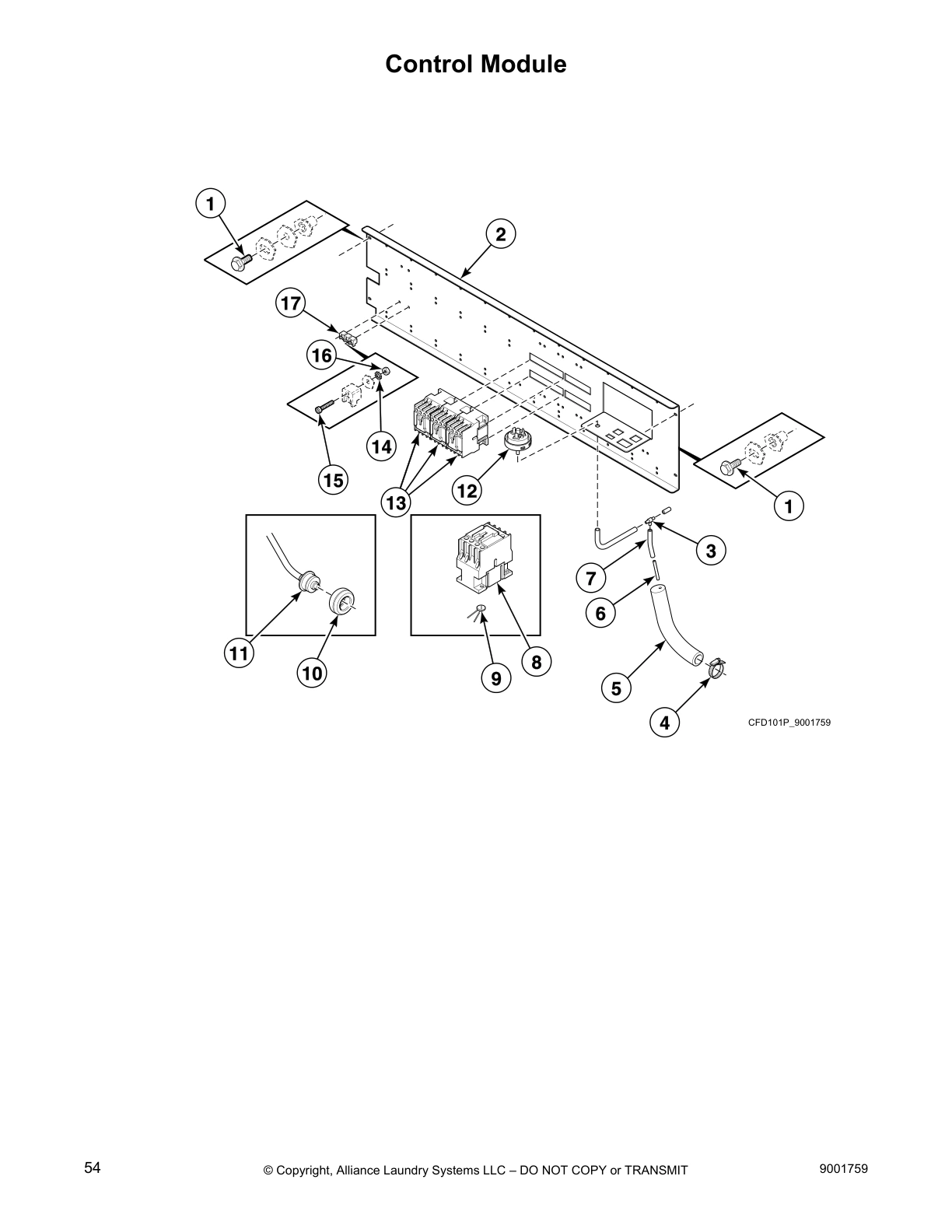

Control Module

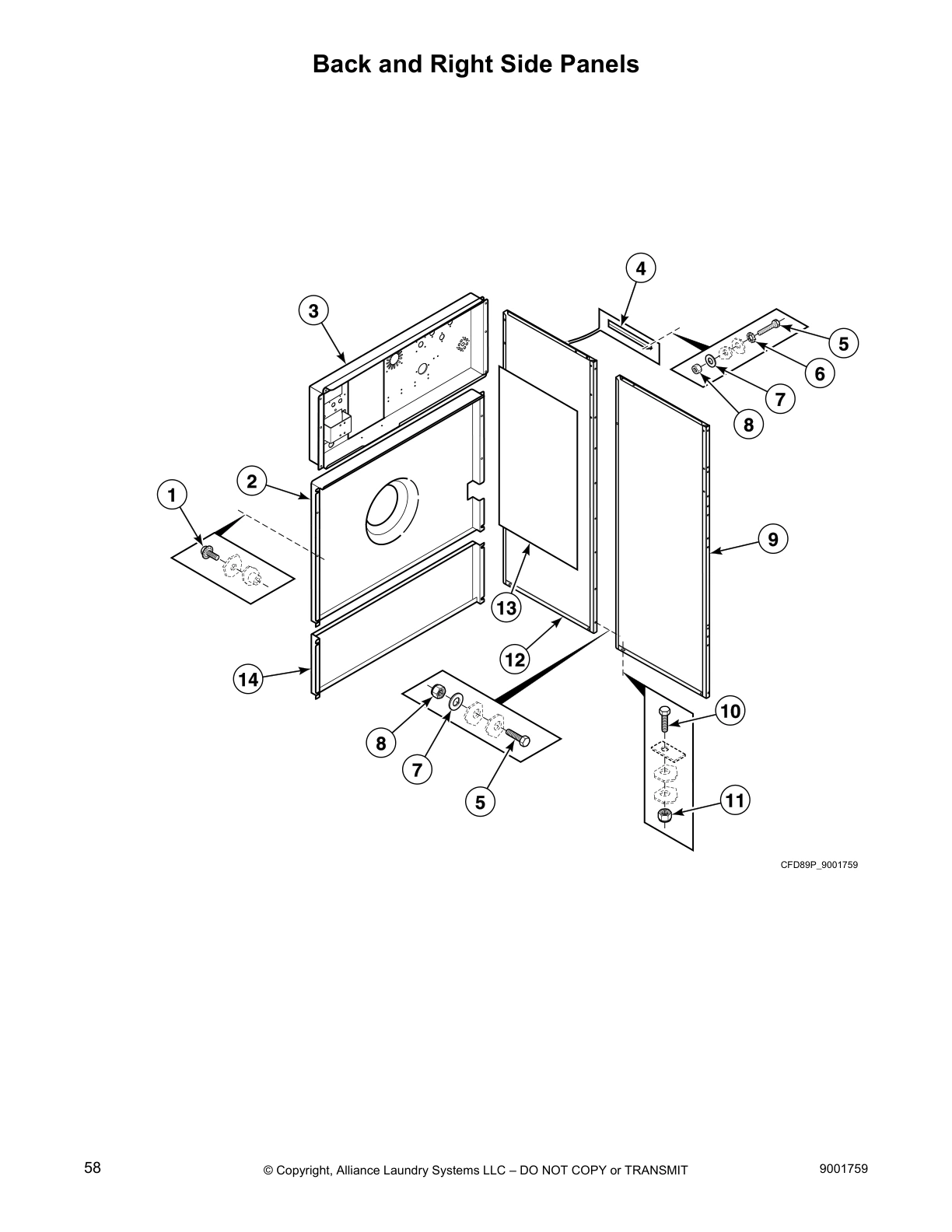

Back and Right Side Panels

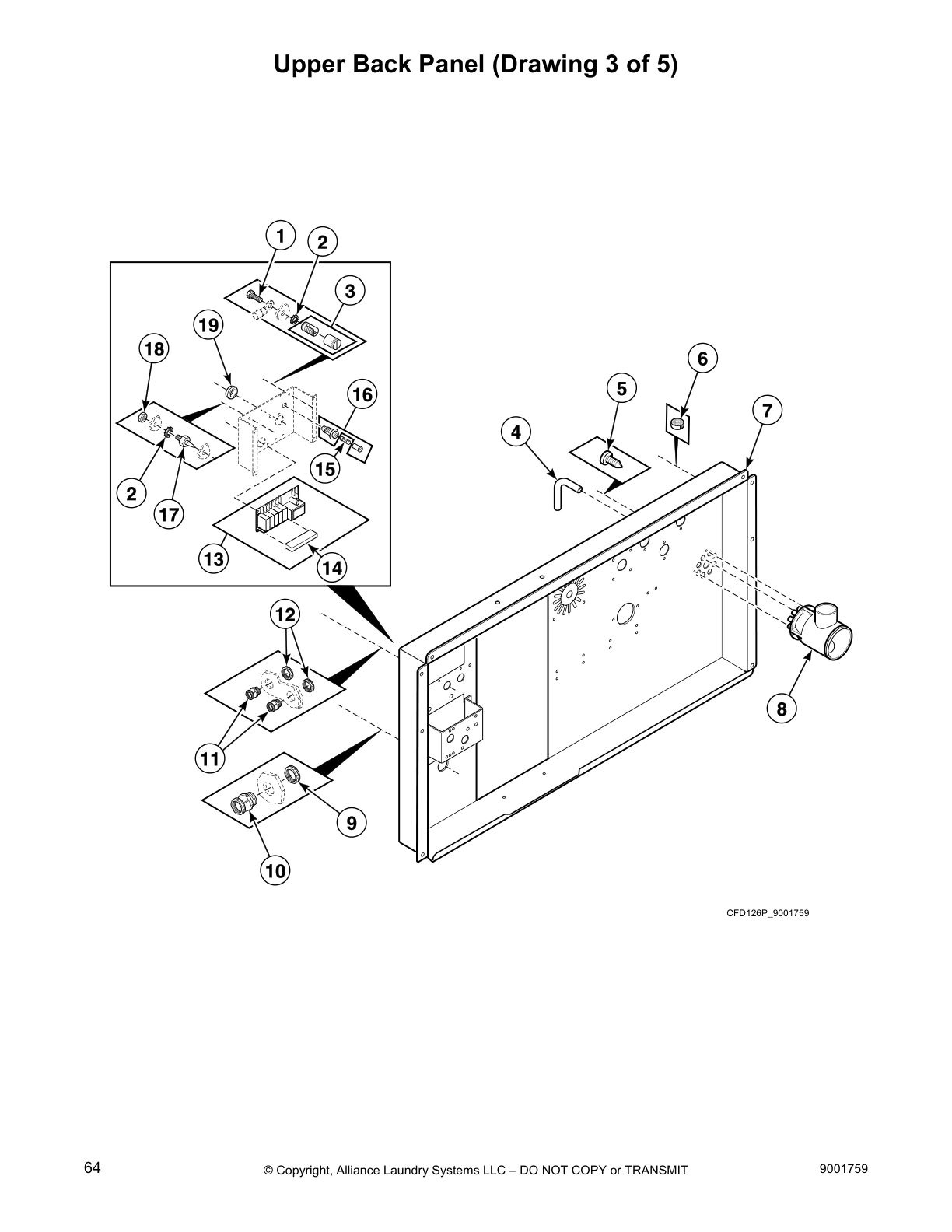

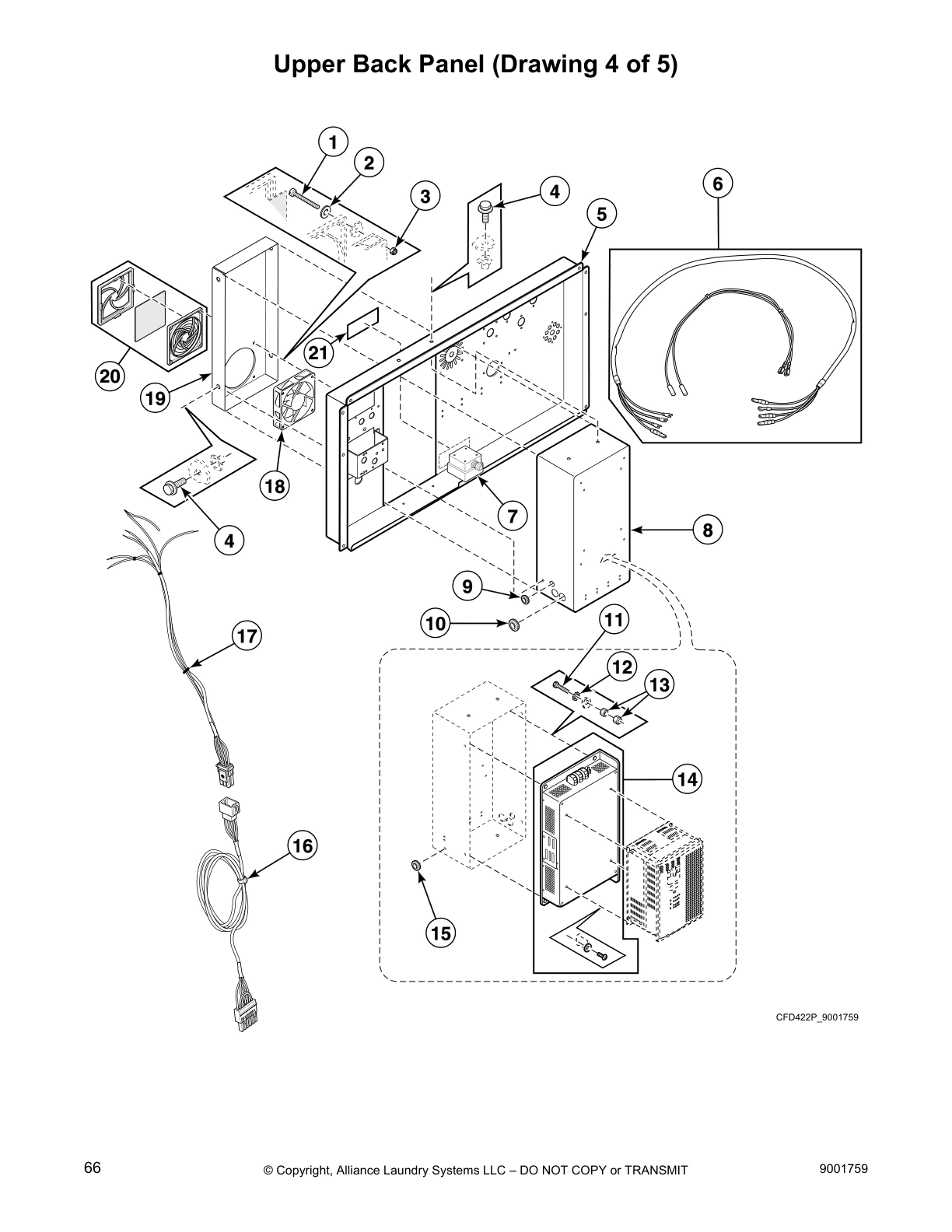

Upper Back Panel (Drawing 3 of 5)
Upper Back Panel (Drawing 4 of 5)

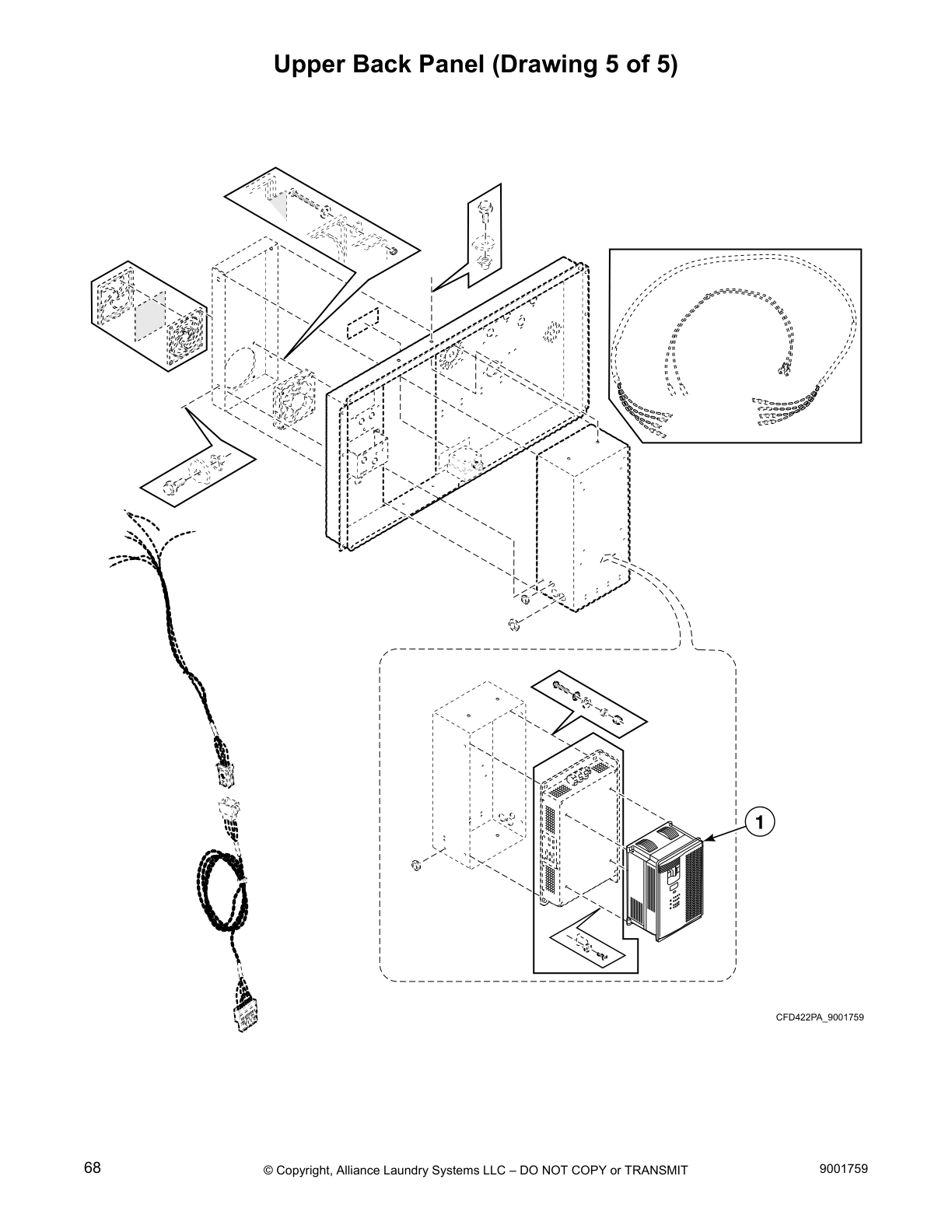

Upper Back Panel (Drawing 5 of 5)

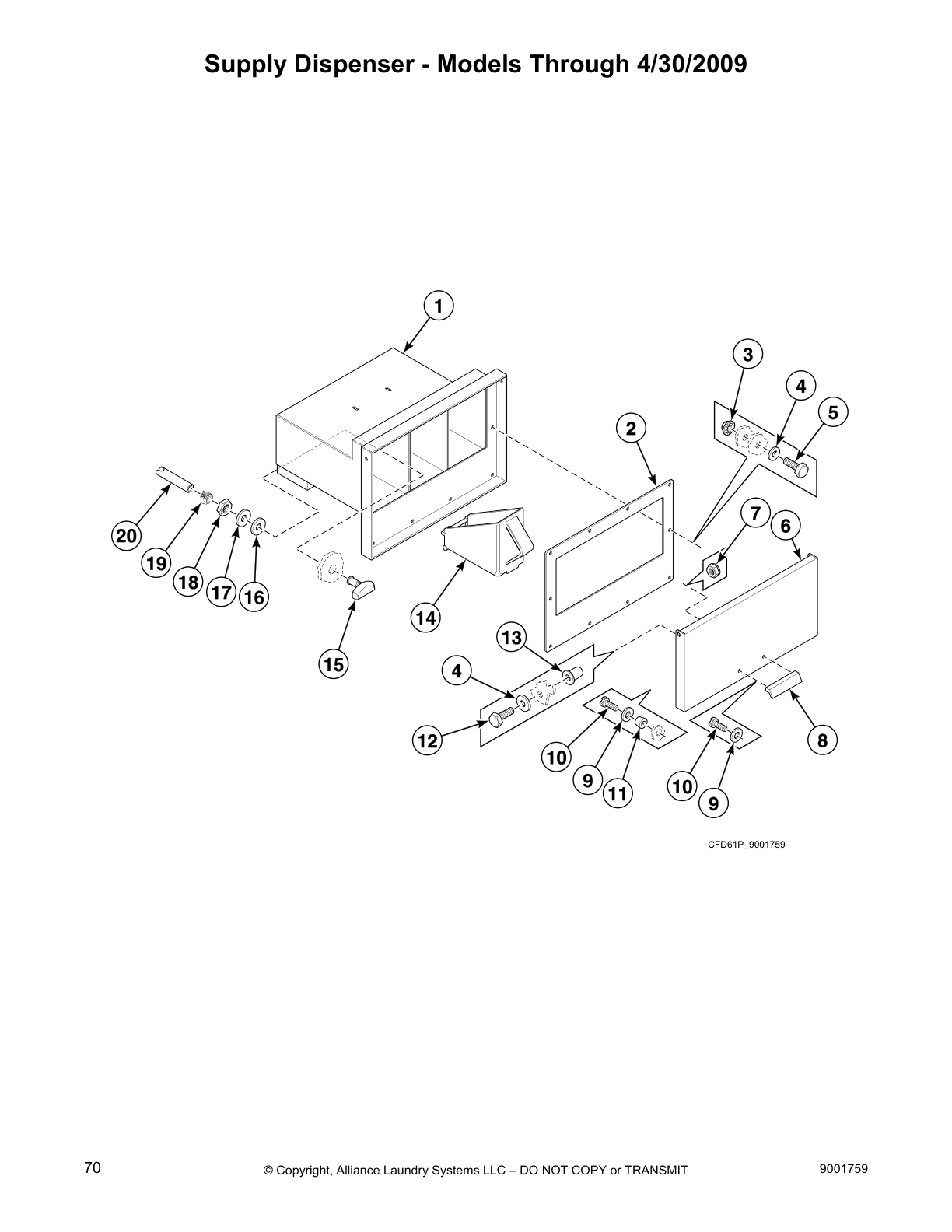

Supply Dispenser - Models Through 4/30/2009

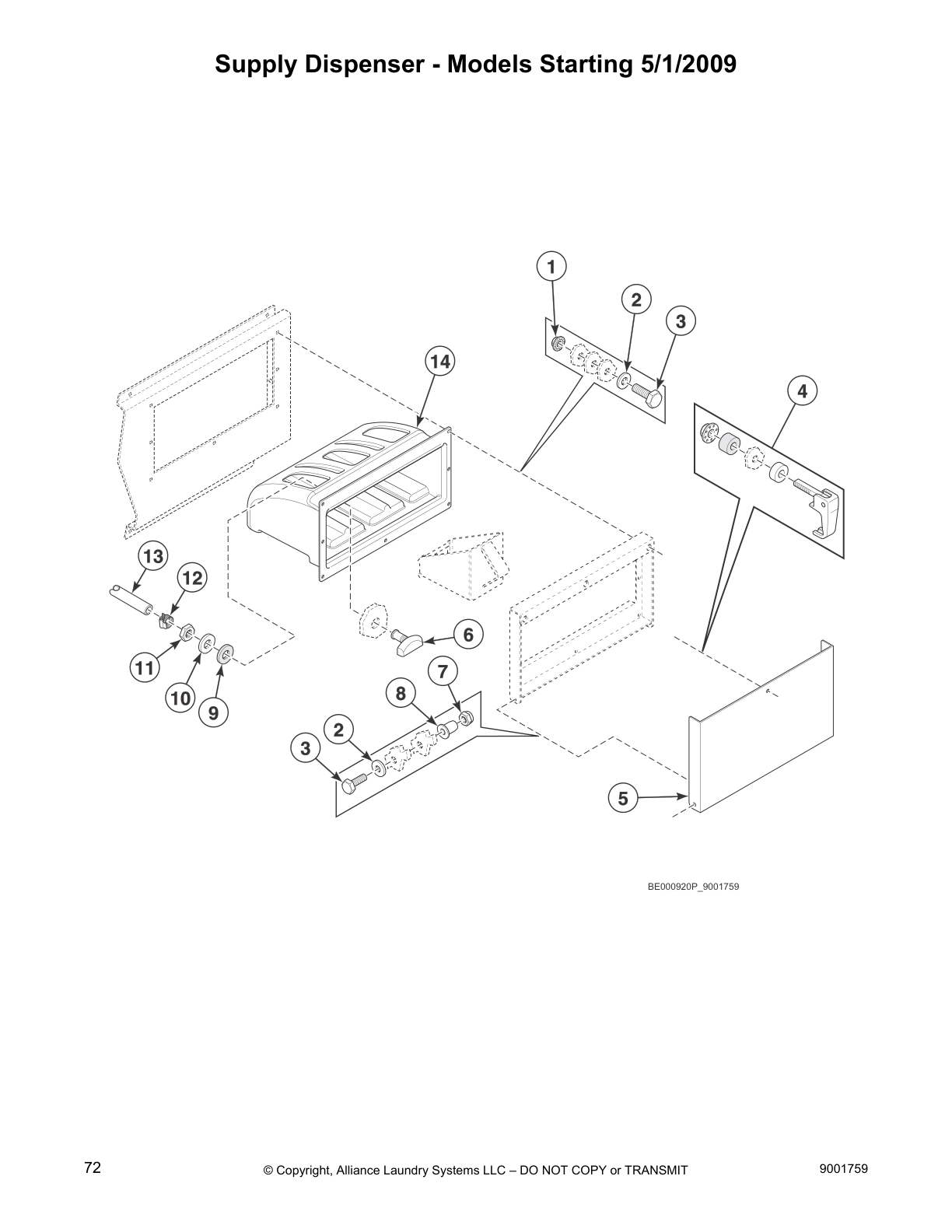

Supply Dispenser - Models Starting 5/1/2009

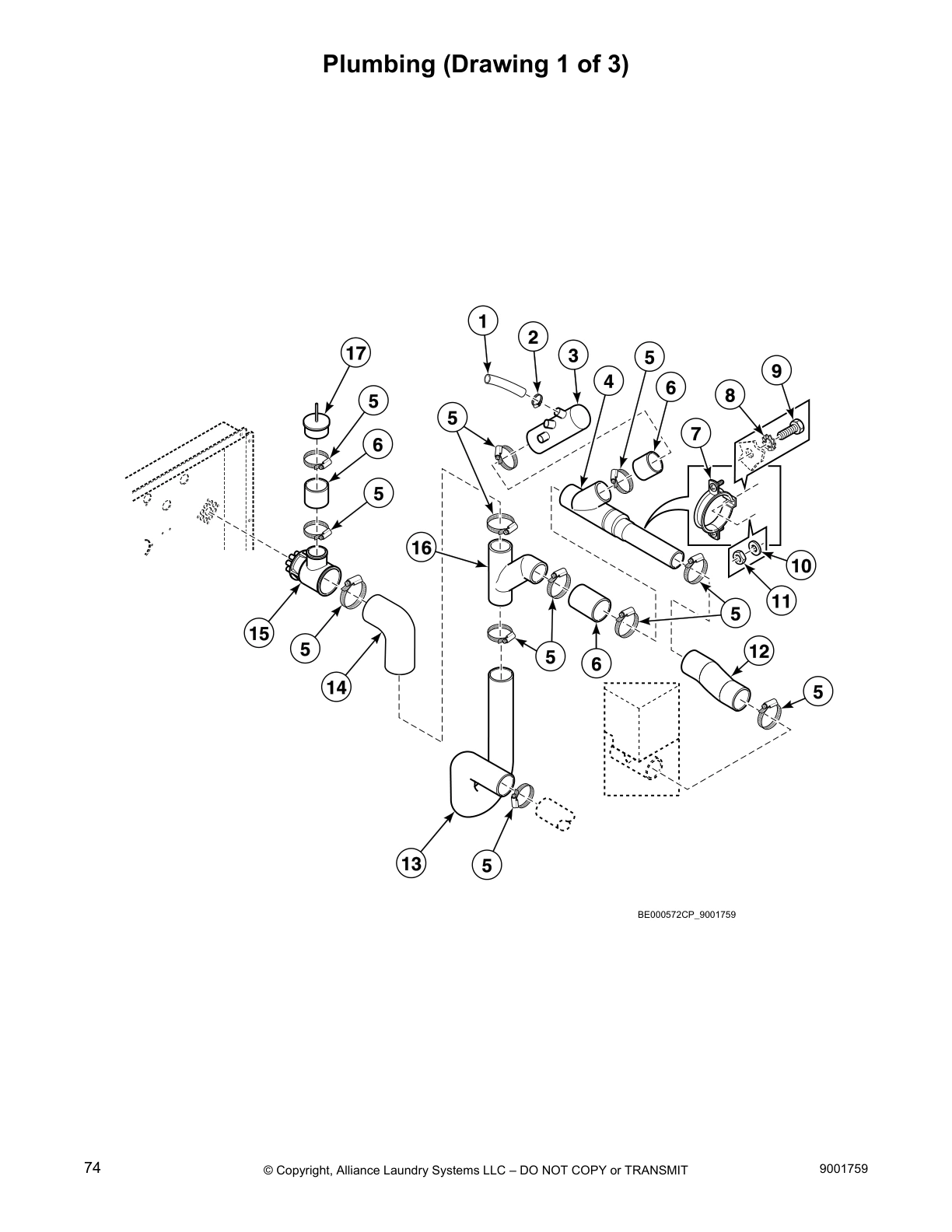

Plumbing (Drawing 1 of 3)

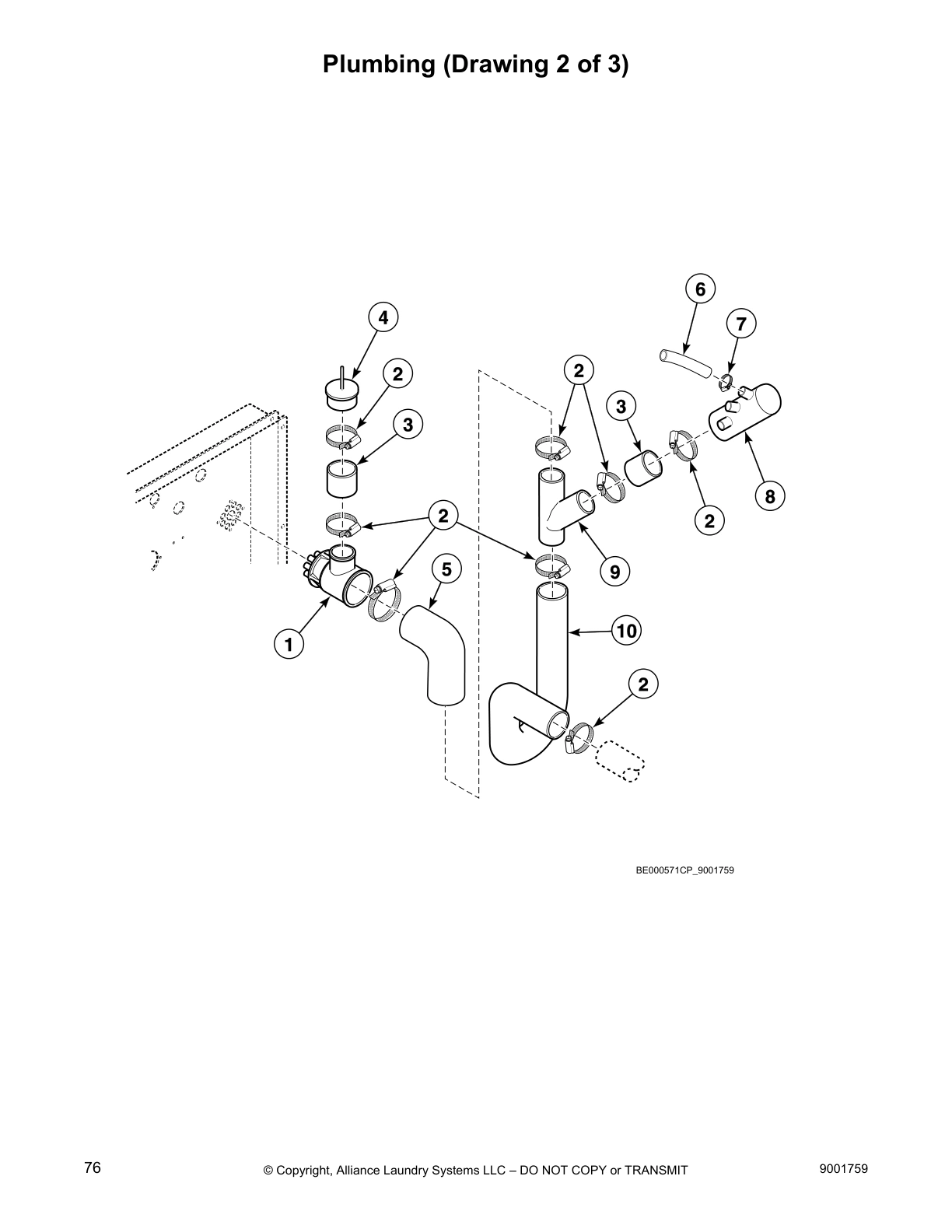

Plumbing (Drawing 2 of 3)

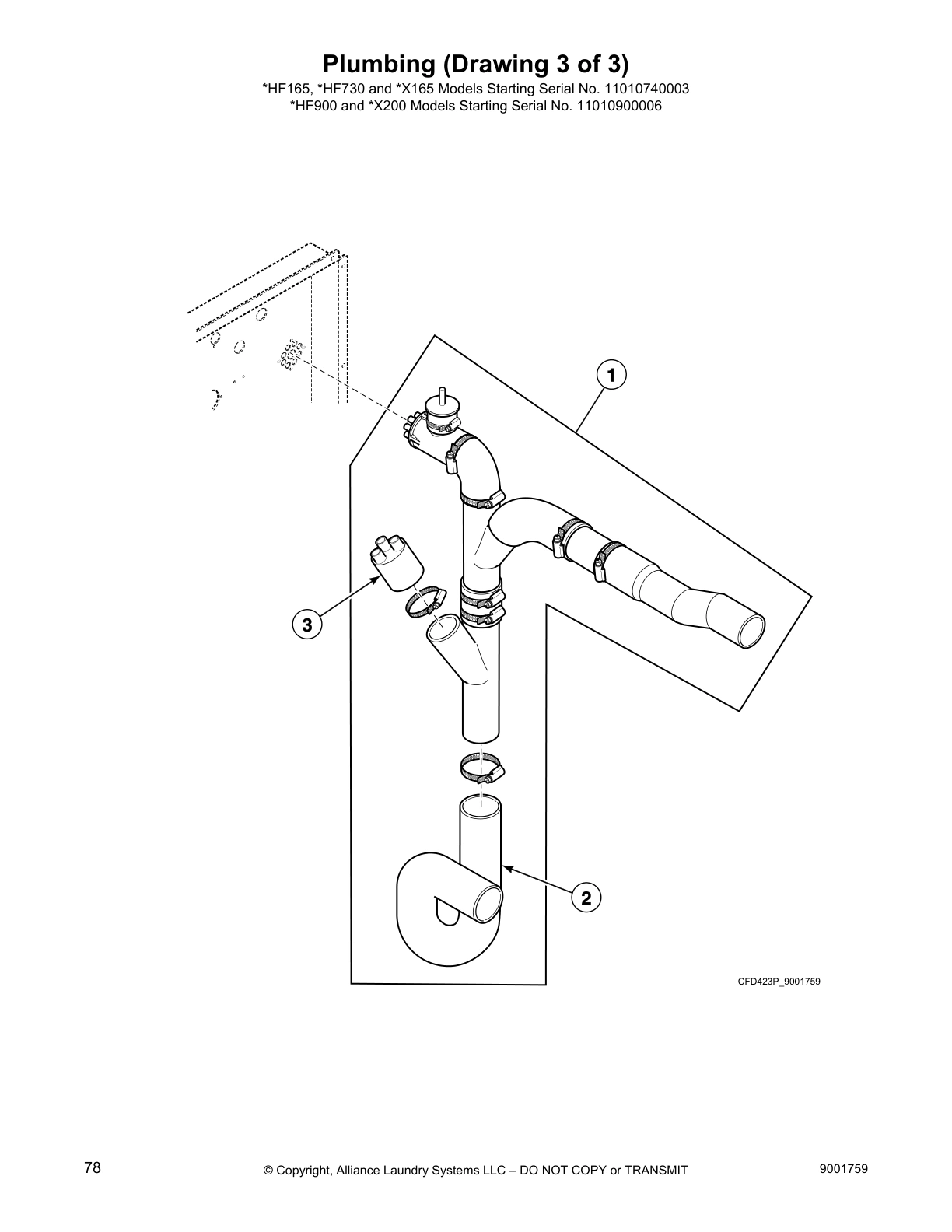

Plumbing (Drawing 3 of 3)

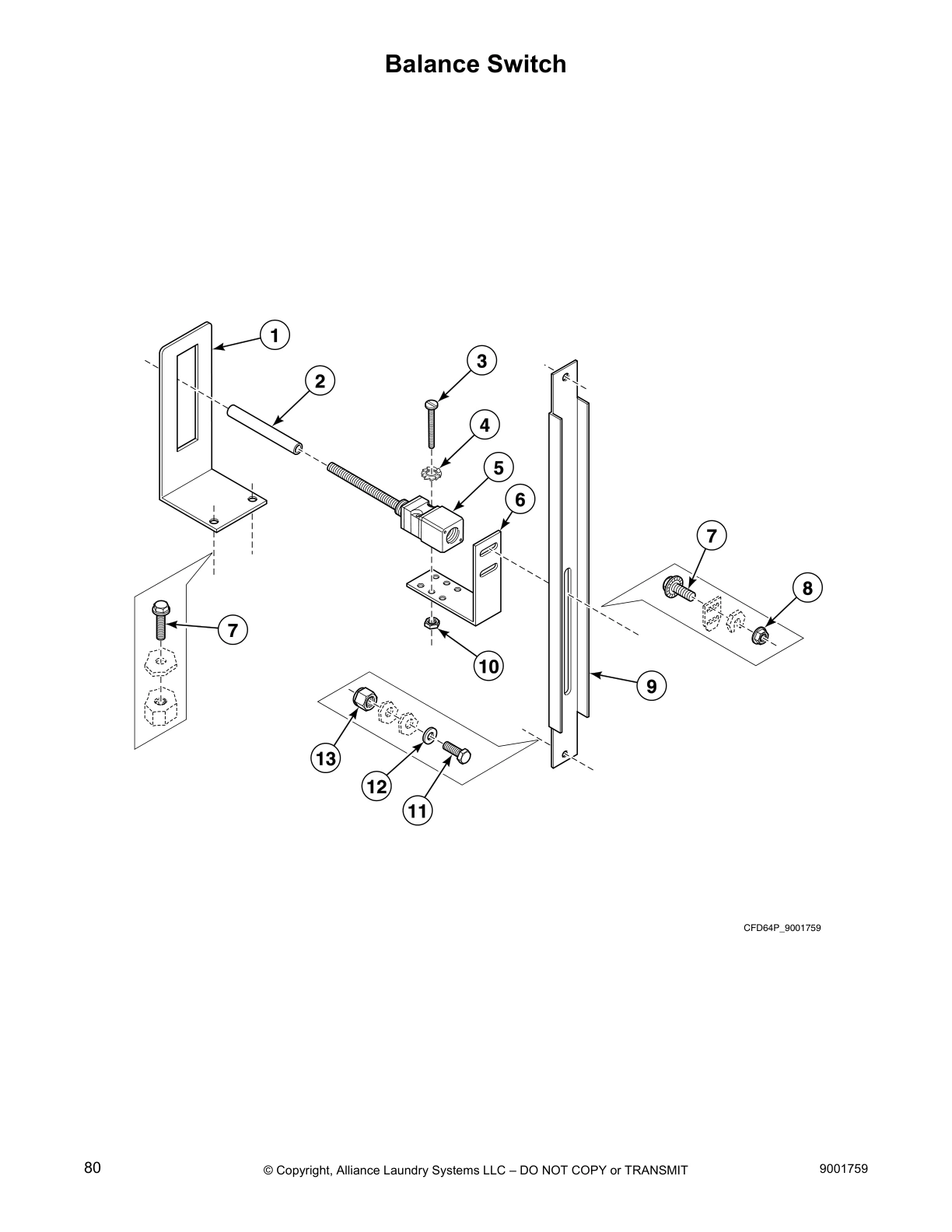

Balance Switch

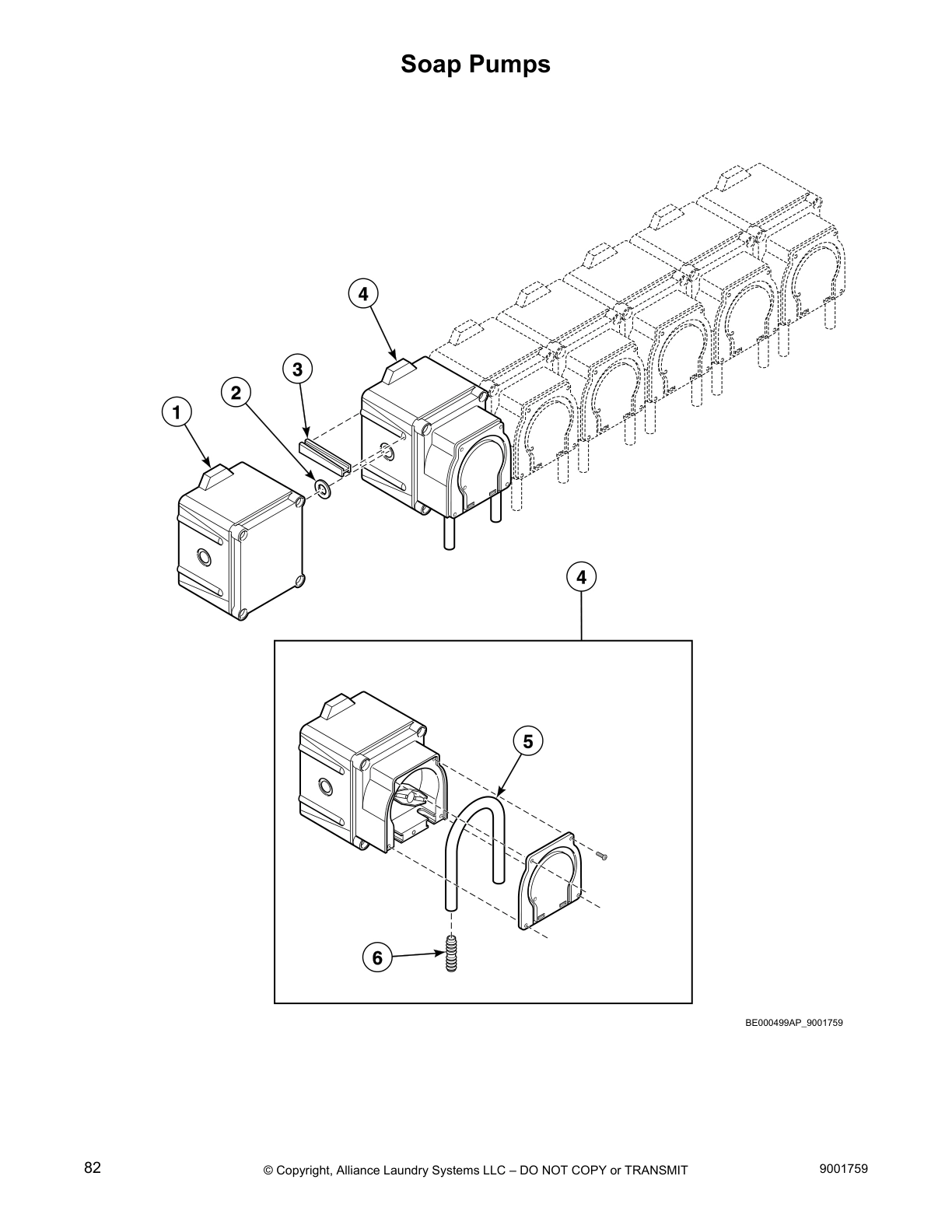

Soap Pumps

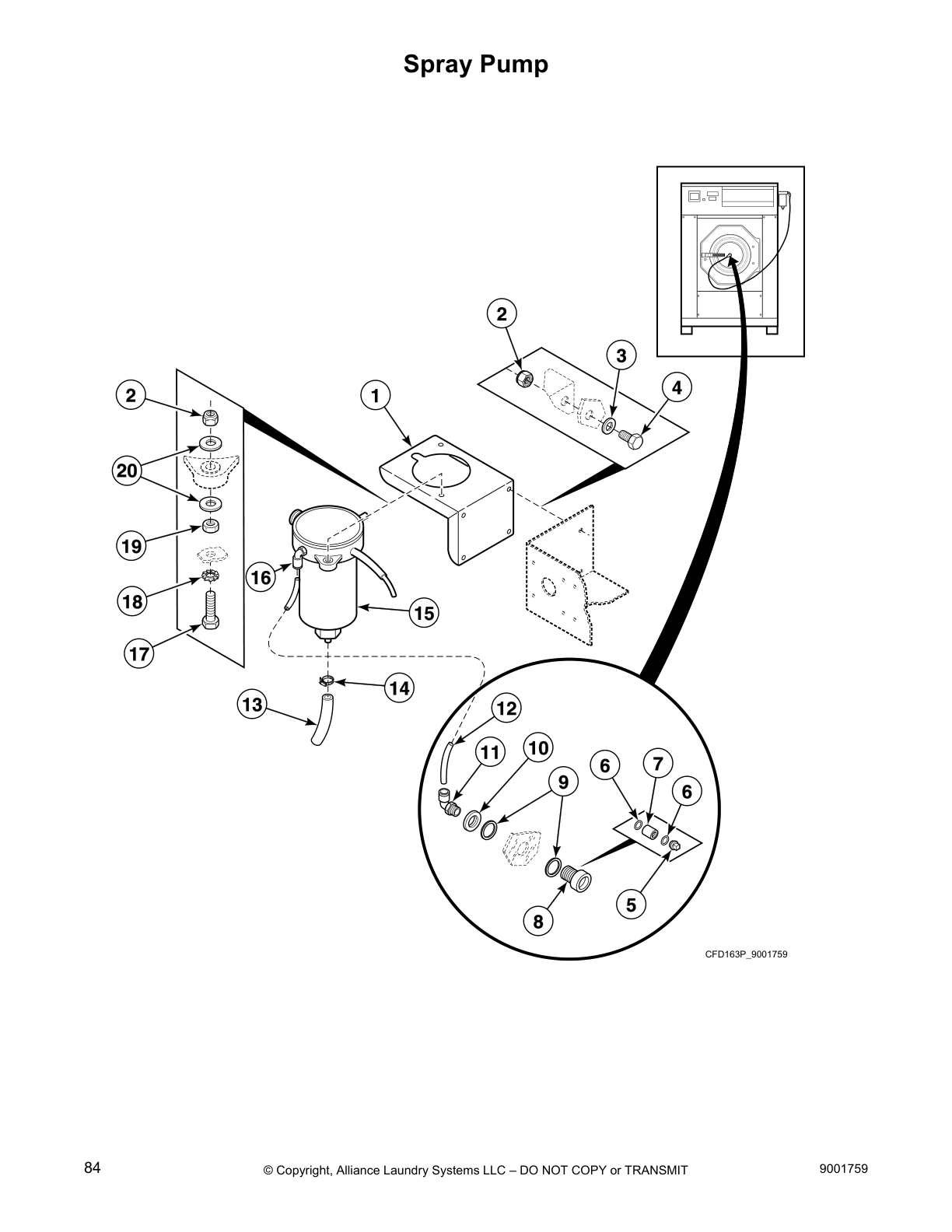

Spray Pump

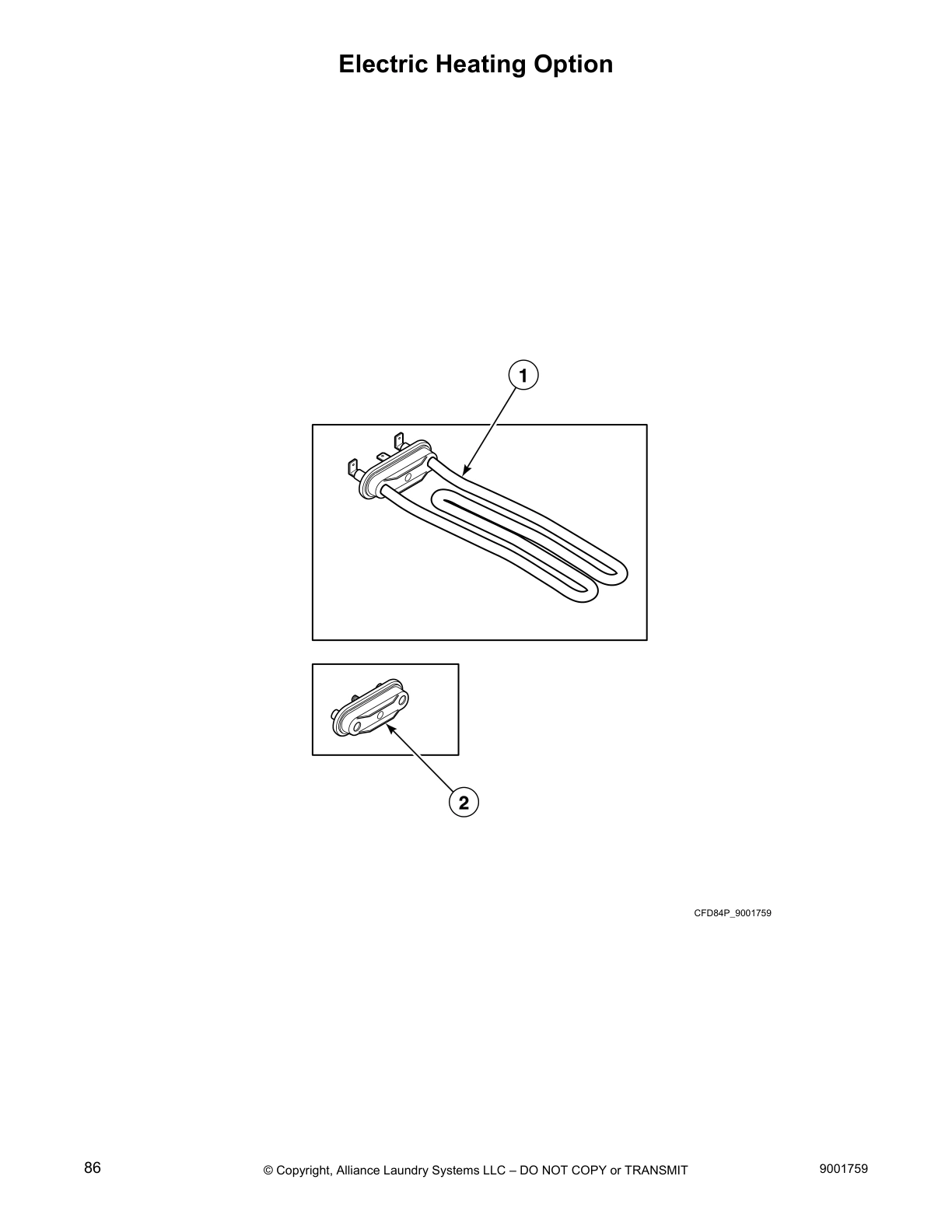

Electric Heating Option

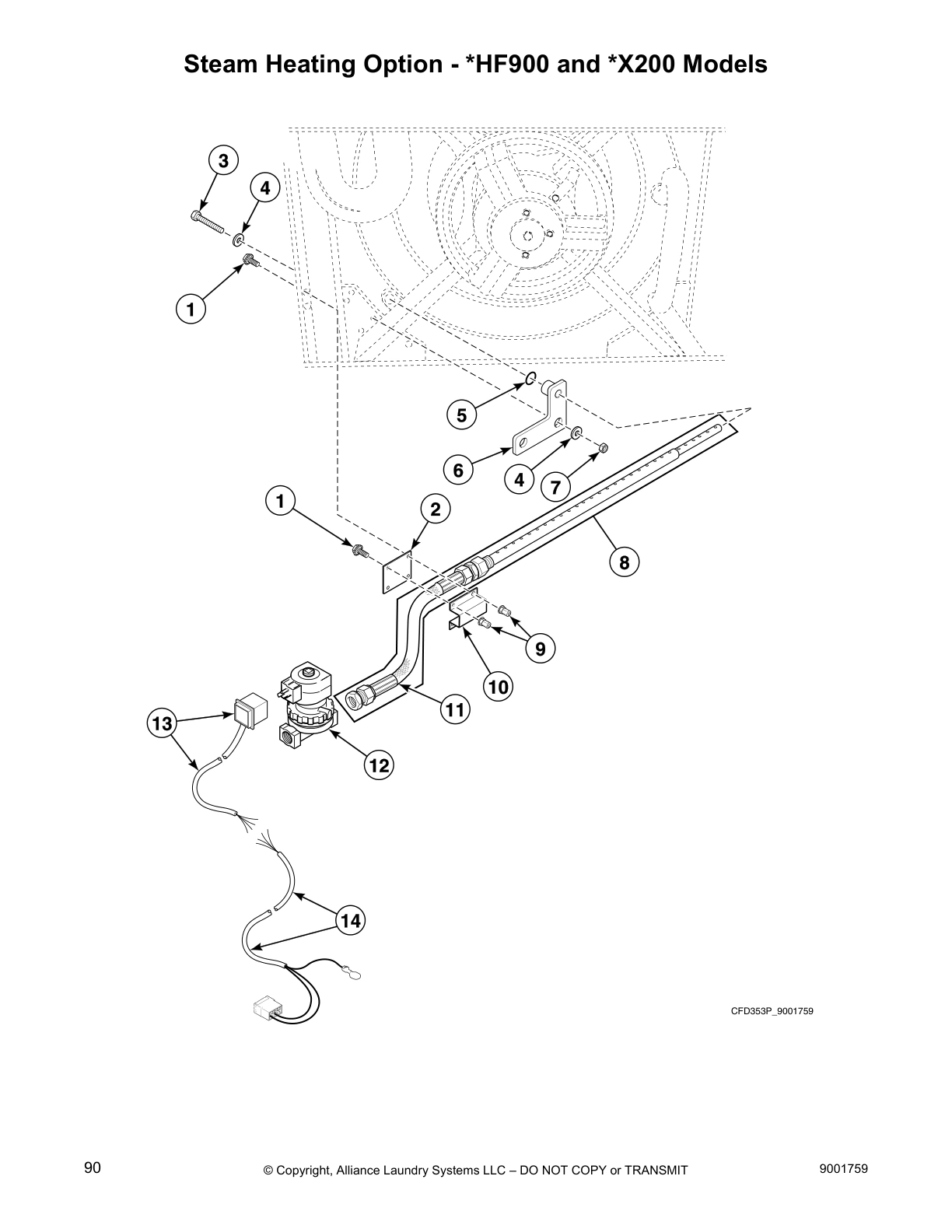

Steam Heating Option - *HF900 and *X200 Models
Common parts from model Unimac UX165PVNU6 Washer
SPQ F8644402 SPQ F8644402 Contact Us For Availability
1
Bolt SPQ 206/00071/00 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Basket Kit SPQ B12543501 Contact Us For Availability
1
Seal SPQ B12379101 Contact Us For Availability
1
Bolt SPQ 206/00004/00 Contact Us For Availability
1
Door Seal SPQ 253/00162/02 Contact Us For Availability
1
Nut SPQ 204/00116/00 Contact Us For Availability
1
Drive SPQ F8643702 Contact Us For Availability
1
Plumbing Assembly SPQ B12374201 Contact Us For Availability
1
Out-of-Balance Detector Plate SPQ 153/00046/00 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Bearing Housing SPQ 153/00041/02 Contact Us For Availability
2
Seal Wear Plate SPQ 201/00204/00 Contact Us For Availability
2
Washer SPQ 201/00202/00 Contact Us For Availability
2
Bearing SPQ B12379001 Contact Us For Availability
2
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
2
Door Lock Plate SPQ C000684 Contact Us For Availability
2
Door SPQ 173/00028/00 Contact Us For Availability
2
Ribbon Assembly SPQ 229/00262/50 Contact Us For Availability
2
AC Drive Filter SPQ 202/00004/00 Contact Us For Availability
2
Electrical Components Plate SPQ 229/00262/20 Contact Us For Availability
2
Washer SPQ 173/00007/02 Contact Us For Availability
2
O-Ring SPQ 204/00009/00 Contact Us For Availability
2
Bolt SPQ 153/00071/00 Contact Us For Availability
2
Hose Clamp SPQ 223/00071/00 Contact Us For Availability
2
Soap Dispenser to Tub Hose SPQ 223/00187/00 Contact Us For Availability
2
Screw SPQ 223/00246/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00555/02 Contact Us For Availability
2
Heating Element Plug SPQ 209/00581/10 Contact Us For Availability
3
Washer SPQ B12522101 Contact Us For Availability
3
V-Ring Seal SPQ 253/10516/00 Contact Us For Availability
3
Grease Ring Holder SPQ B12418301 Contact Us For Availability
3
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
3
Screw SPQ 209/00025/08 Contact Us For Availability
3
Door Lock Catch SPQ 253/00158/567 Contact Us For Availability
3
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
3
Hinge Block SPQ C000177 Contact Us For Availability
3
Supply Dispenser Cover SPQ 205/00104/00 Contact Us For Availability
3
Pressure Hose SPQ 209/00006/01 Contact Us For Availability
3
Inverter to Motor Harness SPQ B12355001 Contact Us For Availability
3
Manifold SPQ 153/00116/00 Contact Us For Availability
3
Drain Valve to Drain Pipe Hose SPQ 223/00141/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 207/00018/00 Contact Us For Availability
4
Shipping Bracket SPQ 173/00015/00 Contact Us For Availability
4
SPQ 255/00001/00 SPQ 255/00001/00 Contact Us For Availability
4
Bearing Sleeve SPQ 253/00164/00 Contact Us For Availability
4
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
4
Tilt Switch Bracket SPQ 203/00006/00 Contact Us For Availability
4
Transformer SPQ 204/00114/00 Contact Us For Availability
4
O-Ring SPQ C000175 Contact Us For Availability
4
SPQ 153/00103/01 SPQ 153/00103/01 Contact Us For Availability
4
Prewash and Mainwash Nozzle SPQ 223/00392/00 Contact Us For Availability
4
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
4
Washer SPQ 201/00027/00 Contact Us For Availability
5
SPQ 173/00054/00 SPQ 173/00054/00 Contact Us For Availability
5
V-Ring Seal Ring SPQ 253/10506/00 Contact Us For Availability
5
Bearing Tool Kit SPQ B12418101 Contact Us For Availability
5
SPQ 253/10519/00 SPQ 253/10519/00 Contact Us For Availability
5
Drain Valve Motor SPQ 209/00170/05 Contact Us For Availability
5
Door Lock Harness SPQ 205/00123/00 Contact Us For Availability
5
SPQ F8549301 SPQ F8549301 Contact Us For Availability
5
SPQ 204/00008/00 SPQ 204/00008/00 Contact Us For Availability
5
Elbow SPQ 223/00210/00 Contact Us For Availability
5
Plug SPQ B12347501 Contact Us For Availability
5
Bushing SPQ 153/00089/00 Contact Us For Availability
5
Elbow SPQ 223/00302/00 Contact Us For Availability
5
Liquid Soap Dosing Pu SPQ 209/00554/52 Contact Us For Availability
6
SPQ B12440101 SPQ B12440101 Contact Us For Availability
6
SPQ 206/00122/00 SPQ 206/00122/00 Contact Us For Availability
6
V-Ring Seal SPQ 253/10518/00 Contact Us For Availability
6
Bearing Kit SPQ B12379301 Contact Us For Availability
6
SPQ B12511001 SPQ B12511001 Contact Us For Availability
6
SPQ 223/00244/00 SPQ 223/00244/00 Contact Us For Availability
6
SPQ 211/00107/00 SPQ 211/00107/00 Contact Us For Availability
6
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
6
Hose Barb SPQ 223/00016/00 Contact Us For Availability
6
Liquid Soap Manifold SPQ 211/00087/00 Contact Us For Availability
6
SPQ 153/00070/00 SPQ 153/00070/00 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
6
Dosing Pump Hose SPQ 209/00555/98 Contact Us For Availability
6
SPQ 223/00177/00 SPQ 223/00177/00 Contact Us For Availability
7
SPQ 204/00016/00 SPQ 204/00016/00 Contact Us For Availability
7
SPQ 253/10515/00 SPQ 253/10515/00 Contact Us For Availability
7
SPQ B12402701 SPQ B12402701 Contact Us For Availability
7
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
7
Drain Valve Motor Mounting Plate SPQ 209/00203/12 Contact Us For Availability
7
SPQ 205/00122/00 SPQ 205/00122/00 Contact Us For Availability
7
Y Pipe SPQ 223/00223/00 Contact Us For Availability
7
SPQ 210/30570/20 SPQ 210/30570/20 Contact Us For Availability
7
Bolt SPQ 253/00019/00 Contact Us For Availability
7
SPQ 211/00126/00 SPQ 211/00126/00 Contact Us For Availability
7
Nut SPQ 204/00118/00 Contact Us For Availability
8
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
8
SPQ 201/00008/00 SPQ 201/00008/00 Contact Us For Availability
8
SPQ 173/00027/10 SPQ 173/00027/10 Contact Us For Availability
8
SPQ 211/00091/00 SPQ 211/00091/00 Contact Us For Availability
8
SPQ 223/00008/05 SPQ 223/00008/05 Contact Us For Availability
8
SPQ 204/00301/00 SPQ 204/00301/00 Contact Us For Availability
9
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
9
SPQ B12626001 SPQ B12626001 Contact Us For Availability
9
SPQ 209/00052/12 SPQ 209/00052/12 Contact Us For Availability
9
Door Lock Kit SPQ C000185 Contact Us For Availability
9
SPQ C000561 SPQ C000561 Contact Us For Availability
9
SPQ 225/00391/00 SPQ 225/00391/00 Contact Us For Availability
9
Noise Suppressor SPQ 209/00356/00 Contact Us For Availability
9
SPQ 209/00406/00 SPQ 209/00406/00 Contact Us For Availability
9
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
9
SPQ 202/00102/00 SPQ 202/00102/00 Contact Us For Availability
9
SPQ 223/00001/07 SPQ 223/00001/07 Contact Us For Availability
9
SPQ 253/00017/00 SPQ 253/00017/00 Contact Us For Availability
9
SPQ 223/00176/00 SPQ 223/00176/00 Contact Us For Availability
10
Screw SPQ 206/00053/00 Contact Us For Availability
10
Nut SPQ 204/00007/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00170/02 Contact Us For Availability
10
Contact Block SPQ 44018901 Contact Us For Availability
10
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
10
Washer SPQ 202/00110/00 Contact Us For Availability
10
Strain Relief SPQ 211/00169/00 Contact Us For Availability
10
Grommet SPQ 223/00198/00 Contact Us For Availability
10
Screw SPQ 207/00110/00 Contact Us For Availability
10
Washer SPQ 201/00002/00 Contact Us For Availability
11
Bearing Retainer SPQ 253/10523/00 Contact Us For Availability
11
Bolt SPQ 206/00147/00 Contact Us For Availability
11
Drain Valve Shaft SPQ 209/00170/10 Contact Us For Availability
11
Bolt SPQ C000430 Contact Us For Availability
11
Handle Grommet SPQ 223/00008/01 Contact Us For Availability
11
Cordlock SPQ 211/00167/00 Contact Us For Availability
11
Bolt SPQ 205/00108/00 Contact Us For Availability
11
Hose Clamp SPQ 204/00201/00 Contact Us For Availability
11
Soap Injector Coupling SPQ 223/00182/00 Contact Us For Availability
12
Washer SPQ 202/00105/00 Contact Us For Availability
12
Speed Sensor Bracket SPQ 153/00041/11 Contact Us For Availability
12
Washer SPQ 201/00025/00 Contact Us For Availability
12
Washer SPQ 209/00025/12 Contact Us For Availability
12
Door Hinge SPQ 253/00534/00 Contact Us For Availability
12
Water Level Switch SPQ B12548601 Contact Us For Availability
12
Nut SPQ 211/00170/00 Contact Us For Availability
12
Washer SPQ 203/00005/00 Contact Us For Availability
12
Bushing SPQ 207/00126/00 Contact Us For Availability
12
Water Hose SPQ 223/00010/00 Contact Us For Availability
12
Vent Hose SPQ 223/00107/02 Contact Us For Availability
12
Soap Injector Hose SPQ 223/00180/00 Contact Us For Availability
13
Washer SPQ 203/00002/00 Contact Us For Availability
13
Belt SPQ 253/00163/00 Contact Us For Availability
13
Motor Plate SPQ 248/00114/00 Contact Us For Availability
13
Pushbutton SPQ 44018701 Contact Us For Availability
13
Lower Rear Panel SPQ 246/00079/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
13
Nut SPQ 204/00107/00 Contact Us For Availability
13
Supply Dispenser Box SPQ 223/00044/00 Contact Us For Availability
14
Screw SPQ 201/00001/00 Contact Us For Availability
14
Bearing Retainer SPQ 253/10507/00 Contact Us For Availability
14
Key SPQ 253/00033/00 Contact Us For Availability
14
Door Lock Cover SPQ C000688 Contact Us For Availability
14
Door Glass Seal Retaining Ring SPQ 253/00515/751 Contact Us For Availability
14
Programming Key SPQ 44018801 Contact Us For Availability
14
Side Panel Support Assembly SPQ 173/00007/01 Contact Us For Availability
14
Connector SPQ 209/00996/00 Contact Us For Availability
14
Inverter Drive Filter SPQ 227/00176/00 Contact Us For Availability
14
Prewash and Mainwash Nozzle SPQ 253/00012/02 Contact Us For Availability
14
Bolt SPQ 223/00345/01 Contact Us For Availability
14
Cable Tie SPQ F140605 Contact Us For Availability
15
Motor Pulley SPQ 204/00113/00 Contact Us For Availability
15
Tub Gasket SPQ B12300601 Contact Us For Availability
15
Basket SPQ B12464201 Contact Us For Availability
15
Door Glass Gasket SPQ C000750 Contact Us For Availability
15
Switch Knob SPQ 209/00099/29 Contact Us For Availability
15
Screw SPQ 207/00008/00 Contact Us For Availability
15
Fuse SPQ 209/00468/00 Contact Us For Availability
16
Nut SPQ 252/00006/00 Contact Us For Availability
16
Bearing SPQ 253/00165/00 Contact Us For Availability
16
Motor SPQ 206/00003/00 Contact Us For Availability
16
Door Release Decal SPQ C000694 Contact Us For Availability
16
Door Glass SPQ 253/00515/749 Contact Us For Availability
16
Switch Base SPQ 209/00099/25 Contact Us For Availability
16
Micro to Connector Harness SPQ 210/01304/15 Contact Us For Availability
16
Y Pipe SPQ 253/00030/00 Contact Us For Availability
16
Soap Injector Elbow Coupling SPQ 223/00181/00 Contact Us For Availability
17
Bearing Spacer SPQ 253/10513/00 Contact Us For Availability
17
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
17
Bolt SPQ 223/00123/00 Contact Us For Availability
17
Programming Key Contact Switch SPQ 209/00326/20 Contact Us For Availability
17
Standoff SPQ 211/00120/00 Contact Us For Availability
17
Bolt SPQ 205/00103/00 Contact Us For Availability
18
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
18
Screw SPQ B12322501 Contact Us For Availability
18
Circuit Board Cover SPQ 211/00140/00 Contact Us For Availability
18
Washer SPQ 203/00004/00 Contact Us For Availability
19
SPQ B12369701 SPQ B12369701 Contact Us For Availability
19
Reed Switch Assembly SPQ C003000 Contact Us For Availability
19
Nut SPQ 204/00106/00 Contact Us For Availability
19
Inverter Box Top SPQ 173/00009/04 Contact Us For Availability
20
Blind Rivet SPQ F8245101 Contact Us For Availability
20
Nut SPQ B12388302 Contact Us For Availability
20
Soap Injector Orifice Nipple SPQ 202/00101/00 Contact Us For Availability
21
SPQ 206/00125/00 SPQ 206/00125/00 Contact Us For Availability
21
Fuse SPQ 209/00372/01 Contact Us For Availability
21
Voltage Discharge Decal SPQ 209/00465/01 Contact Us For Availability
23
Door Latch SPQ C001244 Contact Us For Availability
24
Spring SPQ C000431 Contact Us For Availability
24
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
25
Door Lock Switch Slide SPQ C000271 Contact Us For Availability
26
Lock Spring Leaf SPQ 211/00072/00 Contact Us For Availability
27
Rivet SPQ B12336401 Contact Us For Availability
NI
SPQ 895P3 SPQ 895P3 Contact Us For Availability
NI
SPQ 245/00059/00 SPQ 245/00059/00 Contact Us For Availability
NI
SPQ 3886P SPQ 3886P Contact Us For Availability
NI
SPQ 209/00115/04 SPQ 209/00115/04 Contact Us For Availability
NI
SPQ C000867P SPQ C000867P Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 227/00171/10 SPQ 227/00171/10 Contact Us For Availability
NI
Inverter Drive Kit SPQ F8643701 Contact Us For Availability
NI
SPQ F8644401 SPQ F8644401 Contact Us For Availability
NI
Dosing Pump Hose Co SPQ 209/00555/99 Contact Us For Availability
NI
SPQ F360202 SPQ F360202 Contact Us For Availability
× ![]()
