Model Unimac UX018PVXM7 Washer – Common Parts & Diagrams
Frame (Drawing 1 of 2)
Frame (Drawing 2 of 2)

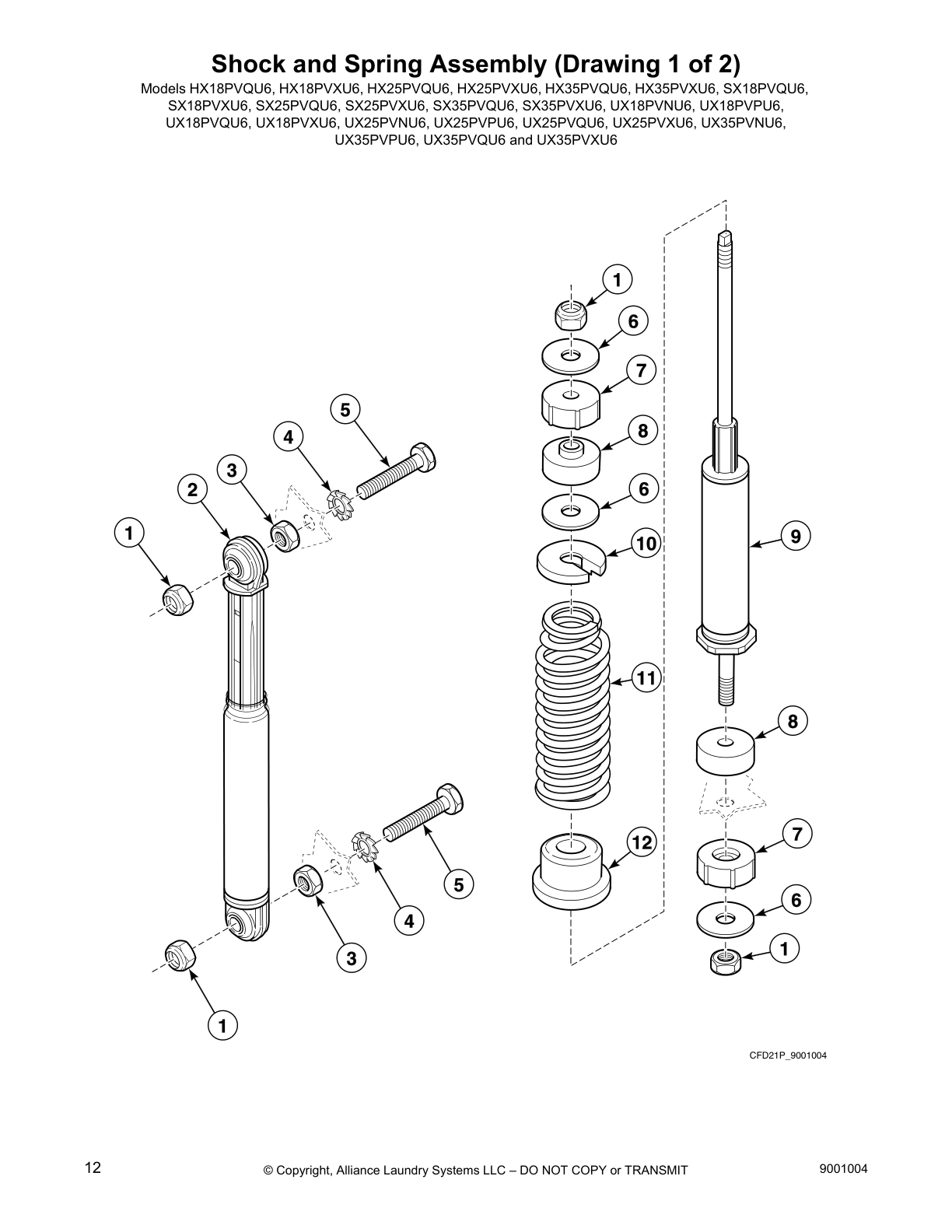

Shock and Spring Assembly (Drawing 1 of 2)

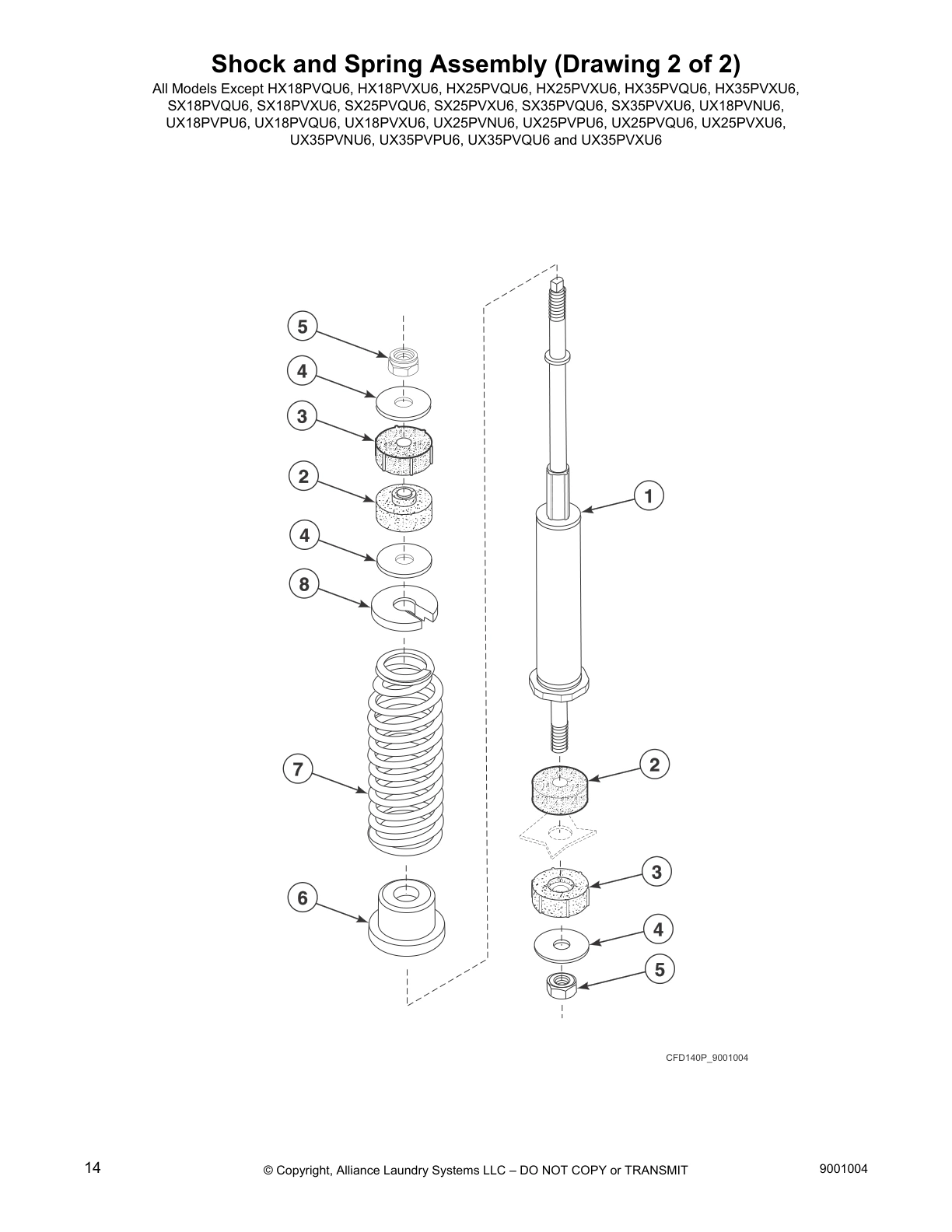

Shock and Spring Assembly (Drawing 2 of 2)

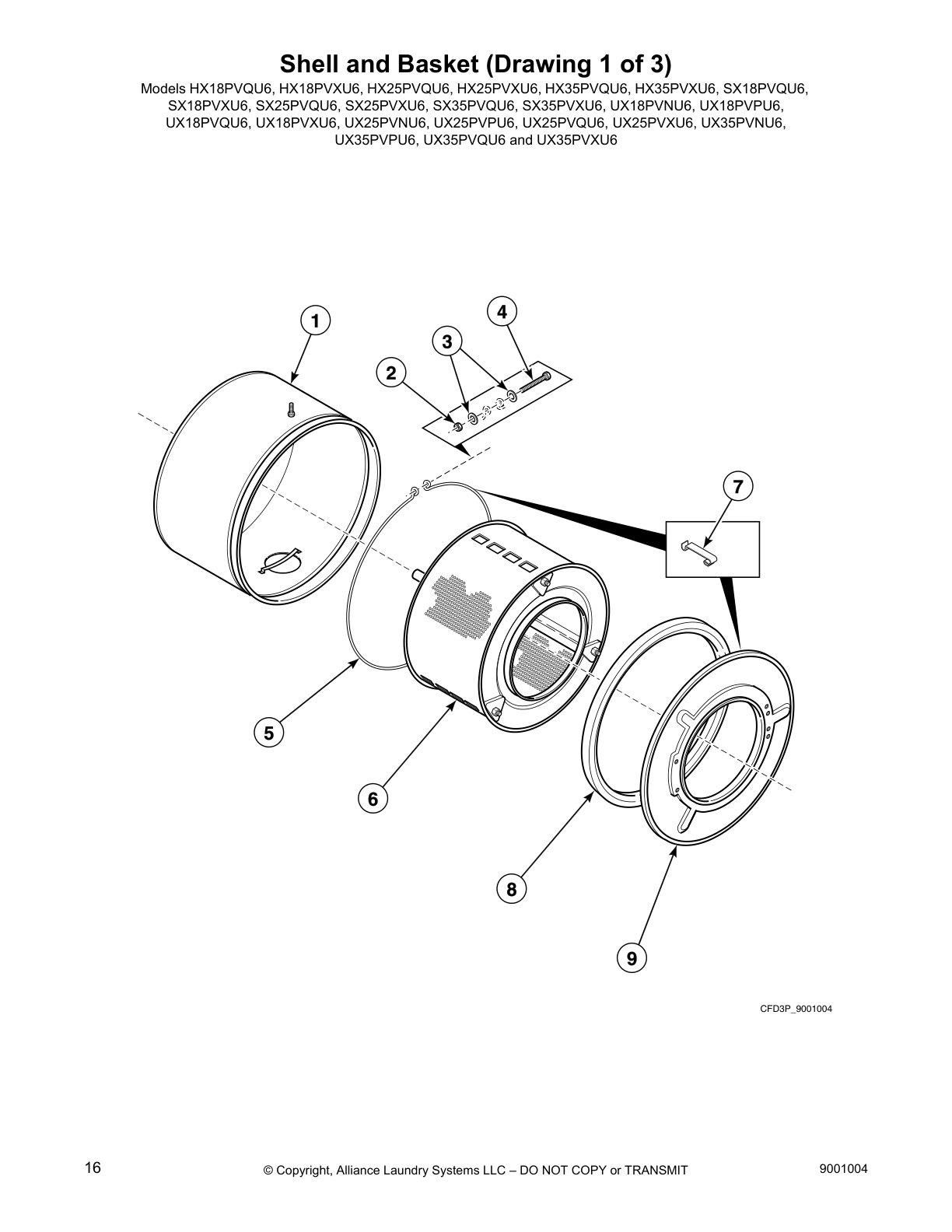

Shell and Basket (Drawing 1 of 3)

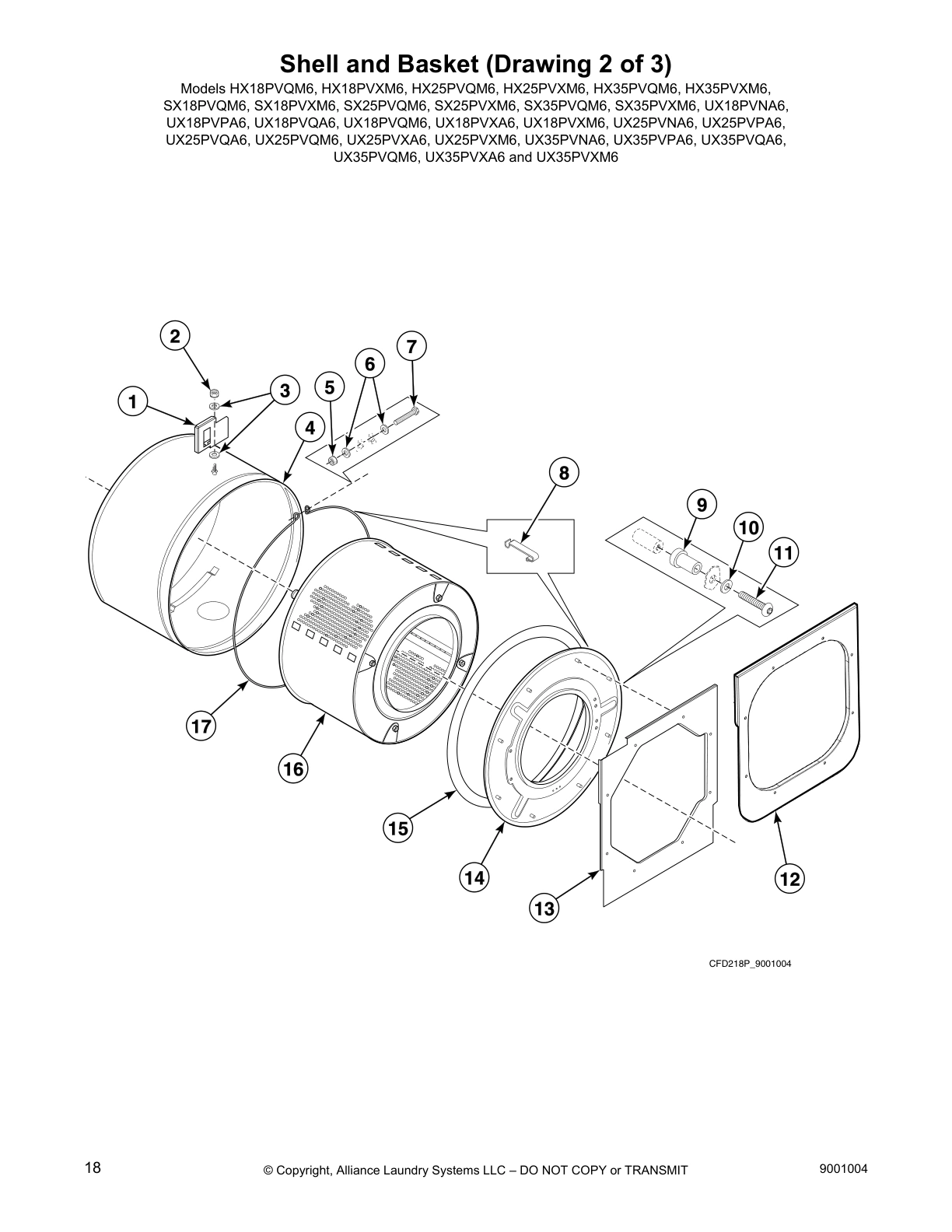

Shell and Basket (Drawing 2 of 3)

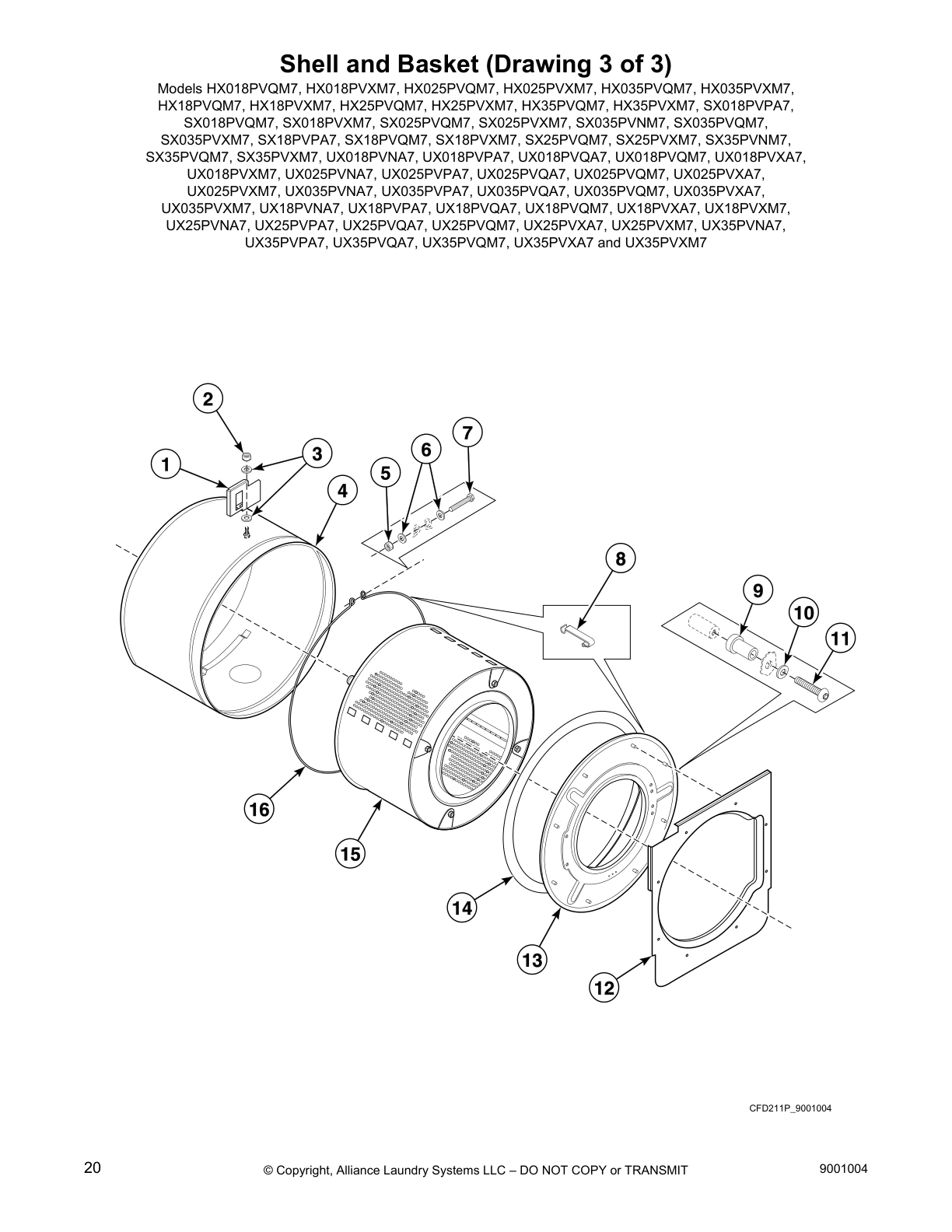

Shell and Basket (Drawing 3 of 3)

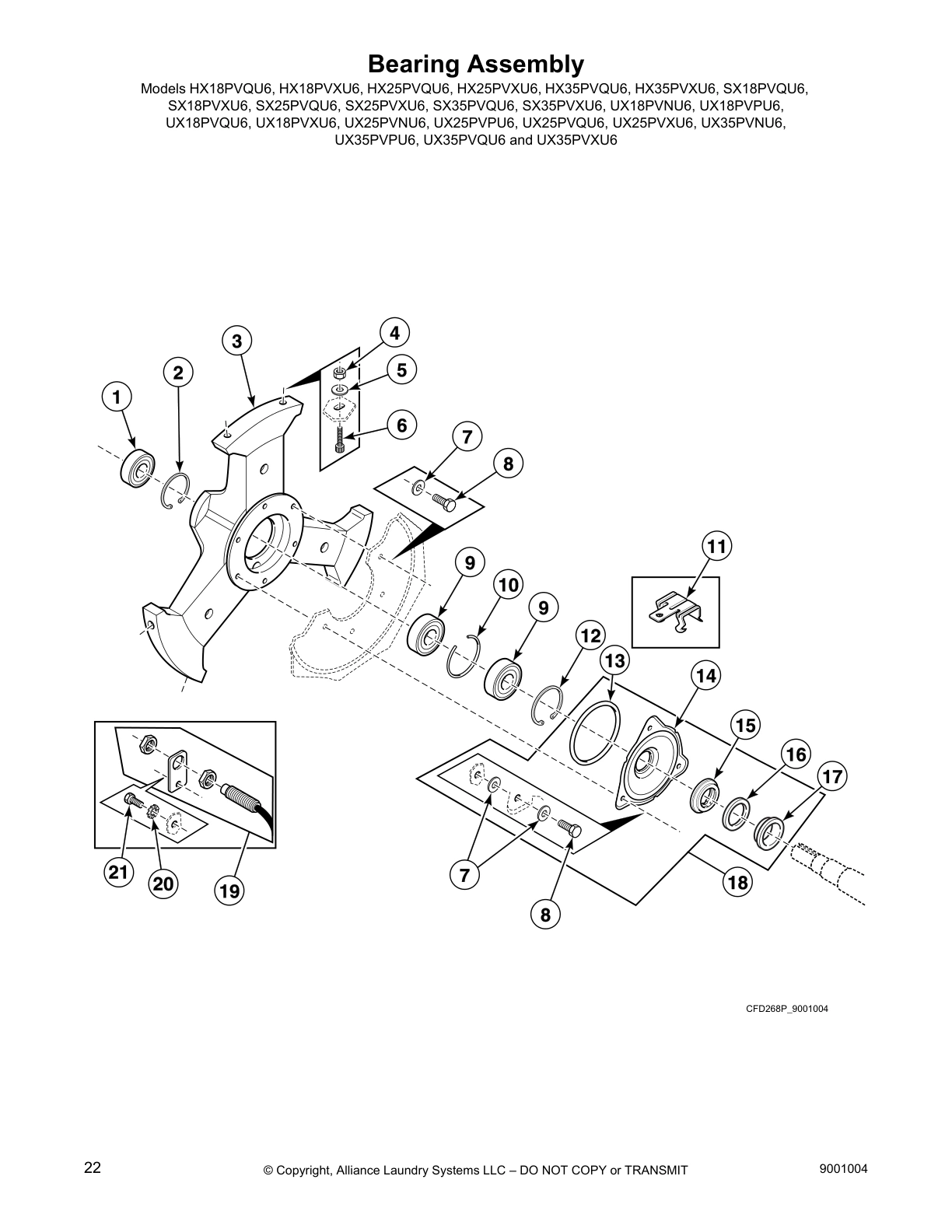

Bearing Assembly

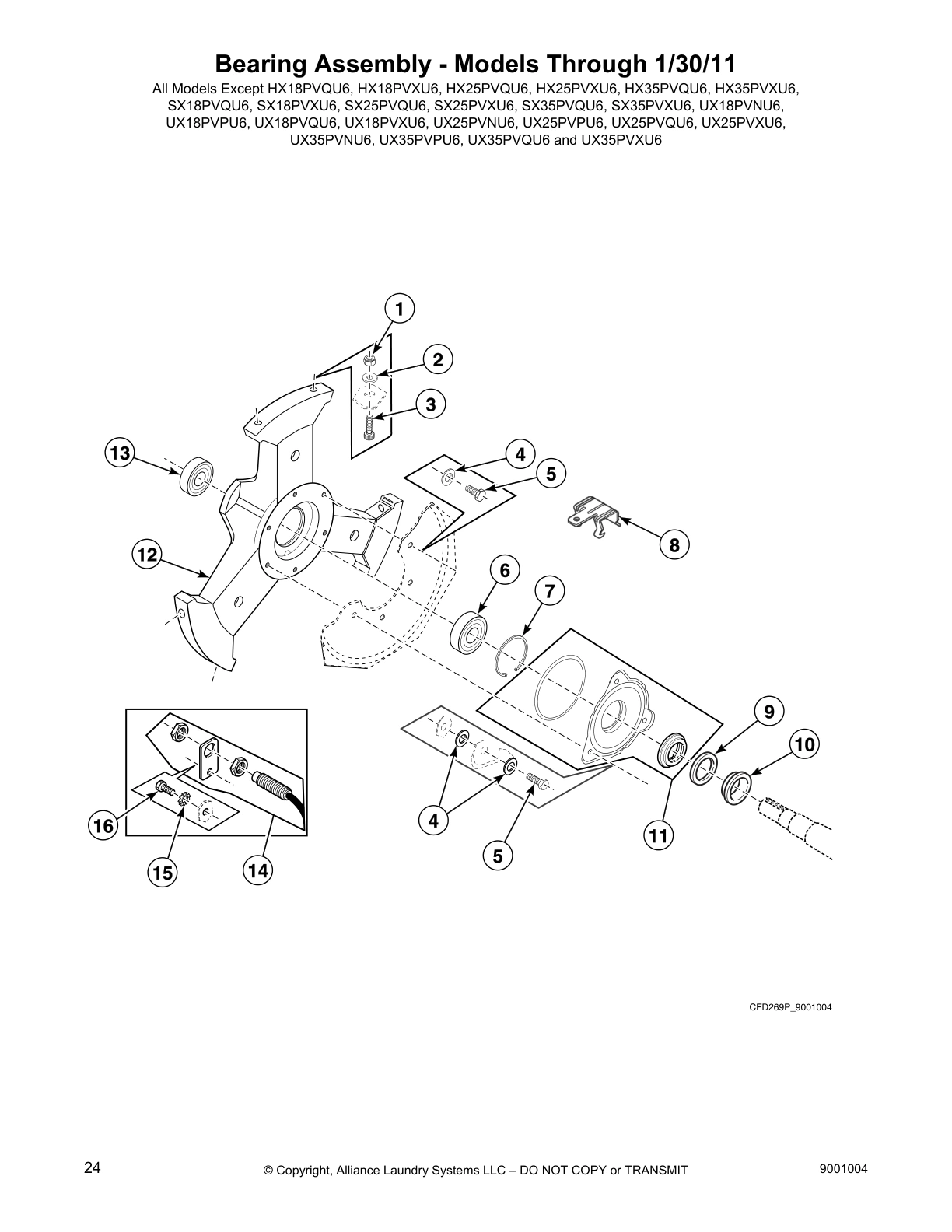

Bearing Assembly - Models Through 1/30/11

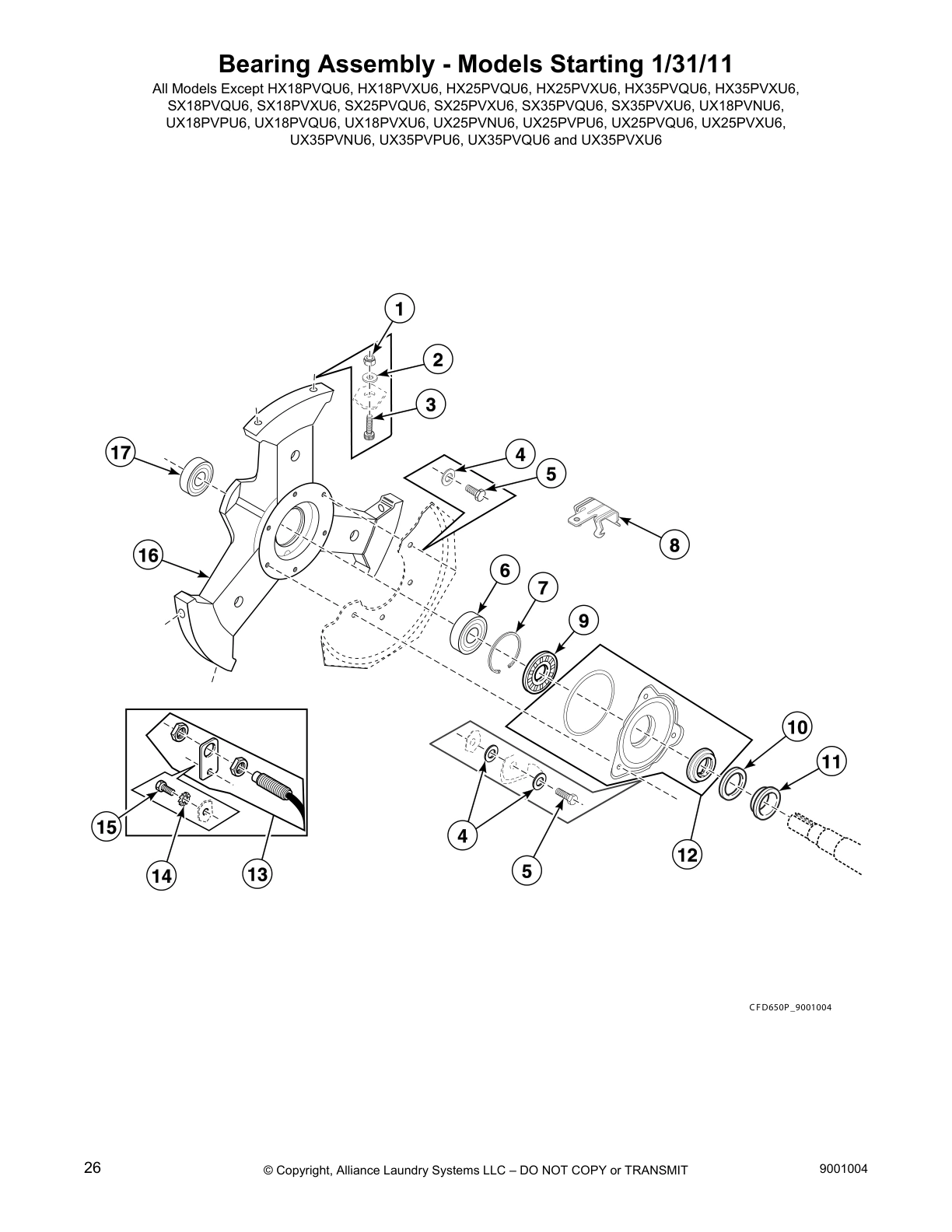

Bearing Assembly - Models Starting 1/31/11

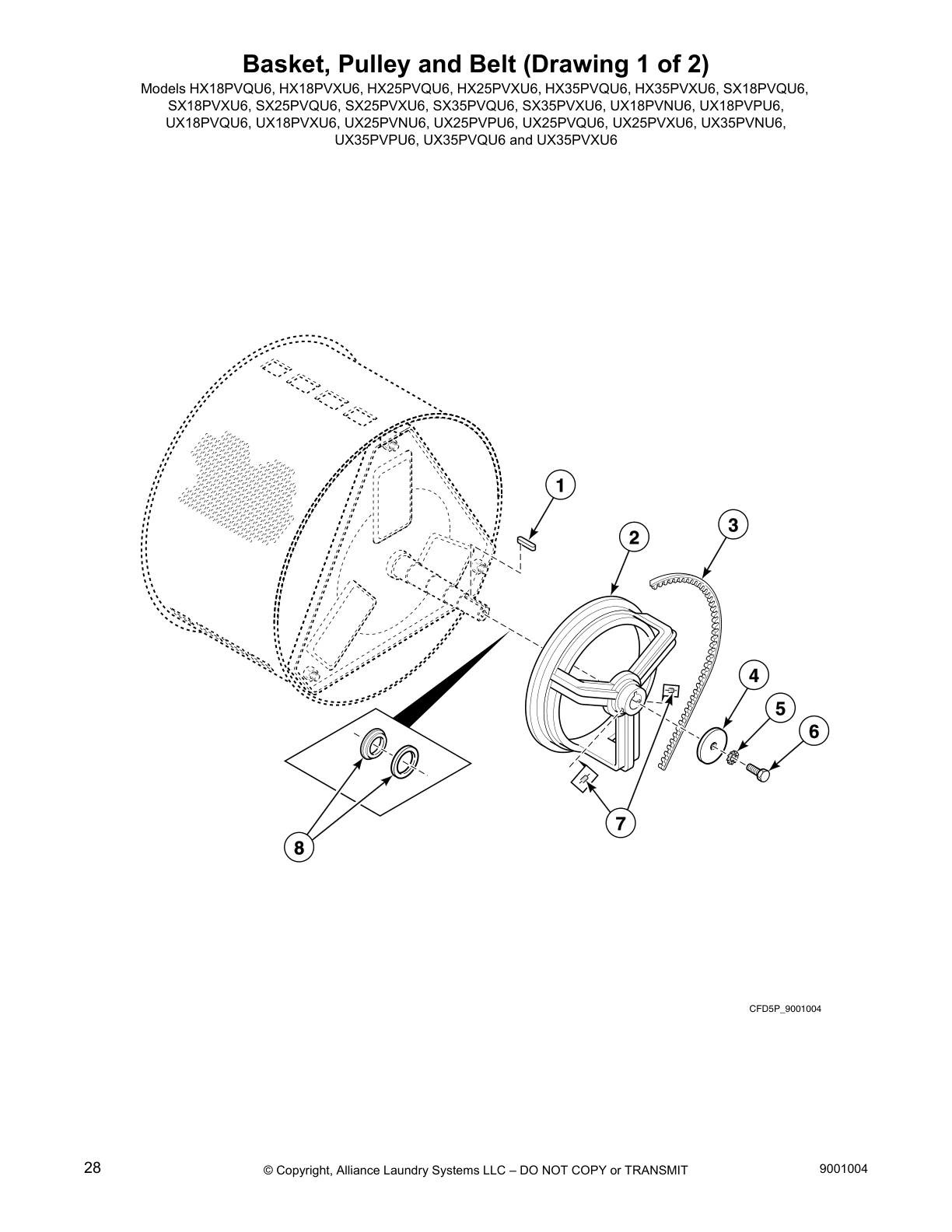

Basket, Pulley and Belt (Drawing 1 of 2)

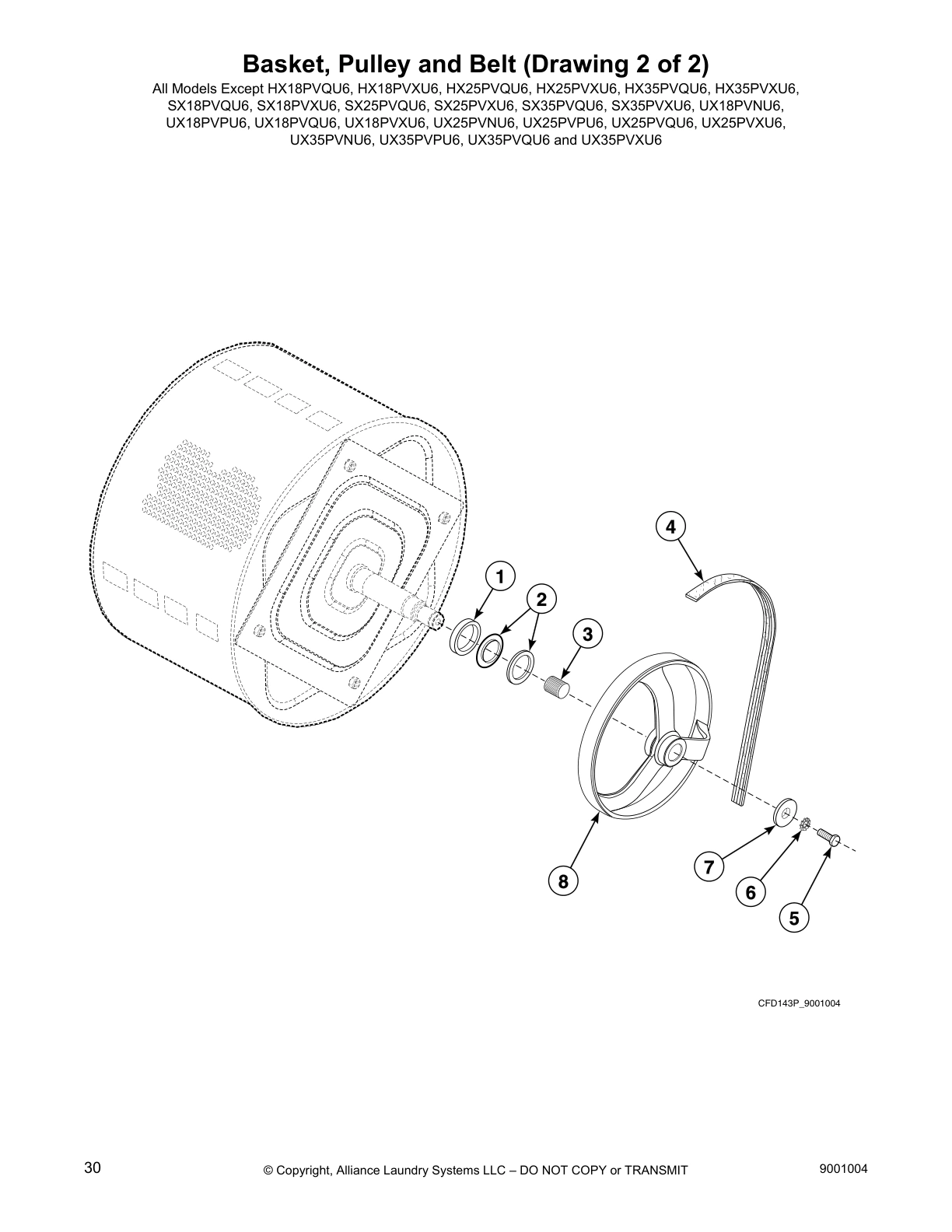

Basket, Pulley and Belt (Drawing 2 of 2)

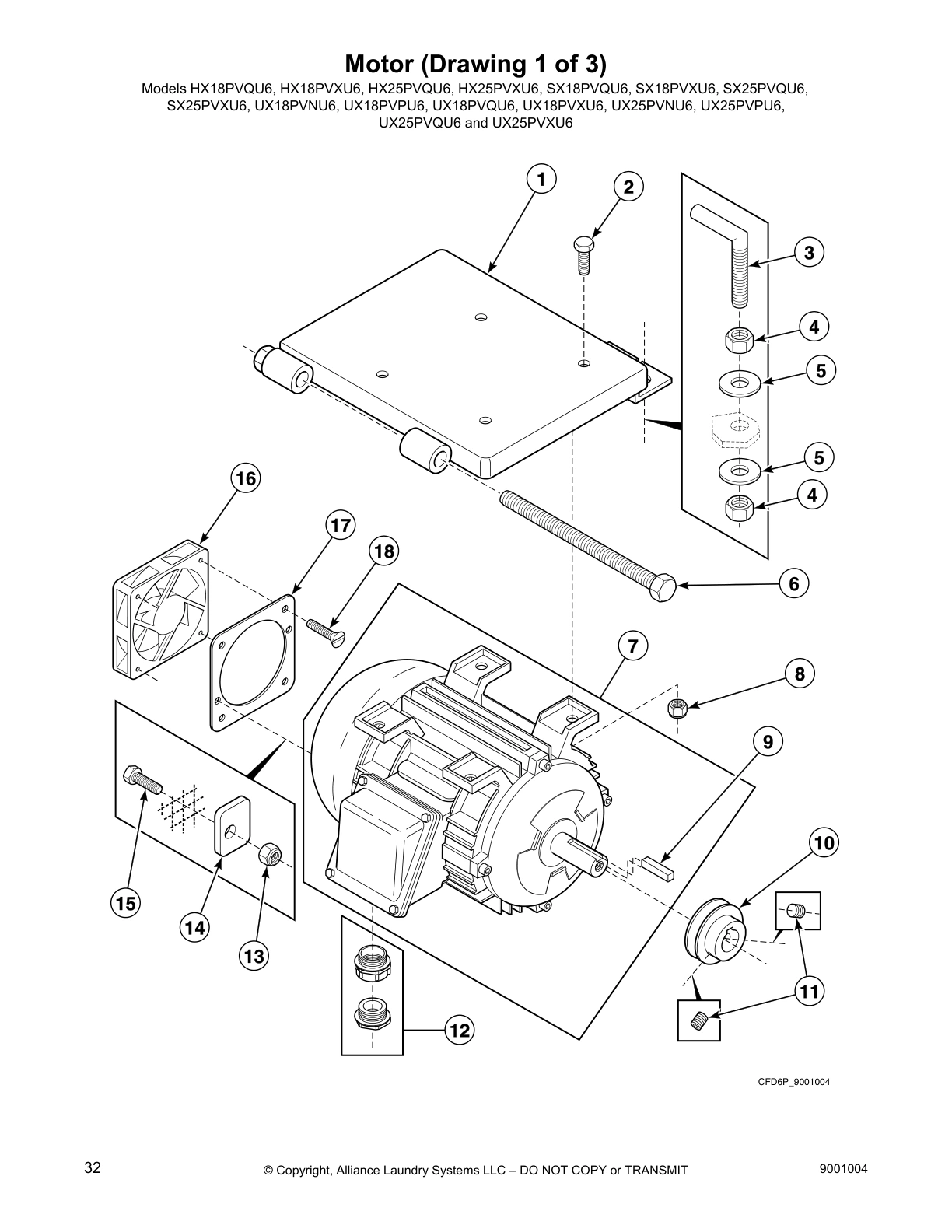

Motor (Drawing 1 of 3)

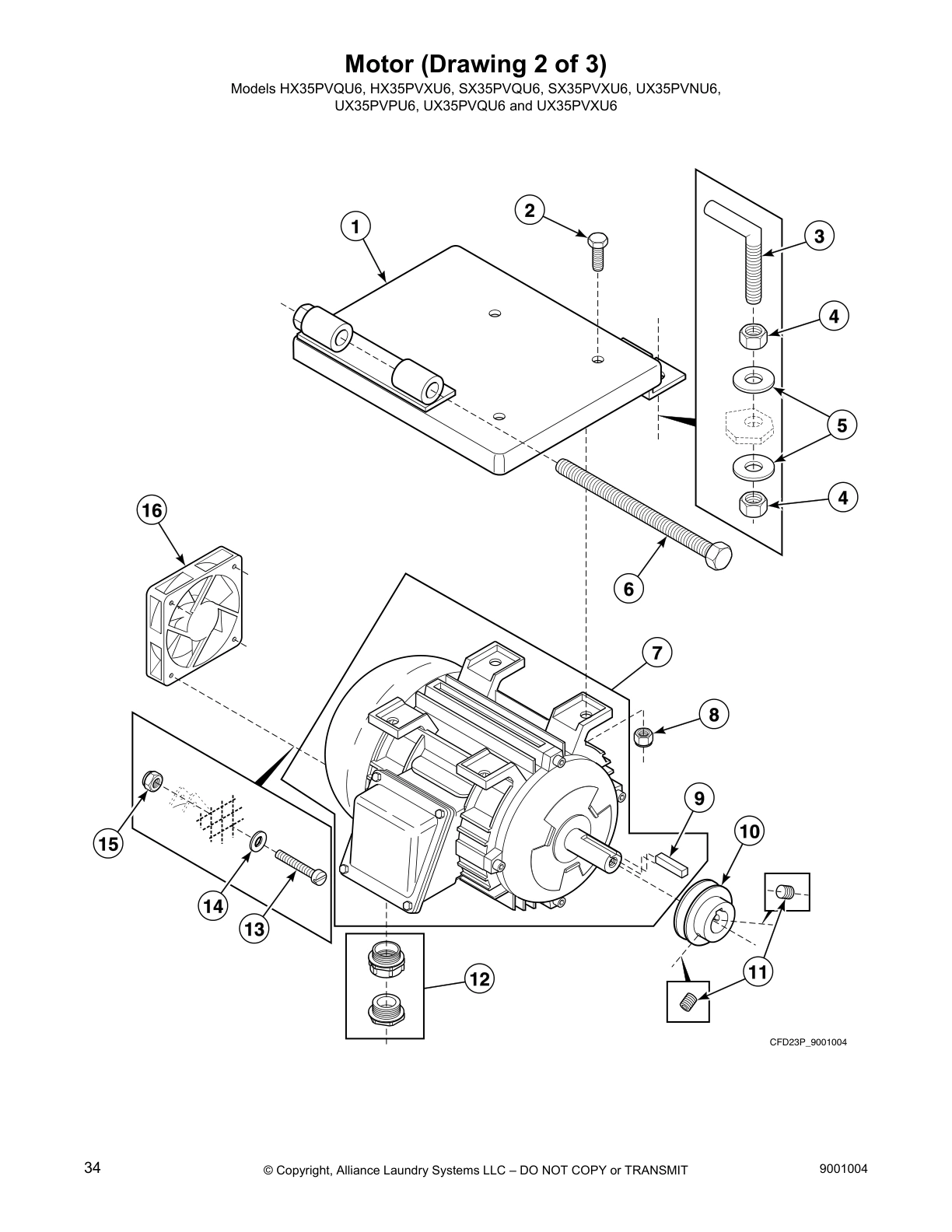

Motor (Drawing 2 of 3)

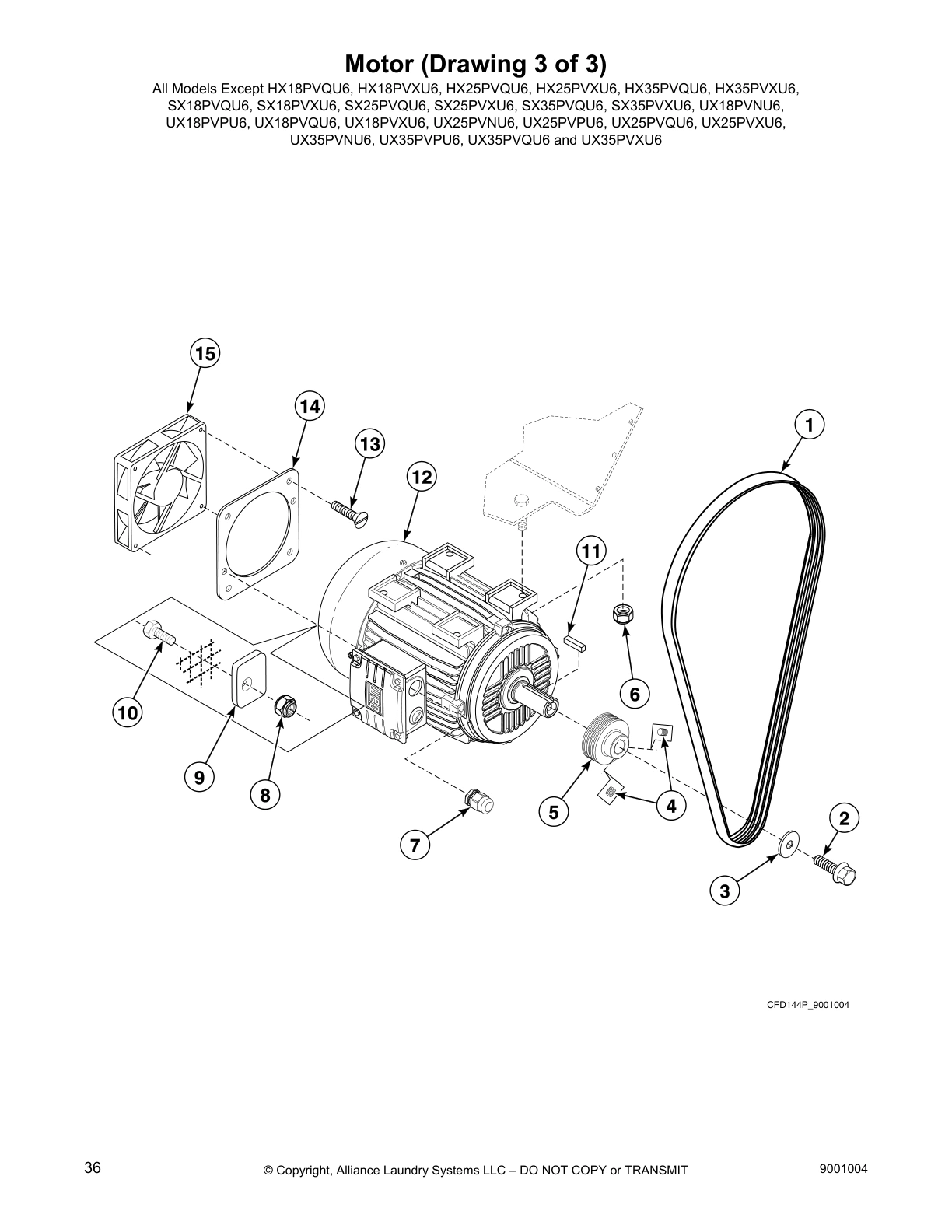

Motor (Drawing 3 of 3)

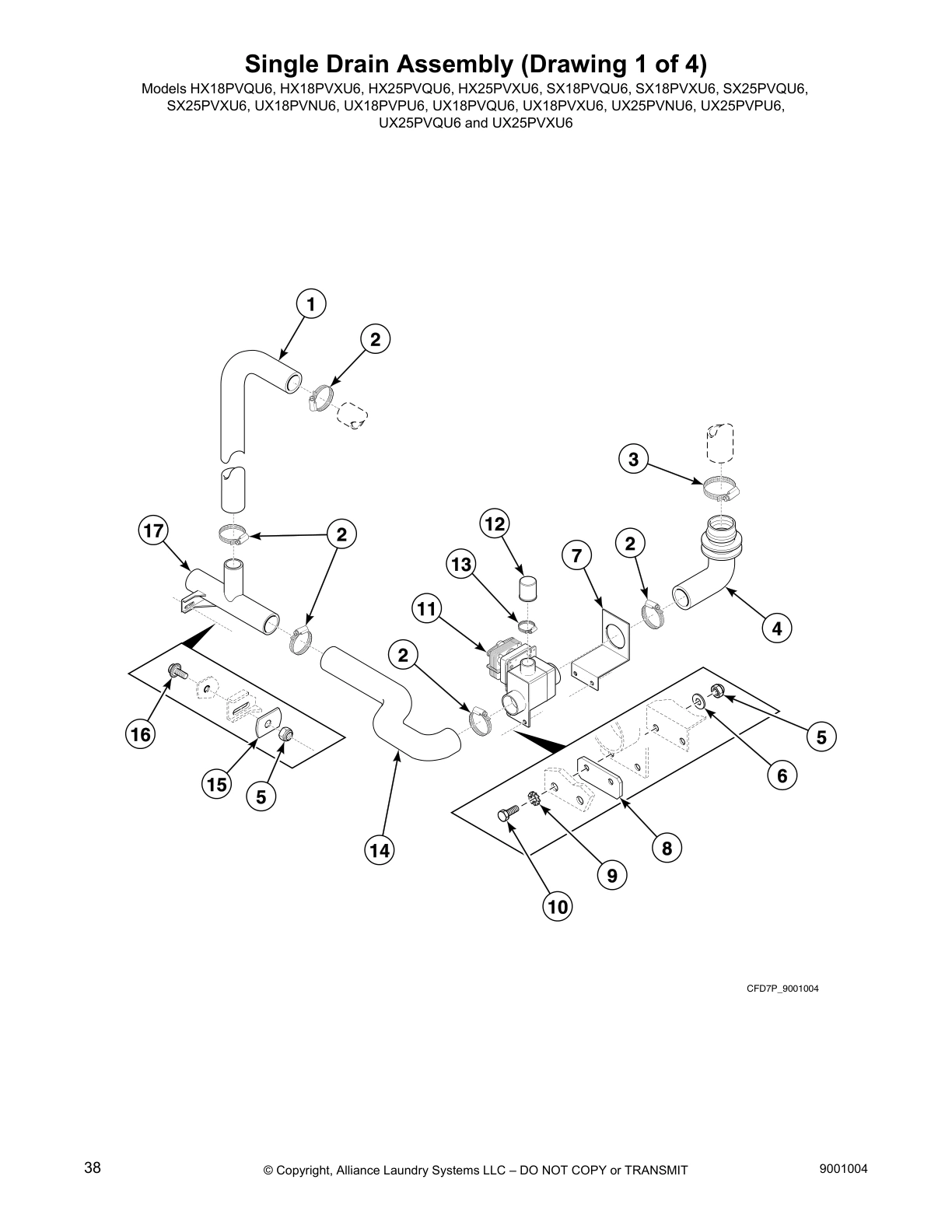

Single Drain Assembly (Drawing 1 of 4)

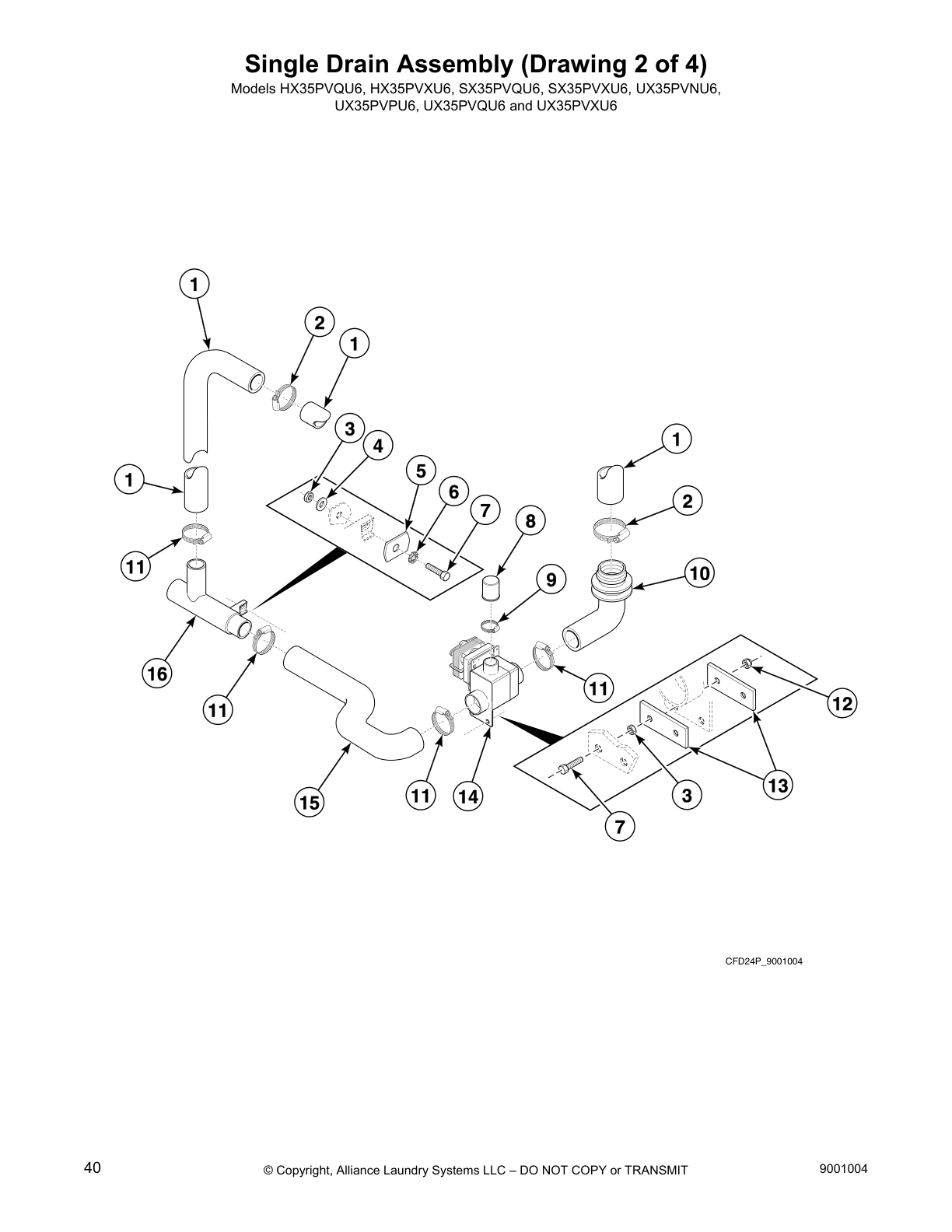

Single Drain Assembly (Drawing 2 of 4)

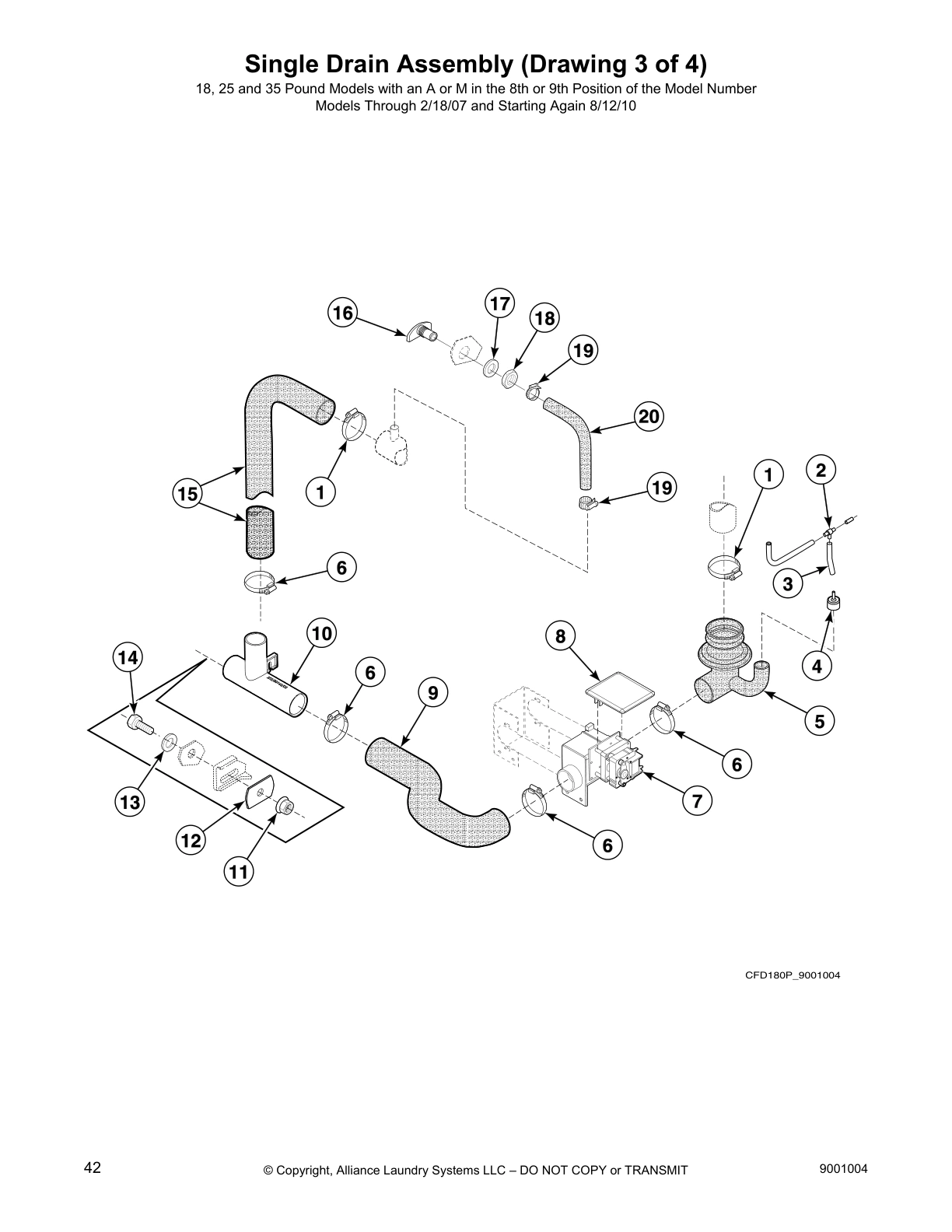

Single Drain Assembly (Drawing 3 of 4)

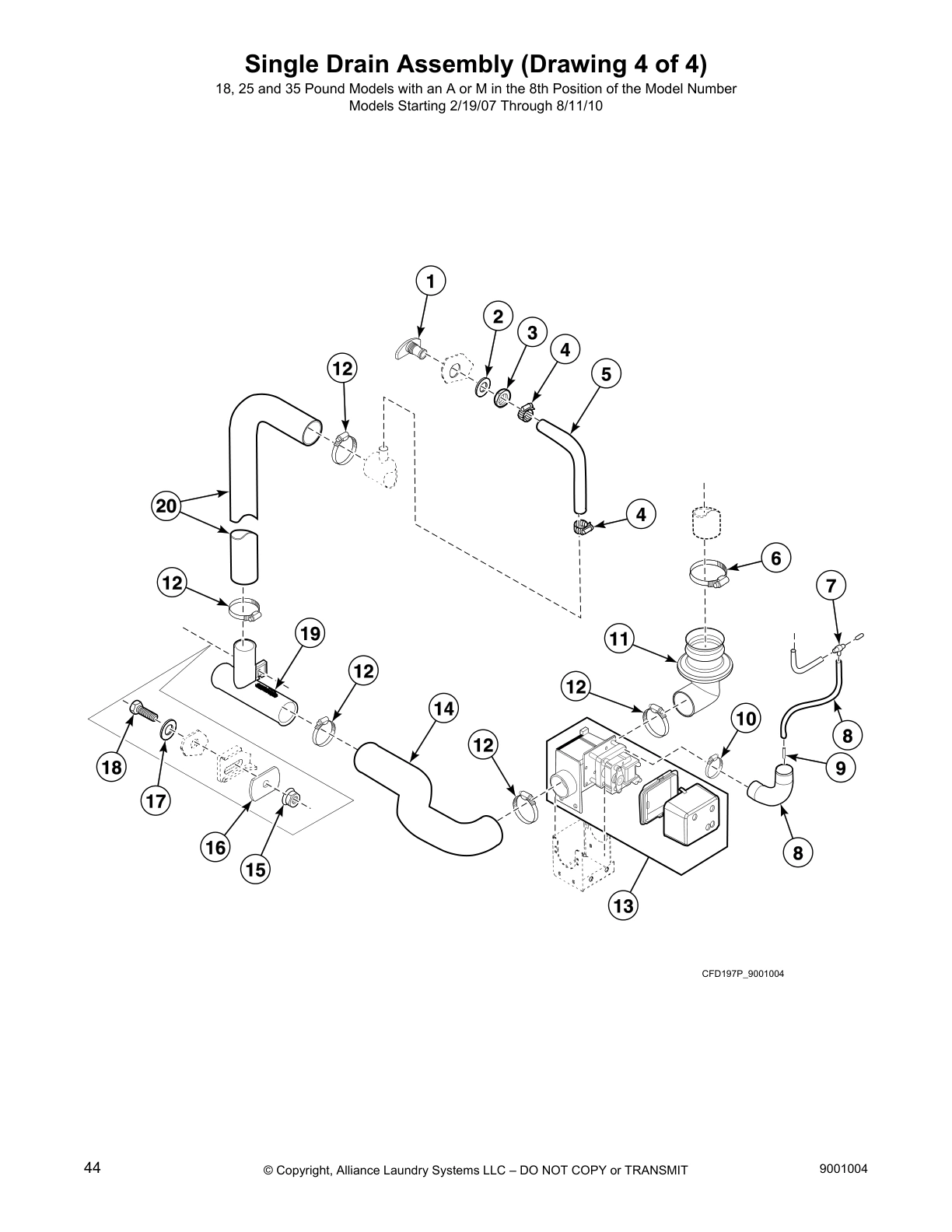

Single Drain Assembly (Drawing 4 of 4)

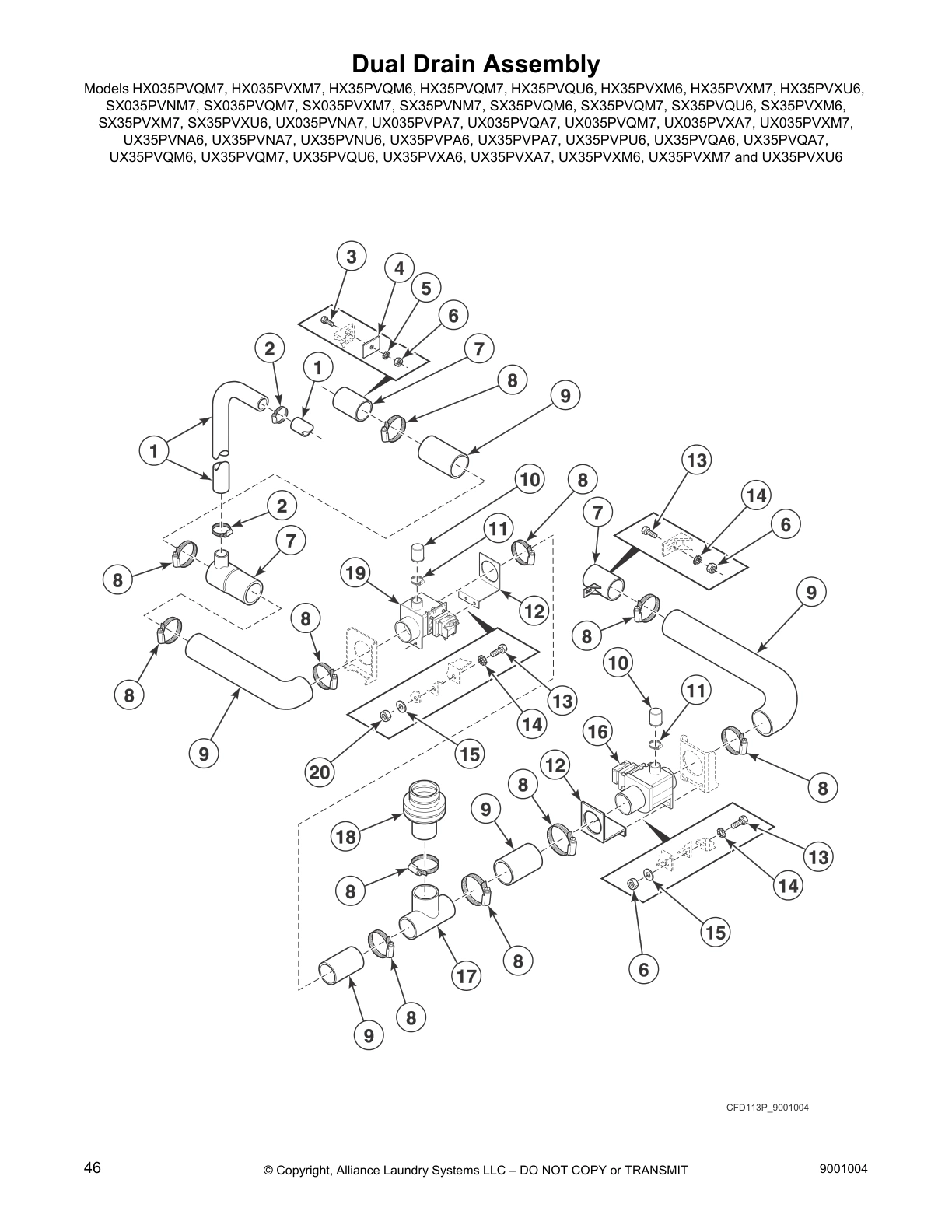

Dual Drain Assembly

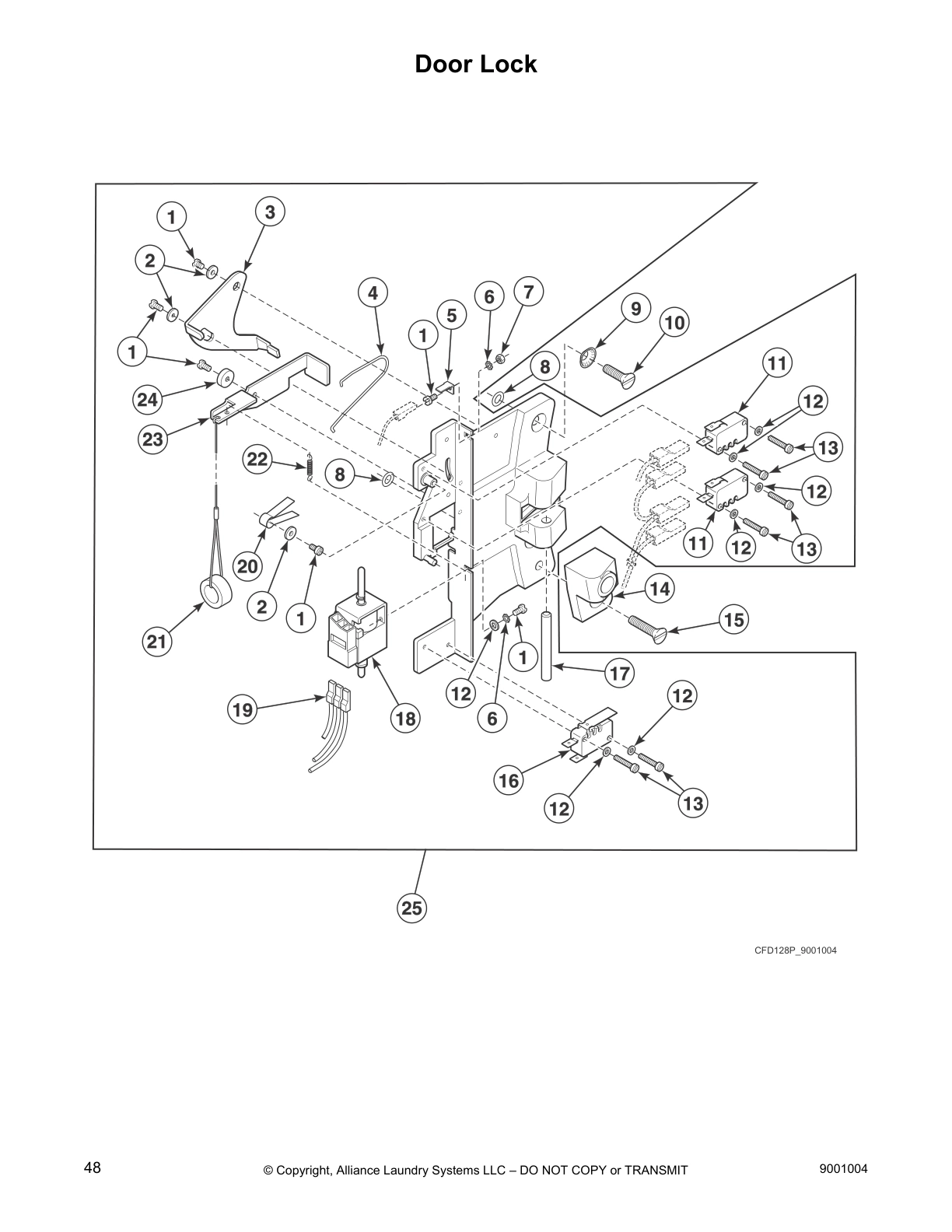

Door Lock
Door - Design 6 Models

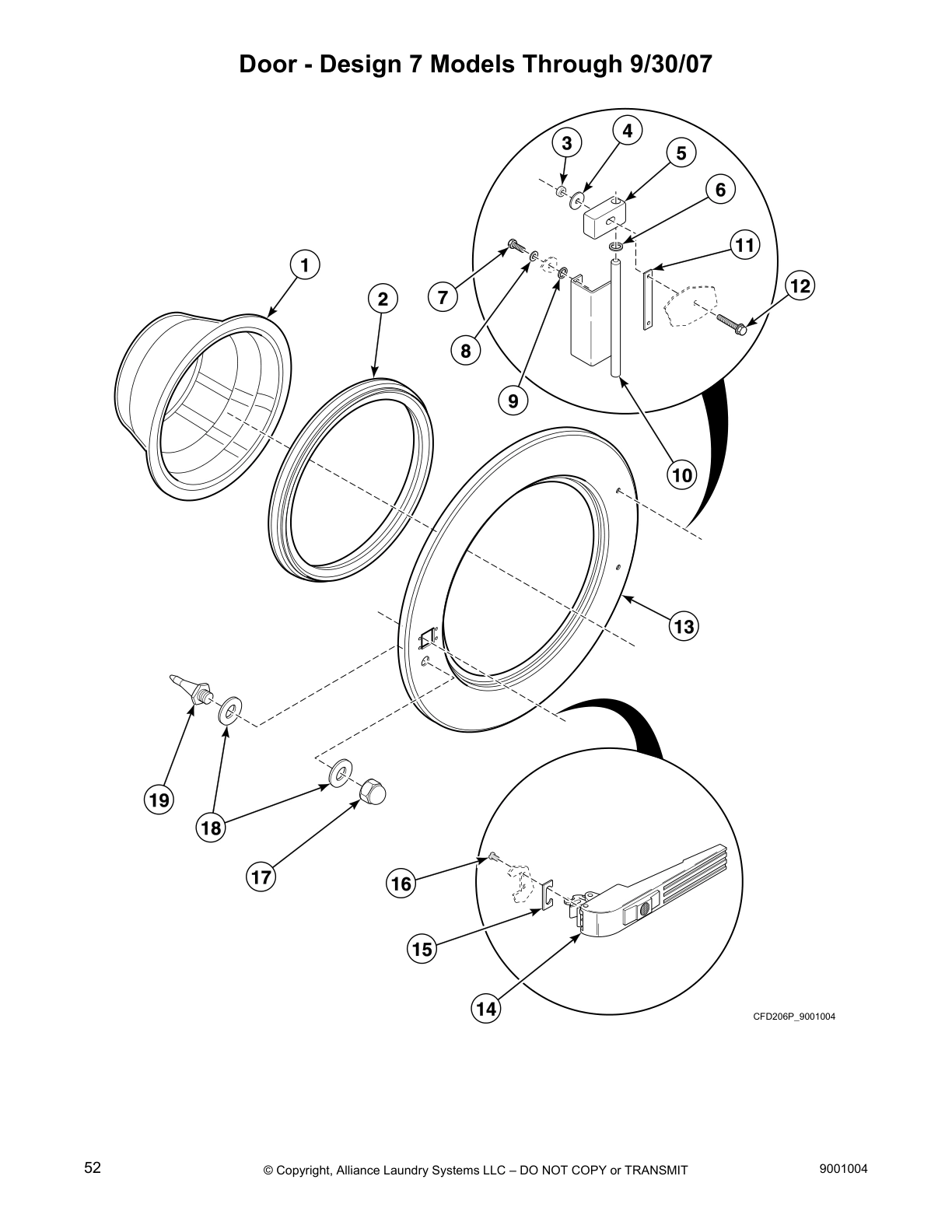

Door - Design 7 Models Through 9/30/07

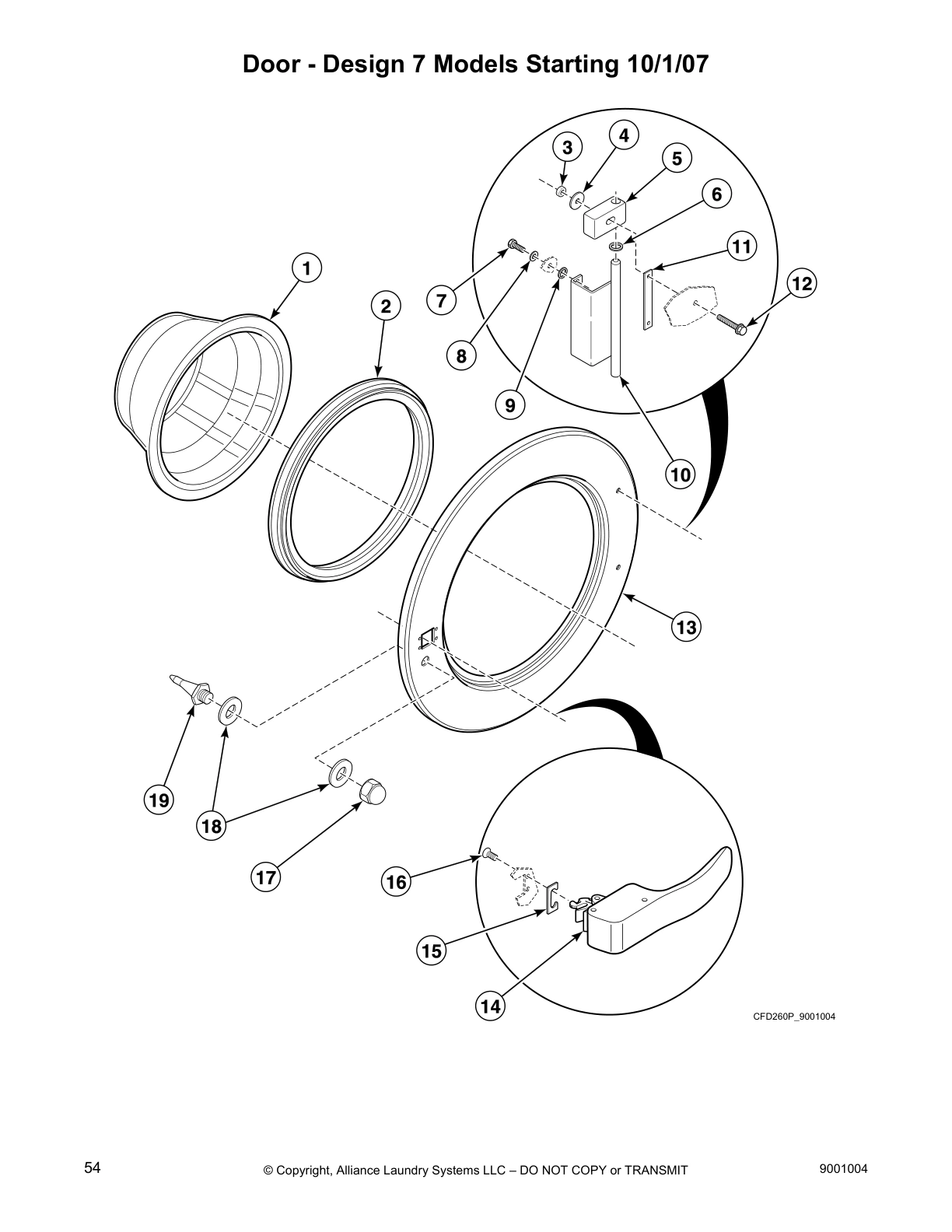

Door - Design 7 Models Starting 10/1/07

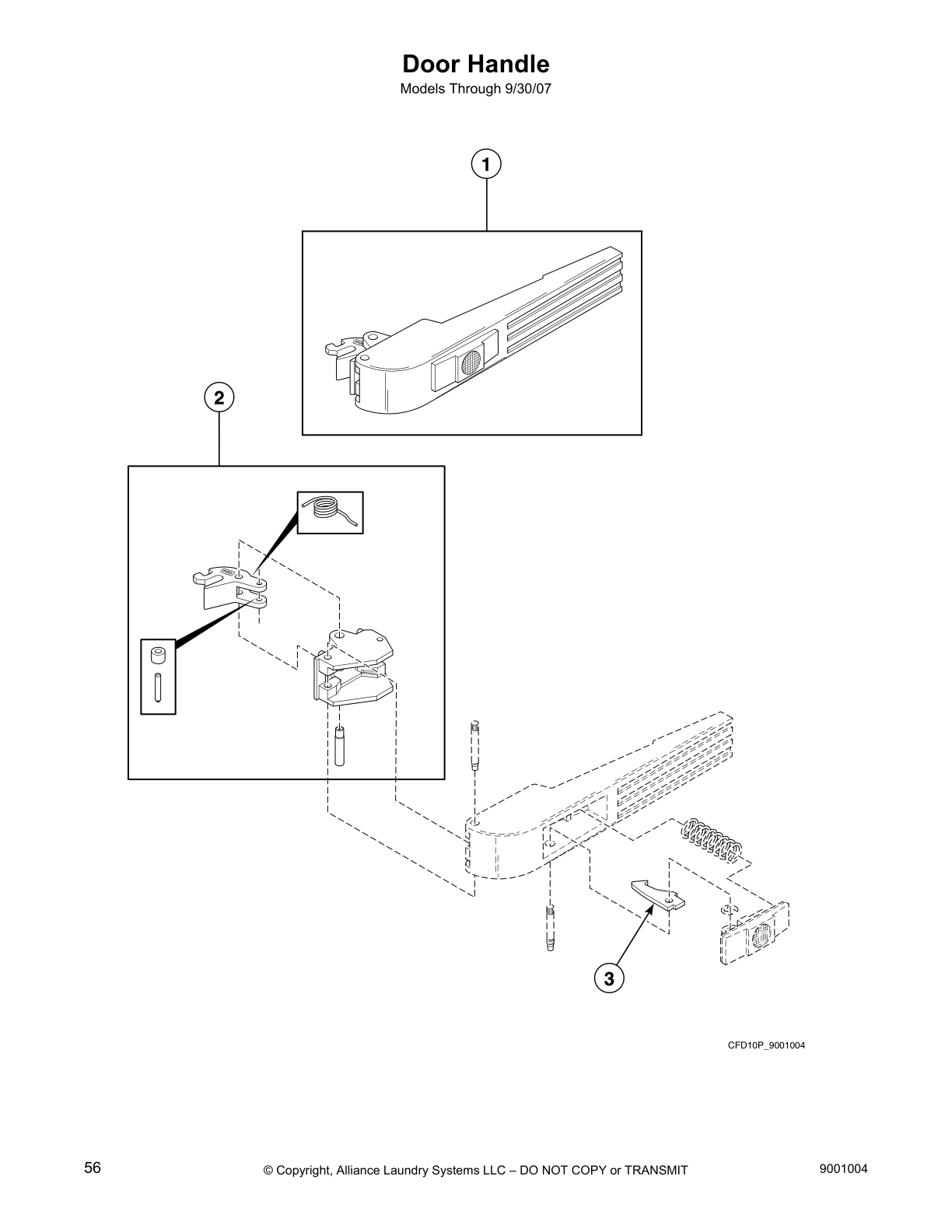

Door Handle

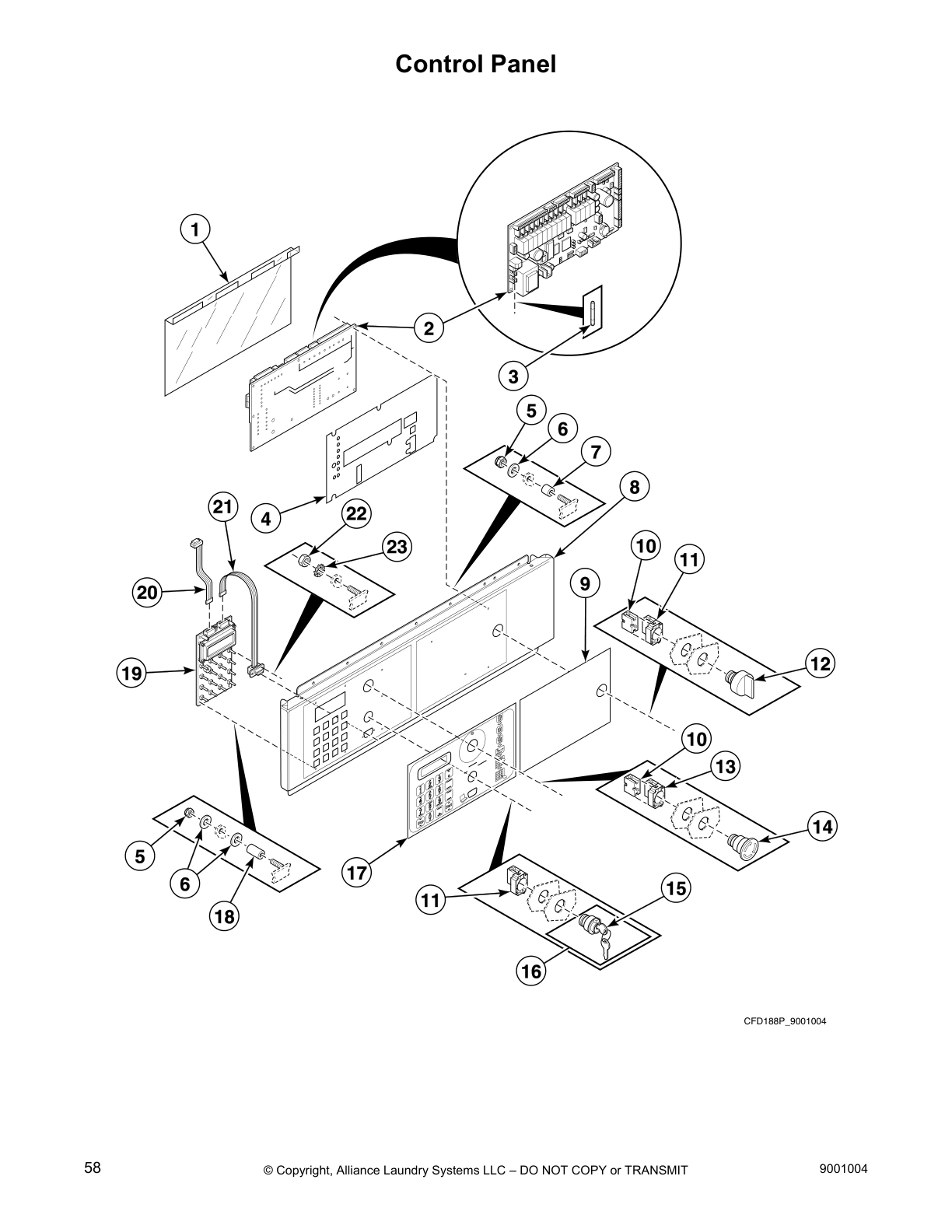

Control Panel

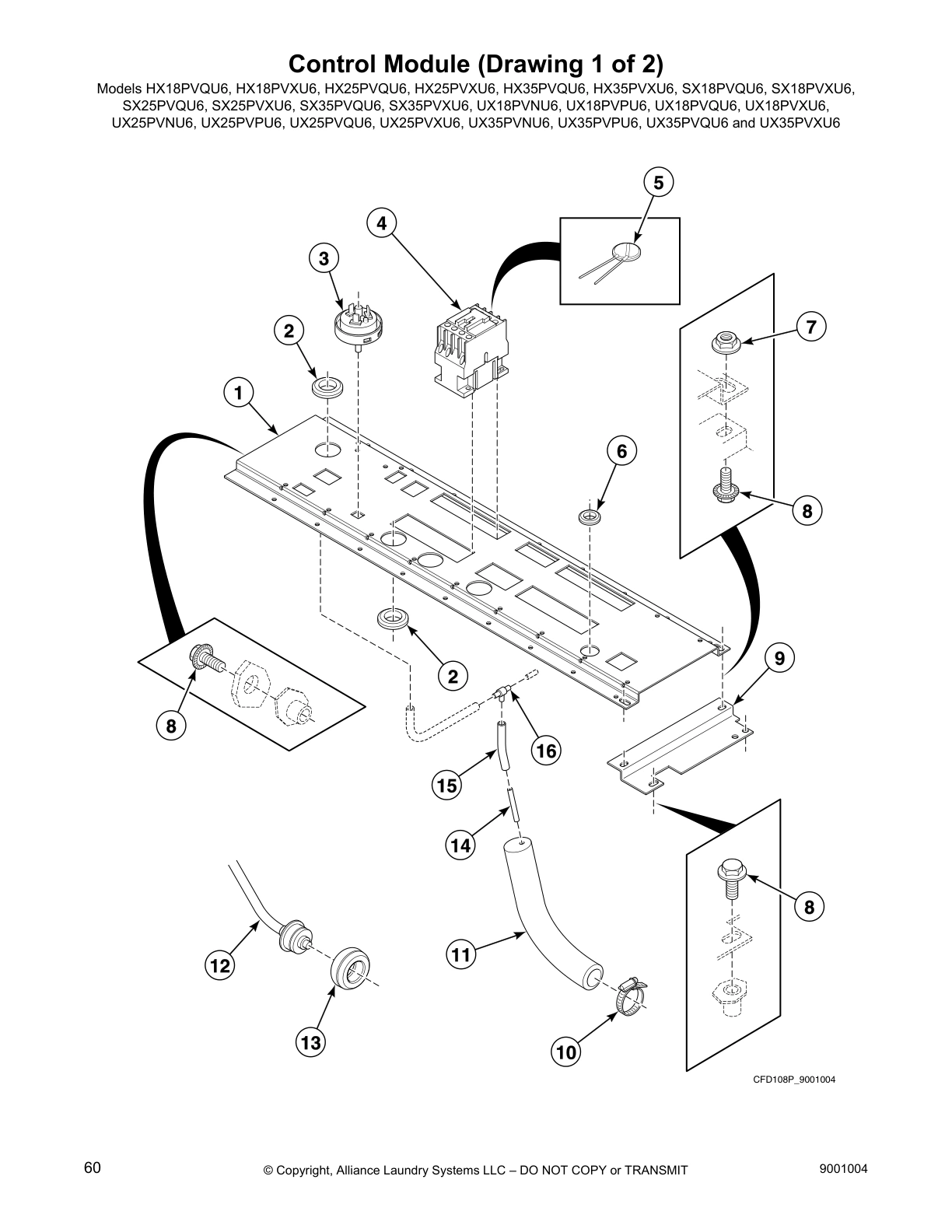

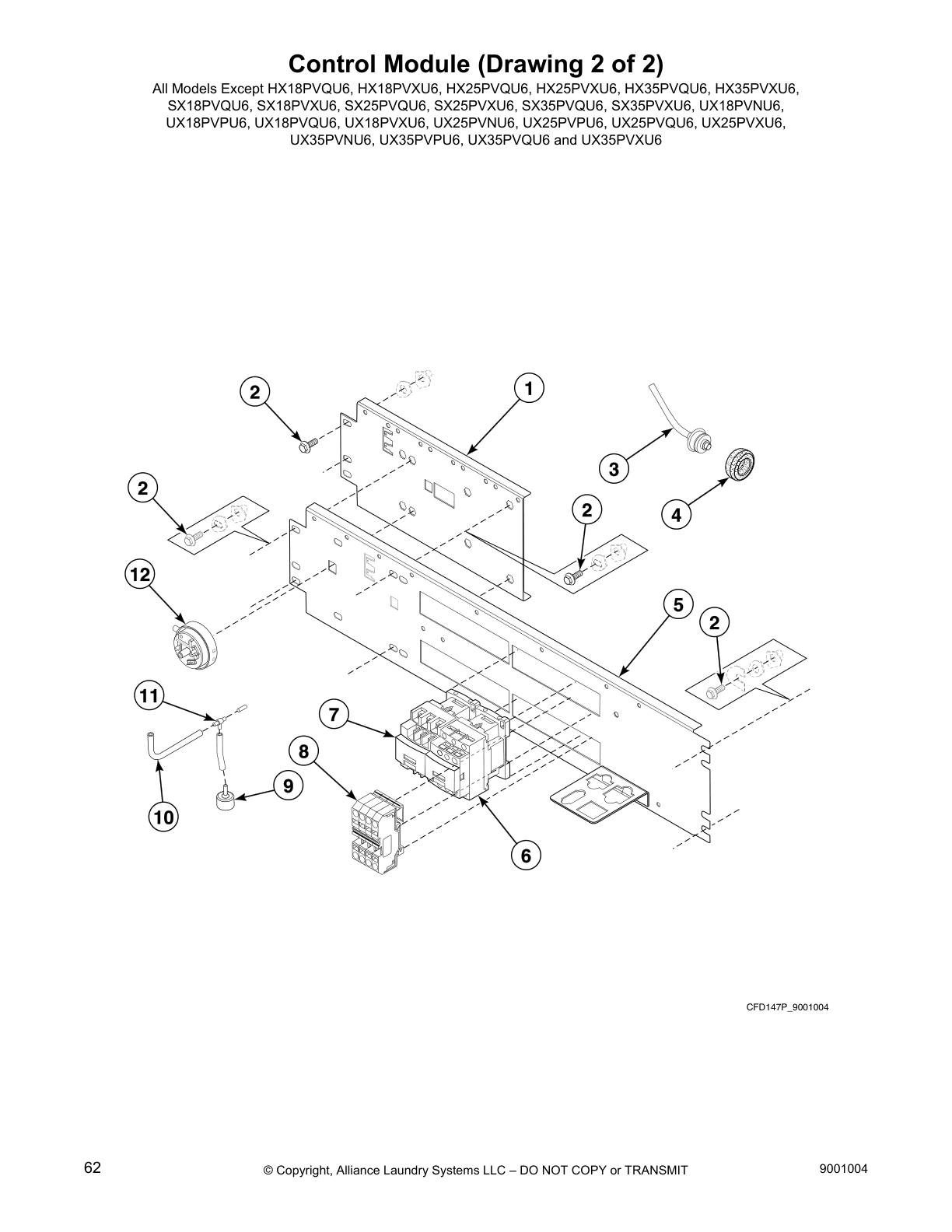

Control Module (Drawing 1 of 2)
Control Module (Drawing 2 of 2)

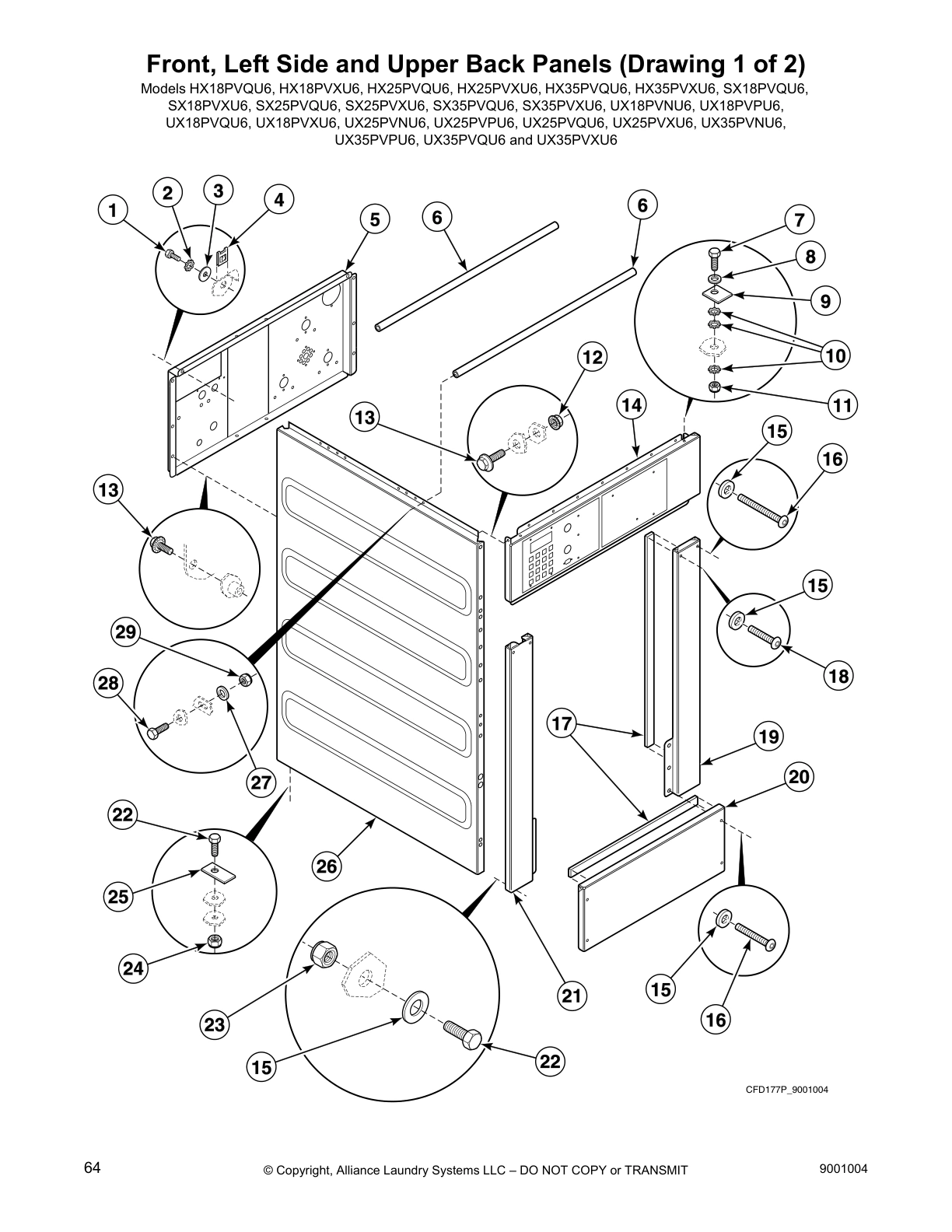

Front, Left Side and Upper Back Panels (Drawing 1 of 2)

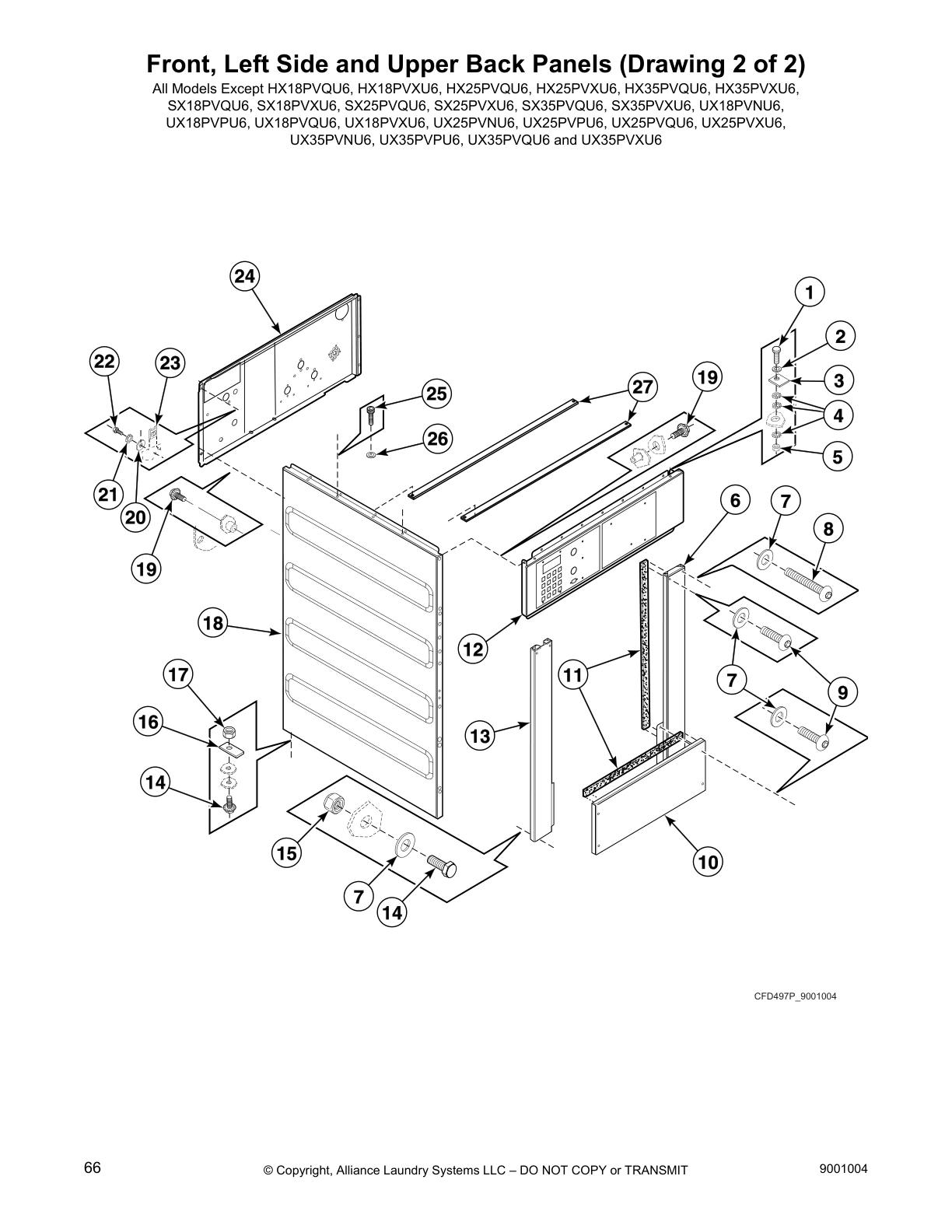

Front, Left Side and Upper Back Panels (Drawing 2 of 2)

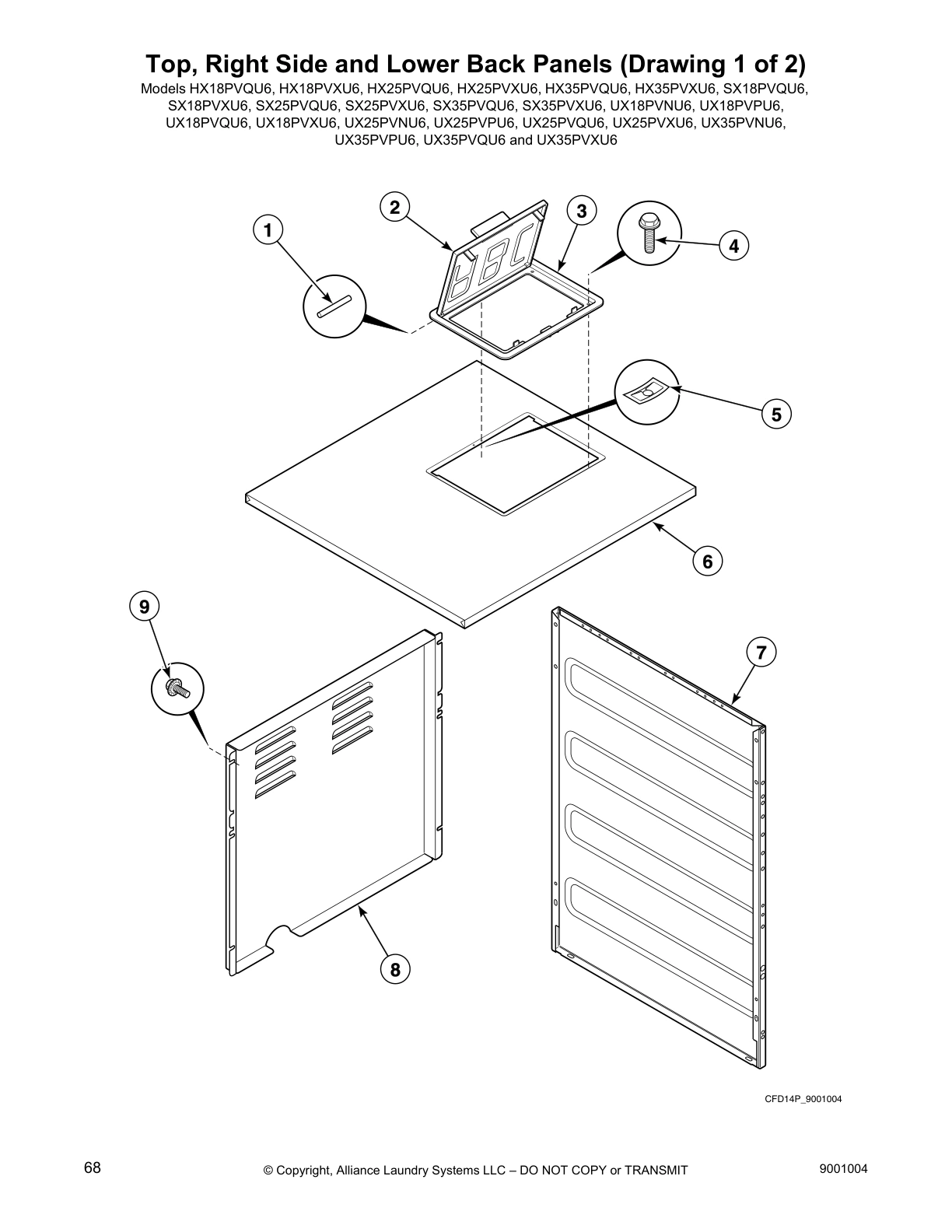

Top, Right Side and Lower Back Panels (Drawing 1 of 2)

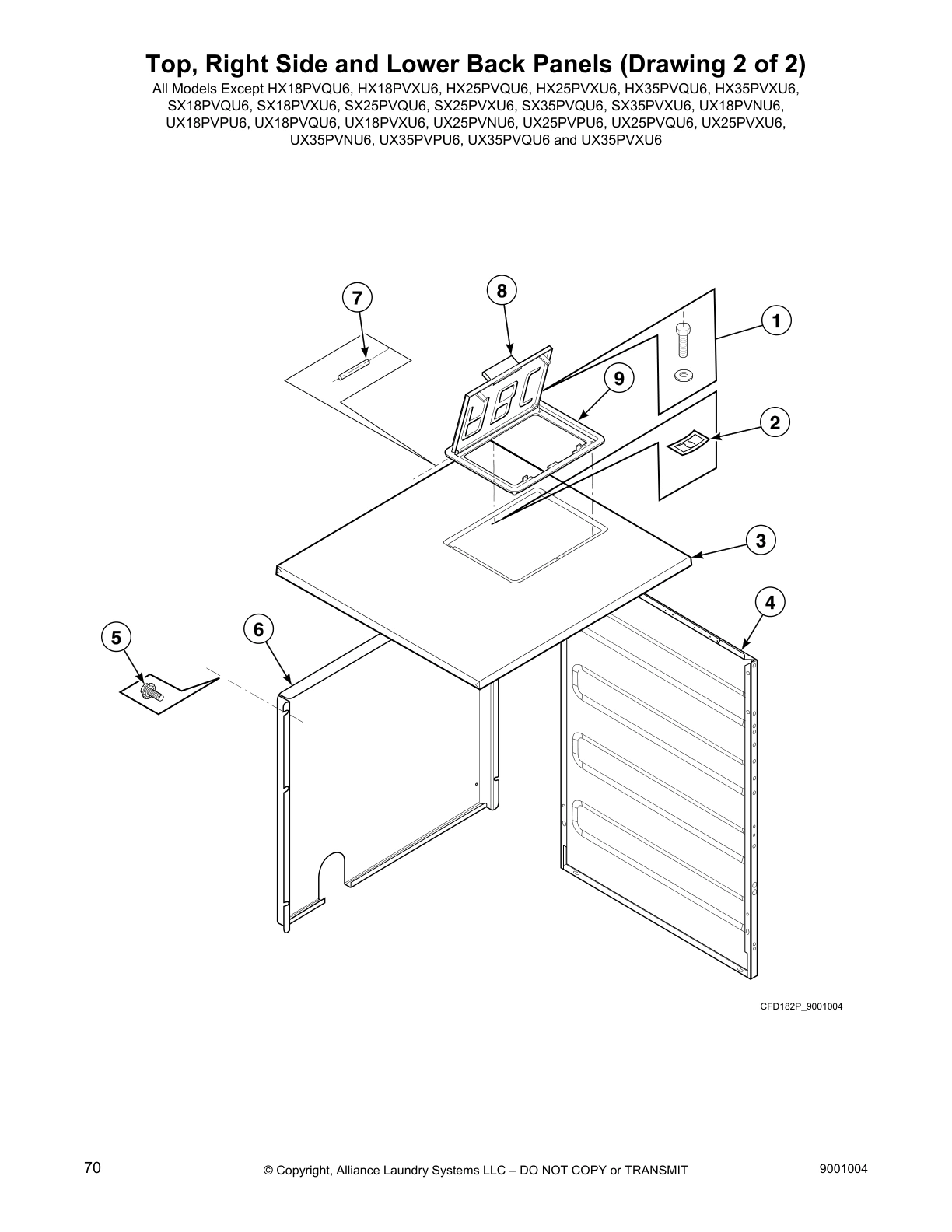

Top, Right Side and Lower Back Panels (Drawing 2 of 2)

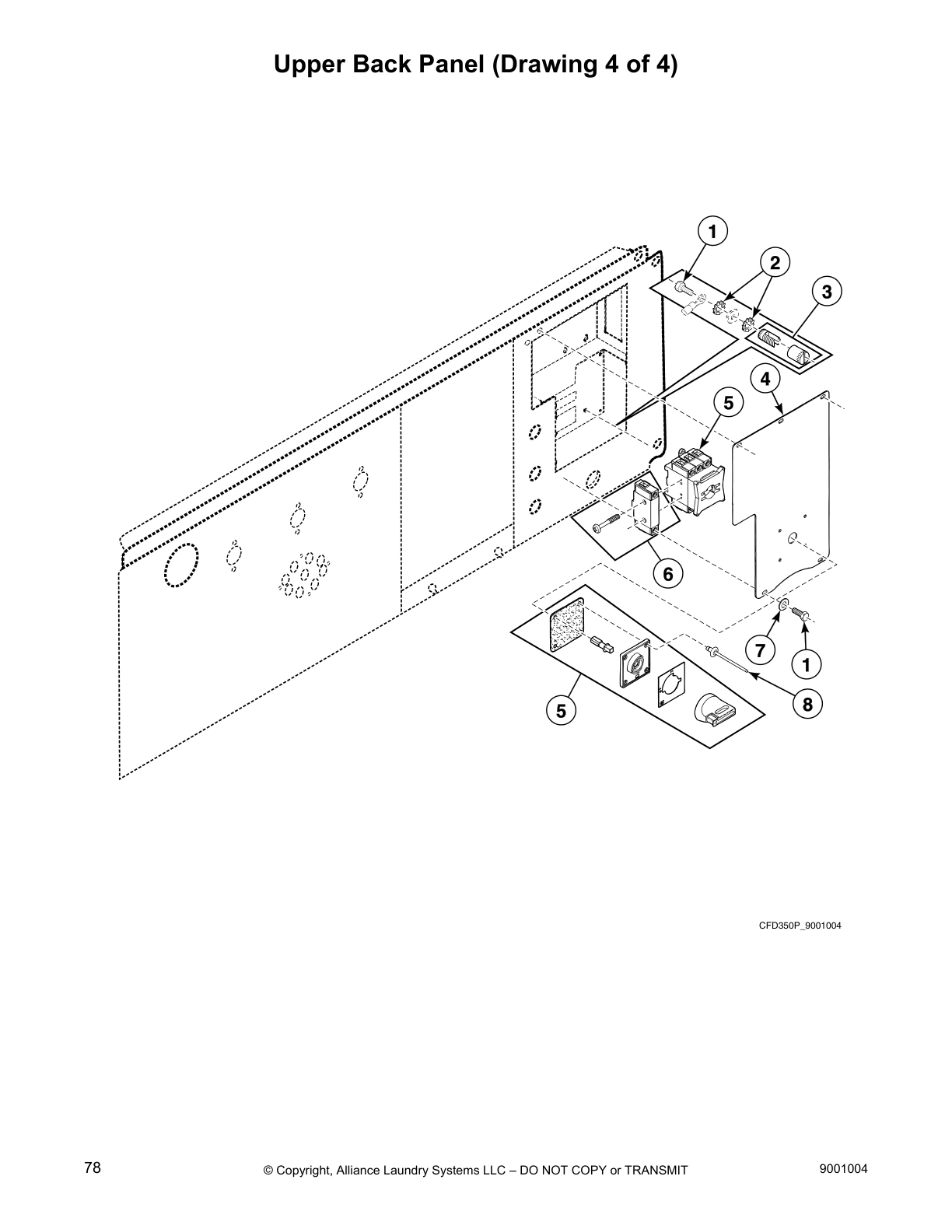

Upper Back Panel (Drawing 4 of 4)
AC Drive Panel (Drawing 1 of 3)

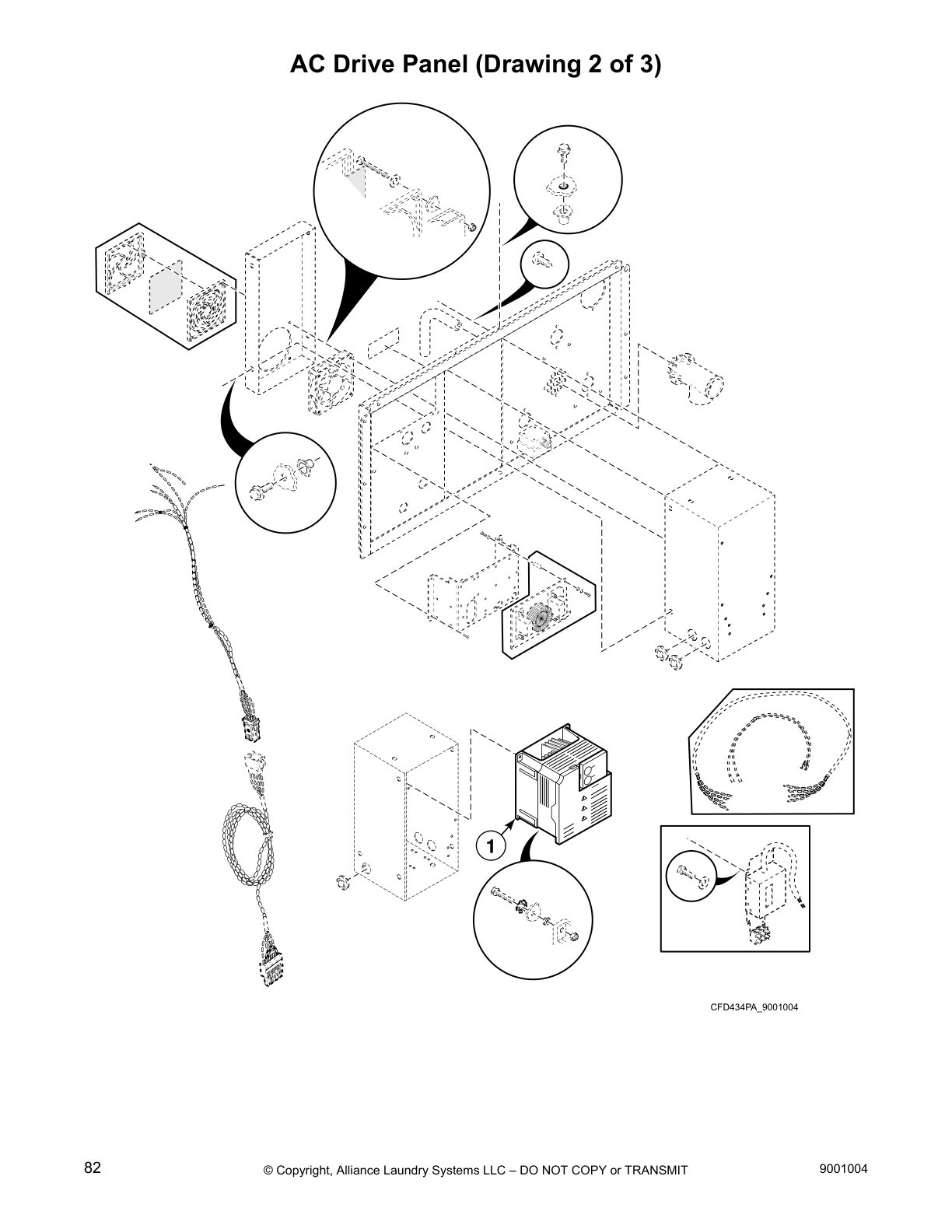

AC Drive Panel (Drawing 2 of 3)

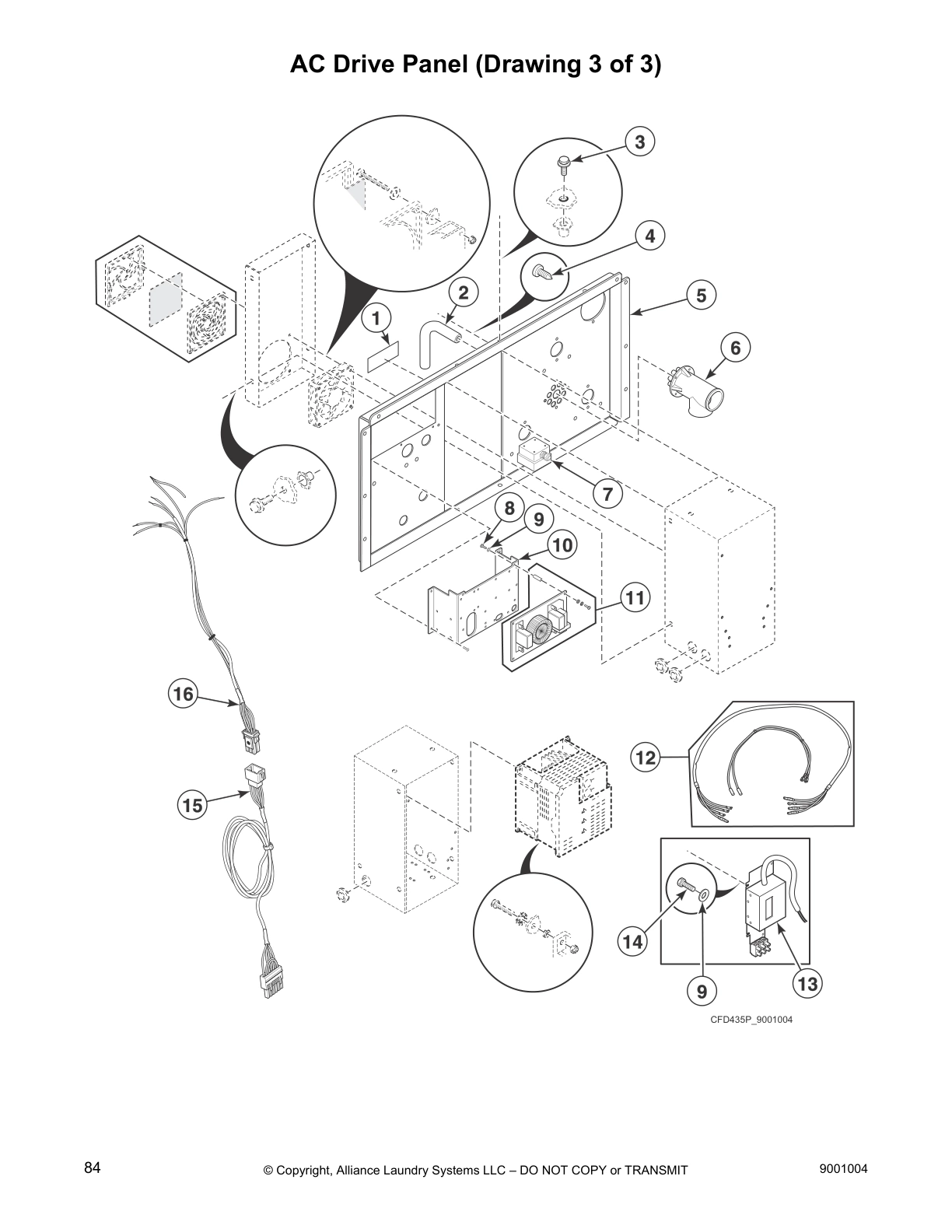

AC Drive Panel (Drawing 3 of 3)

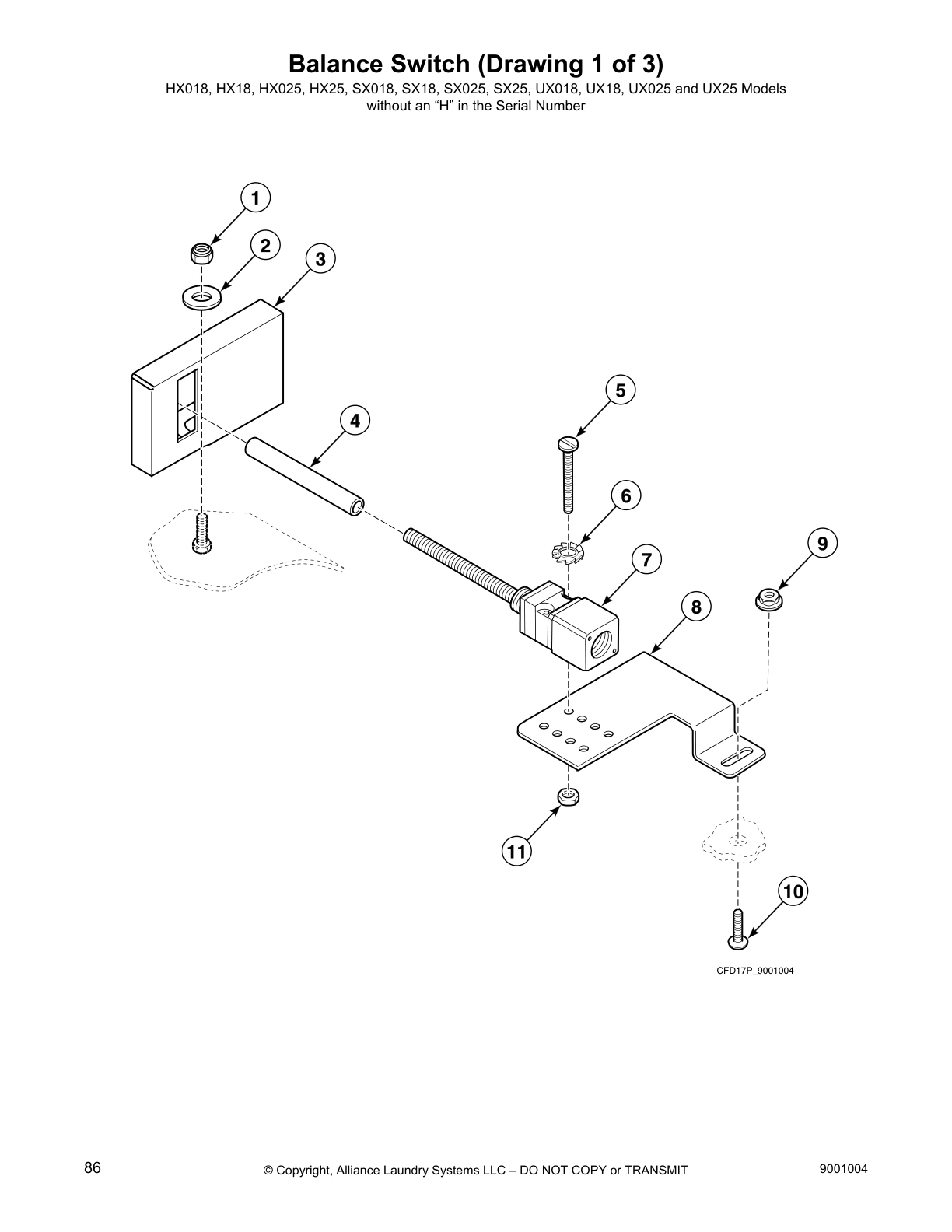

Balance Switch (Drawing 1 of 3)

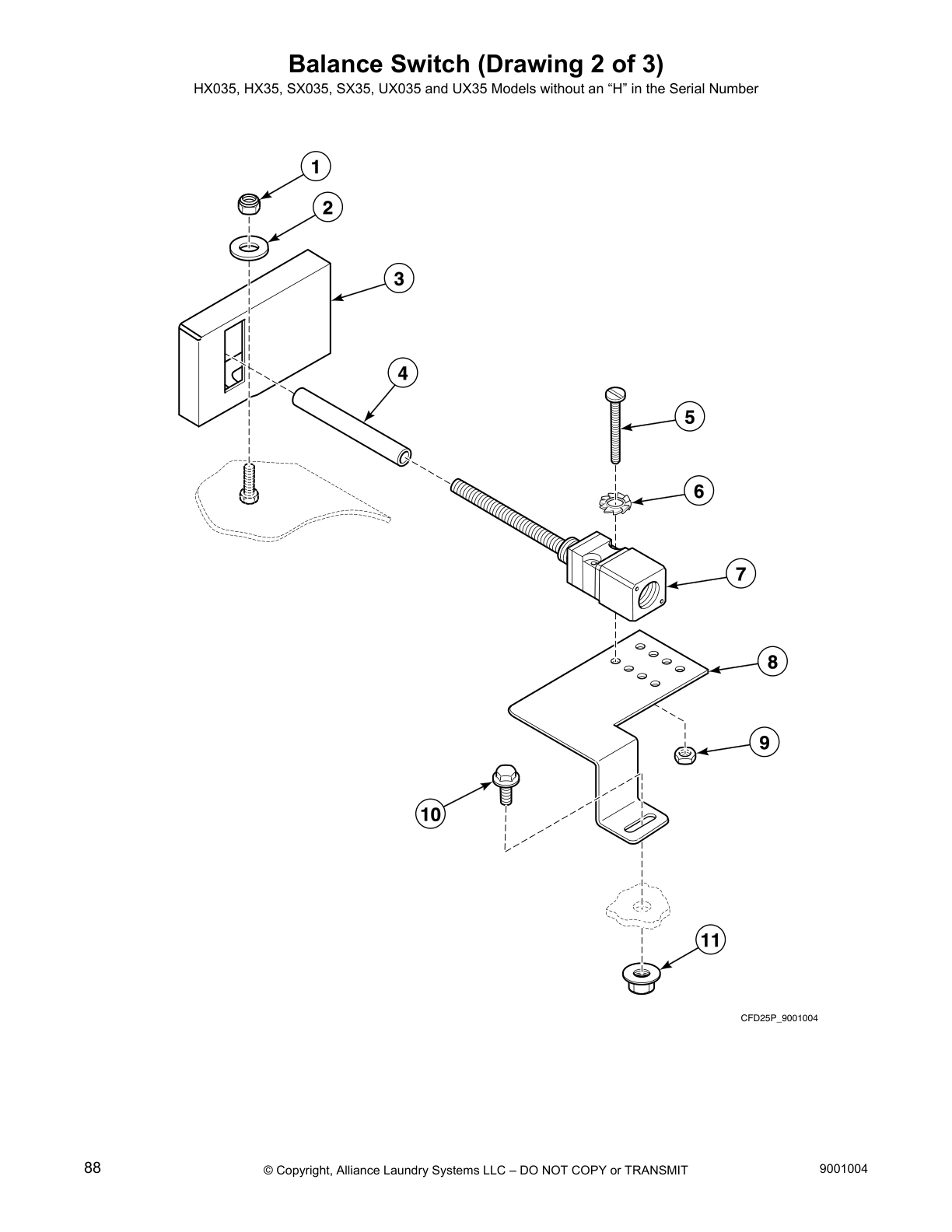

Balance Switch (Drawing 2 of 3)

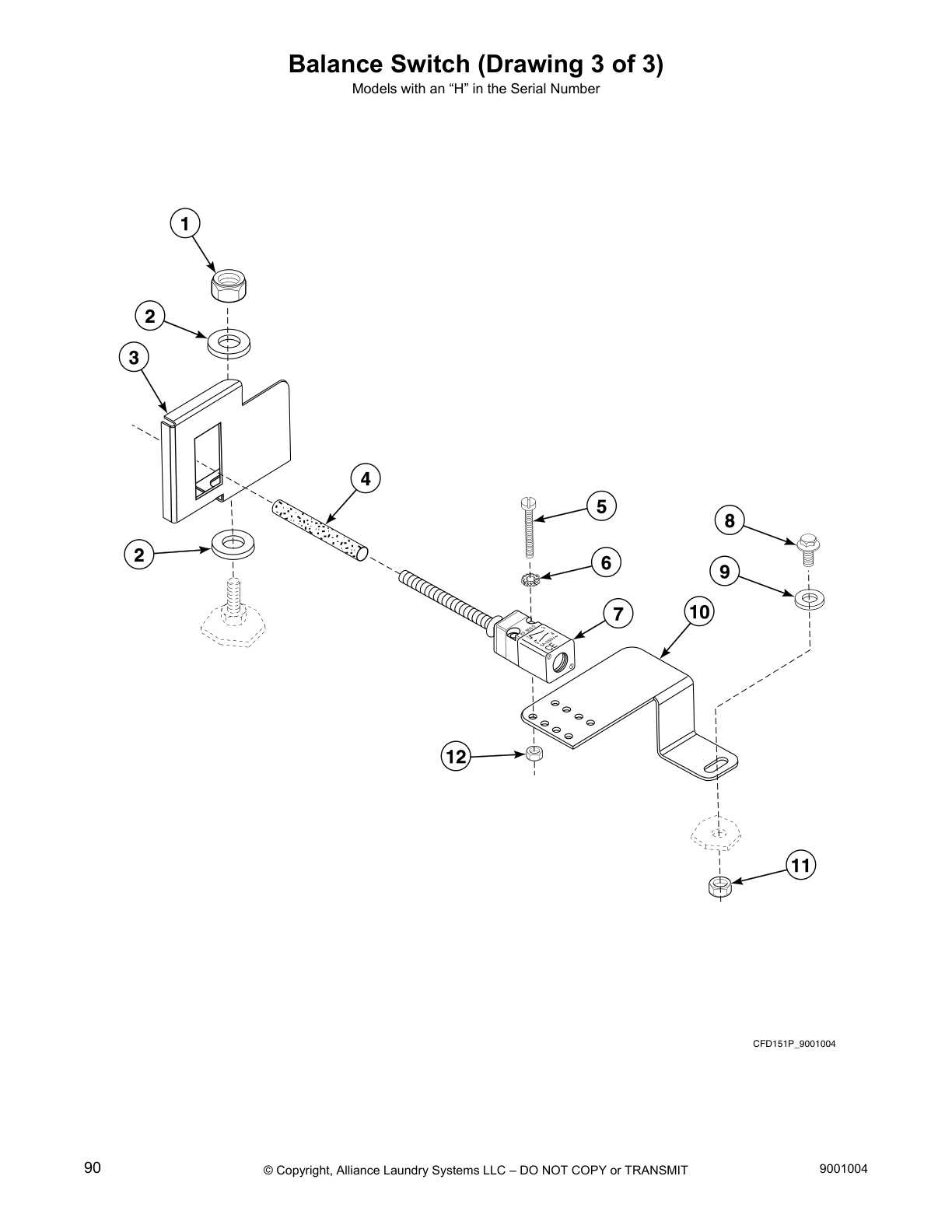

Balance Switch (Drawing 3 of 3)

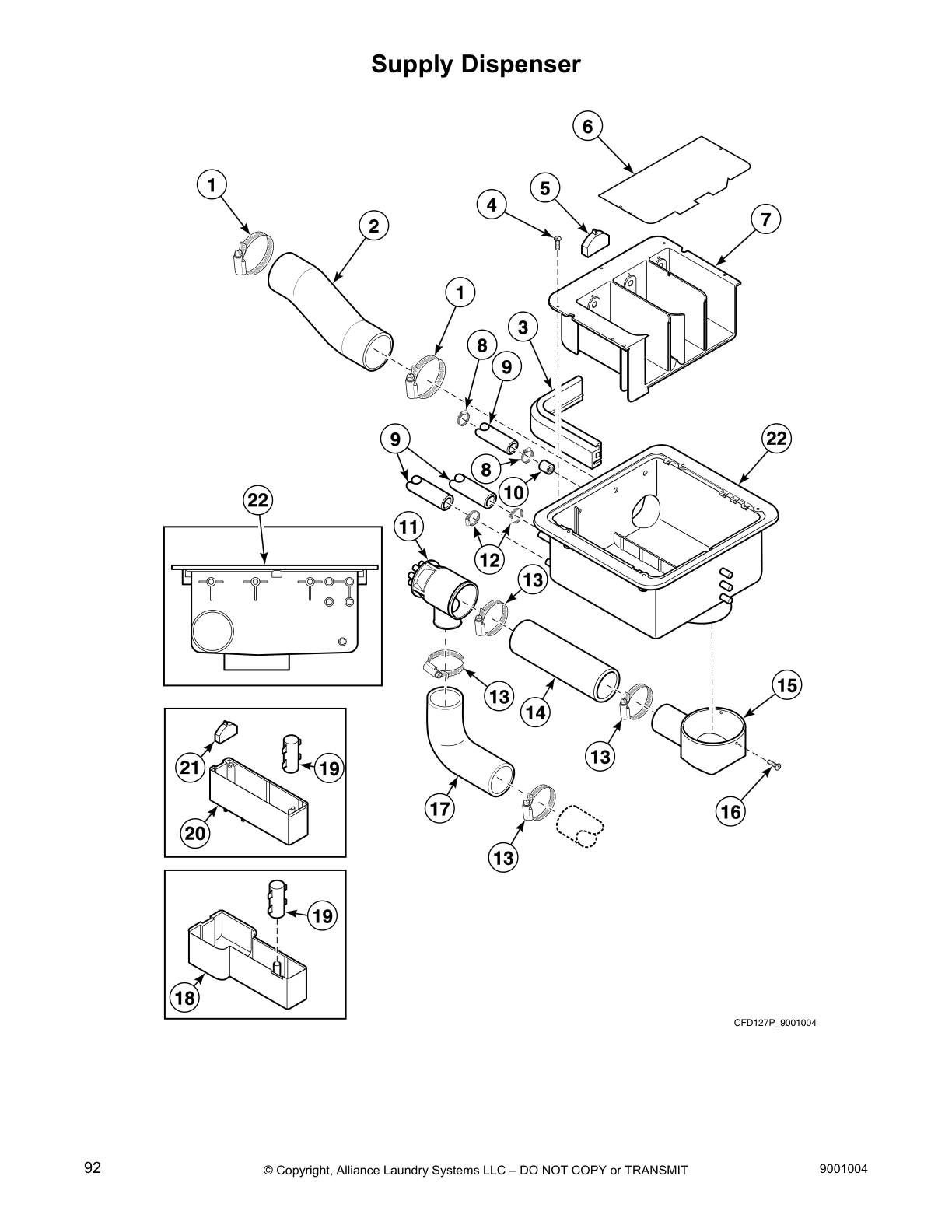

Supply Dispenser

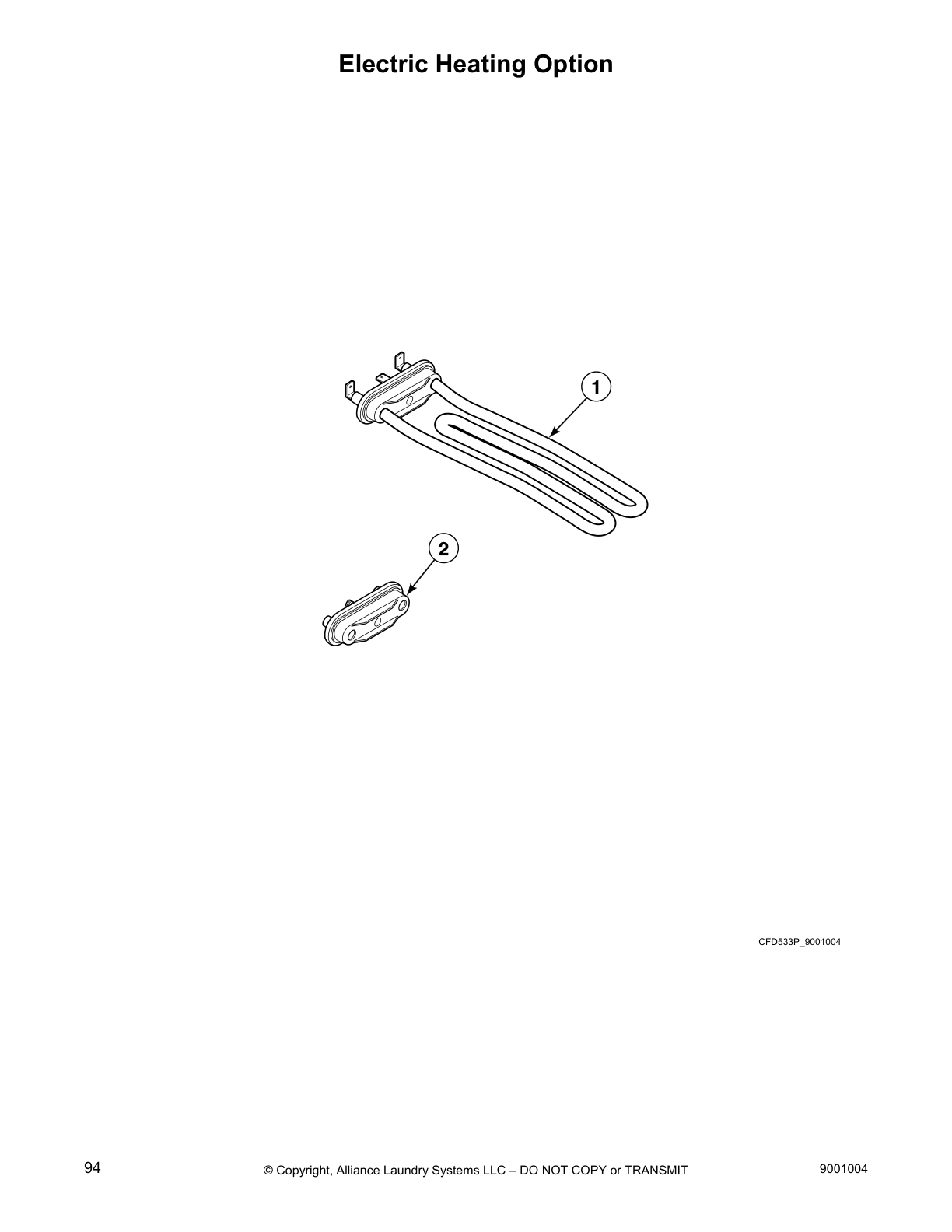

Electric Heating Option

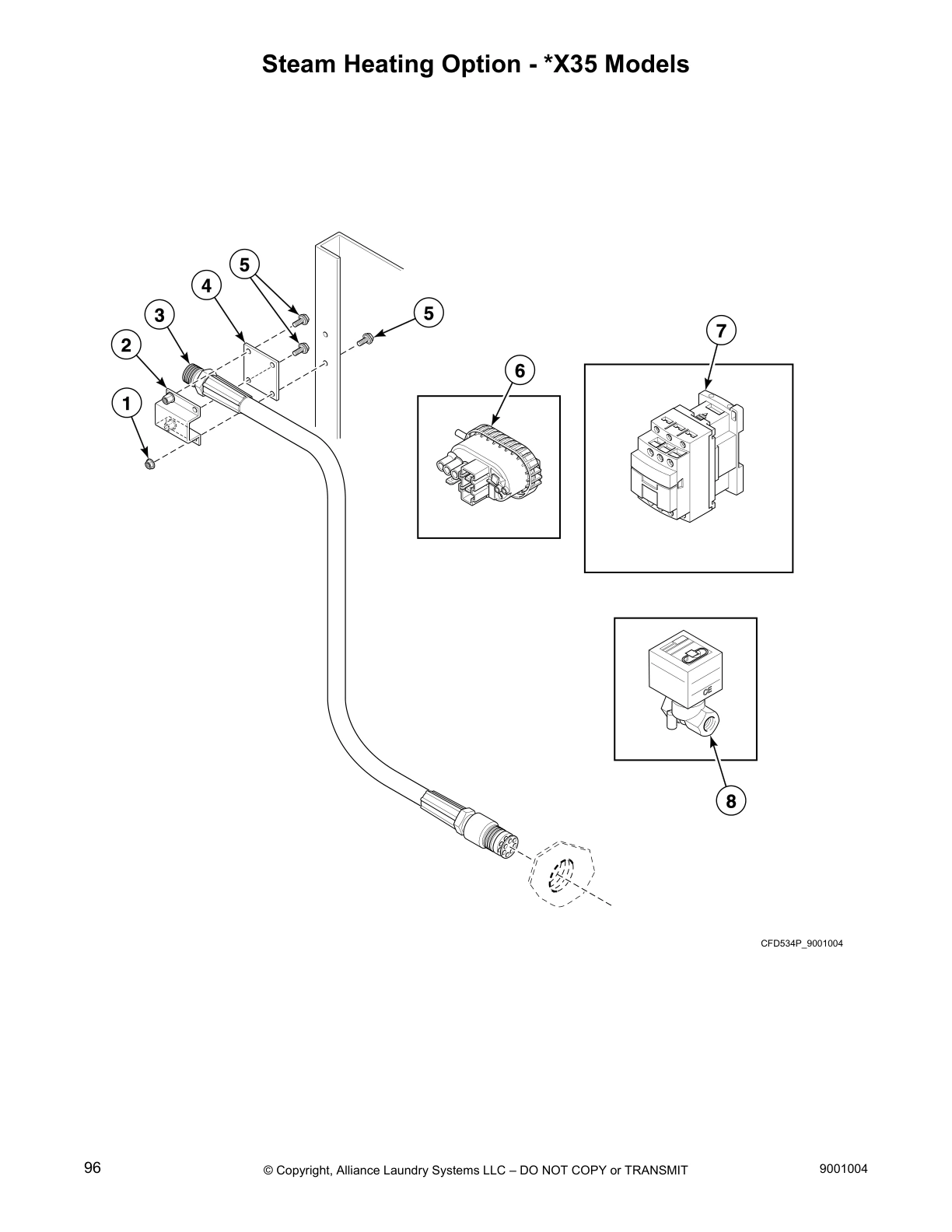

Steam Heating Option - *X35 Models
Common parts from model Unimac UX018PVXM7 Washer
1
Washer SPQ 201/00005/00 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Shock Absorber SPQ SPPRI611001025 Contact Us For Availability
1
Bearing Spacer SPQ 217/00100/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Nut SPQ 206/00101/00 Contact Us For Availability
1
Prewash and Mainwash Nozzle SPQ 223/00001/04 Contact Us For Availability
1
Door Glass SPQ 217/00022/00 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Screw SPQ 208/00001/00 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Inverter Drive SPQ F8420905 Contact Us For Availability
1
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
2
Fastening Rubber SPQ 247/00006/00 Contact Us For Availability
2
Out-of-Balance Switch Boot SPQ 201/00010/00 Contact Us For Availability
2
Basket and Shaft Assembly SPQ B12542701 Contact Us For Availability
2
Screw SPQ 201/00012/00 Contact Us For Availability
2
Bolt SPQ 206/00005/00 Contact Us For Availability
2
Overflow Hose SPQ 201/00002/00 Contact Us For Availability
2
Door Handle Latch SPQ 9001474 Contact Us For Availability
2
Ribbon Assembly SPQ 209/00580/0000 Contact Us For Availability
2
Grommet SPQ 223/00198/00 Contact Us For Availability
2
Nut SPQ 208/00104/00 Contact Us For Availability
2
Inverter Box Cover SPQ 111/10425/11 Contact Us For Availability
2
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
2
Softener Spray Nozzle SPQ 223/00107/02 Contact Us For Availability
2
Heating Element Plug SPQ F360202 Contact Us For Availability
3
Retaining Ring SPQ 206/00053/00 Contact Us For Availability
3
Washer SPQ 247/00007/00 Contact Us For Availability
3
Screw SPQ 111/01854/00 Contact Us For Availability
3
Tub Front Ring Clamp SPQ B12379801 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Pressure Switch Hose Tee SPQ 204/00201/00 Contact Us For Availability
3
O-Ring SPQ 9001479 Contact Us For Availability
3
O-Ring SPQ 217/00015/00 Contact Us For Availability
3
Door Handle Catch SPQ 217/00051/13 Contact Us For Availability
3
Insulating Sticker SPQ 209/00372/01 Contact Us For Availability
3
Side Panel SPQ 111/10089/60 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
AC Drive Cover SPQ F200169500 Contact Us For Availability
3
Supply Deflector SPQ 223/00109/00 Contact Us For Availability
4
Tub Support SPQ 152/00067/00 Contact Us For Availability
4
Caddy Bracket SPQ 201/00201/00 Contact Us For Availability
4
Nut SPQ 206/00056/00 Contact Us For Availability
4
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
4
Control Panel SPQ 229/00255/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
SPQ 155/00162/00 SPQ 155/00162/00 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
Screw SPQ 9001338 Contact Us For Availability
4
Backbridge SPQ 208/00130/00 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
4
Water Hose SPQ B12347501 Contact Us For Availability
5
Frame SPQ 152/00101/50 Contact Us For Availability
5
Nut SPQ 217/00007/00 Contact Us For Availability
5
Washer SPQ 203/00004/00 Contact Us For Availability
5
Bolt SPQ 206/00099/00 Contact Us For Availability
5
Cordlock SPQ 255/00012/00 Contact Us For Availability
5
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
5
SPQ 223/00044/00 SPQ 223/00044/00 Contact Us For Availability
5
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
5
Overlay SPQ 204/00116/00 Contact Us For Availability
5
Support Connector SPQ 111/10003/10 Contact Us For Availability
5
Liquid Soap Manifold SPQ 111/10426/90 Contact Us For Availability
5
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
5
Inverter Drive Box SPQ 202/00004/00 Contact Us For Availability
5
Bolt SPQ 111/10089/00 Contact Us For Availability
5
Main Switch SPQ 209/00529/00 Contact Us For Availability
5
Bolt SPQ 207/00018/00 Contact Us For Availability
5
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
6
Leveling Leg SPQ 206/00106/00 Contact Us For Availability
6
Suspension Spring SPQ 247/00001/03 Contact Us For Availability
6
Washer SPQ 203/00002/00 Contact Us For Availability
6
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
6
SPQ F100137P SPQ F100137P Contact Us For Availability
6
SPQ 204/00109/00 SPQ 204/00109/00 Contact Us For Availability
6
SPQ 223/00123/00 SPQ 223/00123/00 Contact Us For Availability
6
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
6
Lower Rear Panel SPQ 111/60031/00 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
Terminal Block SPQ 209/00526/00 Contact Us For Availability
6
SPQ F200047800 SPQ F200047800 Contact Us For Availability
7
Shipping Brace SPQ 252/00006/00 Contact Us For Availability
7
Pulley SPQ 201/00015/00 Contact Us For Availability
7
Spring Holder Top SPQ 247/00009/00 Contact Us For Availability
7
Grommet SPQ 204/00114/00 Contact Us For Availability
7
SPQ 271/35945/00 SPQ 271/35945/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
7
SPQ 211/00107/00 SPQ 211/00107/00 Contact Us For Availability
7
SPQ 111/10107/00 SPQ 111/10107/00 Contact Us For Availability
7
Rivet SPQ 209/00530/00 Contact Us For Availability
8
SPQ 185/00009/12 SPQ 185/00009/12 Contact Us For Availability
8
SPQ 247/00002/03 SPQ 247/00002/03 Contact Us For Availability
8
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
8
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
8
SPQ 211/00167/00 SPQ 211/00167/00 Contact Us For Availability
8
SPQ 9001499 SPQ 9001499 Contact Us For Availability
8
SPQ 202/00110/00 SPQ 202/00110/00 Contact Us For Availability
8
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
8
Soap Dispenser Cover SPQ 111/10427/01 Contact Us For Availability
8
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
9
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
9
SPQ 223/00190/00 SPQ 223/00190/00 Contact Us For Availability
9
SPQ 203/00010/00 SPQ 203/00010/00 Contact Us For Availability
9
SPQ 202/00101/00 SPQ 202/00101/00 Contact Us For Availability
9
SPQ F8435601 SPQ F8435601 Contact Us For Availability
9
Pressure Switch Cap SPQ 111/10003/30 Contact Us For Availability
9
SPQ 208/00121/00 SPQ 208/00121/00 Contact Us For Availability
9
SPQ 111/10425/50 SPQ 111/10425/50 Contact Us For Availability
10
Bolt SPQ 206/00054/00 Contact Us For Availability
10
Door Lock Microswitch SPQ 207/00112/00 Contact Us For Availability
10
Hinge SPQ 221/00003/00 Contact Us For Availability
10
Contact Block SPQ 44018901 Contact Us For Availability
10
Kickplate SPQ 111/10109/00 Contact Us For Availability
10
Electrical Connection Plate SPQ 111/00180/00 Contact Us For Availability
10
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
10
Restrictor Assembly SPQ F060334200P Contact Us For Availability
11
Washer SPQ 204/00005/00 Contact Us For Availability
11
Motor Key SPQ 227/00126/01 Contact Us For Availability
11
Door Hinge Spacer SPQ 117/00011/00 Contact Us For Availability
11
Switch Base SPQ 209/00099/25 Contact Us For Availability
11
Liquid Soap Manifold SPQ 223/00250/00 Contact Us For Availability
12
Front Panel SPQ 208/00122/00 Contact Us For Availability
12
Motor SPQ B12510501 Contact Us For Availability
12
Siphon Break Dispenser Hose SPQ F200205 Contact Us For Availability
12
Microswitch SPQ 201/00018/00 Contact Us For Availability
12
Screw SPQ 117/00010/00 Contact Us For Availability
12
Switch Knob SPQ 209/00099/29 Contact Us For Availability
12
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
12
Control Panel SPQ 111/01871/00 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00007/00 Contact Us For Availability
12
Bolt SPQ 9001309 Contact Us For Availability
12
Motor and Fan Harness SPQ 210/00207/00 Contact Us For Availability
13
Bearing SPQ F100136P Contact Us For Availability
13
Bolt SPQ 206/00014/00 Contact Us For Availability
13
Front Shell SPQ 111/01897/00 Contact Us For Availability
13
Screw SPQ 207/00117/00 Contact Us For Availability
13
Dispenser Drain Funnel SPQ 223/00013/00 Contact Us For Availability
13
Lock Shaft SPQ 207/00009/00 Contact Us For Availability
13
Door Frame SPQ 207/00126/00 Contact Us For Availability
13
Pushbutton SPQ 44018701 Contact Us For Availability
13
Noise Filter SPQ 227/00164/00 Contact Us For Availability
14
Tub Gasket SPQ 118/00022/10 Contact Us For Availability
14
Outlet Pipe Plate Assembly SPQ 111/00180/04 Contact Us For Availability
14
Programming Key SPQ 44018801 Contact Us For Availability
14
Screw SPQ 207/00004/00 Contact Us For Availability
14
Screw SPQ 223/00260/00 Contact Us For Availability
15
Cylinder and Shaft Assembly SPQ 223/00242/10 Contact Us For Availability
15
Door Lock Solenoid SPQ 207/00102/00 Contact Us For Availability
15
Door Handle Stop SPQ 118/00046/10 Contact Us For Availability
15
Micro to Connector Harness SPQ 210/01304/15 Contact Us For Availability
15
Liquid Soap Dispenser Insert SPQ 223/00195/00 Contact Us For Availability
16
Basket Kit SPQ 111/01807/00 Contact Us For Availability
16
Washer SPQ 205/00104/00 Contact Us For Availability
16
Bearing Housing Assembly SPQ 152/10117/01 Contact Us For Availability
16
Spacer SPQ 209/00326/20 Contact Us For Availability
16
Soap Dispenser Rinse Siphon SPQ B12350903 Contact Us For Availability
17
Washer SPQ 201/00007/00 Contact Us For Availability
17
Screw SPQ 204/00106/00 Contact Us For Availability
17
Door Lock Spring SPQ 217/00017/03 Contact Us For Availability
18
Backbridge SPQ 101/00007/00 Contact Us For Availability
18
Bolt SPQ 206/00033/00 Contact Us For Availability
18
Interlock Coil Spring SPQ C000184P Contact Us For Availability
18
Main Control SPQ 211/00140/00 Contact Us For Availability
18
Vent Hose SPQ 223/00102/08 Contact Us For Availability
19
Crossbar SPQ 204/00009/00 Contact Us For Availability
19
Drain Piece SPQ 223/00146/00 Contact Us For Availability
19
Interlock Lever SPQ 210/59000/00P Contact Us For Availability
19
Rinse Insert SPQ 223/00102/04 Contact Us For Availability
20
Water Hose SPQ 223/00150/00 Contact Us For Availability
20
Door Lock Assembly SPQ 224/00049/00 Contact Us For Availability
20
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
20
Soap Dispenser Assembly SPQ 223/00102/03 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 223/00102/05 Contact Us For Availability
22
Washer SPQ 204/00008/00 Contact Us For Availability
22
Switch Lever SPQ 224/00043/00 Contact Us For Availability
22
Soap Spray Nozzle SPQ 223/00102/30 Contact Us For Availability
23
Fuse SPQ 203/00007/00 Contact Us For Availability
23
Lever Spring SPQ 217/00052/04 Contact Us For Availability
23
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
24
Ground Terminal SPQ 9001477 Contact Us For Availability
24
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
27
SPQ 9002018 SPQ 9002018 Contact Us For Availability
NI
SPQ 247/00002/02 SPQ 247/00002/02 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
NI
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
NI
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
NI
SPQ 204/00115/00 SPQ 204/00115/00 Contact Us For Availability
NI
SPQ 223/00035/02 SPQ 223/00035/02 Contact Us For Availability
NI
SPQ 217/00021/00 SPQ 217/00021/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 208/00124/00 SPQ 208/00124/00 Contact Us For Availability
NI
SPQ 223/00103/03 SPQ 223/00103/03 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
SPQ 111/10425/00 SPQ 111/10425/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Inverter Drive Kit SPQ F8420805 Contact Us For Availability
× ![]()
